Alpha WMP-N09H User manual

User Manual
For
WMP-N09H
無線網路卡
Wireless Mini PCI Adapter

Version: 1.1
2011/1/13
This document contains confidential proprietary information and is the property of
Alpha Networks Corporation. The contents of this document may not be disclosed to
unauthorized persons without the written consent of Alpha Networks Corporation.

Contents
TEST OPERATION MANUAL............................................................................................................4
Test Utility Installation:....................................................................................................................4
Configuration:..................................................................................................................................5
1.0 SCOPE...............................................................................................................................................6
1.1 DOCUMENT......................................................................................................................................6
1.2 PRODUCT FEATURES........................................................................................................................6
2.0 REQUIREMENTS...........................................................................................................................6
2.1 GENERAL REQUIREMENTS...............................................................................................................7
2.1.1 General Section.......................................................................................................................7
2.2 REQUIREMENTS OF RELIABILITY,MAINTAINABILITY AND QUALITY...............................................7
2.3 ENVIRONMENTAL REQUIREMENTS ..................................................................................................7
ENDPRODUCTLABELING.........................................................................................................................9
MANUALINFORMATIONTOTHEENDUSER...........................................................................................9

Test Operation Manual
Test Utility Installation:
1. Unzip “ART_V0_5_b25ALL.zip” to “C:\”.
2. The utility must run on Win2000 or WinXP.
Hardware Installation:
Before insert the card, please execute the below instruction at first !!
1. Win2000 OS :
Enter in the directory : C:\ v0_5_b25ALL\art_driver\bin\2000
Execute the uninst_new_drv_2k.bat:
Execute the inst_new_drv_2k.bat :
WinXP OS :
Enter in the directory : C:\ v0_5_b25ALL\art_driver\bin\xp
Execute the uninst_new_drv_xp.bat:
Execute the inst_new_drv_xp.bat
2. Insert the card, then install the driver , the driver is located at
Win2000 OS :
C:\ v0_5_b25ALL\art_driver\bin\2000
WinXP OS :
C:\ v0_5_b25ALL\art_driver\bin\xp

Configuration:
1. Enter the DOS command mode , then change the directory to :
C:\ v0_5_b25ALL\art_driver\bin\xp
2. Input the instruction: art \id=2082
Then press enter .
ART TEST MODE:
1. Once utility is executed, a menu with test options will appear. To run a test, press
the character key that is assigned to the test option.
For example, press “c” to run the continuous transmit test, or press “r ” to run the
continuous receive test.
For example: press “o” to change 11g or 11b test mode, Press “c” to continuous
transmit mode .
2. Continuous Transmit Options.
a. Before the Continuous Transmit test, need to press “e” first
The command will load the calibrate data to the EEROM, then the card can
transmit the target power
b. The channel frequency, data rate and output power could be changed in
continuous transmit options. Press “c” to increase the output power , 11g Power
(data rate 6Mbps) is 17dBm, 11b Power is 17dBm , Press ESC to return to the
main Test Options menu when finished.
3. Continuous Receive Options
Continuous receive options will put the radio into receive mode to allow for
radio measurements. Press ESC to return to the main Test Options menu when

finished.
1.0 Scope
1.1 Document
This document is to specify the product requirements for 802.11n Mini PCI. This mPCI is based on Atheros
chip that complied with IEEE 802.11n from 2.4~2.5GHz, and it is also backward compatible to comply with
IEEE 802.11g and IEEE 802.11b standard to connect your exist 802.11 b/g wireless LAN device.
1.2 Product Features
 Compatible with IEEE 802.11g high rate standard to provide wireless 54Mbps data rate
 Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate
 Compatible with IEEE 802.11n draft standard to provide wireless 300Mbps data rate
 Operation at 2.4 ~ 2.5GHz frequency band to meet worldwide regulations
 Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54Mbps for IEEE 802.11g
 Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b
 Dynamic date rate of IEEE 802.11n scaling from MCS – 0 to MCS –15 as shown in Appendix I
 Supports WEP, 802.1x, WPA and WPA2 enhanced security
 Friendly user configuration and diagnostic utilities
 Support Linux driver.
 Supports Mini-PCI Type IIIA form factor
2.0 Requirements
The following sections identify the detailed requirements of the 802.11 b/g/n

2.1 General Requirements
2.1.1 General Section
# Feature Detailed Description
2.1.1.1 Antenna Type
Two UFL antenna connectorss
2.1.1.2 Operating
Voltage 3.3VDC +/- 10%
2.1.14 Form Factor
and
Interface
Mini-PCI type III A form factor
2.2 Requirements of Reliability,
Maintainability and Quality
# Feature Detailed Description
2.2.1 MTBF Mean Time Between Failure > 30,000 hours
2.22 Maintainability There is no scheduled preventive maintenance required
2.2.3 Quality The product quality is followed-up by Alpha Networks
factory quality control system
2.3 Environmental Requirements
# Feature Detailed Description
2.3.1 Operating
Temperature
Conditions
The product is capable of continuous reliable operation when operating
in ambient temperature of 0 ℃to +40℃.
2.3.2 Non-Operating
Temperature
Conditions
Neither subassemblies is damaged nor the operational performance is
degraded when restored to the operating temperature after exposing to
storage temperature in the range of –20 ℃to +75 ℃.
2.3.3 Operating
Humidity
conditions
The product is capable of continuous reliable operation when subjected
to relative humidity in the range of 10% and 90% non-condensing.
2.34 Non-Operating
Humidity
Conditions
The product is not damaged nor the performance is degraded after
exposure to relative humidity ranging from 5% to 95% non-condensing

FederalCommunicationCommissionInterferenceStatement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCC
Rules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe
instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewill
notoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,which
canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneofthe
followingmeasures:

‐ Reorientorrelocatethereceivingantenna.
‐ Increasetheseparationbetweentheequipmentandreceiver.
‐ Connecttheequipmentintoanoutletonacircuitdifferentfromthat
towhichthereceiverisconnected.
‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynot
causeharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.

FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser's
authoritytooperatethisequipment.

IMPORTANTNOTE:
FCCRadiationExposureStatement:
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshould
beinstalledandoperatedwithminimumdistance20cmbetweentheradiator&yourbody.
Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.

IEEE802.11bor802.11goperationofthisproductintheU.S.A.isfirmware‐limitedtochannels1through11.

ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions:
1) Theantennamustbeinstalledsuchthat20cmismaintainedbetweentheantennaandusers,and
2) Thetransmittermodulemaynotbeco‐locatedwithanyothertransmitterorantenna,
3) ForallproductsmarketinUS,OEMhastolimittheoperationchannelsinCH1toCH11for2.4Gbandbysupplied
firmwareprogrammingtool.OEMshallnotsupplyanytoolorinfototheend‐userregardingtoRegulatoryDomainchange.
Aslongas3conditionsabovearemet,furthertransmittertestwillnotberequired.However,theOEMintegratorisstill
responsiblefortestingtheirend‐productforanyadditionalcompliancerequirementsrequiredwiththismoduleinstalled(for
example,digitaldeviceemissions,PCperipheralrequirements,etc.).


IMPORTANTNOTE:Intheeventthattheseconditionscannotbemet(forexamplecertainlaptopconfigurationsorco‐location
withanothertransmitter),thentheFCCauthorizationisnolongerconsideredvalidandtheFCCIDcannotbeusedonthefinal
product.Inthesecircumstances,theOEMintegratorwillberesponsibleforre‐evaluatingtheendproduct(includingthe
transmitter)andobtainingaseparateFCCauthorization.

EndProductLabeling
Thistransmittermoduleisauthorizedonlyforuseindevicewheretheantennamaybeinstalledsuchthat20cmmaybe
maintainedbetweentheantennaandusers.Thefinalendproductmustbelabeledinavisibleareawiththefollowing:
“ContainsFCCID: RRKWMPN09HB1”.

ManualInformationTotheEndUser
TheOEMintegratorhastobeawarenottoprovideinformationtotheenduserregardinghowtoinstallorremovethisRF
moduleintheuser’smanualoftheendproductwhichintegratesthismodule.
Theendusermanualshallincludeallrequiredregulatoryinformation/warningasshowinthismanual.

























Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
This device has been designed to operate with an antenna having a maximum gain of 3.1dBi (Peak Gain)
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP
is not more than required for successful communication.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This radio transmitter IC 4833A- WMPN09HB1 has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type,
are strictly prohibited for use with this device.

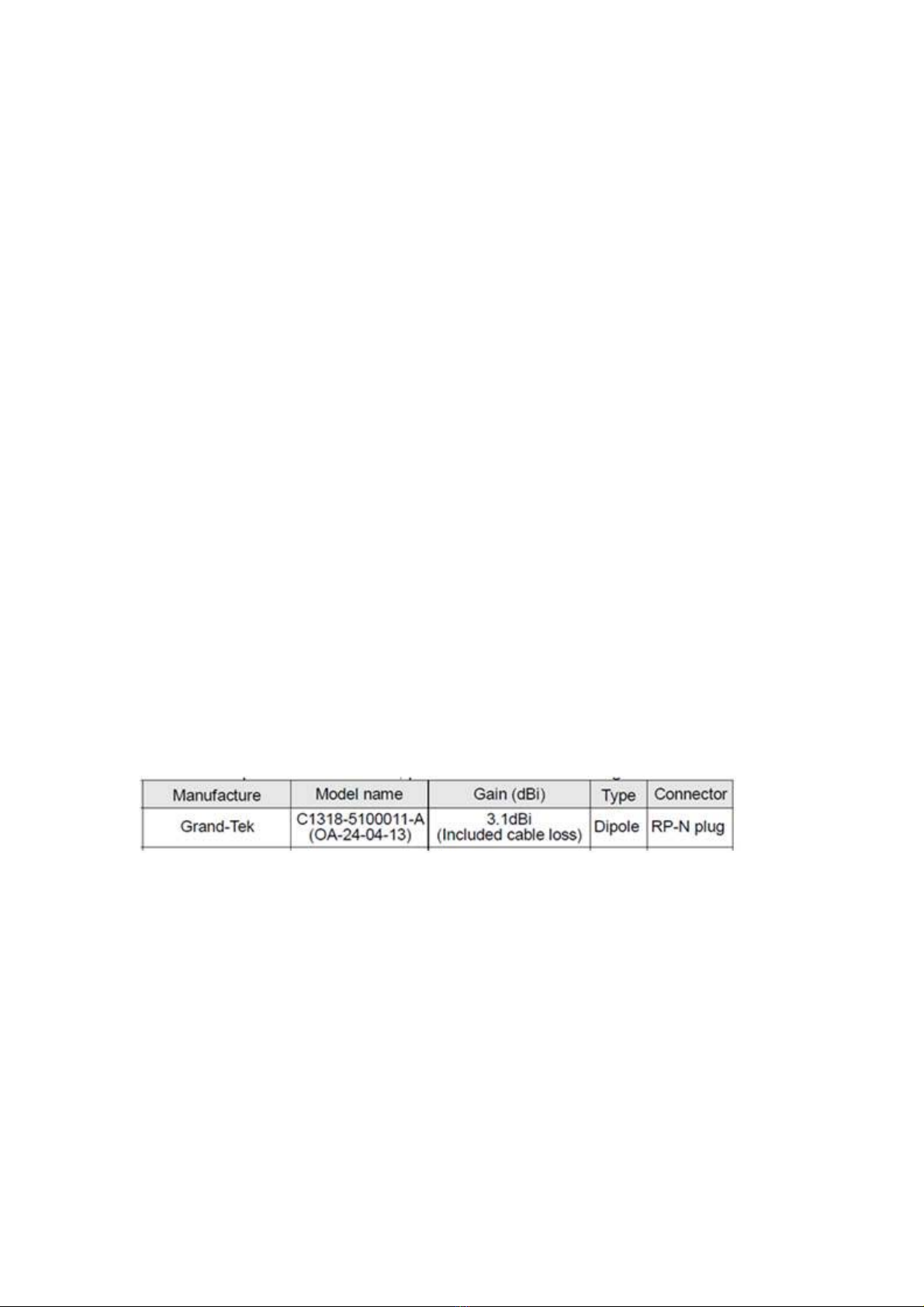

Approved antenna list: Impedance 50 ohm.

This device is intended only for OEM integrators
under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna.
This device is intended only for OEM integrators under the following conditions:
1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2. The transmitter module may not be co-located with any other transmitter or antenna,
3. For all products market in CANADA, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by
supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory
Domain change.
