Alpic Air ADO-26HPR1B User manual

Thank you very much for purchasing our air conditioner.
Please read t hi s owner's manu al c arefully before using
your air conditioner .
AIR CONDITIONER
OWNER'S MANUAL
REMOTE CONTROLLER MANUAL
ADI/ADO-26HPR1B
ADI/ADO-35HPR1B
ADI/ADO-54HPR1B

1
2
2
5
6
7
7
8
11
12
12
13
Handling the remote controller ...................................
Specifications..............................................................
Features of remote controller .....................................
Indicators on remote controller....................................
Automatic operation....................................................
Cooling/Heating/Fan only operation............................
Drying operation .........................................................
Timer operation...........................................................
Sleep button function................................................
Reset and lock buttons function................................
Air direction button function.......................................
Cautions....................................................................
CONTENTS

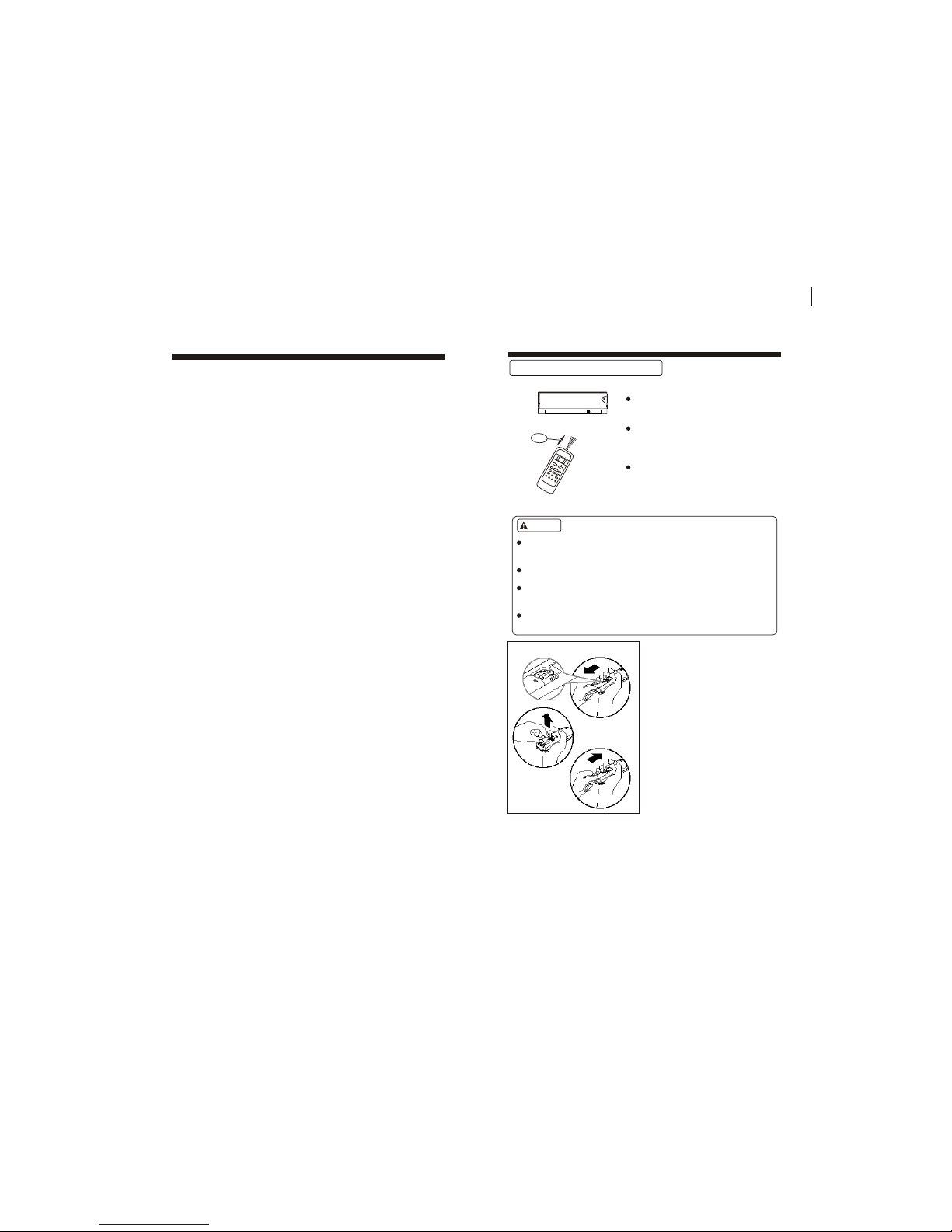

Keep the remote controller where its
signals can reach the receiver of the
indoor unit. (a distance of 8m is allowed).
When you select the timer operation, the
remote controller automatically transmits
a signal to the indoor unit at the specified
time.
If you keep the remote controller in a
position that hinders proper signal
transmission, a time lag of up to 15
minutes may occur.
Location of the remote controller.
8m
CAUTIONS
The air conditioner will not operate if curtains, doors or other
materials block the signals from the remote controller to the indoor
unit.
Prevent any liquid from falling into the remote controller. Do not
expose the remote controller to direct sunlight or heat.
If the infrared signal receiver on the indoor unit is exposed to direct
sunlight, the air conditioner may not function properly. Use curtains
to prevent the sunlight from falling on the receiver.
If other electrical appliances react to the remote controller. either
move these appliances or consult your local dealer.
The remote controller uses two
alkaline dry batteries (R03/LR03X2)
(1) Slide the cover of the battery
compartment off according to the
arrow direction, then replace the
old batteries with new ones.
(2) Insert the new batteries making
sure that the(+) and (-) of battery
are installed correctly.
(3) Reattach the cover by sliding it
back into position.
NOTE: Do not use old batteries or
different type batteries or rechargeable
batteries, otherwise it may cause the
remote controller malfunction.
Replacing batteries
.
Handling the remote controller
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FANSPEED
TIMERON
SLEEP
ON/OFF
PLASMATIMEROFF
AIR
DIRECTION
RESETLOCK
SETTEMPERATURE()
SENSORLED
DISPLAY TURBO
VENT
1

2
3
TEMP Button : Push this button to decrease the indoor
oo
temperature setting in 1 C increments to 17 C.
RESET Button: Once the recessed RESET button is pressed,
all of the current settings will be cancelled and the controller will
return to the initial settings.
NOTE: Heat mode is for reverse cycle models only.
1
6
ON/OFF Button: Press this button to start the indoor unit.
Press again to stop the unit.
9
TEMP Button : Push this button to increase the indoor
oo
temperature setting in 1 C increments to 30 C.
2
7
MODE Button: Each time the button is pressed, the operation
mode is selected in the sequence of the following:
3
AUTO COOL
DRY HEAT HEALTH
FAN SPEED Button: Press the button to select the Fan speed in
the sequence: AUTO, LOW, MED and HIGH. Each time the button
is pressed, the fan speed selection is shifted.
5
4
10
8
SELF CLEAN(AUTO CLEAN )Button: Press this button under
COOL or DRY mode, the self clean function is activated. Press it
again will stop the operation and turn off the unit.
SWING Button: Press this button once and quickly to change the
air flow direction of the horizontal louver a little. The moving angle
o
of the louver is 6 for each press. Press the button without releasing
for 2 more seconds, the horizontal louver would swing automatically.
Press it again, it would stop moving. When the louver swing/moving
at a certain position which would affect the cooling and heating
effect of the air conditioner, it would automatically change the
swing direction (upward or downward).
Model
Lowest Voltage of
CPU Emitting Signal
Rated Voltage
R51I4/BGE,R51I4/BGCE
-5 C 60 C
8m (when using 3.0 voltage, it Gets 11m)
3.0V(Dry batteries R03/LR03 2)
2.0V
~~
Remote Controller Specification
Performance Features
Features of Remote controller buttons
1. Operating Mode: COOL HEAT(Cooling only model without)
DRY HEALTH and AUTO .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
12
4
5
6
3
8
7
9
10
11
12
13
Environment
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
14
Signal Receiving
Range
CLEAN
AIR
TURBO
15
16
CLEAN AIR Button(on some models): When push this button,
the ion generator is energized and will help to remove pollen and
impurities from the air.
FOLLOW ME Button(on some models): Push this button to
initiate the Follow Me feature, the remote display is actual
temperature at its location. The remote control will send this
signal to the air conditioner every 3 minutes interval until press
the Follow Me button again. The air conditioner will beep to
indicate the Follow Me feature has ended if it does not receive
the signal during any 7 minute interval.

TIMER OFF Button: Press this button to activate the Auto-off time
setting. Each press will increase the time setting in 30 minutes
increments if the setting time is lower than 10 hours. When the
setting time reaches 10h, each press will increase the time setting
1 hour in increments. To cancel the Auto-off time setting, just press
the button until the time setting is 0.0.
LED DISPLAY Button: Press this button to clear the display on
the indoor unit, press it again to light the display .
LOCK Button: Press this recessed button to lock all current
settings, and the remote controller will not accept any operation
except that of the LOCK. Use the LOCK mode when you want to
prevent settings from being changed accidentally. Press the LOCK
button again to cancel the LOCK function. A lock symbol will appear
on the remote controller display when the lock function is activated.
TURBO Button: Push this button to activate the Turbo function in
which the air conditioner will go into powerful heating (in HEAT
mode) or cooling (in COOL mode) operation. Push again to cancel
the Turbo function.
Note: The unit system will automatically revert back to the
previous settings after continue operating under powerful
cooling mode for about half an hour.
13
16
14
15

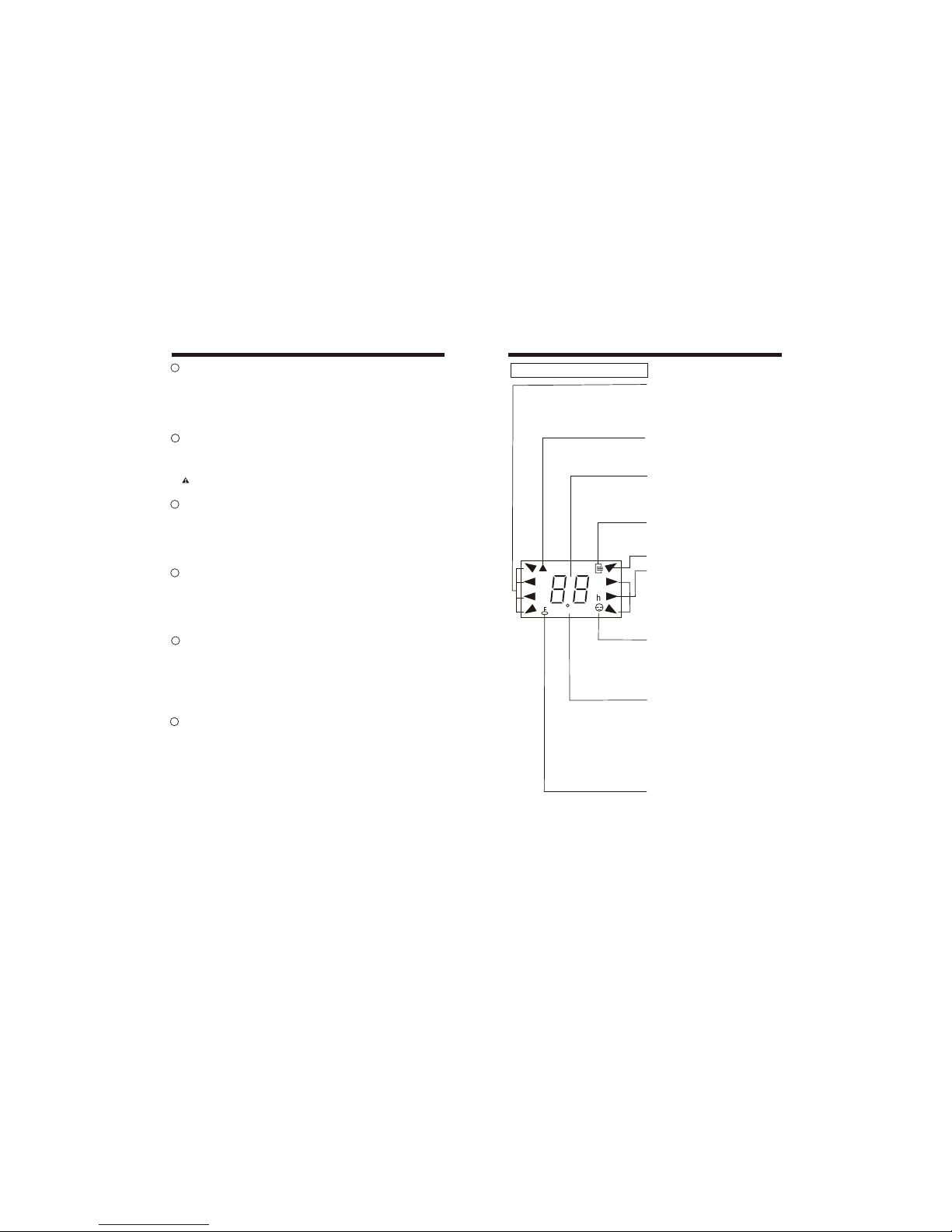

Indicators on Display Panel
TIMER ON OFF
SET TEMPERATURE
Transmission Indicator
Temp./Timer display
Fan speed display
Mode display
ON/OFF display
This transmission indicator will light
when remote controller transmits
signals to the indoor unit.
Displays the current selected mode.
Including AUTO, COOL, DRY, HEAT
(reverse cycle models only) and
HEALTH.
o
The temperature setting (from 17 C
o
to 30 C) or timer setting (0~24h) will
be displayed. If HEALTH mode is
selected, there will be no display.
This indicator will be displayed when
the unit is operating.
Displays the selected fan speed:
AUTO, HIGH, MED and LOW.
Nothing displays when the fan speed
is selected in AUTO speed. When
AUTO or DRY Mode is selected, there
will be no signals displayed.
This display area shows the settings
of the TIMER. That is, if only the
Auto-on time function is set, it will
display TIMER ON. If only the Auto-off
time function is set, it will display
TIMER OFF. If both functions are
set, it will display TIMER ON OFF
which indicates you have chosen both
the Auto-on time and Auto-off time.
LOCK display is displayed when
pushing the LOCK button. Push the
LOCK button to clear display.
4
5
Mode display(HEALTH mode)
FOLLOW ME display
When pressing FOLLOW ME button
in COOL or HEAT mode, the remote
sensing function is activated and this
indicator displays.
TIMER display
LOCK Indicator
11 TIMER ON Button: Press this button to activate the Auto-on time
setting. Each press will increase the time setting in 30 minutes
increments if the setting time is lower than 10 hours. When the
setting time reaches 10h, each press will increase the time setting
1 hour in increments. To cancel the Auto-on time setting, just
press the button until the time setting is 0.0.
NOTE: While the unit is running under SLEEP mode, it would
be cancelled if any other buttons are pressed.
SLEEP Button: Press this button to activate the Energy-Saving
mode. Press again to stop the function. This function is available
on COOL, HEAT or AUTO mode only and maintain the most
comfortable temperature for you.
12

AUTO operation
Ensure the unit is plugged in and power
is available. The OPERATION indicator
on the display window of the indoor unit
illuminates.
1. Mode select button (MODE)
Press to select AUTO.
2. Temperature button (TEMP)
Set the desired temperature. Normally,
oo
set it between 21 C and 28 C.
3. ON/OFF button
Press the ON/OFF button to start
the air conditioner.
ON/OFF button
Push this button again to stop the air
conditioner.
If the AUTO mode is uncomfortable, you
can select the desired conditions manually.
When you select the AUTO mode, you
do not have to set the fan speed. The
fan speed will be automatically controlled.
When you set the air conditioner in AUTO
mode, it will automatically select cooling,
heating (Reverse cycle models only),
or health operation depending on what
temperature you have selected and the
room temperature.
Once you select the operating mode,
the operating conditions are saved in
the unit's microcomputer memory.
Thereafter, the air conditioner will start
operating under the same conditions
when you simply push the ON/OFF
button of the remote controller.
Start
Stop
2
1
3
DRY OPERATION
Ensure unit is plugged and power is available.
1. Mode select button (MODE)
Press to select COOL, HEAT (Reverse
cycle models only), or HEALTH mode.
2. Temperature button (TEMP)
Set the desired temperature, the most
o
comfortable temperature is between 21 C
o
and 28 C.
3. Fan speed button (FAN SPEED)
Press to select "AUTO", "LOW", "MED"
and "HIGH".
4. ON/OFF button
Press the ON/OFF button to start the air
conditioner. The OPERATION indicator
on the display panel of the indoor unit
illuminates. The operating mode is selected
in accordance with the room temperature
and operation starts after approximately 3
minutes (If you select HEALTH mode, the
unit will start immediately).
ON/OFF button
Push this button again to stop the air
conditioner.
Ensure unit is plugged and power is available.
The OPERATION indicator on the display
panel of the indoor unit starts flashing.
1. Mode select button (MODE)
Press to select DRY.
2. Temperature button (TEMP)
Push the "TEMP" button to set the desired
temperature.
3. ON/OFF button
Press the ON/OFF button to start the air
conditioner. No fan speed indicator displays.
The Indoor fan speed will be automatically
selected LOW.
Start
Stop
Start
COOL/HEAT/HEALTH operation
The temperature cannot be controlled under FAN only mode.
While in this mode, only steps 1, 3 and 4 may be performed.
NOTES:
6
7
3
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
CLEAN
AIR
TURBO
2
1
4
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
CLEAN
AIR
TURBO
2
1
3
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
CLEAN
AIR
TURBO

In DRY mode, due to the temperature difference between the setting temperature
and the actual indoor temperature, the unit will automatically operate in COOL or
HEALTH mode.
Timer operation
To press the TIMER ON button can set the auto-on
time of the unit. To press the TIMER OFF button
can set the auto-off time of the unit.
1. Press the TIMER ON button. The remote
controller shows TIMER ON, the last Auto-on
setting time and the signal "h" will be shown on
the LCD display area. Now it is ready to
reset the Auto-on time to START the operation.
2. Push the TIMER ON button again to set desired
Auto-on time. Each time you press the button,
the time increases by half an hour between 0
and 10 hours and by one hour between 10 and
24 hours.
3. After setting the TIMER ON ,there will be a one-
half second delay before the remote controller
transmits the signal to the air conditioner. Then,
after approximately another 2 seconds, the
signal "h" will disappear and the set temperature
will re-appear on the LCD display window.
To set the Auto-on time.
To set the Auto-off time.
1. Press the TIMER OFF button. The remote
controller shows TIMER OFF, the lastAuto-off
setting time and the signal "h" will be shown on
the LCD display area. Now it is ready to
reset the Auto-off time to START the operation.
2. Push the TIMER OFF button again to set desired
Auto-off time. Each time you press the button,
the time increases by half an hour between 0
and 10 hours and by one hour between 10 and
24 hours.
3. After setting the TIMER OFF ,there will be a one-
half second delay before the remote controller
transmits the signal to the air conditioner. Then,
after approximately another 2 seconds, the
signal "h" will disappear and the set temperature
will re-appear on the LCD display window.
When you select the timer operation, the remote controller automatically
transmits the timer signal to the indoor unit for the specified time.
Therefore, keep the remote controller in a location where it can transmit
the signal to the indoor unit properly.
The effective operation time set by the remote controller for the timer
function is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0,
3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13,
14, 15,16,17, 18, 19, 20, 21, 22, 23 and 24.
CAUTION
!
Example of timer setting
TIMER ON
Start
Off
6 hours later
(Auto-on Operation)
The TIMER ON feature is useful
when you want the unit to turn on
automatically before say when you
return home. The air conditioner will
automatically start operating at the
set time.
To start the air conditioner in 6 hours.
1. Press the TIMER ON button, the
last setting of starting operation
time and the signal "h" will show
on the display area.
2. Press the TIMER ON button to display
"6:0h" on the TIMER ON display of
the remote controller.
3. Wait for 0.5 second and the TIMER
ON indicator stops flashing and this
function is activated. The digital
display area will show the tempera-
ture again.
TIMER ON
Example:
h
Set
ON/OFF button
Push this button again to stop the air conditioner.
Stop
Note: The fan speed cannot be adjusted when the unit is in AUTO and
DRY mode.
8
9
1
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
CLEAN
AIR
TURBO
1
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
CLEAN
AIR
TURBO

11
10
TIMER OFF
Stop
On
Set 10 hours later
(Auto-off Operation)
The TIMER OFF feature is useful when
you want the unit to turn off automatically
after you go to bed. The air conditioner
will stop automatically at the set time.
To stop the air conditioner in 10 hours.
1. Press the TIMER OFF button, the last
setting of stopping operation time and
the signal "h" will show on the display
area.
2. Press the TIMER OFF button to display
"10h" on the TIMER OFF display of
the remote controller.
3. Wait for 0.5 second and the TIMER OFF
indicator stops flashing and this function
is activated. The digital display area will
show the temperature again.
TIMER OFF
Example:
h

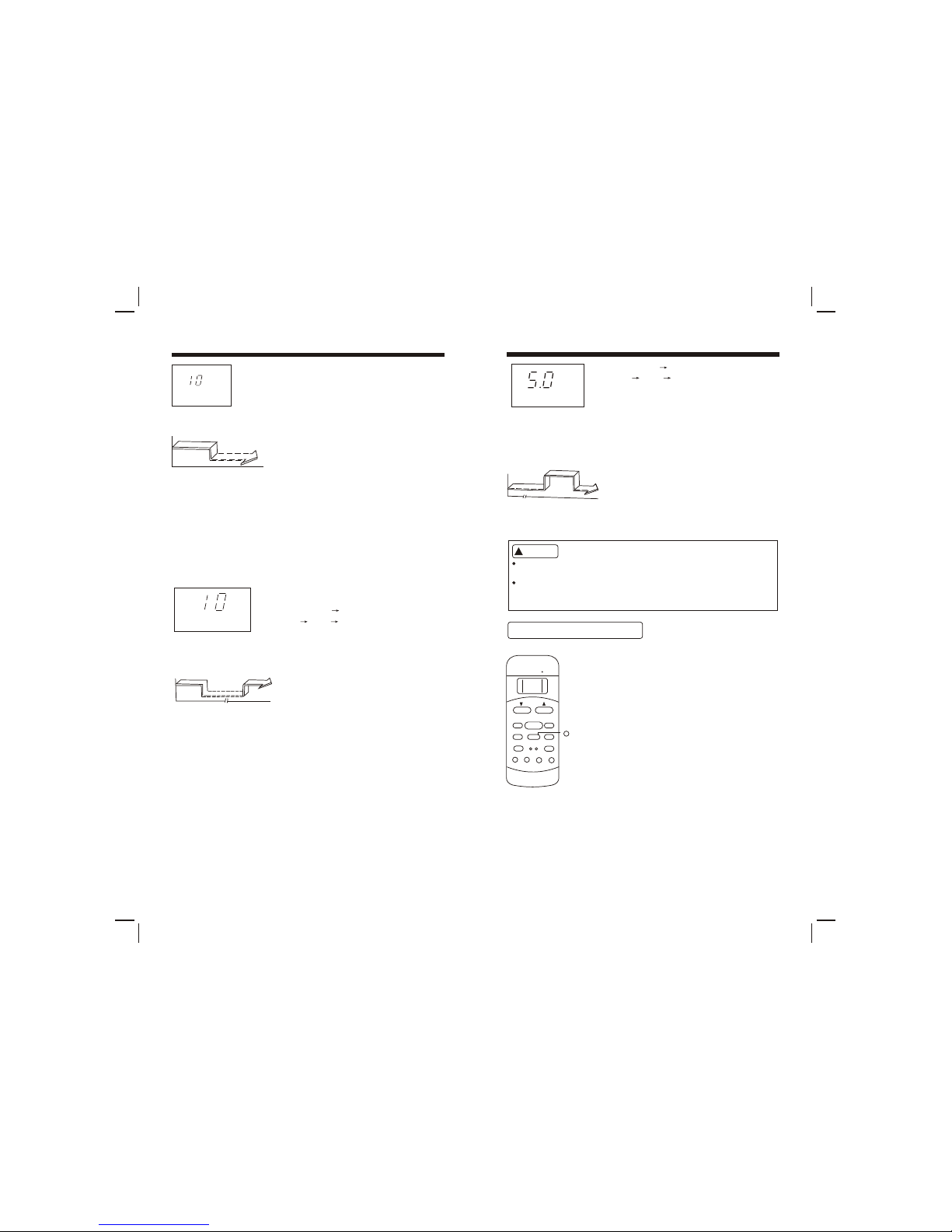

TIMER ON OFF
h
On
Stop
2 hours later
after setting
Set To stop the air conditioner 2 hours after
setting and start it again 10 hours after
setting.
1. Press the TIMER OFF button.
2. Press the TIMER OFF button again to
display 2.0h on the TIMER OFF display.
3. Press the TIMER ON button.
4. Press the TIMER ON button again to
display 10h on the TIMER ON display .
5. Wait for the remote control to display
the setting temperature.
TIMER OFF TIMER ON
(On Stop Start operation)
This feature is useful when you want to
stop the air conditioner after you go to bed,
and start it again in the morning when you
wake up or when you return home.
Example:
COMBINED TIMER
(Setting both ON and OFF timers
simultaneously)
Start
Example:
TIMER ON TIMER OFF
(Off Start Stop operation)
This feature is useful when you want to start
the air conditioner before you wake up and
stop it after you leave the house.
To start the air conditioner 2 hours after
setting, and stop it 5 hours after setting.
1. Press the TIMER ON button.
2. Press the TIMER ON button again to
display 2.0h on the TIMER ON display.
3. Press the TIMER OFF button.
4. Press the TIMER OFF button again to
display 5.0h on the TIMER OFF display .
5. Wait for the remote control to display
the setting temperature.
Off Stop
Start
10 hours later
after setting
TIMER ON OFF
h
2 hours later
after setting
2 hours later
after setting
Set
The timer setting(TIMER ON or TIMER OFF) that in sequence occurs
directly after the set time will be activated first.
If the same time is set for both TIMER ON and TIMER OFF settings, no
timer operation is performed. The air conditioner may stop operating,
either immediately or after approximately 10 minutes.
CAUTION
!
Sleep button function
1
When you press the SLEEP button, the
economic running function will be activated.
During Cooling, Heating or AUTO operation,
the set temperature of the air conditioner
o
will automatically increase or decrease 1 C
per hour for 2 hours. After 2 hours, the set
point will continue at that temperature and
the fan motor will be set to LOW speed.
The sleep mode function can maintain the
most comfortable temperature and save
more energy for you.
NOTE: The SLEEP function is only available
under Cooling, Heating and AUTO
operation.
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
CLEAN
AIR
TURBO

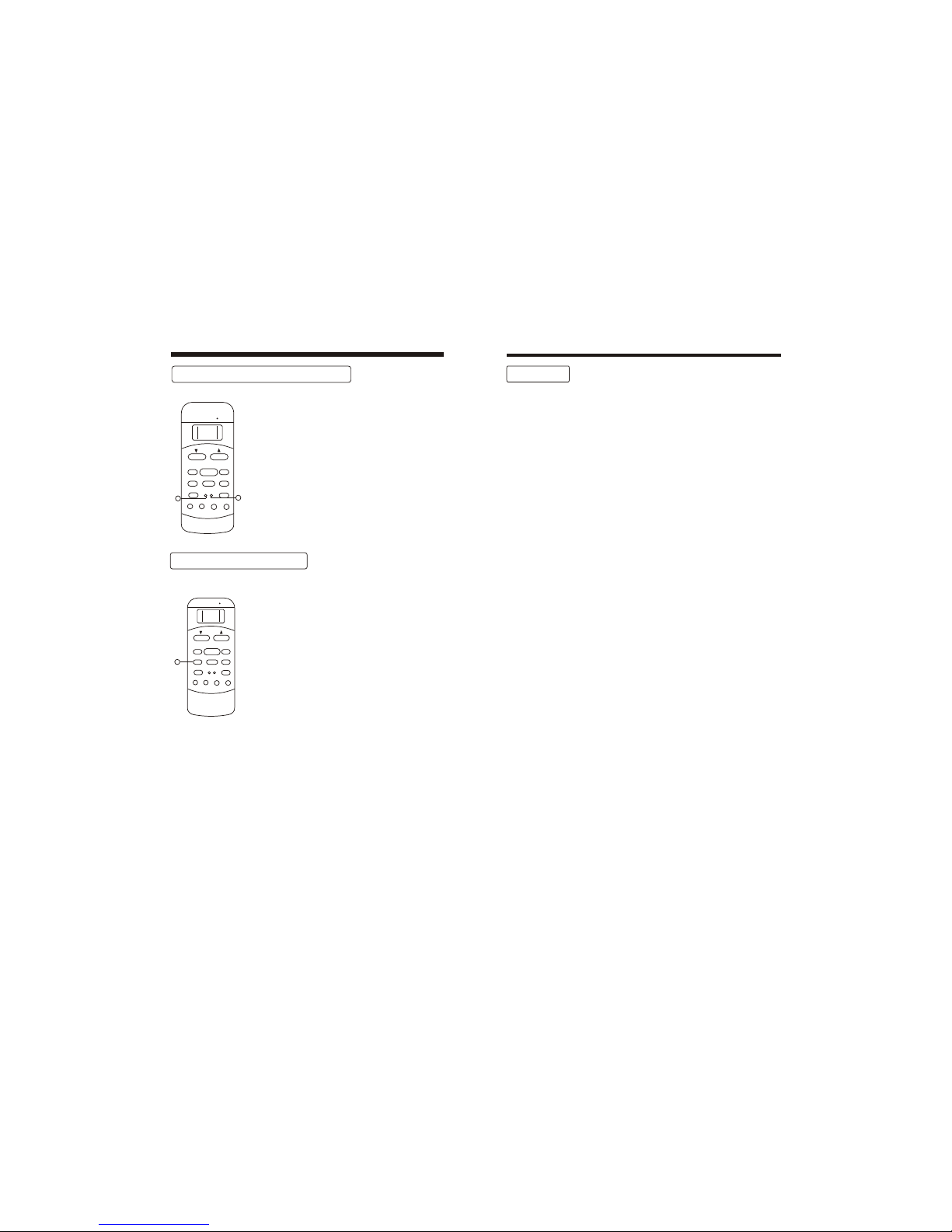

Reset and Lock buttons function
1
1. When you press the recessed LOCK button,
all current settings are locked in and remote
controller does not accept any operation
except that of the LOCK.
Use the LOCK mode when you want to pre-
vent settings from being changed accidentally.
Press the LOCK button again when you want
to cancel the LOCK mode.
A lock symbol will appear on the bottom right
hand side of the remote controller display
when the LOCK function is activated.
2. When you press the recessed RESET button,
all current settings are cancelled and return
to original factory settings.
2
Air direction button function
Use the SWING button to activate AUTO swing
function and lock louver in desired position.
1. When press this button once and quickly, the
air flow direction setting feature of the louver is
activated. The moving angle of the louver is
o
6 for each press. Keep pressing the SWING
button to move the louver to the desired position.
2. When press the button without releasing for 2
more seconds, the auto swing feature of the
louver is activated. The horizontal louver would
swing automatically. Press it again to stop.
NOTE: When the louver swing or move to a
position which would affect the cooling
and heating effect of the air conditioner,
it would automatically change the swing/
moving direction(upward or downward).
1
12
13
Cautions
1. When replacing batteries, do not use old batteries or different type
batteries. Otherwise it may cause the remote controller to malfunction.
2. If you do not use the remote controller for a few weeks or more, remove
the batteries. Otherwise, battery leakage may damage the remote
controller.
3. The average battery life during normal use is approximately half a year.
Replace the batteries when there is no receiving beep from the indoor
unit or if the transmission indicator on the remote controller fails to light.
4. Be sure there are no barriers between the remote controller and the receiver
of indoor unit otherwise the air conditioner will not work.
5. Keep the Remote Controller away from all liquids.
6. Protect the Remote Controller from high temperatures and exposure to
radiation.
7. Keep the indoor receiver out of direct sunlight or the Air Conditioner may
malfunction.
8. Keep controller away from EMI (Electro-Magnetic Interference) supplied by
other household appliances.
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
CLEAN
AIR
TURBO
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
CLEAN
AIR
TURBO
