Alpic Air Split Air Conditioner User manual

OWNER'S MANUAL
Split Air Conditioner
C
ALPICAIR AIR CONDITIONERS
Thank you for choosing AlpicAir air conditioner for correct operation, please
it carefully for consultation.
read this owner's manual carefully before operating the unit and keeps

■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１
■ ．．．．．．．．．．．．．．．．．．．４
■ ．．．．．．．．．．．．．．．．．．．．．５
■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１１
■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１３
■ ．．．．．．．．．．．．．．１８
■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１９
■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１６
■ ．．．．．．．．．．．．．．．．．２１
■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．３
■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１０
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.
CONTENTS
Operation and maintenance
Notices for operation
Notices for use
Names and functions of each part
Operation of wireless remote control

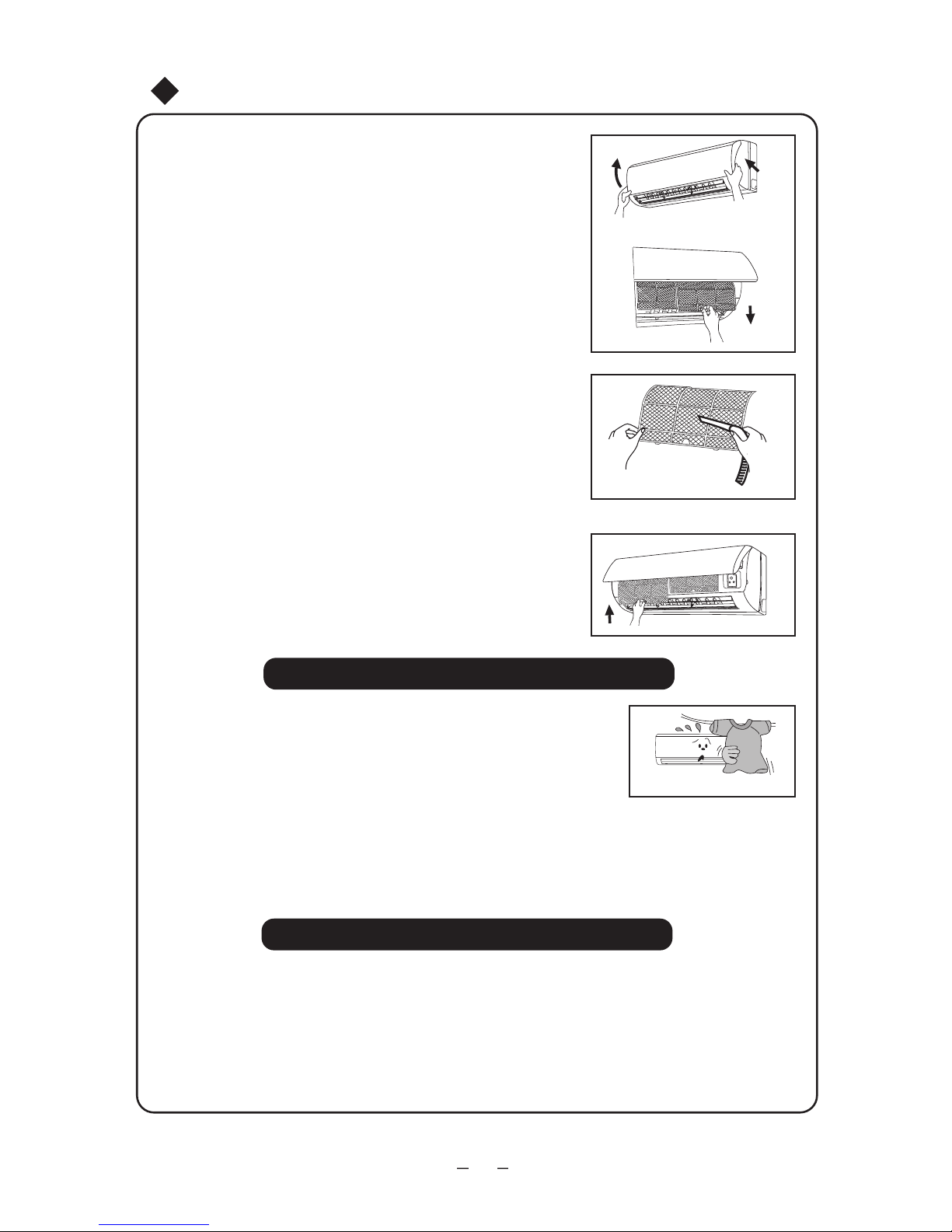

Clean and care
Troubleshooting
Installation service
Notices for installation
Installation dimension diagram
Install indoor unit
Test operation and check after installation
This symbol stands for the items
should be forbidden
This symbol stands for the items
should be followed

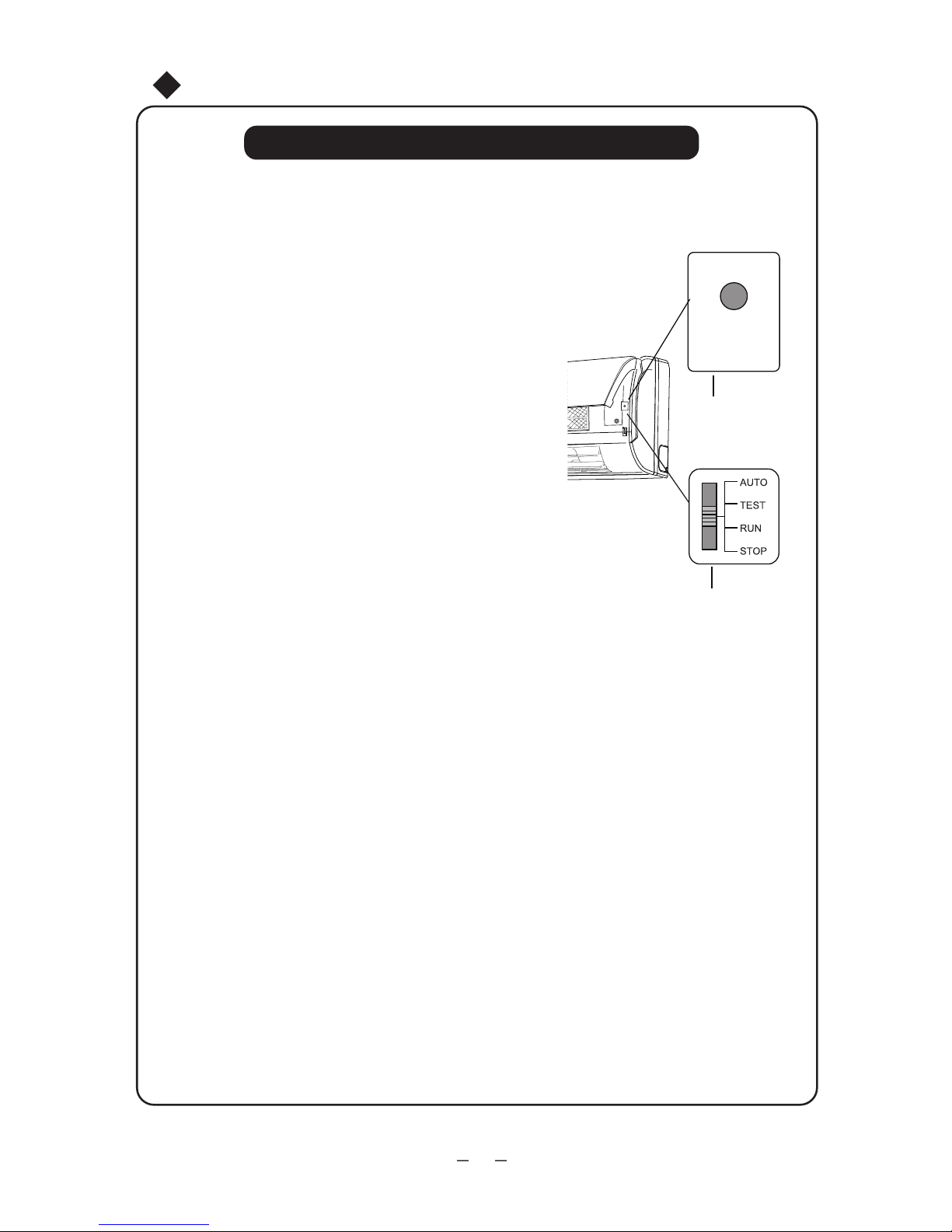

Emergency operation
The figures in this manual may be different with the material objects, please refer
to the material objects for reference.
．．．
．．．．．．．．．．．
．．．
．．．
■．．．．．．．．．．．．．．２２
Installation and Maintenance of Healthy Filter

1
★
★
★
★
★ The power supply
must adopt the
special circuit that with air
switch protection and assure
★
★Keep combustilble
spray away from the
units more than 1m.
★
Don't block the air
intake or outlet vents
of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
Don’t leave windows
and doors open for
a long time while operating
the air conditioner.
It can decrease the air
conditioning capacity.
It can cause a fire or explosion
Don’t attempt to
repair the air
conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.
Be sure to pull out
the power plug as
the air conditioner not in use
for a long time.
Otherwise, the accumulated
dusts that may cause over
heating or fire.
Never splice the
power cord or use
an extended cord.
It can cause overheating or
fire.
When having a
burning smell or
smoke, please turn off the
power supply and contact
with the service center.
If the abnormity still exists,
the unit may be damaged,
and may cause electric
shock or fire.
Please read the following carefully before operating
Notices for operation
components would be easily
damaged, when the voltage
is very low, the compressor
vibrates terribly and that the
refrigerant system will be
damaged, the compressor
and electric components
cannot work, the voltage
should be stable; there
shouldn’t be big fluctuation.
When the voltage
is very high, the
it has enough capacity.
The unit will be turned
on or off according to your
requirement automatically,
please do not turn on or turn
off the unit frequently, other-
wise disadvantage effect may
be caused to the unit.

2
★ ★
★★
★
★
★
★
Notices for operation
Don’t apply the cold wind to
the body for a long time.
It can cause the health problems.
Splashing water on the air
conditioner can cause an electric
shock and malfunction.
Don’t place a space heater
near the air conditioner.
Don’t blow the wind to animals
and plants directly. It can cause
a bad influence to them.
Don’t insert your hands or stick into
the air intake or outlet vents.
Don’t use the air conditioner
for other purposes, such as
drying clothes, preserving foods, etc.
To adjust the airflow direction
appropriately. When operating
the unit,to adjust the vertical and lateral air
flow direction by use of remote controller.
Swing louver Guide louver
Please don't cut off or damage the
power cords and control cords.
If they are damaged, please ask the qualified
personnel to change them.

3
Notices for use
Working principle and special functions for cooling
Principle:
Air conditioner absorbs heat in the room and transmit to outdoor and discharged,
so that indoor ambient temperature decreased, its cooling capacity will increase
or decrease by outdoor ambient temperature.
Anti-freezing function
If the unit is running in COOL mode and in low termperature, there will be frost formed
on the heat exchanger, when indoor heat exchanger temperature decreased below 0
the indoor unit microcomputer will stop compressor running and protect the unit.
Working principle and special functions for heating
Principle:
* Air conditioner absorbs heat in the room and transmit to outdoor and discharged,
will increase, its heating capacity will decrease by outdoor ambient temperature.
so that indoor ambient temperature increased, so room heating capacity.
* If outdoor temperature got lower, please operate with the other heating ventilating
equipments.
Defrosting:
*When outdoor temperature is low but high humidity, after a long while running,
frost will form on outdoor unit, that will effect the heating effect, at this time,
the auto defrosting function will act, the heat running will stop for 8-10mins.
*During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
*During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.
This is due to the defrosting, it isn't malfunction.
* After defrosting finished,the heating will recover automatically.
Anti-freezing function:
In "HEAT" mode, if in the following status, the indoor heat exchanger haven't achieve
the certain temperature, that the indoor unit will not act, in order to prevent cool air blowing.
(Within 3mins)
1.Heating starts. 2.After Auto defrosting finished. 3.Heating under the low temperature.
The climate type of this unit is according to the nameplate.
℃

4
⑴
⑴
⑹
⑶
⑵
⑸
⑷
⑺
⑹
⑸
⑵
⑻
⑷
⑺
⑶
⑻
Names and functions of each part
Indoor unit
Air in
Air out
Front panel
Filter
Guide louver
Wall pipe
Bind tape
Connection wire
Drainage pipe
Remote control

遥控器各按键的名称及作用
５

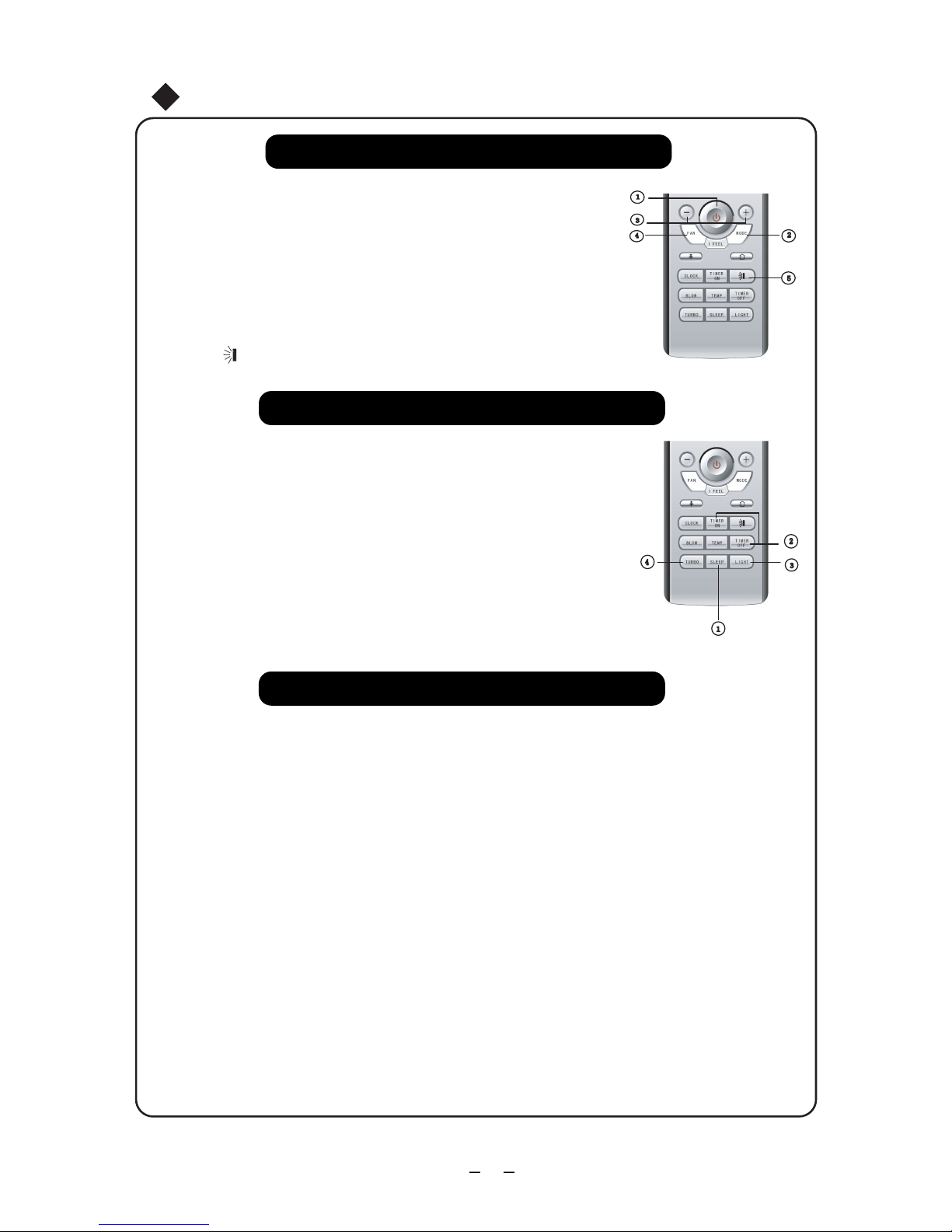

Name and function of wireless remote control
ON/OFF button
Remote control
Signal transmitter
AUTO
COOL
DRY
FAN
(Only for cooling and heating unit.)
Don't drop or throw the remote control; Don't let any liquid in the remote control and
Note: Be sure that there are no obstructions between receiver and remote controller;
put the remote control directly under the sunlight or any place where is very hot.
●Press this button, Auto, Cool,Dry, Fan,
Heat mode can be selected circularly.
MODE button
MODE
Auto mode is default while power on.
Under Auto mode,the temperature will not
be displayed; Under Heat mode, the
●Press this button, Sleep On and Sleep
Off can be selected. After powered on,Sleep
SLEEP button
SLEEP
Off is defaulted. After the unit is turned
off, the Sleep function is canceled. After
Sleep function set up, the signal of Sleep
will display. In this mode, the time of timer
can be adjusted. Under Fan and Auto
modes, this function is not available.
●Press this button, Auto, Low, Middle, High
speed can be circularly selected. After
FAN button
FAN
powered on,Auto fan speed is default.
Under Blow mode, Low fan speed only
can be set up.
●Press this button, the clock can be set up,
signal blink and display.Within 5
CLOCK button
CLOCK
seconds, the value can be adjusted by
pressing + or - button, if continuously
press this button for 2 seconds above,
in every 0.5 seconds, the value on ten place
of Minute will be increased 1. During blinking,
repress the Clock button, signal will be
constantly displayed and it denotes the
setting succeeded. After powered on, 12:00
is defaulted to display and signal will
be displayed. If there is signal be
value is Clock value, otherwise is Timer
value.
displayed that denotes the current time
●Press this button, can set up and select:
setting temperature (displaying the room),
TEMP button
TEMP
indoor ambient temperature (displaying
indoor temperature), outdoor ambient
temperature (displaying outdoor tempe-
rature),if there no outdoor ambient
Operation of wireless remote control
●Press this button, the unit will be turned
on, press it once more, the unit will be
turned off. Sleep function will be canceled,
while unit off.
HEAT
initial value is 28℃
;Under other
modes, the initial value is 25℃ ．
（ｏＦ）
82
（ｏＦ）
77
temperature displaying be required that will
keep original display status. and circulate
like this. No signal displayed. Remark: When
operating this button,the setting temperature
is displayed all the time on the wireless
Middle fan
Low fan
High fan
remote control.

６
Remote control
buttons of this control which are not available to this unit will not be described below.
This wireless remote control is universal, and it could be used for many units, some
●Under Cool or Heat mode, press this
button can turn on or turn off the Turbo
TURBO button
TURBO
function.After the Turbo function turned
on, the signal of Turbo will display. The
signal will be automatically cancelled if
changing the mode or fan speed.
●Press this button at unit On or Off status,
Light On and Light Off can be set up.
LIGHT button
LIGHT
After powered on, Light On is defaulted.
●Presetting temperature can be increased.
Press this button, the temperature can be
+ button
+
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
（ｏＦ）signal will be displayed all the time.
The temperature adjustment is unava-
ilable under the Auto mode, but the order
can be sent if pressing this button.
Temperature of Celsius degree setting:
16-30 ; for Fahrenheit degree setting:
61-86.
●Presetting temperature can be decreased.
Press this button, the temperature can be
- button
-
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
（ｏＦ）signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the Auto mode, but the order
can be sent by if pressing this button.
Names and functions of wireless remote control
Operation of wireless remote control
●Press this button, the Blow On and Blow
Off can be set up. Under the Cool and Dry
BLOW button
BLOW
turned on; When repressing this button
once more, lcon Blow will be concealed,
at this time, the BLOW is turn off. After
powered on, Blow Off is defaulted. If
operating ON/OFF button and changing
mode to Cool, Dry, the status of BLOW
will stay in the original position. If unit
is off, only Blow off can be set up and send
the signal. This function is not available
under the Auto, Fan and Heat mode
and there is no Blow signal displayed.
mode, press this button once, the Icon
Blow will be displayed, and BLOW is

７
TIMER ON TIMER ON BUTTON
TIMER OFF BUTTON
●One press this key to enter into
TIMER OFF setup, in which case
the TIMER OFF icon will blink.
The method of setting is the same
TIMER OFF
as for TIMER ON.
●
Remote control
buttons of this control which are not available to this unit will not be described below.
This wireless remote control is universal, and it could be used for many units, some
Name and function of wireless remote control
Operation of wireless remote control
HEALTH BUTTON
●Press this button, Health On or Health
Off can be selected.Health On is defaulted
while unit is turned on.
I FEEL BUTTON
●Press this button once, to turn on the
I FEEL function, then the figure of "I FEEL"
will be displayed, after every press of
I FEEL
other function button, every 200ms to send
I FEEL once, after this function started,
the remote control will send temperature
to the main unit in every 10 minutes.When
repress this button, this function will be
turned off.
AIR BUTTON
●Press this button, Air On or Air Off can
be selected.
●Press this button to set swing angle,
which circularly changes as below:
OFF
This remote controller is universal.If it
receives threes kinds of following status,
the swing angle will remain original.
If guide louver is stopped when it is
swinging up
and down,it will remian its
present position.
indicates guide louver swings back and
forth
in the five places,as shown in the
figure.
SWING UP AND DOWN BUTTON
Timer On setting: Signal “ON” will blink
and display, signal will conceal, the
numerical section will become the timer
on setting status. During 5 seconds blink,
by pressing ＋or －button to adjust the
time value of numerical section, every
press of that button, the value will be
increased or decreased 1 minute. Hold
pressing ＋or －button, 2 seconds later,
it quickly change, the way of change is:
During the initial 2.5 seconds, ten numbers
change in the one place of minute, then
the one place is constant, ten numbers
change in the tens place of minute at 2.5
seconds speed and carry. During 5s blink,
press the Timer On button, the Tim er On setting
succeeds. The Timer On has been set up,
repress the Timer On button, the Timer
On will be canceled. Before setting the
Timer, please adjust the Clock to the
current actual time.

８
1. After powered on, press ON/OFF button, the unit will start to run.(Note: When
it is powered off, the guide louver of main unit will close automatically.)
2. Press MODE button, select desired running mode, or press COOL or HEAT
mode to enter into the corresponding operation directly.
3. Pressing +or - button, to set the desired temperature (It is unnecessary
to set the temp. at AUTO mode.)
4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW, MID
and HIGH.
5. Pressing button, to select the swing.
1. Press SLEEP button, to set sleep.
2. Press TIMER ON and TIMER OFF button, can set the scheduled timer on
3. Press LIGHT button, to control the on and off of the displaying part of the
unit (This function may be not available for some units).
4. Press TURBO button, can realize the ON and OFF of TURBO function.
or timer off.
Guide for operation- General operation
Guide for operation- Optional operation
Operation of wireless remote control
★
This function indicates that moisture on evaporator of indoor unit will be blowed after the unit
About blow function
is stopped to avoid mould.
1. Having set blow function on: After turning off the unit by pressing ON/OFF button indoor
fan will continue running for about 10 min. at low speed. In this period,
press blow button to stop indoor fan directly.
2. Having set blow function off: After turning off the unit by pressing ON/OFF button, the
complete unit will be off directly.
Introduction for special function
When AUTO RUN mode is selected, the setting temperature will not be displayed on the
LCD, the unit will be in accordance with the room temp. automatically to select the suitable
running method and to make ambient comfortable.
About turbo function
If start this function, the unit will run at super-high fan speed to cool or heat quickly so that
the ambient temp. approachs the preset temp. as soon as possible.
★
★
About AUTO RUN

９
Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller
is locked, the icon
flicker for three times. If the keyboard is unlocked, the mark will disappear.
1. Press swing up and down button continuously more than 2s,the main unit will swing back
and forth from up to down, and then loosen the button, the unit will stop swinging and present
position of guide louver will be kept immediately.
2. Under swing up and down mode, when the status is switched from off to , if press this
button again 2s later, status will switch to off status directly; if press this button again
within 2s,the change of swing status will also depend on the circulation sequence stated above.
About switch between Fahrenheit and Centigrade
Under status of unit off, press MODE and - buttons simultaneously to switch℃and ．
It indicates: after starting this function by remote controller and the unit has been under
defrost status, If turn off the unit by remote controller, the unit will not stop defrosting until
it is finished; if change setting mode by remote controller, the function ,which is set last
time, won't be carried out until defrosting finished.
Operation of this function on or off: If remote controller is under off status, press mode button
and blow button simultaneously in order to enter or cancel this new function. If the unit is under
defrost mode, dual eight position on remote controller will display H1.If switch to heat mode,
the position will display H1, which flickers for 5s, in which case, press +/- button, H1 will
disappear and setting temp. be displayed.
After remote controller is powered on, the new defrost function will be defaulted to be closed.
★
★
★
★
About swing up and down
About lock
About new function of defrosting
will be displayed on it, in which case, press any button, the mark will
Operation of wireless remote control
1.
４.
２.
３．
★
●
●
●
●
●
Slightly to press the place with , along the arrowhead direction to push the back cover of wireless
remote control. (As show in figure)
Take out the old batteries. (As show in figure)
Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
(As show in figure)
Attach the back cover of wireless remote control. (As show in figure)
When changing the batteries, do not use the old or different batteries,
If the wireless remote control will not be used for a long time, please
otherwise, it can cause the malfunction of the wireless remote control.
take them out, and don't let the leakage liquid damage the wireless
remote control.
The operation should be in its receiving range.
It should be placed at where is 1m away from the TV set or stereo sound sets.
If the wireless remote control can not operate normally, please take them out,
after 30s later and reinsert, if they cannot normally run, please change them.
Sketch map for
changing batteries
NOTE:
Changing batteries and notices

１０
●
●
●
●
Emergency Operation
Emergency Operation
When the wireless remote control is lost or damaged, please use the manual switch, at
this time, it is running in Auto Run mode that will not change the temperature setting
value and fan speed.
The manual switch can be operated as follow:
At operation: When the unit stopped running,
press ON/OFF button, unit will enter into AUTO
RUN mode. The microcomputer will accord to
the room temperature to select the (COOL,
HEAT, FAN) mode automatically, to obtain the
comfortable effect.
At stopping:When the unit is running, press the
ON/OFF button of the manual switch, the unit
will stop work.
The code switch can be operated as follow:
At operation: When the unit is stopped running,
adjust the code switch to AUTO, the unit will
enter into AUTO RUN mode. The microcomputer
will accord to the room temperature to select the
(COOL, HEAT, FAN) mode automatically, to
obtain the comfortable effect.
At stopping: When the unit is running, adjusts
the code switch to STOP position, the unit will
stop work.
Code Switch
Manual Switch
AUTO/STOP

１１
●●
●●
①
②
③
Clean and care
CAUTION
Turn power off and pull out the power plug before cleaning air conditioner. Or it may
cause electric shock.
Never sprinkle water on the indoor unit for cleaning because it can cause an electric
shock.
Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the
units with a dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Clean the front panel(make sure to take it off before cleaning)
Take off the front panel
Along the direction of arrows to lift the front panel
up, meanwhile to hold both slots of the front panel
and take it out forcibly and then can take it off.
Washing
Install front panel
Place two supporters of the front panel into the slots,
along the direction of arrows to cover and clasp the
front panel. As show in right figure.
Cleaning the air filters (Recommended once every three months)
Note: If dust is much more around the air conditioner, the air filters should be cleaned many
times. After taking off the filter, don't touch the fin of indoor unit, in order to avoid hurt your
fingers.
Clean with a soft brush, water and neutral deter-
gent and then dry it.(Note: Before cleaning the unit,
℃ｔｏ
please take down the displayer box firstly, then
to wash the panel, if the unit has displayer on the
front panel. Never use the water above 45
wash the panel, or it could cause deformation
or discoloration.)

１２
①
②
③
④
①
②
③
Check before use
Be sure that nothing obstructs the air outlet and intake
vents.
Check that whether ground wire is properly connected
or not.
Check that whether the batteries of air conditioner are
changed or not.
Check that whether the installation stand of the outdoor
unit is damaged or not. If damaged, please contact the dealer.
Maintain after use
Turn main power off.
Clean the filter and indoor and outdoor units' bodies.
Repaint the rubiginous place on the outdoor unit to prevent it from spreading.
②
③
①
(a)
(b)
Clean and care
Take down the air filter
Cleaning
Reinsert the filters
Reinsert the filters along with the arrow head, then cover
the surface panel and clasp it.
To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with warm water
(the water with the neutral detergent should below 45 ℃).
When the filters are very dirty (such as oil stain), and
dry it in the shade.
NOTE: Never use water above 45 ℃to wash, or it can
cause deformation or discoloration. Never partch it by
fire, or can cause a fire or deformation.
At the slot of surface panel to open an angle, pull the
air filter downward and take it out.

１３
●
●
●
●
Troubleshooting
Warning
Do not repair the air conditioner at your discretion. Incorrect repair may cause electric
shock or fire, so please contact Authorized Service Center for professional repair.
Following checks prior to contact may save your time and costs.
Phenomenon Troubleshooting
waiting
Once the air conditioner is stopped,
it will not operate in approximately
3 minutes to protect itself.
The unit can not operte immediately
when the air conditioner is restarted.
There's unusual smell blowing from
the outlet after operation is started.
This is caused by the odors in the
room which have been breathed
into the air conditioner.
Sound of water flow can be heard
during operation.
This iscaused by the refrigerant
flowing inside the unit.
Mist is emitted during cooling operation.
Because the air of the room is cooled
down rapidly by the cold wind and it
looks like the fog.

１４
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Troubleshooting
Break off
Phenomenon Troubleshooting
Creaking noise can be heard when
start or stop the unit.
This is caused by the deformation of
plastic due to the change of temperature.
Air conditioner does not operate at all. Has the power been shut down?
Is the wiring loose?
Is the leakage protection switch in
operation?
Is voltage higher or lower?
Is TIMER ON in operation?
Is SET TEMP. suitable?
Is air inlet or outlet obstructed?
Are air filters dirty?
Are the windows and door closed?
Is indoor fan speed set at low
speed?
Is there any other heat source in your
room?
Cooling(Heating)efficiency is not good.
Remote control can't be used occasionally
when the air conditioner is disturbed or
changing its functions frequently. At that
time,pull out the power plug and insert
it again to recover the operation.
Is the remote control out of effective
disance to the indoor unit? Are there
any obstruction between the remote
control and the signal receptor?
Replace the worn batteries of remote
control if the voltage of the batteries is
Wireless Remote control is not
available.
not sufficient.

１５
●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
Indoor unit cannot deliver air
Moisture on air outlet vent
Immediately stop all operations and plug out, contact
the dealer in following situations.
There is harsh sound during operation.
The terrible odors emitted during operation.
Water is leaking in the room.
Air switch or protection switch often breaks.
Carelessy splash water or something into unit.
There is an abnormal heat in power supply cord
and power plug.
Stop running and pull out of the plug.
If unit is running under the high humidity for
a long time, the moisture will be condensed
on the air outlet grill and drip off.
In HEAT mode, when the temperature of
indoor heat exchanger is very low, that
will stop deliver air in order to prevent cool
air. (Within 3min)
In HEAT mode, when the outdoor temperature
is low or high humidity, there are much frost
be formed on the outdoor heat exchanger,
that the unit will automatically defrost, indoor
unit stop blowing air for 3-12mins.During the
defrosting, there is water flowing out or vapor
be produced.
In dehumidifying mode, sometimes indoor
fan will stop, in order to avoid condensing
water be vaporized again, restrain temper-
ature rising.
●
●
●
●
●
If water leakage in the room
Noise from indoor unit emitted.
The air humidity is on the high side.
Condensing water over flowed.
The connection position of indoor unit drainage
pipe is loosed.
The sound of fan or compressor relay is switching
on or off.
When the defrosting is started or stop running,
it will sound. That is due to the refrigerant flowed
to the reverse direction.

１６
●
●
●
●
●
●
Installation service- Notices for installation
Important Notices
1. The unit installation work must be done by qualified personnel according to the local rules
and this manual.
Basic Requirements For Installation Position
Install in the following place may cause malfunction. If it is unavoidable contact with
service center please:
Place where strong heat sources, vapors, flammable gas or volatile objuct are emitted.
Place where high-frequency waves are generated by radio equipment, welders and
medical equipment.
Place where a lot of salinities such as coast exists.
Place where the oil (machine oil) is contained in the air.
Place where a sulfured gas such as the hot spring zones is generated.
Other place with special circumstance.
Indoor Unit Installation Position Selection
1. The air inlet and outlet vent should be far from the obstruction, make sure that the air can
be blown through the whole room.
2. Select a position where the condensing water can be easily drained out, and the place is
easily connected for outdoor unit.
3. Select a location where the children can not reach.
4. Can select the place where is strong enough to withstand the full weight and vibration of
the unit. And will not increase the noise.
5. Be sure to leave enough space to allow access for routine maintenance. The height of the
installed location should be 250 cm or more from the floor.
6. Select a place about 1m or more away from TVset or any other electric appliances.
7. Select a place where the filter can be easily taken out.
8. Make sure that the indoor unit installation should accord with installation dimension
diagram requirements.
2. If the air conditioner has not plug, directly connect it into the fixed circuit, a breaker should be
installed in the fixed circuit. all pole of this breaker should be switching off and the distance
of the contact should be at least 3mm.

１７
① ②
③ ④
3．
4.
1.
2.
2．
Notices for installation
Earthing requirements
Others
Safety Requirements For Electric Appliances
The connection method of unit and power cable as well as the interconnect method
of each isolated component should refer to the circuit diagram stick on the unit.
The model of the blown fuse and rated value should refer to the silk-screen on the
controller or fuse sleeve.
1. Air conditioner is type electric appliance, thus please do conduct reliable earthing
measure.
2. The yellow-green two-color wire in air conditioner is earthing wire and cannot be used
for other propose. It cannot be cut off and be fix it by screw, otherwise it would cause
electric shock.
3. The earth resistance should accord to the National Criterion.
4. The user power must offer the reliable earthing terminal. Please don't connect the
earthing wire with the following place:
Tap water pipe Gas pipe
Contamination pipe
Other places that professional personnel consider them unreliable.
Note:
Make sure that the Live wire or Zero line as well as the earth wire in the family power
socket can not be wrong connected, there should be reliable and no short circuit in the
diagram.
wrong connection may cause fire.
The min. distance from the unit and combustive surface is 1.5m.
It should be reliably earthed, and it should be connected to the special earth device,
the installation work should be operated by the professional.
The air switch must have the functions of magnetic tripping and heat tripping, in order
to protect the short circuit and overloading.
1. The power supply should be used the rated voltage and AC exclusive circuit, the power
cable diameter should be satisfied.
Don't drag the power cable emphatically.
●
●
3. The appliance shall be installed in accordance with national wiring regulations.
4. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance.
I

Installation dimension diagram
１８
Installation dimension diagram
Space to the ceiling
Above
Above
Above
Space to the wall
Space to the wall
15cm
300
cm 2
15
cm
Space to the floor
Air outlet side
Above
cm
cm
2５0
Installation dimension diagram
15cm Above
