For air conditioners:
AWI/AWO-21HPR1 Delta
AWI/AWO-25HPR1 Delta
AWI/AWO-32HPR1 Delta
Split Air Conditioner
User’s manual
Thank you for choosing our air conditioner, please read this
owner's manualcarefully before operating theunitand keep
it carefully for consultation
AWI/AWO-53HPR1 Delta
AWI/AWO-65HPR1 Delta

2
★
★
★
★
★ The power supply
must adopt the
special circuit that with air
switch protection and assure
★
★Keep combustilble
spray away from the
units more than 1m.
★
Don't block the air
intake or outlet vents
of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
Don’t leave windows
and doors open for
a long time while operating
the air conditioner.
It can decrease the air
conditioning capacity.
It can cause a fire or explosion
Don’t attempt to
repair the air
conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.
Be sure to pull out
the power plug as
the air conditioner not in use
for a long time.
Otherwise, the accumulated
dusts that may cause over
heating or fire.
Never splice the
power cord or use
an extended cord.
It can cause overheating or
fire.
When having a
burning smell or
smoke, please turn off the
power supply and contact
with the service center.
If the abnormity still exists,
the unit may be damaged,
and may cause electric
shock or fire.
Please read the following carefully before operating
Notices for operation
components would be easily
damaged, when the voltage
is very low, the compressor
vibrates terribly and that the
refrigerant system will be
damaged, the compressor
and electric components
cannot work, the voltage
should be stable; there
shouldn’t be big fluctuation.
When the voltage
is very high, the
it has enough capacity.
The unit will be turned
on or off according to your
requirement automatically,
please do not turn on or turn
off the unit frequently, other-
wise disadvantage effect may
be caused to the unit.

3
★ ★
★★
★
★
★
★

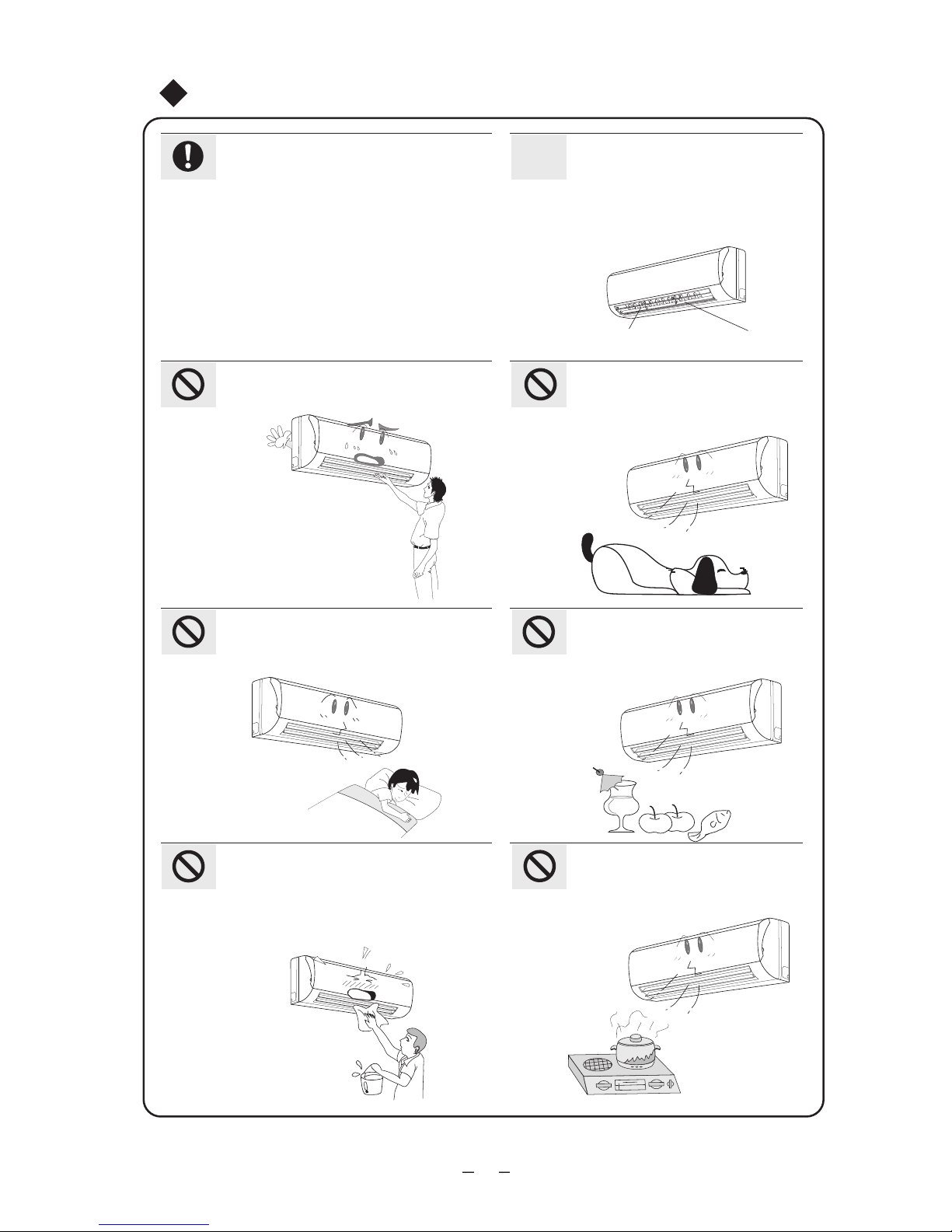

Don’t apply the cold wind to
the body for a long time.
It can cause the health problems.
Splashing water on the air
conditioner can cause an electric
shock and malfunction.
Don’t place a space heater
near the air conditioner.
Don’t blow the wind to animals
and plants directly. It can cause
a bad influence to them.
Don’t insert your hands or stick into
the air intake or outlet vents.
Don’t use the air conditioner
for other purposes, such as
drying clothes, preserving foods, etc.
To adjust the airflow direction
appropriately. When operating
the unit, to adjust the vertical and lateral air
flow direction by use of remote controller.
Swing louver Guide louver
Please don't cut off or damage the
power cords and control cords.
If they are damaged, please ask the qualified
personnel to change them.
Notices for operation

4
Working principle and special functions for cooling
Principle:
Air conditioner absorbs heat in the room and transmit to outdoor and discharged,
so that indoor ambient temperature decreased, its cooling capacity will increase
or decrease by outdoor ambient temperature.
Anti-freezing function
If the unit is running in COOL mode and in low termperature, there will be frost formed
on the heat exchanger, when indoor heat exchanger temperature decreased below 0
the indoor unit microcomputer will stop compressor running and protect the unit.
Working principle and special functions for heating
Principle:
* Air conditioner absorbs heat from outdoor air, transmits and discharges into the room.
* If ambient temperature decreases, heating capacity of air conditioner will decrease.
Defrosting:
*When outdoor temperature is low but high humidity, after a long while running,
frost will form on outdoor unit, that will effect the heating effect, at this time,
the auto defrosting function will act, the heat running will stop for 8-10mins.
*During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
*During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.
This is due to the defrosting, it isn't malfunction.
* After defrosting finished,the heating will recover automatically.
Anti-freezing function:
In "HEAT" mode, if in the following status, the indoor heat exchanger haven't achieve
the certain temperature, that the indoor unit will not act, in order to prevent cool air blowing.
(Within 3mins)
1.Heating starts. 2.After Auto defrosting finished. 3.Heating under the low temperature.
The climate type of this unit is according to the nameplate.
Notices for use

5
⑴
⑹
⑶
⑵
⑸
⑷
⑺
⑼
⑹
⑵
⑻
⑼
⑷
⑺
⑶
⑻
Names and functions of each part
Indoor unit
Air in
Air out
Front panel
Filter
Guide louver
Bind tape
Connection wire
Drainage pipe
Remote control
Outdoor unit
Air in
Air out
⑴
⑸
Power cable
Wall pipe

6
●●
●
●●
①
②
③

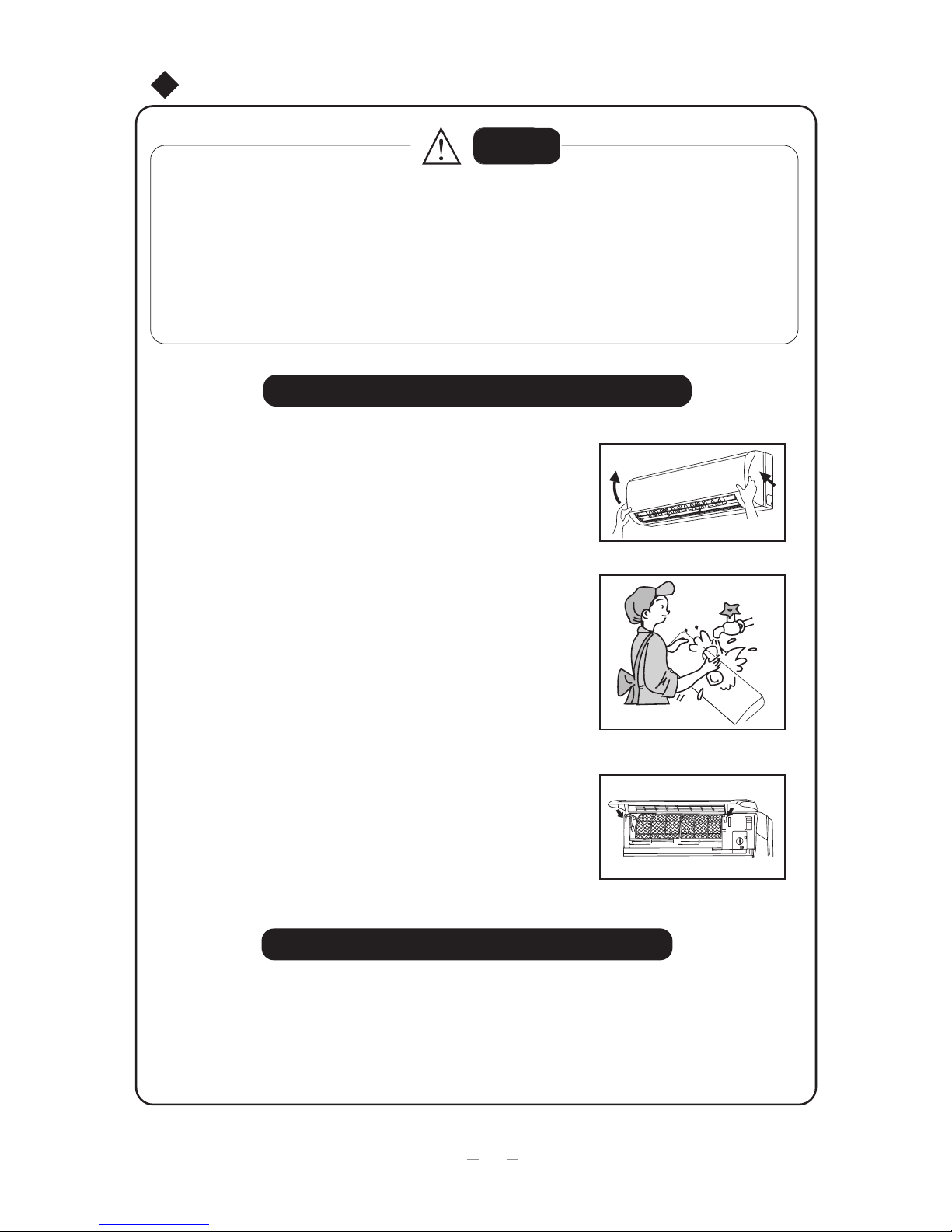

Clean and care
CAUTION
Turn power off and pull out the power plug before cleaning air conditioner. Or it may
cause electric shock.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it
can cause an electric shock.
Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the
units with a dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Clean the front panel(make sure to take it off before cleaning)
Take off the front panel
Along the direction of arrows to lift the front panel
up, meanwhile to hold both slots of the front panel
and take it out forcibly and then can take it off.
Washing
WashingClean with a soft brush, water and
neutral detergent and then dry it.(Note: Before
℃
cleaning the unit, please take down the displayer
box firstly, then to wash the panel, if the unit has
displayer on the front panel. Never use the water
above 45
Install front panel
Place two supporters of the front panel into the slots,
along the direction of arrows to cover and clasp the
front panel. As show in right figure.
Cleaning the air filters (Recommended once every three months)
Note: If dust is much more around the air conditioner, the air filters should be cleaned many
times. After taking off the filter, don't touch the fin of indoor unit, in order to avoid hurt your
fingers.
to wash the panel, or it could cause
deformation or discoloration.)

7
①
②
③
④
①
②
③
Check before use
Be sure that nothing obstructs the air outlet and intake
vents.
Check that whether ground wire is properly connected
or not.
Check that whether the batteries of air conditioner are
changed or not.
Check that whether the installation stand of the outdoor
unit is damaged or not. If damaged, please contact the dealer.
Maintain after use
Turn main power off.
Clean the filter and indoor and outdoor units' bodies.
Repaint the rubiginous place on the outdoor unit to prevent it from spreading.
②
③
①
(a)
(b)
Clean and care
Take down the air filter
Cleaning
Reinsert the filters
Reinsert the filters along with the arrow head, then cover
the surface panel and clasp it.
To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with warm water
(the water with the neutral detergent should below 45 ℃).
When the filters are very dirty (such as oil stain), and
dry it in the shade.
NOTE: Never use water above 45 ℃to wash, or it can
cause deformation or discoloration. Never partch it by
fire, or can cause a fire or deformation.
At the slot of surface panel to open an angle, pull the
air filter downward and take it out.

8
●
●
●
●
●
●

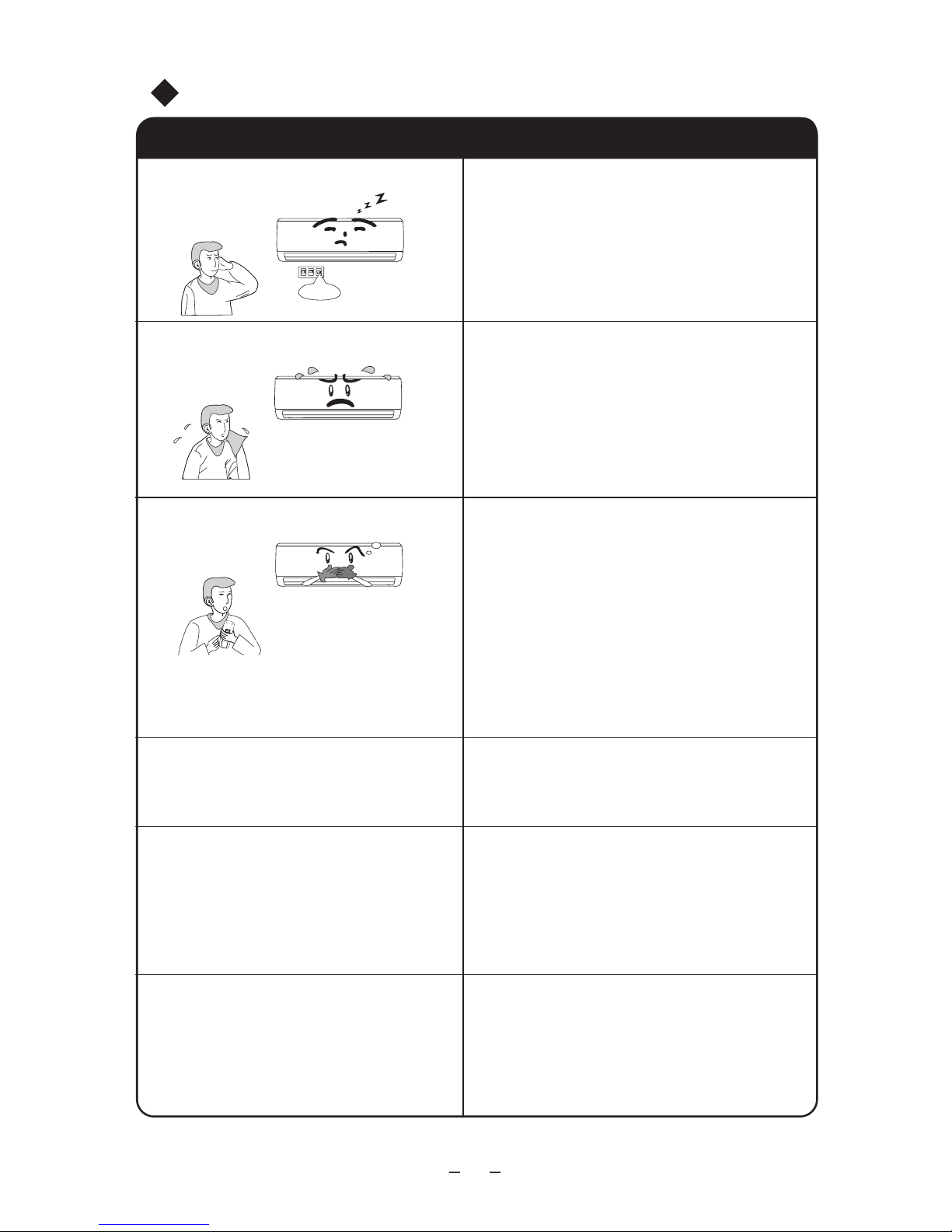

Troubleshooting
Warning
Do not repair the air conditioner at your discretion. Incorrect repair may cause electric
shock or fire, so please contact Authorized Service Center for professional repair.
Following checks prior to contact may save your time and costs.
Air conditioner does not run upon immediately
restart after a stop.
Phenomenon
To protect the air conditioner upon
immediate restart after a stop, the
microcomputer controller will delay
the unit for 3 minutes before the air
conditioner will run.
Troubleshooting
Air conditioner blows out bad smell when
it is initially started.
You may hear “Water Flowing” noise
when the air conditioner is running.
Sometimes a thin fog will flow out of the
outlet when air conditioner is running
under cooling mode.
You may hear a slight crack when the
air conditioner is started or stopped.
The air conditioner itself has no bad smell.
If any. It is the bad smell accumulated from
environment. Solution: Clean the air filter.
If still any problem, the air conditioner shall
be cleaned (Please contact Authorized
Service Center)
When the air conditioner is started, or the
compressor is started or stopped during
running or the air conditioner is stopped,
sometimes you may hear “hua-hua” or “di-di-”
noise. This is the flowing sound of refrigerant
other than fault.
This might occur when indoor temperature
and humidity are high. This is because the
indoor air is quickly cooled down.
After a period of time, the fog will disappear
with the decrease of indoor temperature
and humidity.
This is the sound of friction caused by
expansion of panel or other parts due
to the change of temperature.
Wait

9
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Troubleshooting
The unit can not run
Break off
Cooling(Heating) efficiency is not good.
Wireless remote control is not available
If water leakage in the room
If water leakage in outdoor unit
Noise from indoor unit emitted.
Phenomenon Troubleshooting
Has the power been shut down?
Is voltage higher or lower?
(Tested by professionals)
Is the Timer correctly used?
Is the circuit protection device tripped off or not?
Is Temp. setting suitable?
Were inlet and outlet vents obstructed?
Are the windows and doors clothed?
Did Fan speed set at low speed?
Is there any heat sources in the room?
The unit is interfered by abnormal or frequent
functions switchover occasionally the controller
cannot operate. At this time, you need to pull
out of the plug, and reinsert it.
Is it in its receiving range? Or obstructed?
To check the voltage in wireless remote control
inside is charged, otherwise to replace the
batteries.
Whether the wireless remote control is damaged.
The air humidity is on the high side.
Condensing water over flowed.
The connection position of indoor unit drainage
pipe is loosed.
When the unit is running in COOL mode, the
pipe and connection of pipe would be condensed
due to the water cooled down.
When the unit is running in Auto Defrosting mode,
the ice thawed and flowed out.
When the unit is running in HEAT mode, the
water adhered on heat exchanger dripped off.
The sound of fan or compressor relay is switching
on or off.
When the defrosting is started or stop running,
it will sound. That is due to the refrigerant flowed
to the reverse direction.
Dose power plug come loose from the socket?
Is there too much dusts accumulated and
obstructed the filter?

１0
●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
Indoor unit cannot deliver air
Moisture on air outlet vent
Immediately stop all operations and plug out, contact
the dealer in following situations.
There is harsh sound during operation
The terrible odors emitted during operation
Water is leaking in the room
Air switch or protection switch often breaks
Carelessy splash water or something into unit
There is an abnormal heat in power supply cord
and power plug.
Stop running and pull out of the plug.
If unit is running under the high humidity for
a long time, the moisture will be condensed
on the air outlet grill and drip off.
In HEAT mode, when the temperature of
indoor heat exchanger is very low, that
will stop deliver air in order to prevent cool
air. (Within 3min)
In HEAT mode, when the outdoor temperature
is low or high humidity, there are much frost
be formed on the outdoor heat exchanger,
that the unit will automatically defrost, indoor
unit stop blowing air for 3-12mins.During the
defrosting, there is water flowing out or vapor
be produced.
In dehumidifying mode, sometimes indoor
fan will stop, in order to avoid condensing
water be vaporized again, restrain temper-
ature rising.
