Alpic Air AWI/O25HPR1 User manual

AWI/O32HPR1
AWI/O25HPR1

1
WARNING
The power plug must be in-
serted tightly.
Otherwise, it can cause an electric
shock overheating or fire.
The instructions before use
Don’t pull out the power plug
during operating.
It can cause an electric shock
or fire.
Never splice the power cord or
use an extended cord.
It can cause overheating or fire.
Don’t use longer power lines
and don’t share a same socket
with other electric appliances.
It can cause an electric shock or
fire.
Don’t operate the Air condi-
tioner with wet hands.
It can cause an electric shock .
Don’t insert your hands or
stick into the air intake or
outlet vents.
It can cause danger.
danger
Don’t apply the cold wind to
the body for a longtime.
It cause the physical condition
deterioration and health prob-
lems.
When having a burning smell
or smoke, please turn off the
power supply and contact with
the Service center.
Don’t attempt to repair the
air conditioner by yourself.
You may cause further malfunc-
tions.

2
There must be electricity
leakage protection switch of
enough power capacity and air
switch in the circuit.
Be sure to pull out the power
plug when not using the Air
Conditioner for a longtime.
When cleaning, it is neces-
sary to stop driving and turn
off the power supply.
It occasionally cause the elec-
tric shock.
Don’t pull the power cord to
pull out the power plug.
It can cause fire.
Don’t place a space heater
near the air conditioner.
Air flow from the air conditioner
can cause incomplete combus-
tion to the space heater.
Keep combustible spray away
from the units.
It is likely to ignite .
Please note whether the in-
stalled stand is firm enough
or not.
It leads to the fall of the unit
causes the injury etc. occasionally.
Don’t step on the top of the
outdoor unit.
As falling off the outdoor unit
can be dangerous.
Don’t block the air intake or
outlet vents of both the out-
door and indoor units.It can
decrease the air conditioning
capacity or cause a malfunction.

3

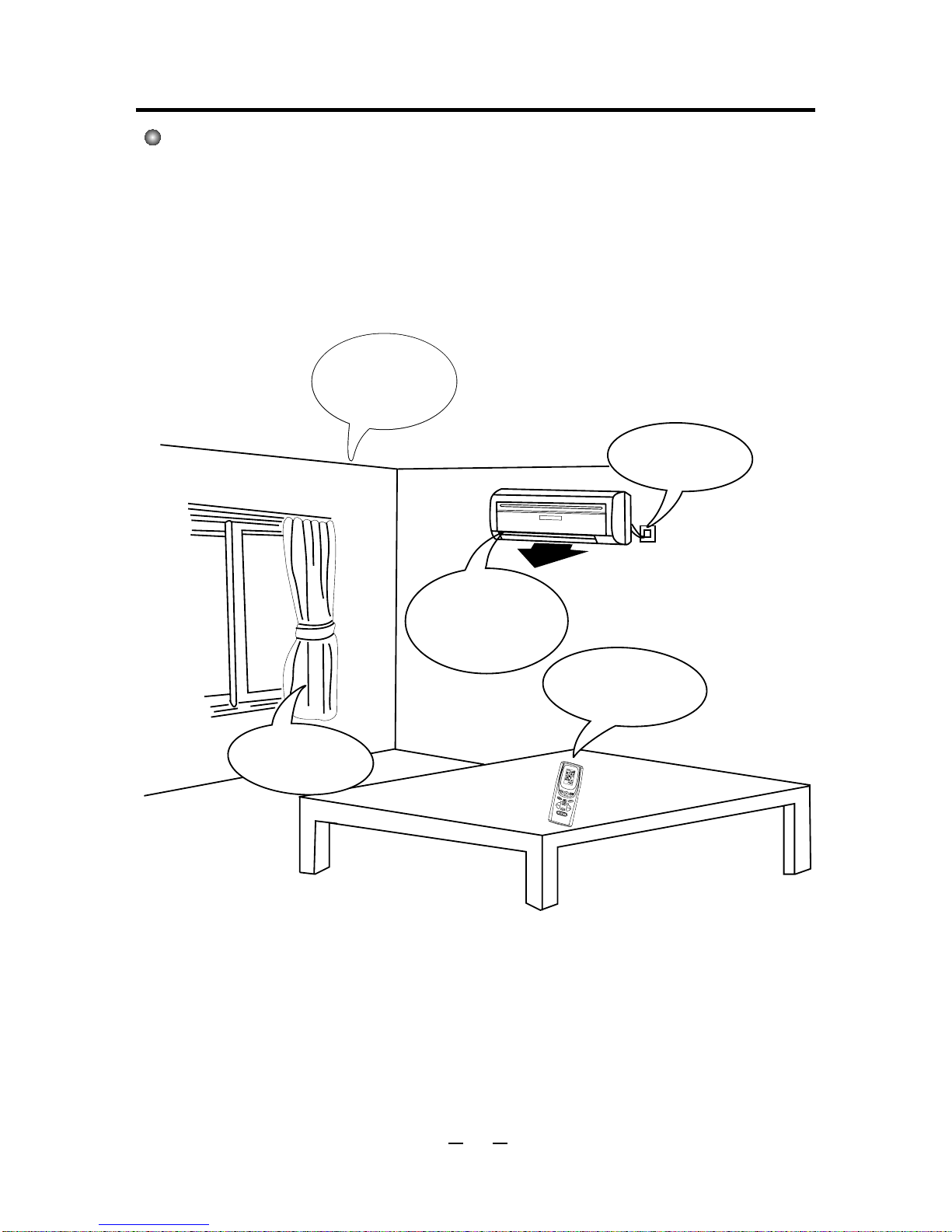

Names and functions of each part
Indoor unit
Outdoor unit

4

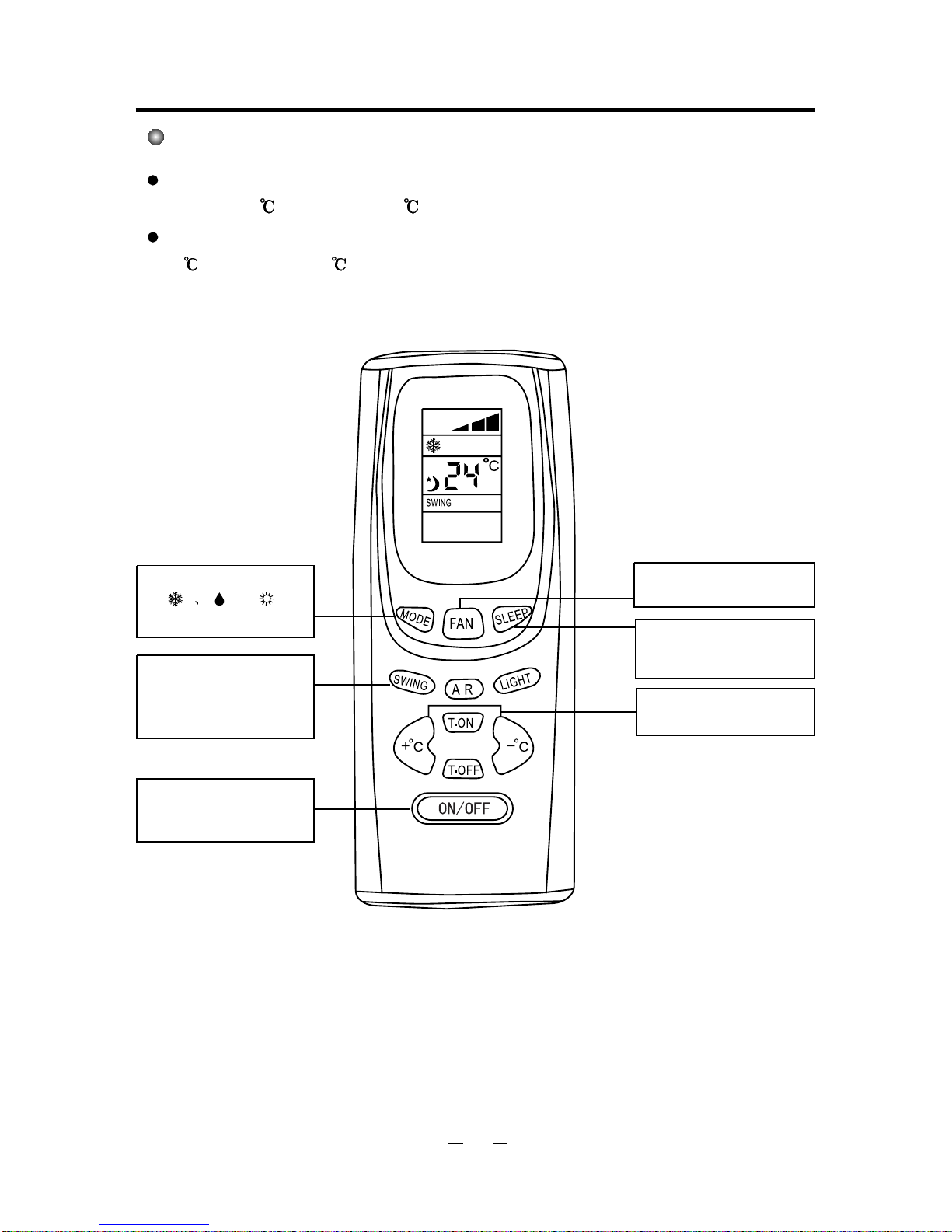

Name and F unction-R emote contr oller
AUTO mode
COOL mode
DRY mode
FAN mode
HE AT mode
R emote contr ol operation pr ocedur e
Note:
Be sure that there are no obstructions between receiver and remote controller.
The remote control signal can be received at the distance of up to about 10m.
Don’t drop or throw the remote controller.
Don’t let any liquid in the remote controller and put the remote controller
directly under the sunlight or any place where is very hot.
M ODE button
Press this button to
change the operation
mode in order of:
F A N button
Press this button to
change the fan speed of:
AUTO FAN
ON/OFF button
Press this button to turn
on or turn off the unit.
SW I NG button
When it is pressed, the louvers
start to rotate automatically and
stop when repressed.
T E M P .button
SE T T E M P. increases 1oC by
pressing +oC button once, and
decreases 1oC by pressing-oC
button once.
A t mode operation, SE T
T E MP. can be selected from
16oC to 30oC.
A t mode operation, SE T
T E MP. can be selected from
16oC to 30oC.
A t mode operation, SE T
T E MP. can be selected from
16oC to 30oC.

5

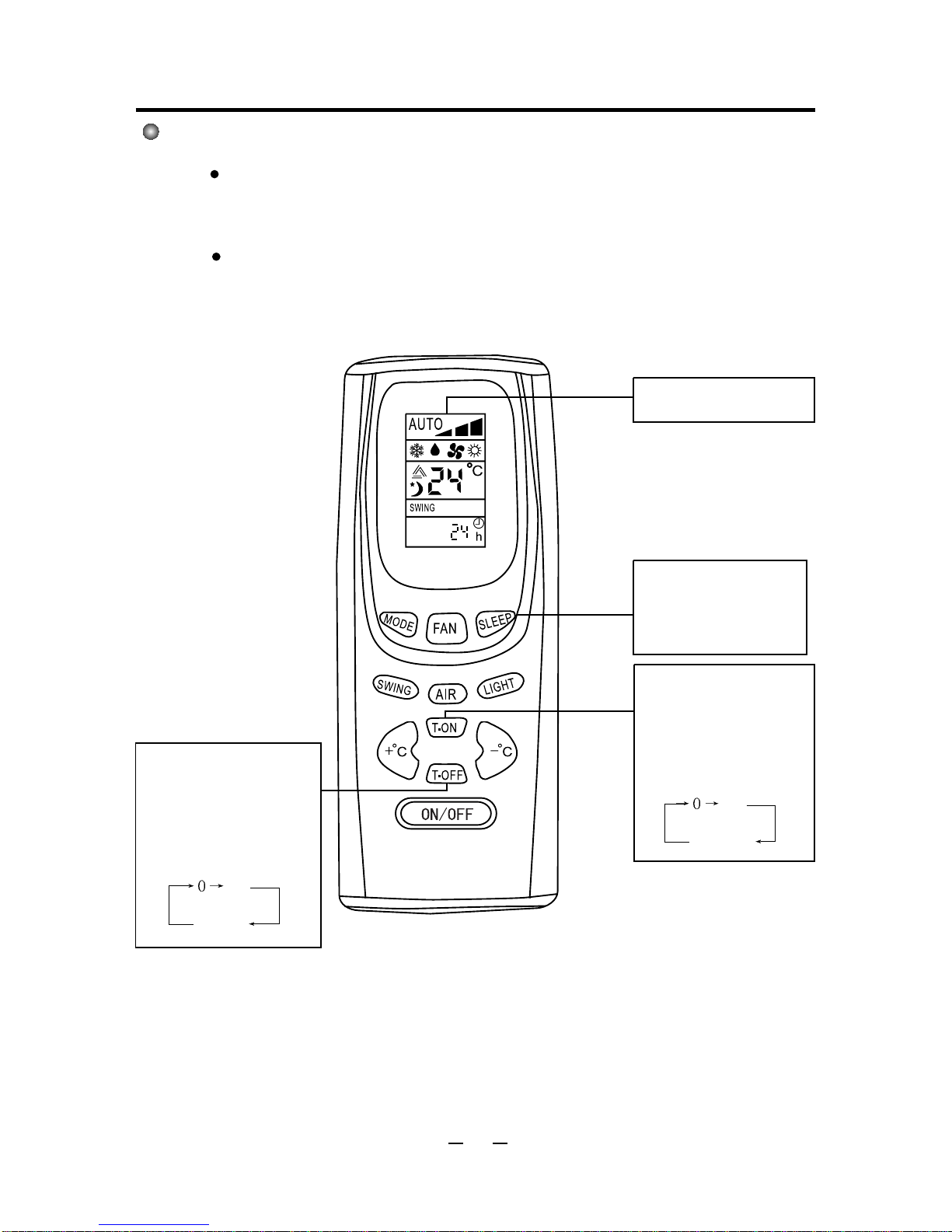

L iquid crystal displayer.
It shows all set contents.
SL E E P button
Press this button to set
SL E E P operation. A nd
stop when repressed.
T -ON button
At stopping, press T -ON
button, set ON TIME in
range of 0 to 24 hour at the
interval of 0.5h to start the
unit automatically.
Name and F unction-R emote controller .
This type of remote controller is a kind of new current controller. some
buttons of the controller which are not available to this Air conditioner
will not be described below.
Operate on unmentioned buttons would not impact on the normal use.
Note:
24h
Timer
cancellati on
T -OF F button
At operating, press T-OFF
button, set OFF T IME in
range of 0 to 24 hour to
stop the unit automatically.
24h
Timer
cancellation

6
4. Press FA N button, set
fan speed.
3. Press SWING button, the
louvers start to rotate au-
tomatically, and stop when
repress.
5. Press TEMP. button, set
suitable SET TEMP.
2. Press MODE button,
set operation
mode.
1. Plug in, press ON/OFF
button, then air conditi-
oner is turned on.
COOL mode operation procedure
According to difference between room temp. and set temp., microcomputer can control cool-
ing on or not.
If room temp. is higher than set temp., compressor runs at COOL mode.
If room temp. is Iower than set temp., compressor stops and only indoor fan motor runs.
SET TEMP. should be in range of 16 to30

7
HEAT mode operation procedure
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress it.
4.Press FAN button, set fan
speed.
5.Press TEMP. button, set
suitable SET TEMP.
1.Plug in, press ON/OFF
button,then air condi-
tioner is turned on.
2.Press MODE button,
set operation
mode.
If room temp. is lower than set temp., compressor runs at HEAT mode;
If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor
fan motor runs 60 seconds and then stop.
SET TEMP. should be in range of 16 to 30
Remote control operation procedure

8
DRY mode operation procedure
If room temp. is lower 2 than set temp., compressor, outdoor and indoor fan motor stop.
If room temp. is between 2of set temp, air conditioner is drying, If room temp. is
higher 2 than set temp., it's at COOL mode.
SET TEMP. should be in range of 16 to 30
3. Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress it.
4. Press TEMP . button, set
suitable SET TEMP .
2. Press MODE button,
set operation
mode. Air speed
could be changed
after the “ ” being
set.
1. Plug in, press ON/OFF
button, then air conditi-
oneristurnedon.

9
AUTO mode operation procedure
Under Auto mode operation, standard SET TEMP. is 25 for COOL mode and 20
for HEAT mode.
If room temp. is in range of 22to 26 ,air conditioner wait.
If room temp.ishigherthan 26 , it’s atCOOL mode.
If roomtemp.islowerthan 22 , it’s at HEAT mode.
1. Plug in, Press ON/OFF
button, then air con-
ditioner is turned on.
2. Press MODE button, set
operation mode, according to
room temp., microcomputer
can automatically set
operation mode, so as for
best effect.
Press FA N button,set fan
speed.

10
TIMER mode operation procedure
T-ON button
At stopping, press T- ON
button, set ON TIME in
range of 0 to 24 hour to
start the unit automati-
cally.
T-OFF button
At operating, press T- OFF
button, set OFF TIME in
range of 0 to 24 hour to stop
the unit automatically.
24h
Timer
cancellation
24h
Timer
cancellation

11
SLEEP mode operation procedure
As the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would
increase 1 in 1 hour and 2 in 2 hours.
As the unit is heating, if SLEEP operation is set, SET TEMP. would decrease
1in 1 hour and 2 in 2 hours.
4. Press FA N button, set fan
speed.
1. Plug in, Press ON/OFF
button,then air condi-
tioner is turned on.
3. Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress.
6. SLEEP button
Press it to set SLEEP
operation.
5. Press TEMP . button, set
suitable SET TEMP .
2. Press MODE button,
set or op-
eration mode.

12
1. Remove the cover from the back
of the remote controller.
2. Insert the two batteries (Two AAA
dry - cell batteries) .
3. Re - attach the cover.
NOTE:
Don’t confuse the new and
worn or different types of
batteries.
Remove batteries when
the remote controller is
not in use for a longtime.
The remote control signal
can be received at the
distance of up to about
10m.
The lifetime of the batter-
ies is about one year.
The remote controller
should be placed about 1m
or more away from the TV.
or any other electric
appliances.
Bad batteries are for-
bidden.
Insert the AAA batteries.
Remove the
cover.
How to insert batteries
Re - attach
the cover.

13
The best operating methods
adjust to the suit-
able temp. too cool
will do harm to the
health.
pull off the plug if
the unit will be
free in a long time.
avoiding directly
lighting and cool air
leaking.
cleaning the air filter
seriously and
maintaining the air
take out the batteries if the
remote controller will be
free within a long period.
cleaner carefully.

14
Select the most appropriate temperature. It can
preclude the electricity wasted. Theairflowdirectioncanbeadjustedappropriately.
The louvers can be adjusted downward at heating
operation, and upward at cooling operation.
Don’t leave windows and doors open while oper-
ating the air conditioner for a longtime.
It can decrease the air conditioning capacity.
Splashing water on the air conditioner can
cause an electric shock and malfunction.
Air conditioner should be operated with stable
voltage in range of 185 --264V 1ph. Otherwise,
compressor would vibrate terribly to damage
refrigeration system.
Don’tblow thewindto animalsand plantsdirectly.
It can cause a bad influence to them.
The ground must be connected.
Don’t connect the earth wire to gas or water
pipes,lightning rods or telephone earth lines.
Don’t use the air conditioner for other pur-
poses, such as drying clothes, preserving
foods, etc.
USER NOTICES
50Hz
220-240V~

15
Cleaning the air filters (Recommended once every three weeks)
Open the surface panel, hold the tab of air filter
and raise it slightly, and thentake it out.
Cleaning
To clear the dust adhering to the filters, you can
either use a vacuum cleaner, or wash them with wa-
ter and dry it in the shade.
NOTE:
Never use water above 45℃to wash the filters,
or it could cause deformation or discoloration.
Air Filter
Slot
Take down surface panel and washing
1. Pull along the direction of arrows to open surface panel,
you can use either a vacuum cleaner or a cloth moist-
ened to clean the dust adhering to the operture(don’t
touch the electronic component by the cloth moistened),
and dry it with a dry soft cloth.
2. Install surface panel
Cover the surface panel and clasp it.
Care and Maintenance
Turn power off and pull out the power plug before cleaning air conditioner.
Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning.
Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or
cleanser.
CAUTION
Don't take down surface panel, it will damage the communication system ofLCD.
(Only professional people can do).

16
Maintain after use
Clean filters and other parts.
Turn main power off.
Clear dust from the outdoor unit
Repaint the rust on the outdoor unit
to prevent it from spreading.
Preparation before use
Be sure that nothing obstructs the air outlet and
intake vents.
Check that whether ground wire is properly con-
nected or not.
Replace filters if necessary.
4. Turn main power on at least 6 hours before start-
ing actual operation. This will ensure a smooth start-
ing of the units.
Remove the air filters (Refer to the first step of “cleaning the air filters”)
Replace the air cleaner
Take off the packed bag of air purifying filters,
and then put new filters into the filters frame.
Reinsert the filters (Refer to the third step of “cleaning the air filters”)
Reinsert the filters
Reinsert the filters with side marked “FRONT”
facing forward.
NOTE: Be careful not to injure yourself on the
fins
Air cleaner
Recommended once every Six months, and the alternate filters can be found in the service
center.

17
Check the following before requesting on service center if the malfunction occurs.
Phenomenon Trouble Shooting
Indoor unit does not
operateimmediately
when the air condi-
tioner is restarted.
Once the air conditioner is stopped, it will not oper-
ate in approximately 3 minutes to protect itself.
There’s unusual
smell blowing from
the outlet after op-
eration is started.
This is caused by the odors in the room which have
been breathed into the air conditioner.
Sound of water
flow can be heard
during operation.
This is caused by the refrigerant flowing inside the
unit.
Mist is emitted dur-
ingcoolingoperation. Because the air of the room is cooled down rapidly
by the cold wind and it looks like the fog.
Creaking noise can
be heard when start
or stop the unit.
This is caused by the deformation of plastic due to
the change of temperature.
Air conditioner
doesn’t operate at
all.
Has the power been shut down?
Is the wiring loose?
Is the leakage protection switch in operation?
Is voltage higher than 264V or lower than 185V?
Is TIMER ON in operation?
Cooling (Heating) ef-
ficiency is not good. Is SET TEMP. suitable?
Is air inlet or outlet obstructed?
Are air filters dirty?
Is indoor fan speed set at low speed?
Is there any other heat sourse in your room?
Wireless remote
controller is not
available.
Is the remote control unit out of effective distance
to the indoor unit?
Replace the worn batteries of wireless remote con-
troller.
Are there any obstructions between the wireless
remote controller and the signal receptor?
Troubleshooting
Waiting
OFF

18
Immediately stop all operations and plug out, contact with service center in following situations.
Unusual noise can be heard during operation.
Power fuse or switch often breaks.
Carelessly splash water or something into air conditioner.
Electrical lines and power plug are very hot.
Wind blowing from the outlet smells terrible during operation.

22
Accessories and installation diagram
Accessories (check that all accessory parts are present before installation)
Be sure to use the exclusive accessories list above in the installation, or it will lead to water leakage, electric
shock, fire, etc.
No.
1
2
3
Part name
Rear panel
Wireless remote
controller
Battery
Memo
Specification
Qty
Diagram
1
1
2
AAA 1.5V
5
6
7
8
9
10
Tapping screw
Plastics drain hose
Gum type sealer
Piping-hole sleeve
Wrapping tape
Connection piping
Thermal insulation hose
L=2m
30 100
1
1
2
1
Packaged with
connection piping
Packaged with
connection piping
Packaged with
connection piping
4ST4.2 25Fix the rear panel
Packaged with
connection piping
O35X500
120 65 25
O6 X O9.5
5
* Connection piping is optional
