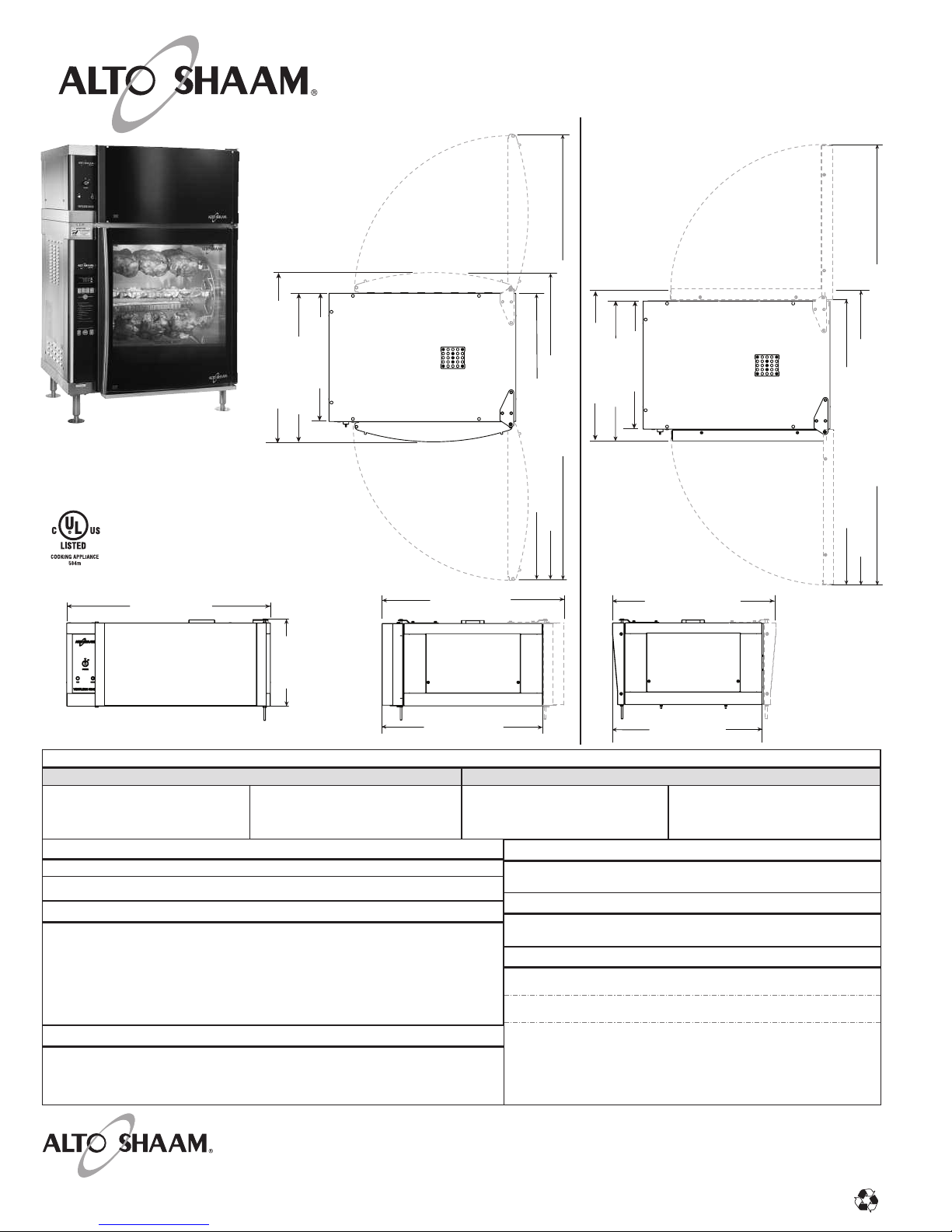

Alto-Shaam AR-7VH User manual

AR-7VH
ROTISSERIE VENTLESS HOOD
#52 - 01/09
EL EC TR IC AL
VOLTAGE PHASE CYCLE/HZ AMPS kW
208-240 1 50/60 1.0 .2
WEIGHT
NET:120 lb (54 kg)
SHIP: 175 lb (79 kg) ADDITIONA SHIP WEIGHT
FACTORY INSTA ED OVER AR-7E ROTISSERIE
CRATE DIMENSIONS:62" X50" X45" EST.
(1575mm x 1270mm x 1143mm)
(H x W x D)
OP TI ON S & AC CE SS OR IE S
Repla ement Filters
■■Grease Filter FI-25867
■■Charcoal Filter FI-25866
AI R MO VE ME NT
530 cfm (15m3)
CL EA RA NC E RE QU IR EM EN TS
6" (152mm) at top, back and both sides
IN STA LL AT IO N RE QU IR EM EN TS
FACTORY INSTALLATION ONLY
The ventless hood must not be installed in any area where
it may be affected by steam, grease, dripping water, high
temperatures, or any other severely adverse conditions.
(NOT AVAI AB E ON TWO STACKED ROTISSERIES)
LISTED
COOKING APPLIANCE
ITH INTEGRAL SYSTEMS
FOR LIMITING THE EMISSION
OF GREASE LADEN AIR
1P35
ALSO CLASSIFIED BY
UNDER RITERS
LABORATORIES INC.®
IN ACCORDANCE ITH
NSF4 - 2002
AR-7VH VENTLESS HOOD
INSTA ED DIRECT Y ON THE TOP OF
EECTRIC ROTISSERIE MODE AR-7E
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE: [phone].558.8744 U.S.A./CANADA FA : 262.251.7067 800.329.8744 U.S.A. ONLY
www.alto-shaam.com
DUE TO ONGOING PRODUCT IMPROVEMENT, S P E C I F I C AT I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A.
DIMENSIONS: H x W x D
FLAT GLASS CURVED GLASS
EXTERIOR:
16" x 37-1/8" x 27-7/8"
(404mm x 942mm x 707mm)
PASS-THROUGH EXTERIOR:(OPTIO N)
16" x 37-1/8" x 30-1/4"
(404mm x 942mm x 767mm)
EXTERIOR:
16" x 37-1/8" x 29-9/16"
(404mm x 942mm x 750mm)
PASS-THROUGH EXTERIOR:(OPTIO N)
16" x 37-1/8" x 33-5/8"
(404mm x 942mm x 853mm)
37-1/8"(942mm)
16"(404mm)
30-1/4"(767mm)
WITHPASS-THROUGH OPTION
27-7/8"(707mm)
WITH SOLID BACK
87-7/16"(2221mm)WITHPASS-THROUGHOPTION
56-1/2"(1434mm)WITHSOLIDBACK
27-7/8" (707mm)
WITH SOLID BACK
25-1/2" (646mm)
30-1/4" (767mm)
WITHPASS-THROUGH OPTION
58-13/16"(1494mm)
WITHPASS-THROUGHOPTION
PASS-THROUGH OPTION
57" (1447mm) WITH SOLID BACK
88-7/16" (2246mm) WITH PASS-THROUGH OPTION
16"(404mm)
37-1/8" (942mm)
33-5/8" (853mm)
WITHPASS-THROUGHOPTION
29-9/16" (750mm)
WITHSOLIDBACK
PASS-THROUGH OPTION
29-9/16" (750mm)
WITH SOLID BACK
61" (1549mm)
WITH PASS-THROUGH OPTION
25-1/2" (646mm)
33-5/8" (853mm)
WITH PASS-THROUGH OPTION
57" (1447mm)WITH SOLID BACK
88-7/16" (2246mm)WITH PASS-THROUGH OPTION
16"(404mm)
37-1/8"(942mm)
33-5/8"(853mm)
WITHPASS-THROUGH OPTION
29-9/16"(750mm)
WITH SOLID BACK
PASS-THROUGH OPTION
29-9/16" (750mm)
WITH SOLID BACK
61" (1549mm)
WITH PASS-THROUGH OPTION
25-1/2" (646mm)
33-5/8" (853mm)
WITH PASS-THROUGH OPTION
57" (1447mm) WITH SOLID BACK
88-7/16" (2246mm) WITH PASS-THROUGH OPTION
16"(404mm)
37-1/8" (942mm)
33-5/8" (853mm)
WITHPASS-THROUGH OPTION
29-9/16" (750mm)
WITHSOLIDBACK
PASS-THROUGH OPTION
29-9/16" (750mm)
WITH SOLID BACK
61" (1549mm)
WITH PASS-THROUGH OPTION
25-1/2" (646mm)
33-5/8" (853mm)
WITH PASS-THROUGH OPTION
AR-7VH WITH FLAT DOOR
AR-7VH WITH CURVED DOOR
FRONT VIEW
37-1/8" (942mm)
16" (404mm)
30-1/4" (767mm)
WITH PASS-THROUGH OPTION
27-7/8"(707mm)
WITH SOLID BACK
87-7/16" (2221mm) WITH PASS-THROUGH OPTION
56-1/2" (1434mm) WITH SOLID BACK
27-7/8" (707mm)
WITH SOLID BACK
25-1/2" (646mm)
30-1/4" (767mm)
WITHPASS-THROUGH OPTION
58-13/16" (1494mm)
WITH PASS-THROUGH OPTION
PASS-THROUGH OPTION
SIDE VIEW
SIDE VIEW
