4
Chapter 1: Introduction
1.1 Overview
Thank you for choosing Aluratek’s® Internet Radio Alarm Clock with
Built-in WiFi. Once I’m connected to the internet you will have access to
11,000+ live streaming internet radio stations from around the globe at
your ngertips.
This includes any music genre you can think of including talk, sports and
local news from over 150 countries.
That’s pretty much free music for life playing from any room in your
home or ofce.
Just use your exisitng WiFi and internet connection. If you have internet
you are all set!
In addition to making sure only quality materials are used for manufac-
turing, Aluratek® is also dedicated to provide the best customer satisfac-
tion and support.
The goal of Aluratek is to embody “Simple Elegance” in every product
it designs, manufactures and sells.
The product focus of Aluratek is to bring simple yet elegant connectiv-
ity solutions to the consumers to enhance their consumer electronics,
communications and computing experience. Each product is carefully
designed with the consumer in mind. Each product is solution-driven to
address the need of the consumers and deliberately planned to provide
the ultimate user experience.
Read this guide thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit and / or any of
the devices it connects to.

5
Chapter 1: Introduction
1.2 Features
• Choose between more than 11,000+ radio stations worldwide via
built-in vTuner with no monthly cost
• Search music by genre, i.e. classic, pop, talk, news, sports etc.
and geographically over 150 countries
• Compatible with universal Plug-n-Play audio servers such as:
Microsoft Media Player 11 (WMP11), Microsoft Media Connect
and MusicMatch Jukebox
• Wireless access WIFI 802.11 b/g, Ethernet and USB 2.0
(host only) connectivity
• Built-in FM radio tuner for local FM broadcast service
• Access music les stored on a USB 2.0 ash drive, MP3 player
or Hard drive through the unit’s USB port
• Alarm clock function with 2 programmable alarms wakes you up to
internet radio, FM radio, digital music, or alarm tone
• Integrated amplier: 2x2W stereo
• External plug for headsets (3.5mm)
• 2 RCA plugs (Stereo Lineout) for external speakers
• No PC is required
• 1 Year limited warranty
1.3 Requirements
• Wired / wireless router
• Internet connection
1.4 Package Contents
Your order has been carefully packaged and inspected. The following
should be included in your package. Please inspect the contents of the
package to ensure that you have received all items and that nothing has
been damaged. If you discover a problem, please contact us immedi-
ately for assistance.
• WiFi Internet Radio
• Remote Control
• Power Adaptor
• Instructional Manual / CD
• Quick Start Guide
• Warranty / Registration Card

Bedroom Home OfficeKitchen Backyard / Patio
6
Chapter 1: Introduction
1.5 Product Application
ABC
Stream Internet Radio
from your WiFi / wireless
802.11 B / G router.
Connect your local
CAT5 Ethernet cable to
stream Internet Radio.
Plug in any USB Drive
and listen to your music
les. (USB port on top)
C
B
A
USB Port
Integrate the AIRMM02F
into your home theater
system via the RCA jacks
1
PLACE IN ANY ROOM IN YOUR HOME
2
LISTEN
Built-in WiFi
OR OR

Function select Scroll the wheel to select the
function, and press it once to
conrm/enter.
Volume control Scroll the wheel to change the
volume.
Back Press the ‘back’ key to go
back to the previous menu.
Press this button once to play/
pause the select station.
Play / Pause music
Option This key has various functions
that are listed in menu such
as Stop playing music, go to
favorite etc.
Power-standby / power on
Light-change the brightness
of the display
Radio IP-Go to Internet
Radio
Media Player-Go to Media
Server
MP3 Reader-Go to MP3
player
Mute-Mute
REW-Rewind
Play/Pause-Play/Pause
FWB-Forward
- up
- down
- left
- right
OK-OK
Vol+-Volume up
Vol--Volume down
Prev-Prev song
Next-Next song
1~0-Numeric or alphabet
input
STOP-Stop playing
music
ZZZ-Snooze
Favorite- add to My
favorite
Shufe-shufe music
Bedroom Home OfficeKitchen Backyard / Patio
7
Chapter 1: Introduction
1.6 Unit Functions
1.7 Remote Functions

8
Chapter 2: Getting Started
2.1 Hardware Installation
Please make sure you already have a wired/wireless router setup
before setting up AIRMM02F.
Step 1. Power on:
Plug in the power adapter and press the power switch to power on
AIRMM02F
Step 2. Connect to Wi-Fi Router from AP lists
If you have a router with Wi-Fi function, AIRMM02F will automatically
nd the available AP lists for you to select. (See Chapter 3.1 to do the
detailed setup)
Step 3. Connect to wired Router
If you want to connect to your router (AP) by a RJ45 cable, you can go
to Setup / advance setting / congure network to wired client/ AP mode.
(See Chapter 3.2 to do the detailed setup)
2.2 Software Installation
AIRMM02F can work as a stand-alone device or as a media streamer
of a media server. As a stand-alone unit, you can use it to listen to
Internet radio, FM radio, and external USB storage/MP3 players. No
computer is needed.
For digital music les that are stored in your computer, you need to
install streaming server software in the computer so that AIRMM02F
can request the streaming service from that server.
AIRMM02F is compliant to UPnP protocol. It works with media server
software such as Microsoft Windows Media Player 11 (WMP11),
Microsoft Media Connect 2.0 (WMC2.0), and Musicmatch Jukebox.
Once you have the software installed on the computer, you can stream
your music collection to AIRMM01F.
Please nd Appendix A and B for instructions on how to connect
AIRMM02F to your computer via WMP11, and WMC2.0.

9
Chapter 3: Conguration
Go to next
screen
Notes
1.
Select the MMI
language
Device is running
as a Wireless
Client.
ScreenshotInstructions
2.
3.
There are three modes of network conguration for AIRMM02F. It can be a
wireless client, a wired client, or even a wireless access point (Wireless AP).
3.1 Congure as an Wireless Client
The factory default mode is the client Mode. According to the availability
of an Ethernet cable, the device will automatically select a suitable client
mode to operate. User can also manually change the setting of network
conguration through the Setup menu “Setup/Advanced Setup/Congure
Network”.
If there is an existing 802.11b/g wireless network in your home, this will
be simplest mode to connect AIRMM02F to the existence network.
User just have to power on the device, with no Ethernet cable plugged
in, the device will automatically go into the wireless client mode and
look for all available wireless APs (Access Points). To connect for the
rst time, you will need to select the AP to connect and set the correct
encryption key. Once the setting is nished, the device will save the
related settings and connect to the designated AP when it is power on.
However, if there is problem connecting to the designated AP, the device
will show the AP list screen for user to congure again.
First time using device without an Ethernet cable plugged in:
Initial screenAluratek
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.

10
Chapter 3: Conguration
First time using device without an Ethernet cable plugged in (cont.):
Go to next
screen
Notes
Scanning for
available APs.
Select the internet
radio menu lan-
guage.
ScreenshotInstructions
4.
5.
“►” button or
“OK” button or
press the right
rotary wheel.
You can use the
numeric/ alphabet
keypad on remote
control to input
the WEP key, or
you can use the
option button to
change the abc/
ABC/123/~!# input.
Note: Case sensitive.
Select the AP
that you can
connect to your
router device.
6.
7.
“►” button or
“OK” button or
press the right
rotary wheel.
“OK” button or
press the right
rotary wheel.
8.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
Numeric key
pads
“►” button or
“OK” button or
press the right
rotary wheel.
Conrm to the
settings above.
9. “►” button or
“OK” button or
press the right
rotary wheel.

11
First time using device without an Ethernet cable plugged in (cont.):
Chapter 3: Conguration
Go to next
screen
Notes
Apply new
settings.
ScreenshotInstructions
10.
11.
12. The device is
connected to your
network.
First time using device without an Ethernet cable plugged in (cont.):

12
Chapter 3: Conguration
Go to next
screen
Notes
Initial screen
ScreenshotInstructions
1.
2.
Manually select
the wireless
client mode.
3.
4.
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
Please select
WPS Disable if
your router does
not gave this
function.
Scanning for
available APs.
5.
Select the
desired AP to
connect
6.
“OK” button or
press the right
rotary wheel.
“ “ button
(4 times) or
rotate right
rotary wheel
clockwise.
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.

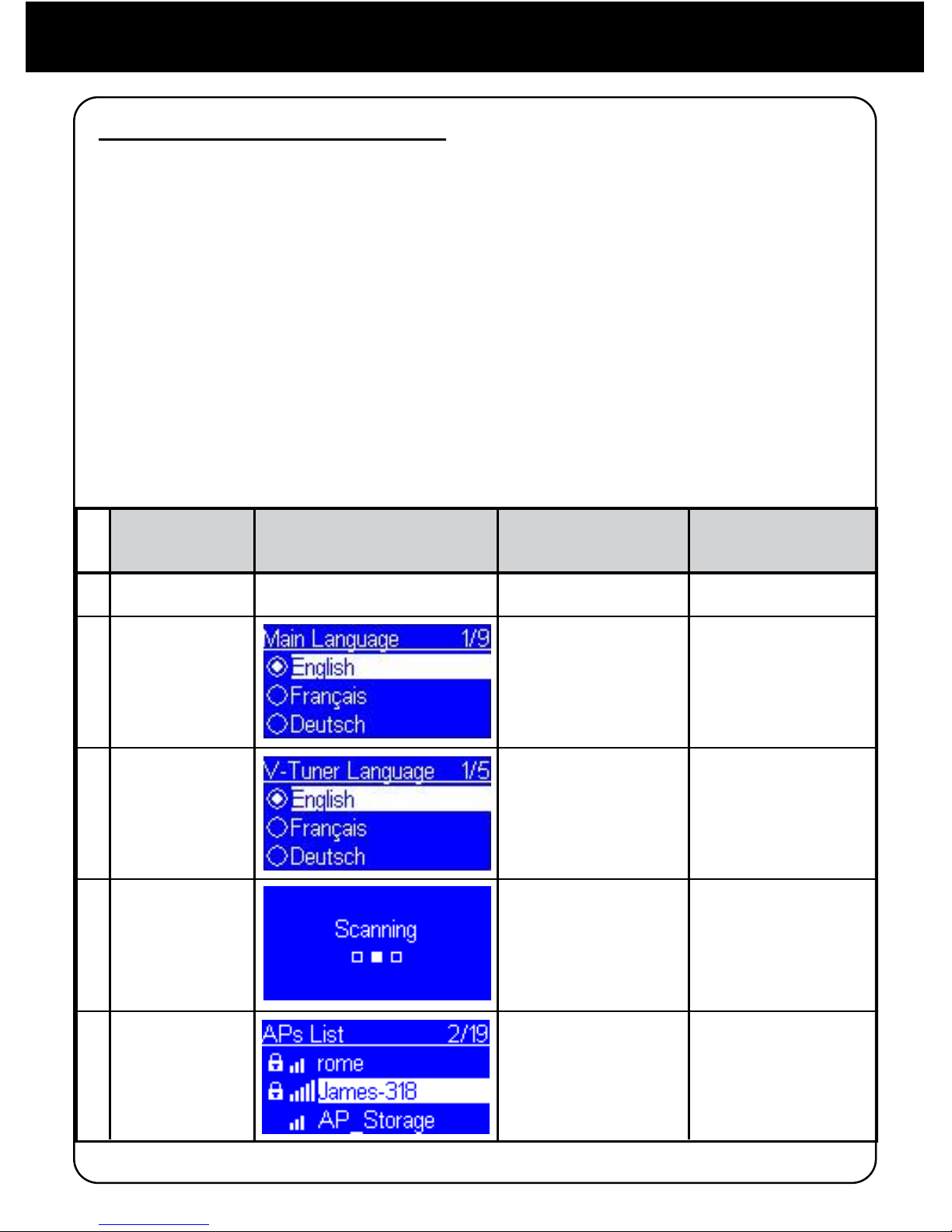

Manually congured as the Wireless Client Mode:

13
Go to next
screen
Notes
Conrm to the
settings above.
You can use the
numeric/ alphabet
keypad on remote
control to input
the WEP key, or
you can use the
option button to
change the abc/
ABC/123/~!# input.
Note: Case sensitive.
ScreenshotInstructions
7.
8.
9.
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
Apply new
settings.
Manually congured as the Wireless Client Mode (cont.):
Chapter 3: Conguration
10.
11.
The device is in
wireless client
mode now.
The device is
connected to
your network.

14
Chapter 3: Conguration
Go to next
screen
Notes
1.
Select the inter-
net radio menu
language.
Device is running
as a Wireless
Client.
ScreenshotInstructions
2.
3.
3.2 Congure as a Wired Client
If there is no 802.11b/g wireless network in your home, and only wired
802.3 network is available, AIRMM02F can also connect to the wired
network through an Ethernet cable.
In this situation, prior to power on the device, you have to plug the Eth-
ernet cable into the RJ45 connector. And then power on the device. The
device will automatically go into the wired client mode when it detects a
link status through the Ethernet connection during device startup.
First time using device with an Ethernet cable plugged in:
Initial screenAluratek
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
4.
5. Press STOP on
remote control

15
Chapter 3: Conguration
Go to next
screen
NotesScreenshotInstructions
6.
7.
8.
9.
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
10.
11.
“ “ button
(5 times) or
rotate right
rotary wheel
clockwise.
“►” button or
“OK” button or
press the right
rotary wheel.
First time using device with an Ethernet cable plugged in: (cont.)
“►” button or
“OK” button or
press the right
rotary wheel.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
12.
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.

16
Chapter 3: Conguration
First time using device with an Ethernet cable plugged in: (cont.)
13.
Go to next
screen
Notes
The device is in
wired client mode
now. It is connect-
ed to your network.
ScreenshotInstructions
14.
15.
16.
Device runs as
a Wired Client.
“►” button or
“OK” button or
press the right
rotary wheel.

17
Chapter 3: Conguration
Go to next
screen
NotesScreenshotInstructions
1.
2.
3.
4.
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
5.
6.
“ “ button
(4 times) or
rotate right
rotary wheel
clockwise.
“►” button or
“OK” button or
press the right
rotary wheel.
Manually congured as Wired Client Mode:
“►” button or
“OK” button or
press the right
rotary wheel.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
7.
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
Initial screen
Manually select
the wired client
mode.
Select the DHCP
for auto cong-
ured IP address.
Conrm to the
settings above.
Apply new
settings.

18
Manually congured as Wired Client Mode: (cont.)
8.
Go to next
screen
Notes
The device is in
wired client mode
now.
ScreenshotInstructions
9. The device is
connected to
your network
Chapter 3: Conguration

19
Initial screen1. “OK” button or
press the right
rotary wheel.
Go to next
screen
NotesScreenshotInstructions
2.
3.
“►” button or
“OK” button or
press the right
rotary wheel.
Manually select
the AP mode.
4.
Select the DHCP
for auto congured
IP address.
5.
3.3 Congure as a Wireless Access Point (AP Mode)
AIRMM02F can also be congured as a wireless AP. With this feature, you
can easily extend the wireless coverage without purchasing another AP.
To congure AIRMM02F as an AP, you have to manually setup the de-
vice through selecting the MMI menu “Setup/Advanced Setup/Congure
Network/AP mode”. And then setup the IP address scheme, SSID, channel
number and the encryption key of the AP. Once the setting is nished, the
device will reboot automatically and function as an AP.
Manually congured as a Wireless Access Point (AP Mode):
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
“►” button or
“OK” button or
press the right
rotary wheel.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
“▼“ button
(4 times) or
rotate right
rotary wheel
clockwise.
“▼” button
(2 times) or
rotate right
rotary wheel
clockwise.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
Chapter 3: Conguration

20
Manually congured as a Wireless Access Point ((AP Mode) (cont.)):
You can use
the numeric/
alphabet keypad
on remote control
to input the SSID,
or you can use
the option button
to change the
abc/ABC/123/~!#
input.
6. “OK” button or
press the right
rotary wheel.
Go to next
screen
NotesScreenshotInstructions
7. “OK” button or
press the right
rotary wheel.
Numeric key
pads
Numeric key
pads
Select one of the
security schemes.
8. “OK” button or
press the right
rotary wheel.
You can use the
numeric/ alphabet
keypad on remote
control to input
the WEP key, or
you can use the
option button to
change the abc/
ABC/123/~!#
input.
9. “OK” button or
press the right
rotary wheel.
Numeric key
pads
You can use the
numeric/ alphabet
keypad on remote
control to input
the Channel, or
you can use the
option button to
change the abc/
ABC/123/~!#
input.
“▼” button
(1 times) or
rotate right
rotary wheel
clockwise.
Chapter 3: Conguration
