Amazon AB2019INRF005 User manual

Read this manual carefully before installing or operating your new refrigerator.
Make sure to save this manual for future reference.
Important Note:
Refrigerator
AB2019INRF005 (SBS 560 L)
USER’S MANUAL

Table of Contents
Safety and warning information 06
Safety for Children and Others who are Vulnerable People 06
General Safety 06
Replacing the llluminating Lamps 07
Refrigerant 07
Risk of Fire 07
Electrical Safety 07
Daily use 08
Caution! Care and Cleaning 08
Installation Important! 09
Service 09
Installing Your New Appliance 10
Ventilation of Appliance 10
Level of Appliance 11
Discription Of The Appliance 12
Display Controls 13
Controlling the Temperature 13
Caution! 13
Unlock 13
Mode 13

Table of Contents
Super Cool 14
Super Freeze 14
Artificial Intelligence 14
Fridge 14
Freezer 14
Door Alarm 14
Using Your Appliance 15
Adjust the Door 15
Using your Refrigerator Compartment 15
Glass Shelves and Door Racks 15
Using your Freezer Compartment 15
Drawers 15
Using your ice box 15
Operation Method 16
Water Dispenser 16
Level of Appliance 16
Warning 16
Specifications 17
Warning 17

Table of Contents
Helpful Hints and Tips 18
Energy Saving Tips 18
Hints for Refrigeration 18
Hints for the storage of Frozen Foods 18
Switching off your Appliance 18
Cleaning and Care 19
Exterior Cleaning 19
Caution 19
Interior Cleaning 19
Door Seals Claening 19
Caution 19
Replacing the LED Light 19
Troubleshooting 20
Troubleshooting 21
Rating Label 22
AmazonBasics e-waste Program 23

Safety and warning information
6
For your safety and correct usage before installing and first using the appliance, read this user manual carefully, including its hints
and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are
thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance
if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the
safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages
caused by omission.
Safety and Warning Information
Safety for children and otherswho are vulnerable people
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety
• Keep all packaging away from children as there is risk of suffocation.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you
can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid,
be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap
for a child.
This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• catering and similar non-retail applications.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by
the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste
disposal centre. Do not expose to flame.
General safety
WARNING

Safety and warning information
7
Safety and Warning Information
Electrical safety
1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the interior lighting lamp cover.
7. The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the
district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage
regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other
electric appliances. Its plug must match the socket with ground wire.
Replacing the illuminating lamps
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING
The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for
assistance. This warning is only for refrigerators that contain illuminating lamps.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of
environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure
that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.
Risk of fire
WARNING
If the refrigerant circuit should be damaged:
• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.
• It is dangerous to alter the specifications or modify this product in any way.
• Any damage to the cord may cause a shortcircuit, fire, and/or electric shock.
WARNING
• Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they
may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Daily use
8
Daily Use
• Do not store flammable gass or liquids in the appliance, There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g.electric ice cream makers,mixers etc.).
• When unplugging always pull the plug from the mains socket,do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions.
• The appliances manufactures storage recommendations should be strictly adhered to.Refer to relrelevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container,which may
cause it to explode,resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance in direct sunlight.
• Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet
The appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet,as this could cause skin abrasions or
frost/freezer burns.
• Never use the base,drawers, doors etc. to stand on or as supports.
• Frozen food must not be refrozen once it has been thawed out.
• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the
crisper drawers.
Caution! Care and Cleaning
Caution! Care and Cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!
Insttallation Important
9
• For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are
damages on it.
• Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case
retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow
the instructions relevant to installation.
• Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.
• The appliance must not be locate close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
Service
Service
• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent
person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
1. If the appliance is Frost Free.
2. If the appliance contains freezer compartment.

Installing your new Appliance
Installing your new Appliance
10
Ventilation of appliance
Space required (mm)
• Stand your appliance in a dry place to avoid high moisture.
• Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heatsources such as stoves, fires
or heaters.
Before using the appliance for the first time, you should be informed of following tips.
In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation
around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available
around the refrigerator. Suggest: It is advisable for there to be 50-70mm of space from the back to the wall, at
least 100mm from its top, atleast 100mm from its side to the wall and a clear space upfront to allow the doors
to open 150°. See in following diagrams.
100mm
411.5
W1
908
W D
550 1096.5
D1
SN
Climate class Ambient temperature
+100C to +320C
N +160C to +320C
ST +160C to +380C
T +160C to +430C
Note: This appliance performs well in the below climate class. It may not work properly if being left at a temperature
above or below the indicated range for a long period.

11
Installing your new Appliance
Installing your new Appliance

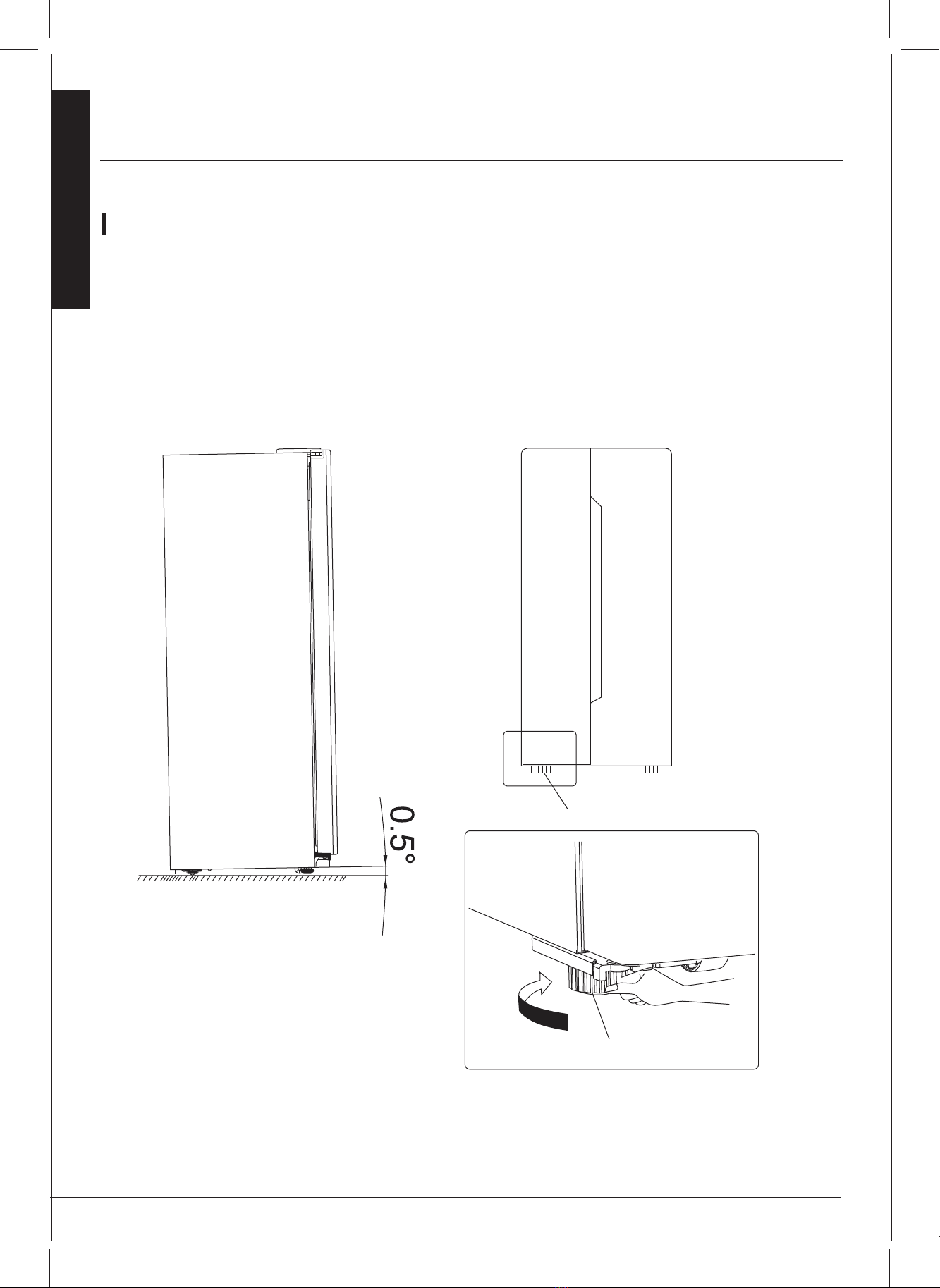

Level of appliance
• For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted.
You can adjust them by your fingers or a suitable spanner.
• To allow the doors to self-close, tilt back the top backwards for about 10mm or 0.5° by turning the adjustable feet.
• Whenever you want to move the appliance, remember to turn the feet back up so that the appliance can roll freely. Reinstall the
appliance when relocating.
Caution! The rollers, which are not castors, should be only used for forward or backward movement. Moving the refrigerator
sideways may damage your floor and the rollers.
adjustable bottom feet
adjustable bottom feet

Description Of The Appliance
12
Description Of The Appliance
View of the appliance
10
11
16
17
18
12
2
6
8
14
5
1
7
9
13
15
19
Note: Due to unceasing modification of our products, your refrigerator may be slightly different from this Instruction manual,
but its functions and using methods remain the same.
1. Freezer zone LED light
2. Freezer door Rack
3. Freezer door seal
4. Wind channel cover in freezer
5. Freezer shelf
6. Ice box part
7. Freezer upper drawer
8. Freezer lower drawer
9. Freezer door Rack
10. Left adjustable bottom feet
11. Fresh zone LED light
12. Water tank
13. Wind channel cover in fresh
14. Egg tray
15. Fresh shelf
16. Fresh door seal
17. Fresh upper drawer
18. Fresh lower drawer
19. Right adjustable bottom feet

Display Controls
Display Controls
13
Controlling the temperature
We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 5°C and the freezer
to -18°C. If you want to change the temperature, follow the instructions below.
Caution!
When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each
compartment may vary from the temperatures displayed on the panel, depending on how much food you store and where you place
it. High or low room temperature may also affect the actual temperature inside the appliance.
When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. If no buttons have
been pressed and the doors are closed, the backlighting will turn off after 60 seconds. The cont rol panel consists of two areas
about temperature,one area about different modes.
Unlock
All the buttons are locked if the icon “ ” is illuminated, press the “ ” button for 3 seconds to unlock them. And it will be
locked itself after Unlock 20 seconds no pressing any button.
Mode
You can select “ ” by pressing the “Mode ” button when " " . When “ ” mode is selected, wait for the
corresponding icon flashing for 10 seconds.
Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the
control panels showed in the pictures below.

Display Controls
14
Super Cool
Super Cool can refrigerate your food much faster, keeping food fresh for a longer period .
• Press " " button to select the Super Cool function . The light will be illuminated.
• For the maximum amount of food to be Cooled , please wait about 6 h.
• Super cool automatically switches off after 6 hours and the fridge temperature setted to 2°C .
Super Freeze
Super Freeze will quickly lower the temperature within the freezer so food will freeze faster. This can lock in the vitamins and nutrients
of fresh food and keep food fresh longer.
• Press " " button to select the Super Freeze function. The light will be illuminated.
• For the maximum amount of food to be frozen, please wait about 24 h.
• Super freeze automatically switches off after 26 hours and the freezer temperature setted to -25°C.
Artificial Intelligence
• When the function is seleced, the temperature of the appliance is automatically adjusted.
• When the Artificial Intelligence function is activated, the temperature of the fridge is automatically switched to 5°C and the freezer
to -18°C.
Fridge
• You can press the " " button to activate the mode to control the fridge temperature.When you press the button continuously,
the temperature will be set as the following sequence.
Display Controls
Freezer
• You can press the “ " button to activate the mode to control the freezer temperature. When you press the button
continuously, the temperature will be set as the following sequence.
Door Alarm
• If the door of fridge or freezer is open for over 2 minutes, the door alarm will sound. The buzzer will automatically stop alarming 10
minutes later.
• To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can be cleared by
closing the door.

15
Using your Appliance
Using your Appliance
Adjust the door
When you find the doors are not at the same level, you can use the screwdriver to
adjust the door. When the freezer door is upper than the refrigerator door. First, you
can use the screwdriver to turn the bolt anticlockwise on the lower hinge that can
make the door go up. Then use the screwdriver to locking the nut.
Using your refrigerator compartment
The refrigerator compartment is suitable for storage of vegetables and fruit. Food inside shall be packed to store in order to avoid
losing moisture or flavor permeating into other foods.
Caution! Never close the refrigerator door while the shelves, crisper and/or telescopic slides are extended. It may damage both them
and the refrigerator.
Glass shelves and Door racks
The refrigerator compartment is provided with 3 glass shelves and several different door racks ,which are suitable for the storage of
eggs, canned liquid, bottled drinks and packed food.. They can be placed at different heights according to your need. Before you lift
up the door shelf vertically, please take the food out.
• When you remove the shelves, gently pull them forward until the shelf comes clear of the shelf guides.
• When you return the shelves, make sure there is no obstacle behind and gently push the shelf back into the position.
Note: All the door racks and covers are completely removable for cleaning.
Using your freezer compartment
The freezer compartment is suitable for storage of foods required to be frozen, such as meat, ice cream and others.
Caution! Ensure that bottles are not left in the freezer for longer than needed as freezing may cause the bottle to break.
Drawers
The drawers, mounted on telescopic extension slides, can be used to store rather more food.
• The method for removing the drawers is the same as the crisper in the refrigerator chamber.
Using your ice box
The ice box is as a independent part that can be take out of the freezing chamber.
• Take out the ice box placed on a platform, then pour water into the
ice trays and the water level shall not exceed the maximum line.
• Place the filled ice box back to the freezing room.
• When ice cubes form, twist the knobs dockwise and the ice will drop into the ice box below.
• Ice cubes can be stored in the ice box, if you need t hem, you can pull out the ice box and take them out.
Note: Note: If the ice box is used for the first time orhas not been used for a long time, please clean it before using.
This section tells you how to use most of the useful features. We recommend that you read through them carefully before using
the appliance.
take off icewater injection

16
Operation Method
Operation Method
Warning
1. Be careful not to press on the head;
2. When fitting the water tank, ensure the head inserted into the hole first;
3. If you found the washer reversed or loosed when removing the tank,
you must take off the fixed holder by contrarotating it first, then put
the washer to the correct position, and install the fixed holder at last.
Level of appliance
• For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted.
You can adjust them by your fingers or a suitable spanner.
• To allow the doors to self-close, tilt back the top backwards for about 10mm or 0.5° by turning the adjustable feet.
• Whenever you want to move the appliance, remember to turn the feet back up so that the appliance can roll freely. Reinstall the
appliance when relocating.
Water Dispenser
The water dispenser, located in the fridge door, is for storing drinking water. With this appliance you can obtain chilled
water easily without opening the refrigerator. You should be informed of following tips.
•Before using this appliance for the first time, you should use it as follows.
1. Hold the two sides of the water tank tightly, then pull up the water tank by shaking up and down.
2. Unscrew the head, then clean it and the inside of water tank.
•Before assembling, please drain the water inside the tank, and check whether the washer is reversed or not.
1. Insert the head into the hole.
2. Fit the tank along the guides on the door.
3. Press down on the two side of the tank.
4. When you hear a click sound, that means the installation is completed.
fixed holder
washer
Slot
Guide
Head
wrong position
correct position

Specifications
Specifications
17
•Before you fill the drinking water into the water tank, ensure that the water tank is steady and in a correct position.
1. Insert the head into the hole.
2. Fit the tank along the guides on the door.
3. Press down on the two side of the tank.
4. When you hear a click sound, that means the installation is completed.
•Dispensing water
1. Make sure the cover of the water tank is fitted on.
2. Close the fridge door and check the dispenser.
•Receiving Water
You should use the correct cups to receive water underneath
the water dispenser.
Before you dispense the water, make sure the lock device is on “UNLOCK” situation.
Caution! Fill with water up to 3L (which is suggested), and not above the level. Otherwise, it may overflow when the lid is close.
We recommend that you fill the water by the following ways.
1. Remove the small lid and fill water from the inlet of the large lid.
2. Remove the cover of the tank, and then fill water inside directly.
Warning
Don't touch other parts of the appliance when filling water, it may cause the water leakage.
Warning
The lock is defined as “child lock”. Don't push the dispenser lever forward strongly, when the dispenser is on “LOCK” situation,
it may damage the mechanism.
•Cleaning
1. Put the water tank out of the door carefully, and then wash the tank, id, and head lightly in water.
2. After you have successfully cleaned the appliance, you should dry it by natural drying or using the dryer.
3. If you have used the water dispenser for many times, the water in thereceiving tank may drop on the floor,
which may make your floor wet, and you should clean the tank with dry towel regularly before overflow.
Warning
Don't push the dispenser lever forward without cup, it may cause the water leak from the dispenser.
Small Lid
Head
Large Lid
Dispenser
Lever
Suggested
Position
Lock

18
Helpful Hints and Tips
Helpful Hints and Tips
Energy saving tips
We recommend that you follow the tips below to save energy.
• Try to avoid keeping the door open for long periods in order to conserve energy.
• Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc)
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated, humidity free room. Please refer to Installing your new appliance chapter.
• If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust thecombination as this is
designed to be the most energy efficient configuration.
• Don't place hot food directly into the refriger at or freezer, the internal temperature willi ncrease resulting in the compressor to
work harder and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Place food properly so that air can circulate freely around it.
• Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food
storage times and use by dates suggested by manufacturers.
• Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf.
• Fruit and vegetables: They should be stored in the special drawer provided.
• Butter and cheese:
• It is recommended to label and date each frozen package in order to keep track of the storage time.
Hints for the storage of frozen food
• Ensure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the
food manufacturer.
Switching off your appliance
If the appliance needs to be switched off for an extended period, the following step s should be taken prevent mould on the appliance.
1. Remove al lfood.
2. Remove the power from the main socket
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.
Hints for refrigeration

Cleaning and Care
Cleaning and Care
19
For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.
Caution! The appliance must not be connected to the mains during cleaningas there is a danger of electrical shock! Before cleaning
switch the appliance off and remove the plug from the main socket.
Exterior Cleaning
To maintain good appearance of your appliance , you should clean it regularly.
• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even
distribution of moisture to the surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.
Caution!
• Do not use sharp objects as they are likely to scratch the surface.
• Do not use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning .
They may damage the surface of the appliance and may cause fire.
Replacing the LED light
Only after the door seals are completed dry should the appliance be powered on.
They may damage the surface of the appliance and may cause fire.
Replacing the LED light
The LED night must not be replaced by the user! If the LED light is samaged, consult a qualified, registered election for assistance
Interior cleaning
You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge
freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe
completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts.
Door Seals Cleaning
Take care to keep door selas clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open
the door. Wash seal with a mild detergent and warm water. Rinse and dry it thourouhjy after cleaning.

Troubleshooting
Troubleshooting
If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out
some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before
calling for service.
Warning! Do not try to repair the appliance yourself . If the problem persists after you have made the checks mentioned below,
contact a qualified electrician, authorized service engineer or the shop where you purchased the product.
20
Noise from the appliance
The motor runs continuously
It is normal to frequently hear the sound of the motor, it will need to run more when in
following circumstances :
• Temperature setting is set colder than necessary
• Large quantity of warm food has recently been stored within the appliance .
• The temperature outside the appliance is too high.
• Doors are kept open too long or too often.
• After your installing the appliance or it has been switched off for a long time.
Check that the air outlets are not blocked by food and ensure food is placed within
the appliance to allow sufficient ventilation. Ensure that door is fully closed.
To remove the frost, please refer to cleaning and care chapter.
You may have left the doors open too long or too frequently; or the doors are kept
open by some obstacle; or the appliance is located with insufficient clearance at the
sides, back and top
Increase the temperature by following the "Display controls" chapter.
A layer of frost occurs in
the compartment
Temperature inside is too warm
Temperature inside is too cold
• Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below and may need you to check and
take action: The cabinet is not level. The back of appliance touches the wall. Bottles
or containers fallen or rolling.
Problem Possible cause and solution
Appliance is not working correctly
Odours from the compartments
Check whether the power cord is plugged into the power outlet properly.
Check the fuse or circuit of your power supply, replace if necessary.
The ambient temperature is too low. Try setting the chamber temperature to a colder
level to solve this problem. It is normal that the freezer is not operating during the
automatic defrost cycle, or for a short time after the appliance is switched on to
protect the compressor.
The interior may need to be cleaned
Some food, containers or wrapping cause odours.
Noise from the appliance
The sounds below are quite normal:
• Compressor running noises.
• Air movement noise from the small fan motor in the freezer compartment or
other compartments.
• Gurgling sound similar to water boiling.
• Popping noise during automatic defrosting.
