AMB2300-EV
Quick start for the Evaluation board of the AMB2300 – BlueNiceComIV
In Addition to the AMB2300 Manual
Connection Diagram
Power supply
5V-9V DC
implemented
voltage
regulator
RS232
Reset
Button
Microphon
Input
Speaker
Output
BNCIV
Current
Measure
Jumper
Voltage Regulator Output
Power to BNCIV and Audio Codec
Ground
UART
(RX, TX, RTS, CTS)
TTL-Pegel on the left
side
RS232 Driver on the right
side
Audio
(SCLK,SFS,SRD,STD)
Digital Signal before
Audio Codec
JP1 Pin1
See table 1 for pin
assignment
OP3, OP4, OP5
default pulled
down,
set jumper to
pull up
PG6, PG7
set jumper for LED
connection
Pads for SMA
Jack
(Alternate
Antenna
Connector)
All manuals and user guides at all-guides.com

AMBER wireless GmbH
Albin-Köbis-Straße 18 • D-51147 Köln • Tel.: [phone] • Fax: [phone]
Hawstraße 2a • D-54290 Trier • Tel.: [phone] • Fax: [phone]
www.amber-wireless.de • [e-mail]
AMB2300-EV-DS-Rev. 1.0 Stand 10/2006

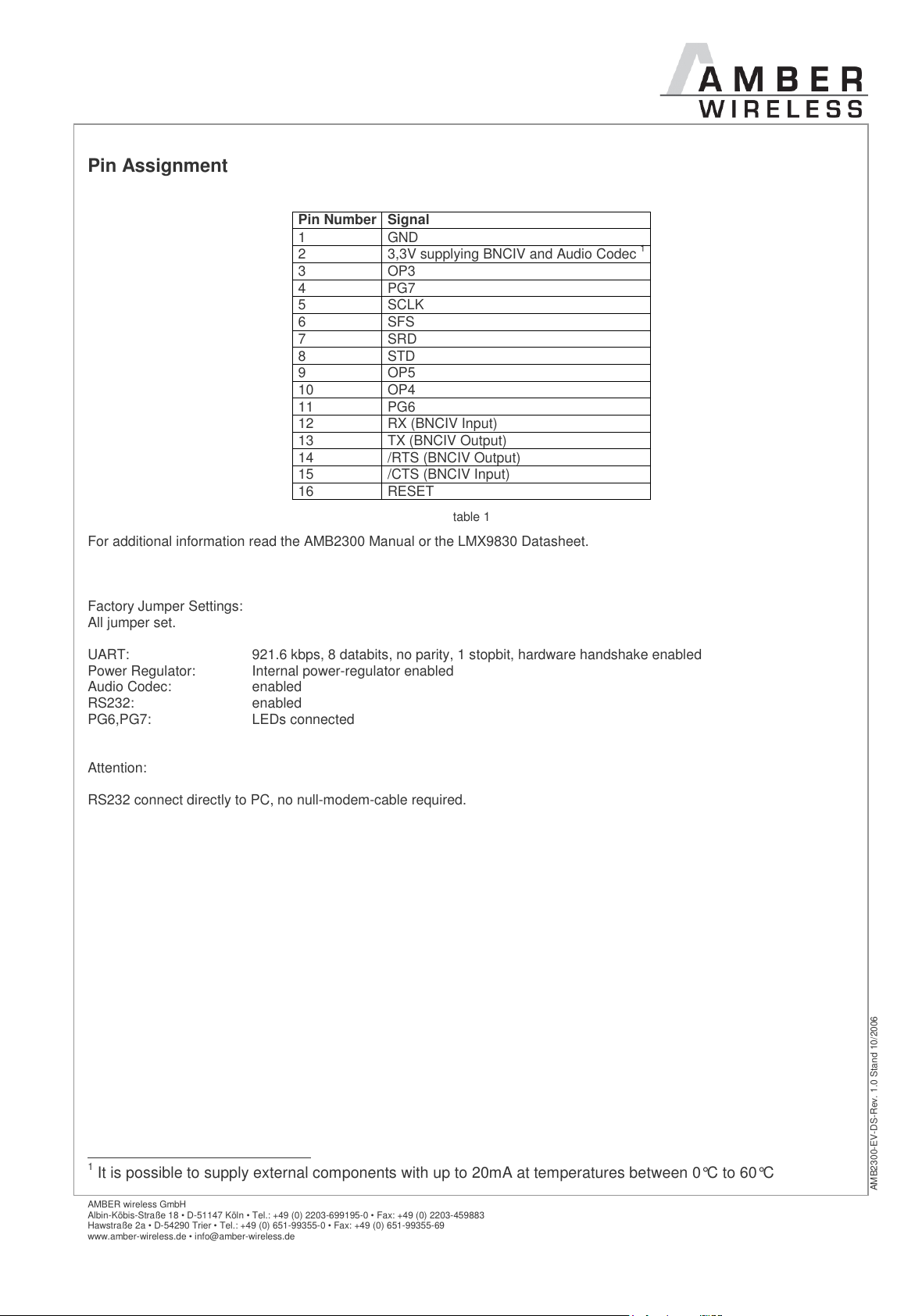

Pin Assignment
Pin Number
Signal
1 GND
2 3,3V supplying BNCIV and Audio Codec
1
3 OP3
4 PG7
5 SCLK
6 SFS
7 SRD
8 STD
9 OP5
10 OP4
11 PG6
12 RX (BNCIV Input)
13 TX (BNCIV Output)
14 /RTS (BNCIV Output)
15 /CTS (BNCIV Input)
16 RESET
table 1
For additional information read the AMB2300 Manual or the LMX9830 Datasheet.
Factory Jumper Settings:
All jumper set.
UART: 921.6 kbps, 8 databits, no parity, 1 stopbit, hardware handshake enabled
Power Regulator: Internal power-regulator enabled
Audio Codec: enabled
RS232: enabled
PG6,PG7: LEDs connected
Attention:
RS232 connect directly to PC, no null-modem-cable required.
1
It is possible to supply external components with up to 20mA at temperatures between 0°C to 60°C
