The Ammonite (Curly Swirly)
Water Feature Small & Large
Installation Instruction
Fountain Safe should be used all year round. This will help to reduce
maintenance and to maintain the lustre of your feature by
slowing or stopping the build up of algae etc.
Frost Free should be added to the feature as the colder
months draw in. It lowers the freezing point of water
helping to prevent frost damage. If water freezes in a
fountain, it will expand and crack the feature.
All water features should be drained, dried and covered before severe
frost or snow.
For pumps to function properly, they need to be completely free of air bubbles.
Whilst submerged, a gentle shake or tap should be sufcient to dislodge any
such bubbles.
If excessive noise is coming from the pump this could be due to either trapped air
or the pump rattling against the sides of the reservoir. Please ensure the pump is
“suckered” to the base of the reservoir by the rubber feet.
Ambienté recommends
Congratulations on your purchase!
We sincerely hope you are satised with your new product.
Pull off lter
cover as shown
Remove lter (if
present) and rinse
in water
Open impeller
cover, then
impeller can easily
be removed
Rinse all parts
carefully and
thoroughly
For regular pump maintenance
1234
F3622
Here are a few points to help you prolong the life of your feature.

Installation Instruction
Step 1 – Plastic reservoir
Place reservoir on a level surface at the
desired location.

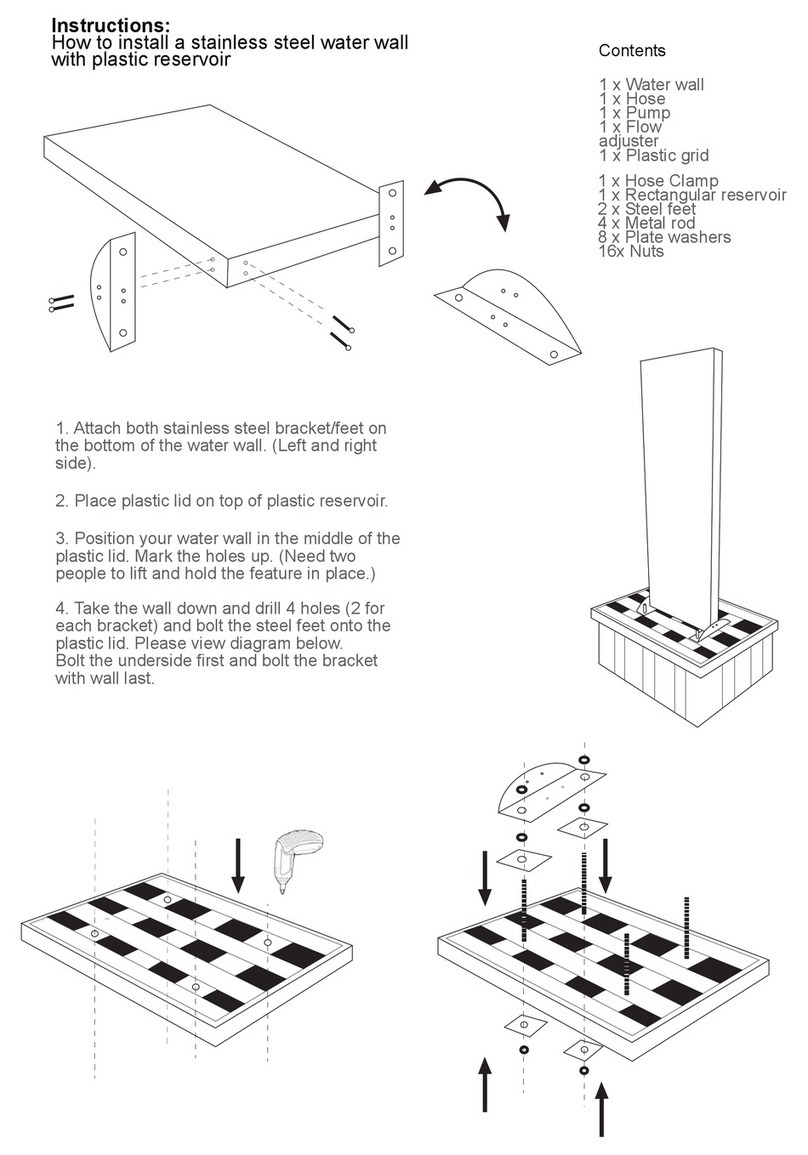

See plastic reservoir instructions 1–6,
the main difference is that you won’t be
screwing the feature into place (3&4).
Using the tube connector at the rear
of the feature, connect tubing to water
pump and the feature.
Step 2
Place grid onto reservoir.
Step 3
The Ammonite (Curly Swirly)
Water Feature Small & Large
Step 6
Connect the power cable, wait until
trapped air has worked its way out of
the pump.
As this pump is water
cooled, allowing it to
run dry may result in
the pump burning out,
invalidating the warranty.
DO NOT allow the pump to run dry!
Fill reservoir with clean water and
ensure pump is fully submerged.
Screw feature to grid.
Step 5
Step 4
Stainless Steel Maintenance
Stainless Steel Reservoir
When maintaining your feature, it is important to adhere to the following points:
Important – Always use Ambienté fountain safe (see reverse of this leaet) when lling the feature with
water or just topping up the water level.
Do not use any other chemical water treatments such as salt water.
We do not recommend the use of sh or water plants with your stainless steel feature.
Do not use chlorine or bleach to clean the feature.
Warning – Always unplug the pump while cleaning the feature.
Should the pump cable or pump become damaged. You will need to replace the pump as the cable can
not be replaced.
If you need to replace the pump please refer to the original pump and use the same specication as per
the original order.
Remember – This feature will require maintenance.
Use non-abrasive soft cloths with clean water or a glass and hard surface cleaner to wipe over the
surfaces. Abrasive polishes and cloths will scratch the nish.
