Color Light Stream™ Lighted Bubbler Kit Gunite
2CLSLBK
(75 strands of Fiber per Bubbler)
SAVE THESE INSTRUCTIONS!
The Color Light Stream Lighted Bubbler is a very simple device to provide lighted water for
small fountains and sun shelf areas. The Color Light Stream Lighted bubbler is preassembled for
easy connection to a water supply line and a conduit connection for the fiber. The fiber is
already connected to the bubbler and comes with 25 feet of pre-attached fiber that will snap into
the LED driver. No fiber cutting!
The Color Light Stream™ Mini Deck Box (LSMDB) is your distribution center to the wonderful
world of LED lighted water features. Designed as the connection center for all of SR Smith LED
fiber optic water feature products, simply place in the ground, per instructions and hook up the
fiber from the selection of our fiber products and enjoy the wonderful lighting effects from SR
Smith Color Light Streams products.
COLOR LIGHT STREAM DECK BOX IS MADE OF ABS MATERIAL. USE ONLY
ABS-PVC GLUE WHEN MAKING ANY PLUMBING CONNECTIONS TO THIS DECK
BOX.
You now are set to start enjoying the wonderful lit Color Light Streams Water Features
manufactured by SR Smith .
For additional product or installation help, please contact SR Smith Technical Service
department.
ETL listed for installations within 5 ft. (1.5M) of outer edge of water
IMPORTANT:
Read and follow all safety and installation instructions carefully. Read instructions
completely before start of installation!
The conduit for the fiber optic cable should be run to the Color Light Stream Mini Deck Box,
no more then 20’ from bubbler
Input Power: 12V AC
Total Power: 5 W
4008814

79-15159-00 REV B2 9.14 www.srsmith.com Page 2 of 6
Cut flush with interior
surface after installation
and gunite
Water inlet
connection 1 ½”
Installation Directions

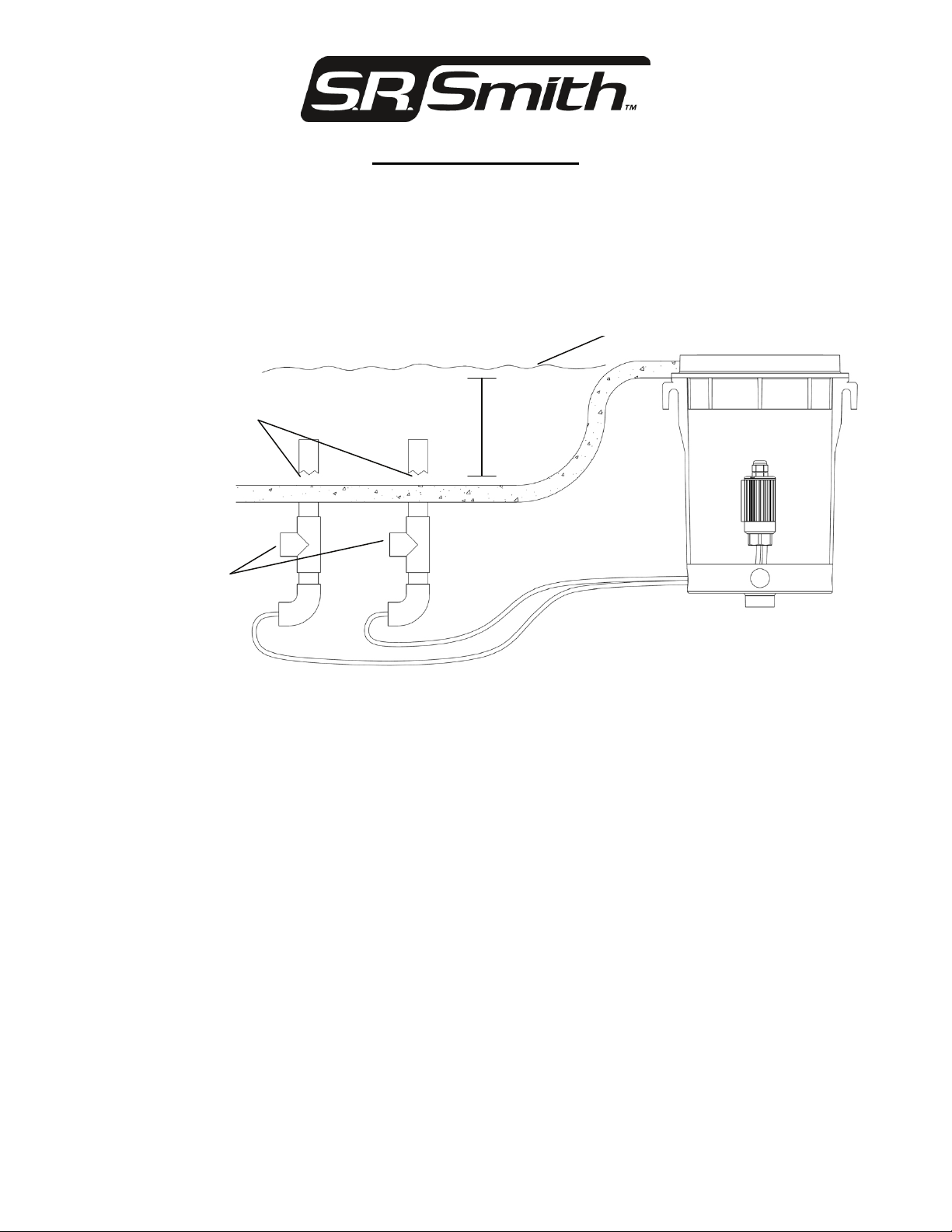

1. The Color Light Stream Lighted Bubbler is designed to be installed during the gunite phase
of the pool building
2. Two conduits should be run to the bubbler:
a. 2 – 1 ½” PVC pipe for water supply.
b. 2 – ¾” conduit for fiber.
3. The water supply pipe should have a gate valve or ball valve installed to adjust the water
supply flow
4. The conduit for the fiber optic cable should be run to the Color Light Stream Mini Deck Box,
no more then 20’ from bubbler.
5. Prepare a location by digging a hole 2 feet in diameter and depth.
a. For in deck applications – Level the lid to the finished grade level of decking.
b. For planter areas – Deck Box lid should be 2 inches ABOVE the landscape area
to prevent materials from intruding or washing the deck box.
6. Place deck box into the excavated hole with one of the connection holes pointed in the
general direction of the conduit for the 12VAC wire to run in.
7. The bottom of the deck box can be supported by utilizing the 1” PVC support connection.
The support pipe should be approximately 4” in length. You may also support the deck box
to any decking rebar to help maintain the proper level by using the rebar support (4) wings on
the deck box.
8. IT IS IMPERATIVE THAT ALL COLOR LIGHT STREAM DECK BOXES HAVE
PROPER DRAINAGE. Install 1’ PVC on the bottom of the deck box into the drainage hole
provided.
Wate
r
4”
–
8”

79-15159-00 REV B2 9.14 www.srsmith.com Page 3 of 6
9. Glue into place all conduit pipes at this time. It is recommended that all fiber optic conduits
be no less then ¾” in diameter and that the 12VAC conduit for the wire on the Color Light
Stream LED driver be no less then ¾”. It is highly suggested that you install all fiber conduit
with sweep fittings for easy fiber installation.
10. Fill excavated area with gravel until the gravel reaches approximately 1” up on the bottom of
the deck box.
11. Finish your deck material installation making sure that the Color Light Stream™ Deck Box
lid remains level. Utilizing the 3” adjustable Deck Flange on the deck box, adjust to match
your deck height.
12. At this time run the supplied 100ft of 12VAC wire from the Color Light Stream LED driver
through your conduit, back to the location of your transformer.
13. Run all fiber cable through their respective conduits to the Color Light Stream Mini Deck
Box.
14. Fill all conduit connections inside the Color Light Stream Deck box with silicone or similar
materials to prevent water from entering deck box interior.
15. Make wire connections per your UL Listed Outdoor Rated Class 2 transformer manufacturers
directions. All wiring must be in compliance with local electrical codes and NEC.
Typical Results
Results based upon 40ft at 1 ½ PVC water supply pipe and 6” under water.
42 GPM – From 12 inches above water level
55 GPM – From 16 inches above water level
75 GPM – From 30 inches above water level

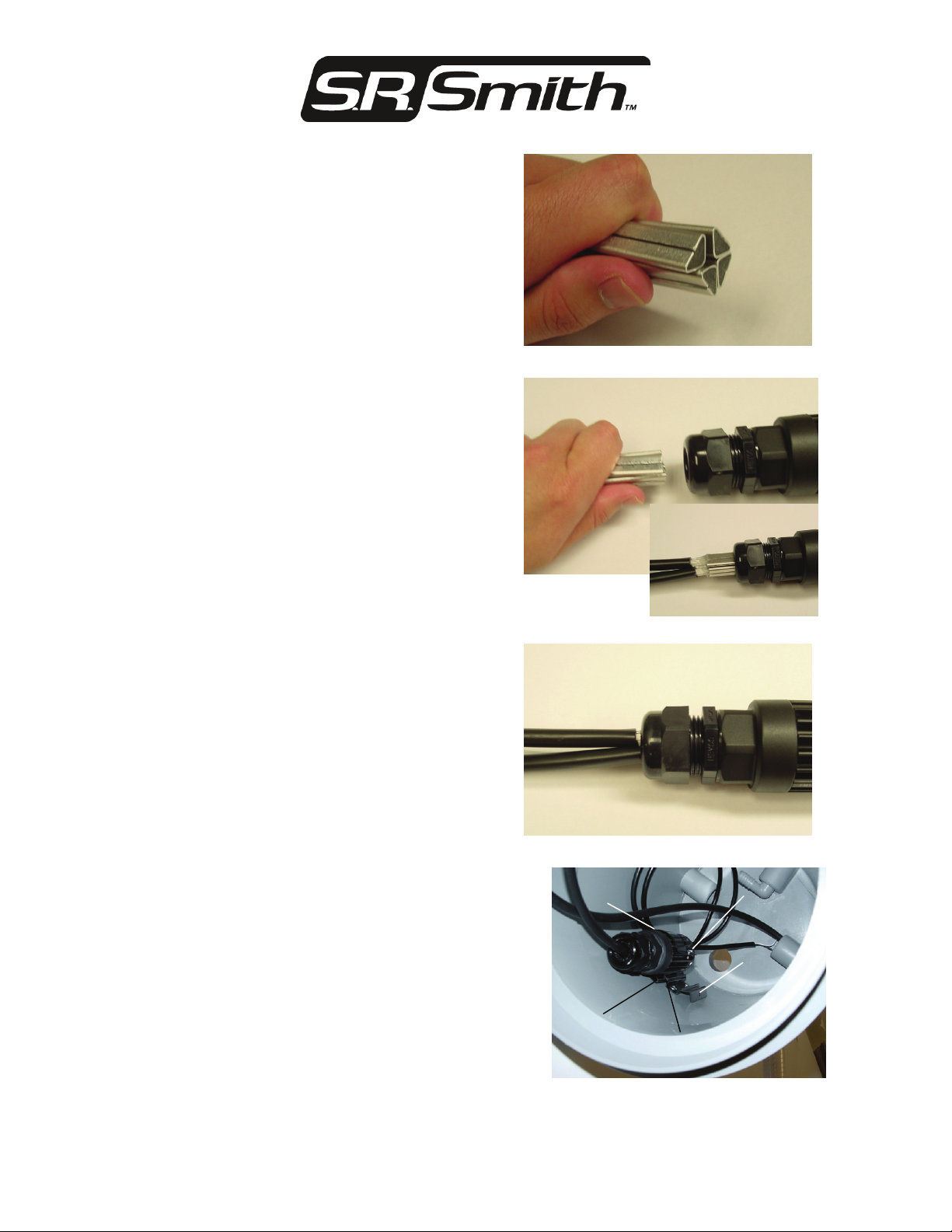

FIBER PORT INSTALLATION
Remove Color Light Stream LED driver
from bracket by unscrewing the mounting
screw and sliding the LED driver from the
bracket.
Mounting Screw
NOTE: LIGHTING EFFECT IS ONLY 10-12 INCHES MAXIMUM
NOTE: LIGHTING EFFECT IS ONLY 10-12 INCHES MAXIMUM

79-15159-00 REV B2 9.14 www.srsmith.com Page 4 of 6
Hold the ferrules together to create a square
shaped bundle.
While holding the ferrules together, insert into
the strain relief opening as illustrated.
Gently push all the ferrules until it is completely
inside the strain relief and cannot not be pushed
any farther. Now HAND tighten the strain relief
to hold the ferrules and fiber in place.
Driver
Mounting Clip
Mounting
Screw
Mounting
Hole
Mounting
Br
ac
k
et
H
ook
Driver Clip
H
ook
Slip the Driver Mounting Clip onto the Light Driver.
Slide the Light Driver and Driver Mounting Clip onto
the Driver Mounting Bracket using the Driver Clip
Hook and the Mounting Bracket Hook as shown.
Thread the Mounting Screw onto the Mounting Hole.

79-15159-00 REV B2 9.14 www.srsmith.com Page 5 of 6
LIGHT CONTROL AND OPERATING INSTRUCTIONS:
Basic Operation for LED CLS-2
Advanced control requires iStar Controller - see operation manual for further instructions
When connected to an approved, 12VAC, Class 2 power supply - The S.R. Smith CLS-2 LED color
changing light source uses simple ‘off / on’ power switching to control the basic, pre-defined color modes
with memory function. This allows for a variety of simple control layouts to best fit your application.
Memory
The new memory function will allow the user to have the same color light as last used. For example, if the
light was last used in Blue mode, the next time the light is simply turned on - it will use the memorized
color.
Color Mode Selection
Due to the memory function, when the lights are switched on, they will display the last used color. To
move to the next color mode, simply toggle the power to the lights ’OFF / ON’ within 1 second or faster.
Advance through the modes until the desired color (mode) is selected - the modes will cycle
1,2,3,4,5,6,7,8, then cycle back to #1 and repeat (see table at bottom of this page).
Color Sync - Reset
The memory function may make it difficult get all lights to Color Sync depending on how the units are
installed and tested. To synchronize all lights on the system including older *Fiberstars LED Series Pool
lights, you must use the following sequence:
1. Turn lights ‘ON’ to confirm the color modes are out of sync.
2. Turn lights ’OFF’ for 5 seconds or more.
3. Toggles lights ’ON’ / OFF’ three times within three seconds - must end in ’OFF’ condition
4. Leave lights in ’OFF’ condition for 5 seconds.
5. Turn lights ‘ON’ and confirm that all lights are in mode #1, Soft Color Change

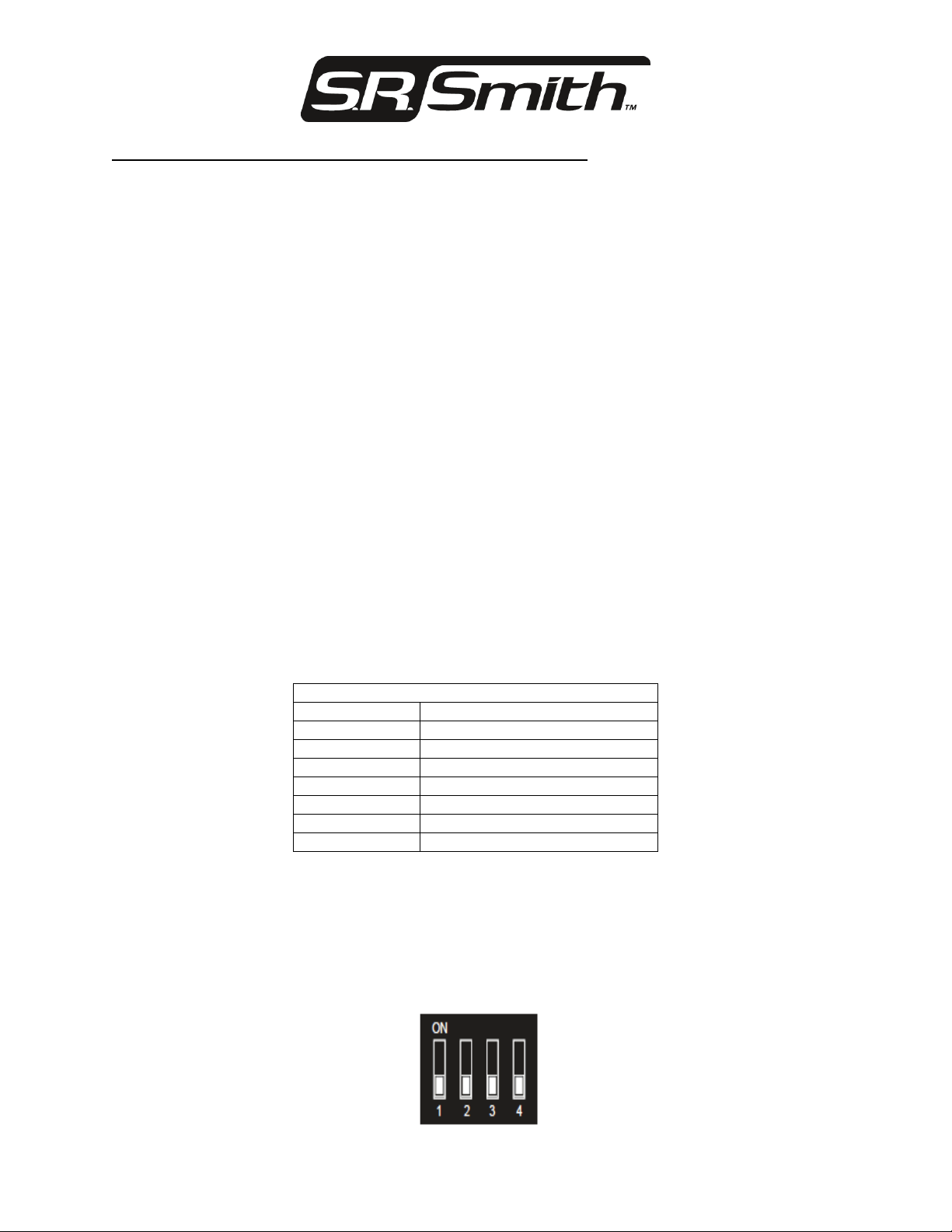

Color Mode Selection Guide
Mode 1 Soft Color Change
Mode 2 White
Mode 3 Blue
Mode 4 Green
Mode 5 Red
Mode 6 Amber
Mode 7 Magenta
Mode 8 Flash Color Change
* Older Fiberstars LED lights can synchronize with the newest generation lights ONLY if they
have their DIP switches in their default, ’All Down’ position shown below. In a mixed
environment, the Color Sync Reset will need to be performed each time the lights are used and
color synchronization is desired.

79-15159-00 REV B2 9.14 www.srsmith.com Page 6 of 6
IMPORTANT NOTICE
Note: DO NOT INSTALL THE BUBBLER TIP MORE THAN 4 INCHES ABOVE THE
GUNITE SURFACE AREA. THE INTERIOR OPTIC ROD IS 4 ¾” DOWN FROM THE
TIP’S TOP AND WILL BE DAMAGED IF TRIMMED FOR FLUSH INSTALLATIONS
BELOW THIS LEVEL.
The Color Light Stream™ Lighted Bubbler is designed so that the tip of the bubbler is
approximately 4-8 inches underwater but can be deeper as long as the water supply volume can
be increased.
Keep in mind that the deeper the tip is underwater the less the lighting effect will be above the
water.
SR Smith recommends that during installation the Color Light Stream Lighted Bubbler tip is
capped off with tape, etc. so that no debris gets into the internal area of the bubbler.
The Color Light Stream Lighted Bubbler may be installed in many different methods and
applications, such as:
Flush with interior surface (described above)
Raised off the surface area but with the tip under the water surface – typically fountains
Raised above the water surface – typically fountains
After connecting the fiber to the LED Driver and the completion of all steps indicated above,
turn on the water supply.
Adjust the water volume to achieve the desired water flume/lighting effect.
For additional questions please contact SR Smith Customer Service Pool & Spa Division.
