Amcrest AMC1080BC User manual

Amcrest AMC1080BC and AMC1080DM HDCVI Camera’s
User's Manual
Version 1.0.0

i
Table of Contents
1General Introduction ..................................................................................................................1
1.1 Overview........................................................................................................................1
1.2 Features.........................................................................................................................1
1.3 Specifications................................................................................................................1
2Framework and Dimensions.....................................................................................................3
2.1 AMC1080BC .................................................................................................................3
2.2 AMC1080DM.................................................................................................................4
3Installation....................................................................................................................................5
3.1 AMC1080BC .................................................................................................................5
3.2 AMC1080DM.................................................................................................................6
4Menu.............................................................................................................................................8
4.1 HDCVI Series DVR Settings.......................................................................................8
Appendix Toxic or Hazardous Materials or Elements ...............................................................10

ii
Welcome
Thank you for purchasing our Amcrest HDCVI camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!

iii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC (24V AC) in the IEC60950-1.
We assume no liability or responsibility for any fires or electrical shock caused by improper handling or
installation.
2．Transportation security
Heavy stress, violent vibrations, or moisture are not allowed during transportation, storage, and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer’s recommendations.
If this product is installed in the ceiling, please make sure the installation position can sustain the min
50N.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series camera should be installed in a cool, dry place away from direct sunlight or strong light,
flammable materials, explosive substances, etc.
This series camera should work on the specified working temperature. Please keep it away from the
electromagnetic radiating objects and environments.
Please keep the camera well ventilated.
Do not allow the water and other liquids into the camera.
6. Accessories
Be sure to use only the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
7. Daily Maintenance

iv
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
Use the dry soft cloth to clean the device.
If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean
the device. Finally use the dry cloth to clean the device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.

1
1General Introduction
1.1 Overview
This series megapixel HD camera conforms to the HDCVI standard. It supports video signal high-speed
long distance transmission without any delay. It can be controlled by the DVR conforming to the HDCVI.
1.2 Features
High-performance CMOS image sensor, megapixel definition.
Supports HD video and control signal coaxial transmission.
Supports 75-3 coaxial cable transmission without any loss. 720P series transmission distance over
500m, 1080P series transmission distance over 300m.
High speed, long distance real-time transmission.
Supports HDCVI HD and analog SD switch output.
720P series support 720P@25, 720P@30, 720P@50, 720P@60.
1080P series support 1080P@25, 1080P@30, 720P@25, 720P@30, 720P@50, 720P@60.
Supports high performance 3D noise reduction (denoise), excellent performance in low illumination
Supports ICR switch to utilize surveillance both in the daytime and at night.
Supports OSD (on-screen display), suitable for user self-defined setup.
Supports DC12V power supplying.
IP66 compliance.
Supports intelligent IR function, max IR distance 20m.
1.3 Specifications
Model
Parameter
2 Megapixel HDCVI Mini IR
Waterproof Fixed Camera Series
2 Megapixel HDCVI Mini IR Dome
Camera Series
AMC1080BC
AMC1080DM
Video Processor
1/2.9" 2.0 Mega Pixels CMOS
Video Format
PAL/NTSC
Effective Pixel
1984（H）× 1105（V）
Min Illumination
0.005Lux@(F1.2,AGC ON), 0Lux with IR
Electronic Shutter
1/3s~1/100,000s
Video Standard
HDCVI compliance
Video Frame Rate
PAL：25fps@1080P, 25/50fps@720P
NTSC：30fps@1080P, 30/60fps@720P
Lens Port
M12
Lens Type
6mm (3.6/8mm optional)
3.6mm (6/8mm optional)
Day/Night Switch
ICR mechanic auto switch

2
Sync Mode
INT
Video Output
1-channel HDCVI high definition video output
White Balance
Auto
Gain Control
Auto
BLC
Auto
IR Light Control Plan
Advanced non-photosensor control plan
Transmission
Distance
Over 300m for 720P and 500m for 1080P via 75-3 coaxial cable.
Smart IR
Support
Max IR Distance
20m
Protection Level
IP66
Working Temperature
/Humidity
-30°C~+60°C. Humidity is less than 95%(non condensation)
Power
DC 12V±10%
Power Consumption
4.5W MAX
(Input: 12V 0.29A)
6W MAX
(Input: 12V 0.21A)
Dimension(mm)
74.9×72.9×166.1
φ94.0×94.0
Weight
380g
330g
Installation Mode
Wall mount
Wall mount/In-ceiling mount

3
2Framework and Dimensions
Please refer to the following figures for dimension information. The unit is mm. See Figure 2-1 to Figure 2-
4.
2.1 AMC1080BC
Figure 2-1
Figure 2-2
Please refer to the following sheet for detailed information.
SN
Name
Function
1
Lens
This is to receive the optical signal from the environment.
2
IR light
This is to send out the IR compensation light to enhance the night vision.
3
Device body
This is the main supporting part of the camera. It includes sunshield cap,
front cap, rear part, bracket, etc.
4
Power input
port
Connects to the DC 12V power supply.
5
Video output
port
BNC port is used to output HDCVI video signal.
You can connect this to devices such as the DVR or the NVS conforming to
the HDCVI specifications.
1
2
3
3
3
4
5

4
2.2 AMC1080DM

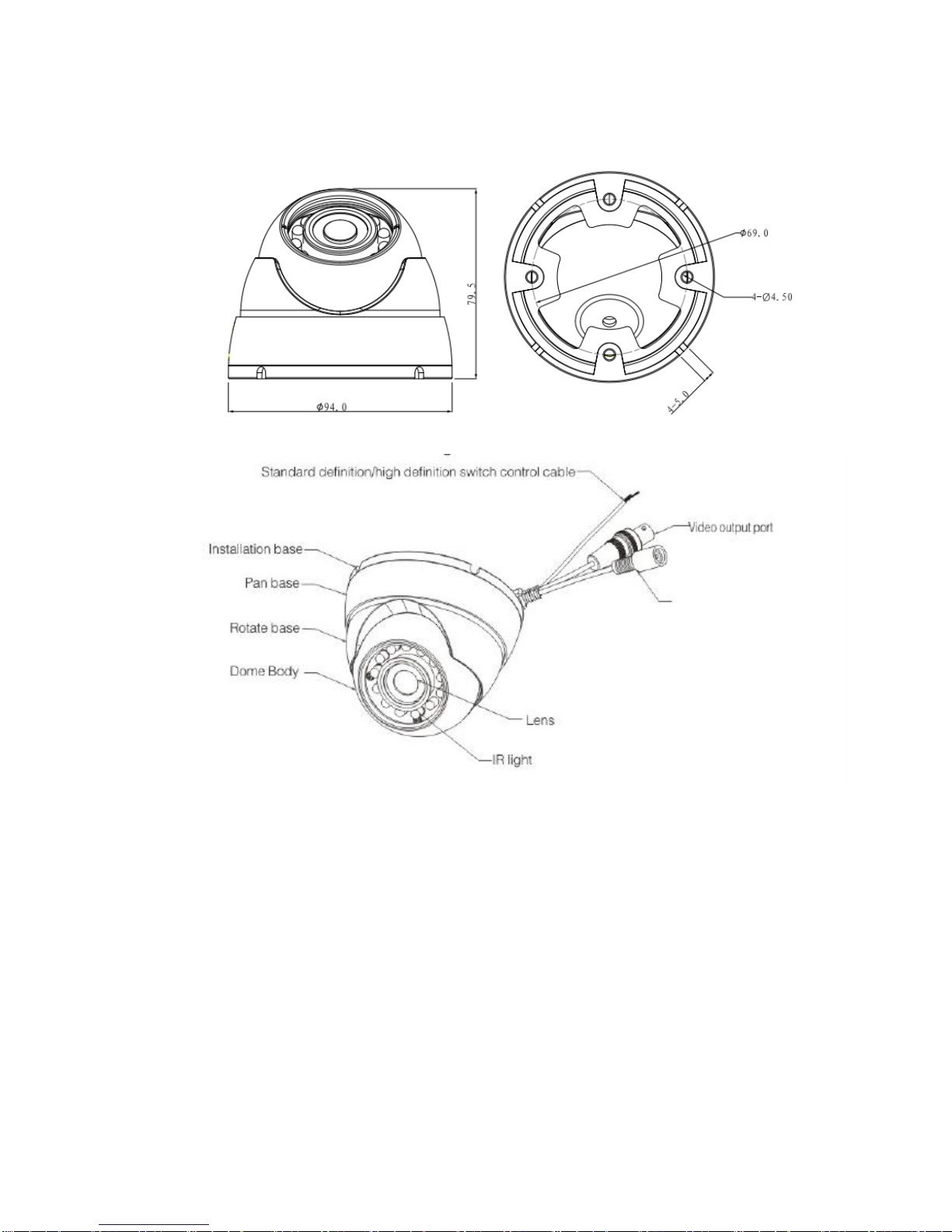

Please refer to the following figures for dimension information. The unit is mm.
Figure 2-3
Figure 2-4
When the standard definition/high definition switch control cable is short circuited, the system outputs
standard definition video. Otherwise, when the circuit is open, system outputs the high definition video.

5
3Installation
Important
Before the installation, please make sure the installation surface can sustain at least 3X the
weight of the bracket and the camera.
3.1 AMC1080BC
Step 1
Drill three holes in the installation surface of the wall or the ceiling. Insert three expansion bolts to the three
holes and then lock firmly.
Figure 3-1
Step 2
First prepare the cable according to the cable. Line up the three screw holes at the bottom of the bracket
to the three installation holes in the wall or the ceiling, and then insert three screws to the three holes of
the chassis of the bracket and attach them firmly. Now secure the bracket on the installation surface of the
wall or the ceiling.
Step 3
Adjust the camera to the proper monitor area via the three directions indicated in Figure 3-2 after you fixed
the camera.
Figure 3-2
Camera
Screws
Bracket
Installation
surface

6
Step 4
Connect the device video output port to the terminal device such as the DVR, NVS, etc. Then connect the
power cable to the device.
3.2 AMC1080DM
Step1 Device Installation

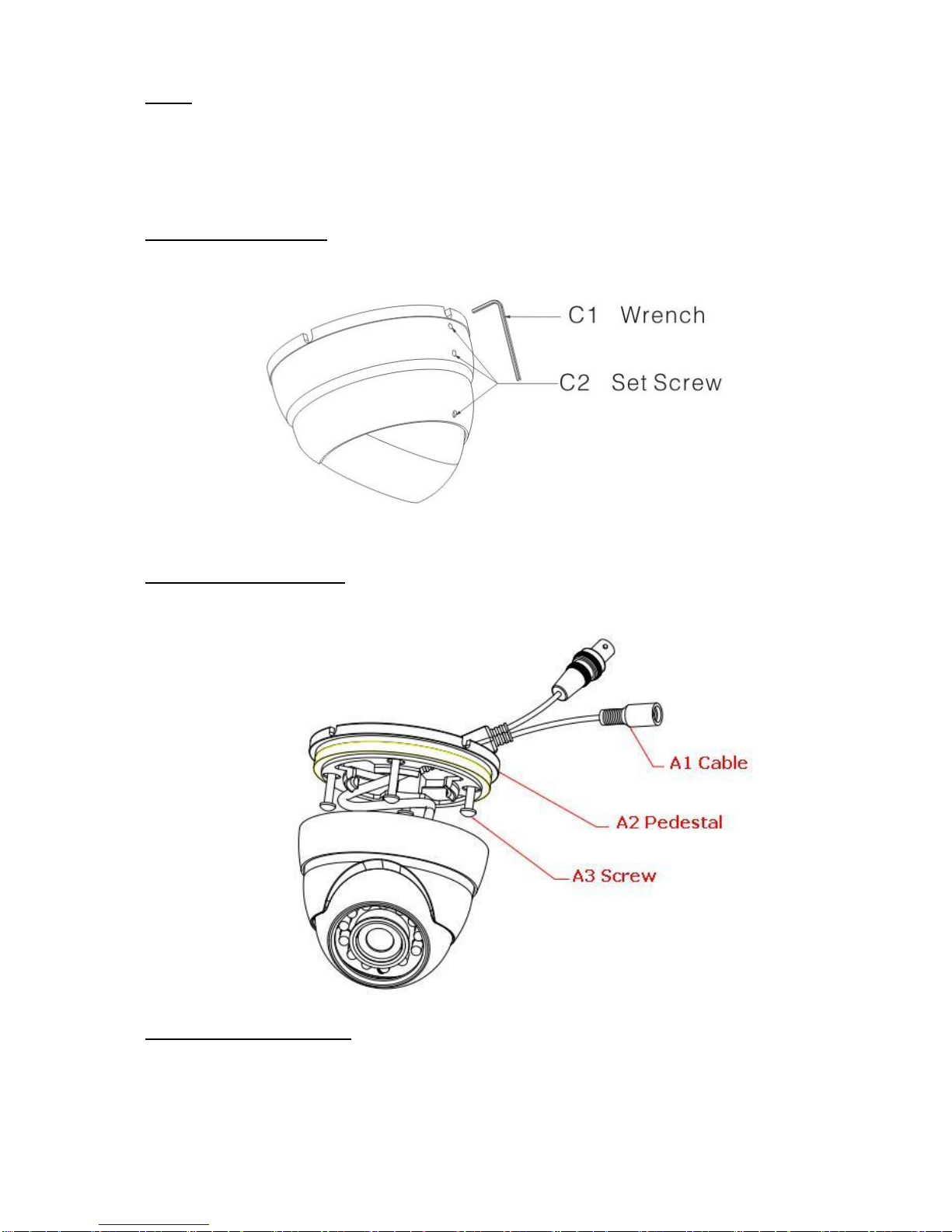

Take the wrench from the accessories bag and use it to loosen the three set screws on the side of the
camera body. See Figure 3-3.
Figure 3-3
Step 2 Pedestal Installation
Turn the pedestal of the device and then pull the cable through it. Use four screws to secure the pedestal
to the proper position. See Figure 3-4.
Figure 3-4

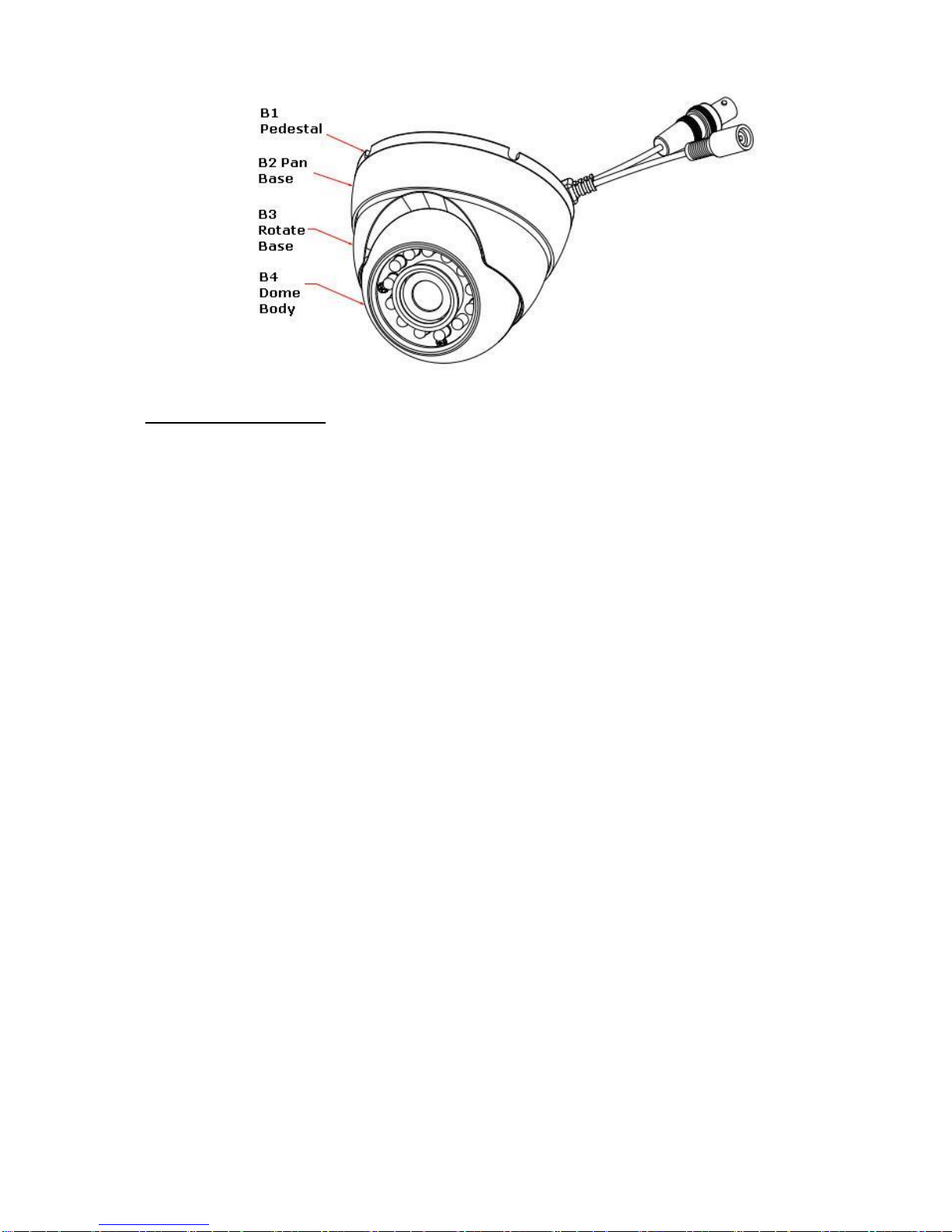

Step 3 Adjust Monitor Angle
Turn the pan base to the pedestal and secure firmly. Adjust rotate base and the dome body to get the lens
to the proper monitor angle. See Figure 3-5.

7
Figure 3-5
Step 4 Fix Monitor Angle
To prevent the dome from moving, use wrench to secure the three set screws to secure the monitor angle
position.

8
4Menu
4.1 HDCVI Series DVR Settings
Note
The following operation and interfaces are for reference only. Please refer to the HDCVI series DVR
user’s manual for detailed information.

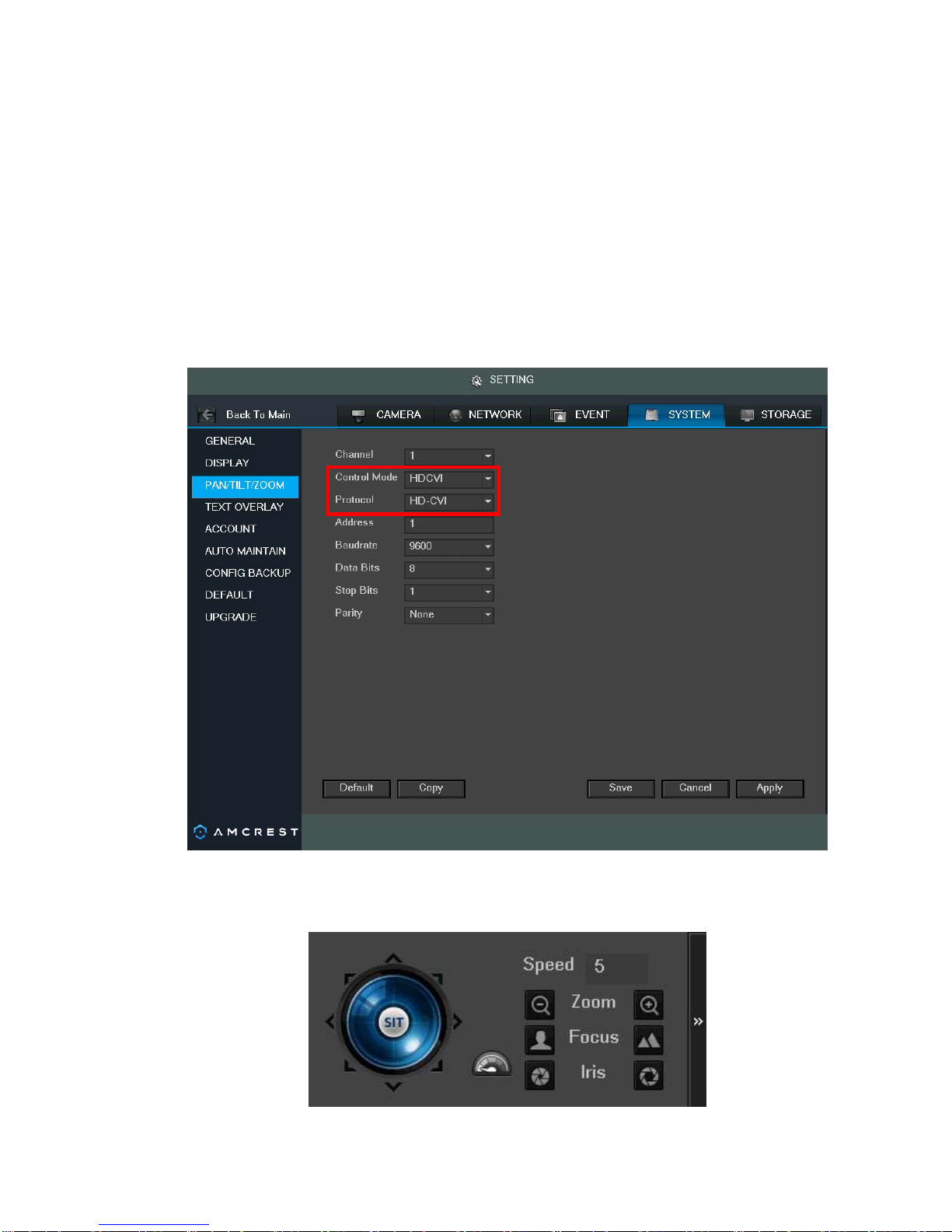

After connecting the camera to the HDCVI series DVR, from Main Menu->Setting->System->PTZ, you
need to set the control mode as HDCVI and the protocol as DH-CVI. Click the Save button to save current
setup. See Figure 4-1.
Figure 4-1
On the preview interface, right click the mouse and then select PTZ; you can see the interface shown as
below. See Figure 4-2.
Figure 4-2

9
Click the Iris to open menu or confirm current operation.
Click up/down button to view all the items on the left pane of the following list. Click left/right button to set
the corresponding values on the right pane of the following list. If there is “ ”, click the confirm button to
go to the 2nd menu. Repeat the previous steps to set the detailed value. Click the Return button to go
back to the previous menu interface.

10
Appendix Toxic or Hazardous Materials or Elements
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Circuit Board
Component
○
○
○
○
○
○
Device
Construction
Material
○
○
○
○
○
○
Wire and Cable
○
○
○
○
○
○
Packing
Components
○
○
○
○
○
○
Accessories
○
○
○
○
○
○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts
is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the
environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements contained
in products will not leak or mutate so that the use of these (substances or elements) will not result in any
severe environmental pollution, any bodily injury or damage to any assets. The consumer is not authorized
to process such kind of substances or elements, please return to the corresponding local authorities to
process according to your local government statutes.
Note
This manual is for reference only. Slight difference may be found in the user interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website or contact your local service engineer for more information.
