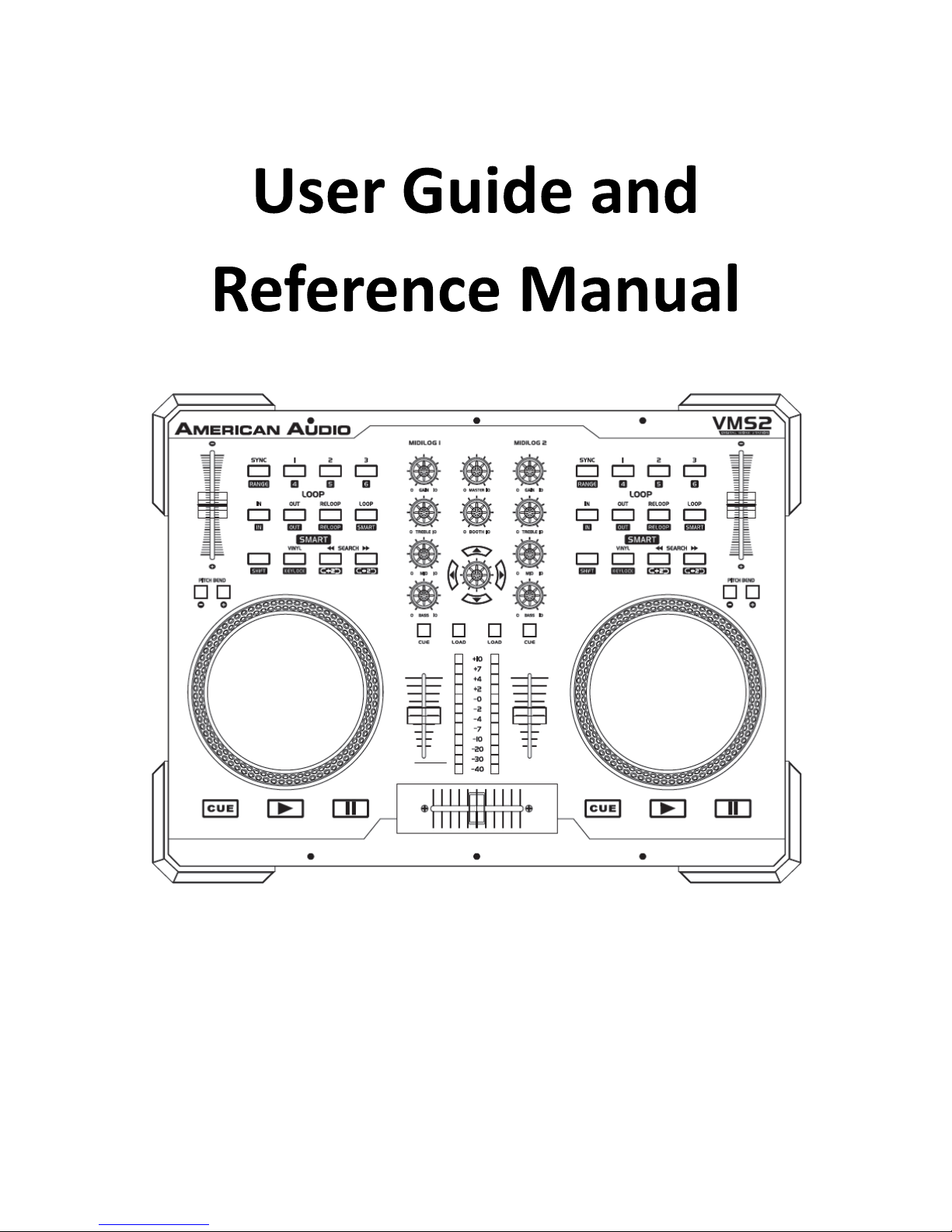

American Audio VMS2 User manual

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 1
Professional Digital Producer
FE A T U R I N G

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 2

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 3
Please visit one of the following websites to view and download the VMS2™ MIDI table
chart:
www.americanaudio.us
www.americanaudio.eu
Please Note: All specifications and improvements to and in the design of this unit and this
manual are subject to change at any time without any prior written or published noticed.
6122 S. Eastern Ave
Los Angeles Ca. 90040
www.americanaudio.eu

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 4
1. TABLE OF CONTENTS
1. Table of Contents................................................................................................................ 4
2. Electrical Safety Precautions............................................................................................... 6
3. Important Safety Precautions ............................................................................................. 8
4. Further Safety Instructions ............................................................................................... 11
5. Unpacking.......................................................................................................................... 13
6. Introduction ...................................................................................................................... 14
6.1 Customer Support .......................................................................................................... 14
7. Set-Up Precautions ........................................................................................................... 15
7.1 Operating Determinations ............................................................................................. 15
8. Main Features ................................................................................................................... 16
9. Minimum System Requirements ...................................................................................... 17
9.1 PC Requirements ............................................................................................................ 17
9.2 Mac Requirements ......................................................................................................... 17
10. Set-Up............................................................................................................................ 18
10.1 Checking the Contents ................................................................................................. 18
10.2 Installing the Units........................................................................................................ 18
10.3 Connections.................................................................................................................. 18
11. Software and ASIO Driver Installation........................................................................... 19
12. General Functions and Controls.................................................................................... 20
12.1 Player Front .................................................................................................................. 20
12.2 Front Panel ................................................................................................................... 24
12.3 Rear Panel..................................................................................................................... 25
13. Audio Interface Mode ................................................................................................... 27
13.1 4 Out Mode .................................................................................................................. 27
14. MIDI Latency Modes ..................................................................................................... 28

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 5
15. EQ Modes ...................................................................................................................... 29
16. Firmware Update .......................................................................................................... 30
17. Computer Connection ................................................................................................... 32
17.1 Connecting the VMS2™ to your PC .............................................................................. 32
18. Setup.............................................................................................................................. 33
19. Cleaning......................................................................................................................... 34
20. Crossfader Replacement ............................................................................................... 35
20.1 Replacing the Crossfader.............................................................................................. 35
21. ROHS –A Contribution to the Conservation of Environment....................................... 36
22. WEEE –Waste of Electrical and Electronic Equipment................................................. 37
23. Specifications................................................................................................................. 38

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 6
2. ELECTRICAL SAFETY PRECAUTIONS
The lightning flash with an arrow triangular symbol is intended to alert the
user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure, and may be of sufficient magnitude to constitute a
risk of electric shock.
The exclamation point triangular symbol is intended to alert the user to
the presence of important operating and maintenance (servicing)
instructions in the user manual accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK! DO NOT OPEN!
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER RACK. THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICE TO YOUR
AUTHORIZED AMERICAN AUDIO® SERVICE DEALER.
Please carefully read and understand the instructions in this manual
thoroughly before attempting to operate this unit. These instructions
contain important safety information regarding the use and maintenance
of this unit. Take special care to follow all warning symbols and labels
both on the unit and printed in this manual. Also, Please keep this
manual with the unit, for future reference.
CAUTION:
Handle the power supply cord carefully. Do not damage or deform; it may cause
electric shock or malfunction when used. Hold the plug attachment when removing
from wall outlet. Do not pull on the cord.
To avoid electric shock, do not open the top cover when the unit is plugged in. If
problems occur with the unit, call your local American Audio® dealer.
Do not place metal objects or spill liquid inside the unit. Electric shock or malfunction
may occur.

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 7
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE CAREFULLY INSERTED TO PREVENT BLADE
EXPOSURE!
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE DEVICE SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.
NOTE:
This unit may cause interference to radio and
television reception.
NOTE:
This device uses a semiconductor laser. It is
recommended for use in a room at the
following temperature: 41˚- 95˚F or 5˚C -
35˚C.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS DEVICE TO WATER OR MOISTURE!

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 8
3. IMPORTANT SAFETY PRECAUTIONS
Read Instructions –All the safety and operating instructions should be read before the
product is operated.
Retain Instructions –The safety and operating instructions should be retained for future
reference.
Heed Warnings –All warnings on the product and in the operating instructions should be
adhered to.
Follow Instructions –All operating and use instructions should be followed.
Cleaning –The product should be cleaned only with a polishing cloth or a soft dry cloth.
Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may
corrode the cabinet.
Attachments –Do not use attachments not recommended by the product manufacturer as
they may cause hazards.
Water and Moisture –Do not use this product near water —for example, near a bathtub,
wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool and the
like.
Accessories –Do not place this product on an unstable cart, stand, tripod, bracket, or table.
The product may fall, causing serious injury to a child or adult and serious damage to the
product. Use only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the product. Any mounting of the product should follow the
manufacturer’s instructions, and should use a mounting accessory recommended by the
manufacturer.
Ventilation –Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating, and these openings
must not be blocked or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product should not be placed in a
built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
Power Sources –This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supply to your home,
consult your product dealer or local power company.
Cart –A product and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the product and cart
combination to overturn.

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 9
Location –The appliance should be installed in a stable location.
Nonuse Periods –The power cord of the appliance should be unplugged from the outlet
when left unused for a long period of time.
Grounding or Polarization
If this product is equipped with a polarized alternating current line plug (a plug
having one blade wider than the other), it will fit into the outlet only one way. This is
a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug.
If this product is equipped with a three-wire grounding type plug, a plug having a
third (grounding) pin, it will only fit into a grounding type power outlet. This is a
safety feature. If you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding type plug.
wire to an antenna discharge unit, size of grounding conductors, location of antenna-
discharge unit, connection to grounding electrodes, and requirements for the grounding
electrode. See Figure 1.
Power Cord Protection –Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point where they exit from the product.
Lightning –For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the product due to
lightning and power-line surges.
Power Lines –An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such power lines
Outdoor Antenna Grounding –If an outside
antenna or cable system is connected to the
product, be sure the antenna or cable system is
grounded so as to provide some protection
against voltage surges and built-up static
charges.
Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and
supporting structure, grounding of the lead-in

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 10
or circuits. When installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them might be fatal.
Overloading –Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
Object and Liquid Entry –Never push objects of any kind into this product through openings
as they may touch dangerous voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the product.
Servicing –Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
Damage Requiring Service –Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
When the power supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an
improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to its normal
operation.
If the product has been dropped or damaged in any way.
When the product exhibits a distinct change in performance - this indicates a need
for service.
Replacement Parts –When replacement parts are required, be sure the service technician
has used replacement parts specified by the manufacturer or have the same characteristics
as the original part. Unauthorized substitutions may result in fire, electric shock, or other
hazards.
Safety Check –Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operating
condition.
Wall or Ceiling Mounting –The product should not be mounted to a wall or ceiling.
Heat –The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 11
4. FURTHER SAFETY INSTRUCTIONS
Read Instructions –All the safety and operating instructions should be read before the unit
is operated. The safety and operating instructions should be saved for future reference.
Heed Warnings –All warnings on the unit and in the operating instructions should be
adhered to.
Water and Moisture –The device should not be used near water - for example, near a bath
tub, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.
Ventilation –The device should be situated so that its location or position does not interfere
with its proper ventilation. For example, the device should not be situated on a bed, sofa,
rug, or similar surface that may block the ventilation openings; or, placed in a built-in
installation, such as a bookcase or cabinet that may impede the flow of air through the
ventilation openings.
Heat –The device should be situated away from heat sources such as radiators, heat
registers, stoves, or other appliances (including amplifiers) that produce heat.
Power Sources –The device should be connected to a power supply only of the type
described in the operating instructions or as marked on the unit.
Servicing –The user should not attempt to service the device beyond that described in the
operating instructions. All other servicing should be referred to qualified service personnel.
The device should be serviced by qualified service personnel when:
The power-supply cord or the plug has been damaged.
Objects have fallen, or liquid has been spilled into the unit.
The unit has been exposed to rain or water.
The unit does not appear to operate normally or exhibits a marked change in
performance.

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 12
The serial and model number for this unit is located on the rear panel. Please write down the
numbers here and retain for future reference.
Model No. ____________________________________________________________
Serial No. ____________________________________________________________
Purchase Notes ____________________________________________________________
Date of Purchase ____________________________________________________________
Dealer Name ____________________________________________________________
Dealer Address _____________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
Dealer Phone ______________________________________________________________

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 13
5. UNPACKING
Every VMS2™ has been thoroughly tested and has been shipped in perfect operating
condition.
Carefully check the shipping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your device for any damage and be
sure all equipment necessary to operate the device has arrived intact.
In case damage has been found or parts are missing, please contact our toll free customer
support number for further instructions.
Please do not return the device to your dealer.

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 14
6. INTRODUCTION
Congratulations and thank you for purchasing the American Audio® VMS2™ media
controller. This device is a representation of American Audio’s® continuing commitment to
produce the best and highest quality audio products possible at an affordable price.
Please read and understand this manual completely before attempting to operate your new
device. This booklet contains important information concerning the proper and safe
operation of your new device.
6.1 CUSTOMER SUPPORT
American Audio® provides a toll free customer support line to provide set up help and to
answer any questions, should you encounter problems during your initial set-up or
operation. You may also visit us on the web at www.AmericanAudio.us for any comments or
suggestions.
Service Hours are Monday through Friday 08:30 to 17:00 GMT+1.
Voice: 0031 45 546 85 30
Fax: [phone]
E-mail: [email protected]
For spare parts please look in our online part shop.
Caution!
There are no user serviceable parts inside this device. Do not attempt any repairs by yourself.
Doing so will void your manufactures warranty. In the unlikely event your device may require
service, please contact American Audio® customer support.
Do not discard the packing carton in the trash. Please recycle whenever possible.

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 15
7. SET-UP PRECAUTIONS
Please be sure to make any connections before plugging the device in to an electrical outlet.
All fader and volume controls should be set to zero or minimum position, before the device is
switched on.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch on the device immediately. The arising condensation of water might damage your
device. Leave the device switched off until it has reached room temperature.
7.1 OPERATING DETERMINATIONS
When installing this device, please make sure that it is not exposed to extreme heat,
moisture or dust!
Do not operate the mixer in extremely hot (more than 40°C / 104°F) or extremely cold
(less than 5°C / 40°F) surroundings.
Keep the unit out of direct sunlight and away from heaters.
Operate the device only after becoming familiar with its functions. Do not permit
operation by persons not qualified for operating the unit. Most damages are the result
of unprofessional operation!

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 16
8. MAIN FEATURES
3 Cue Points Per Side
2-Channel Mixer w/ Volume Faders
MIDI Control via USB
Stereo Master and Booth Outputs
Built-In 4 In 4 Out
Mic
Seamless Loop (uninterrupted loop
playback)
Master Volume Control
Full EQ on 2 MIDILOG Channels
Track & Deck Selectors
Crossfader Assign, Curve, & Reverse
Durable Touch Sensitive High-Res Jog
Wheel
Pitch Lock
One Mic Combo Jack
Pitch Bend
Innofader Compatible
82 MIDI Controls
USB/Analog Source Selects on Each
MIDILOG ™Channel

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 17
9. MINIMUM SYSTEM REQUIREMENTS
Note: System Requirements may differ due to manufacturer software!
9.1 PC REQUIREMENTS
Windows XP SP2 or Windows Vista (32-bit & 64-bit supported)
PIV 1.2GHz Computer (SSE2 CPU), AMD 64 or Greater
1024_768 SVGA Video
2 GIG RAM (Vista)
40MB Free on the Hard-Drive (Recommended 2000MB)
DirectX 9.0
9.2 MAC REQUIREMENTS
Mac OS X 10.5 PPC/Intel, 10.5.6 Intel, or 10.6 Intel
1.86GHz
2GB RAM

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 18
10. SET-UP
10.1 CHECKING THE CONTENTS
Be sure your VMS2™ was shipped with the following:
VMS2™ Controller
Operating Instructions (This Booklet)
USB Cable
6V Power Adapter
Virtual DJ Software
Warranty card
10.2 INSTALLING THE UNITS
Place your unit on a flat surface or mount it in a secure rack mount case.
Be sure the player is mounted in a well-ventilated area where it will not be exposed to
direct sunlight, high temperatures, or high humidity.
Try to place the unit as far as possible from TVs and tuners, as the unit may cause
undesirable interference.
10.3 CONNECTIONS
Be sure main power is connected last to prevent any electrical damage.
AUDIO CONNECTIONS
Use RCA or XLR cables to connect the VMS2™ outputs to powered speakers or an amplifier.
Never connect this player's output to a mixers Phono inputs.
Caution: To avoid severe damage to the unit, be sure the power is off when making
connections to the unit.

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 19
11. SOFTWARE AND ASIO DRIVER INSTALLATION
Insert the disc into your computer cd drive and click on the CD icon.
Depending on the type of computer you are operating, choose the *.exe file for PC or the
*.dmg file for MAC.
Choose your desired language and
click OK.
Read the following information and
click Next.
Follow the screen prompts to install
the software.
The ASIO Driver installation will open
during the Virtual DJ installation.
PC users, follow the screen
prompts for proper installation.
Mac install is automatic after
clicking on the *.dmg file.

©American Audio® - www.americanaudio.eu VMS2™ User Manual Page 20
12. GENERAL FUNCTIONS AND CONTROLS
12.1 PLAYER FRONT
(1) Sync Button –Use this button to set this deck to master and auto sync the other deck's
tempo to the master.
(2) Bank Buttons –These buttons are used to store 3 cue points.
(3) Cue Button –These buttons are used to activate a channels‘ Cue mode. The Cue LED will
glow when a channels‘ Cue mode is activated. The Cue function sends a channels‘incoming
signal to the headphones. The cue level is adjusted by the Cue Level Knob.
