Ow n e r ’ s M a n u a l
Portable Air Conditioner with Heat
ACW200C / ACW200CH
It is important that you read
these instructions before using
your new purchase and we
strongly recommend that you
keep them in a safe place for
future reference.
Innovative AutoDrain Technology

Table of C o nte n t s
ThankYou! ………………………………………………………………………1
Safety Instructions …………………………………………………………… 1-2
Specifications ……………………………………………………………………3
Parts ……………………………………………………………………………4
AutoDrain Technology Assembly ………………………………………………5
Positioning ………………………………………………………………………6
Control Panel ……………………………………………………………………7
Remote Control …………………………………………………………………8
Operation … ……………………………………………………………………9
Emptying the Water Container ……………………………………………… 10
Cleaning ……………………………………………………………………… 11
Troubleshooting ……………………………………………………………… 12
Warranty ……………………………………………………………………… 14

Thank Y o u !
1
Thank you for purchasing an ACW Portable Air Conditioner with Heat.
ACW is a leading brand in indoor air treatment. We would like you to enjoy the many benefits this
unit offers, so please read this manual carefully and take full advantage of the many advanced features
that your American Comfort Worldwide Air Conditioner with heat offers you.
ACW has specialized in complete indoor environment control, manufacturing world-class
air conditioners with innovative technology.
In designing these advanced products, we have listened carefully to our customers and have passed
their views on to our research and development laboratories.
After reading this manual, please keep it in a safe place for future reference.
Read this entire instruction manual before use.
Please keep your receipt and the unit’s original box for a warranty return.
IMPORTANT!
Safety Instr u ction s
• The unit is designed for indoor operation.
• The unit is not designed to cool server rooms, sun rooms, or a room generating constant high levels of heat.
• Rating: This unit must be connected to a 115V/60Hz grounded outlet.
• The installation must be in accordance with regulations of the country where the unit is used.
If you are in any doubt about the electrical installation, have it checked and if necessary modified by a
qualified electrician.
• Never connect the unit to an electrical outlet using an extension cord.
If an outlet is not available, one should be installed by a licensed electrician.
• This unit is safe. However, as with any electrical appliance, use it with care.
• Keep out of the reach of children.
• Do not clean the unit by spraying it or immersing it in water.
• Do not insert any object into the openings of the unit.
• Disconnect the unit from the outlet before cleaning the unit or any of its components.
WARNING!
• Never operate this appliance if it has a damaged cord or plug.
• Do not lead the cord over sharp edges.
• A damaged supply cord should be replaced by the manufacturer,
its service agent or a qualified person in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be performed by an authorized
service representative. Failure to do so could result in a loss of warranty.
• See warranty page to read about warranty requirements, procedure, and instructions.

2
Safety Instr u ction s
Do not use your unit:
If the power cable wires
are frayed or cut
When small children may
be left unattended
On a slope or uneven
surface
Close to a heat source
This products is not made
for DIY repair
Do Not Connect the unit
to extension cord.
If there is a risk of liquid
falling on the unit
Where the power cable
may be damaged
Inside unit exposed to the
weather outdoors
Where it may be damaged
by chemicals
In a permanent very humid
environment
Where there is a risk of
interference by foreign objects
IMPORTANT:
The first time that you use the unit, please ensure that it has been standing in an
upright position for at least 2 hours before it is switched on.
The unit is not to be used in temperatures under 41°F or over 95°F.
Reminder:
Unit Contains R410A. Waste electrical products must not be disposed of with household
waste. This product should be taken to your local recycling center for safe treatment.

3
Sp e c ifi ca ti on s
Model
ACW200C
ACW200CH
Cooling Capacity 8,000 BTU/h 8,000 BTU/h
Heating Capacity N/A 8,000 BTU/h
Cooling/Heating
Power Consumption / Current
890W / 7.5A 890W / 7.5A
Moisture Removal 66 pints/day 66 pints/day
Power Supply 110-120V/60Hz 110-120V/60Hz
Refrigerant R410A R410A
Compressor Rotary Rotary
Fan Speed 2 Speeds 2 Speeds
Thermostat 60ºF - 90ºF 60ºF - 90ºF
Ambient Temperature Range
for Operation Cooling: 64.4ºF - 104ºF Cooling: 64.4ºF - 104ºF
Heating: 41ºF - 80.6ºF
Timer 24 hour Timer 24 hour Timer
Dimensions 12.6"W x 14.2"D x 28.7"H 12.6"W x 14.2"D x 28.7"H
Weight 44 lbs. 44 lbs.
The cooling capacity of the unit may be affected by the height of your ceiling, quality of your insulation, or number of windows
in your room. There is no current testing statute for portable air conditioning products in the United States, yet we have
made every effort to design engineer a superior quality portable air conditioning unit that effectively and efficiently cools
select areas of the home or office.
These portable air conditioning units are designed engineered to provide supplemental air conditioning.
To gain a better understanding of the performance capabilities of your new ACW portable unit, you can visit us online at:
www.americancomfort.com/portableacdisclaimer

4
Par t s
Front Side Back Side
Control
Panel
Air Outlet
Fan Blade
Handle
Power
Cord
Location
Upper
Filter frame
Exhaust
Connector
Lower
Filter Frame
Caster Power
Supply
Cord
Rubber plug
Plug cap
Check packing accessories and read your user’s manual to learn how to use them.
Remote
Control
Drain Hose
(For model ACW200CH
Spiral water pipe
with connector
Exhaust Hose
Insulation
Strip
Adjustable Slide Bar
Slide Bar
Connector

5

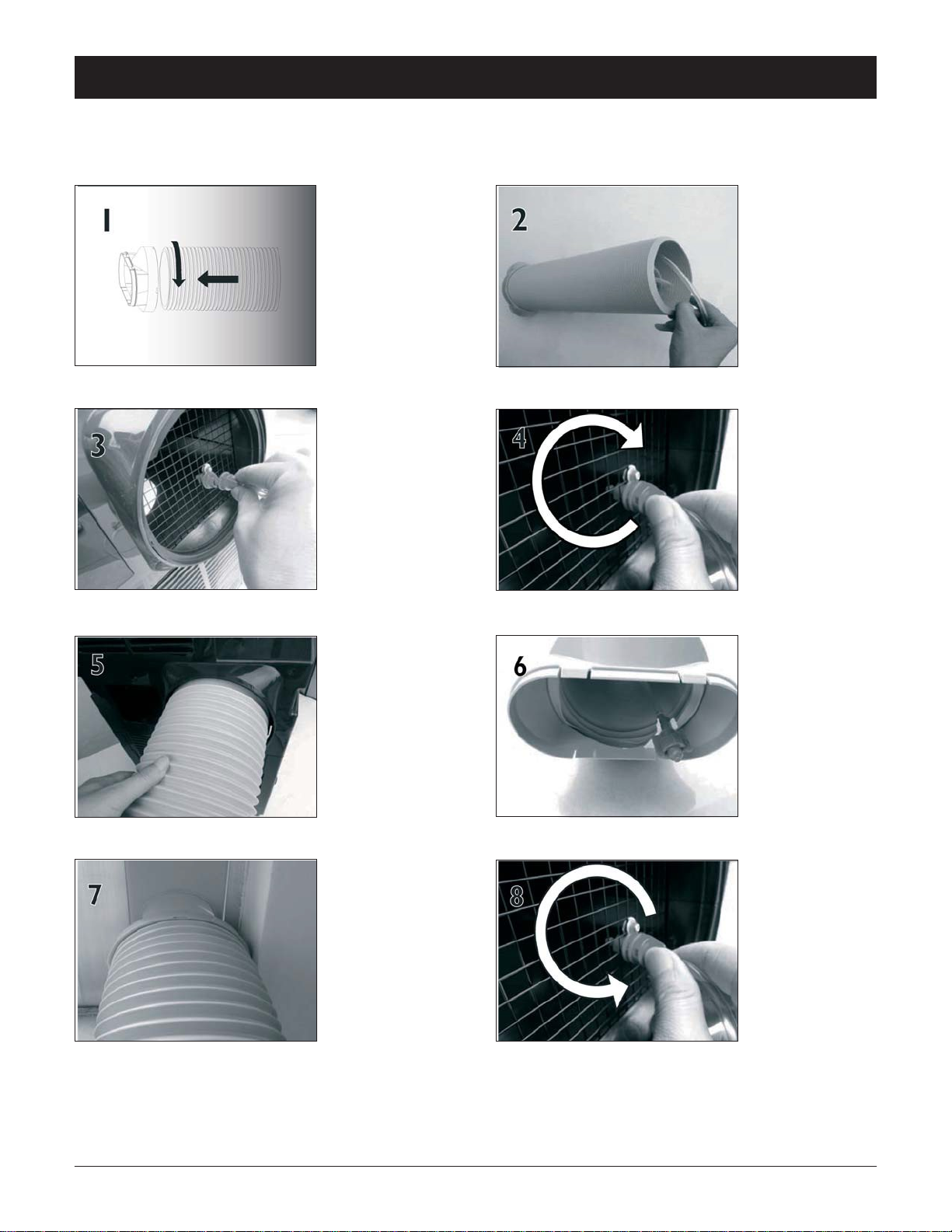

AutoDrain Technology A sse m b ly
Attach Window
Slide Bar
Connector to
Exhaust Hose by
twisting as shown.
Put spiral water
pipe into hot air
flexible hose.
Connect the
female half of the
quick connector
at the end of the
spiral water pipe
to the male part
in the hot air
outlet pipe.
Turn the
connector
45º clockwise
until it is locked
in place.
Stretch end of
the hose slightly.
Assemble the hot
air hose on the
unit by screwing
in clockwise.
Clip on the
water atomizer
at the end of
the spiral pipe
to the holder.
Unfold fl exible
hose with attached
hose adapter
connector, and
snap into
Window Slide Bar.
Only
Required For
Disassembly.
In order to
unlock the quick
connector, push
the tab and turn
the connector
counter-
clockwise.

6
Positi onin g
This unit can easily be moved from one room to another. In doing, so keep this in mind:
• The unit must stand upright on an even surface.
• Do not position near bath, sink, or other permanent, wet or damp area.
• Keep unit at least 18" from wall, curtains, draperies, or heat sources to insure adequate air circulation.
Figure A
Figure E
Exhaust
Hose
Slide Bar
Connector
Figure B
Figure C
Figure D
Fasten
one screw
Adjustable
Slide Bar
Window
Adjustable
Slide Bar
Air Outlet
Installing Exhaust Hose to Window Slide Bar
for AC and Heating
18"
45cm
18"
45cm
Exhaust
Hose
Slide Bar
Connector
Note: The window kit is only designed to be installed with sliding windows or doors. The window kit
is not designed or to be used with casement style windows. Measure your window kit according to the
dimensions of your sliding window. If the unit is larger than your required dimensions, it can be cut
using a saw or power tool. If the unit is too short for your opening, you can order an additional
window kit from our online store to extend it.
After assembling the Innovative AutoDrain Technology as per instructions on page 5, make sure hose is
firmly attached to oval connecter that fits into window slide bar.
Snap hose connecter into window slide bar opening. See Illustration 1.
Extend window slide bar to fit your window opening, either vertical or horizontal, depending on how
the window opens. See Figure D.
Important
The flexible exhaust hose can be extended from 12" to 60" for mounting. We recommend
that you keep the hose as short as possible to minimize possible loss back in the room.
This length has been designed especially according to the specifications of the
unit.
Do not use an extension or exchange for a different hose as that may lead to
malfunctioning.
The exhaust air must flow freely. Any blockage can lead to overheating of the unit. Handle
with care to prevent any kink or bend in the exhaust hose.

7

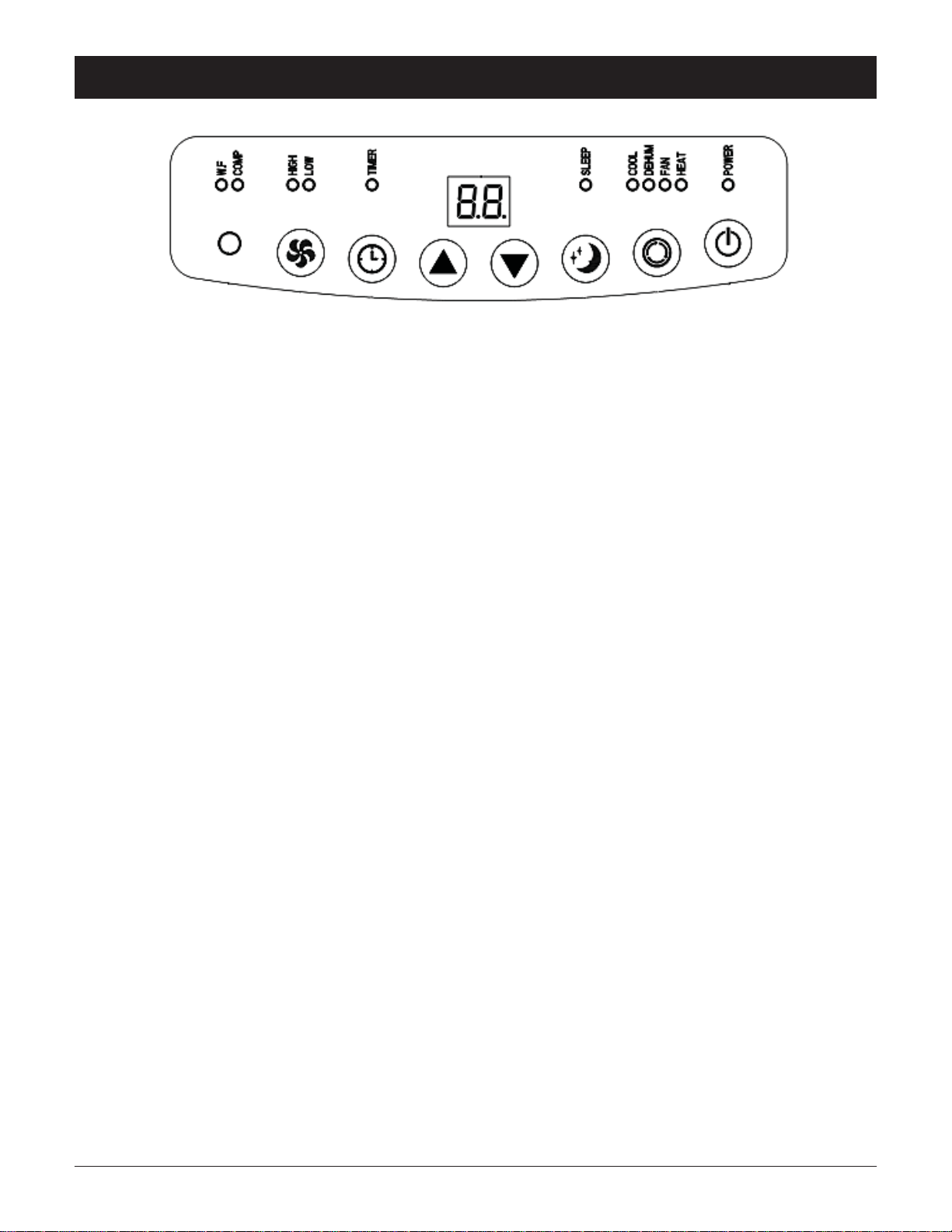

C o nt r o l P a nel
9 10 11 12 13 14 15 16 17 18 19 20
8 7 6 5 4 3 2 1
1. On/Off (Power) Button
2. Mode (Function) Button
3. Sleep Function Button
4. “Temperature Down” Button
5. “Temperature Up” Button
6. Timer Button
7. Speed (Ventilation) Button
8. Receiver For Remote Control
9. “Water Full” Indicator
10. Indicator For Compressor
11. High Ventilation Indicator
12. Low Ventilation Indicator
13. Timer Operation Indicator
14. Display Window
15. Sleep Operation Indicator
16. Cooling Operation Indicator
17. Dehumidify Operation Indicator
18. Fan Operation Indicator
19. Heating Operating Indicator (optional)
20. Power Indicator
1. POWER: Press this key to turn on/off machine.
After machine turns on, default operation is cooling mode with low fan speed.
2. MODE: After machine turns on, for cooling only model, press this key to select cooling,
dehumidifying and fan mode; for cooling & heating model, press this key to select cooling,
dehumidifying, fan and heating mode
3. FAN: After machine turns on, press this key to select fan speed (high and low).
4. DOWN: Under cooling or heating mode, press this key to downward setting
temperature from 60ºF~90ºF; under timer mode, press this key to downward on/off time.
5. UP: Under cooling or heating mode, press this key to upward temperature from 60ºF~90ºF;
under timer mode, press this key to upward on/off timer.
6. SLEEP: Under cooling or heating mode, press this key to turn on/off sleeping function.
7. TIMER: Under power-on or standby mode, press this key to setup on/off time
from 0~24 hours.

8
Remote Co n t r o l
Fan
Sleeping
Up
Mode
Down
Timer
Power
