American Comfort Worldwide ACW300 User manual

Innovative AutoDrain Technology
It is important that you read
these instructions before using
your new purchase and we
strongly recommend that you
keep them in a safe place for
future reference.
Portable Air Conditioner
ACW300
Owner’s Manual

Table of Contents
ThankYou ……………………………………………………… 1
Safety Instructions …………………………………………… 1-2
Specifications …………………………………………………… 3
Parts …………………………………………………………… 4
AutoDrain Technology Assembly ……………………………… 5
Positioning ……………………………………………………… 6
Operation …………………………………………………… 7-8
Emptying the Water Container ………………………………… 9
Cleaning …………………………………………………………10
Installation of the Filters …………………………………………10
Storage …………………………………………………………11
Troubleshooting …………………………………………………12
Limited Warranty ………………………………………………14

Thank you for purchasing a ACW Portable Air Conditioner.
We would like you to enjoy the many benefits this unit offers, so please read this manual carefully
and take full advantage of the many advanced features that your ACW Air Conditioner offers you.
In designing these advanced products, we have listened carefully to our customers and have passed
their views on to our research and development laboratories.
We wish you many years of enjoyable use.
After reading this manual, please keep it in a safe place for future reference.
Read this entire instruction manual before use.
Please keep your receipt. Your receipt is your Proof of Purchase and is
necessary for warranty service.
Thank You!
IMPORTANT!
• The unit is designed for indoor operation.
• Rating: This unit must be connected to a 115V/60Hz grounded outlet.
• The installation must be in accordance with regulations of the country where the unit is used.
If you are in any doubt about the electrical installation, have it checked and if necessary modified by a
qualified electrician.
• The air conditioner is safe. However, as with other electrical appliances, use it with care.
• Keep out of the reach of children.
• Do not clean the unit by spraying it or immersing it in water.
• Do not insert any object into the openings of the unit.
• Disconnect the unit from the outlet before cleaning the unit or any of its components.
• Never connect the unit to an electrical outlet using an extension cord.
If an outlet is not available, one should be installed by a licensed electrician.
WARNING!
• Never operate this appliance if it has a damaged cord or plug. Do not lead the cord over sharp edges.
• A damaged supply cord should be replaced by the manufacturer, its service agent or a qualified person
in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be performed by an authorized
service representative. Failure to do so could result in a loss of warranty.
Safety Instructions
1

Safety
2
Reminder:
Waste electrical products must not be disposed of with household waste.
This product should be taken to our local recycling center for safe treatment.
Close to a heat source
Inside unit exposed to the
weather outdoors
In a permanent very humid
environment
If the power cable wires
are frayed or cut
When small children may
be left unattended
If an extension lead may
become overloaded
Where the power cable
may be damaged
On a slope or uneven
surface
Where it may be damaged
by chemicals
Where there is a risk of
interference by foreign
objects
This products is not made
for DIY repair
If there is a risk of liquid
falling on the unit
Do not use your air conditioner:

Specifications
3
Model ACW300
Cooling Capacity 10,000 BTU/hr
Power/Ampere Consumption 981W / 8.82A
Air Volume (Max. Speed) 177 CFM
Humidity Removal Capacity 56.4 pints / day
Power Supply 115V/60Hz/1phase
Compressor Rotary
Refrigerant R410A
Fan Speed 2
Timer 1~12 hours
Thermostat Cooling: 64~90°F (18~32°C)
Operating Temperature 41 ~ 110°F
Exhaust Pipe 5" x 59"
Net Weight 47.4 lbs.
Gross Weight 55.12 lbs.
Unit Dimensions 12.01"W x 14.96"D x 29.53"H
Package Dimensions 13.58"W x 20.59"D x 30.51"H
Subject to modifications without prior notice.
Please refer to the rating label for greater precision.
The cooling capacity of the unit may be affected by the height of your ceiling, quality of your insulation,
or number of windows in your room. There is no current testing statute for portable air conditioning
products in the United States, yet we have made every effort to design engineer a superior quality
portable air conditioning unit that effectively and efficiently cools select areas of the home or office.
These portable air conditioning units are designed engineered to provide supplemental air conditioning.
To gain a better understanding of the performance capabilities of your new American Comfort Worldwide
portable AC unit, you can visit us online at: www.americancomfort.com/portableacdisclaimer

Parts
4
1. Handle
2. Control panel
3. Air outlet
4. Air inlet with filter
5. Exhaust hose with adapter
6. Power cord hanger
7. Exhaust air outlet
8. Water stopper (plug inside)
9. Casters
10. Adjustable Window Slide Bar
11. Flexible Drain Hose
12. Exhaust hose
13. IR Ergonomic Remote Control
14. Exhaust Hose Window
Slide Bar Connector with cap-hole cover
15. Insulation tape
16. Spiral water pipe with connector
5
8
7
9
6
4
1
2
3
4
11
10
12
13
16
14
15

5
Put spiral water
pipe into hot air
fl e x i b l e h o s e .
Connect the
female half of the
quick connector
at the end of the
spiral water pipe
to the male part
in the hot air
outlet pipe.
Turn the
connector
45º clockwise
until it is locked
in place.
Stretch end of
the hose slightly.
Assemble the hot
air hose on the
unit by screwing
in clockwise.
Clip on the
water atomizer
at the end of
the spiral pipe
to the holder.
Unfold flexible
hose with attached
hose adapter
connector, and
snap into
Window Slide Bar.
Only
Required For
Disassembly.
In order to
unlock the quick
connector, push
the tab and turn
the connector
counter-
clockwise.

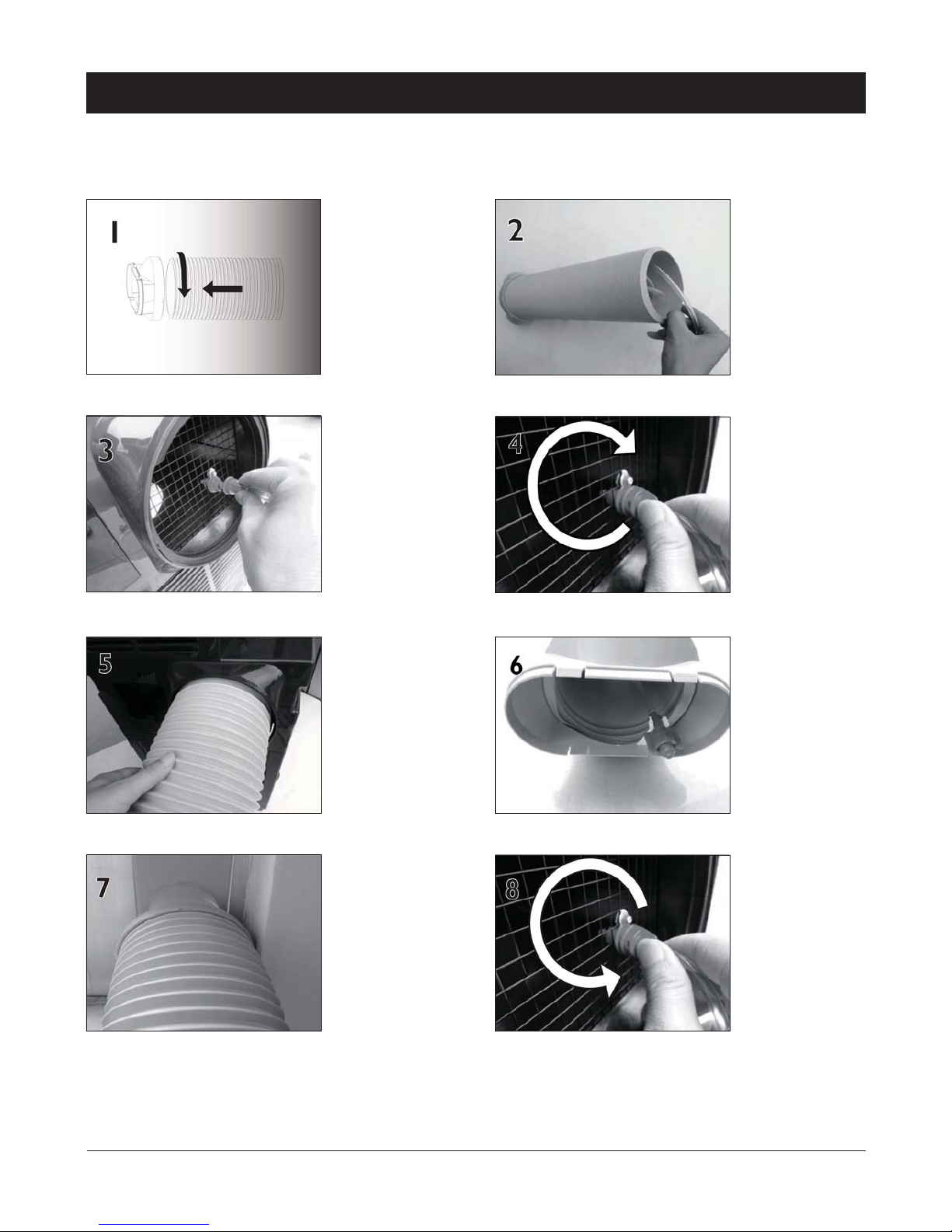

AutoDrain Technology Assembly
Attach Window
Slide Bar
Connector to
Exhaust Hose by
twisting as shown.

6
Positioning

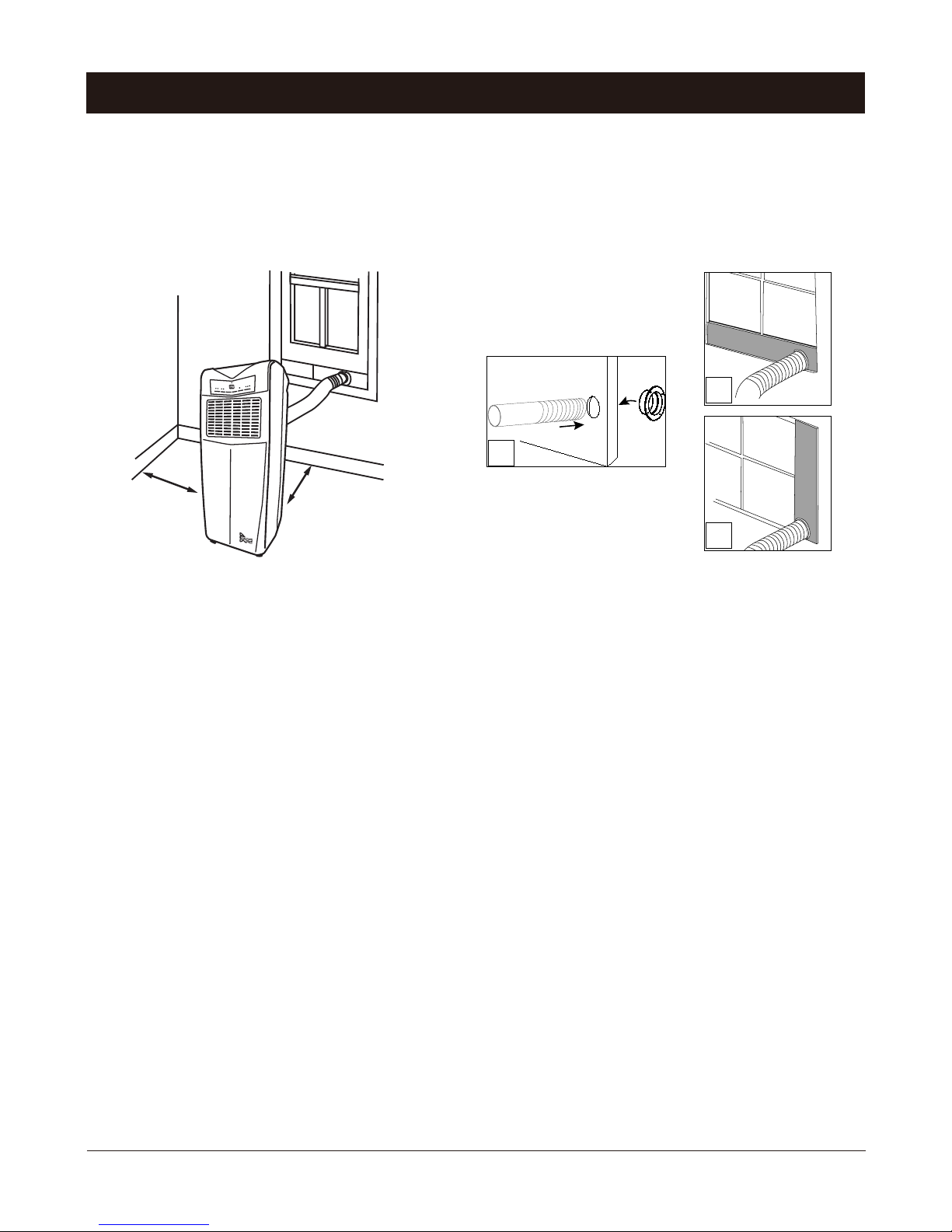

Installing Exhaust Hose to Window Slide Bar
Note: The window kit is only designed to be installed with sliding windows or doors. The window kit
is not designed or to be used with casement style windows. Measure your window kit according to the
dimensions of your sliding window. If in case the unit is larger than your required dimensions, it can be
cut using a saw or power tool of the sort. If the unit is too short for your opening, you can order an
additional window kit from our online store to extend it.
After assembling Innovative AutoDrain Technology per instructions on page 5,
make sure hose is �rmly attached to oval connector that �ts into window slide bar.
Snap hose connector into window slide bar opening. See Illustration 1.
Extend window slide bar to �t your window opening, either vertical or horizontal,
depending on how the window opens. See Illustrations 2a - 2b.
Important
The � exible exhaust hose can be extended from 12" to 60" for mounting. We recommend
that you keep the hose as short as possible to minimize possible loss back in the room.
This length has been designed especially according to the speci�cations of the
air conditioner.
Do not use an extension or exchange for a different hose as that may lead to
malfunctioning.
The exhaust air must �ow freely. Any blockage ca n lead to overheating of the air conditioner.
Handle with care to prevent any kink or bend in the exhaust hose.
This unit can easily be moved from one room to another. In doing, so keep this in mind:
• The air conditioner must stand upright on an even surface.
• Do not position near bath, sink, or other permanent, wet or damp area.
• Keep unit at least 18" from wall, curtains, draperies, or heat sources to insure adequate
air circulation.
18"
45cm
18"
45cm
1
2a
2b

Operation
7
5 6421
78 9 11 12 13 1410 15 16
3
MODE
1. Mode (function) option button
2. Timer button
3. ’Temperature up’ button
4. ’Temperature down’ button
5. Speed (ventilation)button
6. ON/OFF (power) button
7. Automatic mode operation
indicator
8. Cooling mode operation
indicator
9. Fan mode operation indicator
10. Timer operation indicator
11. Display window
12. Receiver for remote control
13. Low ventilation indicator
14. High ventilation indicator
15. Compressor operation indicator
16. “Water Full” indicator
Turning ON / OFF
1. Press ON/OFF button, the unit will start automatically. If the ambient temperature is
• Higher than 73.4ºF (23ºC), the unit will work in cooling model.
• Higher than 68ºF (20ºC) but below or equal to 73.4ºF (23ºC), the unit will work in ventilation model.
2. Indicators of the functions in progress come on at the same time.
*NOTE! The display window shows the ambient room temperature from 32ºF (0ºC) to 122ºF (50ºC)
3. To turn the unit off, press ON/OFF button again.
Setting Mode/Function
Press MODE button to select required working mode: automatic, cooling or fan.
The indicator of your selected mode comes on.
Setting Temperature
1. Press ’Temperature Up’ or ’Temperature Down’ button to regulate the temperature you desired.
2. The display window will show the temperature you set as you press ’Temperature Up’ or ’Temperature Down’
button. Otherwise, it will always show the ambient temperature.
3. The pre-setting temperature of this machine is: 75ºF (24ºC) for cooling
Setting Ventilation Speed
1. Press SPEED button to choose the ventilation speed you need, high or low.
The indicator of high or low ventilation will light on at the same time.
2. If the unit is in AUTO mode, it will choose the ventilation speed automatically according to the ambient
temperature (the related indicators will light on), at this time, the speed switch is invalid.
Setting Timer
1. Press TIMER button to set the operating hours you desired (1 to 12 hours, the timer indicator will light on).
When the set time has been reached, the machine will turn off automatically. The display window will show the
hour(s) you set as you press TIMER button. If the timer button is not pressed, the unit will work continuously.
2. By pressing the timer but without turning on the other functions, you can PRE-SET the time for the machine to
work. For example, if you press the timer to ’2’, the unit will work automatically after 2 hours.

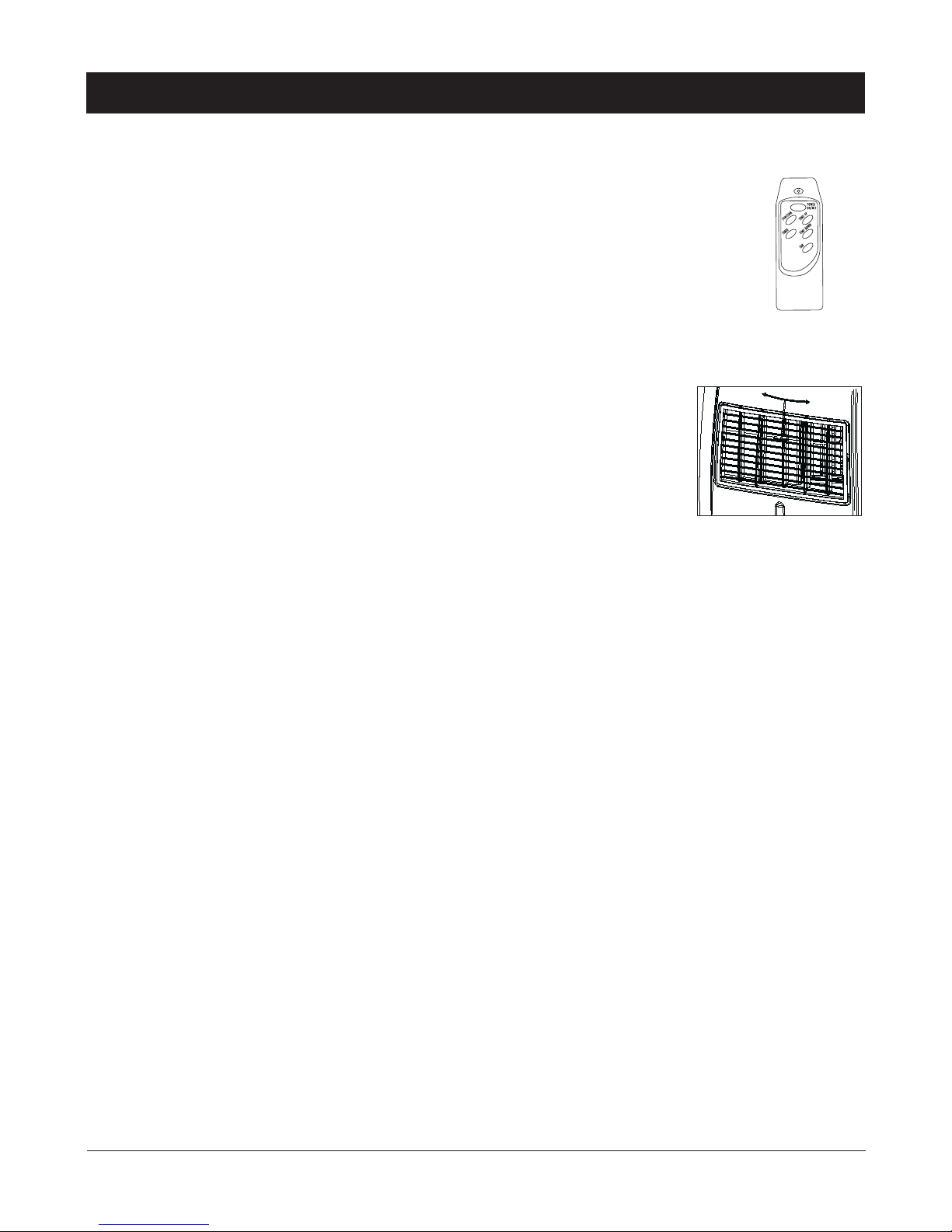

Remote control
The air conditioner responds to all signals that are sent by the remote
control. Two AAA-batteries are required to use the remote control.
Point the remote control hand set towards the control panel of the
unit and press the relevant button, the red LED on the hand set will flash
whenever a button is pressed.
Note: the air flow direction can not be adjusted with the remote control.
Air flow
Adjust the left-right direction of the outflowing air by turning
the roller on the front of the air outlet grill.
Adjust the up/down air flow by rotating the air outlet grill.
Important:
• The compressor will start approximately 3 minutes after the
unit is turned on (this will help prolong the life of the
compressor). After switching the unit off, please wait at least
3 minutes before turning the unit back on.
• The compressor will switch off when the room temperature
is lower than the set temperature. The fan will however
continue to work. When ambient temperature rises above
the set temperature, the cooling will resume.
Operation
8

9
This air conditioning does not require emptying of the water
container, except prior to season end storage.
This portable AC features the
Innovative AutoDrain Technology
Very little excess water should accumulate. During the process of
cooling, some of the water accumulated is actually used to cool the
unit internally, making it run more efficiently. Both this evaporative
technology and Innovative AutoDrain Technology are features not
found in most portable air conditioners.
Switch off the unit and remove the plug
from the outlet.
• Position a flat container or dish on the floor
under the drain hole. Do not allow the water to
drip continuously into the container as it might
easily overflow.
• Remove the drain knob.
• Remove the rubber plug, the water will flow in the
container. When this is nearly full, replace the plug to
stop the water flow and empty it. Repeat this process
until all water has been removed.
• Replace the rubber plug into the drain hole firmly,
the
WATER FULL LED should not flash any longer.
• Replace the drain knob.
Rubber plug Drain knob
Emptying The Water Container

10
Always unplug the unit from the power supply (wall outlet) before
beginning the cleaning.
Housing
Use a soft, damp cloth to wipe the body clean. Never use strong
chemicals, oil-based products, detergents, chemically treated cloths or
other cleaning solutions. These could possibly damage the housing.
Filter
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt
from the filters and then rinse them thoroughly under running water (not
warmer than 104°F).
Dry Thoroughly with a soft cloth before inserting them back into the unit.
Notice! Never operate the air conditioner without the filters.
Cleaning

11

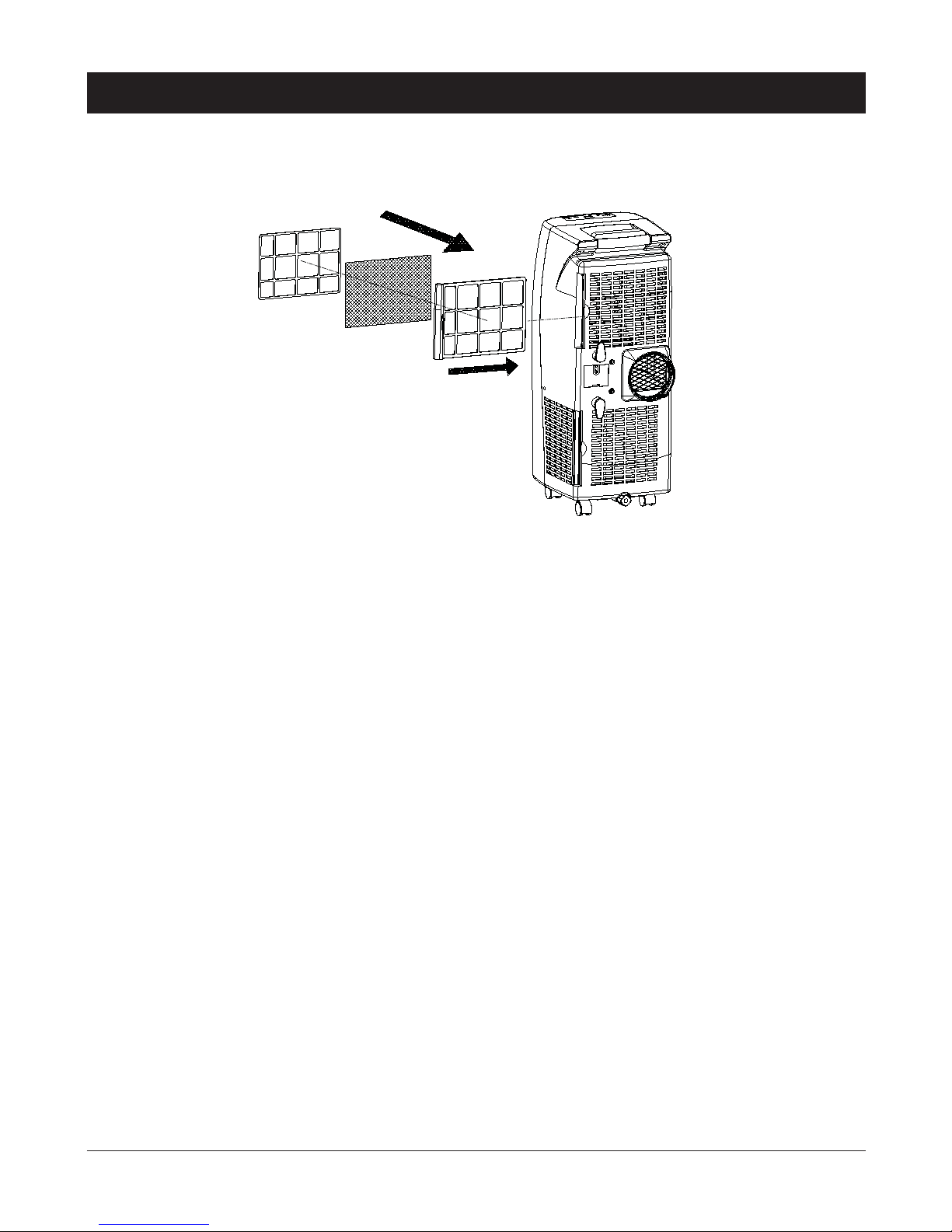

It is recommended to replace the active carbon filter at the start of
every season subsequent to the initial season of the unit or when dirty
(3-6 months, depending on usage).
Always unplug the unit from the power supply (wall outlet)
before installing the Carbon Filter.
• Remove the top filter frame from the unit by pulling it out.
• Separate the fixer from the filter frame.
• Insert the active carbon filter into the
filter frame, underneath the tabs.
• Insert the filter frame inside the unit.
Installation of Carbon Filter

12

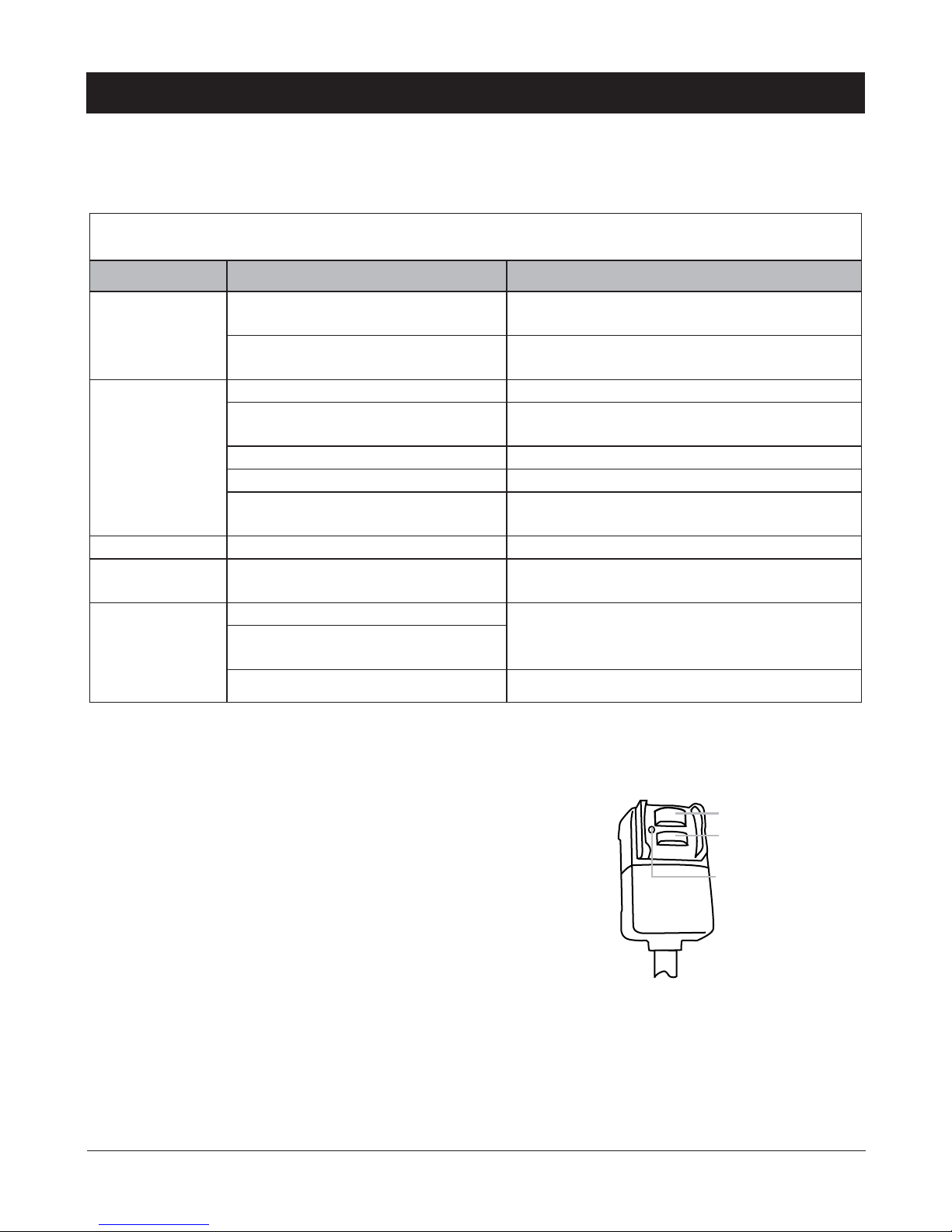

Troubleshooting
Never try to repair or dismantle the air condition yourself. Incompetent repairs result in
loss of warranty and can endanger the user and the property.
Problem Cause Solution
The air
conditioner does
not function.*
No power supply. Make sure the
green light on the plug is lit. Connect to a functioning outlet and switch on.
Is the power light flashing?
Is the water full LED lit? Empty the drain pan.
The air
conditioner does
not seem to
perform.
The unit is in direct sunlight. Close curtains.
Windows or doors open, many
people or a heat source in the room.
Close doors and windows, place an extra air
conditioner.
The filter is dirty. Clean or replace the filter.
Air inlet or air outlet blocked. Remove the blockage.
Room temperature lower than the
selected value.
Change temperature selection.
Set at the lowest possible setting: 62°F.
The unit is noisy. Unit stands uneven. Place on an even, solid surface (less vibrations).
The compressor
does not work.
The overheat protection may be
activated.
Wait 30 minutes until the temperature has
decreased, then turn on the unit again.
The remote
control does not
function.
Distance too great. Make sure the remote control is correctly
aimed at the control panel.
Remote control signal not detected
by the control panel.
The batteries are drained. Replace the batteries.
* If you plug in the Air Conditioner, and there is no green light on the plug,
press the reset button on the LCDI plug. The green light should be lit,
indicating that the air conditioner is getting power from the electrical outlet.
If the plug continues to trip (which is a USA national safety standard feature)
and the green light goes off, the cord may be damaged preventing you from
resetting the unit. For your safety, contact a licensed electrician.
TEST
RESET
Reset Button
Green Light
Test Button

13

14
One Year Limited Warranty
American Comfort Worldwide LLC (“ACW”) warrants this ACW portable air conditioner to the original retail
purchaser (“Purchaser”) purchasing only in the 48 Contiguous States, for one year from the date of purchase, against
defects in material and workmanship under normal use and service. Should your ACW Portable air conditioner prove
defective within one year from the date of purchase, please follow our return procedure to return the defective unit.
Within the first 30 days, ACW is responsible for the freight cost to and from our authorized service center for all units
with an ACW authorized RMA. After 30 days and up to life of warranty (12 months), customer is responsible for freight
costs to and from our authorized service center.
ACW’s sole obligation under this warranty is to replace, or at ACW’s discretion, to repair, free of charge, all defective
parts, for a period of one (1) year from date of original purchase. All replacement parts and units will be new, remanu-
factured, or refurbished. ANY IMPLIED WARRANTY OF MERCHANTABILITY IS SIMILARLY LIMITED TO ONE
(1) YEAR FROM DATE OF ORIGINAL PURCHASE AND NO ACTION BASED UPON ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR OTHERWISE MAY BE COMMENCED AFTER EXPIRATION OF ONE (1) YEAR FROM
DATE OF ORIGINAL RETAIL PURCHASE. Some states do not allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you.
The provisions of this warranty shall not apply to any product which in ACW’s judgment has been (1) subject to misuse
or neglect. (2) damaged in an accident. (3) used for a purpose for which it was not designed, or (4) repaired or altered
in any way that adversely affected its performance or reliability. Do not attempt to “open unit”, except for filter replace-
ment. Opening unit will void manufacturer’s warranty.
THIS WARRANTY DOES NOT COVER:
• Damage, accidental or otherwise, to the unit while in the possession of the consumer not caused by a defect in
material or workmanship.
• Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions
in the instructions.
• Damage to the finish of the case, or other appearance parts caused by the wear.
• Damage caused by repairs or alterations of the unit by anyone other than those authorized by
American Comfort Worldwide.
• Freight and Insurance cost for the warranty service beyond 30 days from date of purchase up to life of warranty
(12 months).
This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used,
salvaged, or refurbished products.
To obtain warranty service, the defective product or part must be shipped or delivered to: American Comfort World-
wide, the Manufacturer. If warranty applies under ACW’s approved terms, all Shipping charges and insurance are
covered by purchaser. Proof of Purchase (i.e. Copy of Original Receipt) must be sent in with the unit.
AMERICAN COMFORT WORLDWIDE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME
FOR IT ANY OTHER (LIABILITY IN CONNECTION WITH ITS PRODUCTS, THERE ARE NO WARRANTIES
WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. NO RESPONSIBILITY IS ASSUMED FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES THAT MAY RESULT FROM THE USE OF AN ACW PRODUCT,
NOR FOR THE DAMAGES DUE TO ACCIDENT, ABUSE, LACK OF RESPONSIBLE CARE, THE AFFIXING OF ANY
UNAUTHORIZED ATTACHMENT, LOSS OF PARTS, OR USE AT A VOLTAGE OTHER THAN SPECIFIED. Some
states do not allow the exclusion of limitation of incidental or consequential damages, so these limitations may not
apply to you. ACW disclaims all liabilities for defects or damages caused by use of replacement parts obtained from or
by service at any service center other than American Comfort Worldwide, the Manufacturer.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
QUESTIONS? Call 1-877-645-0299 · www.americancomfort.com
Dear Customer: Please keep this warranty for your records along with a copy of original receipt.
DO NOT return it.
02/11
7092192205B

Le Climatiseur Portatif
ACW300C-CH
Le Manuel du Propriétaire
C’est important quevous
lisiez ces instructions
avant d’utiliser votre
nouvel achat.
Nous recommandons
fortement que vous les
gardez dans un endroit
sûr pour la référence
future.
Le Drain Automatique Innovateur de Technologie

La Table des Matières
Merci …………………………………………………………… 1
Les Instructions de sûreté …………………………………… 1-2
Les Spécifications …………………………………………… 3
Les Parties …………………………………………………… 4
L’assemblée de l’Atomiseur d’Eau …………………………… 5
Le Placement ………………………………………………… 6
L’Opération …………………………………………………… 7-8
LeVider du Récipient d’Eau …………………………………… 9
Le Nettoyage ………………………………………………… 10
L’installation des Filtres ……………………………………… 10
L’Emmagasinage ……………………………………………… 11
Le Dépannage ………………………………………………… 12
La Garantie Limitée…………………………………………… 14

Merci pour votre achat d’un ACW le Climatiseur Portatif.
ACW est une marque qui mène dans le traitement d’air intérieur.
Nous aimerions que vous ayez apprécié les beaucoup d’avantages de cette unité. S’il vous plait lisez
soigneusement ce manuel et prenez l’avantage plein des beaucoup de caractéristiques avancées.
ACW s’est spécialisé dans le contrôle d’environnement intérieur complet, fabriquant des appareils de
chauffage de niveau international, les climatiseurs, avec la technologie innovatrice.
Dans le concevoir de ces produits avancés, nous avons écouté soigneusement à nos clients et avons
relaté leurs inquiétudes à nos laboratoires de recherche et développement.
Après avoir lu ce manuel, s’il vous plaît le garder dans un endroit sûr pour la référence future.
Lisez ce manuel d’instruction entièrement avant l’usage.
Veuillez conserver votre reçu et l’emballage d’origine de votre appareil
pour un retour sous garantie.
Merci!
IMPORTANT!
• L’appareil n’est pas conçu pour climatiser des salles informatiques, des solariums
ou une pièce générant une chaleur élevée de manière constante.
• Classement: Cette unité doit être connectée à un 115V/60Hz sortie qui est fondé.
• L’installation doit être conformément aux règlements du pays où l’unité est utilisée.
Si vous êtes douteux de l’installation électrique, vous devez avoir l’a vérifié.
Si nécessaire, vous devez avoir l’a modifié par un électricien qualifié.
• Ne connectez jamais l’unité à une sortie électrique utilisant une rallonge.
Si une sortie n’est pas disponible, un électricien autorisé le doit un installer.
• Le climatiseur est sûr. Cependant, comme avec les appareils électriques,
vous devez l’utiliser avec soin.
• Évitez la portée d’enfants.
• Ne nettoyez pas l’unité en le vaporisant ou l’immergeant dans l’eau.
• N’insérez pas d’objet dans les ouvertures de l’unité.
• Débranchez l’unité de la sortie avant de nettoyer l’unité ou n’importe quel de ses composants.
AVERTISSEMENT!
• Ne fonctionnez jamais cet appareil s’il a une corde ou un bouchon endommagé.
Ne tirez pas la corde par-dessus les bords tranchants.
• Une corde de provision qui est endommagée devrait être remplacée par le fabricant,
son agent de service ou une personne qualifiée afin d’éviter un danger.
• Tout service autrement que le nettoyage régulier ou le remplacement de filtre devrait être exécuté par
un représentant de service autorisé. Si vous ne conformez pas, votre garantie pourrait être perdue.
• Consultez la page de garantie (page 14) afin de connaître les exigences, la procédure et les consignes
de la garantie.
Les Instructions de Sûreté
1

2
SafetySûreté
Près d’une source de
chaleur
Si l’unité est exposée au
temps dehors.
Dans un environnement
très humide.
Si les fils de cordon
d’alimentation sont éraillés
ou coupent.
Quand les petits enfants
pourraient être partis
indépendant.
Ne pas connecter l’appareil
à une rallonge
Où le cordon d’alimentation
pourrait être endommagé
Sur une pente ou une
surface inégale
Où il pourrait être
endommagé par les
produits chimiques.
Où il y a un risque
d’intervention par les
objets étrangers.
Ce produit n’est pas fait
pour la réparation par DIY.
S’il y a un risque du
renverser de liquide sur
l’unité.
N’utilisez pas votre climatiseur :
Un Rappel :
Cet appareil contient du R410A. Le gaspillage électrique ne doit pas être liq-
uidé avec le gaspillage de ménage. Ce produit devrait être pris à notre centre
recyclant local pour le traitement sûr.
