American Megatrends MegaRAC G2 User manual

Quick Hardware Installation Guide English
MAN-BBU-QH
02-20-03
MegaRAC™ G2
Battery Backup Unit
(for Series 827)
Thank you for purchasing the MegaRAC™ G2 Battery Backup Unit.
Please take a few minutes to review this quick guide before beginning
the installation process.
Contents for the MegaRAC™ G2 Battery Backup
Unit
You should have received the following:
•one MegaRAC™ G2 Battery Backup Unit (BAT-LIION-3.6-01)
•one battery clip
•this MegaRAC™ G2 Optional Battery Quick Installation Guide
Technical Support
If you need help installing or configuring the MegaRAC G2 Battery
Backup Unit, call American Megatrends technical support at 770-
246-8645.
Technical Support Web Site: http://www.ami.com/support/
Technical Support Email: [email protected]
Hardware Installation
Following the steps in this guide to install the MegaRAC G2 Battery
Backup Unit.
Note: Inspect the cardboard carton for obvious damage. If
damaged, call 770-246-8645. Leave the MegaRAC G2 Battery
Backup Unit in its original packing.
Unpack the MegaRAC G2 Battery Backup Unit
and Battery Clip
Inspect the cardboard carton for obvious damage. If damaged, call
770-246-8600. Leave it in its original packing. Perform all unpacking
and installation procedures on a ground-connected anti-static mat.
The MegaRAC G2 battery backup unit is an optional component.
When the optional battery is installed, your MegaRAC G2 card can
stay powered on for 30 minutes without any external power from the
host system or AC adapter.
To install the Battery Backup Unit, plug the battery cable into the J1
connector and place the battery pack in between the three mounting
holes. Next, align and snap the plastic battery clip into the three
mounting holes over the battery pack. See the diagram on the right.
Charging the Battery Backup Unit
WARNING!
Risk of explosion if battery type used is incorrect.
ONLY use American Megatrends battery part number BAT-
LIION-3.6-01.
The Battery Backup Unit is shipped uncharged. The MegaRAC G2
card automatically starts to charge the battery after you install it. You
must charge the battery pack before it can be used to provide backup
power to the MegaRAC G2 card.
Diagram
Align and snap
the battery clip
into the three
mounting holes
on top side of
the PCB over the
battery backup
unit
Place the battery
in between the three
mouniting holes
Plug the battery cable
into the J1 connector

Quick Hardware Installation Guide English
Charging the Battery Backup Unit, Continued
The minimum time that the battery must be charged is:
AMI Part Number Description Weight Time
to
Charge

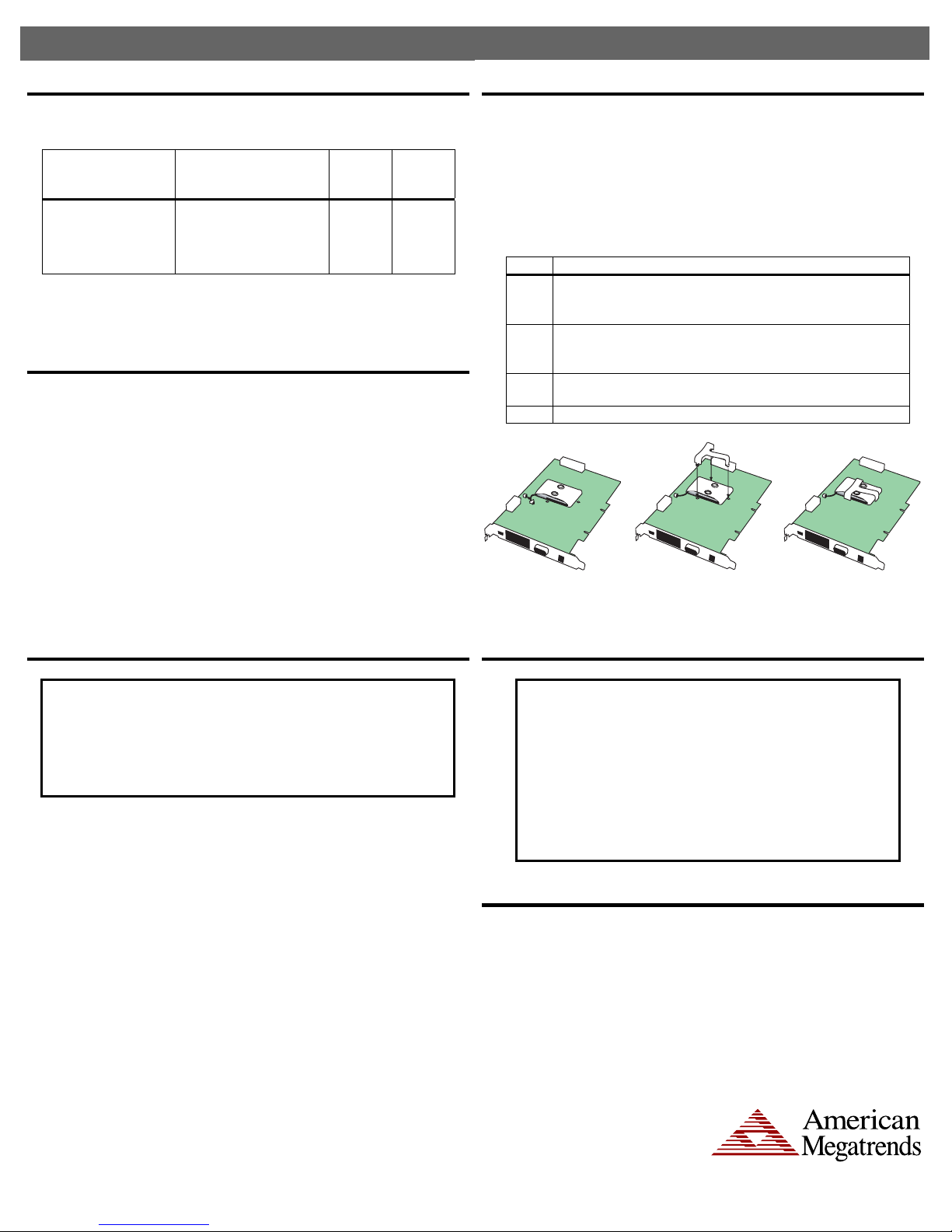

Changing the Battery Backup Unit
The optional MegaRAC G2 Battery Backup Unit must be replaced
every 400 cycles. Cells retain 80% of their original capacity after 400
cycles. A cycle is defined as a full charge (4.2V) followed by a full
discharge (2.8V). Keep in mind that cycling or storing the cells at
elevated temperatures can reduce the cell capacity and cycle life.
Cells discharged and stored at low temperatures can extend the shelf
life of the batteries.
BAT-LIION-3.6-01 Battery, Li-Ion, 3.6 V,
855/900 mAh on-board
battery pack with
mounting brackets
33 g six
hours
Step Action
1 Bring down the operating system properly. Turn the
computer power off. Remove the computer cover. Remove
the MegaRAC G2 card.
2 Disconnect the battery pack cable from the J1 jumper on the
MegaRAC G2 card. Remove the plastic battery clip and
then replace the Battery Backup Unit.
3 Install a new battery pack and connect the new battery pack
to the J1 jumper.
4 Reinstall the MegaRAC G2 card into the host system.
Note: Li-Ion has no memory effect. Lithium-ion cells offer
extended cycle life when cycled at low depth of discharge.
Storage
If you keep a stock of extra MegaRAC G2 batteries, store them at
room temperature.
Note: The recoverable capacity of cells stored for over one year at
room temperature and fully charged is 94%. The retained capacity of
these same cells is 87%. This means the self-discharge rate for a fully
charged cell is approximately 150 mAh per year or 427 uAh per day.
The self-discharge rate for cells is non-linear. A partially charged cell
has a self-discharge rate of about 80 uAh per day.
Disposing of a Battery Pack Battery Disposal Laws
WARNING!
Do not dispose of the MegaRAC G2 Battery Backup Unit by
fire. Do not mutilate the battery pack. Do not damage it in any
way. Toxic chemicals can be released if it is damaged. Do not
short-circuit the battery pack.
IMPORTANT!
Most used Lithium-ion batteries are not classified as
hazardous waste under the federal RCRA (Resource
Conservation and Recovery Act). Although Minnesota law
requires that Lithium-ion batteries be labeled “easily
removable” from consumer products, and that Lithium-ion
batteries must be collected by manufacturers, the
Minnesota Pollution Control Agency (MPCA) has granted
a temporary exemption from these requirements.
The material in the battery pack contains heavy metals that can
contaminate the environment. Federal, state, and local laws prohibit
disposal of some rechargeable batteries in public landfills. These
batteries must be sent to a specific location for proper disposal. Call
the Rechargeable Battery Recycling Corporation at 678-419-9990
(FAX: [phone]) for an authorized battery disposal site near you.
For a list of battery disposal sites, write to:
Rechargeable Battery Recycling Corporation
http://www.rbrc.org/
1000 Parkwood Circle
Suite 450
Atlanta, GA 30339
Phone: [phone]
Fax: [phone]
Other Laws in Other Areas
American Megatrends reminds you that you must comply with all
applicable battery disposal and hazardous material handling laws and
regulations in the country or other jurisdiction where you are using an
Battery Backup Unit on the MegaRAC G2 card.
