INSTALLATION MANUAL, USE AND CARE AND WARRANTY FOR
VITESSE DROP-IN COOKTOPS
RETAIN THIS MANUAL FOR FUTURE REFERENCE
DESIGN CLASS FUNCTION
This manual is divided into several sections: (Model numbers for Cuisine Burner Ranges page 13 and Performer Burner Ranges page 14)
Important Safety Instructions informs you about signicant safety precautions when installing and operating your new appliance.
THIS IS A MUST READ SECTION OF THE MANUAL.
Installation Section describes how to unpack the unit, what to save and what to discard, installation dimensions, gas and electrical
connections and how to identify the primary parts of the product so you can better understand what’s going on “under the hood.”
How to Operate Your Range Section shows you how to light the burners, set the range for broil or bake and how to
use convection to speed cooking times and improve the quality of your baked and roasted dishes.
Care and Cleaning discusses how to keep your product in good operating condition, how to identify what might be going wrong
with the unit, and how to communicate your observations with authorized eld service technicians.
Troubleshooting describes how to troubleshoot common issues.

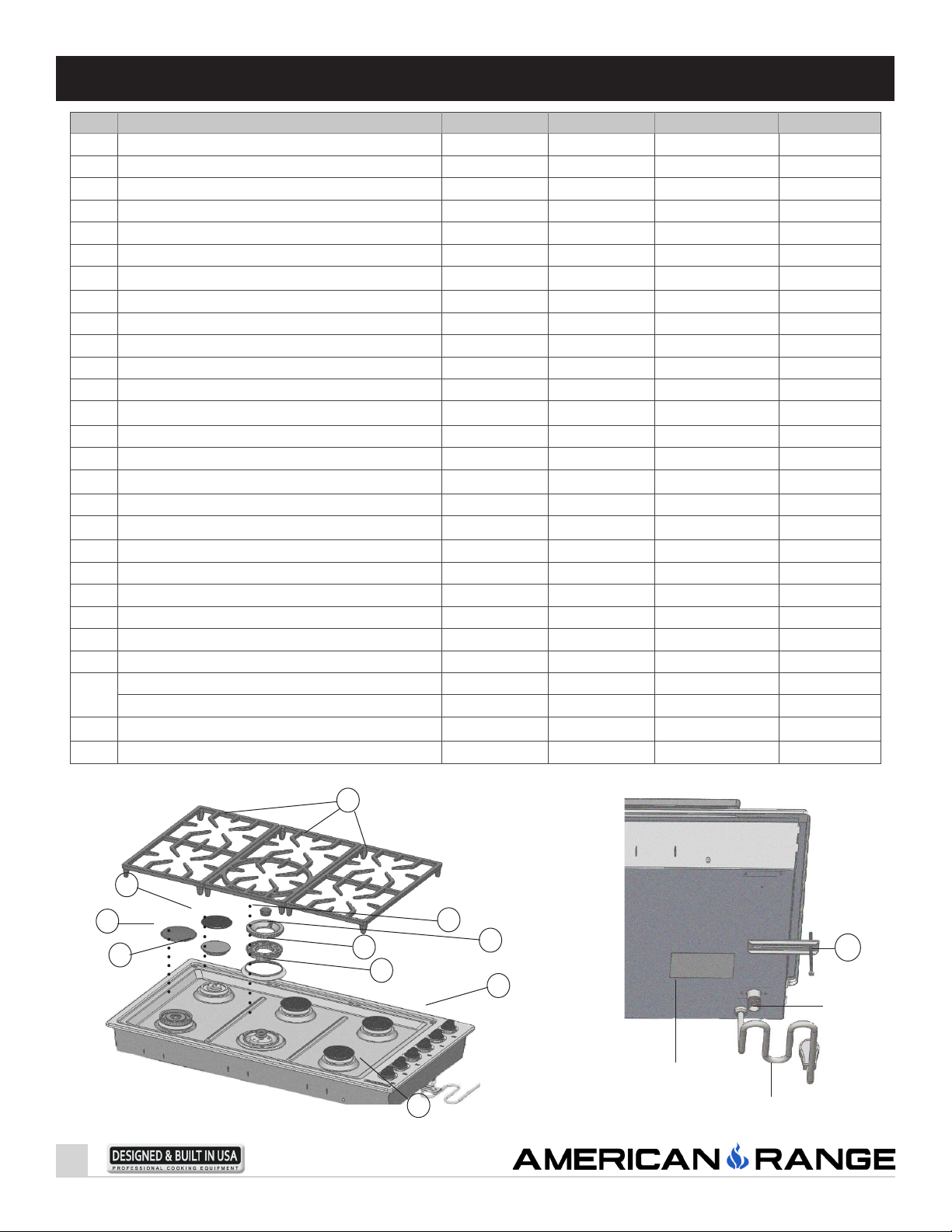

Americana Model and Parts Identication shows available parts for your range.
Warranty
BEFORE USING YOUR APPLIANCE, PLEASE READ THIS MANUAL, PAYING SPECIAL ATTENTION TO THE
IMPORTANT SAFETY INSTRUCTIONS LOCATED IN THE NEXT SEVERAL PAGES
ABOUT THIS MANUAL
2
7
16
20
20
21
22
!
WARNING
NEVER OPERATE THE TOP SURFACE COOKING SECTION
OF THIS APPLIANCE UNATTENDED.
»Failure to follow this warning statement could result
in re, explosion, or burn hazard that could cause
property damage, personal injury or death.
»If a re should occur, keep away from the
appliance and immediately call your re
department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
30" 36" 36"
ARDCT-305 ARDCT-365 ARDCT-366

2
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
FOR YOUR SAFETY!
Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this or any other appliance.
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
IMPORTANT – PLEASE READ AND FOLLOW!
Instruction to be followed in the event the user smells gas must be posted in a prominent location.
This information must be obtained by consulting the local gas supplier.
WARNING!
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
»Before beginning, please read all the instructions carefully.
»DO NOT remove permanently axed labels, warnings, or plates from product. This may void the warranty.
»All local and national codes and ordinances must be observed, installation must conform with local codes.
»The Installer must leave these instructions with the consumer who must retain for local inspector’s use and for future reference.
»Installation and service must be performed by a qualied installer, service agency or gas supplier.
»Please ensure that the product is properly grounded.
»In the Commonwealth of Massachusetts, installation must be performed by a licensed plumber or gas tter.
Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
Hazards or unsafe practices which will result in severe personal injury or death.
Hazards or unsafe practices which may result in severe personal injury or death.
Hazards or unsafe practices which may result in minor personal injury or property damage.
This is the SAFETY ALERT SYMBOL. This symbol alerts you to hazards which will result in severe injury or death.
CA PROPOSITION 65: The burning of gas cooking fuel generates some chemical by-products which
are on the list of substances known by the State of California to cause cancer, birth defects and/or
reproductive harm. To minimize exposure to these substances, always operate this unit according to the
Owners Manual, ensuring to provide proper ventilation.
This is a vented appliance. The appliance is not to be installed in conjunction with an air curtain, range
hood, or ventilation systems which operates by blowing air downward towards the appliance. This type of
ventilation system may cause ignition and combustion problems with the gas cooking appliance resulting in
personal injury or unintended operation.
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING
!
DANGER
!
WARNING
!
WARNING
!
!
CAUTION

3
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
A ground fault interrupter (GFI) shall be used as required by NFPA-70 (National Electric Code), Federal / State / Local laws or
local ordinances.
»The required use of a GFI is normally related to the location of the receptacle to its proximity to signicant sources of water or
moisture.
»American Range will not warranty any problems resulting from GFI outlets which are not installed properly or do not meet
the requirements below.
IF THE USE OF A GFI IS REQUIRED, it must be:
»The receptacle type (breaker type or portable type not recommended).
»Used with permanent wiring only (temporary or portable wiring not recommended).
»On a dedicated circuit (no other receptacles, switches or loads in the circuit).
»Connected to a standard breaker or appropriate size (GFI breaker of the same size not recommended).
»Rated for class (5mA + 1mA trip current) as per UL 943 standard.
»In good condition and free from any loose-tting gaskets (if applicable in outdoor situations).
»Protected from moisture (water, steam, high humidity) as much as reasonably possible.
To prevent possible damage to cabinets and cabinet nishes, use only materials that will not discolor or delaminate
and will withstand temperatures up to 194ºF (90ºC). Heat resistant adhesive must be used if the product is to be
installed in laminated cabinetry, check with your builder or cabinet supplier to make sure that the materials meet
these requirements.
The use of cabinets for storage above the oven may result in potential re or burn hazard.
To avoid risk of electrical shock, personal injury or death; verify your appliance has been
properly grounded in accordance with local codes, or in absence of codes, with the National Electrical Code (NEC),
ANSI/NFPA 70 latest edition, or in Canada, to Canadian electrical codes, CSA, C22.2.
Do not use the handle or oven door to lift the oven, remove pull down door before installation to ensure that it is
not used to lift the unit. Make sure pins are inserted into hinges before removing door to prevent injury to hands
and / or ngers. (See installation instructions)
The misuse of the oven door(s) (e.g.; stepping, sitting, or leaning on them) can result in hazard or injuries and damage
to the product.
This appliance must not be used for space heating. This information is based on safety considerations.
MOVING HAZARD: To avoid risk of severe personal injury; this appliance requires two or more personnel while
handling and moving. Use of moving device is recommended.
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
DANGER

4
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
DAMAGE, PERSONAL INJURY OR DEATH
INSTALLATION AND SERVICE MUST BE PERFORMED BY A CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE
GAS SUPPLIER
»Do not store or use gasoline or other ammable vapors or liquids in the vicinity of this or any other appliance.
»Please observe all local and national codes and ordinances.
»Do not remove any permanent warning labels or plates from this product.
»Please ensure that this product is electrically grounded.
»Consumers must retain these instructions for local inspectors and for future use.
WHAT TO DO IF YOU SMELL GAS
»Do not try to light any appliance
»Do not touch any electrical switch
»Do not use any phone in your building
IMPORTANT SAFETY INSTRUCTIONS
PRECAUTIONS
SHIPPING DAMAGE CLAIM PROCEDURE
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company assumes full
responsibility for the safe delivery upon acceptance of the equipment.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not install or
attempt to operate a damaged appliance.
1. Note on the freight bill or express delivery any visible loss or damage and have the note signed by the person making the delivery.
2. File claim for damages immediately regardless of the extent of damages.
3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and le a
“Concealed Damage” claim with them. This must be done within fteen (15) days from the date that delivery is made to you.
Retain the shipping container for inspection.
Check your local building codes for proper installation methods. In the absence of local codes, this appliance must be installed in accor-
dance with the National Fuel Gas Code No. Z223.1 current issue, and the National Electrical Code ANSI/NFPA No. 70 current issue,
or the CAN – B149 Installation Codes for Gas Burning Appliances, and C22.1 Canadian Electrical Code Part 1.
The installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1, including:
1. The appliance and its individual shuto valve must be disconnected from the gas supply piping systems during any pressure testing
of that system at test pressures in excess of .5 psig (3.45 KPa).
2. The appliance must be isolated from the gas supply piping system by closing its individual manual shuto valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than .5 psig (3.45 Kpa).
Verify the type of gas supplied to the location, being sure that the appliance is connected to the type of gas for which it is certied. Models
come from the factory certied for use with Natural Gas (NG) or Liquid Propane (LP) gas. Your product, shown on the rating label and
the supplied gas type must be the same. Upon opening your product, the rating label can be located on the front panel. If it is a cooktop,
the rating label can be found on the side panel underneath the left burner.
If connecting this appliance to propane gas, make certain the propane gas tank is equipped with its own high-pressure regulator – in addi-
tion to the pressure regulator supplied with this product when applicable. The maximum propane gas pressure to this appliance must not
exceed 14.0 inches of water column (34.9 millibar) from the propane gas tank to the pressure regulator.
Your appliance must be installed by a qualied gas installation technician. Have the technician show you the exact location of the gas shut-
o valve on the incoming gas line so you know how to turn o the gas if necessary.
!
CAUTION
!
WARNING
»Using a neighbor’s phone, immediately call your gas company
»Follow the gas supplier instructions
»If you can not reach your gas supplier, call the Fire Department

5
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a two-prong
outlet is available, it is the customer’s responsibility to have it replaced with a dedicated, grounded, three-prong electrical outlet by a
licensed technician. The gas surface burner re-ignition system when applicable depends on a low resistance electrical ground connection
for reliable operation.
»Do not cut or remove the third (ground) prong from the power cord
»Do not use an adapter plug
»Do not use an extension cord
»Do not use a power cord that is frayed or damaged
IMPORTANT SAFETY INSTRUCTIONS
To avoid the possibility of explosion or re, do not store or use combustible, ammable or explosive liquids (such as gasoline) or vapors
inside or in the vicinity of this or any other appliance. Keep items that could explode, such as aerosol cans, away from the product. Do
not store explosive or ammable materials in nearby cabinets or areas. When operating the oven or broiler, do not touch the surfaces
of the ceramic tile broiler, the rack or rack supports, the walls of the oven or the inside surfaces of the oven door – interior surfaces
become hot enough to cause burns. The heat deector, which deects heat away from the control panel, and the oven door sides will
also be hot during use.
POWER FAILURE WARNING: Due to safety considerations and the possibility of personal injury, when applicable do not attempt
to light or operate range burners, grills, griddles, the oven or broiler during a power failure. Safety systems which detect the presence of
an ignition source and operate the gas safety valve do not function during a power failure. Be sure all gas valve knobs are turned to and
remain in the OFF position during a power failure.
Do not store items of interest to children above or near the appliance. Children, as well as adults, must never be allowed to sit, stand or
climb on any part of the appliance. Serious personal injury may occur.
Always DISCONNECT the electrical plug from the wall outlet power source before servicing the unit. It is recommended that a
dedicated electrical circuit be used for this appliance. Always turn gas shut-o valve to OFF position before servicing unit.
The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California
to publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to warn
customers of potential exposures to such substances. Users of this appliance are hereby warned that when the oven is operated, there
may be some low-level exposure to some of the listed substances including carbon monoxide. Exposure to these substances can be
minimized by properly venting the oven to the outdoors using approved overhead ventilation equipment or by opening the windows
and/or doors in the room where the appliance is located. This appliance must not be operated without a properly sized and functional
ventilation hood.
!
CAUTION
!
DANGER
!
WARNING
!
WARNING
!
WARNING
!
DANGER

6
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and
overheating of the appliance. Do not use the range top or oven as a food or kitchen item storage area.
Never block or cover any slots, holes or passages located anywhere inside or outside the range. These structures are important to safe
operation of the appliance and doing so may block airow through the oven or cooktop possibly causing carbon monoxide poisoning
or re. Routinely keep all slots free of grease and other materials.
This appliance has been tested for safe performance using conventional cookware. DO NOT USE any device or accessory not
specically recommended in this guide. DO NOT USE pan or pan covers on surface units, grills or griddles. These devices can create
serious safety hazards including personal injury, create performance problems and may damage the appliance. Do not store or use
corrosive chemicals, vapors, ammables or non-food products in or near this appliance. It is specically designed for use when heating
or cooking food. The use of corrosive chemicals while heating or cleaning could result in personal injury or damage to the appliance.
Purchase a kitchen re extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled re occur,
never use water on grease res. Never pick up a aming pan. The oven door interior and exterior, especially the glass can get hot
during operation. Do not touch the glass – use the door handle to open or close the range door.
The push-to-turn gas valve knobs on the appliance are designed to be child-safe, however, they are not a guarantee of operation.
Children must not be left alone or unattended in the kitchen while the appliance is in use. Never leave the appliance unattended during
use. Boil-overs may occur, causing spills which may ignite.
Never wear loose tting or long sleeved apparel while cooking. Never wear garments made of ammable materials. Clothing may ignite
or catch utensil handles. DO NOT drape towels or other items on door handles. These items could ignite and cause burns.
If your product is a range or oven ALWAYS place oven racks in the desired position before you start cooking and while the oven is
cool. Always use dry and sturdy pot-holders to carefully slide the oven rack out to add or remove food.
If your product is a range or cooktop located near a window, be certain window curtains or other ammable objects do not blow over
or near the range burners; the items could catch on re.
If operating the surface burners, the ame must be adjusted to just cover the bottom of the pan or pot. Excessive high ame settings
may cause scorching of the nearby counter-top surface, as well as the outside of the utensil and handles.
ALWAYS turn the appliance o at the end of cooking.
When dehydrating food items, periodically check during the process to ensure that they do not catch on re.
If you are “aming” liquor or other spirits under an exhaust, TURN THE FAN OFF. The draft from the fan could cause the ames to
spread out of control.
Care must be exercised if your appliance is equipped with a high-shelf. During heavy or continuous use, this shelf may be come hot. Do
not place combustible materials or plastic items on the shelf.
Turn the knobs to the OFF position prior to removing them from the valve stems for cleaning.
IMPORTANT SAFETY INSTRUCTIONS
!
CAUTION
!
WARNING
To reduce the risk of appliance shifting, it must be secured to the countertop with properly installed
hold-down brackets.
WARNING
WARNING
!

7
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
INSTALLATION
CHECK THAT ALL GAS CONNECTIONS ARE PROPERLY SEALED WITH A SUITABLE GAS JOINT COMPOUND.
TEST ALL JOINTS WITH A SOAPY WATER SOLUTION BEFORE LIGHTING THE BURNERS.
1. Turn ON the manual gas valve at the inlet side of the gas supply line.
2. Check for gas leaks at the exible coupling or gas connector tting using a solution of one part soap and three parts water.
3. Sparingly spray or brush the soapy solution at the gas ttings; active bubbling indicates location of gas leak.
4. If a gas leak is detected turn o the manual gas valve at the inlet side of the gas line. Call your certied service technician.
»Do not remove protective packaging until you are ready to
perform the installation.
»Caution – the appliance is heavy. Use extreme care when
handling!
»Any openings in the wall and in the oor behind or under the
cooktop must be sealed.
»Do not use an extension cord with this appliance. Such use
may result in re, electrical shock or other personal injury.
INSTALLATION
The location selected for the range must meet the following
criteria. If any of these criteria are not met, select another
location.
SITE PREPARATION
»The cooktop is zero-clearance safe against non-combustible
surfaces
»The maximum depth of overhead cabinets installed on either
side of the hood is 13"
»Any openings in the wall behind the range and in the oor
under the range must be sealed
ELECTRICAL CONNECTION
»The cooktop must be electrically grounded in compliance with
local codes or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA70.
»This cooktop requires a 120 volt supply to operate the ignition
system. The supply cord provided on the range is equipped
with a three-prong (grounding) plug for protection against
electrical shock.
»The electrical service in the building must be equipped with a
properly grounded three-prong receptacle.
»Do not cut or remove grounding prong from this plug.
POWER REQUIREMENTS FOR THIS COOKTOP
»120 VAC, 60 Hz, single phase, 15 AMP Max
GAS CONNECTION
»Be certain the appliance being installed is correct for the gas
service being provided. Refer to the appliance data plate for the
gas supply requirements.
»A manual gas shut-o valve must be remotely installed and
easily accessible within the cabinet. The regulator inlet is for a
1/2 inch gas line. The appliance ships with a 1/2 inch regulator.
»Use at least a 1/2" commercial ex hose to connect range to
the gas supply (service line).
»A manual gas shut-o valve must be installed, in easy access in
front of the gas supply (service line) and ahead of the cooktop
for safety and ease of maintenance.
»All valves must be in the OFF position before connecting to the
gas supply line.
PRESSURE REGULATOR
»The regulator packed with the cooktop is adjusted at the
factory for 5" WC (natural gas) or 10" WC (L.P.) depending
on the customer’s request. Regulators must be used in the
installation.
»The regulator can withstand a maximum pressure of 1/2 PSIG
(14" WC). If the line pressure is beyond this limit, a step-down
regulator will be required.
»Any adjustment to regulators must be made ONLY BY
QUALIFIED service personnel with proper test equipment.
GAS REQUIREMENTS
»Ensure supplied gas matches the cooktop’s gas type.
»Natural gas connection is 1/2" N.P.T. minimum 1/2" diameter
ex line.
»Natural gas inlet pressure to measure 7" to 10" W.C.
»Propane gas connection is 1/2" N.P.T. minimum 1/2" diameter
ex line.
»LP gas inlet pressure to measure 11" to 14" W.C.
»A step-down regulator in addition to the regulator provided
with the LP range is required at the LP (Propane) source to
limit pressure to a maximum of 14" W.C.
»Installation of this appliance should be performed by qualied,
licensed contractors.
»To remove the packaging, rst remove the staples located at
the bottom perimeter of the corrugated cardboard cover.
»Conrm access to adequate power and gas. See specications
and electrical requirements table.
»Fill out the inside cover of this installation manual with the
requested data. Model Number and Serial Number can
be found on the plate located on the bottom of the chassis.

8
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
INSTALLATION
RATING PLATE
The information on the rating plate denes the model, serial
number, gas type (natural or liquid propane), operating pressures
and burner BTU ratings. Keep this information for future reference.
It is essential for proper identication of the unit when requesting
additional information or factory support.
SAMPLE RATING PLATE
LEGEND
MODEL
ARDCT-305
ARDCT-365
ARDCT-366
B
30"
36"
36"
MODEL
ARDCT-305
ARDCT-365
ARDCT-366
A
29"
35"
35"
OVERALL CUTOUT
VENT HOOD CLEARANCE DIMENSIONS
VENT HOOD RECOMMENDATIONS
COOKTOP
MODEL
WALL-MOUNT
INSTALLATION
ISLAND
INSTALLATION
24" Deep x Unit
Width
30" Deep x Unit Width
ARDCT-305 500-800 CFM 500-900 CFM
ARDCT-365 600-800 CFM 600-900 CFM
ARDCT-366 600-900 CFM 600-1000 CFM
This appliance should not be installed with an air curtain or
other type of ventilation system that blows air downward
toward the cooktop. Such type of ventilation system may
cause ignition and combustion problems with the gas cooking
appliance resulting in personal injury or unintended operation.
WARNING
WARNING
!

9
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
CHECK ALL THAT APPLY
INSTALLATION CHECKLIST
This checklist has been developed to assure proper installation of your appliance.
REGISTRATION CARD
TO VALIDATE YOUR WARRANTY,
YOU MUST MAIL, EMAIL OR FAX THIS FORM WITH A COPY OF
YOUR RECEIPT TO:
AMERICAN RANGE CUSTOMER SERVICE,
13592 DESMOND STREET, PACOIMA, CA 91331
EMAIL: [email protected] FAX: [phone]
PRODUCT INSPECTION (Appearance and Aesthetics)
Inspect Packaging and Unit for Shipping Damage
Packaging damage? Yes No
Unit damage? Yes No
Inspect Unit for Manufacturing Defects
All Packaging Removed? Yes No
Cooktop Defects? Yes No
Front Section Defects? Yes No
Side Panels Defects? Yes No
Grates Are Level and Do Not Rock? Yes No
INSTALLATION
Installation Manual Read? Yes No
Safety Instructions Read? Yes No
Specied Clearances (Including Cabinet-Surfaces Clearances)
were followed? Yes No
Unit Leveled, Front-to-Back and Side-to-Side? Yes No
Side-Trim Panels are 3/8" above the countertop? Yes No
Hold Down Bracket Installed? Yes No
Ventilation Requirements Followed? Yes No
Electrical Supply Properly Grounded? Yes No
Proper Polarity at receptacle? Yes No
Electrical Supply Adequate/Specied Input Voltage? Yes No
Power Cord Free From Damage? Yes No
No Extension Cord In Use? Yes No
GFCI Installed to specications? Yes No
Gas Supply Line Sized Per Specications? Yes No
A Manual Gas Shut-O Valve is Installed
According to Specications? Yes No
Gas Supply Matches Unit Requirements? Yes No
Natural Gas
Liquid Propane
Gas Supply Pressure Does Not Exceed 14" W.C.? Yes No
Gas Pressure Veried? Yes No
Natural Gas (7" Water Column)
Liquid Propane (11" Water Column)
Gas Connections Tested and Veried to be Leak-Free? Yes No
INSPECTION and INSTALLATION NOTES:
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
INITIAL START-UP
Cooktop Ignition
Cooktop Burners? Yes No
Air Shutter Adjustment (if needed)
Open-Burner Adjustment? Yes No
FUNCTIONAL VERIFICATION
Valve Rotation Functions? Yes No
A Copy of This Manual Has Been Provided
To The Owner of The Appliance? Yes No
Model Number: ____________________________________ *
Serial Number:_____________________________________ *
Gas Type: _________________________________________ *
Electrical Information: _______________________________ *
Purchase Date: _____________________________________
Dealer: ____________________________________________
Installation Date: _________________________________________
Installation Company: _____________________________________
Installation Rep’s Name:____________________________________
Installer’s Address: ________________________________________
Installer’s Phone: _________________________________________
*As specied on appliance Rating Plate – see page 8 for reference.
REGISTER ONLINE AT
www.americanrangehome.com/product-registration/

10
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
PART DESCRIPTION PART NO. ARDCT-305 ARDCT-365 ARDCT-366
1 Knob, Blk/Chrome Dual R32090 1 2
2 Knob, Blk/Chrome Sgl R32091 4 4
Knob, Blk/Chrome Dual, Front R32092 2
Knob, Blk/Chrome, Sgl, Rear R32093 1
Knob, Blk/Chrome, Sgl, Rear R32094 2
GRATE, ARDCT
Grate, Side (not shown) R17593 2 - -
Grate, Left (not shown) R17596 - 1 -
Grate, Right (not shown) R17597 - 1 -
3 Grate, Side R17594 - - 2
Grate, Center (not shown) R17598 - 1 -
3 Grate, Center R17595 - - 1
SINGLE BURNER
4 Burner Caps R16403 4 3 4
5 Burner Head R16404 4 3 4
FIXED TOWER BURNER
6 Burner Caps, Front Left R16407 - 1 1
DUAL BURNER
7 Base, Dual Burner Inner R16419 1 1 1
8 Head, Dual Burner Outer Black R16424 1 1 1
9 Base, Dual Burner Cross Ring R16417 1 1 1
10 Beauty Ring, Dual Burner Black R16425 1 1 1
Regulator, NG (not shown) R80022 1 (NG) 1 (NG) 1 (NG)
Regulator, LP (not shown) R80023 1 (LP) 1 (LP) 1 (LP)
12 Bracket, Anchor 9148 2 2 2
Bracket, Anchor Screw A42218 2 2 2
Use and Care Manual (not shown) R70004 1 1 1
Registration Card (not shown) R38006 1 1 1
VITESSE MODEL AND PARTS IDENTIFICATION (Package Contents)
6
4
1
10
9
2
8
7
3
5
BOTTOM VIEW
12
Serial No.
Plate
Gas
Inlet
Power
Cord

11
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
ARDCT305
ARDCT366
ARDCT-305
1. Dual Burner Knob – with Simmer (1)
2. Single Burner Knobs (4)
3. Grates (2)
ARDCT-365
1. Dual Burner Knobs – with Simmer (2)
2. Single Burner Knobs (3)
3. Grates (3)
ARDCT-366
1. Dual Burner Knobs – with Simmer (2)
2. Single Burner Knobs (4)
3. Grates (3)
ARDCT365
Single
Burner
Knobs
Dual
Burner
Knobs
Single
Burner
Knobs
Single
Burner
Knobs
Dual Burners (2)
Single Burners (4)
Single Burners (3)
Dual Burners (2)
Dual Burner (1)
Single Burners (4)
Dual
Burner
Knobs
Dual
Burner
Knob
Single
Burner
Knobs
BURNER AND KNOB IDENTIFICATION
21
13
13 13
13
18
21
13
13
13
18 21
13 1313
13

12
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
Ignition
High
Low
Counter
Clockwise
DUAL KNOB
SINGLE KNOB
OFF
High
Ignition
Low
Counter
Clockwise
OFF
BURNER
TYPE SMALL MEDIUM LARGE
Sealed
Burners
13,000
BTU/hr
18,000
BTU/hr
21,000
BTU/hr
BEFORE USING THE NEW COOKTOP
»Before using the cooktop for the rst time, wash the outside
area with soap and water to remove any shipping and factory
residue.
»The burner grates are designed in sections and are easy to
remove and clean. They are made of cast iron with a porcelain
coating and will remain hot after the burner is turned o
creating a residual heat for continued cooking. Use caution when
handling.
»Your new professional Range is equipped with burners that are
similar to those used in restaurants. The burner heads are large
and designed to ensure even heat distribution for better cooking.
They must be in place and properly seated before lighting.
»The Range must not be operated without the burner heads.
»There are no continuously burning pilot lights. An electronic
spark ignition system is used to light the burner. If the ame
should go out from a boil-over or a strong draft, the burner will
automatically reignite.
The surface burners are rated at dierent power levels:
When you are using the surface burners, select the burner power
and location depending on the heating or cooking function you
would like to perform.
A normal ame is blue in color and steady. Foreign materials in
the kitchen air or the gas line, especially in new construction
installations, may cause some orange color bursts during initial
operation. This will disappear with continued use. Small yellow tips
on the ends of ames are normal when using LP gas.
If the ames look odd, (too small, too large, lazy or drifting, uneven
around the burner circle, etc.), check to see that the burner head
is seated correctly on the burner base. Do this when the burner is
cold by gently rocking the burner head or rotating the head from
side to side. If it is correctly seated, it will nest in detents, in the
case of the sealed burners, or on the corresponding pin/hole for
open burners. If this does not correct the problem, turn to the
Troubleshooting section of this manual.
AUTO RE-IGNITION
The surface burners are equipped with a special ignition and
re-ignition system that senses the presence of ame and re-ignites
the burner should the ame disappear while gas is still owing to
the burner.
Strong drafts, spills and general grime inuence the operation of
the automatic re-ignition system – a clean system will generally
function better than a dirty system. Periodically, remove any
materials or grime that might build up on the high voltage spark
electrode – using a toothbrush or other non-metallic cleaning
utensil.
OPERATION OF THE BURNERS
1. Press in on the knob that corresponds to the burner that you
would like to light. Use the front panel graphic to conrm
your selection until you become familiar with the range. Turn
the knob counter-
clockwise to the
“American Flame”
icon located on the
knob – this is the light
position of the burner
valve.
2. The igniter for all
the surface burners
will begin sparking –
however, gas will ow
to only the selected
burner.
3. After the burner
lights, the igniter
clicking will stop –
indicating that the
ame sensing and
re-ignition system is
active on the selected burner.
4. Rotate the knob to any ame setting that you desire between
MAX and SIMMER.
OPERATING YOUR RANGE

13
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
OPERATING YOUR COOKTOP
COOKWARE RECOMMENDATIONS
To avoid the risk of serious injury, damage to the range or
cookware, please observe the following guidelines.
Bakeware, such as large casserole pans, cookie sheets, etc.,
should never be used on the cooktop.
Placement of large stock pots should be staggered when used
on the cooktop.
Select the base diameter of the pot to match the diameter
of the ame. The diameter of the ame and the diameter
of the pan bottom should match or be slightly smaller. Too
large or too small pots on a burner will compromise cooking
performance.
Do not place food packaged or wrapped in aluminum foil
directly on the burner grate above the burner. Aluminum foil
can melt during cooking.
Be careful to not let plastic, paper or cloth come in contact
with a hot burner grate. These materials can catch re or melt.
Never let a pan boil dry – and if it occurs remember it can be
extremely hot – and very dangerous. If this should occur, turn
o the burner immediately. Wait a while, until the pot cools
down enough to handle – this could be several minutes, but
could save you from burns or other serious injury.
The pan bottom should be at, the heavier the better – and
well balanced on the cooktop grate – sitting at without
rocking – preferably with tight tting lids. Try not to slide the
pot across the grates – while it is very handy to do so – you
may end up scratching the pot or the grate.
Always be careful when using high ames, as in wok cooking,
as they may contact ammable materials or make the handles
of the wok very hot. Use the wok ring (optional) to stabilize
the wok.
SUGGESTED BURNER SETTINGS
HEAT SETTINGS USE
Simmer Melting small quantities of butter,
simmer grains, rice, oatmeal
Low Poaching eggs, sh, poultry
Low to Medium Fry eggs, heat milk, cream sauces
Medium Puddings, custards, gravies
Medium to High
Sauté vegetables, braise meats, soups
and stews, deep fat frying, boiling water
and pasta, blanching vegetables, searing
meats
High Large quantity of water to boil, large
quantity frying and cooking
OPERATING YOUR RANGE
COOKTOP-BURNER OPERATION (Sealed and Open Burners)
Make sure there is nothing on the burners and/or grates prior to
igniting the burners. Push the knob in, and turn it counter-clockwise
to the HIGH position. Adjust the ame to the desired height. The
burners are equipped with a ame-sensing ignition system that
automatically detects the presence of ame on the burners, and
relights in the event the ame goes out.
CARE AND CLEANING
It is always easier to clean as you go – and while some evenings
you’d rather sit down with a good book instead of a Scrubby,
keeping your range cooktop and oven in a ready to go state for
the next meal makes everything a little more tolerable.
When cleaning the range:
»Use the mildest procedure that will do the job eciently and
eectively – and since some cleaners are harsher than others, it
is best to try them on a small, inconspicuous area rst.
»Use only clean, soft cloths, sponges, paper towels, plastic
brushes, non-metal soap pads for cleaning and scouring.
»When cleaning the oven door, control panel, top curved
section (called the bull nose) or the at top area – always
pretend it is made of wood – and rub the nish in the direction
of the grain. This is the most eective cleaning direction, to
prevent marring the surface.
»Any part of this appliance can be cleaned with hot, sudsy water.
When rinsing is required, rinse thoroughly.
»Always wipe dry immediately to reduce the appearance of
water marks.
TO CLEAN THE COOKTOP
The cooktop is constructed from brushed stainless steel with
brass burner heads. The burner cap, grates and optional wok ring
are steel coated with porcelain.
»Do not use abrasives on stainless steel. Use towels, sponges or
soft plastic scrubbers. RUB ONLY WITH THE “GRAIN.”
»Do not use steel wool pads or green rough Scrubby’s.
»Wash all cooking surfaces with hot water and dish detergent
such as Simple Green, Ivory Liquid, or Joy.
»Rub stubborn spots with baking soda or liquid cleaner such as
Windex All Surface Cleaner or 409.
»Grates and burner caps can be soaked in hot soapy water. Mild
scouring cleaners can be used, such as Bon Ami or Cameo on
grates and burner caps.
Do not soak the knobs in water or put them in the
dishwasher
»Prior to cleaning, ensure knobs are in the o position.
»Grasp each knob and pull up to remove.
»Wash the knob with soft lint-free cloth or non-abbrasive pad
and a solution of warm water and mild dish detergent.
»To reinstall the knobs, align the at of the "D-shaped" opening
of each knob with the end of its respective burner and knob
valve shaft, and carefully push the knob on until it stops.
(Reference burner and knob identication page)

14
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
CARE AND CLEANING RECOMMENDATIONS
PART / MATERIAL CLEANING SUGGESTIONS BEING CAREFUL
Main Top/
Porcelain Enamel
Soft Scrub may be used here. With a cool or slightly warm
surface, use a damp sponge or cloth as recommended by the
manufacturer.
Since the surface is glass (it can be scratched by certain
materials) try to rub gently in small circles to allow time and
chemical reactions to take place.
Control Knobs/
Powder Paint
Use dry hands to pull o the knobs; hot sudsy water works
best here… …with a sponge to avoid scratching
Chrome Knob Bezels Hot soapy water works well here, with a sponge or soft
cloth.
As with any round feature that meets the stainless steel grain,
be careful to clean the bezels in a circular motion – and not
contact the stainless steel control panel.
Exterior Finish
Island Trim
Use hot soapy water, Fantastic, Formula 409, rinse and dry
immediately. For hard water spots, try household vinegar or
CLR. If there is any heat discoloration, consider using Zud,
Wright’s All Purpose Polish or Blue Away.
Rub lightly in the direction of the grain of the stainless steel.
Salt (sodium chloride), chlorine or chlorine compounds in
some cleaners are corrosive to stainless steel.
Grates/Porcelain
Enamel on Cast Iron
Hot water and detergent with scrubby, or soap lled steel
wool pad for really tough stains will work.
Remove sugar or acid based spills, they tend to attack the
enamel. Remember the grates are heavy, use care when lifting
and replacing.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
Nothing Works Cooktop may not be connected to electrical power Check to make sure the power cord is connected to the outlet
Power to electrical outlet is o Turn on the power at the circuit breaker or fuse box; check
for a tripped breaker or blown fuse
Power outage
Cooktop Will Not
Heat
No electrical power to the cooktop Check the circuit breakers in house
Gas is turned o Make sure the gas supply valve is in the "on" position
Gas supply has been interrupted Contact the gas company
Ignitors Keep Clicking Reverse polarity of the electrical supply line Check the polarity with a hand-held tester
Poor electrical ground Be sure the power cord has three prongs and plugs directly
into the power receptacle (no adapter)
Dirty ignitor Clean ignitors with a brush and rubbing alcohol
Ignitors Do Not
Spark
Power not supplied to the unit See NOTHING WORKS above
Wet or dirty igniter Clean and dry the ignitor and burner assembly according to
CARE and CLEANING section
No Flame Ignitor not working (no clicking sound) See IGNITERS DO NOT SPARK above
Wet or dirty ignitor Clean and dry according to CARE and CLEANING section
Gas is turned o Make sure the gas supply valve is in the "on" position
Gas supply interrupted Contact your local gas company
Burner Goes Out At
Low Setting
Low gas pressure Contact your local gas company to have the gas pressure
tested
Flame Is Distorted
(Yellow Or Very
Large)
Burner parts are dirty or clogged Clean and dry according to CARE and CLEANING section
Burner parts are not properly assembled or positioned Make sure the burner is assembled according to the SETTING
UP YOUR COOKTOP section
Cooktop is set up to use a dierent type of gas (natural gas
or liquid propane), or set up for a dierent altitude
Have a qualied service technician check to make sure the
cooktop is set up for the type of gas and the correct altitude
Gas regulator is not installed or faulty Have a qualied service technician check the gas regulator
Ignitor Continues To
Spark (Click) After
Flame Ignites
Burner is cold Burners may continue to spark for up to 60 seconds whe cold
and set to low. See OPERATING YOUR COOKTOP section
for more information on how to minimize
Flame is distored by air draft Minimize any air drafts around the cooktop. Close nearby
windows
Wet or dirty ignitor Clean and dry according to the CARE and CLEANING section
Burner parts are wet or dirty Clan and dry according to the CARE and CLEANING section
Burners parts are not properly assembled or positioned Make sure burner is assembled according to the SETTING UP
YOUR COOKTOP section
Power supply polarity is revered Have a licensed electrician check the electrical outlet

American Range (hereafter AMR) hereby provides the following warranty
to the original residential user (“Owner”) for its new RESIDENTIAL
Product(s) to be free from defects in material and workmanship in normal
household use for the Warranty period(s) set forth below, beginning from
the date that power and/or gas is turned on with proof of installation.
Without proof of installation, the beginning is from time of purchase under
the terms and conditions as follows: Proof of original purchase date is
required to obtain service under this limited warranty.
This Warranty is applicable only on new AMR residential Products
and is non-transferable.
This Warranty is not applicable to AMR commercial Products. This
Warranty is strictly limited to Products sold to the original Owner in the
United States or Canada, and said Owner shall not be entitled to transfer
this Warranty to third parties. This Warranty is also not applicable on
AMR residential Products that are used for commercial purposes, including
without limitation, vacation rentals, re stations, clubs, government facilities,
non-prot groups, bed and breakfast facilities, and board and care facilities,
and any home based business whereby AMR products are utilized for a
commercial, non-household purpose. Residential products should not be
used in a commercial environment.
Warranty Period: For all Product(s) properly registered with AMR, with
proof of purchase and within ninety (90) days from the date of purchase, a
two year warranty* is in eect subject to the terms and conditions herein.
However, in the event that Owner fails to promptly register the Product(s)
with AMR within ninety (90) days of the date of purchase, the Warranty
period shall be strictly limited to a period of one year for parts and labor,
from the date of purchase. Proof of purchase is required for all claims
under this Warranty.
*Igniters limited to a one year warranty, from the date of purchase. Proof
of purchase is required for all claims under this Warranty. Two Year
Warranty applies only to purchases made after May 1, 2018, with a serial
number of 180101-100 or higher.
Exceptions to the Warranty: Rubber seals, light bulbs, and gaskets are
covered for a period of ninety (90) days only. Oven glass, porcelain, and
Products that are not defective, but that require adjustments for normal
wear and tear are expressly excluded from this Warranty.
Warranty Claims: In the event of a claim for repair of the Product(s), and
to obtain warranty service, Owner must contact either (i) the dealer from
whom the product was purchased; (ii) an authorized AMR service agent; or
(iii) AMR Residential service support at 1-888-753-9898. You will be asked
to provide a model and serial number, and date of original purchase.
AMR shall provide all new replacement parts and all repair labor under the
Warranty.
Under the terms of this Warranty, service must be performed by a factory
authorized AMR service agent/representative, and approved in advance by
AMR. AMR shall not be responsible for labor costs that have not been pre-
approved, with written conrmation by AMR. Note that service providers
are independent entities and not aliated with AMR. Travel expenses from
the factory authorized service agent to the product location are limited to
25 miles each way. For greater distances, either have the product delivered
to the servicer, make separate travel arrangements, or pay for the additional
servicer travel. All repair services shall be provided during normal business
hours. AMR will not be responsible for premium time or overtime charges
for labor covered under this warranty or for repairs made without AMR
authorization. Such charges shall be the responsibility of the Owner.
Limitation of Warranty: AMR shall have no obligation under this
Warranty as to any Product(s) which have been misapplied, mishandled,
abused, misused, modied, altered, subject to improper cleaning methods,
subject to harsh chemical action, modied by unauthorized service
personnel, damaged by accidents, ood, re, smoke, public unrest,
earthquake, tornado, hurricane, other acts of God, Owner negligence,
reasons beyond the control of AMR, failures due to improper installation,
insucient gas or electrical supply, problems due to improper ventilation,
or removed/altered serial numbers. Any damage due to water, chemical,
or direct contact to infrared burners will also not be covered under this
Warranty. This Warranty shall be void if the Product(s) are not properly
installed by a licensed plumber, and not properly calibrated for electrical
and gas connectivity, gas line size, correct pressure, and properly leveled.
Additionally, AMR factory recommended cleaning instructions must
be followed by Owner at all times or this Warranty shall be voided by
AMR. All delivery, installation, labor costs and other service costs are the
responsibility of the purchaser.
Dealer display, model home display and products sold “as-is” have the
following warranty:
1. One (1) year parts only warranty, if the manufacture date is less than
three (3) years old.
2. Excludes items that are: missing; cracked; aesthetic; broken; dented;
frayed.
Accordingly, except as stated herein-above the dealer display
and model home display goods are being sold on an “as-is”
or “with all faults” basis. Except as stated, the entire risk
as to the quality and performance of the goods is with the
buyer. Additionally, except as stated, should the goods prove
defective following their purchase, the buyer and not the
manufacturer, distributor, or retailer assumes the entire
cost of all necessary servicing or repair.
THIS WARRANTY IS LIMITED AND MADE IN LIEU OF ANY
AND ALL OTHER SUCH WARRANTIES EXPRESSED OR IMPLIED,
INCLUDING WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE LIABILITY OF AMR IS SET FORTH HEREIN THIS WARRANTY.
OWNER SPECIFICALLY UNDERSTANDS AND ACKNOWLEDGES
THAT THERE ARE NO WARRANTIES, EITHER EXPRESSED OR
IMPLIED HEREUNDER OTHER THAN THE WARRANTIES WHICH
ARE SPECIFICALLY STATED HEREIN. SAID OWNER SHALL NOT RELY
ON ANY OTHER ASSERTIONS, REPRESENTATIONS OR STATEMENTS
BY AMR OR ITS AGENTS, OTHER THAN THOSE SPECIFICALLY
EXPRESSED IN THIS WARRANTY.
AMR’S LIABILITY ON ANY CLAIM OF ANY KIND IS EXPRESSLY
LIMITED AND SHALL NOT EXCEED THE WHOLESALE PRICE OF
THE PRODUCT(S) OR PART(S) THEREOF THAT GIVE RISE TO SUCH
CLAIM.
Failure by AMR to enforce any of its rights under this Warranty shall not
be construed as a waiver of those rights. AMR specically reserves the right
to investigate and verify all claims to determine the validity of the claim and
the claimant’s qualications under this Warranty. AMR reserves the right to
refuse Warranty service in the event that AMR determines that a claimant’s
right to the Warranty is inapplicable under the terms and conditions herein.
AMR is not responsible for consequential or incidental damage whether
arising out of breach of warranty, breach of contract, tort, or any other
legal theory, including without limitation, property damage, bodily injury,
loss of use, and/or lost prots. This Warranty gives the Customer certain
legal rights. The customer may also have other legal rights which vary from
state to state. Some states do not allow limitations on how long an implied
warranty lasts, or do not allow the exclusion or limitation of incidental
or consequential damages. If such laws apply, the limitations or exclusions
contained in the terms and conditions of this Warranty may not apply to all
such Owners.
AMR expressly reserves the right to make changes to their Warranty policy
before or after purchase by the Owner.
WARRANTY

WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment must be installed by a certied/
licensed contractor.
Failure to comply will void any written or implied warranty.
In the event the equipment requires service during the standard warranty period, the receipt proving certied
installation must be made available to American Range for verication.
If installation was not performed by a certied/licensed contractor, be prepared to submit a major credit card for
payment for proper installation prior to service.
R70004 RevD 05232022
16
4580 N. Walnut Rd., N. Las Vegas, NV 89081 |13592 Desmond St., Pacoima, CA 91331 |tel: [phone] |888.753.9898 |www.AmericanRangeHome.com
© 2022 American Range All Rights Reserved
NOTES
