AMERITECH vt1930 User manual

1
INTRODUCTION
Congratulations! You have purchased
one of the most sophisticated cordless
telephones on the market! The
Ameritech AM 1930 has been de-
signed to offer a new standard in
cordless telephone technology.
Unlike most other cordless phones, the
Ameritech AM 1930 digitizes your
voice using advanced ADPCM digital
voice coding to provide noise- and
distortion-free performance. In most
conditions, you will not be able to tell
you are using a cordless phone. Gone
are the annoyances of static, interfer-
ence and having to listen to other
people’s conversations on your cord-
less phone.
The Ameritech AM 1930 scrambles
your voice before it transmits it. This
allows you the security of knowing that
no one can tune in and eavesdrop on
your conversations.
The Ameritech AM 1930 decodes and
displays name and/or number Caller ID
information where available and when
subscribed to. The alpha-numeric
display can show both the name and
number of the calling party. Up to 24
name characters or 11 phone number
digits can be displayed.
With the Ameritech AM 1930, the user
can easily answer a call by pressing
any key other than the OFF, MUTE or
VOLUMEKeys.Inaddition,thehandset
keypad and display illuminate while the
handset rings to signal an incoming
call. This is very useful in a dark
environment.
TheAmeritech AM 1930 alsoprovides
a two-way Intercom/Handset locator
function.
The Ameritech AM 1930 uses special
memory in both the base and handset
which is not susceptible to power
failures. This provides permanent
storage of all memory dial numbers,
Caller ID information, and the base and
handset security codes.
When an optional battery pack is
installedinthebaseunit,theAmeritech
AM 1930 uses this battery pack to
provide operational backup in case of
power failure. In this way you have
access to Handset functions during a
total power outage. Calls can still be
placed and received on the Handset
without interruption. Up to 5 hours
backup will be possible with a fully
charged battery pack in the base unit.
The Ameritech AM 1930 informs you
when another extension is currently
in use on the same phone line. The
phone will also alert you when you are
Out of Range, even when you're not
using the phone!
Therearetwodedicated Billed Services
keys on the handset for your
convenience. When pressed, these
keys will automatically dial the
appropriatekeysforREPEATDIALING,
or 69 AUTO CALLBACK. There may
bean access chargefor these services.
Contact your local telephone company
for more details.
*
AM 1930 9/5/99, 12:13 AM1

2
• Auto hang up when returning the
handset to the base cradle.
• Extension in use indicator.
• Message waiting indicator for use
with voicemail service.
• Auto line drop from HOLD when an
extension phone is picked up.
• Multi-level REDIAL; stores last 5
numbers dialed.
• 24 Bit Digital Security Code.
• Tone and Pulse Dialing.
• Low Battery Detect and Warning
indicator.
• Up to 7 hours continuous talk time
or 7 days standby time.
• Volume Adjust on Handset and
Base Unit.
• HOLD, FLASH and MUTE.
• Hearing-Aid Compatible Receiver.
• Detachable power supply.
• Non-volatile storage of security
code, Caller ID and memory dial
records.
• Two Billed Services function keys
for REPEAT DIALING and 69
AUTO CALLBACK.
This manual is designed to make you
familiar with the Ameritech AM 1930.
We strongly recommend you read the
manual before using your phone.
Special Features
• 900 MHz Operation.
• Fully Digital Link between Handset
and Base .
• Digitally-Scrambled Voice Commu-
nication.
• Alphanumeric Call Waiting Caller
ID.
• 2 row by 12 character 5x7 dot
matrix alphanumeric display.
• 50 Caller ID memory locations.
• Speakerphone with second key-
pad in Base Unit.
• Backlit display on the handset.
• Backlit handset keypad.
• 21 location Programmable Memory
for 20 Digit Phone Number.
• 10 Channel Operation with auto
channel selection.
• Out-of-Range indication while the
handset is in use or in standby
mode.
• Removable handset battery pack.
• Spare battery charger in the base
unit.
• Battery back-up in case of power
failure (with optional spare battery
pack installed in base).
• Face up or Face down Handset
charging.
• Easy answer - When the phone
rings, simply press any key other
than OFF, MUTE, or the Volume
Keys on the handset to answer.
INTRODUCTION
*
AM 1930 9/5/99, 12:13 AM2

3
INTRODUCTION

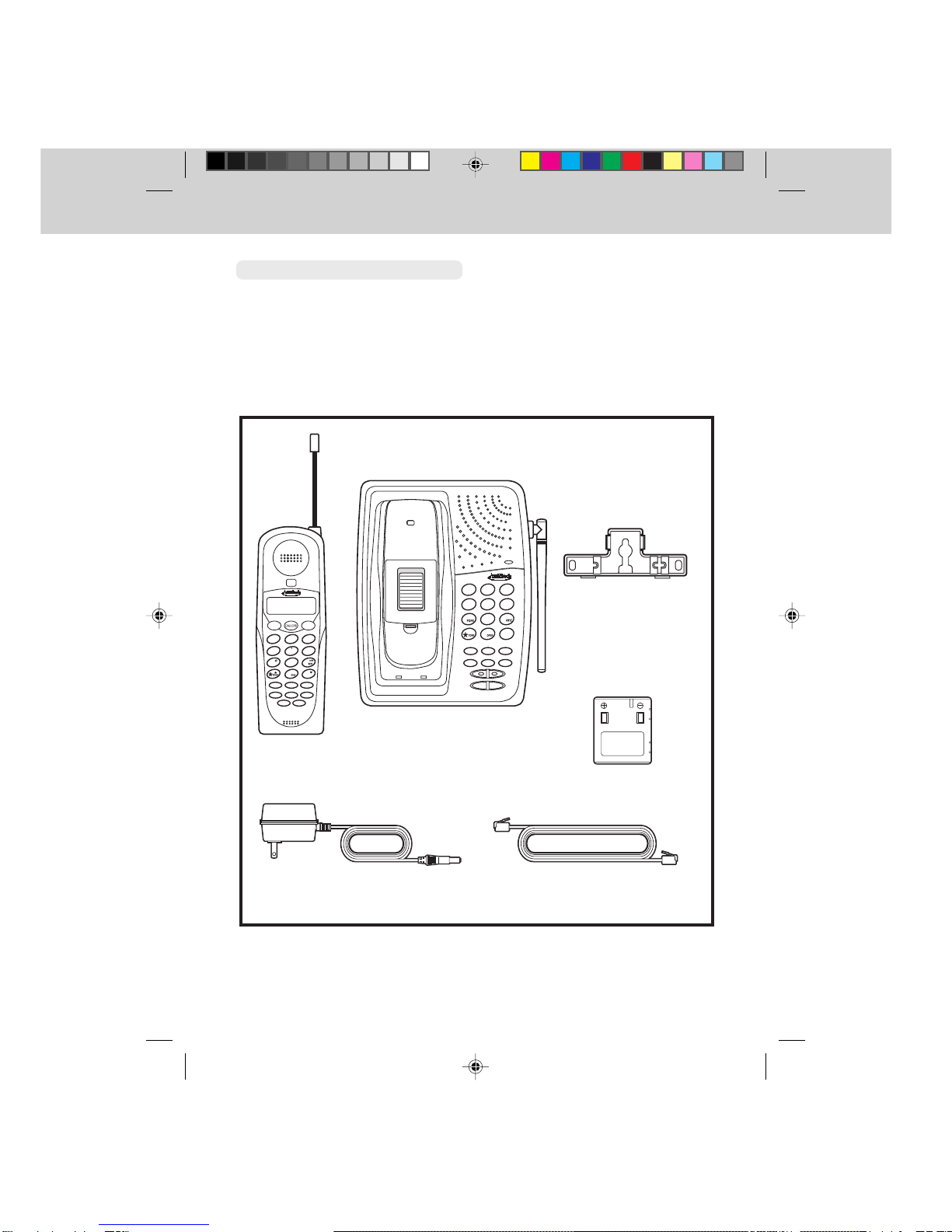

Parts Checklist
1. Handset
2. Base Unit
3. Wall mounting bracket
4. AC power adapter
5. Battery pack
6. Telephone line cord
To purchase replacement battery
packs, call Ameritech at 1-800-456-
6858.
HANDSET
BASE UNIT
BATTERY PACK
POWER HANDSET
IN USE
CHARGE SPARE
BATTERY
MESSAGE
123
456
789
0#
ABC DEF
GHI JKL MNO
TUV
MEM QUICK DIAL REDIAL
HOLD FLASH MUTE
INTERCOM SPEAKERPHONE
VOLUME
PHONE OFF
123
456
789
0#
ABC DEF
GHI JKL MNO
PGRS
TUV
FLASH
MEM/PRG CLR/DEL REDIAL
HOLD/PAUSE INTERCOM MUTE
‘69 AUTO
CALLBACK REPEAT DIALING
BILLED SERVICES
WALL MOUNTING
BRACKET
AC POWER ADAPTOR TELEPHONE LINE CORD
MEMORY DIALING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
AM 1930 9/5/99, 12:13 AM3

4
This equipment complies with Parts 15
and 68 of the Federal Communications
Commission (FCC) rules for the United
States. It also complies with regula-
tions RSS210 and CS-03 of Industry
and Science Canada. Operation is
subject to the following two conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interfer-
ence that may cause undesired opera-
tion of the device.
A label is located on the underside of
the base unit containing either the FCC
registration number and Ringer Equiva-
lence Number (REN) or the Industry
Canada (IC) registration number and
Load Number. You must, upon re-
quest, provide this information to your
local telephone company.
This equipment is compatible with
inductively coupled hearing aids.
Should you experience trouble with this
telephone equipment, please contact:
AMERITECH at 1-800-456-6858.
For repair/warranty information. The
telephone company may ask you to
disconnect this equipment from the line
network until the problem has been
corrected.
FCC Part 15
Warning: Changes or modifications to
this unit not expressly approved by the
party responsible for compliance could
void the user’s authority to operate the
equipment.
The equipment has been tested and
found to comply with part 15 of the FCC
rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment gener-
ates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful inter-
ference to radio communications.
However, there is no guarantee that
interference will not occur in a particu-
lar installation. If this equipment does
cause harmful interference to radio or
television reception, which can be
determined by turning the equipment
off and on, the user is encouraged to
try and correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between
the equipment and receiver.
- Connect the equipment into an
outlet or on a circuit different from
that to which the receiver is con-
nected.
- Consult the dealer or an experi-
enced radio/TV technician for help.
FCC Regulations
AM 1930 9/5/99, 12:13 AM4

5
FCC Regulations
FCC Part 68
The FCC requires that you connect
your cordless telephone to the nation-
wide telephone network through a
modulartelephone jack (USOC RJ11C,
RJ11W or RJ14).
Your telephone company may discon-
tinue your service if your equipment
causes harm to the telephone network.
They will notify you in advance of
disconnection, if possible. During
notification, you will be informed of your
right to file a complaint with the FCC.
Occasionally, your telephone com-
pany may make changes in its facili-
ties, equipment, operation, or proce-
dures that could affect the operation of
your equipment. If so, you will be given
advance notice of the change to give
you an opportunity to maintain
uninterrupted service.
The base unit contains no user service-
able parts. The handset contains a user
replaceable battery pack.
If it is determined that your telephone
equipment is malfunctioning, the FCC
requires that it not be used and that
it be unplugged from the modular jack
until the problem has been corrected.
Repairs to this telephone equipment
can only be made by the manufacturer
or its authorized agents or by others
who may be authorized by the FCC.
For repair procedures, follow the
instructions outlined under the
manufacturer's Limited Warranty.
This equipment may not be used on
coin service provided by the phone
company or Party Lines.
The REN is useful in determining the
number of devices you may connect
to your telephone line and still enable
the devices to ring when you receive
a call. The general rule is that the REN
value should not exceed 5.0A total;
however, contact your local telephone
company for the specific number in
your area.
Your Ameritech AM 1930 is designed
to operate at the maximum power
allowed by the FCC. This means your
handset and base unit can
communicate only over a certain
distance - which will depend on the
location of the base unit and handset,
weather, and the construction and
layout of your home or office.
AM 1930 9/5/99, 12:13 AM5

6
When using your telephone equipment,
basic safety precautions should always
be followed to reduce the risk of fire,
electric shock and injury to persons,
including the following:
1. Read and understand all instruc-
tions.
2. Follow all warnings and instructions
marked on the product.
3. Unplug this product from the wall
outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
4. Do not use this product near water
(for example, near a bath tub,
kitchen sink, or swimming pool).
5. Do not place this product on an
unstable cart, stand, or table. The
product may fall, causing serious
damage to the product.
6. Slots and openings in the cabinet
and the back or bottom are pro-
vided for ventilation. To protect it
from overheating, these openings
must not be blocked by placing the
product on the bed, sofa, rug, or
other similar surface. This product
should never be placed near or
over a radiator or heat register.
This product should not be placed
in a built-in installation where proper
ventilation is not provided.
7. This product should be operated
only from the type of power source
indicated on the marking label. If
you are not sure of the type of
power supply to your home, con-
sult your dealer or local power
company.
8. Do not allow anything to rest on the
power cord. Do not locate this
product where the cord will be
abused by persons walking on it.
9. Never push objects of any kind into
this product through cabinet slots
as they may touch dangerous
voltage points or short out parts
that could result in a risk of fire or
electric shock. Never spill liquid of
any kind on the product.
10.To reduce the risk of electric shock,
do not disassemble this product, but
Call Ameritech Telephones at
1-800-456-6858. Opening or
removing cabinet parts other than
specified access doors may expose
you to dangerous voltages or other
risks. Incorrect reassembling can
cause electric shock when the
appliance is subsequently used.
11.Do not overload wall outlets and
extension cords as this can result
in the risk of fire or electric shock.
IMPORTANT SAFETY INSTRUCTIONS
AM 1930 9/5/99, 12:13 AM6

7
12.Unplug this product from the wall
outlet and refer servicing to
Ameritech Telephones at 1-800-
456-6858 under the following
conditions:
A. When the power supply cord or
plug is damaged or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed
to rain or water.
D. If the product does not operate
normally by following the
operating instructions. Adjust
only those controls that are
covered by the operating
instructions, because improper
adjustment of other controls
may result in damage and will
often require extensive work by
an authorized technician to
restore the product to normal
operation.
E. If the product has been dropped
and the cabinet has been dam-
aged.
F. If the product exhibits a distinct
change in performance.
13.Avoid using a telephone (other
than a cordless type) during an
electrical storm. There may be a
remote risk of electric shock from
lightning.
14.Do not use the telephone to report
a gas leak in the vicinity of the leak.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CTIONS
AM 1930 9/5/99, 12:13 AM7

8
REPLACING THE BATTERY PACK
Charging The Handset Battery Pack
The handset of yourAmeritech AM
1930 cordless telephone is powered by
a rechargeable battery pack. It charges
automatically whenever the handset is
in the base. You should charge the
battery pack for 16 hours when you first
receive your phone. You’ll know the
battery pack needs charging when:
• The phone emits a warning tone
when you press the PHONE key.

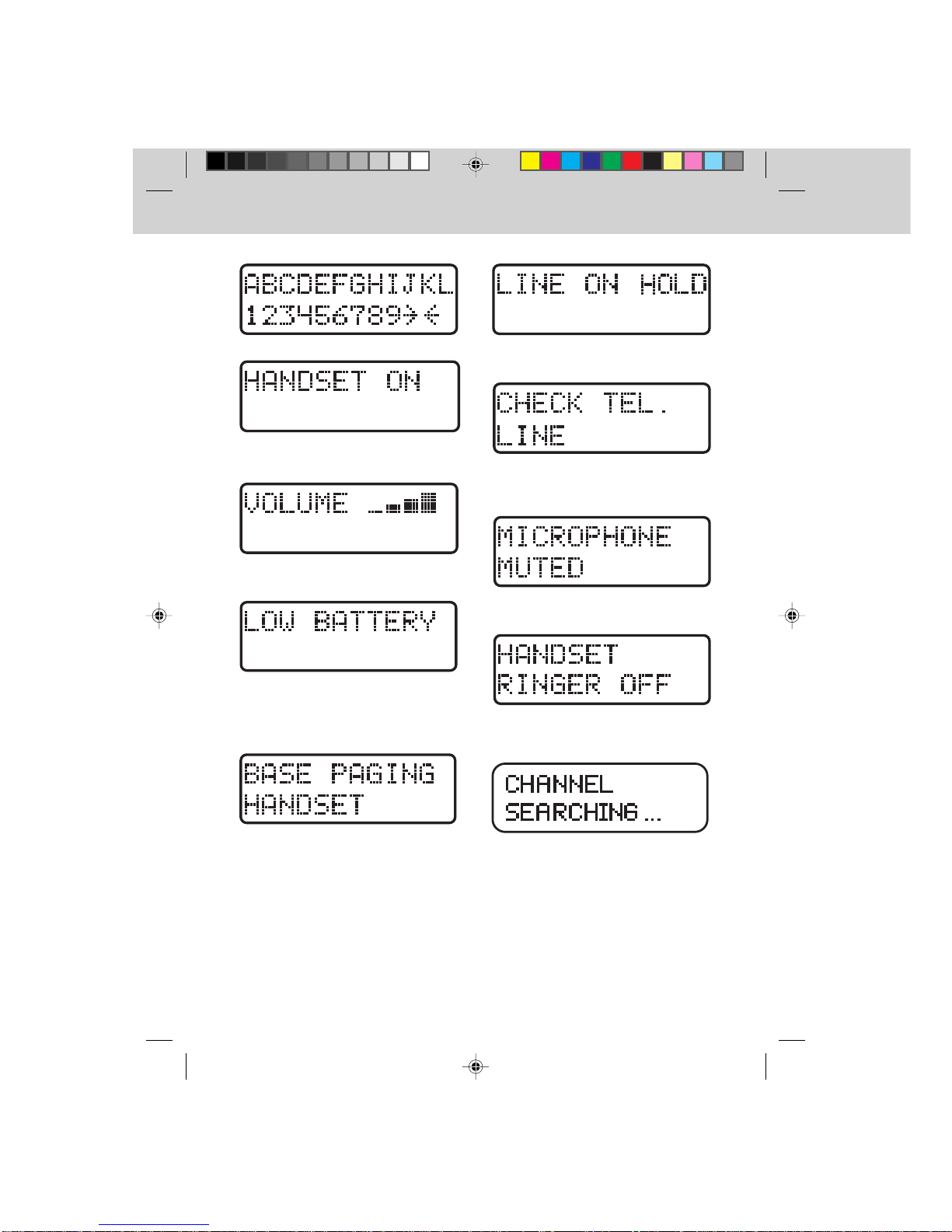

• The low battery message is
displayed:
Alternatively, if you have purchased a
spare battery pack and it has been
charging in the base unit, simply
exchange the drained handset battery
pack with the fully charged replace-
ment battery pack from the base
charger. Place the drained handset
battery pack into the base charger to
recharge.
The base spare battery charger does
NOT charge a battery pack as quickly
as the handset battery charger. A full
charge requires 24 hours when using
the spare battery charger.
It's Impossible To Overcharge The
Battery Pack
The battery pack can be recharged
many times, but if you get a low battery
message even after 16 hours of
charging in the base cradle (or 24
hoursinthebasesparebatterycharger),
the battery pack(s) should be replaced.
To purchase replacement battery
packs, call Ameritech at 1-800-456-
6858.
A Word About Rechargeable Batteries
Your NiCad battery pack recharges
whenever the Handset is returned to
the Base Unit cradle. You may return
the Handset to its cradle whenever
you're not using the phone.
• The handset seems completely
dead, the display is clear and the
handset does not beep when you
press the keys.
To Charge The Battery Pack
To charge the battery pack, place the
handset in the base unit. The CHARGE
indicator will light to show the handset
is seated properly and the battery pack
is charging. It is recommended that the
battery pack be charged for at least 16
hours initially and 8 hours for mainte-
nance charging. You can use your
telephone before that with diminished
capacity, but it is best to charge the
battery pack fully. It will take several
recharge cycles to maximize the charge
capacity of your battery pack. The
maximum battery life between charges
is 7 hours of continuous talk time or 7
days of stand- by.
AM 1930 9/5/99, 12:13 AM8

9
PLEASE NOTE THE
CORRECT POSITION
OF THE BATTERY
PACK WHEN
CHANGING BATTERY
PLACE THE NEW
BATTERY PACK
INTO THE
BATTERY
COMPARTMENT
REPLACE THE
BATTERY COVER
REPLACING THE BATTERY PACK
To Replace The Handset Battery
Pack Follow The Steps Below:
1. Remove the battery case cover by
pressing on the concave and
sliding downward.
PRESS and SLIDE
DOWNWARD
2. Discard the old battery pack. Don’t
put the old battery pack in a trash
compactor or a fire - it could burst.
3. Place the new battery pack in its
housing with the metal contacts
facing down.
4. Replace the battery case cover by
sliding the cover upwards.
5. If the new battery pack is not
already charged, place the hand-
set in the cradle of the base unit to
allow it to charge for 16 hours.
CAUTION:
To reduce the risk of fire or injury to
persons, read and follow the instruc-
tions
1. Use only battery 80-4134-00-00
pack.
2. Do not dispose of the battery in a
fire. The cell may explode.
IMPORTANT:
Do not dispose of this battery into
household garbage. For information
on recycling or proper disposal, con-
sult your local solid waste collection or
disposal organization.
3. Do not open or mutilate the battery.
Released electrolyte is corrosive
and may cause damage to the
eyes or skin. It may be toxic if
swallowed.
4. Exercise care in handling batteries
in order not to short the battery
with conducting materials such as
AM 1930 9/5/99, 12:13 AM9

10
REPLACING THE BATTERY PACK
rings, bracelets, and keys. The
battery or conductor may overheat
and cause burns.
To purchase replacement battery
packs, call Ameritech at 1-800-456-
6858.
Spare Battery Charger
The Ameritech AM 1930 has a built-
in spare Battery Charger, which is
located in the cradle of the Base Unit.
NOTE:
In order to benefit from this feature, you
must obtain an optional Spare Battery
from an authorized dealer, or by
contacting Ameritech at 1-800-456-
6858.

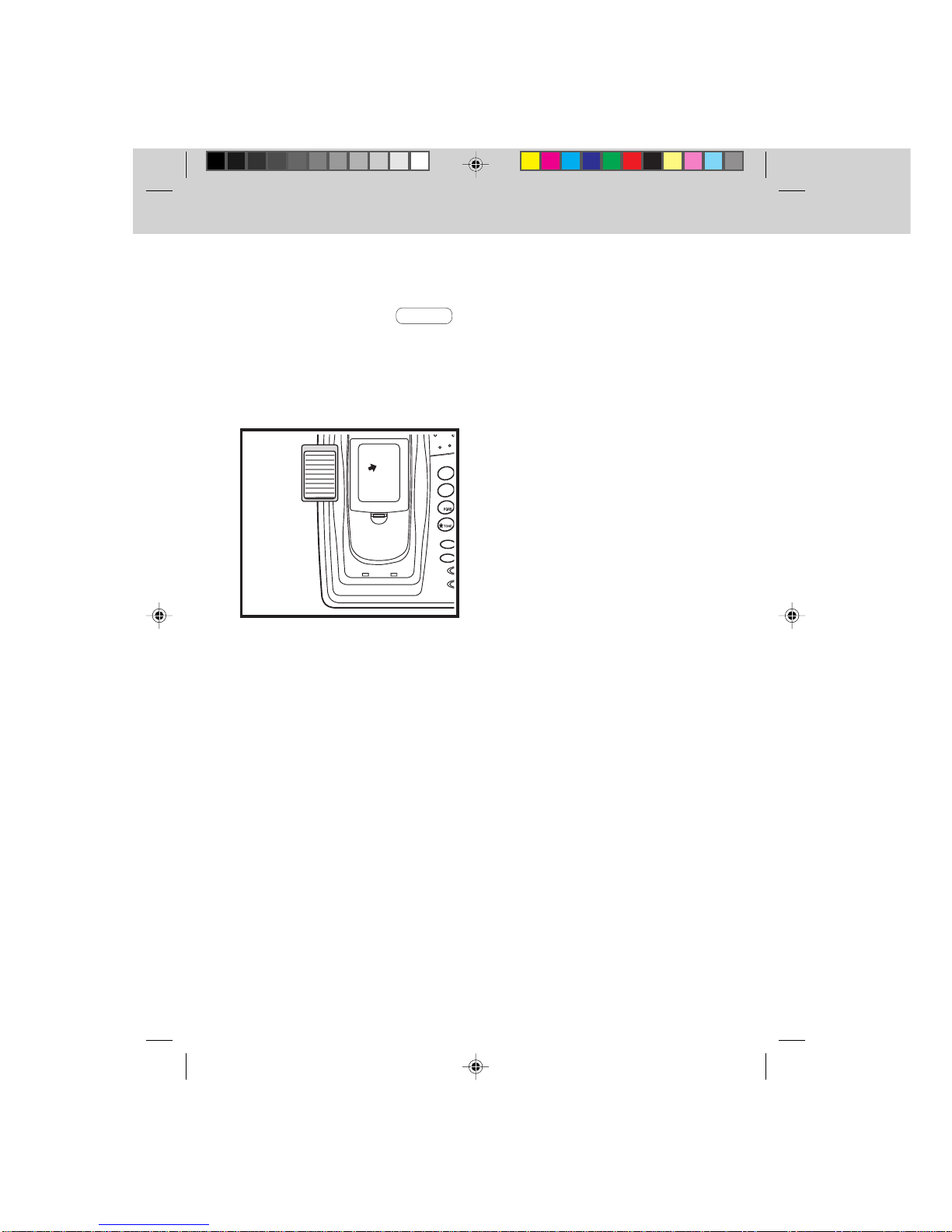

Installation
Remove the Spare Battery charger
cover by pressing the release tab and
lifting up.
Place a battery pack in the Spare
Battery charger. Make sure the metal
charging contacts on the underside of
the battery pack are aligned with the
charging contacts in the Spare Battery
charger.
Power Backup
When a Spare Battery pack is installed
in the Base Unit, the Ameritech AM
1930 uses this battery pack to provide
operational backup in case of a power
failure. If you have a fully charged
battery pack in the Spare Battery pack
charger and there is a power outage,
you will still be able to place and
receive calls on the Handset for up to
five hours.
Note:
During Power Backup mode the Base
Unit telephone functions are not oper-
able. In addition, Caller ID information
may not be reliable.
Replacing a Drained Handset
Battery
The Spare Battery pack can also be
used to replace a drained Handset
battery pack to ensure uninterrupted
use. Be sure to put the drained battery
pack in the Spare Battery charger for
recharging.
Please note that the Spare Battery
compartment charges at a slower rate
than a battery pack charging in the
Handset. It takes 24 hours to fully
charge a battery pack in the Spare
Battery charger.
POWER HANDSET
INUSE
CHARGE SPARE
BATTERY
MESSAGE
123
456
789
0#
ABC DEF
GHI JKL MNO
TUV
MEM QUICK DIAL REDIAL
HOLD FLASH MUTE
INTERCOM SPEAKERPHONE
VOLUME
MEMORY DIALING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
POWER HANDSET
INUSE
CHARGE SPARE
BATTERY
MESSAGE
123
456
789
0#
ABC DEF
GHI JKL MNO
TUV
MEM QUICK DIAL REDIAL
HOLD FLASH MUTE
INTERCOM SPEAKERPHONE
VOLUME
MEMORY DIALING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
AM 1930 9/5/99, 12:13 AM10

11
GETTING STARTED
Setting Up Your Ameritech AM 1930
Choose an area near an electrical
outlet and a telephone wall jack.
AC Power Adapter
Plug the AC power adapter into an
electrical outlet and the DC connecter
to the back of the base unit.
CAUTION:
Use only CLASS 2 9V DC POWER
SUPPLY included with your phone.
Handset Ringer
The handset ringer is programmed ON
as the factory default setting. Refer to
PROGRAMMINGTHERINGER (p.26)
for more information.
Setting the Tone/Pulse Switch
The TONE/PULSE switch is located on
the bottom of the base unit and is
factory set to TONE. If you have touch
tone service, do not change the switch
setting. If you have rotary (Pulse)
service, set the switch to PULSE.
Charge the handset battery pack
beforeuse. Thebatterypack recharges
automatically whenever the handset is
in the base unit. The batteries must
be charged for 16 hours before using
your phone for the first time.
Connect Telephone Line Cord
Plug one end of the telephone cord into
a wall jack and the other end into the
back of the Base Unit.
TELEPHONE
WALL JACK
AC
OUTLET
9V DC TEL LINE
PULSE
TONE
ON
OFF
RINGER
TONE PULSE
SWITCH
BASE RINGER
ON/OFF
SWITCH
POWER HANDSE
T
IN USE
1
4
7
GHI
MEM
HOLD
INTER
C
MEMORY
CHARGE THE
HANDSET
BATTERY PACK
FOR 16 HOURS
BEFORE USING
AM 1930 9/5/99, 12:13 AM11

12
GETTING STARTED
Fill in the telephone number card on
the base unit.
Check for a dial tone. After the battery
pack is charged, rotate the Base Unit
antenna to an upright position. Pick up
the Handset and press PHONE ,
"HANDSET ON" will appear on the
display, and you will hear a dial tone.
If not, see ‘IN CASE OF DIFFICULTY’.
POWER HANDSE
T
IN USE
1
4
7
GHI
MEM
HOLD
INTER
C
FILL IN THE
T
ELEPHONE
NUMBER CARD
MEMORY DIALING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
CAUTION:
1. Never install telephone wiring
during a lightning storm.
2. Never install telephone jacks in wet
locations unless the jack is
specifically designed for wet
locations.
3. Never touch uninsulated telephone
wires or terminals unless the
telephone line has been
disconnected at the network
interface.
4. Use caution when installing or
modifying telephone lines.
AM 1930 9/5/99, 12:13 AM12

13
WALL MOUNTING
The Wall Mounting bracket is designed
to fit on standard Wall Mounting plates.
1. Choose a spot near an electrical
outlet and a telephone jack.
Your phone requires a modular
telephone jack and a standard
electrical outlet (120v AC). The
power cord is six feet long; make
sure there is an electrical outlet
within reach of the base. The
outlet should not be controlled by
a wall switch. If the switch is ever
turned off, the phone will not
operate.
2. Position the wall mounting
bracket on the base.
Line up the tabs on the wall
mounting adapter with the holes
on the bottom of the base (Figure
1). Snap the wall mounting bracket
firmly in place.
3. Mount the base on the wall.
Position the base so the mounting
studs will fit into the holes on the
bottom of the base. Position the
power cord to extend down the
wall the phone is to be mounted
on. Slide the base down on the
mounting studs until it locks into
place.
4 Connect the telephone line cord.
The telephone line cord has a
snap-in plug at each end. Insert
one of the plugs into the jack on
the back of the base. Insert the
other end of the plug into the wall
jack.
Figure 1
Figure 2
PULSE
TONE
ON
OFF
RINGER
123
456
789
0#
ABC DEF
GHI JKL MNO
TUV
MEM QUICK DIAL REDIAL
HOLD FLASH MUTE
INTERCOM SPEAKERPHONE
VOLUME
5
6
7
8
9
10
15
16
17
18
19
20
5. Plug the AC adapter into an
electrical outlet and the DC
connecter into the power jack
located on the back of the Base
Unit . (Figure 2)
AM 1930 9/5/99, 12:13 AM13

14
Handset Display Messages
HANDSET ON is displayed when the
handset is in use.
After pressing a volume key, this
displays the current volume setting.
This message is displayed when the
handset is on hold.
This message is displayed when the
live telephone line is not connected to
the base unit.
EXAMPLES OF THE HANDSET DISPLAY
This display warns of a low battery
condition. The handset typically
operates for at least 5 minutes after the
low battery indication first appears.
This message is displayed when the
Base Unit pages the handset.
This message is displayed when the
handset microphone has been muted.
This message is displayed when the
handset ringer has been programmed
off.
This display warns that the handset
has lost communication with the base
unit and is attempting to reestablish a
link by scanning all channels.
AM 1930 9/5/99, 12:13 AM14

15

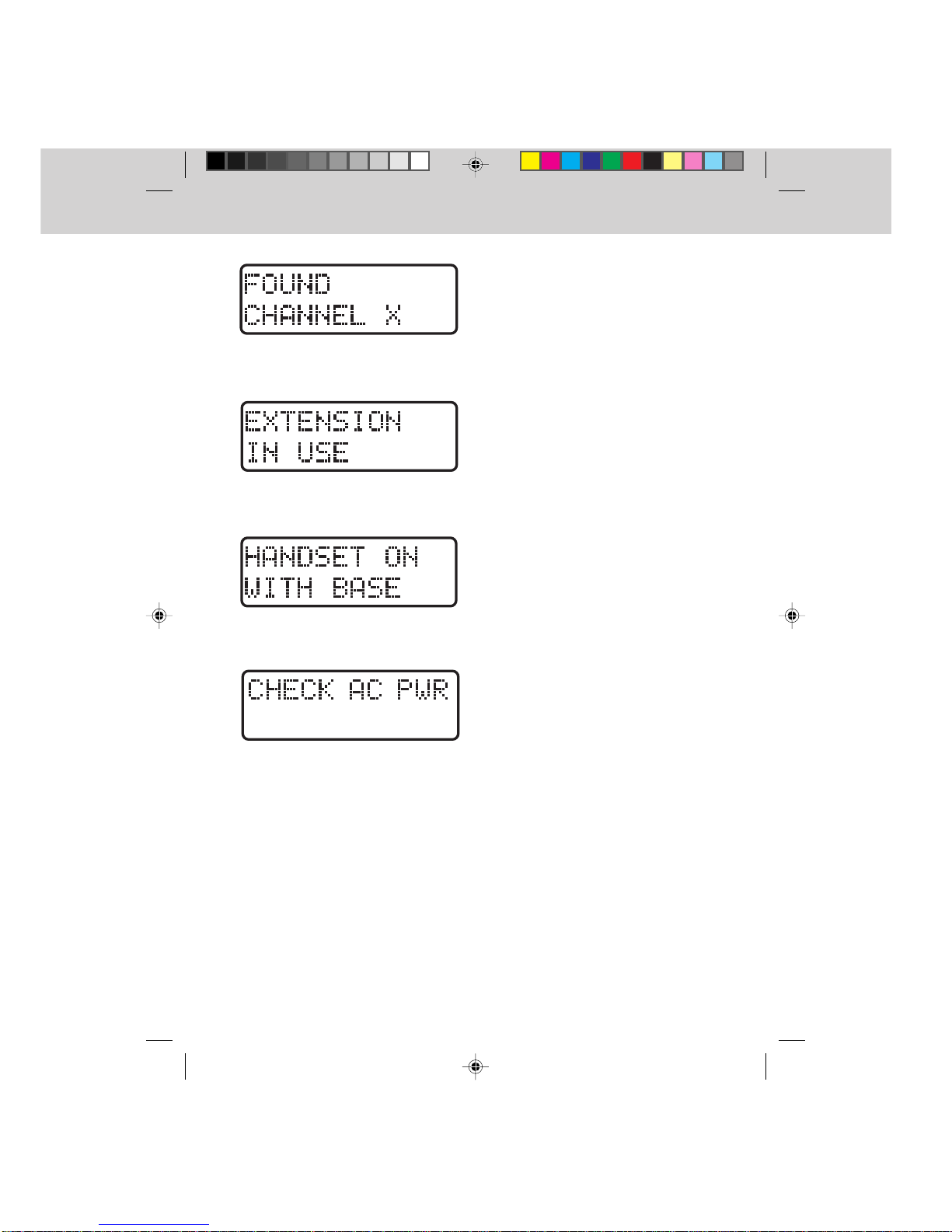

This display is confirms that a commu-
nication link has been established with
the Base.
This message is displayed when both
the handset and base unit are on a call
together.
This message is displayed while in
OFFmode, if another phoneiscurrently
using the same line.
This display warns when an AC power
failure has occurred and power is being
supplied by an optional spare battery
pack.
EXAMPLES OF THE HANDSET DISPLAY
AM 1930 9/5/99, 12:13 AM15

16

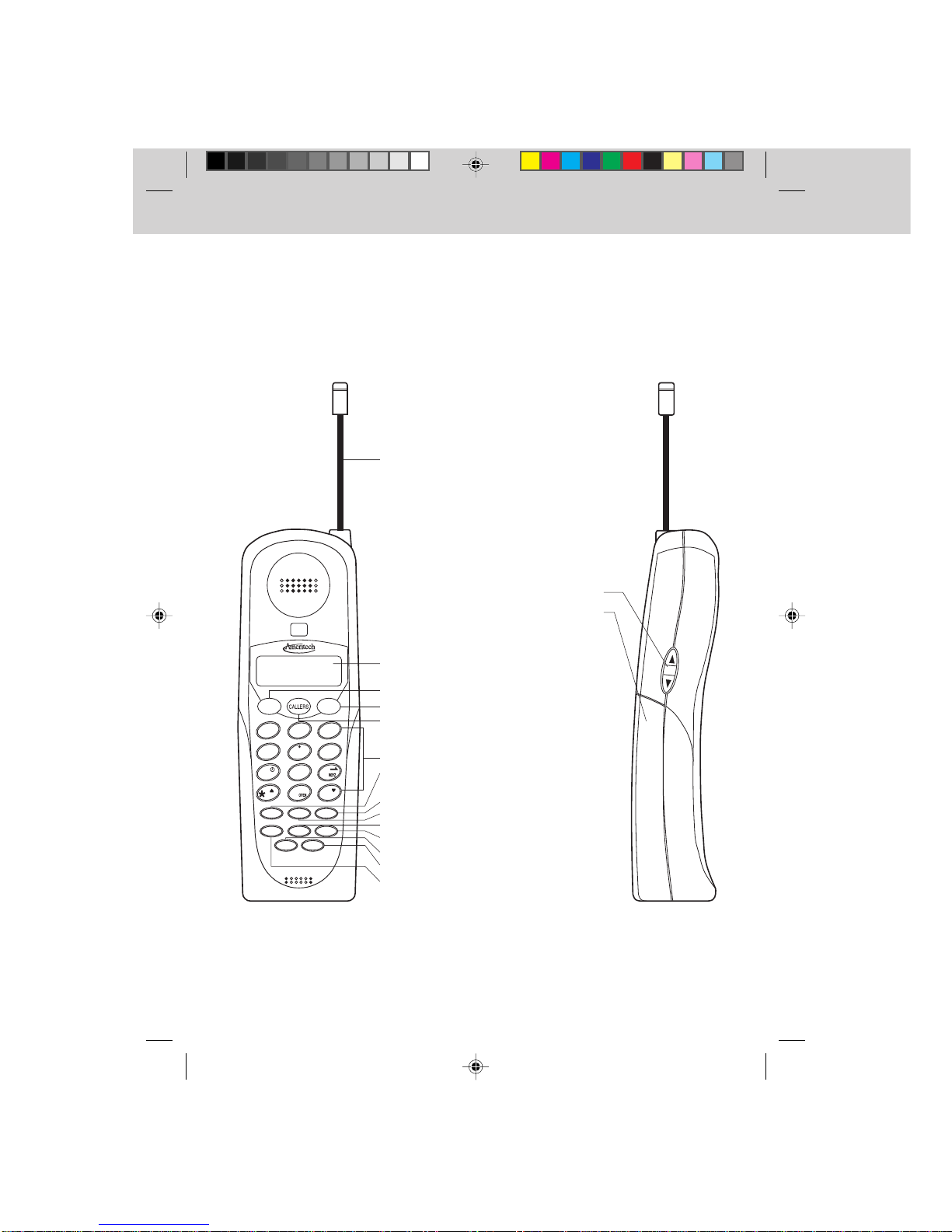

THE HANDSET LAYOUT
PHONE OFF
123
456
789
0#
ABC DEF
GHI JKL MNO
PGRS
TUV
FLASH
MEM/PRG CLR/DEL REDIAL
HOLD/PAUSE INTERCOM MUTE
‘69 AUTO
CALLBACK REPEAT DIALING
BILLED SERVICES
VOL
ANTENNA
DISPLAY
PHONE KEY
OFF KEY
CALLERS KEY
DIALING KEYS(0-9)
MEMORY/PROGRAM
(MEM/PRG) KEY
REDIAL KEY
CLEAR/DELETE (CLR/DEL) KEY
INTERCOM KEY
MUTE KEY
69 AUTO CALLBACK KEY
REPEAT DIALING KEY
HOLD/PAUSE KEY
VOLUME UP & DOWN
BATTERY COMPARTMENT
TONE
*
AM 1930 9/5/99, 12:13 AM16

17

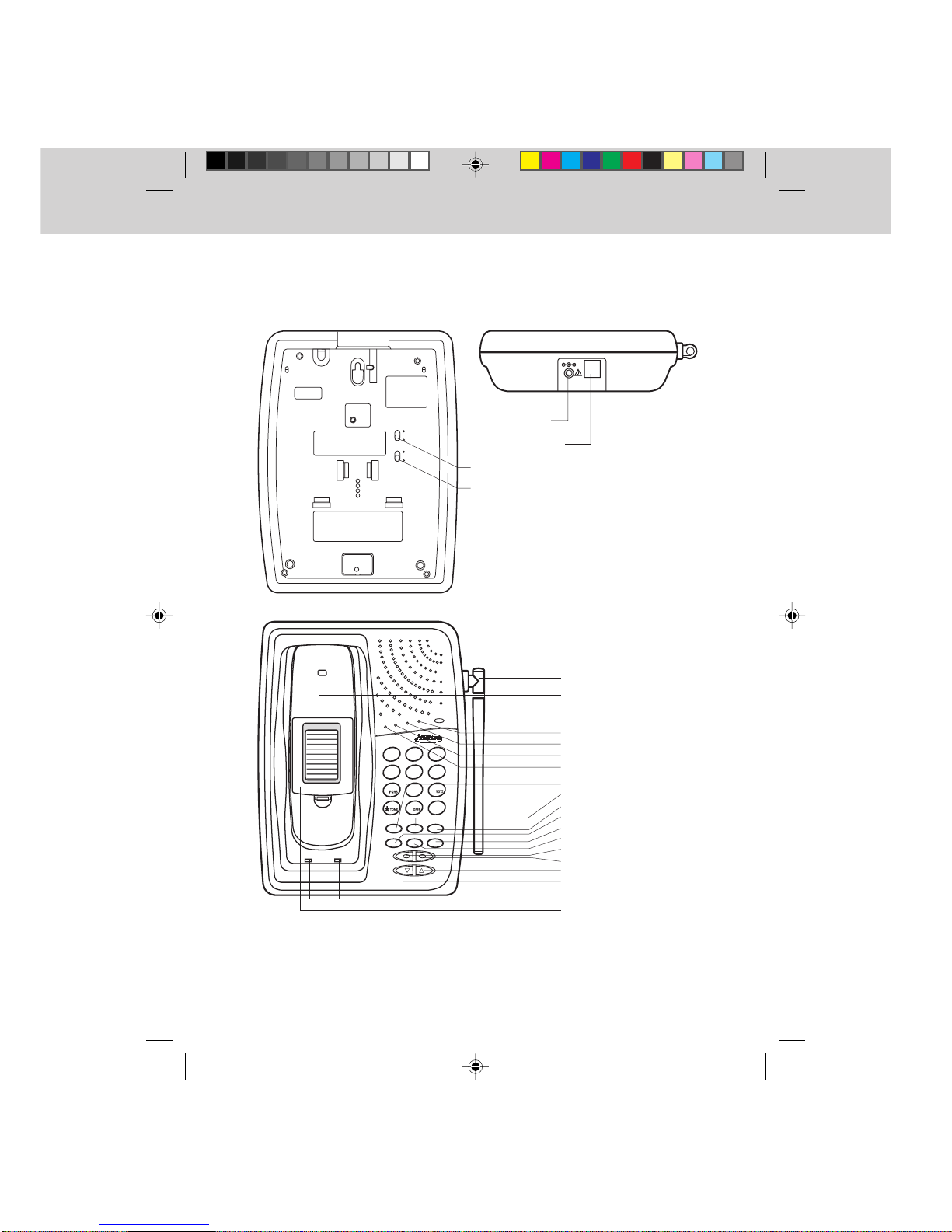

THE BASE UNIT LAYOUT
POWER HANDSET
IN USE
CHARGE SPARE
BATTERY
MESSAGE
123
456
789
0#
ABC DEF
GHI JKL MNO
TUV
MEM QUICK DIAL REDIAL
HOLD FLASH MUTE
INTERCOM SPEAKERPHONE
VOLUME
9V DC TEL LINE
PULSE
TONE
ON
OFF
RINGER
AC POWER JACK
PHONE CORD JACK
TONE/PULSE SWITCH
BASE RINGER ON/OFF SWITCH
ANTENNA
MEMORY
DIALING CARD
SPARE BATTERY INDICATOR
CHARGE INDICATOR
HANDSET IN USE INDICATOR
POWER INDICATOR
MEM KEY
QUICK DIAL KEY
REDIAL KEY
HOLD KEY
MUTE KEY
FLASH KEY
INTERCOM KEY
SPEAKERPHONE KEY
MESSAGE INDICATOR
VOLUME UP KEY
VOLUME DOWN KEY
CHARGING CONTACTS
SPARE BATTERY
CHARGING
COMPARTMENT
MEMORY DIALING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
AM 1930 9/5/99, 12:13 AM17

18
BASE UNIT FEATURES
POWER Indicator
Glows when the power supply is
plugged in and power is applied to the
Base Unit.
HANDSET IN USE Indicator
Glows when the Handset has been
activated.
CHARGE Indicator
Glows when the Handset is placed in
the Base Unit cradle. If there is no
battery pack in the Handset, the
CHARGE indicator will flash slowly.
SPARE BATTERY Indicator
Glows when an optional battery pack
is installed in the Base Unit charger.
HOLD Indicator
Glows when an active call is placed on
HOLD.
MUTE Indicator
Glows when the Base Unit MUTE key
is pressed during an active call.
INTERCOM Indicator
Glows when the Base Unit is in
INTERCOM mode with the Handset.
SPEAKERPHONE Indicator
Glows when the Base Unit
Speakerphone is active.
Flashes slowly to indicate that an
extension phone is in use.
Flashes in cadence with the incoming
ring.
MESSAGE WAITING Indicator
Flashes slowly to indicate that new
(unplayed) messages are stored in
your Voicemail.
AM 1930 9/5/99, 12:13 AM18

19
BASE UNIT FUNCTION KEYS
SPEAKERPHONE Key
Press this key to either initiate or
answer a call from the Base Unit
Speaker. Press it again to terminate
your call.
Volume Keys
Press the appropriate key to raise or
lower the Speakerphone volume level.
Holding down the key will continuously
raise or lower the volume. There are
a total of 8volume levels.
Base Ringer ON/OFF Switch
Located on the bottom of the Base Unit,
this switch controls the Base Unit
ringer. It has no effect on the Handset
ringer.
TONE/PULSE Switch
Located on the bottom of the Base Unit.
Set this switch consistent with your
local phone system. In most cases, the
appropriate setting is TONE.
MEM Key
Pressthis key toenterMemory (Speed)
Dialing Mode.
QUICK DIAL Key
Press this key to dial the contents of
memory location #00. The Base
speakerphone can be either ON or
OFF to use this feature.
REDIAL Key
Press this key to redial the last number
you dialed from the Base Unit. This
feature is independent of the Handset
redial feature.
HOLD Key
Press this key to place your
Speakerphone call on hold. Press
either HOLD or SPEAKERPHONE
to return to the call.
With a Speakerphone call on HOLD,
picking up an extension phone, or
activating the Ameritech AM 1930
Handset will turn the Speakerphone
OFF.
FLASH Key
During a Speakerphone call, press this
key to flash the line. The feature is
commonly used in conjunction with
Call Waiting.
MUTE Key
Press this key to mute the Base Unit
microphone during a Speakerphone
call. Press MUTE again to return to
the 2-way conversation.
INTERCOM Key
Press this key to Page the Handset.
The Handset will ring 5 times. The
Handset user can respond by pressing
INTERCOM . The Handset and Base
Unit have now entered 2-way INTER-
COM mode.
Press INTERCOM to terminate
INTERCOM mode.
This feature is also useful as a Handset
locator in the event it is misplaced.
AM 1930 9/5/99, 12:13 AM19

20
QUICK REFERENCE GUIDE
Setup Adapter
• Plug AC adapter into a standard
electrical outlet and Base Unit.
• Set TONE/PULSE switch to PULSE
or TONE. The unit is factory set to
TONE.
• Let the handset battery pack charge
for 16 hours before first use.
• Connect telephone line cord to base
unit and telephone jack.
Making Calls
• Press the PHONE key. When
HANDSET ON is displayed and
you hear a dial tone, dial the
number. OR
• Enter the number to be dialed on
the display and then press the
PHONE key. OR
• Press SPEAKERPHONE on the
Base Unit, then dial the number.
Answering Calls
• To answer a call, press any key
other than OFF , MUTE , or the
Volume Keys. The handset will
NOT auto-answer when lifted off
the base cradle.
OR
.Press SPEAKERPHONE on the
Base Unit.
Hanging Up
• Press OFF or place the handset
in the cradle to hang up a call.
To Place A Call On Hold
• Press HOLD/PAUSE on the
Handset or HOLD on the Base
Unit to place an active call on
HOLD.
.To return to the call on the Hand-
set, press either PHONE or
HOLD/PAUSE .
.To return to the call on the
speakerphone, press either HOLD
or SPEAKERPHONE .
To Mute A Call
• Press MUTE to disable the
Handset or Base Unit microphone.
• Press MUTE again to return to
normal two way conversation.
To Page The Handset
• To page from the base, press
INTERCOM .
• To cancel the PAGE either press
INTERCOM again on the base or
press OFF on the handset.
STORING MEMORY (SPEED) DIAL
NUMBERS:
• The phone should be OFF .
• Enter the number you wish to store
on the display up to a maximum of
20 digits.
PHONE OFF
123
456
789
0#
ABC DEF
GHI JKL MNO
PGRS
TUV
FLASH
CLR/DEL REDIAL
HOLD/PAUSE INTERCOM MUTE
‘69 AUTO
CALLBACK REPEAT DIALING
BILLED SERVICES
STORING
THE PHONE SHOULD BE
OFF
ENTER PHONE NUMBER
PRESS and HOLD
YOU WILL SEE
ENTER MEMORY
LOCATION (00..20)
MEM/PRG
MEM/PRG
AM 1930 9/5/99, 12:13 AM20
