Amica EBC13558E User manual

EBC13558E
ENINSTRUCTION MANUAL

Specifications
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Rated Input Power(Grill):
Rated Input Power(Convection):
230V~50Hz
900W
44L
360mm
Approx. kg
EBC13558E
1750W
1750W
568
41
595 454 mm
3350W
2

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.Children shall not
play with the appliance.Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of ignition.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
3

9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.
13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated
surface, and do not cover any vents on the oven.
4

20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
25.Children should be supervised to ensure that they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
27. Accessible parts may become hot during use.
Young children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
temperature-sensing probe.)
this oven.(for ovens provided with a facility to use a
5

31.WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the
decorative door open.(for ovens with a decorative door.)
33.Surface of a storage cabinet can get hot.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
3 .The microwave oven is intended for heating food an
beverages.Drying of food or clothing and heating of
warming pads,slippers,sponges,damp cloth and similar
may lead to risk of injury,ignition or fire.
4
6

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard Improper
use of the grounding can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
cord.extension
2. If a long cord set or extension
7

Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
CLEANING
Be sure to unplug the
appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
compentent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
8

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

SETTING UP YOUR OVEN

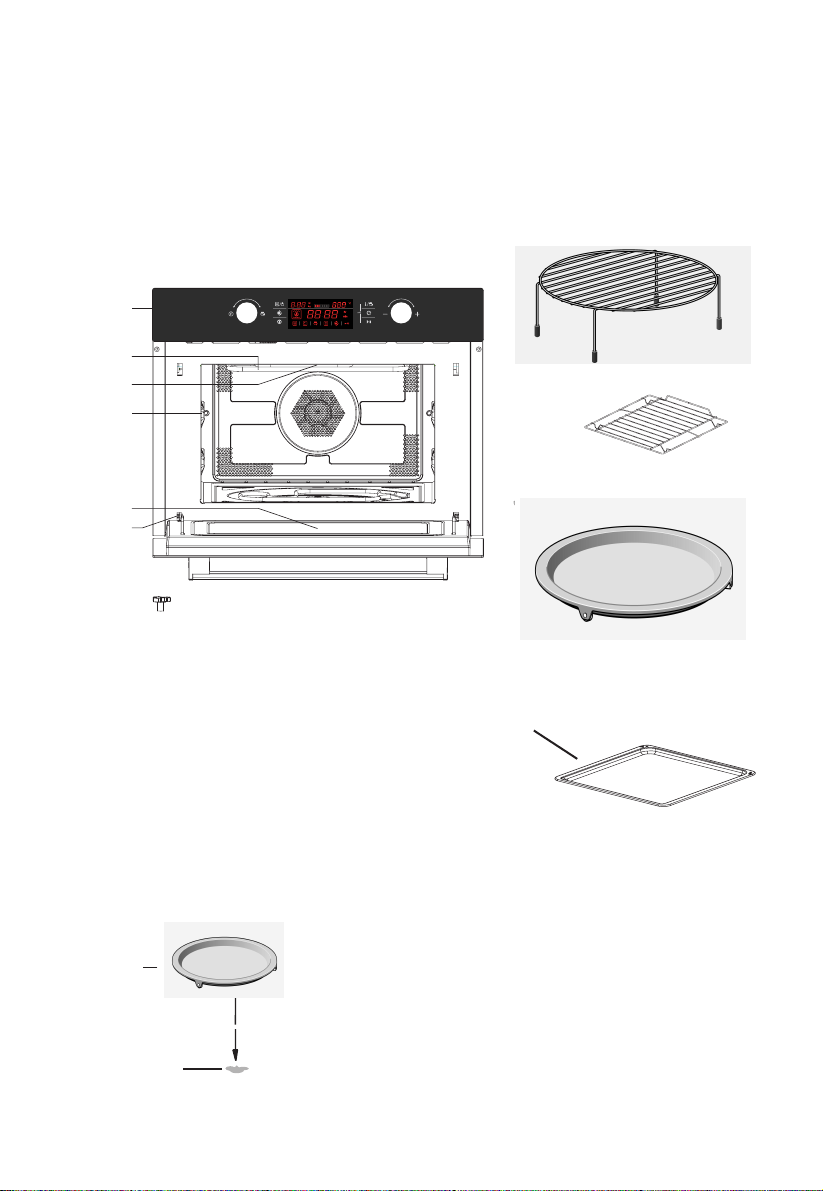

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity
Your oven comes with the following accessories:
Turntable ring assembly 1
Instruction Manual 1
1. Control panel
2. Grill element
3. Light
4. Level
5. Door glass
6. Hinge
7. Turntable shaft
1
2
3
4
5
6
7
Enamel Tray 1
9
8
10
8. Short Grill Rack
9. Long Grill Rack
10.Grill Pan
11. Glass plate
tray should never be restricted.
c. All food and containers of food are always placed
breaks, contact your
nearest authorized service
center.
Turntable Installation
Turntable shaft
a. Never place the enamel tray upside down. The enamal
on the
enamel tray for cooking.
d. If enamel tray cracks or
Enamel tray
b. always be used during cooking.
must
The
enamal tray
hr
min
10
11

Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only. It is not intended
for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-
mounted cupboard(at lease 55cm deep and 85cm off the
floor).
5.The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
6.The mains voltage must correspond to the voltage
specified on the rating plate.
7.The socket must be installed and connecting cable must
only be replaced by a qualified electrician. If the plug is no
longer to accessible following installation, an all-pole
disconnecting device must be present on the installation
side with a contact gap of at lease 3mm.
8.Adapters, multi-way strips and extension leads must not
be used. Overloading can result in a risk of fire.
The accessible surface may
be hot during operation.
11

Note: There should be gap above the oven.
•
•
•
•
•
•

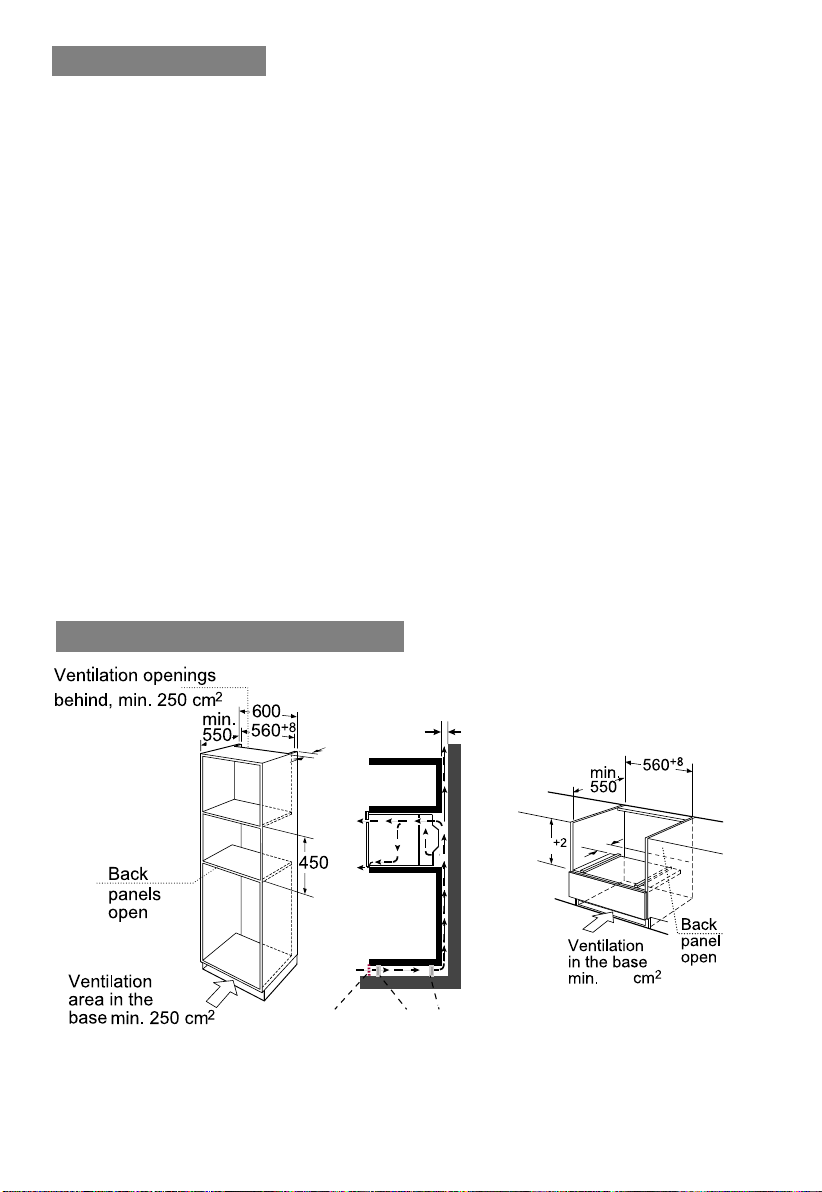

Installation dimensions
10
"./9 '662/'4)+ /9 542? /4:+4*+* :5 (+ ,;22? ,/::+* /4 ' 1/:).+4
"./9 '662/'4)+ /9 45:
• *+9/-4+* :5 (+ ;9+* '9 ' :'(2+:5666 ' 62/'4)+
".+ ,/::+* )'(/4+: 3;9: 45: .'<+ ' (')1 ='22 (+./4* :.+ '662/'4)+
 -'6 5, ': 2+'9:  (+:=++4 :.+ ='22
6'4+2 5, :.+ ;4/: '(5<+
".+ ,/::+* )'(/4+: 3;9: .'<+ ' <+4:/2':/5554 6+4/4- 5,  )3  54
')./+<+ :./9 );: (')1 :.+ ('9+ 6'4+2 58 ,/: ' <+4:/2':/54
$+4:/2':/54 925:9 '4* /4:'1+9 3;9: 45: (+ )5<+8+*
".+ 9',+ 56+8':/54 5, :./9 '662/'4)+ )'4 542? (+ -;'8'4:++* /, /: .'9
'))58*'4)+ =/:. :.+9+ /49:'22':/54 /49:8;):/549
•".+ ,/::+8 /9 2/'(2+ ,58 '4? *'3'-+ 8+9;2:/4- ,853 /4)588+): /49:'22':/54
".+ ;4/:9 /4:5 =./). :.+ '662/'4)+ /9 ,/::+* 3;9: (+ .+':X8+9/9:'4:
;6 :5 A 
•
min 100
Cupboard feetVentilation grid
min 100
50
460
250
100 33 3;9: (+ 3'/4:'/4+*
250
58 /49/*+ ' );6(5'8*
'4* :.+ ('9+ 58 (')1
:.+ ,854: "5
(++4 /49:'22+* /4
-8/22+
Fitted units
12




Fully insert the appliance and centre it.
Do not kink the connecting cable.
Screw the appliance into place.
The gap between the worktop and the appliance must not
addtional battens.
11
8
be closed by
• Do not hold or carry the appliance by the door handle. The door
the weight of the appliance and may break off.
1. Carefully push the microwave into the box, making sure that it is
2. Open the door and fasten the microwave with the screws that
handle cannot hold
in the centre.
were supplied.
Building in
13
10

INSTALL THE GRILL PAN
1. Be sure the angle of the shaft.
５：１
2. Adjust the angel of the grill pan and the shaft.
3. Put the pan into the cavity and adjust slightly.
14

Control Panel and Features
OPERATION
1 2345678
1) Function knob
2) Power/Weight button
3) Quickly preheating button
4) On/Off Button
5) Temperature/automenu button
6) Clock button
7) Start/Pause button
8) Selection knob
hr
min
15

This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is electrified, "00:00" will blink, buzzer will ring once.
2) After you have set the right time, press " ". The clock has been set.
Note: 1) If you want to change the time, you have to press and hold the " "
to confirm the setting.
2) If you do not want to see the clock in the display, press " " button
briefly. The time disappears. Press " " again, and the clcok appears
in the display again.
OPERATION INSTRUCTION
1.Clock Setting
2. Microwave Cooking
1) Press the " " button to activate the microwave function. "01:00" is blinking in
The max. cooking time depends on the power that has been set. When the power
is 900W, the MAX. time is 30 minutes and other powers are 90 minutes.
3) Press " " button to adjust the power microwave power.
5) Press " " button to start cooking.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 1 second
1---5 min : 10 seconds
5---15 min : 30 seconds
15---60 min : 1 minute
60 min : 5 minutes
Microwave Power Chart
Microwave Power 80% 50% 30%
100%
Display 900W 700W 450W 300W 100W
button for 3 seconds. The actuall time disappears and then the time will
blink in the display.
button
1) Turn knob to set the right time(between 00:00 and 23:59.)
Turn knob to set the new time and press the " "
2) Turn knob to set the cooking time.
4) Turn knob to set the microwave power (between 100W to 900W)
current power will be confirmed automatically.
the display and the microwave icon appears. If no operation in 10 seconds, the
10%
16

You can see from the table below from which 
which foods the power levels are suitable.
Power level Food
900 W - Boiling water, reheating
- Cooking chicken,
700 W - Reheating
- Cooking mushrooms, shell
- Cooking dishes containing eggs and cheese
450 W - Cooking rice, soup
300 W - Defrosting
- Melting chocolate and butter
100 W - Defrosting sensitive/delicate foods
- Defrosting irregularly-shaped foods
- Softening ice cream
- Allowing dough to rise
power levels you can choose and for
Function Mode
Microwave Microwave Microwave
Use the microwave
function to cook and
reheat vegetables,
potatoes, rice,
meat.
Hot air Hot air
With hot air you can
prepare meals in the
same way as you do
with a conventinal oven.
The microwave is not
activated. You are advised
to preheat the oven
before putting the meal in
the oven.
Grill with fan Grill with fan
Use this function to roast
meals evenly and at the
same time give the meal a
brown crust.
Grill Grill
The grill is very suitable
to prepare thin pieces of
meat and sh.
Functions
Heating
fish, vegetables
fish
fish and
fi
17

Function Mode
+
Hot air Microwave + Hot air
Use this function to roast
meals quickly.
Grill with fan Microwave + Grill with
fan
Grill Microwave + Grill
Use this function to cook
meals quickly and at the
same time give the meal
a brown crust (also au
gratin). The microwave
and the grill are activated
at the same time. The
microwave is cooking and
the grill is roasting.
Auto-
programs Automatic cooking programs
Defrost d01 + d02 Defrost
Combination
Hot air+
Bottom heat
Hot air+
Bottom heat
Use this function to roast
big pieces of meat, pizza,
etc.
Use this function to roast
big pieces of meat, pizza,
etc.
P01 - P13
Heating
18

1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode.
4) Press "
7) Press " " button to start cooking.
F

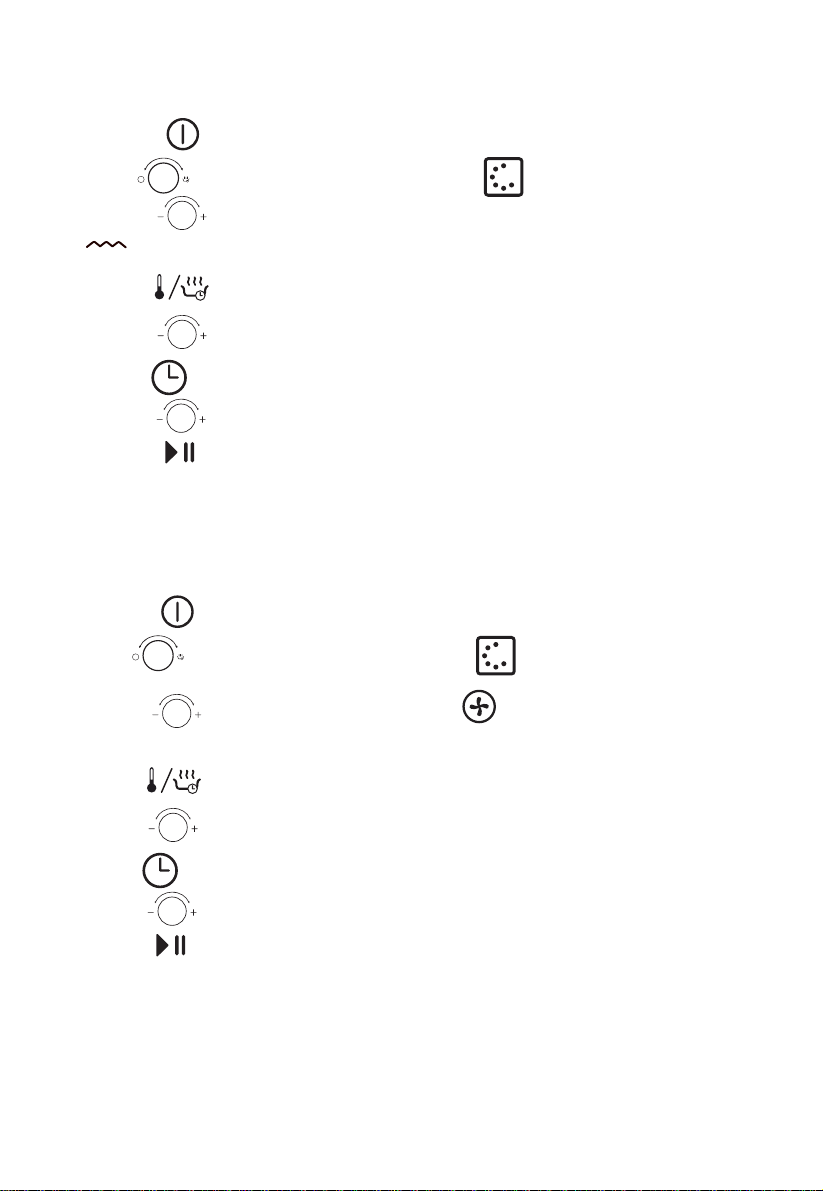

3. Grill Cooking
" to enter to the grill level.
Press " " to select the time setting mode. The default time is 10 minutes.
3) Turn " " to select grill mode. The default grill power is the third level.
6) Turn " " to select the cooking time of grill. The MAX.time is 90 minutes.
" " indicator will light when grill function is selected.
" " indicator lights.
1) Press " " button to activate the microwave function.
4) Press "
7) Press " " button to start cooking.
F
Press " " to select the time setting mode. The default time is 10 minutes.
" " indicator lights.
4. Convection Cooking
2) Turn " " to select the cooking mode.
3) Turn " " to select convection mode. " " lights.
" to enter to the temerpature mode.
The default temperature is 180 degrees..
5) Turn " " to select temerpature. The temperature is from 50 to 230 degrees.
5) Turn " " to select the level 3(the MAX.), level 2 or level 1(the MIN.).
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
19

1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode.
4) Press " " to enter to the temperature selection.
7) Press " " button to start cooking.
The temperature are 100,105,110,115,120,125,130,135,140,145,150,155,160,
165,170,175,180,185,190,195,200,205,210,215,220,225,230.
F

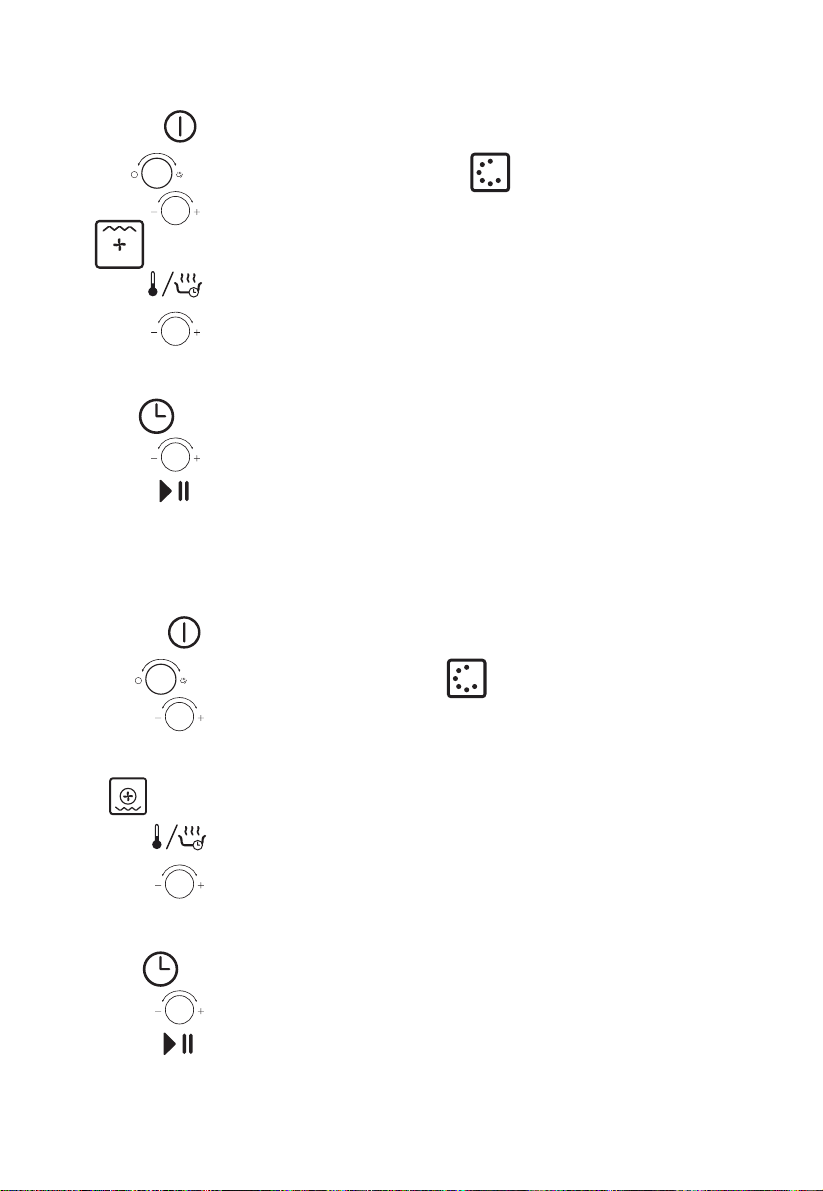

5. Grill Fan Cooking
" " indicator lights.
3) Turn " " to select grill fan mode. The default temperature is 180 degrees.
" " indicator will light when grill fan function is selected.
5) Turn " " to select the temperature between 100 to 230 degrees.
4) Press " " to enter to the temperature selection.
7) Press " " button to start cooking.
The temperature are 100,105,110,115,120,125,130,135,140,145,150,155,160,
165,170,175,180,185,190,195,200,205,210,215,220,225,230.
F" " indicator lights.
5) Turn " " to select the temperature between 100 to 230 degrees.
6. Convection+ Bottom heat Cooking
1) Press " " button to activate the microwave function.
"
2) Turn " " to select
bottom+ convection
cooking mode.
3) Turn " " to select mode.
The default temperature is 180 degrees.
" indicator will light when convection + bottom function is selected.
press" " to select the time setting mode. The default time is 10 minutes.
Press" " to select the time setting mode. The default time is 10 minutes.
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
20
