This service manual includes installation, operation, and maintenance instructions for
Ampco Pump Company’s Z-Series: ZCM and ZCHM. Failure to learn the correct procedures
for installing and servicing the pump from this manual could result in equipment failure.

F-750-025-A / rev 12.20 –ZCM- ZCHM Series Metric Manual 1
PUMP INSTALLATION
Receiving pumps:
Visually inspect shipping crate(s)/pallet(s) for damage. Ampco pumps will be shipped in
boxes labeled Ampco Pumps or in crates. If there is any damage it is imperative to notify the
driver at the time of delivery. Failure to do so will make it difficult, if not impossible, to file a
damage claim and Ampco Pumps will not be held accountable. Please contact Ampco Pumps
shipping department with damage details ASAP.
Once unpacked, carefully inspect the pump for any damage that may have occurred during
shipping. Attempt to turn the impeller, it should turn freely. There should be a little noise from
the seal which is normal. If there is metal-to-metal contact when the impeller is turned then
shipping damage is likely. Leave the protective covers on the inlet and discharge connections
until the pump is installed and is ready to be connected to the piping to stop debris from
getting into the pump.
Pump Location
Use the following pump location guidelines to help ensure proper pump performance:
Locate the pump so that the shortest and most direct possible suction piping can be
used.
To facilitate priming, ensure a steady flow, and provide positive suction head, locate
the pump below system level, when possible.
Ensure the NPSH available to the suction end is always equal-to or greater-than the
specified NPSH required on the pump performance curve by considering the pump’s
location in relation to the entire system.
Foundation (if applicable)
The base attached to the pumping unit has pre-drilled mounting holes so that the
pumping unit can be fixed to a foundation, providing a permanent rigid support. The
foundation is necessary in order to absorb vibration, strain, and shock on the pumping unit.
The foundation should be about 6 inches longer and wider than the pump base and have a
depth of about 20 times the diameter of the foundation bolts.

F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 2
General Piping Notes
Pipe hangars or other supports must be used at proper intervals to ensure proper piping
support near the pump. Do not use the pump to support piping!
When flange bolts are tightened no strain should be transmitted to the pump, thus
suction and discharge piping should be supported independent of the pump and care
should be taken that the pump and piping are properly aligned.
Piping must be as straight as possible. Avoid all unnecessary bends and fittings. When
bends are necessary use 45or long-sweep 90pipe fittings in order to decrease minor
friction losses.
Make sure all flanged joints have matching inside diameters and properly aligned
mounting holes –especially close to the pump.
Do not force piping when making connections. This can cause the impeller to rub
on the casing or premature seal failure.
Suction Piping
It is very important that suction piping be selected and installed such that it minimizes
pressure loss and allows sufficient liquid flow into the pump. A proper suction piping system
design can eliminate many NPSH problems. The following precautions should be followed to
ensure a proper suction piping system.
Suction piping must be kept as direct as possible. It is suggested that any elbows be
kept at least 5 pipe diameters away from the pump’s suction flange.
Suction piping length should be at least ten times the pipe diameter overall.
When suction piping has a larger diameter than the pump suction opening an eccentric
reducer must be used, with the taper oriented down. (Note: Do not use a concentric
reducer)
Suction piping must never have a smaller diameter than the pump suction opening.
When possible, horizontal suction piping should follow an even gradient.
For suction lift conditions it is recommended that the suction piping have a gradual
upward slope approaching the pump. For positive suction head the suction piping
should have a gradual downward slope approaching the pump.

F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 3
High point such as loops or arcs must be avoided as they may create air pockets,
throttle the system, and produce erratic pumping.
A valve must be installed in the suction piping in order to isolate the pump during
shutdown and maintenance, and to facilitate pump removal. If two or more pumps are
connected to a single suction line, each pump should be isolated by a separate valve.
Gate valves need to be positioned so that air pockets are not produced. If NPSH is
critical, globe valves should not be used. (Note: During operation all valves
installed on the suction line must be at full open)
To enable the pump operator to monitor pump performance, properly sized pressure
gauges may be installed in gauge taps on pump suction and discharge nozzles.
Pressure gauges will also indicate the presence of cavitation, vapor binding, or other
unstable operation by showing wide fluctuations in suction and discharge pressures.
For these reasons Ampco highly recommends gauges.
Discharge Piping
To ensure proper pump performance the following precautions regarding discharge
piping should be followed:
If the discharge piping distance is short the piping can be the same diameter as the
pump discharge opening.
Long horizontal lengths of discharge piping should maintain an even gradient.
A valve needs to be installed near the pump’s discharge opening to prime and start the
pump, as well as to isolate the pump during shutdown, maintenance, and to facilitate
pump removal.
High points should be avoided in discharge piping as they can entrap air or gas and
retard pump operation.
If liquid hammer might exist, such as when check valves are used, the discharge gate
valve should be closed prior to pump shutdown.

F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 4
Priming
The Z-Series pump is not a self-priming pump and must be completely filled
with the pumping liquid before operation. If the system has a positive suction head priming
can be done by opening the valve in the suction piping as well as the pump’s air vents to allow
the liquid to enter the pump casing. Rotate the shaft by hand to free entrapped air from the
impeller and then ensure that all air has been forced out by the liquid before closing the air
vents. If the pump has a suction lift, priming must be done by using foot valves, ejectors or
manual filling of the pump casing.
CAUTION!
Running the pump dry will result in
serious damage to the mechanical seal.
Pre-Start Checklist
Before operating the Z-Series pump ensure that all of the following requirements are met
oCheck that all motor and starting device wirings match the wiring diagram.
oMake sure the shaft rotates clockwise when viewed from behind the motor.
oRefer to motor instructions before starting if the motor has not been operated over an
extended period of time.
oMake sure that that voltage, phase, and line circuit frequency match what is specified
on the motor data plate.
oTurn shaft by hand to make sure it rotates freely.
oTighten all gauge and drain tap plugs. When not in use, close the gauge cocks on
pumps fitted with pressure gauges.
oCheck that all flange bolts are tightened and the suction and discharge piping is not
leaking.
Pump Operation
WARNING
Operating the pump without an approved
coupling guard installed could result in
operating personnel injury.
Start Up Instructions
1. Set the suction line gate valve to full open and close the discharge line gate valve.
2. Fill the suction line and prime the pump.
3. Start the motor and immediately check the pump and suction piping for leaks.

F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 5
4. As soon as the pump reaches operating speed, open the discharge gate slowly until
complete system flow is achieved. There may be valve chatter during transient period
during valve adjustment. Be aware that the pump’s motor is specified for the flow and
pressure specified by the customer and that higher flow rates could damage the motor.
5. Check for leaks in the discharge piping.
6. (For pumps with pressure gauges) Open gauge cocks and record pressure reading.
Check that the pump is performing as specified by the performance curve.
Shut Down Instructions
(Note: If the pump will be shut down for an extended period refer to the Extended Duration
Shutdown)
1. Slowly close the discharge piping gate valve. (Closing valve too quickly can cause
hydraulic shock)
2. Turn off power supply to the pump.
Short Duration Shutdown
For short shutdown periods the pump can remain filled but make sure the pump is
fully primed prior to restarting. If the pump is subject to freezing conditions then the pump
exterior should be insulated or heated and the fluid within the pump casing must be kept
moving in order to prevent freezing.
Extended Duration Shutdown
For extended duration shutdowns close the suction piping gate valve or if no suction
valve is installed then drain the suction line to stop liquid flow to the suction nozzle. Remove
pump drain and vent tap plugs as required and completely drain the pump casing. If the pump
will be subjected to freezing conditions during shutdown then all liquid must be completely
blown out of all passages and pockets using compressed air or the pump must be filled with an
antifreeze solution to prevent damage.
Assembly –ZCM/ZCHM
*Refer to the parts list appended to this
manual for the part name and quantity

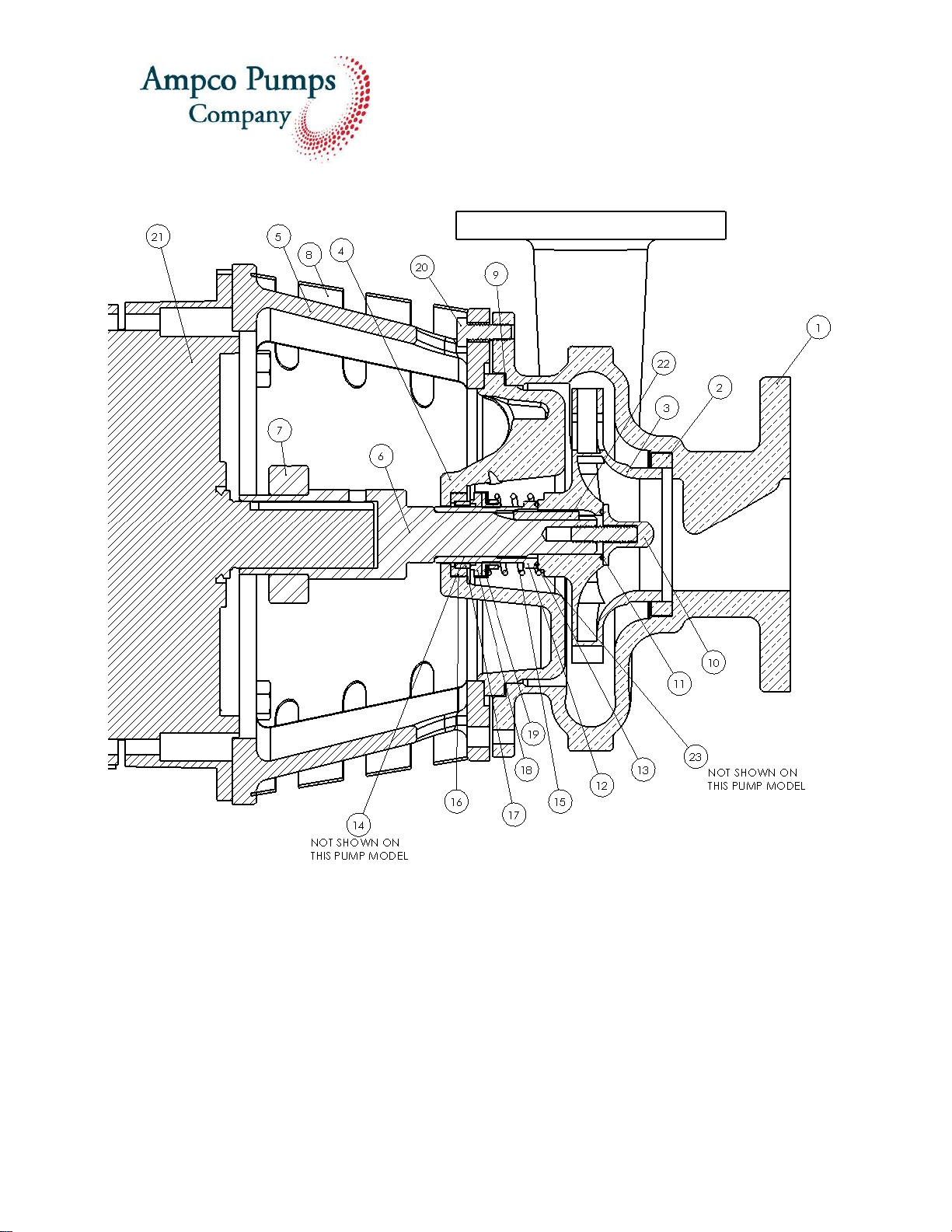

corresponding to each number in Figure 9.
1) Begin with the bare motor. Ensure that the
shaft and C-face areas are clean.
2) Attach the stub shaft [6] and locking collar
[7] to the motor and the motor adapter [5] as
shown in Figure 1.

F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 6
Figure 1: Step 2 Illustration
3) Measure the stub shafts axial location with
respect to the outer-most face on the adapter
as shown in Figure 2. This will dictate the
impeller clearance to the pump casing. Once
the dimension is set, tighten the collar screw
to 20 ft-lbs [27 Nm]. Ensure that the collar [7]
remains all the way against the shoulder on
the stub shaft [6] (in the outboard direction).
Once the stub shaft’s axial location is set, do
not remove the screw unless you believe it is
not in its original location.
Figure 2: Shaft to adapter measurement
4) The remaining pump assembly is now ready
to be performed. (For double seal assembly
refer to instructions listed in Appendix B) First
the stationary seal [16+17] must be pressed
into the cover or stuffing box [4]. Temporary
rubber emulsion or water should be used on
the elastomer, and the seal should be pressed
in by hand. Attach the cover to the pump
adapter [5], or attach the stuffing box to the
cover. Then place the cover in the pump
adapter. This may require screws with the
large flat covers.
Figure 3: Step 4.1, stationary seal into stuffing box
Figure 4: Step 4.2, cover mounted to adapter
5) The shaft sleeve [12] should now be
prepped by applying the seal and o-rings
[13+14]. Use temporary rubber emulsion or
water and push on the rotating seal portion
[15+18+19] of the elastomer bellows seal
onto the shaft sleeve [12]. Put the o-ring(s)
[13+14] into their grooves in the shaft sleeve

F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 7
and then place the seal spring into the
rotating seal element. Once the shaft sleeve is
prepped, push it onto the stub shaft until it
seats against the
shoulder.
Figure 5: Stub shaft preparation
6) Place the casing gasket [9] onto its spot on
the cover [4].
Figure 6: Cover gasket on to cover
7) Place the key [22] into the stub shaft [6]
and align it so it also engages in the shaft
sleeve [12]. If you have a stepped key, the
taller side goes toward the motor. Install the
impeller [3] onto the shaft [6]. Apply the
gasket or o-ring [11] and torque the impeller
screw to 50-60 ft-lbs [68-81 Nm]. Use blue
thread-locker on the threads.
Figure 7: Step 7 illustration
8) Ensure the impeller does not rub against
the cover by turning it by hand. You are now
ready to attach the pump casing [1]. Have the
screws ready and apply the casing to the
cover. Tighten all the casing screws in an
alternating fashion to 25 ft-lbs [34 Nm].
Again, check the pump for rubbing by rotating
the stub shaft. If the impeller contacts, look
into the suction flange on the pump and see if
it is bound against the front wear ring. If it is,
please repeat step 2 and ensure you have the
correct measurement.
Figure 8: Step 8 illustration

F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 8
Figure 9: Type 21 seal cross section parts diagram

Appendix: A
Parts List
F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 9
*NOT PRESENT ON ALL MODELS
Number
Description
Qty. per pump
1
Pump Casing
1
2
Casing Wear Ring
1
3
Impeller
1
4
Rear cover
1
5
Motor Adapter
1
6
Stub Shaft
1
7
Shaft Collar
1
8
Adapter Guard
2
9
Cover Gasket
1
10
Impeller Screw
1
11
Impeller O-Ring
1
12
Shaft Sleeve
1
13
Shaft Sleeve O-Ring 1
1
14*
Shaft Sleeve O-Ring 2
1
15
Seal: Spring
1
16
Seal: Cup
1
17
Seal: Seat
1
18
Seal: Face
1
19
Seal: Retainer
1
20
Cover screws
8
21
Motor
1
22
Shaft Key
1
23*
Seal Spring Retainer
1

Appendix: B
Double Seal Assembly Instructions
F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 10
*Refer to Figure 11 for part numbers referenced within double seal assembly instructions.
The double seal-supplied pumps require sub-assembly of the stuffing box prior to installation
on the pump. Below are the steps required (Refer to Figure 10 and Figure 11):
1. Press the inboard stationary seal [2] into the inner cavity of the stuffing box [1]
(DX8307347)
2. Press the outboard stationary seal [7] into the gland [9] (DX8307337)
3. Prepare the shaft sleeve [3] (DX8307367):
(Refer to Figure 9)
a. With the flanged edge facing the inboard direction (toward the impeller) first
put the shaft sleeve through the seal face in step 1. Apply the inboard rotating
seal [4] onto the shaft sleeve with the use of temporary rubber emulsion
lubricant or clean water. You must do this sideways as gravity will allow the
inboard seal face to drop out of the bellows.
b. Place the spring [5] onto the shaft sleeve and make sure it seats around the
inboard seal from step 3a.
c. Apply the outboard rotating seal [6] onto the shaft sleeve in the reverse direction
of the inboard seal again using temporary rubber emulsion lubricant or clean
water.
Figure 10: Double Seal

Appendix: B
Double Seal Assembly Instructions
F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual 11
4. Place the gland [9] with the outboard stationary seal so that it locates on its pilot in
the rear of the stuffing box. Do not forget the o-ring [8] (GX5042814)
5. Tighten the 4 screws [11/10] (GX5501110) evenly and carefully.
6. Prepare the shaft sleeve: Place the O-ring in the groove inside the sleeve, and the O-ring on
the shoulder’s face–the double seal sub-assembly is now complete and can be
assembled onto the pump. Slide the shaft sleeve onto the stub shaft until it seats on
the shoulder of the shaft.
Continue pump assembly with step 6.
Figure 11: Double seal parts list
Number
Description
Qty. per pump
1
Stuffing Box
1
2
Inboard Stationary Seal
1
3
Shaft Sleeve
1
4
Inboard Rotating Seal
1
5
Seal Spring
1
6
Outboard Rotating Seal
1
7
Outboard Stationary Seal
1
8
Gland O-Ring
2
9
Gland
1
10
Washer
1
11
Hex Screw
1
