AMT EgoGig EG-4 User manual
4-CHANNEL (TWO STEREO TRACKS)
WAV PLAYER & MONITOR MIXER
FOR LIVE PERFORMANCES
AMT EgoGig EG-4
User’s Guide
©2018 AMT Electronics. Omsk, Russia
SIBERIAN GUITAR GEAR BUILT TO LAST
www.amtelectronics.com
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3)
For use with firmware FW V.1.2. or later
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 2_
Table of Contents
Folders and files: the main logic of the device 3
The structure of a demo micro SD card 3
The first switching on the device 4
How to create a new Playlist/Songs folders 5
How to enter and move inside of a menu 5
Explanation of all menu items 6
The basic structure of a menu 7
How to change a current Playlist 8
How to fill an empty Playlist (an example) 8
How to delete a song from the Playlist 10
How to use a Loopback mode 11
How to use a panorama for the click manually 11
The variation of construction of WAV files (scheme 1) 12
The variation of construction of WAV files (scheme 2) 13
Demo wav files content 14
Technical data 15
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 3_
Folders and files: the main logic of the device
If you insert into the device EgoGig formatted earlier micro SD card, EgoGig automatically
will create necessary folders “PLAYLIST”, “SONGS” and system file “system.ego”.
But also with the device, you have a demo micro SD card. Let’s start to check it right now!
The structure of a demo micro SD card
AMT device EgoGig has its own demo micro SD card which has the following file and
folder structure.
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 4_
The first switching on the device
1. Put micro SD card inside of your EgoGig device.
2. Turn on the power supply.

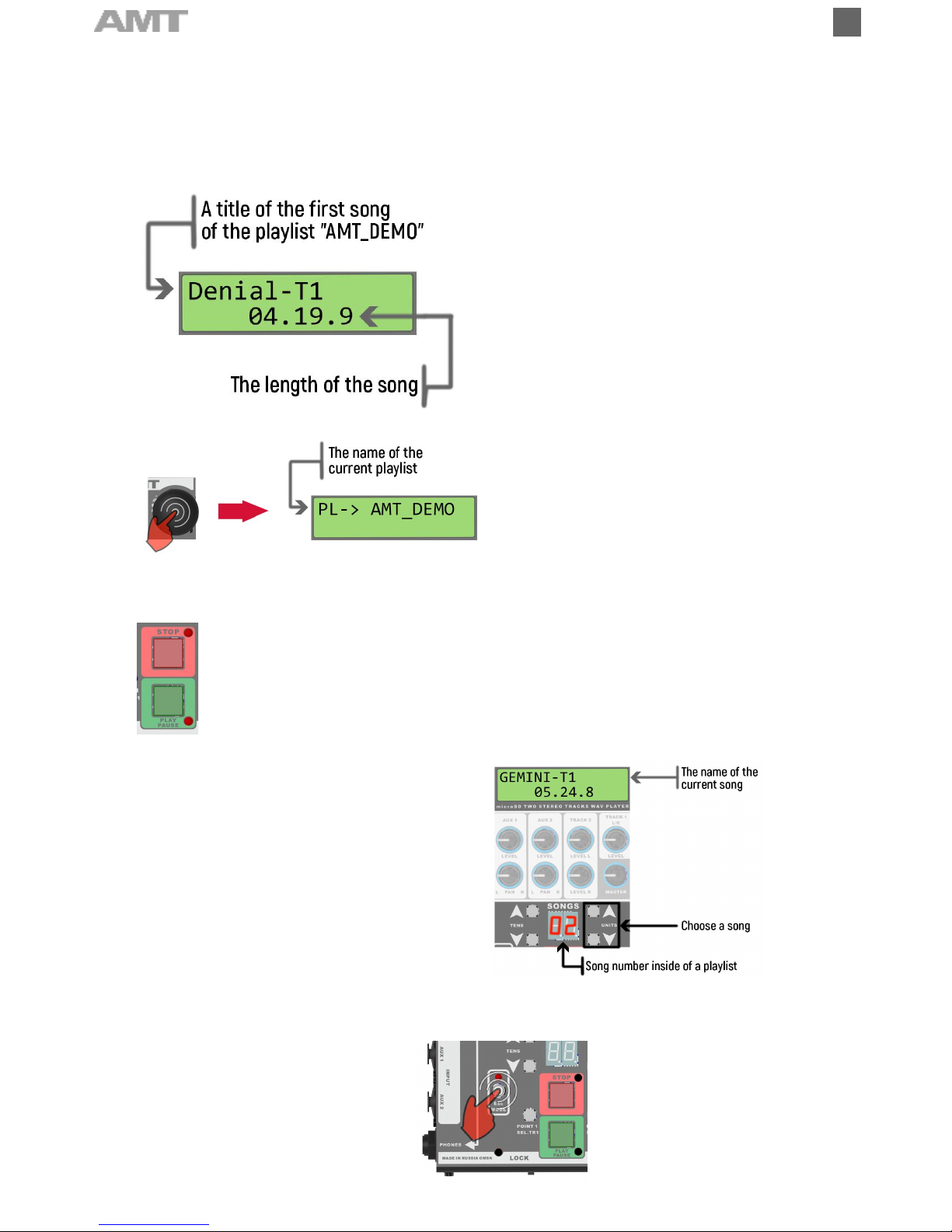

3. After some seconds you can see at the screen of the device:
4. Do a short press on the Encoder:
5. Use buttons “PLAY/PAUSE” to start/pause a current song.
Use a button “STOP” to stop a current song:
6. To choose a song inside of a current playlist use “UNITS” buttons:
7. If you press the “Esc/MODE” button, you will enter edit mode (into a menu of a device):
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 5_
How to create a new Playlist/Songs folders
Connect a micro SD card to your computer via Card Reader to upload necessary WAV files
to appropriate folders inside of the main folder “SONGS”. There you can create any
subfolders where could be uploaded WAV files.
Also inside of the main folder “PLAYLIST” you can create your own folders - they will be
future Playlists.
Attention! Only Latin, Cyrillic letters, numbers, and special characters can be
used in folder names, except for / \ : * ?«< >|().
How to enter and move inside of a menu
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 6_
Explanation of all menu items
Edit PL
Editing a playlist.
Entering this item, you can add / remove songs to (from) the playlist (s).
Select PL
Select a playlist (assign it to be the current one).
System
Enter the system settings menu.
There are the following sub-items:
Auto next On/Off
Enable automatic transition to the next song.
Count dir Up/Down
The direction of the time count of the song being
played.
Scroll dir Up/Down
The direction of the scroll of songs.
LB points On/Off
Turn on/off endless loop back between points
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 7_

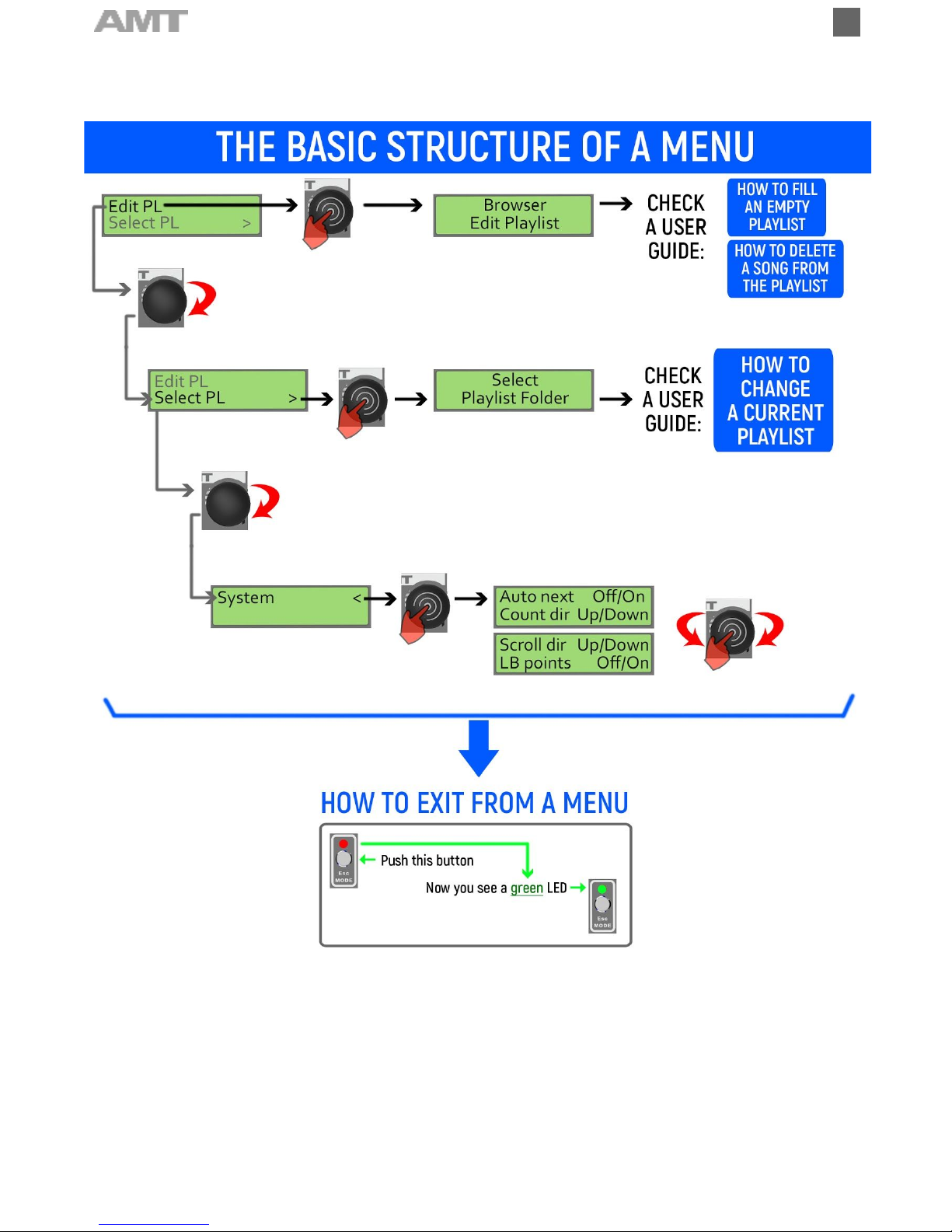

The basic structure of a menu
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 8_
How to change a current Playlist
For example, let's change a current Playlist to empty Playlist “Default” (we know that the
folder called “Default” was already created inside of our DEMO micro SD card).

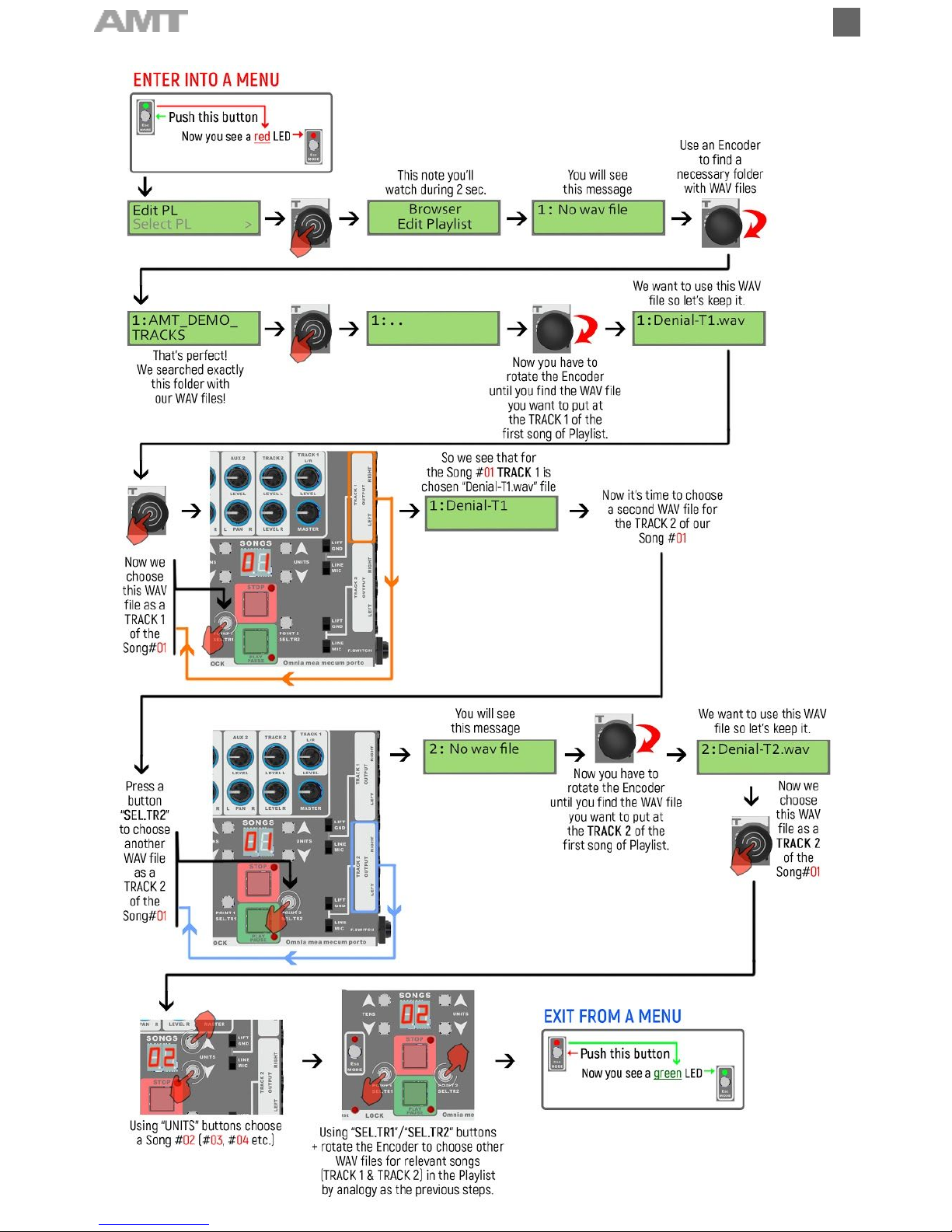

How to fill an empty Playlist (an example)
Because a folder (playlist) “Default” was empty (and we know about it) now we can see a
message:
So let's start to fill our Playlist with some songs!
P.S. Please check the next page >>
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 9_
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 10_

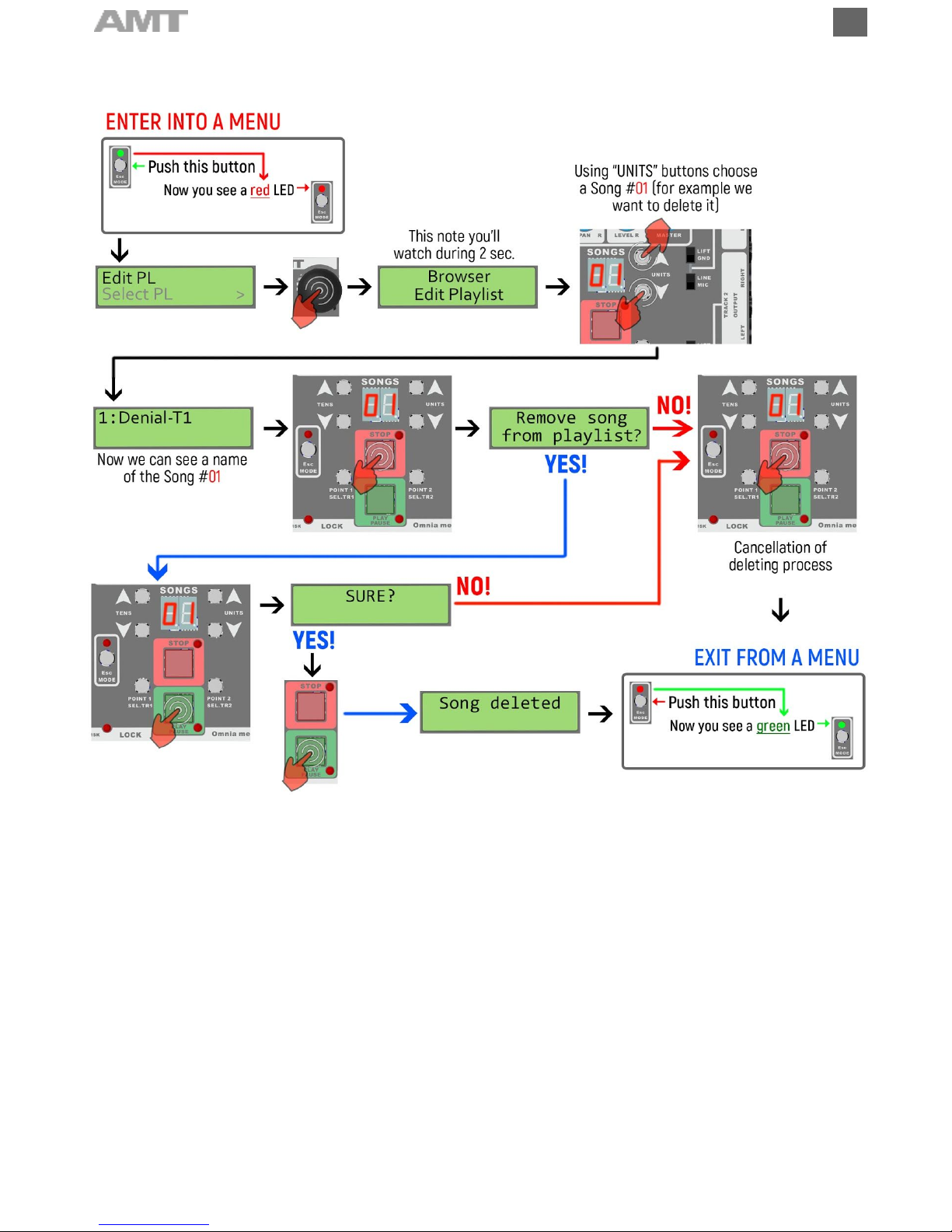

How to delete a song from the Playlist
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 11_
How to use a Loopback mode
Button “POINT1/SEL.TR1”
In playback mode - long press-sets a timestamp in the song being played. At the
same time, a decimal point appears on the SONGS indicator near the digit
responsible for tens. With a short press, the current playback is interrupted and
begins with the set timestamp (or from the beginning of the song - if the
timestamp is not set).
Button “POINT2/SEL.TR2”
In playback mode - long press-sets a timestamp in the song being played. At the
same time, a decimal point appears on the SONGS indicator near the digit
responsible for the units. With a short press, the current playback is interrupted
and starts with the set timestamp (or from the beginning of the song - if the
timestamp is not set).

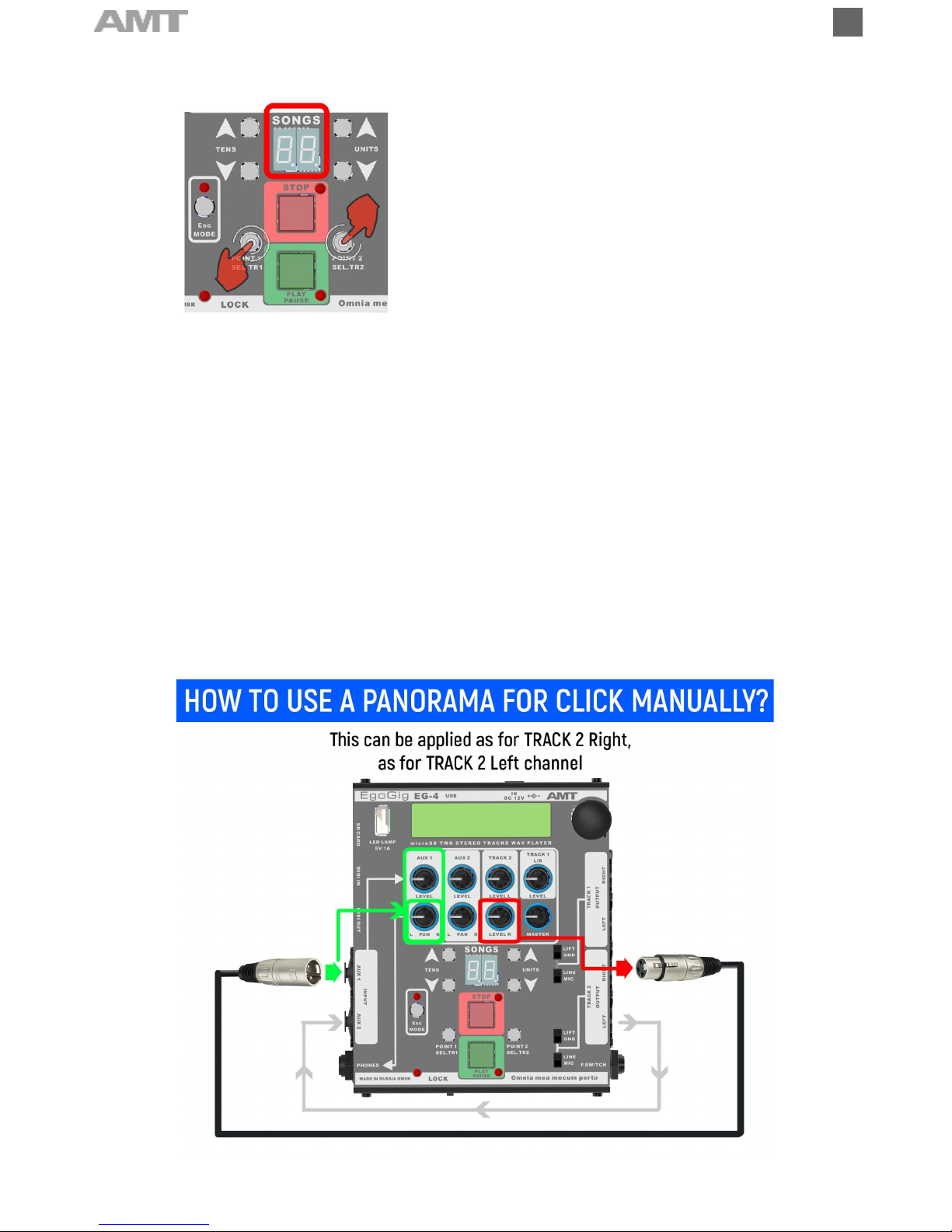

How to use a panorama for the click manually
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 12_

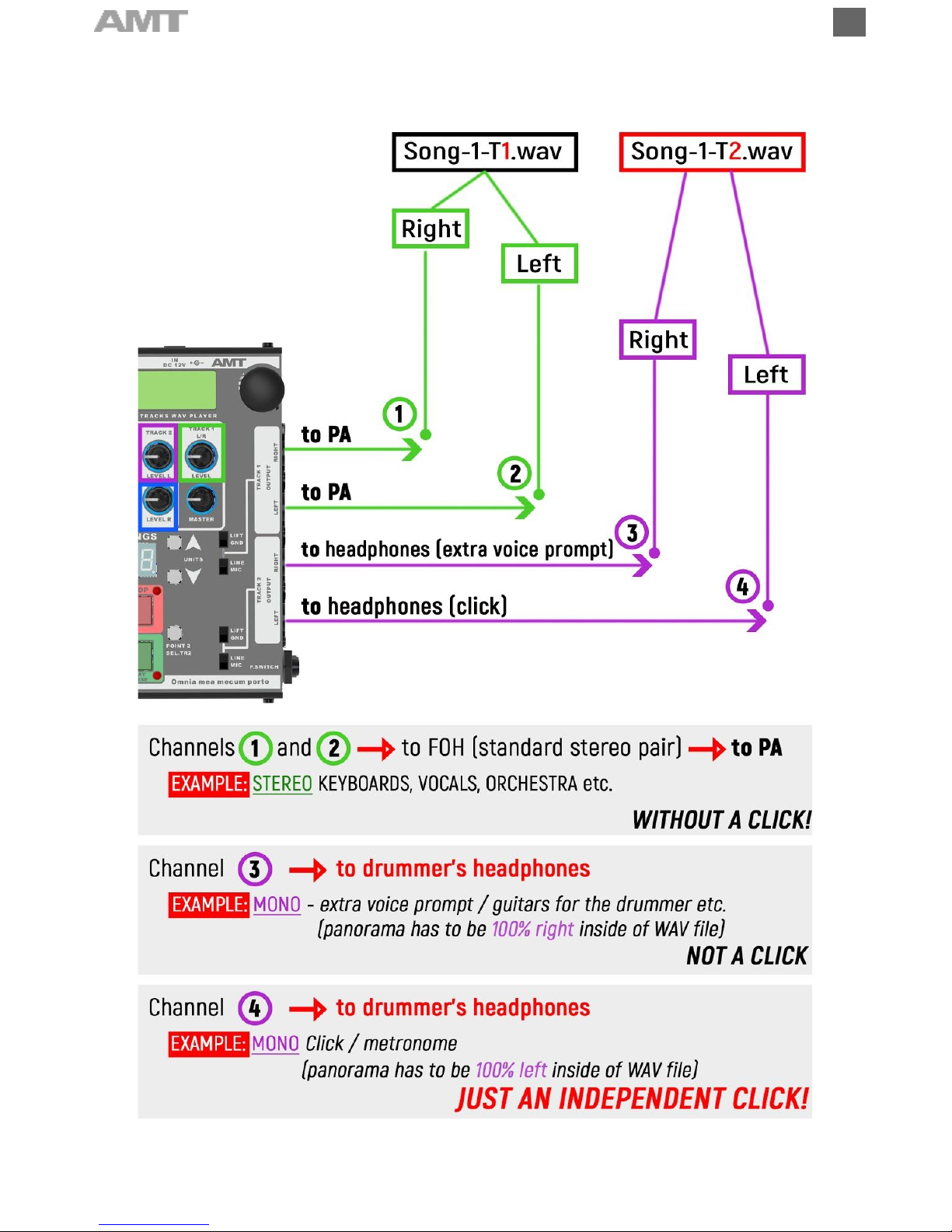

The variation of construction of WAV files (scheme 1)
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 13_
The variation of construction of WAV files (scheme 2)
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 14_
Demo wav files content
Notations:
T1 – «Track 1» of the device EgoGig EG-4;
T2 – «Track 2» of the device EgoGig EG-4.
File name
Channel of EG-4
Channel content
Signal output
point
GEMINI-T1.wav
T1 (R) + T1 (L)
Stereo pair: keyboard, backing vocals /
choirs
FOH
GEMINI-T2.wav
T2 (R)
Mono: bass guitar
FOH
T2 (L)
Mono: click + keyboard, backing
vocals / choirs, vocals, guitars
Drummer
headphones
LEHMANIZED-T1.wav
T1 (R) + T1 (L)
Stereo pair: keyboard, backing vocals /
choirs
FOH
LEHMANIZED-T2.wav
T2 (R)
Mono: bass guitar
FOH
T2 (L)
Mono: click + keyboard, backing
vocals / choirs, vocals, guitars
Drummer
headphones
THE_SECRET-T1.wav
T1 (R) + T1 (L)
Stereo pair: keyboard, backing vocals /
choirs
FOH
THE_SECRET-T2.wav
T2 (R)
Mono: bass guitar
FOH
T2 (L)
Mono: click + keyboard, backing
vocals / choirs, vocals, guitars
Drummer
headphones
Denial-T1.wav
T1 (R) + T1 (L)
Stereo pair: Synth
FOH
Denial-T2.wav
T2 (R)
Mono: Guitar
FOH
T2 (L)
Mono: click
Drummer
headphones
User’s Guide for AMT EgoGig EG-4 (ENG v.1.0.3) 15_
Technical data
Format of audio files to be downloaded to SD card:
Output format: WAV
Sample rate: 44100Hz
Channels: Stereo
WAV bit depth: 16 bit PCM (Windows PCM)
Recommended settings for SD card:
Сapacity: 4...16 Gb
Class: not below 10
Formatting: FAT32
Technical parameters:
1. Net weight: 850 g.
2. Dimensions: W 140 mm x H 50 mm x L 150mm
3. Supply voltage: 12V DC
4. Consumption current (no more than): 250 mA.
