Introduction
1
R
adia Lighting Control System
Introduction
The AMX Radia Lighting Control SystemTM employs a dual-platform programming architecture
that supports both the Axcess programming language and PROlink. The AMX Lighting product
line is modular by design, and includes a wide variety of integrated dimmer control modules,
dimmer modules, and also switch/relay modules. There are also circuit cards that can control
dimming and switching of incandescent, fluorescent, neon (cold-cathode), high and low-voltage
equipment, loads (motors), electronic and magnetic ballasts.
These cards and controllers can be housed in any of our five enclosures to ensure complete
compliance with any spacing/application requirements. Once the lighting control requirements are
defined, you can choose from the extensive group of lighting controllers, modules, etc., install them
into the best-suited enclosures, and create the perfect lighting control system for your customers.
FIG. 1 shows some of the AMX Lighting Control System components.
Features
The AMX Lighting Control System features include:
 Controls up to 1,500 dimmers or 255 6-channel devices (approximate) with a AMX
Axcess Control System complete with dimmer-level feedback
 Controls up to 60 dimmers with standalone PROlink systems
 Supports 128 lighting scene presets stored in 16K of non-volatile memory
 Recalls up to 8 of 128 presets with contact closures
 Modular and scalable lighting system configurations of one to 1,500 dimmers
 Supports both Axcess and PROlink programming languages
 Modules are UL and C-UL listed for United States and Canadian compliance
FIG. 1 AMX Lighting Control System components

Introduction
2Radia Lighting Control System
Applications
You can use the AMX Lighting Control System for commercial, corporate, and residential
applications. The dual-platform Axcess and PROlink control architecture can address virtually any
number of lighting zones. Entire residential or commercial lighting systems can be manually
controlled or fully automated. AMX Lighting systems can also be integrated into existing Axcess
presentation/control systems.
Residential applications can be divided into inter-linked lighting zones using central and local
control configurations. FIG. 2 shows a sample AMX Lighting system configuration using PROlink,
dry closure, and AXlink devices.
Controllers
The four controllers available for AMX Lighting installations include the RDD-DM4 (4-channels),
RDD-DM6 (6-channels) Integrated Dimmer Control Modules, and the RDC-DC (6-channel) and
RDC-PDC Pro (6-channel) Dimmer Control Cards.

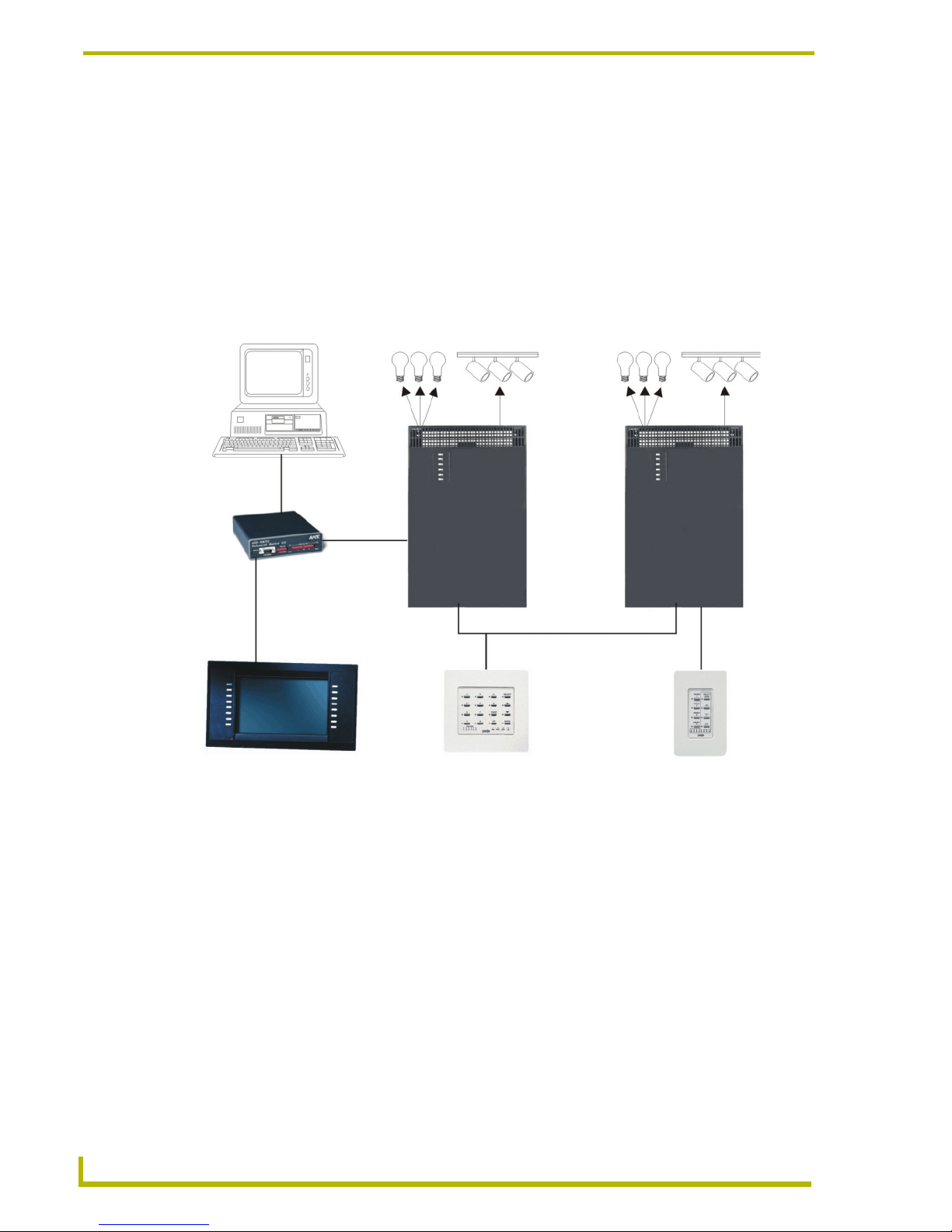

FIG. 2 Sample AMX Lighting Control System
AMX Lighting
Controllers
PROlink
PROlinkPROlink
Wall panel
Touch panel
AXB-EM232
AXlink
RS-232
AXlink
Wall panel
Pack 1 Pack 2

Introduction
3
R
adia Lighting Control System
AMX Lighting Control Equipment
The following table lists all of the AMX Lighting Control System equipment. Refer to the
installation sheets for these enclosures, control modules, and dimmer modules for detailed wiring
drawings, application notes, and specifications.
AMX Lighting Control Equipment
AMX Lighting enclosures
RDA-ENC2 2-module enclosure for single-phase dimmer modules
RDA-ENC4 4-module enclosure for dimmer modules
RDA-ENC6 6-module enclosure for single-phase dimmer modules
RDA-ENC6B 6-module, 6-breaker (20 A each) enclosure for multi-phase wiring for one RDA-PDC module
(two or three phase configuration)
RDA-ENC12B 6-module, 12-breaker (20 A each) enclosure that supports multi-phase wiring for two RDA-
PDC modules
Control cards
RDC-DC 6-channel, single-phase control card (120, 240, or 277 VAC)
RDC-PDC 6-channel, dimmer control card (120 or 240 VAC)
Integrated dimmer control modules
RDD-DM4 4-channel integrated dimmer control module (120 or 240 VAC)
RDD-DM6 6-channel integrated dimmer control module (120 or 240 VAC)
Dimmer modules
RDA-CKM Dual Choke module (350 µS)
RDA-PSM Power supply module
RDM-2DC Dual VDR module (2400 W x 2, 0-12 VDC)
RDM-2FDB Dual FDB module (2400 W x 2)
RDM-2HSW Dual heavy-duty switch module (2400 W x 2)
RDM-2INC Dual incandescent dimming module (2400 W x 2)
RDM-2MR Dual mercury relay module (10 A x 2)
RDM-2PR Dual peak relay module (2400 W x 2)
RDM-2SWM Dual switch module (2400 W)
RDM-22ZC Dual zero cross module (2400 W)
RDM-3DC Triple VDR module, 2400 W x3, 0-12 VDC
RDM-3FDB Triple FDB module (2400 W x 3)
RDM-3HSW Triple heavy-duty switch module (2400 W x 3)
RDM-3MR Triple mercury relay module (10 A x 3)
RDM-3SWM Triple switch module (20 A x 3)
RDM-DC DC dimmer module, 1920 W, 0-12 VDC
RDM-2DC Dual DC dimmer module, 1920 W, 0-12 VDC (x2)
RDM-3DC Triple DC dimmer module, 1920 W, 0-12 VDC (x3)
RDM-DPSM Double-pole, single-throw module (2400 W)
RDM-HDC Heavy duty DC module, 2400 W, 0-12 VDC
RDM-HFDB Heavy duty FDB module (20 A)
RDM-HSW Heavy-duty switch module (2400 W)
RDM-INC Incandescent dimming module (2400 W)
RDM-INC50 Incandescent dimming module (6000 W)

Introduction
4Radia Lighting Control System
AMX Lighting Control Equipment (Cont.)
Dimmer modules (Cont.)
RDM-MDM Multimode dimming module (2400 W/20 A)
RDM-MR Mercury relay module (10 A)
RDM-MR35 Mercury relay module (35 A)
RDM-MR60 Mercury relay module (60 A)
RDM-PR Peak relay module (2400 W)
RDM-SWM Switch module (2400 W)
RDM-ZC Zero-cross module (2400 W)
RDM-ZC50 Zero-cross module (6000 W)

Installation
5
R
adia Lighting Control System
Installation
Space Requirements
AMX Lighting control installations require very little space. Enclosures are the main concern. All
enclosures are mounted flush, on a vertical surface and must have a minimum clearance of 12"
(304.8 mm) above and below to allow for air circulation. Physical dimensions for each enclosure
are described in the Installation section.
Conduit
Conduit runs depend on the enclosures you use and their AMX Lighting modules. All enclosures
have conduit knockouts on the top for high-voltage connections, and knockouts on the bottom for
low-voltage connections.
All conduit knockouts allow for 1/2, 3/4, and 1-inch (12.7 mm, 19.0 mm, and 25.4 mm) conduits as
shown in FIG. 3. You should also consider these recommendations prior to installing enclosures:
 Install separate conduit for lighting loads. The recommended knockout for loads is
located on the top center of the enclosure.
 Install separate conduit for the 120 VAC wiring to the line input terminal block. The
recommended knockouts for incoming power feeds are located on the top-left and top-
right sides of the AMX Lighting enclosure.
Install separate conduit for low-voltage signals for dry closures, AXlink, and PROlink connections.
The recommended knockout for these control connections is located on the bottom of the
enclosure. There are additional knockouts on the bottom-left and bottom-right sides of the
enclosures for alternate low-voltage connections.
FIG. 3 Knockout locations (RDA-ENC2 used as example)
TOP
BOTTOM
LEFT SIDE FRONT RIGHT SIDE
B
A
C
A
C
A
E G
F
A
E
DD
Knockout
Knockout
Knockout
Knockout
Knockout
Knockout
All knockouts
are for 1/2" (1.26 cm),
3/4" (1.90 cm), and
1" (2.54 cm)
conduit
A = 3.94" (100.0 mm)
B = 6.03" (153.1 mm)
C = 3.00" (76.2 mm)
D = 1.00" (25.4 mm)
E = 9.75" (24.76 cm)
F = 6.00" (15.24 cm)
G = 11.90" (30.22 cm)

Installation
6Radia Lighting Control System
Enclosure Dimensions
RDA-ENC2, -ENC4, and -ENC6 enclosure and dimensions
FIG. 4 shows the dimensions for the RDA-ENC2, RDA-ENC4, and RDA-ENC6 enclosures.
RDA-ENC6B and RDA-ENC12B enclosures and dimensions
FIG. 5 shows the dimensions for the RDA-ENC6B and RDA-ENC12B enclosures.
Install the control modules according to local and National Electrical Code (NEC) regulations.

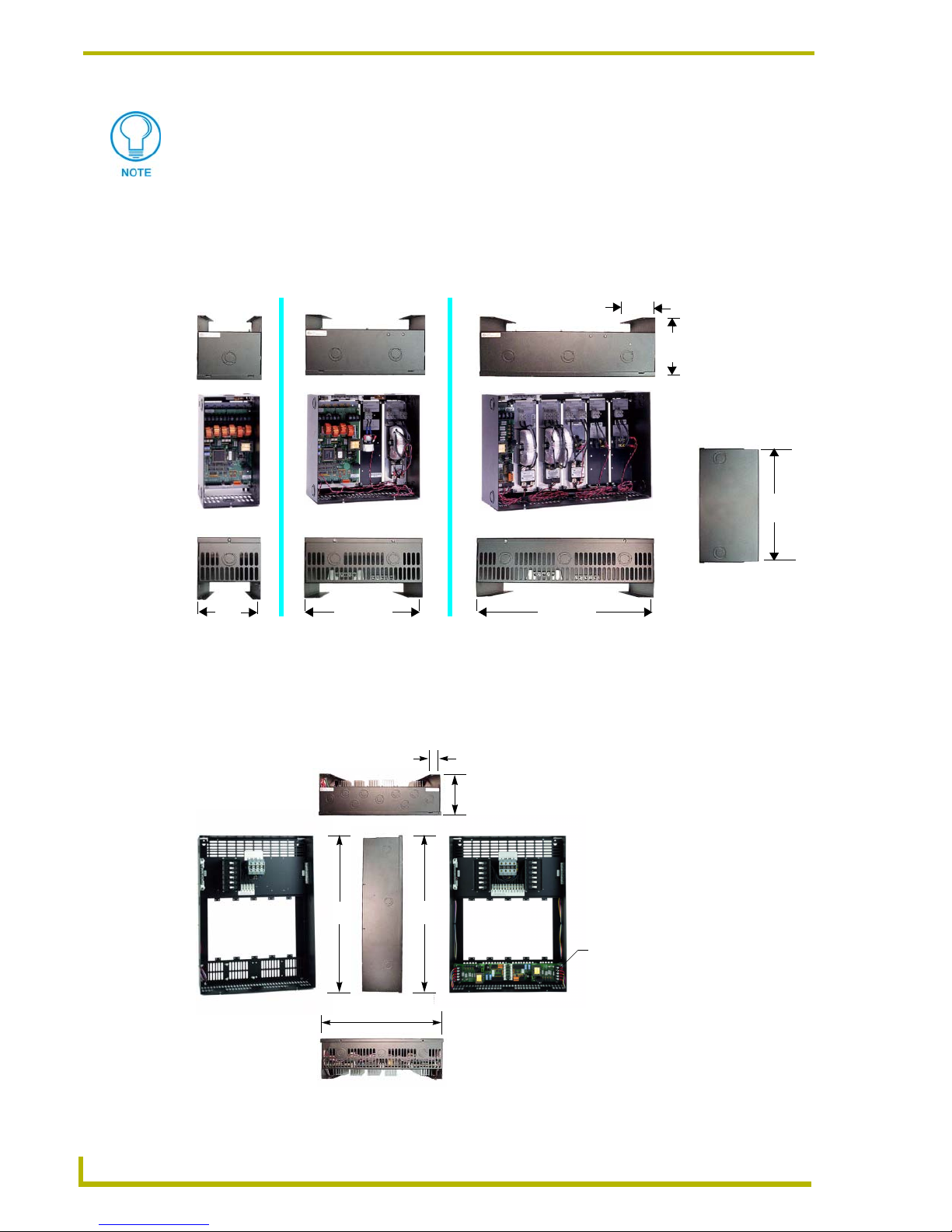

FIG. 4 RDA-ENC2, RDA-ENC4, and RDA-ENC6 enclosure dimensions
FIG. 5 RDA-ENC6B and ENC12B enclosures and dimensions
Top View
Internal View
Bottom View
RDA-ENC2 RDA-ENC4 RDA-ENC6
Side View
(for all enclosures)
12.0"
(304.8 mm)
6.0"
(152.4 mm)
0.75"
(19.05 mm)
12.0"
(304.8 mm)
6.0"
(152.4 mm)
18.0"
(457.2 mm)
BOTTOM VIEW
(457.2 mm)
SIDE VIEW
RDA-ENC12B
RDA-ENC6B
24.0"
(61.0 mm)
24.0"
(61.0 mm)
Not included
with enclosures
TOP VIEW
18.0"
0.75"
(19.05 mm)
6.0"
(152.4 mm)
Top, side, and bottom
views are the same for
both enclosures.
Note:
LINE INPUTS: 140 A MAX PER ENCLOSURE
Use 75° C copper conductors only.
Torque terminals to 44 in-lbs.

Installation
7
R
adia Lighting Control System
Mounting AMX Lighting Enclosures
AMX Lighting enclosures must be mounted on a vertical surface with a minimum of 12" (304.8
mm) clearance above and below the enclosure. FIG. 6 shows the centerline reference points and
dimensions.
1. Remove the front cover by removing the screws at the bottom of the enclosure; two tabs
suspend the cover from the top.
2. Position the enclosure on the wall so that it is level, with the high-voltage terminals of the unit
at the top.
3. Mark the four mounting holes according to the dimensions shown in Figure 8.
4. Install screws at the marks. The maximum screw size is #12.
5. Hang the enclosure on the four screws. Then, tighten the screws.
Refer to the Dimmer Enclosures with Breakers installation guide for more information.
High-Voltage Connections
FIG. 7 shows an example of a high-voltage connection for an RDD-DM4 controller.
Each AMX Lighting module has its high-voltage connectors marked on its circuit board. Line,
load, and neutrals are also clearly marked.

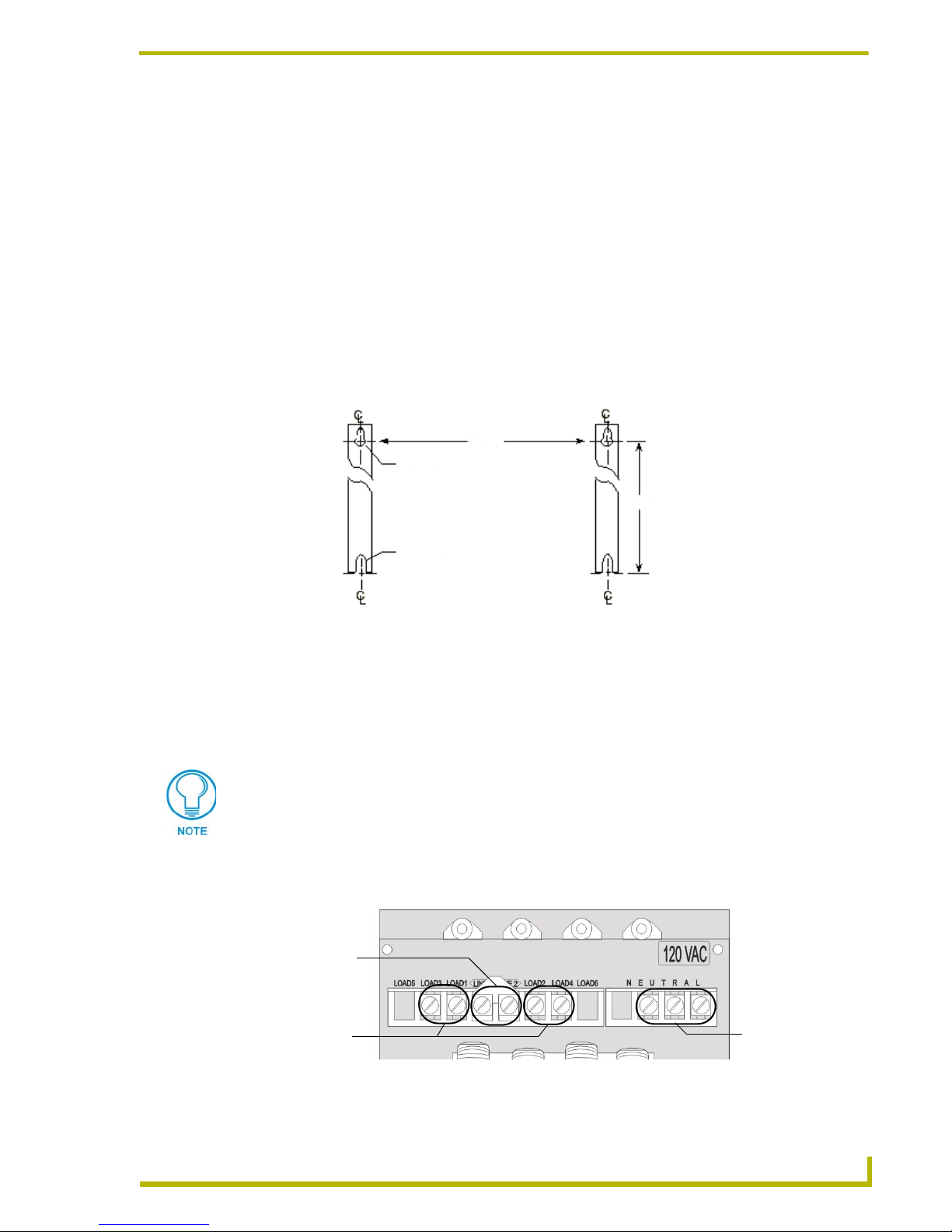

FIG. 6 Center-line reference points and dimensions
A to B
B to C
Bottom slot
Top slot
Configuration for
right and left
mounting brackets
for all Radia
enclosures.
Maximum mounting
screw size: #12
All high-voltage connections must comply with Class 1 wiring codes.
FIG. 7 High-voltage connections for an RDD-DM4
Neutral
Load
Line in
Distance: B to C:
RDA-ENC2 - 11.0" (279.4 mm)
RDA-ENC4 - 11.0" (279.4 mm)
RDA-ENC6 - 11.0" (279.4 mm)
RDA-ENC6B - 22.88" (581.2 mm)
RDA-ENC12B - 22.88" (581.2 mm)
Distance: A to B:
RDA-ENC2 - 5.25" (133.3 mm)
RDA-ENC4 - 10.0" (254.0 mm)
RDA-ENC6 - 16.0" (406.4 mm)
RDA-ENC6B - 16.0" (406.4 mm)
RDA-ENC12B - 16.0" (406.4 mm)

Installation
8Radia Lighting Control System
Connecting high-voltage, single-phase input power and loads
Follow these steps to wire high-voltage (120 VAC, 240 VAC, and 277 VAC), single-phase power
connections (FIG. 8) to any of the AMX Lighting modules.
1. Connect the green ground wire(s) to the copper ground lug on the enclosure. Ensure the ground
wire is properly connected to earth ground.
2. Connect the white neutral wire(s) to a terminal on the enclosure's neutral terminal block. Each
terminal on the block can accept two 10 AWG wires.
3. Provide a separate neutral wire for each dimmed zone.
4. Connect the black line input from the electrical devices to the module's line terminal. The line
input terminal accepts a 10 AWG copper conductor.
5. Connect load lines from the electrical devices to the Load terminals. Load 1 applies to dimmer
1, Load 2 applies to dimmer 2, and so on.
RDA-ENC6B 120 VAC single phase line input
FIG. 9 shows a 120 VAC single-phase (2 W + G) wiring diagram for the RDA-ENC6B line input
terminal block.
FIG. 8 RDD-DM4 and RDD-DM6 (as examples only) high-voltage, single-phase power connections for line input
(hot), neutral, and ground.

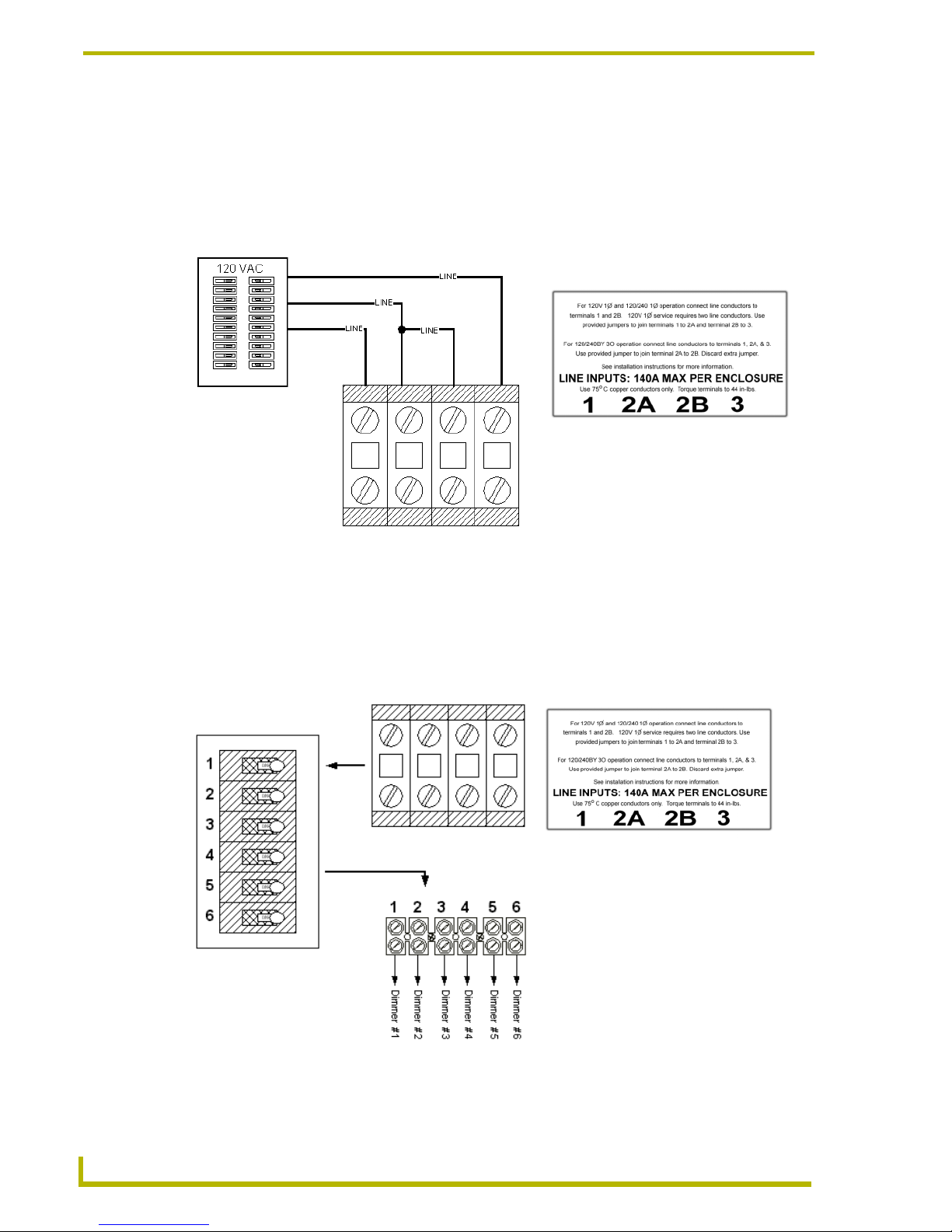

FIG. 9 RDA-ENC6B 120 VAC single-phase (2 W + G) wiring diagram
Ground (green) Ground (green)
Hot (black) Neutral (white) Hot (black) Neutral (white)
to Enclosure
ground terminal
12a2b3

Installation
9
R
adia Lighting Control System
RDA-ENC6B 120/240 VAC line input (single phase)
FIG. 10 shows a 120/240 VAC single-phase (3 W + G) wiring diagram for the RDA-ENC6B line
input terminal block.
Connecting high-voltage, three-phase input power and loads
Follow these steps to wire high-voltage (120 VAC and 240 VAC), three-phase power connections
(FIG. 11) to any of the AMX Lighting modules.
1. Connect the green ground wire(s) to the copper ground lug on the enclosure. Ensure the ground
wire is properly connected to earth ground.
2. Connect the white neutral wire(s) to one of the terminals on the enclosure's neutral terminal
block.
3. Provide a separate neutral wire for each controlled zone.
4. Connect the black line input from the electrical panel to the enclosure's line terminal. The line
input terminal accepts a 0 AWG copper conductor.
FIG. 10 RDA-ENC6B 120/240 VAC single-phase (3 W + G) wiring diagram
FIG. 11 High-voltage, three-phase input power
12a2b3
12a2b3
RDA-ENC6B
C
onnect to neutral block
line input terminal
These
connections
are factory-
wired

Installation
10 Radia Lighting Control System
5. Connect load lines from the electrical devices to the Load terminals. Load 1 applies to dimmer
1, Load 2 applies to dimmer 2, and so on.
RDA-ENC6B 120/208 VAC line input (three phase)
FIG. 12 shows a 120/208 VAC three-phase (4 W + G) wiring diagram for the RDA-ENC6B line
input terminal block.
RDA-ENC6B three phase line input connector reference
FIG. 13 shows a sample RDA-ENC6 three phase (4 W + G) line input connector and dimmer
references.
FIG. 12 RDA-ENC6B 120/208 VAC three-phase (4 W + G) wiring diagram
FIG. 13 RDA-ENC6B three-phase (4 W + G) line input connector and dimmer references
12a2b3
Line input 1 feeds dimmers 1 and 4
Line input 2a feeds dimmer 5
Line input 2b feeds dimmer 2
Line input 3 feeds dimmers 3 and 6
12a2b3

Installation
11
R
adia Lighting Control System
RDA-ENC6 and RDA-ENC12 power distribution and line input references
FIG. 14 shows the power distribution and line input references for the RDA-ENC6 and RDA-
ENC12 line inputs.
Installing RDM Modules into an Enclosure
Installing any of the RDM modules is an easy task. The individual modules are shipped with the
four mounting screws enclosed.
FIG. 15 illustrates the inside of an RDA-ENC6 enclosure and the mounting slots. The modules are
positioned in the appropriate slot and secured using the supplied screws.

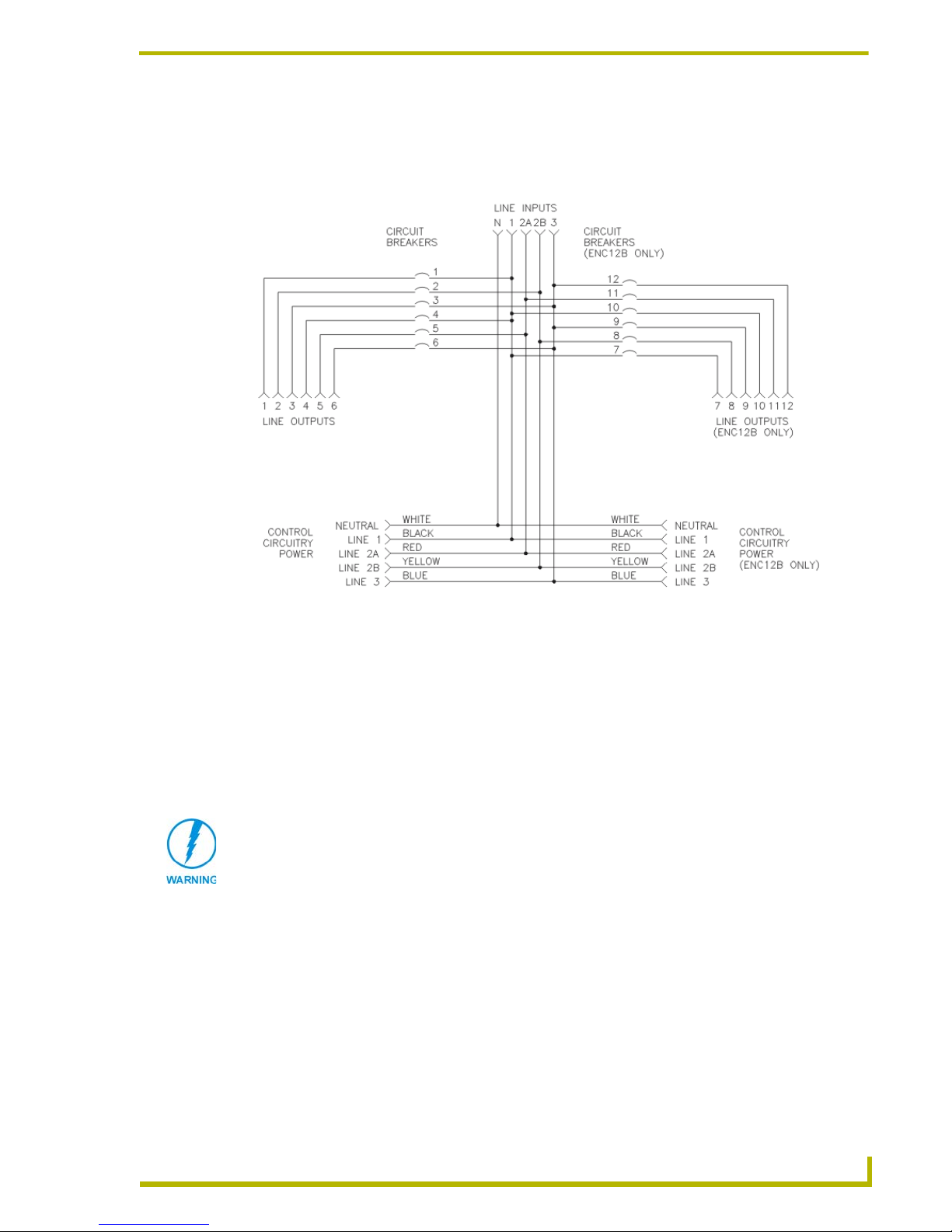

FIG. 14 RDA-ENC6 and RDA-ENC12 power distribution and line input reference references
RDA-ENC6
Line input 1 feeds dimmers 1 and 4
Line input 2a feeds dimmer 5
Line input 2b feeds dimmer 2
Line input 3 feeds dimmers 3 and 6
RDA-ENC12
Line input 1 feeds dimmers 1 and 4, 7 and 10
Line input 2a feeds dimmer 5 and 11
Line input 2b feeds dimmer 2 and 8
Line input 3 feeds dimmers 3 and 6, 9 and 12
To prevent possible personal injury or death, cut off power to the enclosure at the
breaker box before attempting to install any AMX Lighting modules.

Installation
12 Radia Lighting Control System
The RDA-ENC2 enclosure contains a ground-terminating lug. The RDA-ENC4, RDA-ENC6,
RDA-ENC6B, and RDA-ENC12B enclosures contain a neutral terminating block and a ground-
terminating lug.
Low-Voltage Connections
The low-voltage area in the AMX Lighting controllers contain connections and DIP switches for
AXlink, PROlink, dry closures, and module jack connectors. On the controller cards, low-voltage
power for the board is supplied either by line power, optional auxiliary power supply (RDA-PSM),
or the +12 VDC pin on the AXlink connector. There is also a green status LED on the controller
circuit board that blinks, according to the current operating status of AXlink and red LEDs, one for
each of the external connectors for additional modules. Figure 18 shows an example of the low-
voltage connections, DIP switches and LEDs using the RDD-DM4 controller.
FIG. 15 Enclosure module mounting slots and mounting screw holes
Neutral terminal block
Ground terminal block
Module
mounting
slots
Mounting screw
holes for modules
(4 per slot)
All low-voltage connections must comply with Class 2 wiring codes.

Installation
13
R
adia Lighting Control System
Module connections
When connecting a dimming/switching module to a AMX Lighting controller, connect as shown in
FIG. 17.
FIG. 16 Low-voltage connections and DIP switches
FIG. 17 Module connection to a con-troller card
AXlink address DIP switch
PROlink address DIP switch
Module connector jack and LED (CH5)
Module connector jack and LED (CH6)
Dry contact closures
AXlink connector and status LED
PROlink connector
Auxiliary power in
4-pin module connector
on AMX Lighting controller
4-pin plug from RDM-
controller module
Pin 4 (GND)
Pin 3 (RLY)
Pin 2 (DIM)
Pin 1 (+12V)
3 (-)
1 (+)
The 4-pin plug from the module connects to a 4-pin
connector on the controller module with the black
cover facing upwards.

Installation
14 Radia Lighting Control System
Green status LED indicator
When you apply power to the AMX Lighting Control System, the green status LED notes its
conditions:
 It is on full when power is applied to the control module.
 It blinks on and off when AXlink communication is present.
 It is off after default initialization is complete.
The LED indicator is located near the dry closure connector on the control module.
Red status LED indicators
The red LED's function is to indicate level. LED brightness increases as signal level increases from
zero to 100. The LED indicator is located above each external load connector jack on the control
module.
Configuring and connecting PROlink
On all AMX Lighting controllers, DIP switch SW2 sets the PROlink pack number. The pack
number is determined by the value of all the switch position settings. The following table shows the
SW2 DIP switch positions and their values. The pack number assignment range is 1 through 10.
The lighting system will not work if you assign a pack number outside of the range.
1. Power off the AMX Lighting enclosure at the breaker panel.
2. Locate the SW2 DIP switch on the controller circuit card (marked PROLINK ADDRESS), and
set the pack number using the values shown in the proceeding table. The pack number must be
1 to 10.

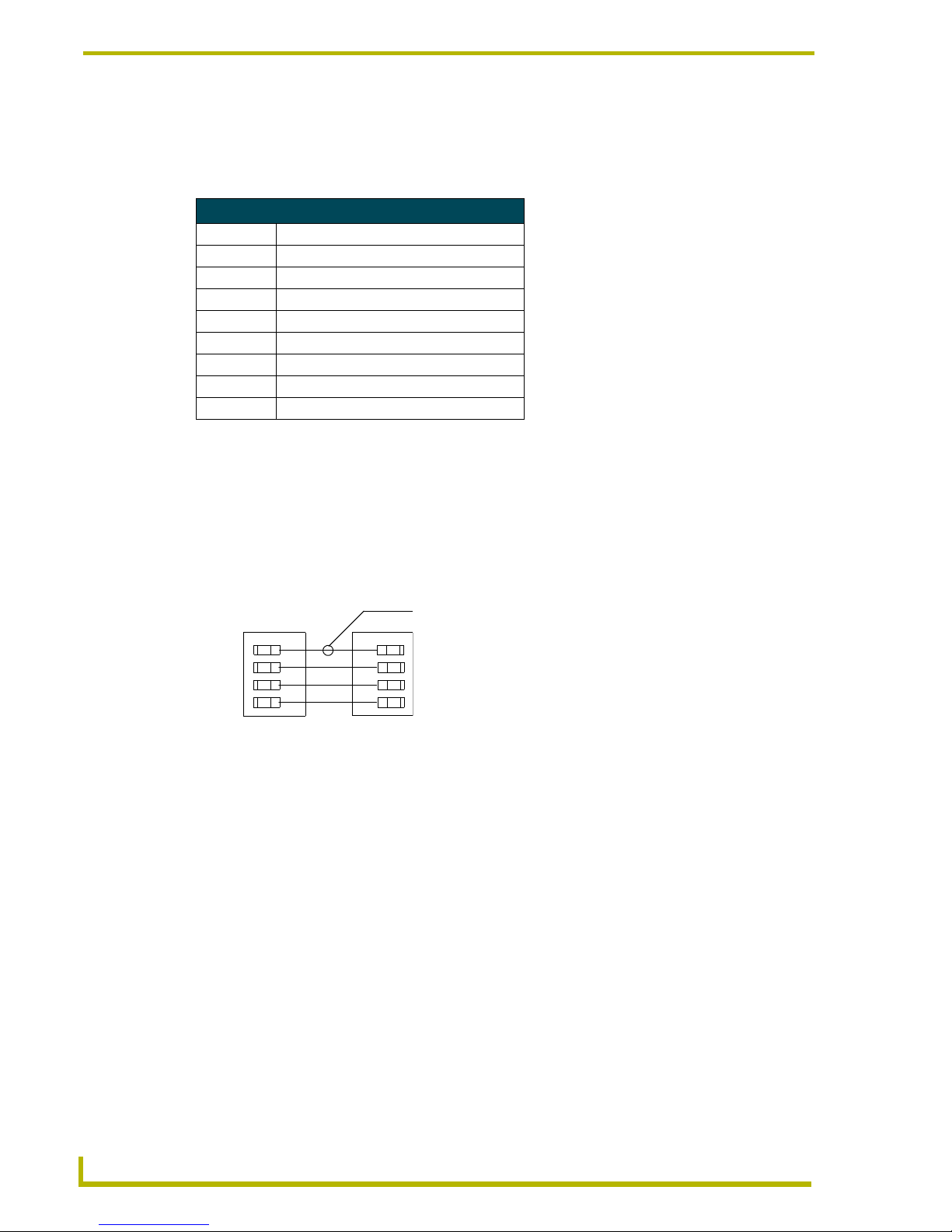

3. FIG. 18 shows how to wire the PROlink connector to a PROlink wall panel.
4. Connect the four-pin PROlink male connector to the four-pin female PROlink connector on the
AMX Lighting controller.
SW2 DIP Switch Setting Values for PROlink
Position Value
11
22
34
48
5n/a
6n/a
7n/a
8 All lights on
Assign pack 1 for all communications, diagnostics, and feedback response.

Installation
15
R
adia Lighting Control System
5. Apply power to the AMX Lighting controller at the breaker panel.
FIG. 19 shows an example of how to interconnect two AMX Lighting RDD-DM4 controllers and a
PROlink wall panel.
FIG. 18 PROlink wiring diagram
FIG. 19 PROlink configuration sample
Radia PROlink connectorPROlink wall panel
+12V
PR+
PR-
GND
+12V
PR+
PR-
GND
PROlink
Neutral Neutral
HOT (1) HOT (2)
(orange)
PROlink
connector
RDD-DM4
(pack 2)
connector
(orange)
PROlink
PRO-DP8
wall panel
RDD-DM4
(pack 1)

Installation
16 Radia Lighting Control System
Configuring and connecting AXlink
On all AMX Lighting controllers, DIP switch SW1 sets the AXlink device number. The device
number is determined by the value of all the switch position settings. The following table shows the
SW1 DIP switch positions and their values. The device number assignment range is 1 through 255.
1. Power off the enclosure unit at the breaker panel.
2. Locate the SW1 DIP switch (AXLINK ADDRESS) on the controller circuit card and set the
device number using the values shown in the proceeding table.
3. Connect the four-pin AXlink male connector into the four-pin female AXlink connector on the
controller circuit card. FIG. 20 shows how to wire the AXlink connector to a Central
Controller system.
4. Apply power to the controller module at the breaker panel.
Connecting dry closures
AMX Lighting controller modules contain eight connections for dry contact closures, and one
common reference point. FIG. 21 shows the standard wiring configuration for the 9-pin dry closure
connector.
SW1 DIP switch setting values for AXlink
Position Value
11
22
34
48
516
632
764
8 128
FIG. 20 AXlink wiring diagram
Central ControllerAXlink connector
+12V
AXP/TX
AXM/RX
GND
+12V
AXP
AXM
GND
(optional)
