amzchef IF7208S-5B5B4B2B2B User manual

Induction Cooktop
Instruction Manual
MODEL: IF7208S-5B5B4B2B2B
220-240V~,50-60Hz
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE

Contents
1.Safety Warnings...................................................................................1
2.Product Overview.................................................................................5
3.Choosing the right Cookware...............................................................8
4.Using Instruction..................................................................................9
5.Cooking Guidelines….........................................................................23
6.Care and Cleaning...............................................................................25
7.Technical Specification.......................................................................29
8.Installation instruction.........................................................................29
9.Warranty .............................................................................................34

1
Ⅰ. Safety Warnings
Your safety is important to us. Please read this information before using your
cooktop.
1.Installation
①Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before carrying out any
work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified
electrician.
• Failure to follow this advice may result in electrical shock or death.
②Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
③Important safety instructions
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any
time.
• Please make this information available to the person responsible for installing the
appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these
instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably
qualified person.
• This appliance should be connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability
claims.

2
2.Operation and maintenance
①Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or
crack, switch the appliance off immediately at the mains power supply (wall switch)
and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
② Health Hazard
• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin
pumps) must consult with their doctor or implant manufacturer before using this
appliance to make sure that their implants will not be affected by the
electromagnetic field.
• Failure to follow this advice may result in death.
• Failure to follow this advice could result in burns and scalds.
③Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the
Induction glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the
cooktop surface since they can get hot.
• Keep children away.
• Handles of saucepans may be hot to touch.Check saucepan handles do not overhang other
cooking zones that are on. Keep handles out of reach of children.
④Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is
retracted. Use with extreme care and always store safely and out of reach of
children.
• Failure to use caution could result in injury or cuts.
3.Important safety instructions
• Never leave the appliance unattended when in use. Boilover causes smoking and
greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.

3
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards)or
electronic devices (e.g. computers, MP3 players) near the appliance, as they may be
affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this
manual (i.e. by using the touch controls). Do not rely on the pan detection feature to
turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in
use.
• Children or persons with a disability which limits their ability to use the appliance
should have a responsible and competent person to instruct them in its use. The
instructor should be satisfied that they can use the appliance without danger to
themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended
in the manual. All other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this
can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop,as
these can scratch the Induction glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.

4
•WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously
supervised.
•This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
•WARNING: Unattended cooking on a cooktop with fat or oil can be dangerous and may
result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and
then cover flame e.g. with a lid or a fire blanket.
•WARNING: Danger of fire: do not store items on the cooking surfaces.
•WARNING: If the surface is cracked, switch off the appliance to avoid the
possibility of electric shock, for cooktop surfaces of glass-ceramic or similar material
which protect live parts.
•A steam cleaner is not to be used.
•The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
•CAUTION: The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
•WARNING: In order to prevent tipping of the appliance, this stabilizing means
must be installed. Refer to the instructions for installation.
•WARNING: Use only cooktop guards designed by the manufacturer of the cooking
appliance or indicated by the manufacture of the appliance in the instruction for use as
suitable or cooktop guards incorporated in the appliance. The use of inappropriate
guards can cause accidents.
This appliance incorporates an earth connection for functional purposes only.
Congratulations on the purchase of your new Induction cooktop. We recommend that
you spend some time to read this Instruction / Installation Manual in order to fully
understand how to install correctly and operate it. For installation, please read the
installation section.
Read all the safety instructions carefully before use and keep this Instruction / Installation
Manual for future reference.

5
Ⅱ. Product Overview

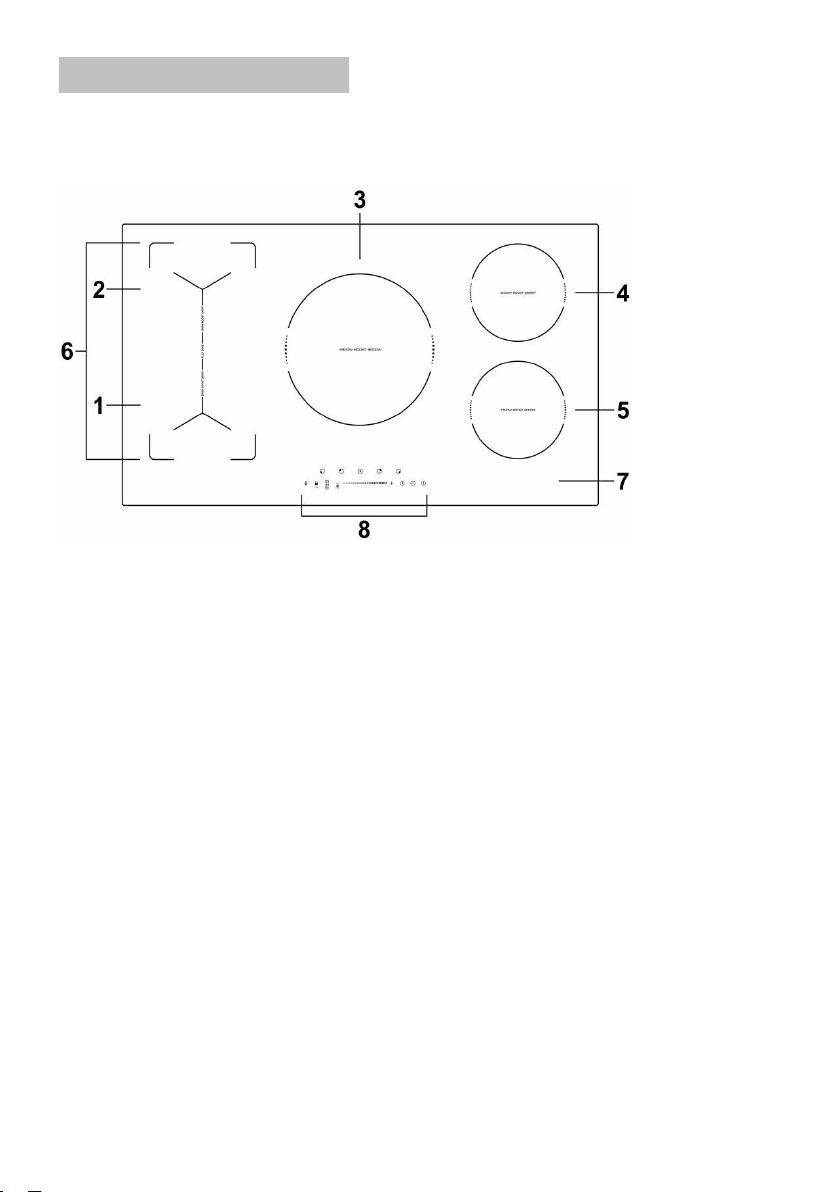

1.Top View
1.2000 W zone, boost to 2600W
2.1500 W zone, boost to 2000W
3.2300 W zone, boost to 3000W
4.2000 W zone, boost to 2600W
5.1500 W zone, boost to 2000W
6. Flex Zone, 2500W boost 2800W
7. Glass plate
8. Control panel

6
2.Control Panel
1. Heating zone selection controls
2. Timer control
3. Power/Timer regulating key
4. keylock control
5. ON/OFF control
6. Boost function control
7. Flex Zone control/BBQ function control
8. Pause function control
9. Keep warm function control

7

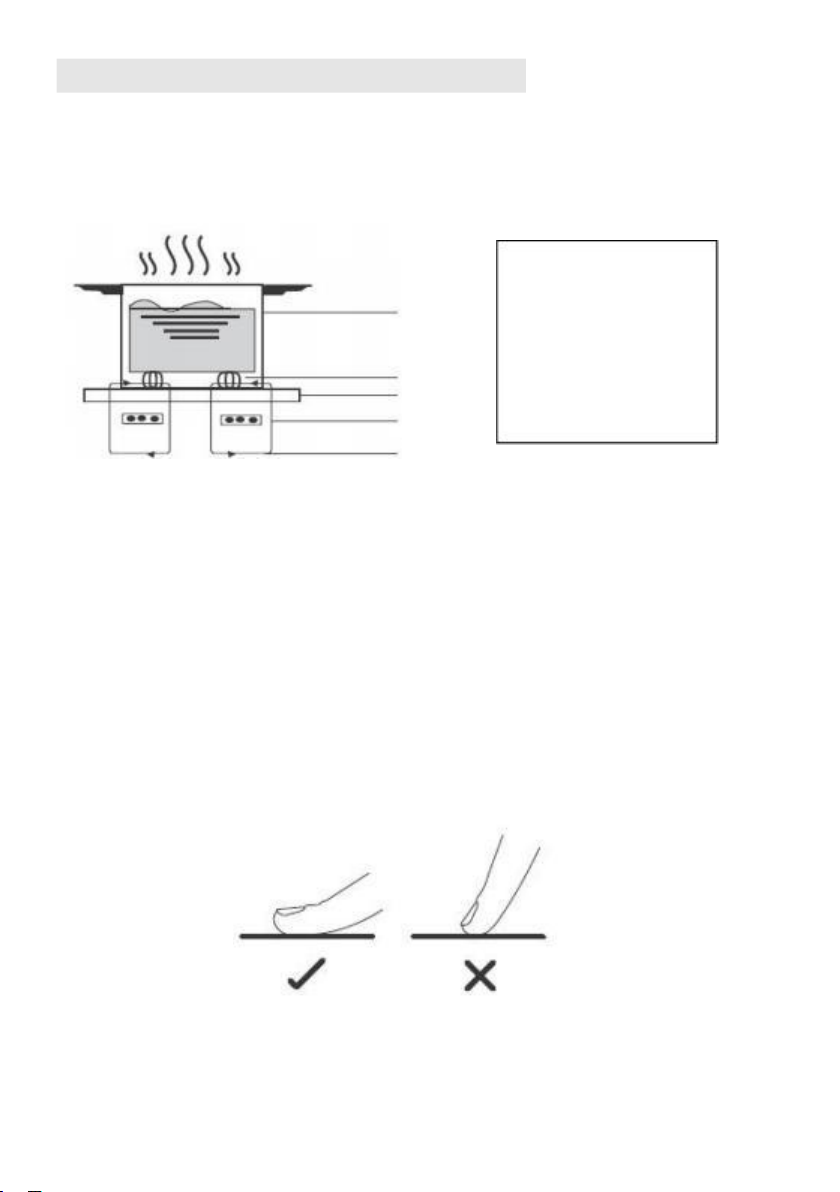

A Word on Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking technology. It
works by electromagnetic vibrations generating heat directly in the pan, rather than
indirectly through heating the glass surface. The glass becomes hot only because the pan
eventually warms it up.
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
Before using your New Induction cooktop
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your Induction cooktop.
Using the Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a
cloth) covering them. Even a thin film of water may make the controls difficult to
operate.

8
Ⅲ. Choosing the right Cookware

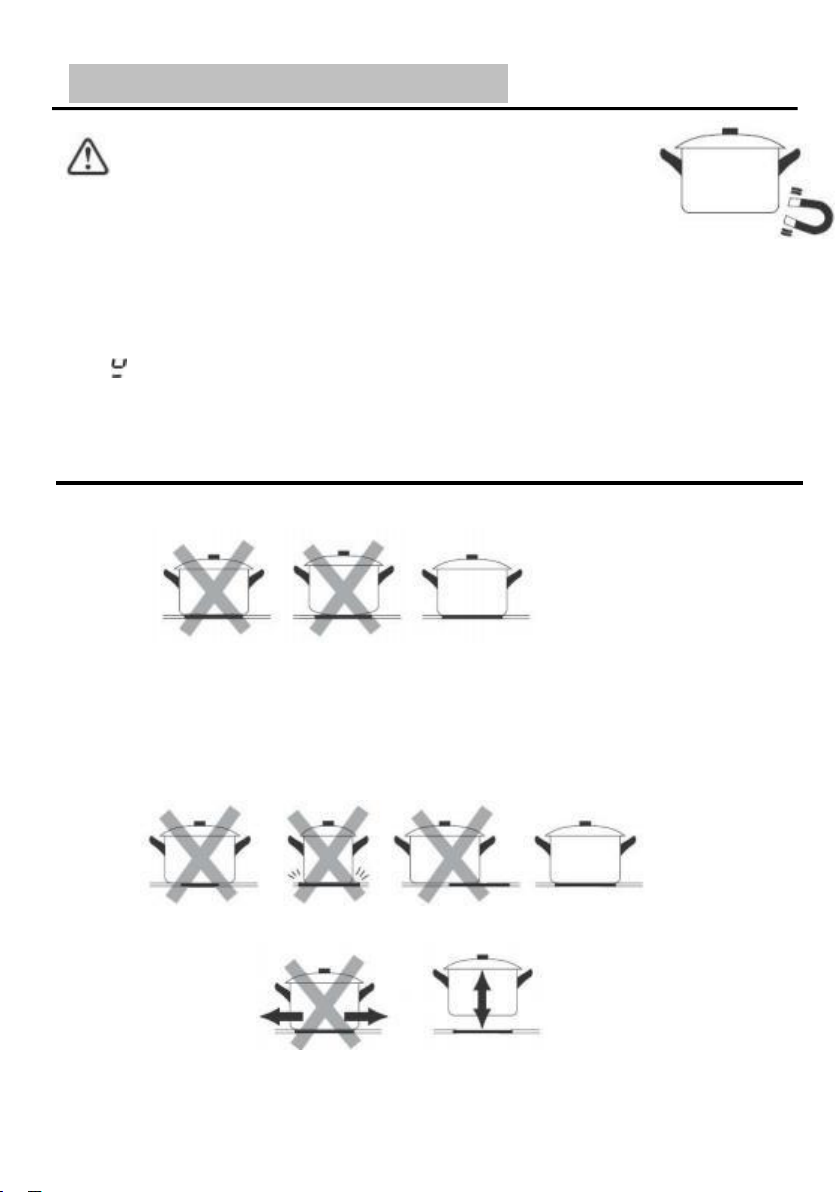

•Only use cookware with a base suitable for induction
cooking. Look for the induction symbol on the
packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out
a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is
suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check .
2. If does not flash in the display and the water is heating, the pan is suitable .
• Cookware made from the following materials is not suitable: pure stainless steel,
aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and
earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same
size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone
selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you
use smaller pot efficiency could be less than expected. Always centre your pan on the
cooking zone.
Always lift pans off the Induction cooktop – do not slide, or they may scratch the glass.

9
Pan dimensions
The cooking zones are up to a limit, automatically adapted to the diameter of the pan.
However the bottom of this pan must have a minimum of diameter according to the
corresponding cooking zone. To obtain the best efficiency of your cooktop, please
place the pan in the centre of the cooking zone.
The base diameter of induction cookware
The above may vary according to the quality of the pan used.
Ⅳ. Using Instruction
Using the Cooktop

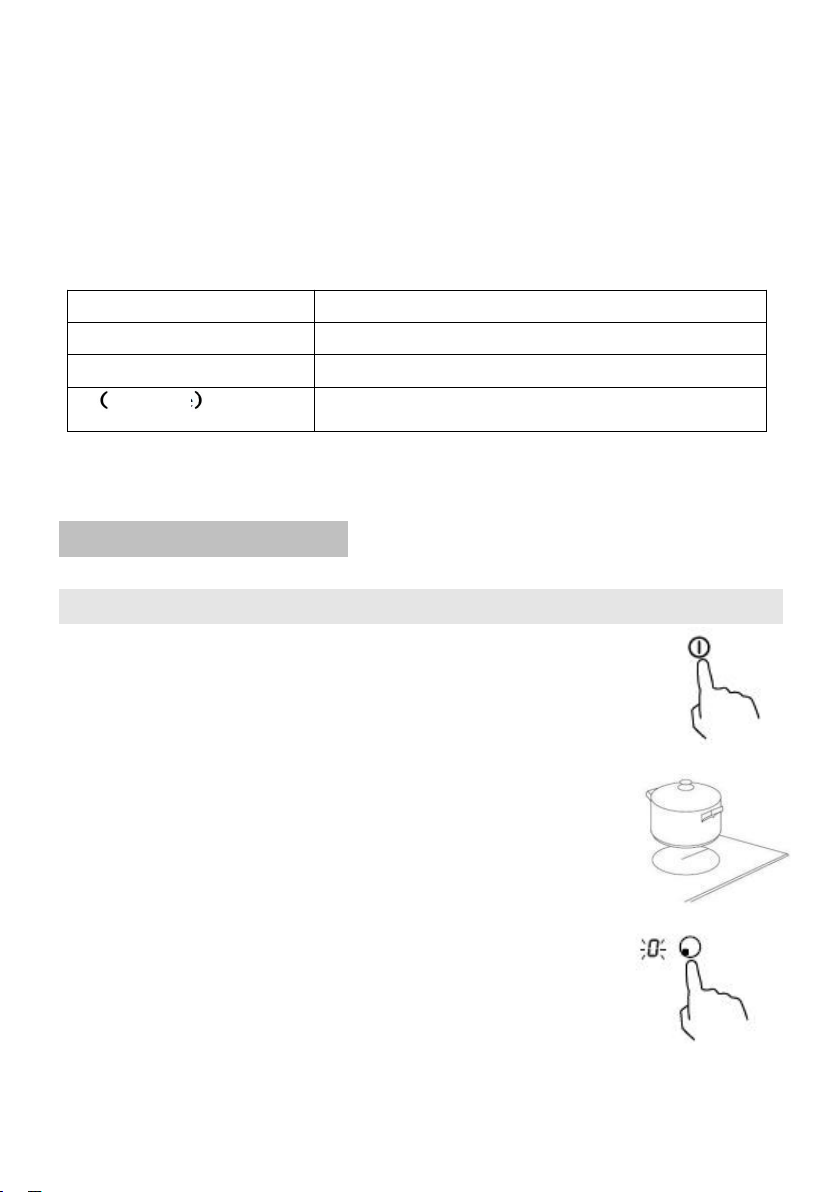

1.To start cooking
①Touch the ON/OFF control.
After power on, the buzzer beeps once, all displays show “ – “ or “ – –
“, indicating that the induction cooktop has entered the state of standby mode.
②Place a suitable pan on the cooking zone that you wish to use.
• Make sure the bottom of the pan and the surface of the cooking zone
are clean and dry.
③Touching the heating zone selection control, and
a indicator next to the key will flash.

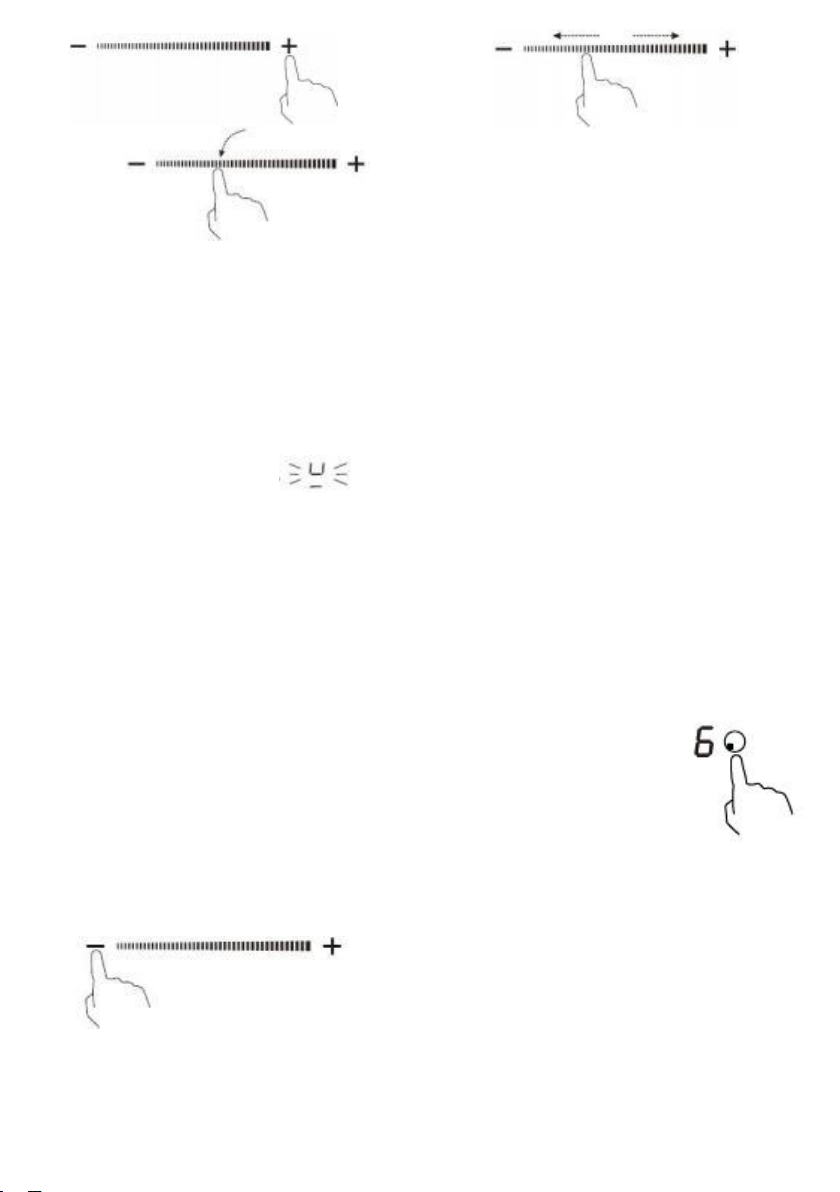

④Set a power level by touching the “-”, “+”, or slide along the “—
”control, or just touch any point of the “—”.
Cooking zone
Minimum (mm/in)
1,2,4,5 (180mm/7.08in)
120mm/4.72in
3 (280mm/11.02in)
180mm/7.08in
6 Flex Zone
160mm/6.3in*270mm / 10.63in Or 240mm/9.45in

10
Or
Or
a. If you don’t select a heat zone within 1 minute, the induction cooktop will
automatically switch off. You will need to start again at step 1.
b. You can modify the heat setting at any time during cooking.
c. If slide along the “—”, power will vary from stage 2 to stage 8. Press “-”, power
will decrease by one stage each time till stage 0. Press “+”, power will increase by
one stage each time till stage 9.
2. If the display flashes
alternately with the heat setting
This means that:
• you have not placed a pan on the correct cooking zone or,
• the pan you’re using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minutes if no suitable pan is placed on it.
3. When you have finished cooking

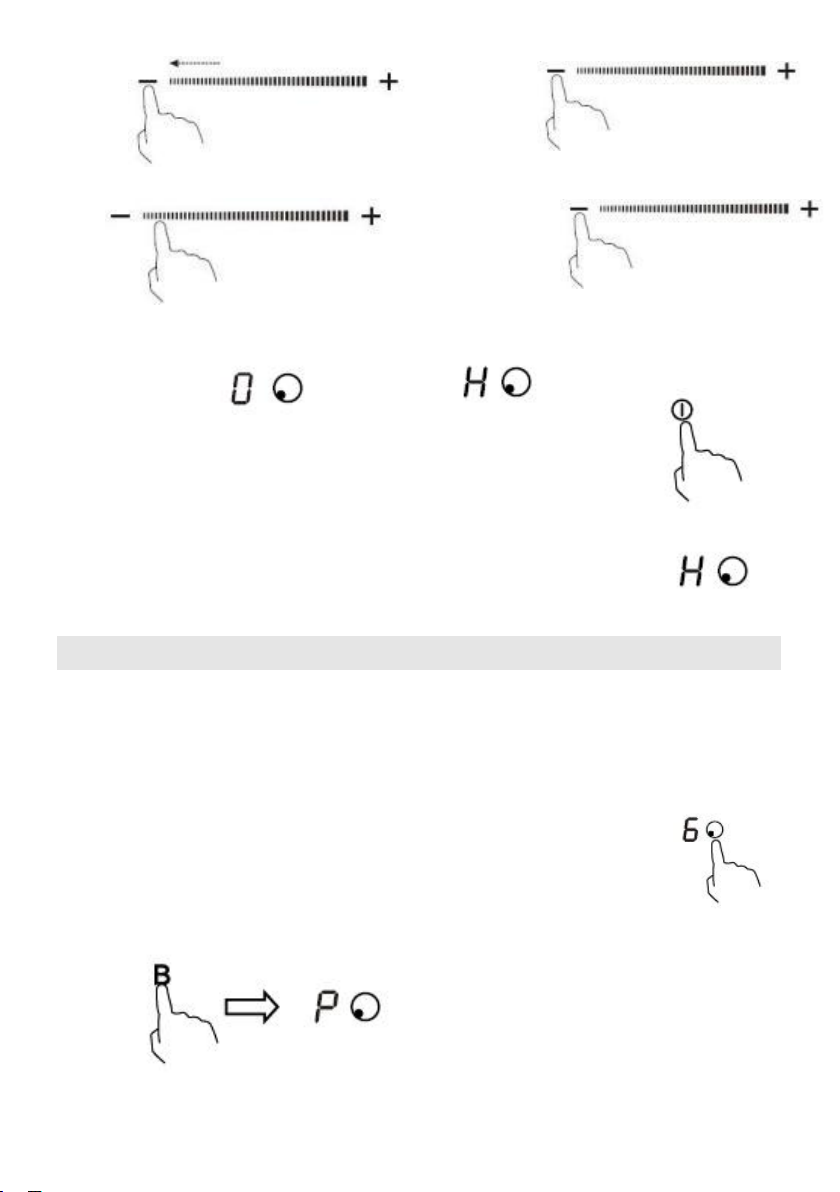

①Touching the heating zone selection control that you wish to switch off.
②Turn the cooking zone off by touching the “-”and scrolling down to “0”. Or slide along
the “—” to the left point, and then touch the “-”.
Or touch the left point of “—”, and then touching the “-”.

11
Or and then
Or and then
Make sure the power display shows “0”, then shows “H”.
and then
③Turn the whole cooktop off by touching the ON/OFF control.
④Beware of hot surfaces ‘H’ will show which cooking zone is hot to
touch. It will disappear when the surface has cooled down to a safe
temperature. It can also be used as an energy saving function if you
want to heat further pans, use the hotplate that is still hot.
Using the Boost
Boost is the function that one zone rising to a larger power in one second and lasting for 5
minutes. Thus you can get a more powerful and faster cooking.
1.Using the Boost to get larger power
①Touch the heating zone selection button that you wish to
boost, an indicator next to the key will flash.
②Touch the Boost button, the heating zone will begin to work at Boost
mode. The power display will show “P” to indicate that the zone is boosting.
③The Boost power will last for 5 minutes and then the zone will go back to the

12
power stage which was set before boost.
④If you want to cancel the Boost during this 5 minutes, touch the heating zone selection
button, an indicator next to the key will flash. And then touch the Boost button. The
heating zone will go back to the power stage which was set before boost.
2.Restrictions when using
In this cooktop every zone can work with Boost function. The five zones were divided into
two groups.

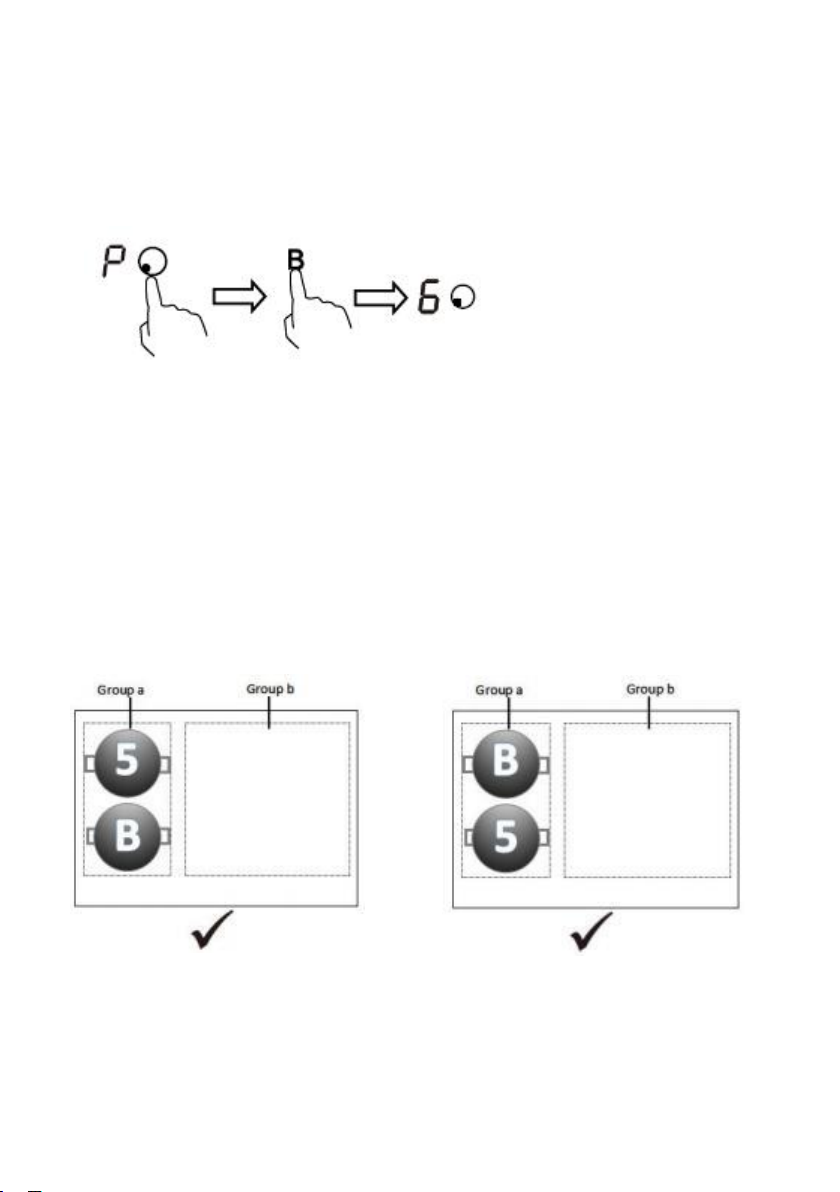

2 . 1 In group a, if use boost on one zone, first make sure that the other zone is working
on/below power level 5. When you select one zone and press ‘boost’ button, if the other
zone is working above power level 5, the “P” and “9” symbols will flash on the display of
the selected zone and power level will be automatically set as 9.
In group a ,both zones can be operated with full power as their total power is 3500W.

13
2.2 In group b, if you want to use boost function , you can only use two zone at the same time.
2.2.1 If you want to use the middle zone’s boost function, only one of the zone on the right
side can be used at the same time. First make sure the selected zone of the right zone set
power level “4” or less, then set the middle zone boost. If the selected zone on the right
side was set higher than “4”, the “P” and “9” symbols will flash on the display of the
middle zone and power level will be automatically set as 9.
If you change the power level of the right selected zone while the middle zone working as
boost, the boost function will quit automatically.
2.2.2 If you want to use the boost function on group b ‘s right one zone , only one of the zone
on the group b can be used at the same time. You need to decrease the power level of the
other zone to ”5 “ or less first, otherwise “P”and “9” symbols will flash on the display of the
selected zone and power level will be automatically set as 9.

14

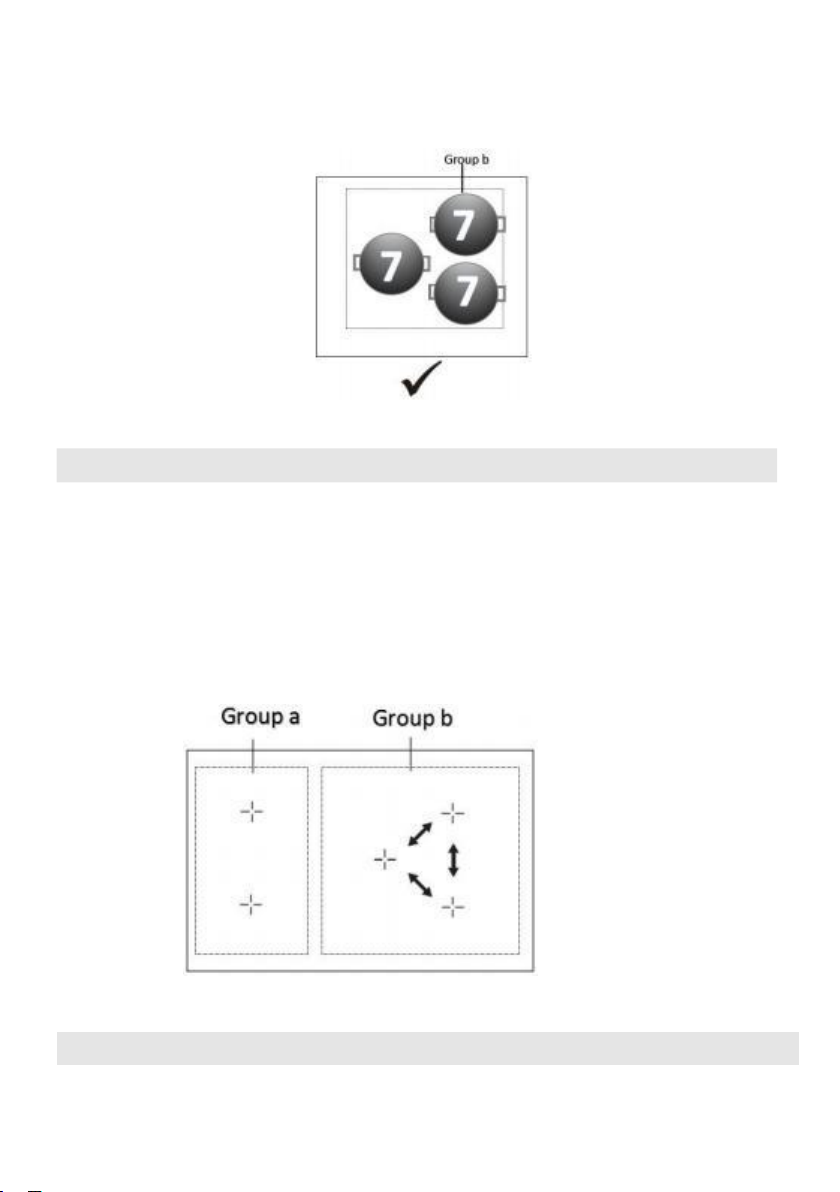

2.3 In group b, you can use three zones at the same time if you don’t active the boost,
but the max power level collocation is 7-level, 7-level, 7-level.
Power management function
• Cooking zones are grouped according to the two phases in the cooktop (see illustration).
Each phase has a maximum electricity loading of 3500 W. The function divides the power
between cooking zones connected to the same phase.
• Only Group b has this function. The function will activate when the total electricity
loading of the cooking zones exceeds 3600 W.
• The function decreases the power to the other cooking zones.
Using the Keep warm
Keep warm function is suitable for keeping food warm.

15
1.Using the Keep warm to get stable temperature
①Touch the heating zone selection button that you wish to use keep
warm,an indicator next to the key will flash.
②Touch the keep warm button “-” and hold for 3 seconds , the cooking zone indicator
will display “A”.
③To cancel the keep warm function ,by touch the heating zone button ,and then touch
keep warm button “-” and hold for 3 seconds .The heating zone will go back to “0” power
stage.
Using the Pause function - STOP+GO
Pause function can be used at any time during cooking. It allows to stop the induction
cooktop and come back to it.
①Make sure the cook zone is working. Choose the cooking zone.
②Touch the button the cooking zone indicator will show “ll”. And then the
operation of the induction cooktop will be deactivate within the scope of all cooking zones,
except the STOP+GO, ON/OFF and lock keys.

16
③To cancel the pause status, touch the button , then the cooking zone will go back to
the power stage which you set before.
Flex zone
• This area can be used as a single zone or as two different zones, accordingly to the
cooking needs anytime.
• Flexible area is made of two independent inductors that can be controlled separately.
When working as a single zone, a cookware is moved from one zone to the other one within
the flexible area keeping the same power level of the zone where the cookware originally
was placed, and the part that is not covered by cookware will not heat.
• Important: Make sure to place the cookwares centered on the single cooking zone. In
case of big pot, oval, rectangular and elongated pans make sure to place the pans centered
on the cooking zone covering both cross.
Examples for good and bad pot placements:

17
1.As big zone

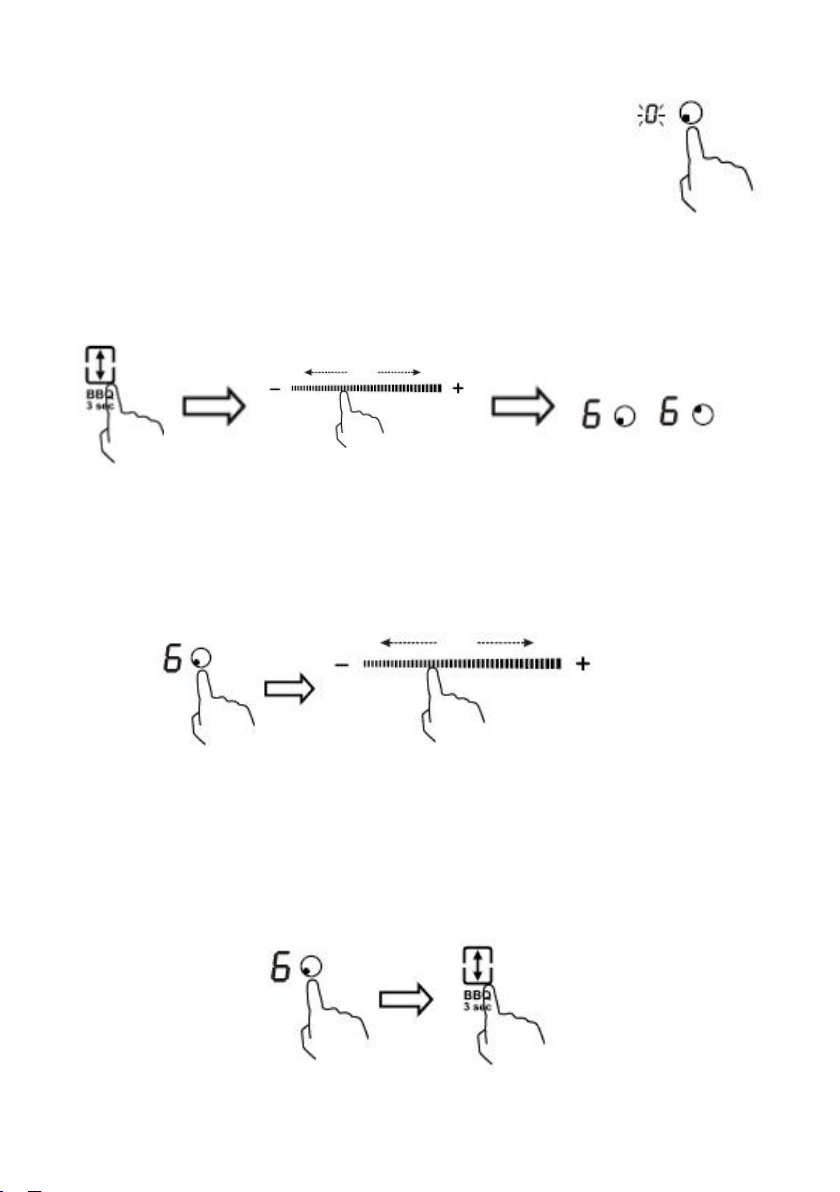

①Touch the heating zone selection button that you hope to go into
flex zone cooking, an indicator next to the key will flash.
②Touch the flex Zone selection button, to activate the flexible area as a single big zone,
the power level indicators of the front zone and the rear zone will indicate the same power
level and the led indicator next to the flex zone button will light up .
③If you want to reset the power levels of the Flex zone, touch one of the heating zone
selection button, an indicator next to the key will flash, then you can touch the “+”,”-” or
slide along the “—”control, or just touch any point of the “—” to adjust the power level.
2.As two independent zones
①If you want to cancel the flex zone , touch one of the buttons of the two heating zone
selection, and then touch the button of the flex zone , the led indicator next to the flex
zone button will disappear.

18
Using the Barbecue function
BBQ is the function that used at the flex zone mode which will allow the pan surface
temperature stay at a reasonable level.

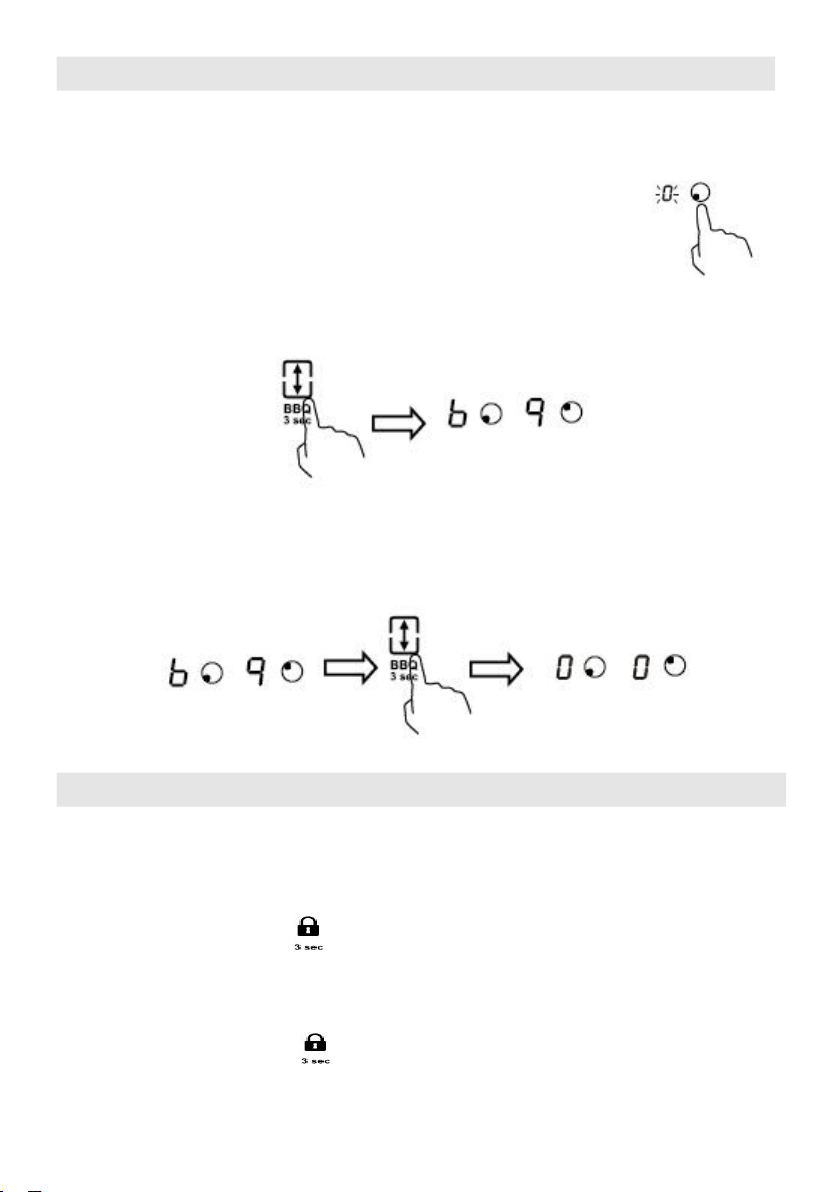

1.Touch the heating zone selection button that you wish to use BBQ ,
an indicator next to the key will flash.
2. Touch the flex zone button and hold for 3 seconds, the cooktop will go into the BBQ
mode and show ‘b’, ‘q’.
3.If you want to cancel the barbecue function,touch the heating zone selection button,and
then touch the flex zone control, then the zone will return to power level “0” , you can
reset the power now.
Locking the Controls
• You can lock the controls to prevent unintended use (for example children accidentally
turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.
1.To lock the controls
Touch and hold the keylock control for 3 second . The timer indicator will show “ Lo
“.
2.To unlock the controls
①Make sure the Induction cooktop is turned on.
②Touch and hold the keylock control for 3 second.
③You can now start using your Induction cooktop.
