Wells WV-2HFG User manual

WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: [phone]
fax: [phone]
www.wellsbloomfield.com
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
508
p/n 2M-304456 Rev. E M508 130125

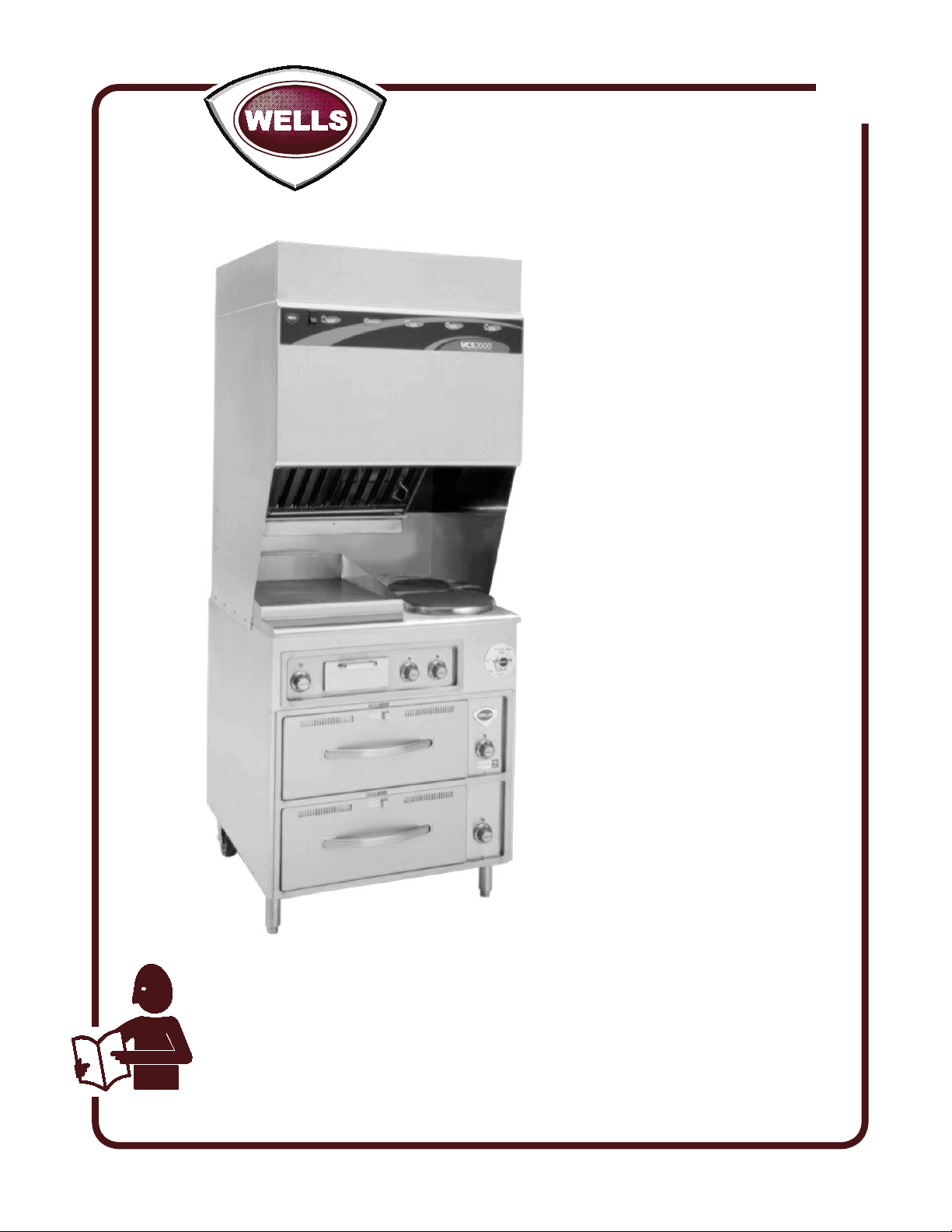

OWNERS MANUAL
WV2HG SERIES
GRIDDLE / HOTPLATE
COOKTOP
with
UNIVERSAL HOOD
MODELS:
WV2HFG
WV2HFGRW
WV2HFGRWT
WV2HSG
WV2HSGRW
WV2HSGRWT
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
WV-2HGRW

M508 p/n 2M-304456 Owners Manual WV-2HG
Unless otherwise specied, all commercial cooking
equipment manufactured by WELLS BLOOMFIELD, LLC is
warranted against defects in materials and workmanship
for a period of one year from the date of original installation
or 18 months from the date of shipment from our factory,
whichever comes rst, and is for the benet of the original
purchaser only.
THIS WARRANTY IS THE COMPLETE AND ONLY
WARRANTY, EXPRESSED OR IMPLIED IN LAW
OR IN FACT, INCLUDING BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE, AND/OR FOR
DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH WELLS BLOOMFIELD PRODUCTS.
This warranty is void if it is determined that, upon inspection
by an authorized service agency, the equipment has been
modied, misused, misapplied, improperly installed, or
damaged in transit or by re, ood or act of God. It also
does not apply if the serial nameplate has been removed,
or if service is performed by unauthorized personnel.
The prices charged by Wells Bloomeld for its products
are based upon the limitations in this warranty. Seller’s
obligation under this warranty is limited to the repair of
defects without charge by a Wells Bloomeld factory
authorized service agency or one of its sub-service
agencies. This service will be provided on customer’s
premises for non-portable models. Portable models (a
device with a cord and plug) must be taken or shipped
to the closest authorized service agency, transportation
charges prepaid, for service. In addition to restrictions
contained in this warranty, specic limitations are shown in
the Service Policy and Procedure Guide. Wells Bloomeld
authorized service agencies are located in principal cities.
This warranty is valid in the United States and Canada and
void elsewhere. Please consult your classied telephone
directory, your foodservice equipment dealer or contact:
Wells Bloomeld, LLC
10 Sunnen Dr., St. Louis MO 63143 USA
phone [phone] or fax [phone]
for information and other details concerning warranty.
LIMITED WARRANTY STATEMENT
SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS
NOTE: For your protection, please note that equipment
in this shipment was carefully inspected and packaged
by skilled personnel before leaving the factory. Upon
acceptance of this shipment, the transportation company
assumes full responsibility for its safe delivery.
IF SHIPMENTARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is
signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and
le “CONCEALED DAMAGE” claim with them. This
should be done within fteen (15) days from the date
the delivery was made to you. Be sure to retain the
container for inspection.
Wells Bloomeld cannot assume liability for damage or loss
incurred in transit. We will, however, at your request, supply
you with the necessary documents to support your claim.
SHIPPING DAMAGE CLAIM PROCEDURE
xi
1. Resetting of safety thermostats, circuit breakers, over
load protectors, and/or fuse replacements are not
covered by this warranty unless warranted conditions
are the cause.
2. All problems due to operation at voltages or phase
other than specied on equipment nameplates are not
covered by this warranty.
Conversion to correct voltage and/or phase must be
the customer’s responsibility.
3. All problems due to electrical connections not made
in accordance with electrical code requirements and
wiring diagrams supplied with the equipment are not
covered by this warranty.
4. Replacement of items subject to normal wear, to
include such items as knobs, light bulbs; and, normal
maintenance functions including adjustments of
thermostats, adjustment of micro switches and
replacement of fuses and indicating lights are not
covered by warranty.
5. Damage to electrical cords and/or plug due to exposure
to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied
with each machine. Noted maintenance and
preventative maintenance items, such as servicing
and cleaning schedules, are customer responsibility.
Those miscellaneous adjustments noted are
customerresponsibility. Proper attention to preventative
maintenance and scheduled maintenance procedures
will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an
Authorized Service Agency or one of its sub-service
agencies.
8. All labor shall be performed during regular working
hours. Overtime premium will be charged to the buyer.
9. All genuine Wells replacement parts are warranted
for ninety (90) days from date of purchase on non-
warranty equipment. This parts warranty is limited only
to replacement of the defective part(s). Any use of non-
genuine Wells parts completely voids any warranty.
10. Installation, labor, and job check-outs are not
considered warranty and are thus not covered by this
warranty.
11. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technician’s ability
to perform service are not covered by warranty. This
includes institutional and correctional facilities.

M508 p/n 2M-304456 Owners Manual WV-2HG
WARRANTY..................................... xi
SPECIFICATIONS .................................1
FEATURES & OPERATING CONTROLS ...............2
PRECAUTIONS & GENERAL INFORMATION ...........6
AGENCY LISTING INFORMATION . . . . . . . . . . . . . . . . . . . .8
INSTALLATION ...................................9
OPERATION ....................................14
CLEANING INSTRUCTIONS .......................18
MAINTENANCE INSTRUCTIONS ....................22
TROUBLESHOOTING SUGGESTIONS . . . . . . . . . . . . . . . 23
MAINTENANCE SCHEDULES . . . . . . . . . . . . . . . . . . . . . . 24
MSDS (Ansulex Low pH) ...........................27
ANSUL® COMPONENTS ..........................29
EXPLODED VIEW & PARTS LIST....................30
WIRINGDIAGRAM ...............................38
PARTS&SERVICE...............................41
CUSTOMERSERVICEDATA.......................41
Thank You for purchasing this Wells Bloomeld appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure that
it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and care for
the appliance in a manner which will ensure its optimum performance.
TABLE OF CONTENTS
SPECIFICATIONS
INTRODUCTION
1
MODEL ROLL
WARMER VOLTS 50/60 Hz
3ø AMPS 1ø
AMPS WATTS DIMENSIONS / POWER CORD
L1 L2 L3
WV2HFG NO 208V 16 32 23 38 8,000 30-3/8” WIDE
240V 18 35 24 41 9,900 (42-3/8” wide including spacers)
WV2HFGRW YES 208V 21 35 24 43 8,900 79-1/8” HIGH
WV2HFGRWT 240V 23 38 24 46 11,100 35-3/8” DEEP
WV2HSG NO 208V 19 32 26 42 8,675 Power Cord (when provided):
240V 21 35 27 45 10,800 NEMA 15-60P
WV2HSGRW YES 208V 23 35 26 46 9,575
WV2HSGRWT 240V 26 38 27 50 12,000
Minimum clearances required from unit to nearest combustible surface or object
BACK SIDE BOTTOM TOP
inches n/a 6 6 19
millimeters n/a 152 152 483

M508 p/n 2M-304456 Owners Manual WV-2HG
FEATURES & OPERATING CONTROLS
Fig. 1 Ventilator Section Operating Features & Controls
2
IL2602

M508 p/n 2M-304456 Owners Manual WV-2HG
FEATURES & OPERATING CONTROLS (continued)
3
VENTILATOR SECTION
ITEM DESCRIPTION COMMENT
1 NAMEPLATE Gives manufacturer, make and model description. Also lists voltage and amperage
data.
5 APPLIANCE LIGHT ON when hood power switch is ON. Illuminates cooktop.
a6. FIRE SUPPRESSION AGENT
TANK (1.5 gal.) Container for Ansulex™ Low-pH liquid re suppression liquid.
8 ADJUSTABLE (FRONT) LEG Allows the unit to be leveled.
9 RIGID (REAR) CASTER Allows the unit to be easily positioned by lifting the front of the unit slightly.
a10. MANUALPULLSTATION Provides a means of manual activation of the re suppression system. PULL ONLY IN
CASE OF FIRE!
a11. FUSIBLE LINKS Designed to break at rated temperature. Breaking (i.e. re on the cooktop) activates
re suppression system. Should be replaced at least once per year.
12 LOWER REARACCESS PANEL Allows access to Ansul® re suppression agent tank (a6) and controls also access to
main power contactor (41).
a15. DISCHARGE NOZZLE Fire suppression media discharges here (2 places).
16 GREASE BAFFLE Extracts and drains most grease and moisture from the air ow.
18 PRE-FILTERASSEMBLY Comprises the PRE-FILTER FRAME and a replaceable PRE-FILTER. Stops larger
particles of grease from reaching the FILTER PACK for reduced maintenance costs.
19 HI-EFFICIENCY/CHARCOAL
FILTER PACK Stops most grease and smoke particles. Also assists in some cooking odor removal.
22 GREASE DRIPTRAY Collects grease/moisture dripping from grease bafe(16).
28 VENTILATOR EXHAUST DUCT Exit point for ventilator airow - on top left rear of unit. DO NOT BLOCK
a31. STATUS INDICATOR Displays status of re suppression system (COCKED - FIRED) If FIRED, a buzzer
will sound continuously.
38 POWER CORD 6’cord and cap. Plug for NEMA15-60R (receptacle by user).
41 POWER CONTACTOR Energizes cooking appliances only while ventilator section is sensed as operational.
42 BUILDING FIREALARM RELAY Reports re alarm condition to building re management system.
43 GROUND LUG Ground wire of power cord connects here.
44 INTERLOCK TERMINAL Provides connection for shut-down control by building re management system.
53 FILTER INTERLOCK SWITCHES Proper installation of grease bafe and lter pack close these switches in ventilator
sensor circuit.
56 VENTILATOR FAN Provides air movement for ventilation.
57 HOOD SIDE SHIELD Required on left and right sides of hood. Factory installed.
58 SIDE SPACERS Required to maintain 6” spacing from combustibles. Field installed

M508 p/n 2M-304456 Owners Manual WV-2HG
FEATURES & OPERATING CONTROLS (continued)
Fig. 2 Ventilator Section Controls & Indicator Lights
IL2603
VENTILATOR
POWER ON CHECK FILTERS REPLACE PREFILTER REPLACE FILTER PACK SERVICE
REQUIRED
4
Fig. 3 Griddle, Hotplate and Drawer Warmer Sections
IL2604
GRIDDLE
SECTION
COOKTOP
CONTROLS
HOTPLATE
SECTION
OPTIONAL
DRAWER WARMER
SECTION

M508 p/n 2M-304456 Owners Manual WV-2HG
FEATURES & OPERATING CONTROLS (continued)
5
FEATURES & OPERATING CONTROLS (continued)
ITEM DESCRIPTION COMMENT
VENTILATOR SECTION CONTROLS
V.01 POWER SWITCH Energizes blower motor. If, after 10 seconds, proper conditions are met, cooking appliances
are energized.
Appliance light is ON when POWER SWITCH is ON.
V.02 POWER ON INDICATOR GREEN. Glows when POWER switch is ON.
V.03 CHECK FILTERS ALARM INDICATOR AMBER. Glows if one or more lters are out of position. Check all lters and bafes for proper
installation.
V.04* REPLACE PREFILTER ALARM
INDICATOR AMBER. Glows when PREFILTER is approaching the end of its service life and must soon be replaced.
V.05* REPLACE FILTER PACKALARM
INDICATOR AMBER. Glows when FILTER PACK is approaching the end of its service life and must soon be replaced.
V.06* SERVICE REQUIRED ALARM
INDICATOR
RED. Glows when PREFILTER and/or FILTER PACK has reached the end of its service life
and is too loaded to allow sufcient air ow. Filter MUST be replaced. Appliance is SHUT
DOWN until expended lters are replaced.
* See PRECAUTIONS & GENERAL INFORMATION, pages 8 for special procedures regarding prelters and lter packs.
GRIDDLE SECTION
G.01 GRIDDLETEMPERATURE CONTROL Thermostatic control of griddle temperature
G.02 GRIDDLE HEAT INDICATOR Glows when heating elements are energized.
G.03 GREASE DRAWER Collects cooking waste from GRIDDLE. Removable for cleaning.
G.04 COOKING SURFACE Heated portion for cooking food.
G.05 WASTE TROUGH Scrape cooking waste to this area.
G.06 WASTE CHUTE Cooking waste moved into GREASE DRAWER thru this opening.
HOTPLATE SECTION
H.01 TEMPERATURE CONTROLS Individual innite switch control of the hotplate HEATING ELEMENTS
H.02 POWER INDICATOR Glows anytime the TEMPERATURE CONTROLis in any position other than OFF.
H.03 SOLID HEATING ELEMENTS WV2HG heating/cooking portion. Element is xed in position.
H.04 SPIRALHEATING ELEMENT WV2SHG heating/cooking portion. Element lifts out for cleaning.
H.05 TRIM RING Mounts element to cabinet.
H.06 DRIP PAN Catches drippings and crumbs (spiral element only). Removable for cleaning.
OPTIONAL DRAWER WARMER SECTION
W.01 WARMER TEMP CONTROL Innite switch control of temperature of one warmer drawer.
W.02 POWER ON INDICATOR AMBER. Glows when associated temperature control is turned ON.
W.03 THERMOMETER (optional) Reads temperature inside drawer cavity. Must be ordered at time of initial build.
W.04 HUMIDITYCONTROL Slide control of shutters to control air circulation within the warmer drawer.
W.05 DRAWER CATCH Holds drawer closed.
W.06 DRAWER STOP Prevents drawer from opening too far. Spring loaded to permit easy removal of drawer.
W.07 DRAWER ROLLERS Support drawer and allow it to open and close smoothly.
W.08 POWER SWITCH (RWT) Energizes unit (RWT-style only)
W.09 CONTROLLER (RWT) Controls cavity temperature. Readout displays setpoint and actual temperature information. UP ARROW / DOWN ARROW keys allow modication of setpoint temperature. (RWT-style
units only)

M508 p/n 2M-304456 Owners Manual WV-2HG
PRECAUTIONS AND GENERAL INFORMATION
6
NOTE: Fire suppression system and all associated components
must only be serviced by an authorized Ansul® Distributor. All setup,
charging, repair and/or adjustment of the re suppression system must
be performed by an Authorized Ansul® Distributor ONLY.
IMPORTANT: If a remote pull station is installed, both rear casters
(9) must be replaced with legs to deter moving the unit. MOVING AN
APPLIANCE WITH A REMOTE PULL STATION WILL DISCHARGE
THE FIRE SUPPRESSION SYSTEM.
This Ventless Cooking System™ is designed to help reduce odor
emissions, but will not completely eliminate cooking odors. Air
exchange at the installation site must comply with the requirements of
the local jurisdictional authority. To ensure that odors do not build-up,
recommended minimum air exchange is 300 - 400 cfm of outside air
into and out of the area where the unit is used. Recommend use of
wall fan and wall switch, to be supplied by user.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
Any procedure which requires the use of tools must be performed by a
qualied technician.
This appliance is not jet stream approved. Do not direct water jet or
steam jet at this appliance, or at any control panel or wiring.
Do not splash or pour water on, in or over any exposed element,
control, control panel or wiring.
The surface of the griddle is very hot during operation and can cause
severe burns. Avoid contact with the hot griddle surface.
Exposed surfaces of this appliance can be hot to the touch and may
cause burns.
DANGER
FIRE
HAZARD
The FIRE SUPPRESSION
SYSTEM MUST BE
CHARGED AND
CERTIFIED BY
AN AUTHORIZED
ANSUL® DISTRIBUTOR.
NEVER ATTEMPT TO
MODIFY OR BYPASS
THE FIRE SUPPRESSION
SYSTEM.
AN UNCONTROLLED
FIRE CAN CAUSE
SERIOUS INJURY,
DEATH AND/OR
PROPERTY LOSS.
WARNING:
Electric
Shock hazard
All servicing requiring
access to non-insulated
electrical components must
be performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to follow this
warning can result in severe
electrical shock.

M508 p/n 2M-304456 Owners Manual WV-2HG
PRECAUTIONS AND GENERAL INFORMATION (continued)
7
This appliance is intended for use in commercial establishments only.
This appliance is intended to prepare food for human consumption. No
other use is recommended or authorized by the manufacturer or its
agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
DO NOT submerge pre-lter or lter pack in water. Water will destroy
the lters leading to equipment shut-down.
Use only genuine Wells replacement parts and lters,
call [phone] or your authorized Wells service agent. Parts
supplied by others will void your warranty and may not provide safe
operation.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualied technical personnel.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics,
parts breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
CAUTION:
RISK OF
DAMAGE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance will result
if these instructions are not
followed.
CAUTION:
Hot Surface
Exposed surfaces can be hot
to the touch and may cause
burns.

M508 p/n 2M-304456 Owners Manual WV-2HG
AGENCY LISTING INFORMATION
STD 4
E146882
OPERATIONAL NOTES:
REPLACE PREFILTER and REPLACE FILTER PACK indicator lights
provide a timely warning that a system shut-down is imminent.
The actual time between the indicator light coming on and the loss of
cooking appliance power will depend upon the cooking conditions.
Anytime a dirty pre-lter is replaced, the system airow will increase.
If the condition of the FILTER PACK is marginal, the REPLACE FILTER
PACK light could then come on. If this happens, a fresh FILTER PACK
must be installed within a reasonably short time.
Loss of airow through the old lter pack will soon cause a system
shut-down when the airow falls below minimum vapor capture levels.
KEEP SPARE FILTER PACKS ON HAND.
IMPORTANT: If you decide to “get the most” out of the old lter pack,
and continue to use it until a system shut-down happens, it is advisable
to have a fresh lter pack readily at hand, and have someone available
who is capable of replacing it. Otherwise, you may experience an
extended down time, with consequent associated loss of business.
The manufacturer assumes no liability for loss of business due to
a system shutdown caused by a dirty pre-lter and/or lter pack
(i.e. red SERVICE REQUIRED light is on), when the user fails to
have the proper replacement pre-lter and/or lter pack on hand.
The Ventless Cooking System™ hood is designed as part of a WELLS
cooking appliance only. No other use of this product is authorized by
the manufacturer or its agents. Wells Mfg. assumes no liability for the
use of this equipment with products by any other manufacturer’s, or for
use of this equipment with any Wells Manufacturing product other than
in factory certied applications.
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions and
operated and maintained in accordance with the instructions in this
manual.
This appliance is and Listed under UL File E146882.
PRECAUTIONS AND GENERAL INFORMATION (continued)
Fig. 4 Ventilator Warning
Indicators
8
E146882

M508 p/n 2M-304456 Owners Manual WV-2HG
9
INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation.
Refer to SHIPPING DAMAGE
CLAIM PROCEDURE on
the inside front cover of this
manual.
WARNING:
Risk of injury
Installation procedures must
be performed by a qualied
technician with full knowledge
of all applicable electrical
codes. Failure can result in
personal injury and property
damage.
WARNING:
FIRE HAZARD
Avoid storing ammable or
combustible materials near
the appliance.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all protective
plastic lm, packing materials and accessories from the Appliance
before connecting electrical power or otherwise performing any
installation procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the appliance before starting any
installation.
Read and understand all labels and diagrams attached to the
appliance.
Carefully account for all components and accessories before discarding
packing materials. Store these components in or near the appliance
for later use. These items must be installed before operating the
appliance.
1 ea. FIRE SUPPRESSION AGENT (ANSULEX® Low pH, 1.5 GAL.)
See Material Safety Data Sheet, page 28.
1 ea. FIRE SUPPRESSION MEDIATANK
1 ea. FIRE SUPPRESSION TANK CHARGING CARTRIDGE
1 ea. GREASE BAFFLE
1 ea. FILTER PACK ASSEMBLY
1 ea. PRE-FILTER HOLDER with PRE-FILTER
1 ea. GREASE DRIP TRAY
1 ea. GREASE DRAWER ASSY FOR GRIDDLE
2 ea. 6” SIDE SPACERS
1 ea. LITERATURE PACKAGE
Additionally:
2 ea. DRAWER PANS (if unit has optional drawer warmers)
2 ea. HUMITROL RACKS (if ordered with warmer drawers)
SETUP
Setup the appliance only on a rm level surface. Non-combustible
material is recommended.
Refer to the Installation Instruction Sheet for required clearances.
Maintain required clearances between the appliance and adjacent
combustible surfaces. Verify 6” left and right side clearances to
combustible construction. This appliance requires a minimum of 8 ft
(96”) (oor to overhead) to allow for adequate exhaust.
IMPORTANT: Provided 6” side spacers (item 58) must be installed on
the appliance.
Factory installed side shields (item 57) are required.
Verify that the VENTILATOR HOOD ASSEMBLY is properly and
securely assembled to the cooking appliance before beginning the
installation procedure.
If a remote manual pull station is to be installed, replace the rear
casters with legs.
Level the unit after it is in its nal position. Using a spirit level, verify
that the unit is level front-to-back and side-to-side.

M508 p/n 2M-304456 Owners Manual WV-2HG
SERVICE TECHNICIAN INSTALLATION NOTES
An Ansul® technician must charge and arm the re suppression system
before the ventilator blower will operate. See page 11.
Installation and start up must be performed by an Authorized
Installation Company.
Installer must complete the WARRANTY REGISTRATION form, and
record appliance installation particulars on the CUSTOMER SERVICE
DATA form in this manual.
Certain codes require cooking equipment to be restrained with
a RESTRAINT DEVICE. It is the RESPONSIBILITY OF THE
INSTALLER to check with the authority having jurisdiction, in order
to ascertain the applicability of this requirement to this specic
EQUIPMENT installation. Any restraint device must allow access to
the back and sides of the unit to provide for servicing and maintenance,
and must not interfere with the operation of the FIRE SUPPRESSION
SYSTEM.
ELECTRICAL INSTALLATION
1. This appliance must be installed by a licensed electrician in
accordance with all applicable codes and ordinances.
Electrical connection terminal block and ground lug are accessible
by removing the right side panel.
2. Refer to the nameplate on the right side of the appliance. Verify the
ELECTRICAL SERVICE POWER. Voltage and phase must match
the nameplate specications, and available electrical service
amperage must meet or exceed the specications listed on page 1.
Wiring must be no less than 6 AWG solid copper wire, rated for at
least 90ºC.
NOTE: Wire gauge, insulation type and temperature rating , as
well as type, size and construction of conduit, must meet or exceed
applicable specications of local codes and of the National
Electrical Code.
NOTE: This appliance requires a NEMA 15-60R receptacle.
3. This appliance must be connected to a suitable building ground.
The equipment ground connection is marked “ “.
4. The appliance is shipped from the factory wired for 3Ø electrical
service. Refer to the Wiring Diagram included with this appliance,
and verify that eld wiring conforms to this diagram.
IMPORTANT: This appliance is not approved for 1Ø operation.
Conversion of this appliance to single-phase operation will void the
warranty.
IMPORTANT!
Verify that this VENTILATOR
and food cooking equipment
installation is in compliance
with the specications listed
in this manual, with local
code requirements, and in
accordance with N.F.P.A
96 (THE STANDARD FOR
VENTILATION CONTROL
AND FIRE PROTECTION
OF COMMERCIAL
COOKING OPERATIONS
- current edition).
THIS IS THE
RESPONSIBILITY
OF THE INSTALLER.
DANGER
ELECTRIC
SHOCK
HAZARD
ELECTRIC CONNECTIONS
MUST BE MADE BYA
LICENSED ELECTRICIAN
Electrical shock will cause
death or serious injury.
CAUTION:
ELECTRICAL
SHOCK HAZARD
The ground lug of this
appliance must be connected
to a suitable building ground.
NOTE: This appliance
requires a dedicated 60
Amp electrical branch circuit
protection.
IMPORTANT:
Contact a licensed electrician
to install and connect
electrical power to the
appliance.
IMPORTANT:
Damage due to being
connected to the wrong
voltage or phase is NOT
covered by warranty.
INSTALLATION (continued)
10

M508 p/n 2M-304456 Owners Manual WV-2HG
INSTALLATION (continued)
11
FIRE SUPPRESSION SYSTEM INSTALLATION
1. Any REMOTE MANUAL PULL STATION must be installed by an
authorized ANSUL® distributor in accordance with the Authority
Having Jurisdiction.
NOTE: If a REMOTE MANUAL PULL STATION is installed, moving
the unit for servicing will cause the Ansul® system to discharge. In this
case, the unit must only be installed with four xed legs (i.e. remove
rear casters and replace with legs). Additional legs may be ordered
through an Authorized Wells ServiceAgency. See page 29.
2. The FIRE SUPPRESSION SYSTEM is comprised of a
pressurized cartridge & container of liquid re suppressant, with
associated plumbing and controls. It utilizes factory installed
FUSIBLE LINKS for
automatic actuation,
and a factory installed
MANUAL PULL STATION
for manual actuation.
Two NOZZLES are used
to disperse the liquid re
suppression media.
3. When the re
suppression system
activates, the re suppression
media is discharged, both
the cooking appliance
and the ventilator are de-
energized, and a buzzer will
sound continuously.
The re suppression media
will form an emulsion
designed to both smother
and cool the re.
Call your Authorized Ansul®
Distributor immediately for service.
NOTE: See page 24 for the Material Safety Data Sheet for the re
suppression agent.
4. The MANUAL PULL STATION and any similar REMOTE MANUAL
PULL STATION will activate the re suppression system when the ring
on the pull station is pulled horizontally.
DANGER
FIRE
HAZARD
The FIRE SUPPRESSION
SYSTEM MUST BE
CHARGED AND CERTIFIED
BY AN AUTHORIZED
ANSUL® DISTRIBUTOR.
NEVER ATTEMPT TO
MODIFY OR BYPASS
THE FIRE SUPPRESSION
SYSTEM.
AN UNCONTROLLED FIRE
CAN CAUSE SERIOUS
INJURY, DEATH AND/OR
PROPERTY LOSS.
IMPORTANT: The FIRE
SUPPRESSION SYSTEM
must be set-up and charged
by an authorized Ansul®
distributor before the
ventilator blower will operate.
NOTE: If the re
suppression system is
discharged, a buzzer will
sound continuously and
the cooking appliance will
remain inoperable until the
re suppression system
is serviced. Recharging
and resetting must be
performed by an authorized
Ansul® distributor ONLY.
Charging of the Ansul Fire
Suppression system must be
in accordance with Ansul®
Design, Installation, Recharge
and Maintenance Manual.
(Ansul® #418087-05)
Fig. 5 Fire Suppression System

M508 p/n 2M-304456 Owners Manual WV-2HG
FILTERS INSTALLATION
1. FILTER PACK: Ships installed in the hood. If the lter pack is not in
position, the CHECK FILTERS indicator will light.
If the FILTER PACK becomes clogged, the REPLACE FILTER PACK
indicator will glow.
To install the FILTER PACK: Position the lter pack with the
charcoal portion UP. Slide the lter pack toward the rear of the unit
until it contacts the guides on the back panel. Push the lter pack UP
into the upper opening until it rests rmly against the lter pack seal.
When up in position, holder clips can be snapped over wall ledge on
each side. To remove FILTER PACK: Grasp both holder clips and pull
inward until the clips clear the sidewall ledge. Then, pull the lter pack
down and out.
2. PRE-FILTER: The PRE-FILTER ships in the FILTER FRAME. If the
PRE-lter is not in position, or if the PRE-FILTER is not in the FILTER
FRAME, the CHECK FILTERS indicator will light. If the PRE-FILTER
becomes clogged, the REPLACE PRE-FILTER indicator will glow.
To install the PRE-FILTER: Pay attention to the air ow markings. The
AIR FLOW arrow will point away from the installer. Slide the assembly
up into the front opening, behind the upper lter rail. While pressing
slightly against the bottom of the assembly, pull the FILTER HANDLE
toward you so as to engage the FILTER HOOK over the lip of the top
lter rail. Then lower and seat the assembly into the top indentation of
the lower lter rail.
3. GREASE BAFFLE: If the GREASE BAFFLE is not in place, the
CHECK FILTERS indicator will glow.
To install the GREASE BAFFLE: Slide the grease bafe up into the
indentation of the upper lter rail, then lower and seat it into the bottom
indentation of the lower lter rail. Pull toward you and downward to
verify the GREASE BAFFLE is properly seated in the lower frame rail.
NOTE:
The GREASE BAFFLE
and FILTER PACK activate
mechanical switches, and
the PRE-FILTER activates a
vacuum switch, to verify that
the lter elements are in their
proper positions. All lter
elements must be properly
installed or the cooking
appliances will not be
energized. Also, the CHECK
FILTERS indicator will light.
IMPORTANT:
The lter hook prevents the
pre-lter from being drawn
in during operation. After
installation, press against the
top of the lter frame to verify
proper engagement of the
lter hook over the lip of the
top lter rail.
Use only genuine Wells
replacement parts and lters,
call [phone] or your
authorized Wells service
agent. Parts supplied by
others will void your warranty
and may not provide safe
operation.
INSTALLATION (continued)
FILTER PACK
POSITION
SWITCH
FILTER PACK
SEAL
FILTER PACK
PRE-FILTER
ASSEMBLY
HOLDER CLIP
GREASE BAFFLE
POSITION
SWITCH
GREASE
BAFFLE
GREASE
DRIP TRAY
PRE-FILTER
NOTE: AIR FLOW ARROW
POINTS AWAY FROM
INSTALLER WHEN
PROPERLY INSTALLED
FILTER
HANDLE
FILTER
FRAME
NOTE: PRE-FILTER IS SENSED
AS BEING IN POSITION BY THE
PRESSURE DROPACROSS IT.
IL2605
Fig. 6 Filter Installation
12

M508 p/n 2M-304456 Owners Manual WV-2HG
INSTALLATION (continued)
13
CAUTION:
Burn Hazard
DO NOT OPERATE UNLESS
THE GREASE DRIP TRAY
IS INSTALLED.
Moisture will drip into the
hot cooking surface causing
splattering of hot liquids.
Serious injury can result from
contact with hot splatter.
GREASE DRIP TRAY INSTALLATION
1. Install the GREASE DRIP TRAY on the hanger brackets, directly
below the grease bafe.
ROLL WARMER DRAWER INSTALLATION
1. Be sure roller catches (inside warmer cavity) are in the open position.
Install drawer assemblies in drawer slides.
2. Place appropriate one drawer insert pan into each warmer drawer.
If used, place one Humitrol rack into each drawer pan.
Fig. 7 Roll Warmer Drawer Pan Installation
HUMITROL
RACK
DRAWER
INSERT PAN
AIR VENT
CONTROL
DRAWER
STOP
DRAWER
ROLLER
ROLLER
CATCH
DRAWER
CATCH DRAWER
ASSEMBLY
(shown from back)
DRAWER
SLIDE
IL2607

M508 p/n 2M-304456 Owners Manual WV-2HG
OPERATION
CAUTION:
Hot Surface
Exposed surfaces can be hot
to the touch and may cause
burns.
VENTILATOR OPERATION
1. Press the VENTILATOR POWER switch to ON. The green
VENTILATOR POWER light will glow and the blower fan will start.
After a short time, if all lters are sensed as being in position and not
clogged, the cooking appliance will be energized.
During normal operation, the VENTILATOR POWER light will be the
only light glowing on the upper control panel.
2. If the amber CHECK FILTER light glows, one or more lter
elements is out of position. Check the GREASE BAFFLE,
PRE-FILTER and FILTER PACK for proper installation in their
respective positions. Grease bafe and lter pack position are
sensed by mechanical switches. Pre-lter position is sensed by a
vacuum switch.
3. When the amber REPLACE PRE-FILTER light glows, the pre-lter
is nearing the end of its service life. Replace the disposable
PRE-FILTER ELEMENT.
4. When the amber REPLACE FILTER PACK light illuminates, the
HEPA / Charcoal lter pack is nearing the end of its service life.
Replace the lter pack.
Note: The REPLACE PRE-FILTER and REPLACE FILTER PACK
lights are a warning that the indicated lter is near the end of its
service life. The appliance will continue to operate for a period of
time after the light glows to allow continued operation through a
peak period. However, the indicated lters must be replaced within
a reasonably short time period or they will clog and shut down
electrical power to the cooking appliance . The ventilator blower
will continue to run.
5. When the red SERVICE REQUIRED light glows, either the pre-lter
or lter pack (or both) is clogged and can no longer pass sufcient
air to allow further operation. The ventilator fan continues to run, but
the cooking appliance is shut down until the underlying clogged lter
situation has been corrected. This can occur when neither CHANGE...
FILTER indicator light is lit, if both pre-lter and lter pack are marginal.
Replacing both the pre-lter and the lter pack will remedy the
situation.
Note: Replacing the pre-lter, even though not very dirty, will often
extend the service life of the more expensive lter pack.
Reset the unit by turning the VENTILATOR POWER switch to OFF,
then back ON.
6. A failure of incoming electrical power will cause a shut down of the
unit. After power is restored, reset the unit by turning the
VENTILATOR POWER switch to OFF, then back ON.
NOTE: Griddle and fryer will not operate unless the re suppression
system is charged, and the ventilator section is operating .
Fig. 8 Ventilator Indicator
and Warning Lights
14

M508 p/n 2M-304456 Owners Manual WV-2HG
OPERATION (continued)
15
GRIDDLE OPERATION
PREPARING THE GRIDDLE SURFACE
1. SEASONING STANDARD GRIDDLES
As manufactured, the steel surface of your Wells griddle has
microscopic pores. It is important to ll these pores with oil in order
to provide a hard, non-stick cooking surface.
a. Preheat the griddle surface to 375ºF (191ºC).
b. Spread a light lm of cooking oil over the entire griddle surface
c. Allow the oil lm to cook in for approximately 2 minutes, or until
it smokes.
d. Wipe the griddle surface with a clean damp cloth until all oil is
removed.
e. For new griddles, repeat this procedure 2-3 times until the
griddle has a slick, clean surface.
2. CHROME PLATED GRIDDLES
Because the microscopic pores in the griddle surface are lled by
the chrome plating, no seasoning of the griddle surface is required.
a. Thoroughly clean the griddle surface using a soft clean cloth
and a small amount of mild detergent.
b. Rinse and dry thoroughly after cleaning.
c. The griddle is now ready to use.
USING THE GRIDDLE
1. Turn the temperature control knob to the desired temperature.
The indicator light will glow while the griddle is heating. When the
indicator light rst goes out, the griddle is ready to use.
2. For standard griddles, keep the griddle surface clean and well oiled
during use. Scrape cooking waste into the grease tray frequently
during use. Occasionally brush or spray a light coat of cooking oil
on the griddle surface in order to maintain the non-stick surface.
3. For chrome plated griddles, scrape cooking waste into the grease
tray after preparing each order.
DO NOT bang or tap pots, pans, spatulas or other metal utensils on
the griddle surface as this may damage the chrome plating.
CAUTION:
Hot Surface
Exposed surfaces can be hot
to the touch and may cause
burns.
NOTE:
Standard griddles must be
seasoned after every cleaning.
IMPORTANT:
FOR CHROMED GRIDDLES,
SCRATCHES WILL DAMAGE
THE GRIDDLE SURFACE!
DO NOT use anything on this
griddle that could scratch the
surface.
DO NOT clean chrome surface
with griddle bricks, pumice
stone or abrasive cleansers.
DO NOT bang or tap pots,
pans, spatulas or other metal
utensils on the griddle surface
as this may damage the
chrome plating.

M508 p/n 2M-304456 Owners Manual WV-2HG
16
OPERATION (continued)
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
NOTE:
The chart below is intended
as a guide ONLY. Your
own experience with this
appliance, type of foods
and method of operation will
enable you to determine the
temperature control and air
vent settings best suited to
your operation.
DRAWER WARMER OPERATION (when provided)
HEATING OPTIONS
1. Moist heat with Humitrol Rack:
a. MOIST operation prevents food from drying out as moisture, as
well as heat, is applied to the warming chamber.
b. To set for MOIST operation, remove Humitrol Rack from bottom
of drawer insert pan and carefully pour approximately 2 quarts of
water (½” depth) into the pan. Reinstall rack.
c. The Humitrol Rack decreases the sloshing effect of the water in
the pan when the drawer is opened. When the drawer is closed,
the Humitrol Rack allows steam to rise through the stored product
in the drawer.
d. Place the food directly on the rack. The rack is designed to
support the food off of the steam vents, where water droplets may
form.
e. Check the water level in the pan periodically, and add water when
necessary.
f. Set the front air vent between fully closed and half-open. Actual
setting will depend upon the type and amount of product stored in
the drawer, the temperature setting, and the frequency with which
the drawer is opened.
2. Moist heat with pans:
a. This Wells warmer is designed to accommodate any combination
of standard-size, steam table pans.
b. Place a small amount of water in drawer pan. Place pans in
drawer pan.
c. Check the water level in the pan periodically, and add water
when necessary.
3. Dry heat:
a.For some applications, you may want to store previously prepared
foods in a dry-heat environment. To do so, place the food directly
into the empty (i.e. no water) drawer pan.
Indicator
Light
Temperature
Control
(Infinite
Switch)
Fig. 9 Roll Warmer
Temperature Control
OPERATING CHART FOR DRAWER WARMERS
PRODUCT TYPE RECOMMENDED
STORAGE TEMP. TYPE OF HEAT CONTROL SETTING AIR VENT SETTING
Hard Rolls 160-185ºF Dry 7-8 Closed
Soft Rolls 150-175ºF Moist 6-7 Open - ½
Vegetables 175-185ºF Moist 7-8 Open - ½
Meats 165-185ºF Dry 6-8 Closed
Fish 165-185ºF Moist 6-8 Open
Casseroles 150-175ºF Dry 6-7 Closed
Pies, Desserts 160-185ºF Dry 6-7 Closed

M508 p/n 2M-304456 Owners Manual WV-2HG
17
RWT- CONTROL MODULE
SET SETPOINT TEMPERATURE
Press an arrow key:
UP arrow to increase
DOWN arrow to decrease
Release key when desired setpoint temperature is
displayed.
Reading is locked into memory 3 seconds after last key
stroke.
Minimum setpoint is 140ºF (60ºC)
Maximum setpoint is 250ºF (121ºC)
CHANGE DISPLAY MODE ( ºF or ºC)
Press and hold UP arrow and DOWN arrow keys
for 10 seconds.
Release keys when display reads F C.
Within 3 seconds, press UP arrow or DOWN arrow
key until desired indicator (ºF or ºC) glows.
The new value will lock into memory 3 seconds
after last keystroke.
DRAWER WARMER OPERATION (when provided)
OPERATION (continued)
ITEM DESCRIPTION
1PROCESS Key:
Press to view actual temperature of cavity.
24 Character LED Display:
Normally shows SETPOINT temperature.
3ºF or ºC Indicator: Glows to indicate if unit is congured for
degrees Fahrenheit or degrees Celsius.
4LOAD Indicator:
Glows when heating element is energized.
5Increment and Decrement Keys: Press UP arrow to increase
Press DOWN arrow to decrease
IL2608

M508 p/n 2M-304456 Owners Manual WV-2HG
18
CLEANING INSTRUCTIONS
CAUTION:
Electric
Shock Hazard
Disconnect appliance
from electric power before
cleaning.
CAUTION:
Hot Surface
Exposed surfaces can be hot
to the touch and may cause
burns. Allow appliance to cool
before cleaning.
IMPORTANT:
Never allow PRE-FILTER or
FILTER PACK to get wet.
DO NOT wash either of these
two lters. Washing these
lters will ruin them and cause
the appliance to shut-down.
IMPORTANT:
DO NOT spill or pour water
into controls, control panel,
wiring or coil-type hotplate
elements. Damage to internal
components will occur.
Damage to internal
components from water
damage is not covered by
warranty.
IMPORTANT:
This appliance is not jet
stream approved. Do not
direct water jet or steam jet
at this appliance, or at any
control panel or wiring. Do
not splash or pour water on,
in or over any controls, control
panel or wiring.
IMPORTANT:
DO NOT use steel wool or
metal implements to clean
drawers or cabinet surfaces.
VENTILATOR SECTION CLEANING INSTRUCTIONS
PREPARATION
Disconnect appliance from electric power
Allow to cool before cleaning
FREQUENCY Weekly
TOOLS
Warm water and a mild detergent
Soft clean cloth or sponge
Bristle brush
Container for disposal of grease
CLEANING
Disconnect appliance from electric power
Allow to cool before cleaning
Remove the grease bafe, pre-lter assembly, grease trough and
grease cup. Empty the grease trough and grease cup.
Remove the pre-lter from the lter frame. Wash and rinse the lter
frame ONLY.
Wash and rinse the grease bafe, grease trough and grease cup in
a sink or dishwasher using mild detergent and warm water.
Allow to air dry.
Reinsert the pre-lter into the lter frame. Reinstall the pre-lter,
grease bafe, grease trough and grease cup.
Procedure is complete
