Analog Man Bi-CompROSSor User manual

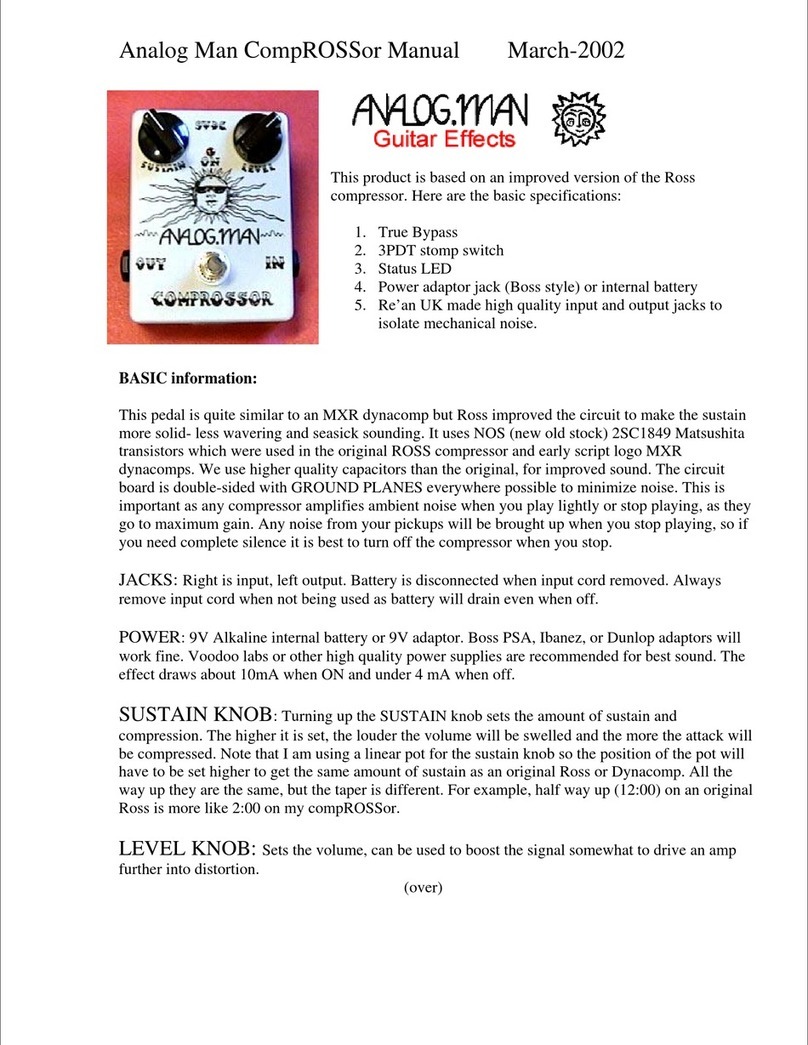

Analog Man CompROSSor Manual Nov-2003
This product is based on an improved version of the Ross compressor. Here are the
basic specifications:
1. True Bypass
2. 3PDT stomp switch
3. Status LED
4. Attack trim pot inside or optional external ATTACK knob
5. Power adaptor jack (Boss style) or internal battery
6. Re’an UK made high quality input and output jacks to isolate mechanical noise.
BASIC information:
This pedal is quite similar to an MXR dynacomp but Ross improved the circuit to make the sustain more solid-
less wavering and seasick sounding. It uses NOS (new old stock) 2SC1849 Matsushita transistors which were
used in the original ROSS compressor and early script logo MXR dynacomps. We use higher quality capacitors
than the original, for improved sound. The circuit board is double-sided with GROUND PLANES everywhere
possible to minimize noise. This is important as any compressor amplifies ambient noise when you play lightly
or stop playing, as they go to maximum gain. Any noise from your pickups will be brought up when you stop
playing, so if you need complete silence it is best to turn off the compressor when you stop.
JACKS: Right is input, left output. Battery is disconnected when input cord removed. Always remove input
cord when not being used as battery will drain even when off.
POWER: 9V Alkaline battery or 9V DC center negative adaptor (not AC! This will blow up the pedal!). Boss
PSA, Ibanez, or Dunlop adaptors will work fine. Voodoo labs or other high quality power supplies are
recommended for best sound. The effect draws about 10mA when ON and under 4mA when off.
SUSTAIN KNOB: Turning up the SUSTAIN knob sets the amount of sustain and compression. The
higher it is set, the louder the volume will be swelled and the more the attack will be compressed. Starting in
2003 we are using a Reverse Log potentiometer for the sustain knob just like the original Ross and Dynacomp
pedals. This allows easier control and setting to the same position that is used on those pedals.
LEVEL KNOB: Sets the volume, can be used to boost the signal somewhat to drive an amp further into
distortion.
(over)

ATTACK TRIM POT or Knob:
Inside the pedal, towards the top right on the circuit board is a TRIM
POT labelled ATTACK. If the optional ATTACK KNOB is ordered,
this applies to the external ATTACK knob instead.
The pot is shown on the left. The standard setting, which is identical
to the vintage ROSS and DYNACOMP pedals, is with the notch
pointing LEFT, as in the picture (or 12:00 if the ATTACK knob is
external, you can feel a detent at 12:00). Turning it counter-
clockwise, you can squash the attack more (faster attack time) so
there is not as much peak sound at the beginning of the notes you are
playing. Or, by turning the pot clockwise, you will get even more
attack than the stock ROSS pedal, for a nice strong percussive s
without losing the sustain when you hold a note. To remember, think of it as turning it up to get more (louder)
attack. Turn it down to get less (softer) attack. If you have humbuckers or other powerful pickups and are
losing volume with the comprossor, try turning the ATTACK pot UP so you get less squashing of the stron
humbucker pickups sound. This will allow the comprossor to work great with almost any guitar.
ound,
g
BIAS TRIM POT: This trim pot is on the left central area of the board and labelled 2K. It does not affect
the sound except when set incorrectly. Set it to the halfway point, basically horizontal and it should work fine.
To test or set more exactly, turn the compROSSor SUSTAIN knob up all the way. Plug in a guitar and amp. Do
not play the guitar, but hear the sound of the strings’ noise being amplified fully. Turn the trim pot to the center
of the area in which sound is heard.
ENJOY!!!!
Analog Man guitar effects
1D Garella Rd
Bethel, CT 06801
[email protected] http://www.analogman.com 203/778-6658
