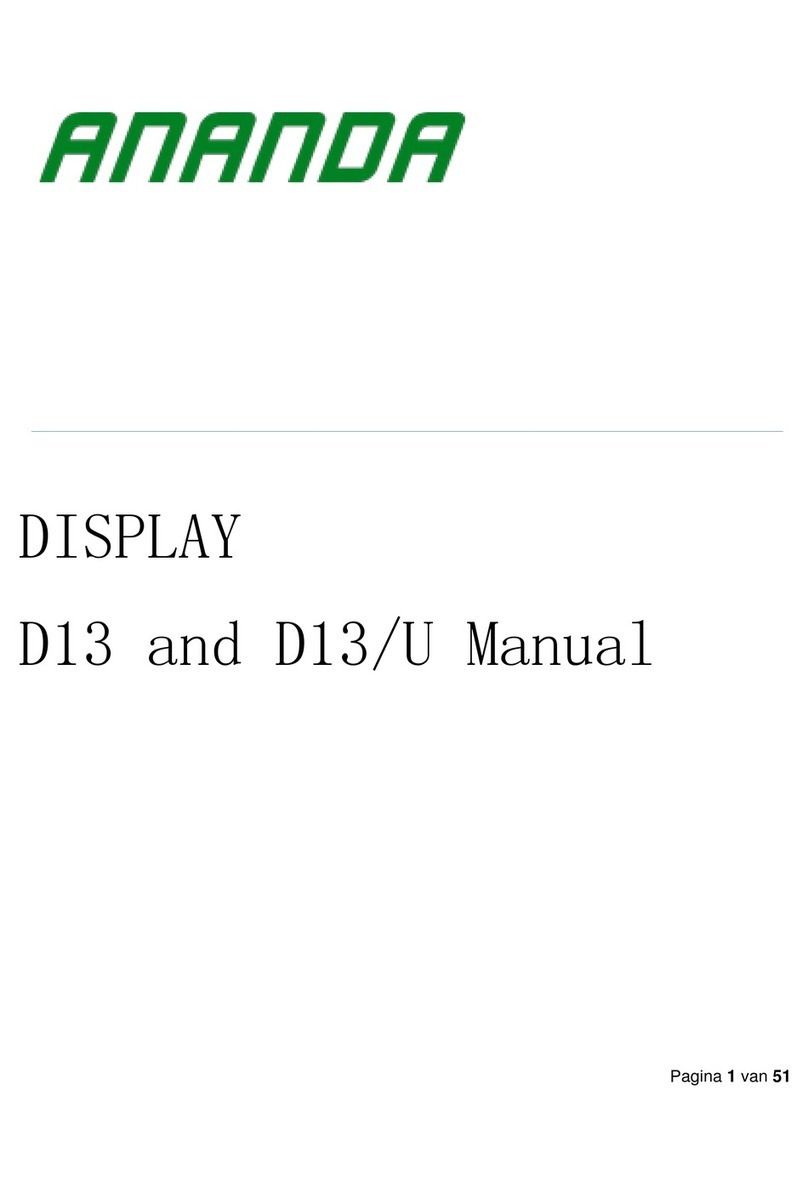

Ananda D13 User manual

D13 and D13/U
Manual

Page 1of 20
Content
A. About the Manual............................................................ 2
B. Appearance and size....................................................... 3
Material and Color........................................................... 3
Illustration........................................................................ 3
Diagram........................................................................... 4
C. Product Functions........................................................... 4
D. Bottom Definition............................................................. 6
E. Installation....................................................................... 7
F. Operation......................................................................... 8
1. Switch on/off................................................................ 8
2.Turning on/off the lights and backlights ........................ 9
3. Pas level and Walking Assistant Mode...................... 10
4. Display UI...................................................................11
5. Battery Capacity........................................................ 13
6. Error Code................................................................. 14
7. Reset......................................................................... 15
G. Default Set................................................................ 15
1. Password .................................................................. 15
2. Set Max Pas.............................................................. 16
3. Wheel Size................................................................ 17
4. KM/ Mile Switching.................................................... 17
5. Speed Limit ............................................................... 18
H. Wire harness................................................................. 19
I. Q&A................................................................................ 19

Page 2of 20
J. Quality commitment and warranty coverage.................. 19
Warranty........................................................................ 19
Exception ...................................................................... 20
Error Code......................................................................... 20

Page 3of 20
A. About the Manual
This Manual aims to help you to learn about installing and operating D13
and D13/U display.
B. Appearance and size
Material and Color
D13/U is 52.5mm*33.3mm, has 3 bottoms, compact size and simply UI.
Including Double-layer PCB, nylon buckle inside, and ABS shell. The material
of the shell allows normal using at temperatures between -20 ℃and 60 ℃,
and can guarantee good mechanical properties.
Illustration
Pic 2-1

Page 4of 20
Diagram (mm)
Pic 2-2
C. Product Functions
D13/U LCD display integrates a 2.4” multi-function screen, which supports
24V / 36V / 48V battery. It also integrates the headlight switch function. The
main functions of D13/ U are: (as shown in Pic 3-1 below)
◆Total Mileage;
◆Trip Mileage;
USB Port for
D13U

Page 5of 20
◆Current Speed
◆Light Status
◆Pas Level
◆Battery Capacity
◆Error Code
◆Mile/ Kilo Meter
◆Wheel Size
◆Riding Time
◆Walking Assistant
◆USB Current Limit:1A (D13U only)
Pic 3-1
Display Area
The entire area of the LCD screen is displayed when the meter is turned
Plus
Battery
Light; Error; Walking
On/ off
Pas
Minus
Speed, KMH and
MPH switch
Mileage, Trip, AVG
and Max Speed

Page 6of 20
on. The design of each module in the meter display area is very beautiful,
convenient for customers to understand, the interface is simple and clear, and
the customer can see at a glance. As shown in Pic 3-2 below:
Pic 3-2
Correct Display
Pic 3-3
D. Bottom Definition
D13/U is equipped with 3 buttons. Including key, open key, minus key.

Page 7of 20
Pic 4-1
E. Installation
Fix the display and bolt on the handlebar, adjust the proper angle of view, and
screw on the bolt in an easy-to-manipulate position. Tighten the screws to
complete the installation.
Insect bolt on the handlebar
Plus
On/ Off
Minus

Page 8of 20
Tighten the screws to complete the installation
F. Operation
1.Switch on/off
Press and hold the Switch on/off key for 1 second, turn on the display,
and start the ebike system. In the working state, press and hold the Switch
on/off key for 2 seconds to turn off the system. In the off state, the display
no longer uses the battery's power supply, and the display's leakage current
is less than 2μA. The operation process is as shown in Pic 6-1:

Page 9of 20
Pic 6-1
2.Turning on/off the lights and backlights
In the power-on state, long press the button for 2 seconds, the lamp will turn
on, and the instrument backlight will be turned off; press and hold the button
for 2 seconds, the lamp will be off and the instrument backlight will be turned
on. The operation process is as shown in Pic 6-2: (lights on)
Long press 1s to star;
long press 2 s to turn off
