Ancona AN-2340 User manual

Installation Instructions
AN-2340
27/01/2015 MAAN-2340-01

ENGLISH
Installation Instructions
WARNING
If the information in this manual is not followed exactly, a re or explosion may result causing property damage,
personal injury or death.
COMPLETELY AND
CAREFULLY
NOTE: IF INSTALLING YOUR OVEN IN
CANADA PLEASE CHECK TO MAKE
SURE THAT YOU HAVE A MODEL
WITH THE CANADIAN LISTING
MARK, AS SHOWN ABOVE:
PACKAGING
Theovenmust besupplied with copper oralumimum wires.
If aluminumwireis provided toconnect oven to branch
circuit, ULlisted connectors forjoining copper andaluminum
must be used. Follow instructions provided with connectors.
IMPORTANT: Save these instructions for the local electrical inspector use.
INSTALLER: Please leave this manual with owner for future reference.
OWNER: Please keep this manual for future reference.

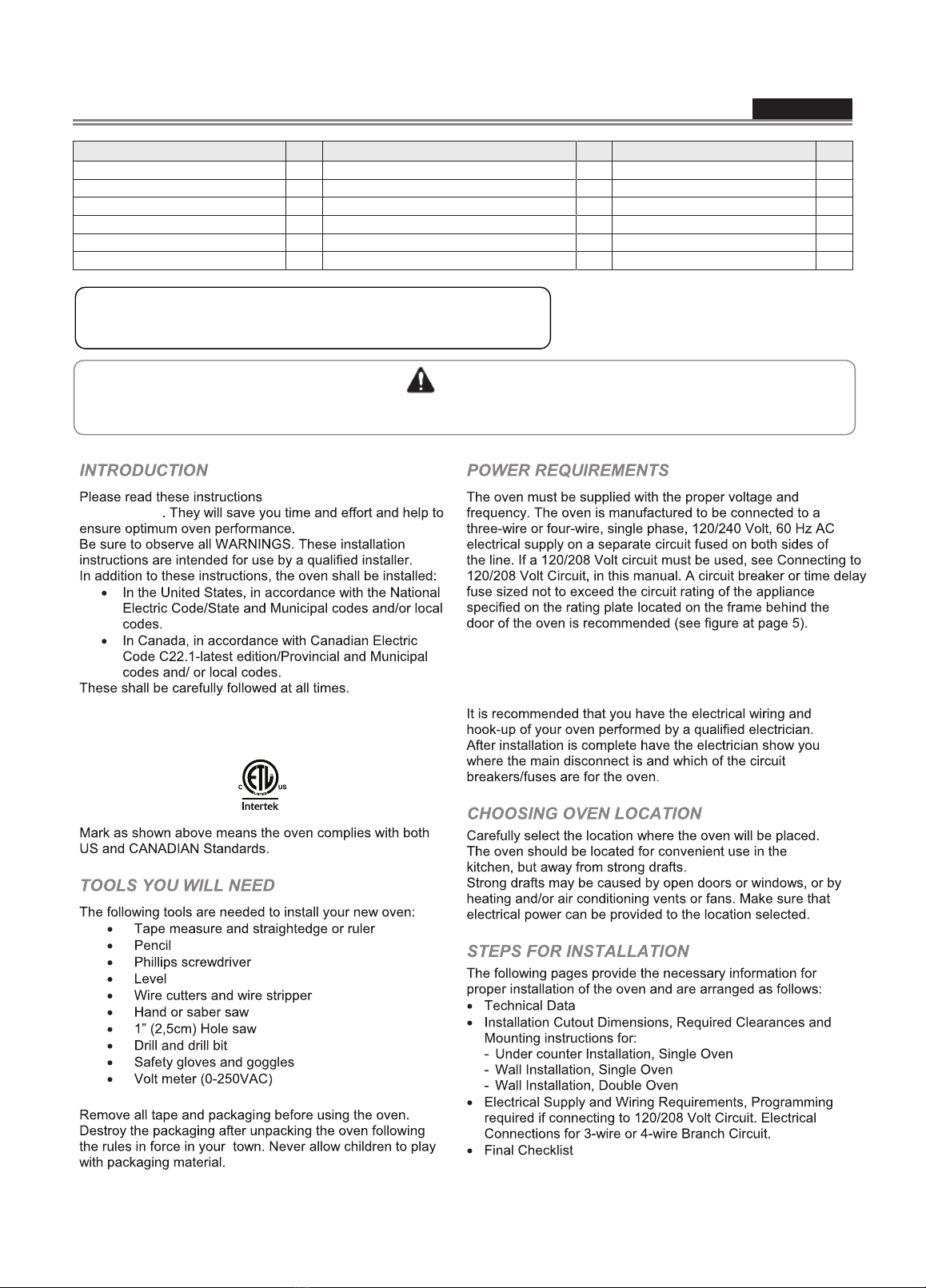

TABLE OF CONTENTS page page page
Introduction 3 Installation notes 4 3-wire branch circuit 7
Tools you will need 3 Wall or under counter installation, single oven 5 4-wire branch circuit 7
Power requirements 3 Flush installation 5
Choosing oven location 3 Electrical supply 6
Steps for installation 3 Wiring requirement 6
Technical data 4 Electrical connections 7
2

ENGLISH
Installation Instructions
I 0
WARNING
CAUTION
TECHNICAL DATA
For cutout dimensions see followiing section titled:
Preparing location
Ovens Dimension Model
Electrical Ratings and Maximum Connected Load
@ 120/240 Volts 60 Hz @ 120/208 Volts 60 Hz
Amperes Watts Amperes Watts
SINGLE OVEN
multifunction 30” (75 cm) AN-2340 15,6 3660 13,7 2760
Ltr. DIMENSION 30”
ACutout Width 28”
(71 cm)
BCutout Depth 24”
(61 cm)
CCutout Height 23”
(58,5 cm)
DFloor Bottom of Cutout 34”
(86,5 cm)
EMinumum Spacing 1/2”
(1,3 cm) min
FCutout Width 29 1/2”
(75,5 cm)
GCutout Height 23 3/8”
(59,4 cm)
HVisible part of the mounting strips 3/4”
(1,9 cm)
3

ENGLISH
Installation Instructions
100
200
300
400
500
Electrical
supply
junction
box
Secure oven to cabinet using the screws provided.
Screws should be inserted through the mounting holes
in the positions indicated in the frame (open door to see
frame and mounting holes). Do not over tighten screws.
Electrical
supply
junction
box
FLUSH INSTALLATION
4

ENGLISH
Installation Instructions
In the United States:
In Canada:
WARNING
ELECTRICAL SHOCK HAZARD
CAUTION
5

ENGLISH
Installation Instructions
Be sure your appliance is properly installed and grounded
by a qualied technician. Ask your dealer to recommend a
qualied technician or an authorized repair service.
“WARNING” Risk of Electric Shock, frame grounded to
neutral of appliance through a link
Figure A Figure B
6
