annke Network Mini PT User manual

Camera
Network Mini PT Dome Camera
Quick Start Guide

1
Table of Contents
1 Appearance Description......................................................................... 2
1.1 Overview.......................................................................................2
1.2 Installing SD Card.........................................................................5
2 Installation............................................................................................... 6
3 Accessing via Phones.............................................................................. 8
4 Software Download And FAQ...............................................................13

2
1Appearance Description
1.1 Overview

3
Description of Network Mini PT Camera
No.
Description
1
Silicone Gasket
2
Dome Drive
3
WPS(Wi-Fi Protected Setup) Button
4
Micro SD Card Slot
5
Photic Cover
6
Lens
7
Lens Ring
8
PIR(Passive Infrared) sensor
9
MIC
10
Mounting Base
11
10M / 100M self-adaptive Ethernet interface
12
Alarm Input/output
13
Reset
14
Audio Out
15
Power supply (5 VDC)
16
Speaker
17
Status LED
Solid blue: Network is connected, and
camera is unarmed.

4
No.
Description
Flicking blue: No network connection.
Solid red: Camera is armed.
Flicking red: Camera is not working
properly.
Solid green: Camera is connected to the
platform.
You can disable the status LED when you access the camera via
browsers. Go to Configuration—Advanced
Configuration—System—Service, and check off the checkbox of
Enable Status LED to disable the status LED.
How to reset
(1) Pull out the power and disconnect the network cable，then
prepare a clip or a cell phone pin.
(2) Use clip to press the “Reset” key in the hole，at the same time
plug in the power, keep pressing the button for 10 seconds .

5
(3) The camera will automatically turn 1 minute later;it will stop
turning after 40 seconds, then the status lamp turns blue and starts to
flash, indicating reset successful.
1.2 Installing SD Card
Steps:
1. Pull the removable cover on the mounting base outwards and
move it aside.
2. Insert the micro SD card into the micro SD card slot.
3. Fix the cover back to the mounting base.

6
2Installation
Steps:
1. Drill the screw holes on the ceiling according to the supplied drill
template.
2. Align the screw holes on the ceiling and adapter plate, and then
fix the adapter plate to the ceiling with the supplied screws.

7

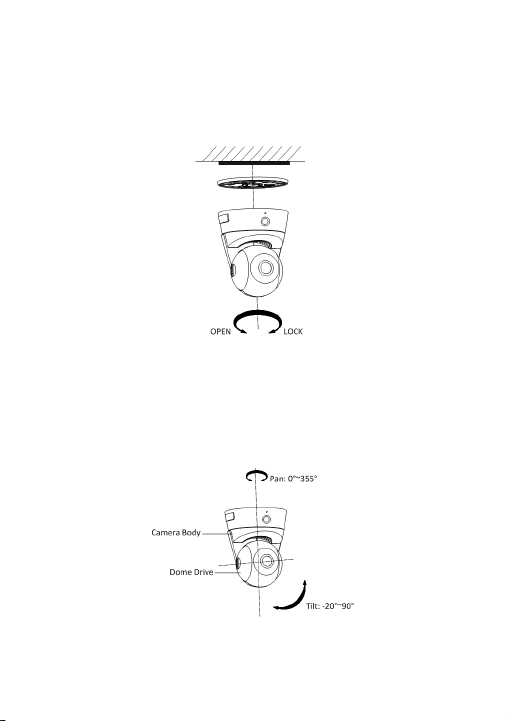

3. Align the mounting base of the camera to the adapter plate, and
rotate the camera clockwise until it is locked up by the three
bayonet joints on the adapter plate.
4. Adjust surveillance view angle.
1) Hold and rotate the main camera body to adjust the view angle
in the pan direction: [0°~355°].
2) Move the dome drive upwards or downwards to adjust the
view angle in the tilt direction: [-20°~90°].

8
3Accessing via Phones
Note: Make sure your phone connected to Wi-Fi
1. Download and Install the APP
Search Annke View in the Apple App Store or Google Play, and
install the App on your smart devices.
2. Power on the IP Camera
Plug in the power adapter to get it powered (No need of connecting
the Ethernet cable)
3. Get the Camera Connected to Wi-Fi(Three
Configuration Methods)
1）Wireless Pairing
Please configure Wi-Fi as the following steps when your IP camera
stops turning after first power on(waiting about 2 minutes):
Select “Devices” Select “Wi-Fi Configuration” Scan QR code

9
Input Wi-Fii information Configure Wi-Fi Input User Name
“admin”(no password)
Activate the Device Create a New Password Start Live Viewing
on LAN

10
2) WPS Pairing
If your router supports WPS function.You can connect your device to
the Internet via WPS after resetting the device.
(1)Reset the IP camera if you have connected your device to network
(According to Page 4: How to reset)
(2)Press the WPS button on your router
(3)Press the WPS button on the IP camera for at least 3 seconds
within 2 minutes after pressing the button on your router, then the
status light on the camera turns blue and keep on, indicating your IP
camera connected to the network successfully.
(4)Make sure your phone and the device are in the same
network .Open the app Annke View, enter Devices—Online
Device.You can see the IP address,noticing “Inactive”,then activate
the device step by step.
Activate the Device Create a New Password Add New device

11
3) Wired Pairing
(1) Reset the IP camera if you have connected your device to
network(According to Page 4: How to reset).
(2) Insert the network cable, the status lamp on the IP camera will
turn blue and keep constant, meaning connected to the network
successfully.
(3) Make sure your phone and your device are in the same network .
Open the app Annke View , enter Devices—Online Device. You can
see the IP address, noticing “ Inactive”, follow the step to activate the
device and remember the IP address.(According to WPS Pairing at
step(4)
(4) Make sure your PC and your device are in the same network.
Open the browser on your PC. Enter the IP address of the camera,
input user name and password to login. You can stop downloading
the OCX control if you do not want to view live video via PC
temporarily. (You can also login via smart phone browser if you do
not have a PC)
(5) After login, enter Configuration—Advanced Configuration
—Network—Wi-Fi
Select the right WIFI to connect in the list , enter the password and
save. Then unplug the network cable, the status light turns out , later
turns blue and then green and keeps on, which indicates WIFI
connection success.

12

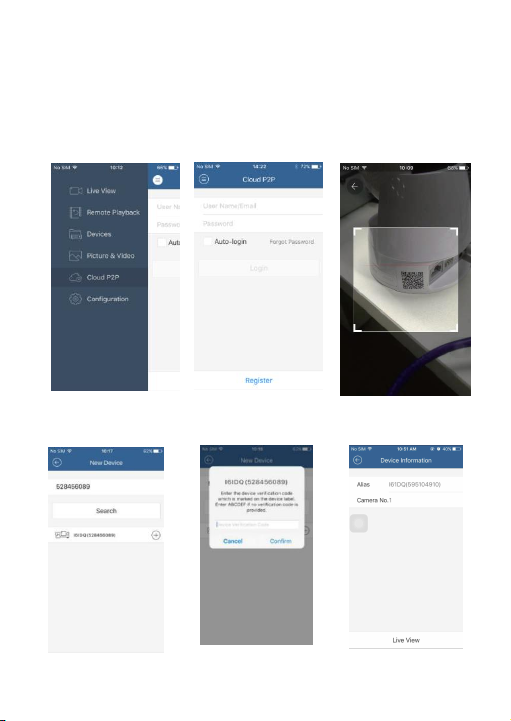

4. Configure the Annke Cloud to get live viewing
anywhere
Please configure the Annke Cloud as the following steps:
Select “Cloud P2P” Register a P2P Account Scan the QR code
Add New Device Input the Verification Code Click Live View

13
Input the Verification Code Start Live View On Wan
4 Software Download And FAQ
If your have problems when using the device or need to download th
e content contained in the CD, please follow the steps below.
1.Visit www.annke.com
2.Search I61DQ or I61DS
3.Click the “Downloads” to choose and get what you want in the list
Tech support: [e-mail]
