Antar SW-250 User manual

SW-250 / SW-250X
Snow Machine
User Manual
- English
-中文
© 2023 Antari Lighting and Effects Ltd.

1. Introduction ................................................................................................................................................. 1
2. Safety Information....................................................................................................................................... 1
3. Package Contents & Inspection................................................................................................................... 2
4. Machine Details........................................................................................................................................... 3
5. Technical Label Information........................................................................................................................ 3
6. Snow Fluid................................................................................................................................................... 3
7. Setting and Manual Operation..................................................................................................................... 3
8. Control Settings ........................................................................................................................................... 4
9. DMX Connection ........................................................................................................................................ 5
10. SC-2 Cable Remote (Optional).................................................................................................................... 5
11. W-1 Wireless Transmitter (Standard for SW-250)....................................................................................... 6
12. WTR-10 Wireless Remote (Optional for SW-250X Only).......................................................................... 6
13. Service and Maintenance............................................................................................................................. 7
14. Technical Specifications .............................................................................................................................. 8
15. Warranty Disclaimer.................................................................................................................................... 8
16. Machine Dimension..................................................................................................................................... 8
1. 前言............................................................................................................................................................. 9
2. 安全注意事項............................................................................................................................................. 9
3. 包裝內容與檢查....................................................................................................................................... 10
4. 機器訊息....................................................................................................................................................11
5. 技術標籤資訊............................................................................................................................................11
6. 雪花水........................................................................................................................................................11
7. 設定與手動操作說明............................................................................................................................... 12
8. 控制設定................................................................................................................................................... 12
9. DMX 說明................................................................................................................................................. 13
10. SC-2 有線控制器(選配)........................................................................................................................... 14
11. W-1 無線發射器(標配只限 SW-250)....................................................................................................... 14
12. WTR-10 無線遙控器(選配只限 SW-250X)............................................................................................. 14
13. 維護和保養............................................................................................................................................... 16
14. 技術規格................................................................................................................................................... 16
15. 保固聲明................................................................................................................................................... 16

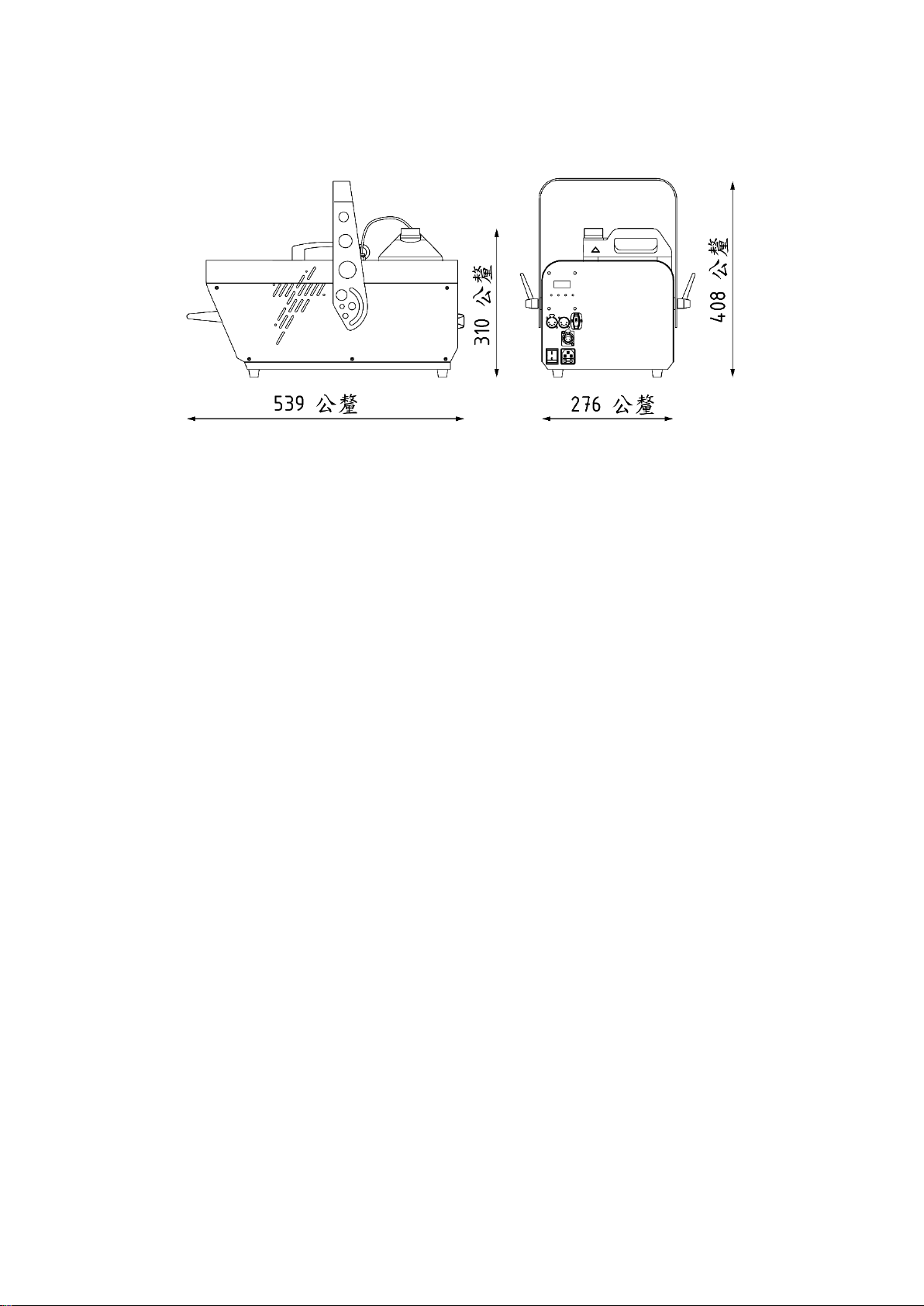

16. 機器尺寸圖............................................................................................................................................... 17
Appendix I – Grounding Instruction.................................................................................................................. 18

1
User Manual
1. Introduction
Please read all the user manual before operating the machine, and place the manual where the user can refer to it at
all time. The manual includes how to install and operate the machine under safe condition and explain all the labels
printed on the machine. If you encounter any problem, contact your local Antari dealer for assistant immediately.
2. Safety Information
DANGER
If the danger is not avoided, it will cause death or serious injury
WARNING
If the warning is not heeded, it can cause death or serious injury.
CAUTION
If the precaution is not taken, it may cause minor or moderate injury.
Must connect the machine to the correct rated voltage or it might lead to an electrical shock or a burn and may
cause serious consequences.
Must connect the machine to a protected circuit and ensure it is properly grounded to avoid the risk of
electrocution. For grounding instruction, please refer to Appendix I on page 18.
Do not operate the machine with a bundled power cord, it could lead to a fire hazard.
When operating the machine, do not point at people, animals, or fire.
WARNING
Please operate the machine on a flat, level hard and well ventilated surface area, reserve at least 50cm space
around the machine and make sure there is no flammable gas or material nearby.
Do not disassemble, repair or modify the machine, it may cause damages, malfunction, risk of electrical shock
or result in fire.
The machine can only be operated by adults or professionals, is not intended for use by person with reduced
physical sensory, mental capabilities, or lack of experience and knowledge including children.
Do not leave the machine running unattended, make sure all powers are off when leaving.
Children should be supervised to ensure that they do not play with the machine.
Do not use the machine upside down or tilt it, it might cause damages or malfunction.
Please store the fluid inside in a well ventilated area without direct sunlight and keep out of reach of children.
In case of eye contact or accidentally swallow the fluid, please seek medical attention immediately.
CAUTION
Keep the machine dry at all time. The machine is not waterproof, do not expose the machine to water, rain, or
moisture environment.
Please make sure the power outlet is not damaged or loose before plug in the power cord.
If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be
void.
Before operating the machine, please sure the fluid is filled in the fluid tank to avoid the pump in idling state
which could lead to overheat or malfunction.
Before transporting the machine, please make sure the fluid is drained and tank is empty. (Recommend using
original package)
The machine is for indoor use only.
DANGER

2
Do not operate the machine in any area with unstable voltage.
If you experience strange sound or malfunction, turn off the power and unplug the power cord immediately
and contact your local Antari dealer for assistant.
Do not contact any moving part.
Only use accessories recommended or sold by Antari.
Please make sure the power is off when not using the machine and unplug the power cord if not intend to use
for a long period of time.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Unplug from outlet before servicing or cleaning.
Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or is dropped or
damaged in any manner. Return machine to the nearest authorized service facility for examination, repair, or
electrical or mechanical adjustment.
Before operating the machine, please read all warning labels on the machine, description as below:
Rear Cover Printing
WARNING!
DISCONNECT POWER BEFORE CHANGING FUSE.
USE ONLY WITH ADULT SUPERVISION.
DO NOT OPERATE WITHOUT LIQUID.
FOR INDOOR USE ONLY. KEEP DRY.
NO USER SERVICEABLE PARTS INSIDE.
3. Package Contents & Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure it is the correct
model and all parts are included. If any part appears to be damaged or missing during transportation, please contact
your local dealer and return in original package for inspection.
3.1 Package Contents
SW-250
SW-250X
1 x SW-250 Wireless Snow Machine
1 x SW-250X Snow Machine
1 x 5 Liters Fluid Tank
1 x 5 Liters Fluid Tank
1 x IEC Connector (Power)
1 x IEC Connector (Power)
1 x W-1 Wireless Transmitter
1 x Hanging Bracket
1 x Hanging Bracket
1 x User Manual or Scan QR Code on the Machine
1 x User Manual or Scan QR Code on the Machine
3.2 Optional Accessories
Item Code
Description
SC-2
Cable Remote
WTR-10 (SW-250X Only)
Wireless Remote (W-1 Transmitter / W-1 Receiver)
SW-300-FB
Floor Bracket

3
4. Machine Details
01. Nozzle
06. LCD Display
02. Handle
07. XLR 5-Pin DMX
03. Hanging Bracket
08. XLR 4-Pin Remote Connector
04. 5 Liter Fluid Tank
09. Power Switch
05. Wireless Receiver/Expansion Socket (SW-250X)
10. IEC Connector (Power)
5. Technical Label Information
Please read the technical label information on the back of the machine before operating it.
1. Model Name
5. Breaker/Fuse
2. Input Voltage
6. QR CODE for User Manual
3. Frequency
7. Serial No.
4. Rated Power
6. Snow Fluid
CAUTION
Always turn off the power before filling the fluid tank. Do not add flammable
liquid to the fluid tank. If fluid gets inside the machine, please contact your local
Antari dealer for assistant.
Only the snow fluid manufactured by Antari can be used, do not mix or dilute the snow fluid.
The machine is tested and calibrated with the specific snow fluid to get the best performance.
Please empty the fluid in the tank before switching to another fluid to avoid mixing.
The warranty on your snow machine will be void if you use snow fluid not manufactured by Antari.
7. Setting and Manual Operation
WARNING
Machine falling off might cause serious injury, please make sure it is secure
and firm on the overhead.
Step 1. Place the machine on a flat, level hard and well ventilated surface area and reserve at least 50cm open
space around the machine, and make sure there is no flammable gas or material nearby;

4
Step 2. Fill the fluid tank with Antari approved snow fluid;
Step 3. Connect the machine to the power outlet. Please read the technical label on the back of the machine and
make sure the power outlet is the correspond to the rated voltage for the machine;
Step 4. When the machine is ready, the LCD display will show “Ready to Snow”;
Step 5. To start making snow in Timer Mode, press [TIMER] and press [STOP] to stop; this will run based on
“interval” & “duration” setting in the main menu;
Step 6. Or to start making snow in Volume Mod, press [VOLUME] and press [STOP] to stop; you can adjust the
volume by pressing [UP] and [DOWN];
Step 7. To turn off the power, please make sure the machine is not operating. If you will not use the machine a
long period of time, please unplug the power cord.
8. Control Settings
SW-250 Wireless Snow Machine/SW-250 Snow Machine can be operated in the following modes. The machine
can only accept 1 type of signal at a time. When using different control modes at the same time, the machine will
work according to built-in control priority:
Manual
Timer
DMX512
Wireless
Cable Remote
8.1 Control Panel Description
SW-250 Wireless Snow Machine/SW-250X Snow Machine can be operated with the onboard digital control
interface.
Button
Operating Method
Function
MENU
Press
To enter setting menu
UP
Press
Increase value
DOWN
Press
Decrease value
TIMER
Press
1. Press to start making snow according to the set time
2. Press stop to stop making snow
VOLUME
Press
1. Press to start making snow according to set volume output
2. Press stop to stop making snow
STOP
Press
Stop / Return

5
8.2 Menu Options Description
Options
Description
Interval Set
Set Interval between 20 - 2000 sec
Duration Set
Set Duration between 10 - 200 sec
Timer Out
1-100%
Volume Out
1-100%
DMX512 Add.
001-512
Wireless ON
On (W showed on display) / Off (W not showed on display)
Quick Start
On / Off
9. DMX Connection
9.1 DMX Connector Pin Assignment
The machine has a XLR 5-Pin for DMX connection. The diagram below indicates pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
**The cap on the DMX IN port is a protection cover.
Please remove it with your finger before operation.
9.2 DMX Setting
DMX Value
Function
0~10
Off
11~255
On (1-100%)
10. SC-2 Cable Remote (Optional)
SC-2 Cable Remote is an optional accessory for SW-250 Wireless Snow Machine/SW-250X Snow Machine, please
see instruction below;

6
1. Plug the timer cable remote to the connector on the back of the machine, green indicator light will light up;
2. Press the RED switch to turn on the power of the remote (Red Indicator Light is on) and press the RED switch
again to turn off the power (Red Indicator Light is off);
3. Turn the rotary knob to active the machine and adjust output volume.
Note:
** You must turn on the power of the remote in order to use it.
** If you encounter any problem, please contact your local Antari dealer for assistant.
11. W-1 Wireless Transmitter (Standard for SW-250)
W-1 Wireless Remote is a standard accessory for SW-250 Wireless Snow Machine. If you already purchased the
wireless model, it’s ready to use.
11.1 W-1 Wireless Transmitter
Battery：27A 12V
Effective Range：The effective range is approximately 50m,
depends on actual condition, it may vary.
W-1 wireless transmitter has 2 buttons, each function as follow:
W-1 Wireless Transmitter
Button
Function
[A]
Start
[B]
Stop
11.2 Pairing
Each receiver can pair up to 5 transmitters, please follow the steps below to pair;
Step 1. Turn on the power, “Wireless Setup” will show on the display for 15 seconds. Within this time period,
press button A on the W-1 transmitter to pair with the machine. When screen shows “Wireless Setup
OK”, means it’s paired;
Step 2. Please repeat Step 1 to pair multiple transmitters;
*If exceed 15 seconds, turn the power off and on again.
12. WTR-10 Wireless Remote (Optional for SW-250X Only)
WTR-10 Wireless Remote set is an optional accessory for SW-250X Snow Machine, it included a W-1 transmitter
and a W-1 receiver. If you purchase the WTR-10 Wireless Remote set afterwards, please follow the instruction
below. If you encounter any problem, please contact your local Antari dealer for assistant.
12.1 W-1 Wireless Transmitter & Receiver
Battery：27A 12V
Effective Range：The effective range is approximately 50m,
depends on actual condition, it may vary.
W-1 wireless transmitter has 2 buttons, each function as follow:
W-1 Wireless Transmitter

7
Button
Function
[A]
Start
[B]
Stop
W-1 Wireless Receiver
12.2 W-1 Wireless Receiver Installation
If you purchased the WTR-10 Wireless Remote set afterwards, please follow the instructions below to install the
receiver. If you encounter any problem, please contact your local Antari dealer for assistant.
Graph 1
Graph 2
Graph 3
1. Please see graph 1, remove the cover from the pointed place;
2. You will see a white cable like graph 2, pull it out and connect to the W-1 receiver;
3. Screw it back to the machine like graph 3 and follow the instruction on 12.3 for pairing.
12.3 Pairing
Each receiver can pair up to 5 transmitters, please follow the steps below to pair;
Step 1. Turn on the power, “Wireless Setup” will show on the display for 15 seconds. Within this time period,
press button A on the W-1 transmitter to pair with the machine. When screen shows “Wireless Setup
OK”, means it’s paired;
Step 2. Please repeat Step 1 to pair multiple transmitters;
*If exceed 15 seconds, turn the power off and on again.
13. Service and Maintenance
DANGER
Disconnect the power cord before starting maintenance operation!
Always keep the machine clean.
Can use an air compressor, a vacuum or a soft brush to remove the dust on the machine.
Can use a slightly damp cloth to clean the casing.
Before store or after each use of the machine, pump pure water through the system for at least 1-2 minutes,
this will help clean the snow fluid residue and extend the lifespan on the pump and the machine.
Before store or after each use, please make sure the fluid tank is clean and dry.
It is recommended to run the machine at least once a month in order to maintain its best performance and
output condition.
Excessive dust and build up liquid residue will reduce the performance and cause overheat.

8
14. Technical Specifications
SW-250
SW-250X
Rated Voltage
US Model: AC 100-120V, 50/60Hz 11.0A
EU Model: AC 220-240V, 50/60Hz 4.0A
Rated Power
120V 900W
240V 880W
Fluid Consumption
140 ml/min (100% output)
Fluid Tank Capacity
5 Liters (1.32 Gallon)
Compatible Fluid
Antari SL Snow & Foam Fluid、Antari SL-A Premium Snow Fluid、Antari SL-
N Snow & Foam Fluid (New Formula)、Antari SL-AN Premium Snow Fluid (New
Formula)、Antari SL-H Super Dry Snow Fluid、Antari SL-C Anti-Freezing Snow
Fluid、Antari SL-UV UV Snow Fluid
Ambient Temp. Range
5°C – 40°C (41°F – 104°F)
Control Methods
Manual、Timer、DMX512、Wireless
(Standard)、Cable Remote (Optional)
Manual、Timer、DMX512、Wireless
(Optional)、Cable Remote (Optional)
Interface
XLR 5-Pin (DMX)、XLR 4-Pin (Remote)、IEC (Power)
DMX Channels
1 Channel
Included Accessories
W-1 Transmitter、Hanging Bracket
Hanging Bracket
Optional Accessories
SC-2 Cable Remote、SW-300-FB Floor
Bracket
WTR-10 Wireless Remote、SC-2 Cable
Remote、SW-300-FB Floor Bracket
Dimension
L 539 W 276 H 310 mm (L 21.22 W 10.87 H 12.20 inch)
Weight
11.5 kg (25.35 lbs.)
15. Warranty Disclaimer
We guarantee the merchandise manufactured by us to be free from defect in material and workmanship for a period
of one year. Our obligation and liability under this warranty shall be restricted to repair or replacement at our
factory or local authorized dealer. We assume no liability of the products that are improperly used or used for any
purpose other than that for which they are specially designed. This warranty shall not apply to any merchandise
which has been repaired, altered or assembled outside our factory in any way so as in our judgment to affect its
performance, nor which has been subjected to misuse, negligence, or accident nor to any merchandise operated
contrary to our printed instructions. We will not allow or be liable of any loss or any damages of any kind in
connection with the use, sale, or repair of any merchandise purchased from us.
16. Machine Dimension
