SXM-100 Commercial
SiriusXM®Satellite
Radio
Owner’s Manual

SXM-100 Commercial Satellite Audio Receiver 2
Welcome! ........................................................................... 6
Installing SXM-100 .............................................................. 6
Parts List ...................................................................... 6
Connections .................................................................. 7
Positioning the Antenna .................................................. 8
Optimizing Signal Strength ................................................... 9
Activating the SXM-100...................................................... 10
Operating the SXM-100 ...................................................... 11
Display and Indicators .................................................. 11
Tuning Modes .............................................................. 13
Changing Channels ...................................................... 13
Changing Categories .................................................... 15
Setting and Recalling Presets......................................... 16
Powering On and Off .................................................... 16
Parental Control........................................................... 17
Setting Options Via Menus .................................................. 19
Navigating Setup Menus ............................................... 19
Signal Quality .............................................................. 21
Scroll Speed ................................................................ 21
Line Level ................................................................... 22
Front Lock................................................................... 22
Time Zone .................................................................. 23
Daylight Savings Time .................................................. 23
Channel Locking .......................................................... 23
Lock Single Channels......................................... 24
Lock All Channels.............................................. 25
Unlock All Channels........................................... 26
Lock All Skipped Channels.................................. 27
Channel Skipping ......................................................... 27
Skip Single Channels ......................................... 28
Skip All Channels .............................................. 29
Unskip All Channels........................................... 30
Skip All Locked Channels ................................... 30
Forced Tuning.............................................................. 31
Software Version ......................................................... 36

SXM-100 Commercial Satellite Audio Receiver 3
Passcode Menu ............................................................ 36
Restricted Mode................................................ 37
Change Passcode .............................................. 38
Restore to Defaults ........................................... 40
Display Advisories ............................................................. 40
DB9 Aux Data Connector -Integration with Distributed Audio
Control Systems ................................................................ 44
Technical Assistance .......................................................... 44
12 Month Limited Warranty................................................. 45

SXM-100 Commercial Satellite Audio Receiver 4
Antex Electronics Corporation
19160 Van Ness Avenue
Torrance, California 90501
www.antex.com
Copyright © 2015 Antex Electronics Corporation. All Rights Reserved. No portion
of this manual may be reproduced without prior written consent from Antex
Electronics. Part number 9000-2495-7006 Rev A.
Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio
Inc. All rights reserved.
FCC Compliance Statement for United States Customers
This equipment has been tested and found to comply with the limits for a Class B
device, pursuant to Part 15 of the FCC Rules. In order to maintain compliance
with FCC regulations, shielded cables must be used with this equipment.
Operation with non-approved equipment or unshielded cables is likely to result in
interference to radio and TV reception. Changes or modifications made to this
equipment not expressly approved by Antex Electronics could void the user’s
authority to operate the equipment.
IMPORTANT SAFETY INSTRUCTIONS
Read Instructions –Read all Safety Instructions before operating equipment.
Retain Instructions –Save these instructions for future reference.
Heed Warnings –All warnings and these instructions should be adhered to.
Follow Instructions –All operating and use instructions should be followed.
Cleaning –Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
Attachments –Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Water and Moisture –Do not use this product near water –for example near
a bathtub, wash bowl, kitchen sink or a room where moisture is likely to
occur.
Accessories –Do not place on an unstable surface (cart table or tripod) where
tipping is a possibility.
Ventilation –Install unit in well ventilated area where self generated heat
may escape. Bookcases or cabinets should have proper venting to allow heat
to escape.
Power outlet –A properly grounded wall outlet must be used. Do not use a
plug adapter that bypasses the three-terminal ground plug.
Power Cord Protection –Route your power cords out of traffics way so as not
to be walked on or traveled over by cart wheels. Do not place items on top of
or against the cord so as to pinch the cord.
Outdoor Antenna Grounding –The antenna and coaxial cable connecting to
the unit must be properly grounded to provide some protection against
voltage surges and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors, location of

SXM-100 Commercial Satellite Audio Receiver 5
antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Power Lines –An outside antenna system should not be located in the vicinity
of overhead power lines or electric light or power circuits, or where they can
fall into such power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.
Overloading –Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electrical shock.
Object and Liquid Entry –Never push objects of any kind into this product
through openings as they may short-out parts that could cause a fire. Never
spill liquid of any kind on the product.
Servicing –Do not attempt to service this product yourself; there are no
customer serviceable parts inside. Refer all servicing to qualified service
personnel.
A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the product and cart
combination to overturn.
Damage Requiring Service –Unplug this product from the wall outlet and
refer servicing to a qualified service person under the following conditions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If product has been exposed to rain or water.
d) If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to its normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance –this
indicates a need for service.
Replacement Parts –When replacement parts are required, be sure the
service technician has used replacement parts specified by the manufacturer
or have the same characteristics as the original part. Unauthorized
substitutions may result in fire, shock, or other hazards.
Safety Check –Upon completion of any service or repairs to this product, ask
the service technician to perform safety checks to determine that the product
is in proper operating condition.
Heat –The product shall be situated away from sources such as radiators,
heat resistors, heat registers, stoves, or amplifiers that produce heat.
Technology - It is prohibited to copy, decompile, disassemble, reverse
engineer, or manipulate any technology incorporated in receivers compatible
with the SiriusXM Satellite Radio system. Furthermore, the AMBE (R) voice
compression software included in this product is protected by intellectual
property rights including patent rights, copyrights, and trade secrets of Digital
Voice Systems, Inc. The user of this or any other software contained in a
SiriusXM Satellite Radio is explicitly prohibited from attempting to copy,
decompile, reverse engineer, or disassemble the object code, or in any other
way convert the object code into human-readable form. The software is
licensed solely for use within this product.

SXM-100 Commercial Satellite Audio Receiver 6
Welcome!
Thank you for choosing the world’s finest high-fidelity,
commercial SiriusXM Satellite Radio receiver.
Only SiriusXM brings you more of what you love to listen to, all
in one place. Get over 140 channels, including commercial-
free music plus the best sports, news, talk, comedy and
entertainment. Welcome to the world of satellite radio.
This unit requires a monthly subscription from SiriusXM
Satellite Radio. For more information, visit
www.siriusxm.com
Installing SXM-100
Antex Electronics recommends that the SXM-100 unit and its
antenna be installed by a professional installer. Brief
instructions are presented here for reference purposes.
The installation process consists of three steps:
1. connecting the radio to audio equipment
2. positioning the satellite antenna
3. activating the radio
Parts List
Before installing your SXM-100, make sure you have all the
parts listed below:
SXM-100 unit
Remote control
Power Adapter
RCA audio cable
You will also need an antenna which is not included with the
SXM-100. Antennas are available at www.shop.siriusxm.com,
Antex, and third parties.

SXM-100 Commercial Satellite Audio Receiver 7
Connections
House the SXM-100 unit in a component rack or other suitable
location that provides adequate ventilation. The maximum
ambient temperature should never exceed 120 degrees

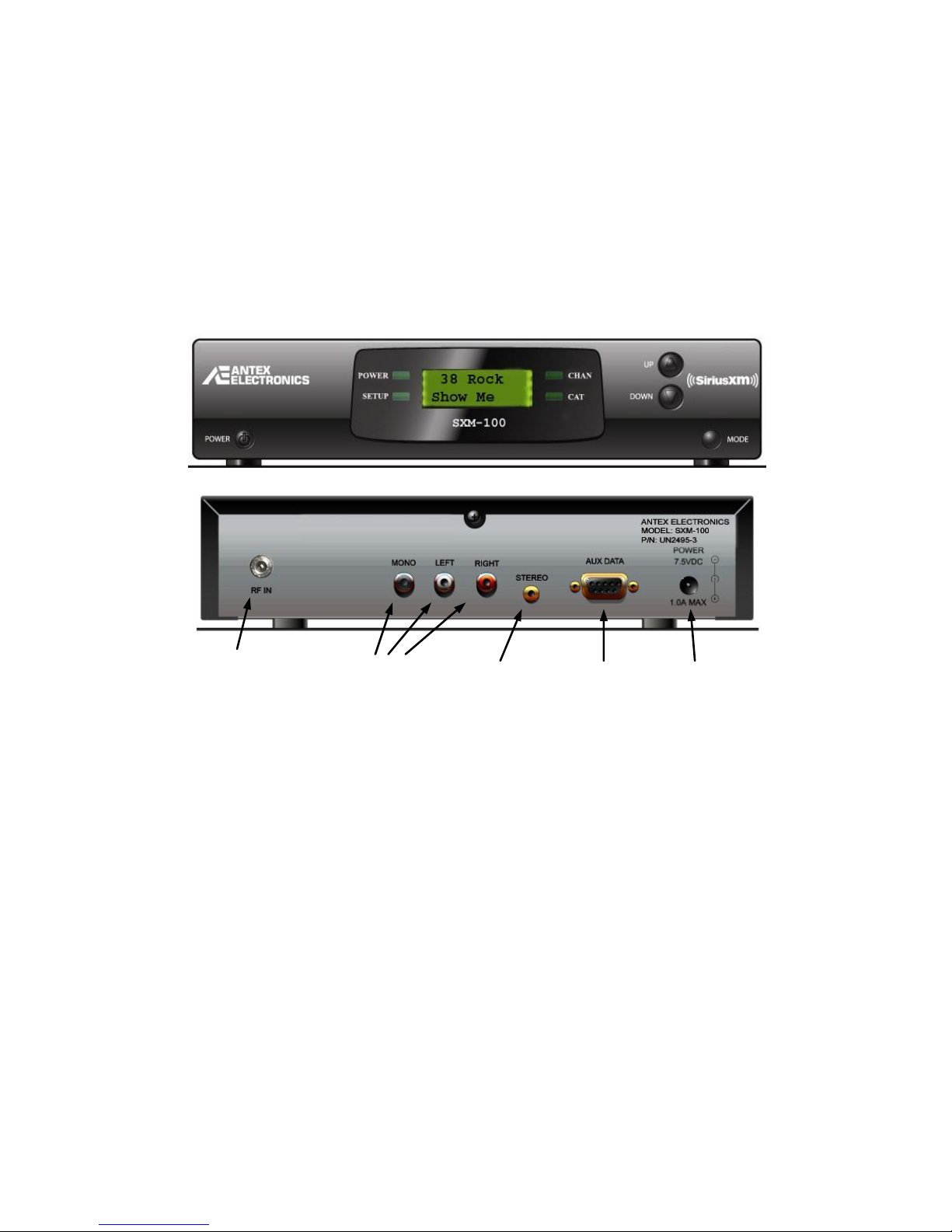

Fahrenheit. The unit’s front user interface and various
connectors on the back of the unit are shown here:
Connect the SXM-100 as follows:
1. Audio output –audio connection may be made to either
the RCA outputs or the 3.5mm output jack. These two
output connectors are internally wired in parallel, and it is
generally not recommended that both outputs be used
simultaneously unless it is known that both outputs drive a
high impedance load. The maximum level is 2VRMS.
2. Power in –connect only the included AC adapter to a
suitable 120VAC power source.
3. Antenna –connect an approved SiriusXM compatible
antenna (not supplied) to the RF input jack (F connector)
and position as described in the next section. Antenna and
cable kits are available from Antex and third party sources.
4. RS232 –an RS232 control port is provided for optional
control of the SXM-100 unit from 3rd party control systems.
RF IN “F”
Connector to
Satellite Radio
antenna
RCA line level
audio out
3.5 mm line
level audio
out
RS232
control
port
DC power in

SXM-100 Commercial Satellite Audio Receiver 8
Antex recommends that this connection be used only by
experienced professional installers. See www.antex.com
for more information about using the RS232 control port.
Positioning the Antenna
The SiriusXM antenna requires exposure to the
south/southeastern sky for proper signal reception. To position
your antenna, first connect the SXM-100 to your audio system
as described above, then follow these instructions.
1. Power on the receiver, verify the power indicator is
illuminated and the display backlight is on. If the message
“CHECK ANTENNA” appears, check that the antenna
connector is fully engaged, an open circuit does not exist
between the receiver and antenna, and that no short
circuit exists in the antenna cable. If the antenna does not
have a clear path to the satellites, the front panel display
will read “NO SIGNAL”.
2. Align the Antenna as follows:
For Indoor installation on a flat surface:
a) Set antenna on its base on a flat horizontal surface.
b) Turn the base of the antenna so that the SiriusXM logo
is facing to the south if you are in the eastern half of
the U.S. and to the south/southeast if you are in the
western half of the U.S.
c) Bring up the signal strength menu by holding down the
power button for 4 seconds and optimize signal
strength using the instructions in the next section. Exit
signal strength Mode by pressing the power button.
d) If necessary, experiment with different antenna
locations near a south-facing window or outside.
For Outdoor installation or indoor wall mounting:
The antenna can also be attached vertically to an external
or internal wall if that is more convenient than placing it on
a horizontal surface.
a) Please follow the manufacturer’s instructions for
mounting the antenna.

SXM-100 Commercial Satellite Audio Receiver 9
b) Bring up the signal strength menu by holding down the
power button for 4 seconds and optimize signal
strength using the instructions in the next section. Tilt
the antenna away from the wall/base until the signal
strength is optimized. Exit signal strength Mode by
pressing the power button.
3. Power on your sound system and turn the amplifier to a
low volume.
4. If the system is working, you will hear SXM programming
on channel 1 and can proceed to activating the SXM-100.
If there is a problem with the antenna connection, the
SXM-100’s front panel display will read “CHECK ANTENNA”.
If the antenna does not have a clear path to the satellites,
the front panel display will read “NO SIGNAL”. Reposition
the antenna until signal strength is optimized and you hear
audio.
5. Activate the unit following the “Activating the SXM-100”
instructions on page 10.
Optimizing Signal Strength
For robust operation, signal strength received from the
antenna must be optimized. Optimum alignment of the
antenna may be achieved using the signal strength menu.
Press and hold the power button for 4 seconds, a display
similar to the one below will appear.
SAT indicates the received SXM satellite signal quality. The
higher the SAT percentage number the better.
TER indicates the signal quality received from a terrestrial
repeater, if there is one. Acceptable values for this number
may be anywhere from 100% if a repeater is nearby, to 0% if
only the satellite signals are available –higher is better.
Position and rotate the antenna for the optimum balance
(highest readings) for SAT. Obstructions such as trees or tall
SAT TER
###% ###%

SXM-100 Commercial Satellite Audio Receiver 10
buildings may interfere with reception of satellite signals and
require that the antenna be repositioned.
When complete, press the power button to return the display
to its normal operating Mode.
Activating the SXM-100
After the channel 1 audio verification test, you must activate
your SXM-100 to access all XM channels. Commercial
accounts must sign up for and activate under the terms of
SiriusXM’s Commercial Service. It is not legal to operate
this receiver in a place of business, such as a restaurant
or fitness club, using a personal subscription.
To activate the radio you must first obtain the SXM Radio ID
number of your unit. Tune the receiver to channel 0 by using
the down button on the unit’s front or press 0 on the remote
control. The 8 digit SXM Radio ID will be displayed.
Record the 8 character ID in the space below, noting that
letters I, O, S and F are not used and that the number zero
has a line running diagonally through it.
SXM Radio ID: _________________________
For home subscriptions, in the USA, you can activate online or
by calling SiriusXM Listener care:
Visit www.siriusxm.com/activatenow
Call SiriusXM Listener Care at 1-866-635-2349
For Canadian home subscriptions, please contact:
Visit www.siriusxm.ca/activatexm
Call XM Customer Care at 1-877-438-9677
For business subscriptions, call 1-866-345-7474
As part of the activation process, the SiriusXM satellites will
send an activation message to your tuner. When the radio
detects that the tuner has received the activation message,
your radio will display: “SUBSCRIPTION UPDATED –PRESS UP
TO CONTINUE”. Once subscribed, you can tune to channels in

SXM-100 Commercial Satellite Audio Receiver 11
your subscription plan. Note, the activation process usually
takes 10 to 15 minutes, but may take up to an hour. Your
radio will need to be powered on and receiving the SiriusXM
signal to receive the activation message.
Operating the SXM-100
SXM-100 provides intuitive control of its various functions via its
front panel buttons as shown on the next page, the remote
control, and the RS232 port (for local and remote operation).
Note that in the event of power loss, the radio will automatically
return to its state before power loss.
Basic operation allows the user to:
Change channels and music categories
Enter a channel number on the remote to tune to a channel
directly
Set and tune to preset channels via the remote control—10
presets total
You can also use the SETUP menu to set Forced Tune Events,
block specific channels, as well as add and skip channels.
Instructions for all these features are provided in later sections.

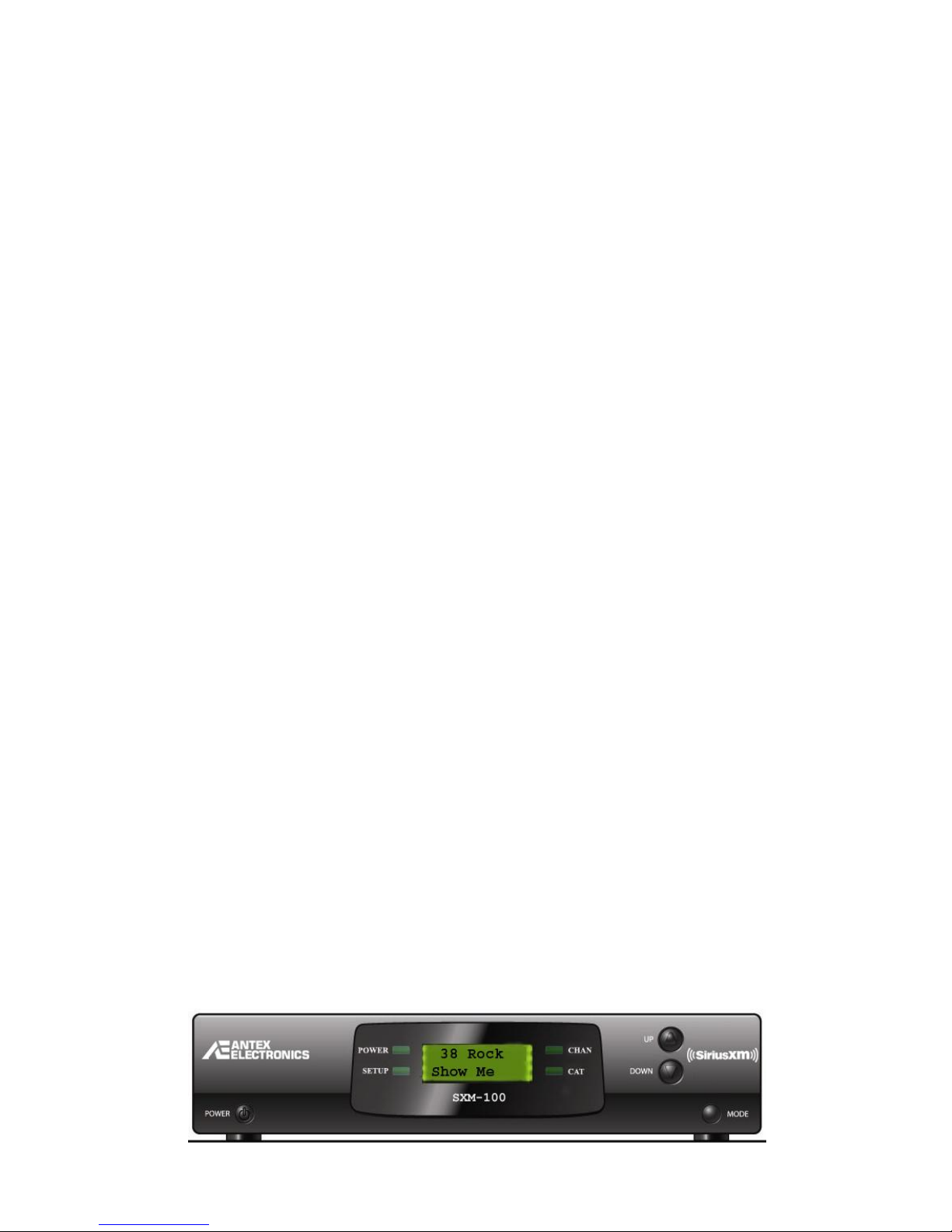

Display and Indicators
The default display, as shown below, provides information about
the channel currently tuned to. On the top line is the channel
number, followed by the channel name and category name. The
channel name and category name alternate. On the second line
the artist name, song title, and content info scroll by on a
continuous basis. The fields are separated by a forward slash “/”.
The content info is followed by two spaces before the song title
starts the cycle again.

SXM-100 Commercial Satellite Audio Receiver 12
The display backlight is illuminated and text appears after the
power button has been pressed, indicating the unit is on.
The SXM-100 has four indicators and four buttons as follows
(Modes are described below):
Power Indicator –illuminated whenever power present
Setup Indicator –illuminated when in Setup Mode
CHAN Indicator –illuminated when in Channel Mode. Both
CHAN and CAT indicator illuminated in Channel/Category
Mode.
CAT Indicator –illuminated when in Category Mode. Both
CHAN and CAT indicator illuminated in Channel/Category
Mode.
Power Button –turns unit on/off. Hold for signal strength.
Press to exit setup menus.
Mode Button –cycles operational Mode of unit through
Channel, Category, Channel Category, or Setup. Holding for 4
seconds enters Setup Mode.
Up and Down Buttons –changes channels and is used for
menu navigation.

SXM-100 Commercial Satellite Audio Receiver 13
Tuning Modes
The SXM-100 supports three Modes of channel selection:
Channel (default), Category and Category/Channel. Examples
of categories are Rock, Classical, etc.
Channel Mode allows you to scroll through and select any
channel in the entire XM lineup regardless of what category
the channel belongs to. Channel Mode is the default Mode at
power up. When you switch to Category Mode, the unit will
scroll through the different Categories offered by XM.
Category/Channel Mode allow the user to scroll through
channels only within the current category. This is particularly
useful when, for example, you want to listen to and scroll
through news channels only.
To cycle through the three tuning Modes, press the MODE
button. By default the unit is in Channel Mode and the CHAN
LED is illuminated. When you press the MODE button once, the
unit will enter Category Mode and the CAT LED is illuminated
on the front panel. Press MODE again to enter
Category/Channel Mode (both CHAN and CAT LEDS are
illuminated) and again to return to CHAN Mode.
When using the remote control, press the CH key to enter
Channel Mode and the CAT key to enter Category/Channel
Mode. In Category/Channel Mode, use the left and right
arrows to change categories.
Changing Channels
You can change channels in either Channel or
Category/Channel Mode using three methods:
Channel up/down buttons
Direct channel entry using numbered buttons on the
remote
Preset button on the remote to tune to a preset channel
Use the up/down buttons on the front panel or remote to scroll
(browse) through channels. You will notice that the channel
number and name, artist name, and song title information in
the display change to reflect the new channel. The audio will
not change until the browsed channel has been selected.

SXM-100 Commercial Satellite Audio Receiver 14
Selection (and audio) of the new channel occurs a couple
seconds after you have stopped pressing the up/down buttons.
Note that if you browse to a channel that has been
Locked using Parental Controls, the artist name, song title
information will be replaced by “RESTRICTED”. This indicates
a Locked channel, and you will be required to input a passcode
to select this channel. If you do not enter the passcode, the
SXM-100 will go back to the channel you were tuned to before
you started browsing, not any of the previously browsed
channels.
There is also a scanning feature using the up/down buttons. If
you press and hold the up or down buttons, after about 2
seconds the channels will begin scanning. After about 10
seconds, the scanning will change to a higher speed.
You can also tune to a specific channel directly simply by
inputting its channel number using the NUMERIC buttons on
the remote. You may enter one, two, or three digits
representing a valid channel number. If you are entering less
than three digits, it will take a couple of seconds before the
new channel is selected because the SXM-100 is waiting to see
if you are going to enter more digits. If the channel number
you want only has one or two digits, you can make the
selection happen immediately by pressing the SEL key on the
remote.
When preset channels have been set, you can access those
presets simply by pressing the PRESET button on the remote,
then an appropriate numeric button. For example, if preset 0 is
set to Rock, preset 1 to Hits, and preset 2 to News, you could
jump to the News channel quickly by pressing PRESET-2.
There are several other features of the SXM-100 that affect
which channels can be tuned to. Below is a brief description.
Please read the individual sections on each subject for more
details.
Parental Control –Channel Locking- Restricted Mode: To limit
access to channels which may be deemed inappropriate or have
mature content, channels may be programmed as locked. If
Restricted Mode is turned on, locked channels may only be tuned
to if you input a passcode with the remote control. (Parental
Control page 17, Channel Locking page 23, Restricted Mode page
37)

SXM-100 Commercial Satellite Audio Receiver 15
Front Panel Locking: This feature disables the buttons on the
front panel. The SXM-100 can then only be changed by using
the remote control. (see page 22)
Channel Skipping: Channels may be programmed to be skipped.
In this case, the channel will not be shown when using the
up/down buttons. A skipped channel can only be tuned to by
direct tuning using the remote control. (see page 27)
Forced Tune Events: The SXM-100 can be programmed to tune
to a specific channel at a specific time using Forced Tune Events.
Forced Tune Events can also turn on or off Restricted Mode and
Front Panel Locking. (see page 31)
Changing Categories
The channels of the SiriusXM service are conveniently
organized into categories such as Hits, Rock, News, Sports,
etc. If using the front panel, enter Category Mode by pressing
the MODE button on the front panel until the CAT LED is
illuminated and the CHAN LED is not illuminated. Press the
up/down buttons to tune to a different category. Note that the
channel number, category name, channel name, artist name,
and song title information in the display change to reflect the
new category. A channel’s category name and channel name
alternate. Once you have found the desired category, press
the MODE button until both the CAT and CHAN LEDs are
illuminated. You will now stay in that category when pressing
the up/down buttons on the front panel.
If using the remote control, Category Mode (CAT LED
only illuminated) has no function. Press the CH key to enter
Channel Mode and the CAT key to enter Category/Channel
Mode. In Category/Channel Mode, use the left and right
arrows to change categories.

SXM-100 Commercial Satellite Audio Receiver 16
Setting and Recalling Presets
The SXM-100 can store up to 10 channel presets (numbered 0
to 9). To assign a preset, first tune to a desired channel, in
this example 44. Then press and hold the PRESET button on
the remote for 4 seconds. The display will change to:
Press the numeric button you wish to assign this channel to
and it will be stored.
To recall a stored preset, press (but don’t hold) the PRESET
button. The display will indicate “TUNE TO PRESET NO. ?” -
simply select the desired numeric button (0-9). If you press
the PRESET button by mistake, pressing any non-numeric key
will exit from the preset prompt.
Powering On and Off
Before unplugging the SXM-100, it is best to first power down
using the POWER button. Wait for the power down to
complete, then unplug. No damage will occur if you simply
unplug, but parameters that may need to be saved in
nonvolatile memory inside the tuner module will not be saved,
and it may take longer for the tuner to lock to a signal when
powered on the next time.
The SXM-100 always performs a memory check after a cold
power cycle (removing AC power). When the memory check is
finished, the unit will either turn on or go back into standby,
depending on the state it was in before AC power was
removed. If there is an AC power failure, the SXM-100 should
return to the same state when power is restored. If it was on
when power failed, it should turn back on by itself when power
is restored and tune to the same channel. If it was off, it
should return to the off state when power is restored, after
doing the memory check.
Note that if Restricted Mode is programmed on, the
SXM-100 will power back up in the Restricted Mode, even if
Restricted Mode had been temporarily suspended by entering
the passcode. In this case, the display will prompt you for the
SAVE 44 TO
PRESET NO. ?

SXM-100 Commercial Satellite Audio Receiver 17
passcode if you were tuned to a Locked channel before power
was turned off. If the passcode is not entered, the SXM-100
will tune to the Preview channel (channel 1) instead of the
channel it was tuned to when power was turned off.
When power is cycled, either warm (using the POWER button)
or cold (removing AC power), the SXM-100 will try to tune to
the channel it was on before power was turned off. If there is
some problem (see Display Advisories, page 40, Channel
Unavailable), the unit will tune to channel 1, the Preview
channel.
The internal microprocessor is always running, even when the
unit appears to be off. If Forced Tune Events are
programmed, the unit will be in a stand-by mode when it
appears to be off. In this mode, the internal tuner module is
powered up and receiving and decoding the signal from the
satellite for the time information. This way, the unit will know
the correct time so it can execute the next Forced Tune Event
to turn on.
Parental Control
Whether using the SXM-100 in the home or business, there
may be some channels which you wish to limit access to. They
may have profane or graphic language or may simply not be
desired or appropriate for your business. Channels which
contain language which some people may find offensive have
channel names beginning with “xL”. To prevent access to
unwanted channels, there is a Restricted Mode function with
passcode protection. The passcode is a 4 digit number entered
with the remote control. Channels may be individually
restricted by using the Channel Locking feature in the Setup
menus. When a channel is marked as Locked and Restricted
Mode is turned on, you will be prompted to enter the passcode
if you try to tune to a locked channel . The channel cannot be
tuned to until the correct passcode is entered. If the passcode
is not entered within 10 to 15 seconds, the SXM-100 will
ignore the channel change request and remain on the
previously selected channel. If you enter an incorrect
passcode, you will be prompted to try again. If you press any
non-numeric key, the passcode entry will be aborted and the
SXM-100 will remain on the previously selected channel. Once
the passcode is entered, all locked channels will be accessible

SXM-100 Commercial Satellite Audio Receiver 18
until the unit is powered off or put in standby mode.
Restricted Mode may also be temporarily turned on and off at
scheduled times using Forced Tune Events. This could be used
to allow employees to access all channels after closing time, as
an example.
Passcode security and convenience is a delicate balance. A
new SXM-100 has the default passcode set to “1234”. You
may change the passcode by using the Setup Passcode Menu.
Of course, passcode entry is required to access this menu.
Antex highly recommends you change the passcode from the
default value and have a method of remembering it and
keeping it safe. There is a passcode recovery method, in case
you should forget the passcode. Antex has developed a
system of passcode recovery which preserves the integrity of
the passcode protection. Antex can issue a recovery passcode,
but the recovery passcode is a cryptographic hash of both the
SiriusXM Radio ID and the current date. This means there is
NOT a universal “backdoor” password that would compromise
the integrity of the whole system.
The recovery passcode issued by Antex will only work
on that particular SXM-100 and only until midnight on the day
it was issued and can only be used to change the passcode.
There is a registration process for the SXM-100 as well. We
encourage you to register your SXM-100 and specify your
passcode recovery restrictions to prevent unauthorized
persons from requesting a recovery passcode. (Of course, if
an unauthorized person uses a recovery passcode, you will
know because they can only change the passcode and the
previous passcode will no longer work.) By registering your
SXM-100 with Antex, you can make the passcode recovery
more secure by requiring the passcode only be sent as a text
message to your phone, or only be sent to a certain email
address, or by requiring security questions be answered in
order to issue the recovery passcode. If an SXM-100 is not
registered, Antex will give a recovery passcode to
anyone claiming to be the rightful owner. If you wish to
prevent this from happening, please register your SXM-100.

SXM-100 Commercial Satellite Audio Receiver 19
Setting Options Via Menus
The SXM-100 SETUP Mode allows you to configure options
such as forced tuning, blocking, skipping, etc.
To enter the SETUP Mode, press and hold the MODE button on
the front of the unit for 4 seconds or depress the SETUP button
on the remote. The Setup indicator illuminates, and the menu
shown below appears.
Navigating Setup Menus
The top level structure of the menu system is shown below
and indicates which parameters may be configured. In Setup
Mode, the channel up/down buttons on the unit or remote
control are used to scroll though the menu options. The Mode
button or Setup button on the remote is used to descend to a
sub-menu, or to exit up to a higher level.
At the top level menu heading shown above, pressing the
Mode button on the unit or remote control exits to normal unit
operation. You must navigate back to this menu using the
up/down keys for the Mode button to exit back to normal
operation of the unit.
To exit Setup Mode quickly, (without having to navigate
backwards), press the POWER button on the remote or front
panel. This will work in all cases except when the second line
of the display reads “PWR TOGGLES”. These are special
submenus where the POWER button has to be used to toggle
between “Y” and “N” because the up/down buttons are being
used to change channel numbers.
SETUP MENUS
MODE TO EXIT

SXM-100 Commercial Satellite Audio Receiver 20
SETUP MENUS
MODE TO EXIT
SETUP
SIGNAL QUAL
SETUP
LINE LEVEL
SETUP
FRONT LOCK
SETUP
TIME ZONE
SETUP
DLT SAVING
SETUP
CH LOCKING
SETUP
CH SKIPPING
SETUP
FORCE TUNING
SETUP
PASSCODE MNU
Up
Wraps to beginning
SETUP
SW VERSION
SETUP
SCROLL SPEED
