Maxview MXL020HD User manual

MXL020/HD & MXL020/SD
HD/SD - FREE TO AIR
SATELLITE RECEIVER
OPERATING MANUAL - UK
Please read the safety instructions featured in this manual before installing or operating
this receiver. Keep these instructions for future reference.
Important
This receiver features an On/Off switch. Please turn off at the switch located on the front of the
receiver when not in use. This will reduce any unnecessary drain on your vehicle battery.
Energy saving
MXL020HD INSTRUCTIONS REVISION.indd 1 15/05/2013 14:12

Safety instructions 4-5
Appropriate use 6
Satellite listing 6
Languages 6
Connecting the receiver 7
LNB cable installation 7-8
Connection with the HDMI cable 9
Connection with the scart cable 10
Connection with Phono 11
Connection with Infra Eye Sensor 11
Getting started
Remote control 12
Remote control functions 13
Receiver 14
Operation
Screen display messages when switching channels 15
User interface on the TV screen 16
Menu structure 17
Menu navigation 18

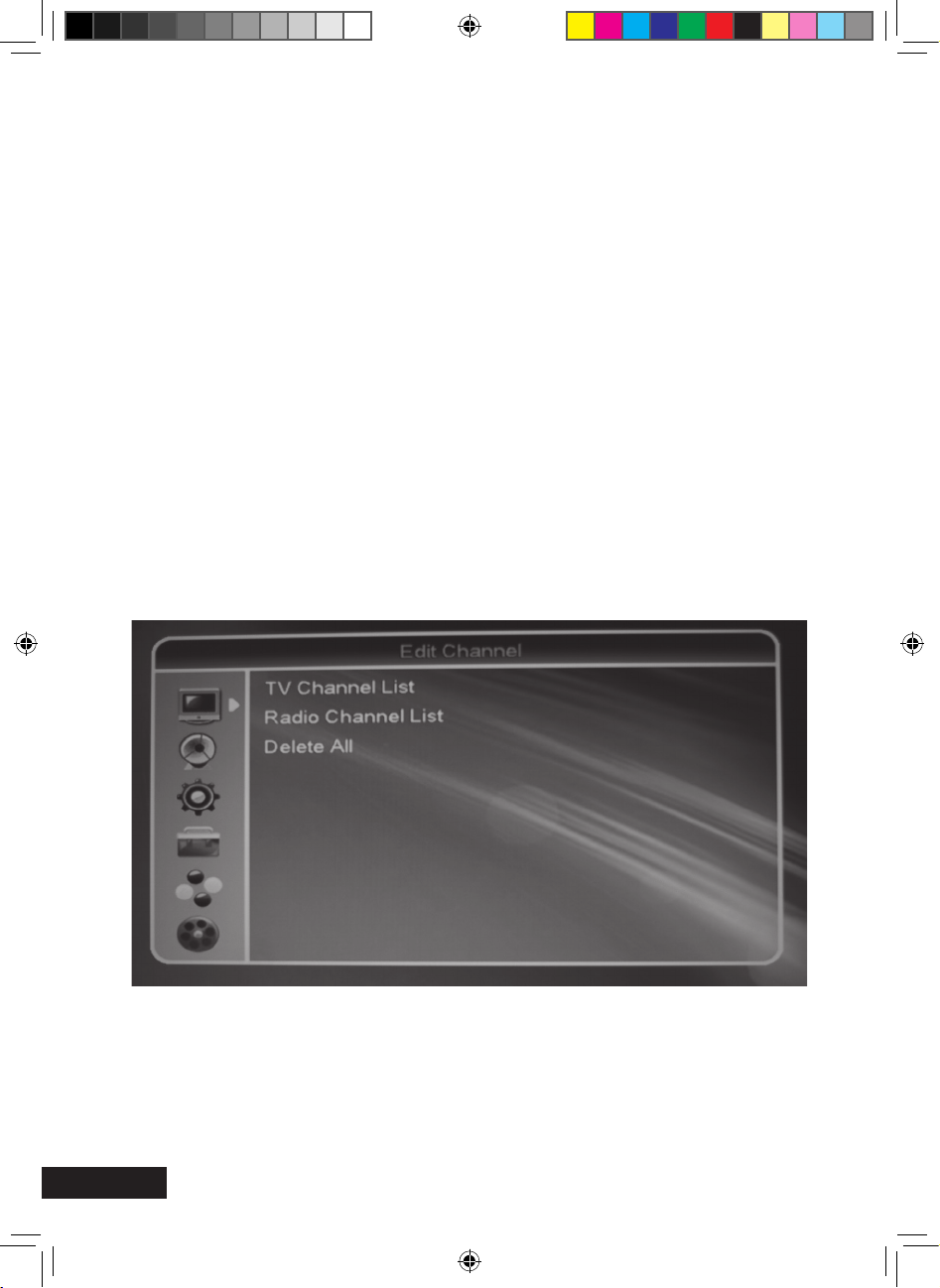

Editing channel list (symbol: TV) 18
TV channel list 19-21
Radio channel list 21
Delete all 21
Installation (symbol: satellite antenna) 22
Antenna connection 22
Satellite listings 22
Antenna set up 23
Single satellite search 24
Multi satellite search 24
TP List 25-27
Contents
Check the product contents after purchase. You should have the following inside:
Pack contents
Page 2
> Receiver
> Remote Control > 2 x AAA batteries > Power Pack > 12V Cable > Infra Red Eye Sensor
MXL020HD INSTRUCTIONS REVISION.indd 2 15/05/2013 14:12

System Setup (symbol: gearwheel)
Language 28
TV system 28
Local time setting 29
Timer setting 30
Parent lock 30
OSD setting 31
Favourite/Other 31
Tools (symbol: tools)
Information 32
Factory setting 32
Software updates 33
USB function 34-35
Game (symbol: game pieces) 36
REC/PVR (symbol: film reel) 36
Record Manager 37
Keys with special functions 38-39
EPG (Electronic Programme Guide) 40
V-FMT - TIMER - INFO - SUBT - AUDIO - FIND 41
Keys with PVR functions 41
Editing of recorded programmes 42
Using Receiver with an Easy Find LNB 43-46
General
Glossary 47
Trouble shooting 48-49
Specifications 50
Cleaning 51
Disposal 51
Guarantee 51
Customer support - contact us 52
Page 3
MXL020HD INSTRUCTIONS REVISION.indd 3 15/05/2013 14:12

Please read the safety instructions carefully before operating the receiver.
Electrical connection:
• Do not expose the receiver to rain as well as any kind of humidity to avoid
risk of fire and electric shock.
• Never open the casing. Otherwise, there is a risk of electric shock.
• Connect the receiver only to the power source installed by an expert.
It is either: for an external power pack:
a 100–240 V, 50-60 Hz mains socket as per specications or
- for a 12 V cable:
a 11 V / 15 V DC supply as per specifications.
• Ensure that the total power consumption by the antenna connection of the
receiver does not exceed “LNB IN” 300 mA.
• Pull the external power pack or the 12 V cable out of the mains socket if
you will not use the device for a longer period of time. Only pull at the
external power pack or at the head piece of the 12 V cable, not at the cable
itself.
• In case of a storm, pull the external power pack or the 12 V cable of the
receiver out of the mains socket.
• If foreign bodies or uids enter the receiver, pull the external power pack
or the 12 V cable out of the mains socket. Ask a qualified person to check
the equipment before operating it once again. Otherwise, there is a risk of
electric shock.
• Do not bend or crimp any cable.
• If a cable used for mains supply is damaged, the receiver must be repaired
by an expert before reusing it. Otherwise, there is a risk of electric shock.
• Never allow children to play with or operate the antenna unit unless
supervised.
• Always ask qualied personnel to carry out maintenance jobs. Otherwise,
you are putting yourself and others at risk.
• Disconnect the receiver from the power source in case of operational disruptions.
• Spare parts must be ordered directly from the manufacturer.
• Modications of the device lead to an extinction of the manufacturer’s liability.
• Remove the protection lms.
Safety instructions.
Page 4
MXL020HD INSTRUCTIONS REVISION.indd 4 15/05/2013 14:12

Suitable location:
Cautions!
Information on separation from power source. The Standby key of this device will not
separate the device completely from the power source. In addition, the device will draw
current. To separate the device completely from the power source, the mains plug must
be pulled out of the socket.
• Place the receiver on a stable and even base.
• Use the receiver only with adequate climatic conditions.
• Avoid proximity to:
heat sources, e.g. heaters, naked ames, e.g. candles,
devices with strong magnetic elds, like e.g. loudspeakers.
• Never place receptacles lled with liquid (vases) on the receiver
• Avoid direct sunlight and places with an extremely high amount of dust.
• Never cover ventilation slits. Provide for sufcient ventilation by
maintaining a safety distance of 5 cm to other objects.
• Do not place any heavy objects on the receiver.
• Humidity may settle in the receiver if it is brought into hot surroundings
from a cold one. In this case, wait for about an hour before operating the
equipment.
• Arrange all cables in such a manner that no-one steps or trips over them.
Correct battery handling:
• Batteries may contain toxic agents. Ensure that batteries are not within
the reach of children. There is a danger children may swallow batteries.
• Batteries that are getting discharged may damage the remote control.
If the receiver is not in use for a longer period of time, remove the batteries
from the remote control.
• Batteries may contain toxic agents. Therefore, dispose of the batteries
immediately in an ecologically accepted manner according to the prevailing
statutory regulations. Never throw the batteries into normal household waste.
• Never expose the batteries to open re or strong heat, as otherwise there is a
danger of explosion.
• Replace the batteries always by batteries of the same type.
Page 5
MXL020HD INSTRUCTIONS REVISION.indd 5 15/05/2013 14:12

The receiver receives un-encrypted digital channels (free-to-air) in a covered area. It is
exclusively meant for this purpose and should only be used for the same. This also includes
paying attention to all information in this operating manual especially that of safety
instructions.
Any other usage is considered to be improper and may lead to material damages and even
personal injuries. Moreover, it will result in the immediate loss of warranty.
The manufacturer does not bear any liability for damages caused due to improper usage.
Appropriate usage
With this receiver you can receive un-encrypted (free-to-air) and encrypted digital satellite
channels via satellite antenna for private use.
It is not necessary to programme the receiver in the first instance. The most important
broadcasting stations and satellites have been pre-programmed.
The satellite antenna has to be directed towards the desired satellite. The receiver will scan
for further new channels as soon as you initiate the automatic scanning of broadcasting
stations for this satellite. Satellites not preset may be added.
All receiver settings can be adjusted easily using the user interface (menu) on the TV
monitor.
Satellite listings
• Croatian
• Czech
• Danish
• Greek
• Hungarian
• Norwegian
The following satellites have been preset on this receiver:
• ASTRA2 28,2°E
• ASTRA1 19,2°E
• Hotbird 13,0°E
• Türksat 42°E
• Sirius2 5,0°E
• Slovenia
• Slovak
• Swedish
• Dutch
• French
• Turkish
Satellite presets
Languages
The multilingual user interface supports following languages:
• English
• German
• Italian
• Spanish
• Portuguese
• Polish
• Amos/Atlantic 4-5°W
• HispaSat 30°W
• Eutel W2 16°E
• HellasSat 39°E
• ASTRA 23,5°E
Page 6
MXL020HD INSTRUCTIONS REVISION.indd 6 15/05/2013 14:12

Page 7
The receiver is connected with your satellite antenna with a coaxial cable.
If necessary, you have to prepare a coaxial cable before connecting the receiver.
CAUTION!
Connect the receiver to the mains supply only after you have connected it to all equipment
and the antenna properly. Otherwise, the receiver can suffer damages and there is a risk of
electric shock that can be a threat to life or physical condition.
DANGER!
Camping or trailer operating: The receiver can also be connected to 12 Volt (11-15 Volt,
e. g. solar collector, motor vehicle). To do this, use the 12 Volt cable.
CAUTION!
For using vehicles with 24 volt on-board voltage (eg, trucks), you have to use a 24V /12V DC
/ DC converter. If not, the receiver can suffer damages. Your warranty will be lost,
if ignored.

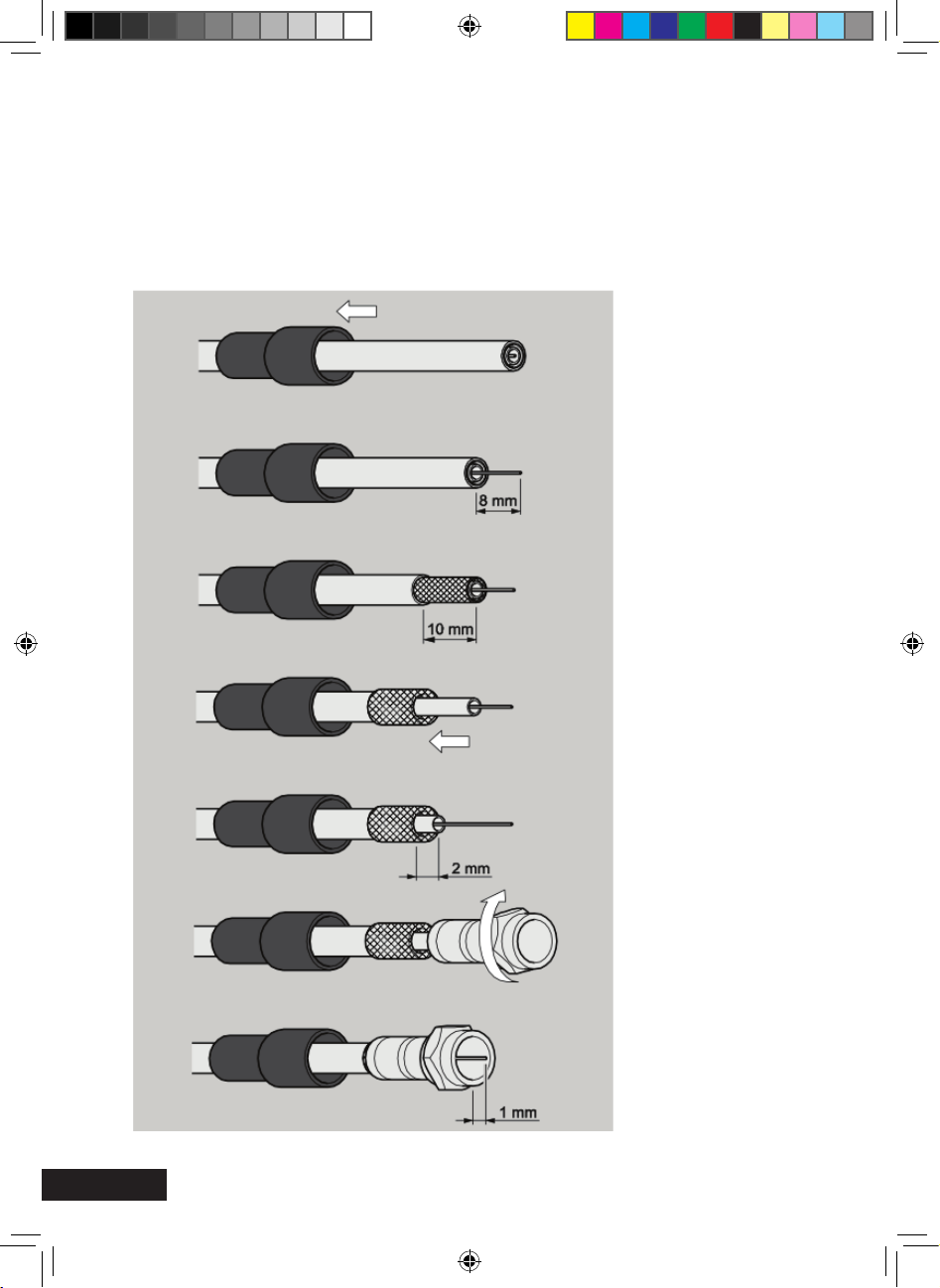

(See the installation diagram on the next page) For the installation of the F connectors on
the coaxial cable you need a knife (ideally a wire stripper) and side cutting pliers.
> Cut 8mm of the coaxial cable at each end up to the inner core.
> Carefully cut 10mm of the outer insulation so that the wire netting is exposed.
> Turn the wire netting backwards and wind it over the outer insulation in such a
manner that it does not touch the inner core.
> Remove the inner insulation up to 2mm from the wire netting.
> Rotate the F connector onto the turned-back wire netting till the connector
touches the inner insulation.
Connecting receiver
LNB cable installation
MXL020HD INSTRUCTIONS REVISION.indd 7 15/05/2013 14:12

LNB cable installation diagram
Page 8
CAUTION!
The wire netting must not protrude from the back of the connector end.
> Cut the inner core with a cable cutter in such a manner that it projects maximum
1mm from the connector.
MXL020HD INSTRUCTIONS REVISION.indd 8 15/05/2013 14:12

Page 9
Connection with a HDMI cable
Insert the HDMI cable in the HDMI socket HDMI in the receiver.
Connect the HDMI cable to the TV set. Follow the operating manual of the TV set.
IR eye
MXL020HD INSTRUCTIONS REVISION.indd 9 15/05/2013 14:12

Connection with a Scart cable
Insert the Scart cable in the Scart socket of the receiver.
Connect the Scart cable to the TV set. Follow the operating manual of the TV set.
Please note that the Scart and the HDMI cable are not included in this pack
It is impossible to operate the receiver simultaneously via the Scart and the HDMI
connection. You will have a signal either at the Scart or the HDMI output. The operation of a
video device connected to a VCR Scart connection is not possible via the HDMI connection.
Page 10
IR eye
MXL020HD INSTRUCTIONS REVISION.indd 10 15/05/2013 14:12

Page 11
Connection with Phono Cable
Connect the phono connectors of the audio cable to the AUDIO R and AUDIO L sockets of
the receiver if you want to connect a stereo system.
CAUTION!
Strictly follow the instructions for connecting the audio cable given in the operating manual
of your stereo system.
The phono cable is not included in this pack.
If you want the receiver to be hidden from view, for example in a cupboard, connect the
IR extension cable. You must ensure that there is a clear line of sight between your remote
control and the IR extension sensor.
Connection of an audio-digital receiver
If you want to use 5-channel audio transmission (Dolby digital sound/AC3), you must
connect your audio-digital receiver to the coaxial output of the receiver.
CAUTION!
Please follow strictly the information regarding connection in the operating manual of your
audio-digital receiver.
Your TV set need not be switched on for radio reception.
Connection of the coaxial digital output Insert the coaxial cable in the “SPDIF” socket of the
receiver. Connect the coaxial cable to the audio-digital receiver.
Connection with IR Eye
MXL020HD INSTRUCTIONS REVISION.indd 11 15/05/2013 14:12

Getting started
Remote Control
For the remote control two Micro type batteries: LR 03/AAA/1,5 V are required.
> Open the battery compartment
> Insert two batteries according to the polarities mentioned into the battery
compartment.
> Push the cover of the battery compartment carefully – until the cover is locked.
> Replace discharging batteries on time. Otherwise, the sending capacity of the
remote control will be too low.
> Always replace both batteries simultaneously and use batteries of the same type.
> Check the batteries of your remote control at least once a year.
> If one battery has leaked, wear protective gloves and clean the battery compartment with
a dry cloth.
CAUTION!
Batteries may contain toxic agents that are hazardous to health and environment. Therefore,
dispose of the batteries in any case according to the prevailing statutory regulations.
Never throw the batteries into normal household waste.
The remote control transmits infrared signals to the receiver. Please refer to the overview of
the remote control for the functioning of the keys.
> Point the remote control towards the front side of the receiver and slightly press the co
responding key once.
Page 12
MXL020HD INSTRUCTIONS REVISION.indd 12 15/05/2013 14:12

Page 13
1. Volume/Mute
2. Switches On /Standby
3. Numerical Input (A-Z), 0: Sleeptimer
4/5. With active channel list: switches between the
channel lists
6. Switches between TV and Radio Mode
7. Information
8. Subtitles
9. Switches between TV and Satellite Mode
10. Decreases & Increases volume
11. Shows Menu lists
12. Shows favourite lists
13. Channel up & channel down
14. Text setting
15. Audio setting
16. Find setting
17. Recall setting
18. Cursor key - Switches channel in normal mode
19. Cursor key - Increases volume in normal mode
20. Cursor key Switches channel in normal mode
21. Cursor key - Decreases volume in normal mode
22. OK - confirm
23. EPG (Electronic Programme Guide)
24. Exit menu/Removes Display Message
25. Aspect ratio selection, red function key
26. Green function key
27. Yellow function key
28. Time menu - Blue function key
29. Record
30. Stop
31. Play
32. Pause
33. Rewind
34. Fast forward
35. Slow motion forward
36 Slow motion backward
37. Skip backward
38. Skip forward
39. Movie menu
40. USB
19
22
24
21
23
10 13
11
12
3
1 2
6 7 8 9
45
14 15 16 17
25 26 27 28
18
20
Remote control functions
29 30 31 32
33 34 35 36
37 38 39 40
MXL020HD INSTRUCTIONS REVISION.indd 13 15/05/2013 14:12

CAUTION!
Check that connections of all equipment and the antenna are proper before connecting the
receiver to the mains.
> Insert the mains plugs of the connected equipment in the mains socket and switch it on.
> Switch on the AV channel of the TV set. If the TV set recognizes the switching voltage
emitted by the receiver, it will switch automatically to the AV mode (with Scart).
> If you want to operate your receiver with 12V, insert the 12V cable into the “DC
12V IN” socket of the receiver and connect it to your power source.
CAUTION!
For using vehicles with 24 volt on-board voltage (eg, trucks), you have to use a 24V/12V
DC/DC converter. If not, the receiver can suffer damages. Your warranty will be lost,
if ignored.
The receiver is supplied with preset TV channels and can be used directly. If you want to
check if new channels are available, initiate a scan for broadcasting stations.
To get into standby mode, press the red key at top left of the remote control. The current
time will be displayed. The device consumes approx. 2W only. Currently, this is a very low
value of power consumption.
Energy saving
This receiver features an On/Off switch. Please turn off at the switch located on the front
of the receiver when not in use. This will reduce any unnecessary drain on your vehicle
battery.
External 3A fuse
Features an easy to access integral rear mounted blade fuse on rear of receiver box for
electrical protection.
Receiver
Page 14
MXL020HD INSTRUCTIONS REVISION.indd 14 15/05/2013 14:12

Operation
Screen display messages when switching channels
When a channel is switched, an information bar appears on the screen for 5 seconds.
In this information bar, you will nd the following indications:
TXT symbol
EPG symbol
Heart symbol
Info
Info
Channel name.
Received satellite.
Current date.
Current time (according to the pre-setting in the menu item
“Time“).
Storage location.
This symbol is displayed if the selected broadcasting station
offers Teletext.
This symbol is displayed if the selected broadcasting station
offers an electronic programme guide.
The heart symbol is displayed if you have included the
channel in a favourite list.
Information on the current “Now“ and the following “Next“
programme.
Information on the currently active channel list.
Page 15
MXL020HD INSTRUCTIONS REVISION.indd 15 15/05/2013 14:12

User interface on the TV screen
You can do individual settings of your receiver using the menus in the user interface.
For this purpose, both the receiver and the TV set need to be switched on and connected
by a cable (e.g. SCART or HDMI).
Press the MENU key. The main menu will be displayed.
By pressing the EXIT key or the MENU key again, you can exit this menu.
Navigation within the menus
Top (arrow 1): Menu name
Left (arrow 2): Menu symbols
Middle (arrow 3): Sub menu
Page 16
1
2 3
MXL020HD INSTRUCTIONS REVISION.indd 16 15/05/2013 14:12

Sub-menu
TV Channel List
Radio Channel List
Delete All
Antenna Connection
Satellite List
Antenna Setup
Single Satellite Search
Multi Satellite Search
TP List
Display Setting
Language
TV system
Local Time Setting
Timer Setting
Parental Lock
OSD Setting
Favourite
Other
Information
Factory Setting
Software Update
USB
Remove USB device safely
Othello
Sudoku
Record Manager
Storage Information
DVR Configuration
Jump
Page 17
Menu Structure
Main menu
Edit Channel List
(symbol: TV)
Installation
(symbol: satellite antenna)
System Setup
(symbol: gearwheel)
Tools
(symbol: tools)
Games
(symbol: game pieces)
REC
(symbol: film reel)
MXL020HD INSTRUCTIONS REVISION.indd 17 15/05/2013 14:12

Editing channel list (symbol: TV)
Below you will find the description of the menu items of the main menu item
Editing channel list.
Menu navigation
Use the    keys to navigate within the menus. The selected menu items are marked.
Confirm your selection with the OK key. By pressing the EXIT key you can exit the menu
again. Changes must be confirmed additionally. Sometimes they will require a confirmation
prompt.
Example: Setting the receiver to summer time
Press the MENU key, select System settings, press the OK key, then go to Time & timer
setting, press the OK key, enter Local time and press the OK key again.
Enable use of GMT with the and  keys. Set the time zone according to your
location in the menu item GMT Difference (Germany: “GMT + 01:00“).
Set summer time with the and keys. Exit that menu by pressing the EXIT key.
Page 18
MXL020HD INSTRUCTIONS REVISION.indd 18 15/05/2013 14:12

TV Channel List
Select the channel to be changed with the and keys. It will then be marked with a
yellow bar. The current programme of the channel can be seen in the small window on the
right.
The editing options can be enabled by pressing the following 5 keys:
1. FAV: Press the FAV key of the remote control. The FAV box will be highlighted and
enabled. Select the desired channel to be assigned to a favourites list and confirm by
pressing the OK key. Now, assign the selected channel to the desired favourites list and
confirm again by pressing the OK key. Now, the favourites group is check marked. Exit the
selection of the favourites group by pressing the EXIT key. Now, the channel is marked with
the heart symbol. Press the FAV key to disable this function. When exiting the menu with
the EXIT key, conrm the prompt to save the favourites.
2. LOCK: Press the red function key of the remote control. The LOCK box will be
highlighted and enabled. Select the desired channel to be marked for locking and press
the OK key. After entering your PIN, the channel will be marked with a lock. Now, you can
select further channels and mark them for locking by pressing the OK key. Press the red
function key to disable this function. When exiting the menu by pressing the EXIT key and
conrming the prompt, the channels marked with a lock will be locked. Now, these
channels can only be watched after having entered your PIN.
Please Note: In menu item System Setup – Parental Lock the option Channel Lock must
be enabled. If it is disabled, the locks will be inactive until the option channel lock has
been enabled again.
Page 19
MXL020HD INSTRUCTIONS REVISION.indd 19 15/05/2013 14:12

3. SKIP: Press the green function key of the remote control. The Skip box will be
highlighted and enabled. Select the desired channel to be skipped. After having pressed
the OK key it will be marked with an arrow. Now, you can select further channels and mark
them for being skipped by pressing the OK key. Press the green function key to disable this
function. When exiting the menu by pressing the EXIT key and conrming the prompt, the
channels to be skipped will be saved. When zapping, these channels will be skipped.
If the changes regarding FAV, Lock and Skip have been enabled by conrming the prompt,
they can be undone in the same way as described above.
4. MOVE: Press the yellow function key of the remote control. The Move box will be
highlighted and enabled. Now, select the desired channel to be moved by pressing the OK
key.
You can move several channels simultaneously.
Now select the desired target channel location with the and . By pressing the yellow
function key, the channels will be moved. When exiting the menu by pressing the EXIT key
and conrming the prompt, the moved channels will be saved.
5. EDIT: Press the blue function key of the remote control. A new menu will open.
Page 20
MXL020HD INSTRUCTIONS REVISION.indd 20 15/05/2013 14:12
