ANT-39000 - 4Kp60 Video Server
H.265/H.264 Encoder
Document info
Version date author Comments
1.1 16-Jun-23 David M Based on ANT-39000 User Manual Eng Ver1.0
or further help and advice please contact Antrica on:
Email: [e-mail]
Phone: [phone], during UK office hours, and ask for technical support

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 2/69
Safety Precaution
 Make sure to turn off the power before installing video server.
 Do not install under the direct sunlight or in dusty areas.
 Make sure to use the product within the temperature and humidity specified in the
specification.
 Do not operate the product in presence of vibrations or strong magnetic fields.
 Do not put electrically conducting materials in the ventilation hole.
 Do not open the top cover of the products. It may cause a failure or electric shock on the
components.
 To prevent from overheating, make sure to keep the distance at least 10cm from the
ventilation hole.
 Make sure to check the proper voltage before connecting the power.
We appreciate your purchasing video server.
Before installing the product please read the following with care.

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 3/69
.............................................................................................................................................. 1
Document info .......................................................................................................................... 1
1. Introduction .......................................................................................................................... 4
About this manual ............................................................................................................... 4
Features ............................................................................................................................ 4
Product and Accessories ...................................................................................................... 5
Part Names and Functions .................................................................................................... 6
System Connections ............................................................................................................ 7
2. Installation .......................................................................................................................... 10
Connecting Video .............................................................................................................. 10
Connecting Audio .............................................................................................................. 10
Connecting Serial Ports ...................................................................................................... 10
Connecting Sensor and Alarm ............................................................................................. 10
Connecting Power ............................................................................................................. 10
Check if it Works ............................................................................................................... 10
Front LED display and button .............................................................................................. 11
3. System Operation ................................................................................................................ 12
Remote Video Monitoring ................................................................................................... 12
4. Remote Configuration ........................................................................................................ 16
Using Web Browser ........................................................................................................... 16
Video & Audio ................................................................................................................... 17
Image .............................................................................................................................. 23
Network ........................................................................................................................... 24
Event ............................................................................................................................... 40
Record............................................................................................................................. 46
Device ............................................................................................................................. 52
PTZ ................................................................................................................................. 53
User ................................................................................................................................ 57
System ............................................................................................................................ 60
Appendix A : Sensor and Alarm Port .......................................................................................... 67
Appendix B : Serial Port ........................................................................................................... 69

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 4/69
1. Introduction
About this manual
This User Manual provides information on installation setup and operation of the video server, as well as how
to manage troubleshooting.
Features
A Video server is a video and audio transmission system that provides broadcast quality audio and video, based
on IP network through LAN and ADSL/VDSL. Video server operates in an Encoder mode. Encoder system
compresses media data and transmits them.
Video
- Up to 3840 x 2160p60
- Highly efficient compression algorithm, H.265 / H.264 / MJPEG support
- Wide range of transmission rates: 32kbps ~ 16Mbps
- Various transmission modes: CBR, VBR, Hybrid
- Motion detection
Audio
- Multi-Transmission Mode : Unidirectional Mode (IP-server to Client PC or Decoder / Client PC or Decoder
to IP-server), Bi-directional Mode
Network
- ixed IP & Dynamic IP (DHCP) support
- 1:1, 1:N support
- Multicasting
- MPEG-TS
- SRT (Secure Reliable Transport)
- Automatic transmit rate control according to network conditions
- OnVI , PSIA compliant
Serial Data
- RS-232/422/485 support
- Data pass-through mode : Serial data communication between IP camera and Decoder
- Data pass-through mode : Serial data communication between Encoder - Decoder

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 5/69
Sensor and Alarm
- Support direct connections of external sensor and alarm devices
- Event Alarm
USB
- Connection to internal or external USB storage for remote access, recording and playback
User Interface
- Diagnose and upgrade through dedicated program called True Manager
- System configuration using web browser
High Reliability
- Reliable embedded system
- System recovery by dual watch-dog functions
Product and Accessories
Video Server Quick Manual Power Adapter and Cable
Screws Brackets

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 6/69
Part Names and Functions
Front View
No. Parts unction
① LED Display system status
② USB Port USB Recording
③ Reset Manually Reset
Rear View
No. Part unction
①
Power DC +12V power input
②
RS-232 Serial port for PTZ control and etc
③
RS-422/485 Serial port for PTZ control and etc
④
Sensor Sensor input
⑤
Alarm Alarm or Relay Output
⑥
LAN (Master, Slave) 1000/100/10-base-T Ethernet
Only master port supports PoE
⑦
Audio In/Out Audio in/out
⑧
HDMI In/Out HDMI In/Out

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 7/69
System Connections
Video server operates as one mode; Encoder. Video server can be connected in either 1-to-1 fashion where
one encoder is connected one decoder or 1-to-many fashion where one encoder connected to many decoders.
ollowing chart shows data status of video, audio and serial data.
System Mode Video Audio Serial Data
Encoder Transmit Transmit/Receive Transmit/Receive
The system mode is defined by the video communication and the system mode is capable of single directional
transmission of audio and bi-directional of serial data.
Topology
Generally, the encoder and a decoder are connected in 1-to-1 mode. To support specific situation, 1-to-multiple
connection is also supported.
 1:1 Connection (Unidirectional Transmission).
The most commonly used configuration is 1 to 1 connection. An encoder is installed at a site where video images
can be transmitted and a decoder is installed at a center location to receive and view the video images on
monitors. Audio and serial data are transferred in either direction.
A decoder and encoder can be connected by setting of the encoder’s address at the decoder’s remote IP.
Site
(Encoder)
Remote Center (Decoder) Remote Center

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 8/69
or
or
or
 1:N Connection (Unidirectional Transmission).
In this configuration, a site can be monitored from many remote center locations. Maximum connections would
be limited by the network bandwidth.
unctionally, the VMS (Video Management System) software can be replaced as the decoder.
Multicast Mode
In the network supporting multicast mode, if Multicast is setup as a system protocol, you can use bandwidth
efficiently regardless of the number of decoders. In 1:N connection, a large number of decoders can receive
audio and video data from an encoder by using a single streaming transmission.
 Relaying
In this arrangement, video and audio can be retransmitted from a center to another center. The arrangement is
useful when the network bandwidth at the site is limited while there is more than one center wanting to monitor
the site.
Site
(Encoder)
Remote Center (Decoder or VMS System
Site
Center 1(Decoder) Center 2(Decoder)

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 9/69
 VMS(Video Management System)
VMS (Video Management System) that supports Onvif is a Windows based remote monitoring program to
access multiple encoders for real-time monitoring or control of the encoders and connected cameras.
Site
Remote Center
Site
Remote Center (Decoder) VMS

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 10/69
2. Installation
Connecting Video
- Encoder system mode
Connect camera or other video source such as computer’s video output line to the encoder (video server)
video input port. HDMI cable ver. is 2.2.
Connecting Audio
It is possible to set the mode as Tx-only, Rx-only, Tx-Rx or audio off.
- Connect audio input and output ports to audio devices accordingly.
- The Audio signal required is line level, so audio equipment with an amp, mixer or other amplifier should be
used.
- Embedded audio over HDMI is supported.
Connecting Serial Ports
- or camera control, PTZ controller (keyboard) and receiver can be connected to serial ports. Two
corresponding serial ports in encoder and decoder which are connected in 1-to-1 fashion works in pass-
through mode. This means that commands at a local system’s COM1 port will be transparently passed to
the remote system’s COM1 port. Also, a command at a local system COM2 port will pass to the remote
system’s COM2 port.
Connecting Sensor and Alarm
- Connect sensor and alarm devices to corresponding terminals accordingly.
Connecting Power
- After confirming the power source, connect power adaptor and connect the 12VDC connector to the system.
- Also PoE (Power over Ethernet) is supported.
Check if it Works
- Once the power is supplied to the camera, it will start booting. The system will boot up to an operating mode
after approximately 40-60 seconds. The green LED on the Ethernet port will flash indicating the system is
ready. Software called True Manager allows you to check the IP address and other network details of the
camera. Please refer to the True Manager manual for instructions on how to find the IP address of the
camera and if required changing it.

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 11/69
Front LED display and button
○ PWR ○ STATUS ○ LAN ○ HDMI □ USB3.0 ◎ RESET BTN
- Description of LED
◎ System status can be monitored with LED display
LED State Description
PWR
Off Power off
Green Power on
STATUS
Green blinking Normally operating
Red System failure: Needs diagnostics
LAN
Off No LAN connection
Green LAN Connected
HDMI
(Encoder)
Green HDMI Connected
Red HDMI Connection failure
Off No HDMI connection
- USB 3.0: USB Recording
- Reset button
1. While the system is in operation, press the reset button for more than 10 seconds.
2. The system will reboot automatically.
3. Once the system reboots, IP address will be set to the system default as below;


 IP mode ixed IP 

 IP address 192.168.10.100


 Subnet mask 255.255.255.0 

 Gateway 192.168.10.1


 Base port 2222 

 HTTP port 80
.
PWR STATUS LAN HDMI

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 12/69
3. System Operation
Remote Video Monitoring
- There are two ways to monitor video when the center system and IP camera are connected. In order for a
proper operation, an IP address must be set accordingly. Default password is requested modification for
better security. Please refer to True Manager program for further details.
 Default ID : admin
 Default Password :1234
Video Monitoring using Google Chrome
- Open Google Chrome and enter camera’s IP address. Once authorized, Google Chrome will start to display
video images from camera as shown below.
-
 Default IP Address : http://192.168.10.100

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 13/69

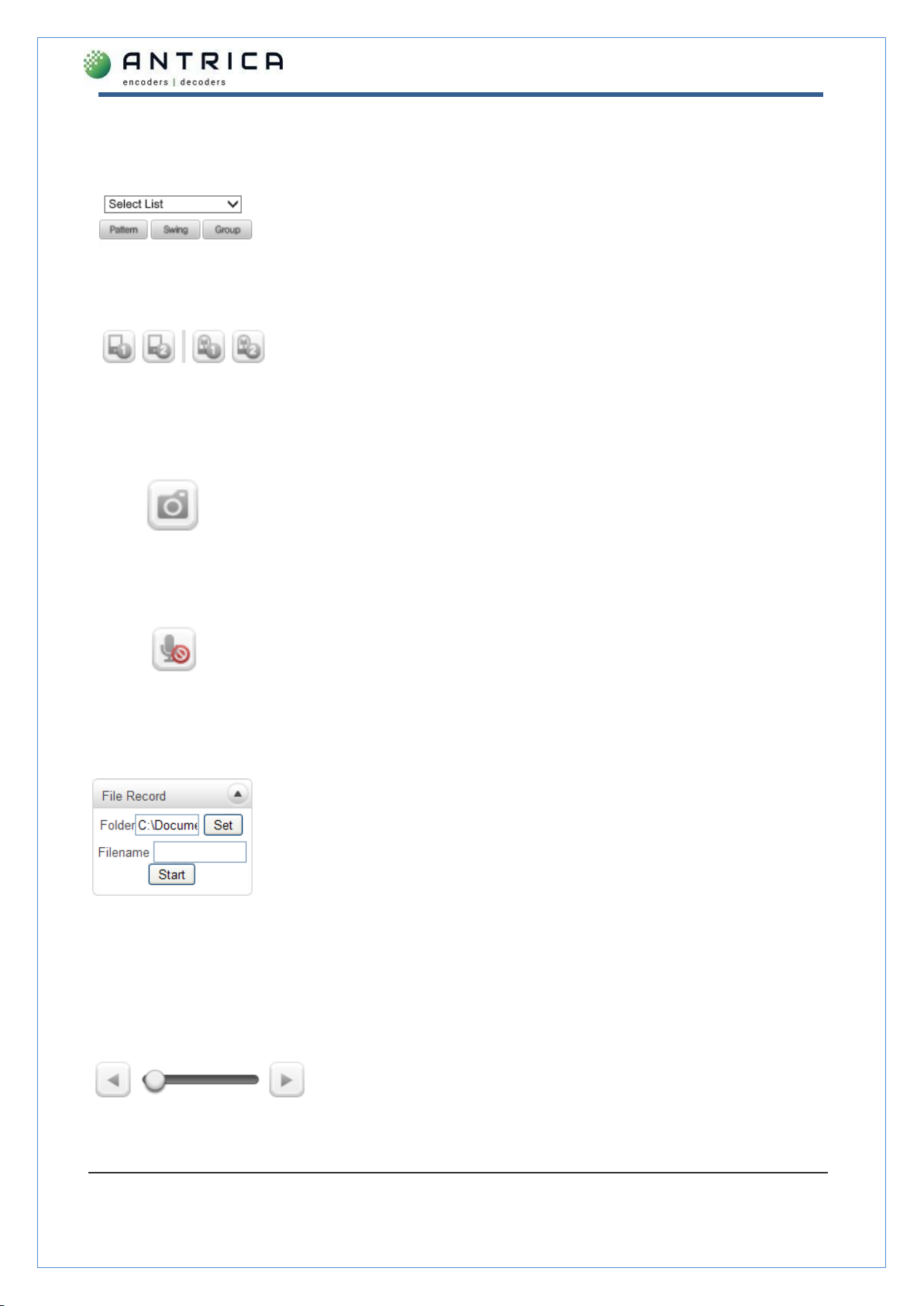

 Video Select - Select the Video stream to be viewed: Primary, Secondary #1, #2,
#3.
- This video server is capable of quadruple streaming; primary
streaming and secondary streaming #1~#3.
- Video will be displayed according to the resolution set on video
configuration. If dual or quadruple streaming (“Use Dual Encode”
Menu in Video page) is not activated, secondary video is not
available
 View Size
- Adjust the size of the screen on the browser. Screen size is initially
adjusted according to the resolution of video page
 Digital Zoom
- Control the Digital zoom on the screen. The more the camera zooms
in, the smaller the square of control panel is. Position of the image
can be changed by moving position of the square. If you press x1,
the screen will return to the normal size.
 PTZ Control
- Control PTZ and PTZ Control Panel is used for controlling external
PTZ devices when the external PTZ device is connected through
serial port. It is possible to make zooming control by Zoom in/out
buttons of PTZ control Panel (In order to use digital zoom, select
Digital zoom ON in the Camera tab)
- ocus Near, ocus ar, Auto ocus
Adjust the focus of the lens
 Select Preset - Set preset position and move to the specific preset position if PTZ
Camera is connected to Video Server via Serial Port Set
- Goto
Move to the selected preset entry if the preset entry is set.
- Set
Set the current position to the selected preset entry.
- Clear
Delete the selected preset entry.

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 14/69
 Select List  Pattern, Swing, Group can be activated as configured PTZ Page.
 Sensor Input and Alarm Output
- Display the status of the sensor in real time. When the sensor of the
video server is working, the sensor light turns red and you can
operate the alarm device by pressing the number icon. A number
icon indicates status of the alarm device.
 Snapshot
- Capture video images and store them as BMP or JPEG files.
 Talk
- Transfer audio from PC’s mic to the camera
 File Record - Recording to an AVI file on Live View page is available. AVI files are
generated in the specified folder or in a specified file name on the
PC where web browser is running.
1. Press “Set” button to select a folder or create a new folder. Enter
the file name on a filename field.
2. Press “Start” button to start recording.
3. Press “Stop” button to stop recording.
4. An AVI file named “IP address_hh_mm_ss” or “File name_IP
address_hh_mm_ss” will be generated in the specified folder
depending on where the path specified folder
or a prefix of the file name.
 Display Buffer
- Set the number of video frames to be buffered before being
displayed on web browser. Larger value results in smoother video
by sacrificing the latency. A setting of 10 ~ 15 frames can be used
generally for most situations

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 15/69
Initialize of IP Address
If a system IP address is lost, the system can be reset to the system default IP address using the reset
button in the back side of the system.
4. While the system is in operation, press the reset button for more than 10 seconds.
5. The system will reboot automatically.
6. Once the system reboots, IP address will be set to the system default as below;


 IP mode ixed IP 

 IP address 192.168.10.100


 Subnet mask 255.255.255.0 

 Gateway 192.168.10.1


 Base port 2222 

 HTTP port 80

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 16/69
7. Remote Configuration
Using Web Browser
Remote setting is available by using web browser. Enter the IP address of Video Server and a live view
screen will appear as below. Press Setup button located in the upper right area of the monitoring screen
to go to the server setup. or Remote Setting, user should be authorized higher than manager level.
The configurations are grouped into 9 categories: Video & Audio Image Network Event Record
Device PTZ User System. Leaving the page without pressing the Apply button, any changes in the page
will be discarded.
 Enter IP Address  Press Setup button

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 17/69
Video & Audio
Information
- Video and Audio status showed at this page including Algorithm, Resolution, Bitrate etc.

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 18/69
Video
- Performance Calculation
This calculation shows the performance usage rate according to the value set
- Input Format
Choose the input format from the list that is matched to the output of the camera or other video source.
- Video Input Auto Detect
ull Auto provides fixed resolution as input format. When semi auto is enabled, user can select
resolution.
- Detected Format
Source and video information are shown and whether it is connected to the Encoder

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 19/69
- Algorithm
Select compression algorithm. Note that MJPEG is supported only for Secondary streams.
- Resolution
Select video encoding resolution.
Scaling option is used when encoding resolution is different from input resolution. Without Scaling
option, input video will be cut according to encoding resolution. On the other hand, if Scaling is selected,
input video will be adjusted according to the encoding resolution.
- Framerate
Determine the maximum number of frames per second for the video stream.
1,2,3,4,5,6,8,10,15,20,25,30 and 60 frame rate can be selected. The actual frame rate of the video can
be less than the maximum frame rate set due to the network bandwidth limitation
- Preference
Select encoding mode to control video quality or bitrate: Quality(VBR) or Bit rate(CBR and Hybrid). If
‘Bitrate’ is selected, the video encoding will be affected by the ‘Bitrate’ value entered. Therefore, “Bitrate”
mode corresponds to CBR (Constant Bit Rate) or Hybrid (Hybrid Constant Bit Rate) encoding. If ‘Quality’
is selected, the video encoded will be affected by the quality of image selected. Therefore, “Quality”
mode corresponds to VBR (Variable Bit Rate) encoding.
- Quality
Select Video quality. 8 levels of quality are available.
Quality mode (VBR encoding) tries to encode every frame in a constant quality. Therefore, the resulting
bitrate may vary a lot depending on the complexity or activity changes in the input video. It is preferred
when constant video quality is required and network bandwidth is enough for delivering the stream of
highly varying bitrate.
- Bitrate
Determine the bitrate value between 32 ~ 16Mbps.
Bitrate mode (CBR encoding) allows you to set a fixed target bitrate that consumes a predictable
amount of bandwidth. In order to keep the bitrate limit, video quality is controlled dynamically according
to the complexity or activity changes in the input video.
Bitrate mode (Hybrid encoding) allows you to set a maximum bitrate. Bitrate does not exceed the set
bitrate but it can decrease automatically when the scene complexity is decreased. This mode allows
you to control the bandwidth efficiently.

ANT-39000 4Kp60 Video Server User Manual
last saved: 16-Jun-23 09:33:00 20/69
- I-Frame Interval
Determine I-frame Interval between 1 and 255.
- H.264 Profile
Select H.264 Profile: High Profile or Baseline Profile
The standard defines various sets of capabilities which are referred to as profiles that target
specific classes of application.
I. High Profile
The Primary profile for broadcast and disc storage applications are used particularly for high-
definition television application.
II. Main Profile
This profile is used for standard-definition digital TV broadcasts that use the MPEG-4 format as
defined in the DVB standard.
III. Baseline Profile
Primarily used for low-cost applications that require additional data loss robustness, this profile is
sometimes used in video conferencing and mobile application. This profile includes all features
that are supported in the constrained baseline profile, plus three additional features that can be
used for loss robustness.
- Secondary #1 ~ #3
- Use Quadruple Encode
Select ON to enable to use Secondary #1 ~ #3.
The Secondary #1 ~ #3 video can be viewed on Live View window by selecting Stream number on
Video selection
- Algorithm
Select H.264 or MJPEG or H.265 for the secondary, tertiary or quaternary streaming.
In case of H.264, wither bitrate mode or Quality mode can be selected for Preference mode. On the
other hand, MJPEG supports Quality mode
