Technical Manual | 808AH V1.2

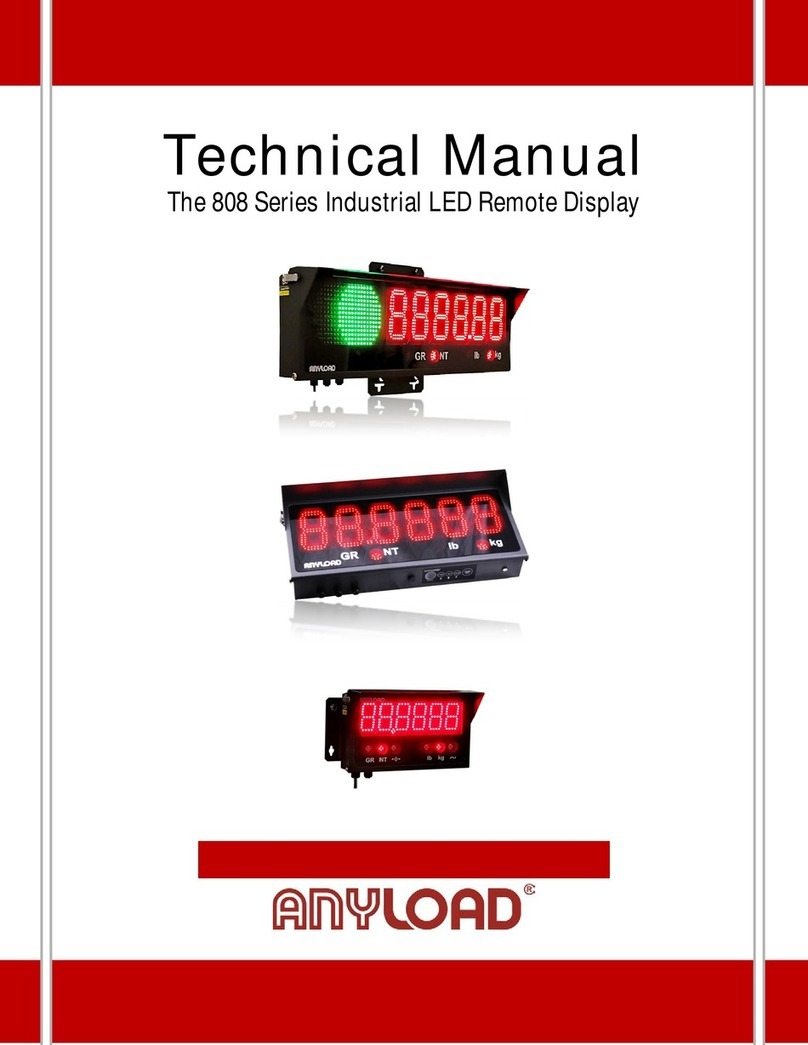

Technical Manual
The 808 Series Industrial Remote Display

Technical Manual | 808AH V1.2
| Anyload Weigh & Measure Inc. @ www.anyload.com
TABLE of CONTENTS:
1. INTRODUCTION..................................................................................................................................................................... 2
1.1 Main Features.................................................................................................................................................... 2
1.2 Technical Specifications ............................................................................................................................... 3
2. INSTALLATION....................................................................................................................................................................... 4
2.1 Safety Precautions........................................................................................................................................... 4
2.2 Main Enclosure ................................................................................................................................................. 5
2.3 Opening Enclosure .......................................................................................................................................... 6
2.4 Wall Mounting................................................................................................................................................... 7
2.5 Pole Mounting ................................................................................................................................................... 7
3. WIRING ................................................................................................................................................................................... 8
3.1 Controller Board Terminals........................................................................................................................ 8
3.2 Electrical Power Wiring................................................................................................................................ 9
3.3 Serial Communication Wiring..................................................................................................................10
3.4 Multiple Display Wiring..............................................................................................................................10
3.5 Switch and Relay Wiring ............................................................................................................................12
4. CONFIGURATION ................................................................................................................................................................13
4.1 Function Setup Menu ...................................................................................................................................13
4.2 Operating Modes............................................................................................................................................13
4.3 Membrane Keypad ........................................................................................................................................14
4.4 F1 Display Setting..........................................................................................................................................16
4.5 F2 Utility Setting ............................................................................................................................................17
4.6 F3 Protocol Setting........................................................................................................................................18
4.7 F4 Communication Setting ........................................................................................................................19
4.8 F5 Auxiliary Setting ......................................................................................................................................20
5. TROUBLESHOOTING.........................................................................................................................................................21
5.1 Controller Board ............................................................................................................................................21
5.2 Error Codes ......................................................................................................................................................22
5.3 Display Messages...........................................................................................................................................22
5.4 Push Buttons....................................................................................................................................................22
5.5 Diagnostic Lights............................................................................................................................................23
5.6 Advance Diagnostic.......................................................................................................................................23
5.7 Protocol Example...........................................................................................................................................24
5.8 Multiple Display .............................................................................................................................................24

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com |
1
I. ABOUT THIS MANUAL
I. A
Thank you for choosing Anyload 808AH industrial remote display. This 808AH technical
manual provides installation, setup, operation, and configuration information for the 808AH
industrial remote display. This manual is intended to be used by trained service technicians
and installers. It is recommended to go through the manual in details before installing,
operating or configuring the instrument. For further information please contact Anyload
Weigh & Measure Inc. authorized dealer.
a
II. DISCLAIMERA
Information in this Technical Manual is subject to change without notice due to correction or
enhancement. The information described in this manual is the property of Anyload Weigh &
Measure Inc. All other brand or product names within this publication are trademarks or
registered trademarks of their respective companies. All information contained within this
publication is, to the best of our knowledge, complete and accurate at the time of publication.
II. A
Is a registered trademark of Anyload Weigh & Measure Inc. Copyright © 2019
Anyload Weigh & Measure Inc. All rights reserved.
a
III. SAFETY
A Standard safety practices are required before conducting any installation, maintenance, or
procedure on device. It is recommended to read and understand the instructions and warnings
in this manual before performing any procedure on device. Failure to follow the instructions
and warnings could result in injury or death.
Definition of the safety symbols is described in table below.
Symbol Description
WARNING!
Indicates a potentially hazardous situation which may result in serious injury or death
Indicates a potentially dangerous procedure which may cause injury or death
CAUTION!
Indicates a potentially wrong procedure which may result in damage to device
Indicates a potentially wrong procedure which may result in loss of warranty
NOTICE!
Indicates a procedure which may need more instructions
Indicates a procedure which has more information available

Technical Manual | 808AH V1.2
2
INTRODUCTION | Anyload Weigh & Measure Inc. @ www.anyload.com
1. INTRODUCTION
1.1 MAIN FEATURES
•Designed by Anyload Weigh & Measure Inc. in Canada
•Six digits LED industrial remote display.
•High intensity, wide viewing angle, double row discrete LEDs.
•Standard seven segments with capability to display alphanumerical characters.
•Automatic learn mode to set communication baud rates.
•Automatic learn mode to detect incoming strings format.
•Ambient light sensor for day and night brightness control.
•Adjustable brightness settings for day and night.
•Software configuration for custom string formats.
•Menu driven setup function using a membrane keypad.
•Switch inputs and a relay output module to control traffic light.
•Customized software utility programs for truck axle weighing and summation.
•Customized addressable configuration to daisy chain multiple remote displays.
•Up to two decimal places with choice of dot or comma.
•Reverse digits mode for visibility in mirrors.
•Standard wall mount and pole mount kits.
•Standard sun visor and rain shade.
•Indication of GROSS (GR) or NET (NT) status by annunciators.
•Indication of KG (kg) or LB (lb) (or T (t) in other versions) units by annunciators.
•Independent ESD protected RS232, RS422/RS485 and 20mA serial communications.
•Echo out port for RS-232 and RS-422/RS-485 serial communications.
•Metal enclosure with hinged front cover for easy service.
•Weather proof mild steel powder coated enclosure.
•Internal folding electronic plate for easy wiring.
•Semitransparent grey front safety glass.
•UL approved encapsulated multi sense voltage power supply.
•Breather ventilation to avoid condensation inside enclosure.

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com | INTRODUCTION
3
1.2 TECHNICAL SPECIFICATIONS
Item
Specification
Description
1 Display Digits 5” (125mm) height, 6 digits, 7 segments,
2 Digit Segments 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE®LED
3 Micro Controller 50MHZ ARM Cortex M®processor
4 Status Indication 4 annunciators for GR, NT, lb and kg (some versions in kg and t)
5 Decimal Point 2 decimal point places with choice of dot or coma
6 Membrane Keypad 4 keys dome membrane keypad
7 Brightness Control 550nm ambient light sensor to adjust brightness in day and night
8 Communication Ports 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop
9 Communication Baud Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate
10 String Protocol Auto learn to detect string protocol and parse incoming string
11 Echo Port 2 independent serial ports for RS232 and RS422/RS485
12 Printer Port 1 independent transmit port for none legal for trade printing applications
13 Digital Output 1 form C relay output rated at 2A / 60VDC
14 Digital inputs 2 independent dry contact switch inputs
15 Main Enclosure Mild steel powder coated NEMA 4 / IP65 weather proof suitable for outdoor applications
16 Power Supply Input: 100-240VAC, 1.2A, 50/60Hz / output: 12VDC, 5.0A, 60W encapsulated
17 Power Consumption 120VAC @ 0.5A / 12VDC @ 2.5A ( 60W AC / 30W DC ) typical
18 Operating Temperature -40°F to 120°F (-40°C to 50°C)
19 Operating Humidity 20%RH to 90%RH
20 Enclosure Ventilation GORE ®breather vent to avoid condensation
21 Physical Dimensions 22.8” W X 9.8” H X 5.9” D (579mm X 250mm X 149mm)
22 Total Weight 7.5 kg (17 lb) main unit and 1.5 kg (3 lb) mounting kits, approximately
23 Industry Approvals UL / CUL approved class II power supply, CB CE
24 Limited Warranty 2 years limited

Technical Manual | 808AH V1.2
4
INSTALLATION | Anyload Weigh & Measure Inc. @ www.anyload.com
2. INSTALLATION
2.1 SAFETY PRECAUTIONS
Please practice safety before conducting any installation, maintenance, or procedure on device.
The 808AH remote displays are pre-wired AC devices with multi sense voltage.
It is necessary to practice safety checks before any installation or maintenance.
Do not operate this device unless all instructions in this manual have been read.
All installation and maintenance shall be conducted by trained service technicians.
Avoid any alteration or changes to the device other than factory provided options.
Disconnect power source before any installation or maintenance.
Make sure proper grounding is provided at the site.
Make sure device is properly grounded if custom wiring is provided.
Make sure site structure can bear weight of the remote display.
Make sure enough clearance is available around the device for accessibility.
Make sure all warning signs are visible and not damaged or altered.
Follow warning and caution notes in this manual.
Symbol Description
WARNING!
Make sure the power source is disconnected before any installation
Make sure the site has proper grounding
CAUTION!
Any unauthorized change or alteration in default wiring may void warranty
Any installation and wiring must be handled by authorized personnel
NOTICE!
Refer to the local electrical code for the wiring color codes
Refer to the installation section for instructions to how to access to the wiring terminals

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com | INSTALLATION
5
2.2 MAIN ENCLOSURE
The main enclosure is a hinged design metal enclosure protected by two toggle latches on the sides
for easy service. The enclosure is a weather proof mild steel powder coated with both standard pole
mount and wall mount brackets included in the package. All internal parts are installed on a folding
metal plate mounted inside of the enclosure.

Technical Manual | 808AH V1.2
6
INSTALLATION | Anyload Weigh & Measure Inc. @ www.anyload.com
2.3 OPENING ENCLOSURE
To open the cover, unlatch the two toggle latches on both sides of the enclosure and flip down the
hinged front cover. To access the electronic components, loosen two retention screws on each sides
of the electronic plate of the 808AH remote display.

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com | INSTALLATION
7
2.4 WALL MOUNTING
The 808AH remote displays may be mounted on walls with standard ear mount pieces provided in
the package. The ear mount pieces can be attached to the main enclosure by six philips type screws.
2.5 POLE MOUNTING
The 808AH remote displays may be mounted on the poles by standard pole mount kit provided in
the package. The pole mount kit includes two ear mount pieces (connected to the main enclosure by
six Philips screws) and a pole mount. Have the pole mount fixed on the pole first, then install the
enclosure (with the ear mount pieces attached) on it.

Technical Manual | 808AH V1.2
8
WIRING | Anyload Weigh & Measure Inc. @ www.anyload.com
Switch
Relay
3. WIRING
3.1 CONTROLLER BOARD TERMINALS
All communication signals, switch inputs, and outputs can be terminated to the controller board via
accessible screw terminals. These terminals are designed to accept serial data communication
signals, dry contact switch inputs, and a relay output.
Item
Protocol
Distance
1
RS-232
50 feet (15 m)
2
RS-422/RS-485
1000 feet (300 m)
3
20mA
500 feet (150 m)
Symbol Description
NOTICE!
Availability of the optionsis subject to confirmation by manufacturer and may vary by firmware version
Refer to the configuration section for instructions on howto configure the functions of remote display
Refer to the installation section for instructions on how to access the wiring terminals
5A FUSE
20mA Current Loop
RS422 or RS485
RS232

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com | WIRING
9
3.2 ELECTRICAL POWER WIRING
The 808AH remote displays are pre-wired AC devices with regional power cable cord installed via
strain reliefs. The proper grounding is provided as default. The standard 808AH remote displays do
not have any ON / OFF power switch. Therefore, before any installations, make sure all power
sources are disconnected.
It is required to use a ground fault circuit interrupter to supply AC lines to the device at the site to
avoid any risk or hazard. For the applications requiring custom wiring, all safety precautions and
proper grounding must be considered. This table is based on color codes commonly used in North
America. For other regions, the local codes must be obtained and observed.
Power Cord
Power Supply
Wire
Color
Color
Wire
Neutral White Blue N
Live Black Brown L
Green -
Item
AC Power Supply
Description
1 Input AC 100-240V~ 1.2A 50-60HZ
2 Output DC 12V 5A 60W
3 Enclosure Encapsulated IP67
4 Protection Short circuit, Over load, Over voltage
5 Approval Class II UL / CUL approved, CB CE
Symbol Description
WARNING!
Make sure the power source is disconnected before any installation
Make sure the site has proper grounding
CAUTION!
Any unauthorized change or alteration in default wiring may void warranty
Any installation and wiring must be handled by authorized personnel
NOTICE!
Refer to the local electrical code for the wiring color codes
Refer to the installation section for instructions to how to access to the wiring terminals

Technical Manual | 808AH V1.2
10
WIRING | Anyload Weigh & Measure Inc. @ www.anyload.com
3.3 SERIAL COMMUNICATION WIRING
The 808AH remote displays provide industry standard serial communication ports with installation
via screw terminals. The ports are automatically detected and adjusted upon start up. There are
three communication ports available as RS-232, RS-422, RS-485, and 20mA current loop in both
active and passive mode. The serial communication wires coming from indicator shall be entered to
the unit via bottom strain reliefs and be terminated to the proper terminals.
Communication
Indicator
808AH
Description
Protocol RS-232 RS-232 Function
RS-232 Communication
RS-232 Printer Port
-
GND
Signal Ground
-
TX2
Printer Port Transmit Data
GND
GND
Signal Ground
TX
RXD
Transmit to Receive Data
-
TXD
Transmit Data
Communication
Indicator
808AH
Description
Protocol RS-485 RS-422 Function
RS-422 Communication
RS-485 Communication
GND
GND
Signal Ground
TXB
RXB
Negative Transmit to Negative Receive Data
TXA
RXA
Positive Transmit to Positive Receive Data
-
TXB
Negative Transmit Data
-
TXA
Positive Transmit Data
Communication
Indicator
808AH
Description
Protocol
20mA
CL-20
Function
20mA Current Loop
Passive or Active
TX-
RX-
Negative Transmit to Negative Receive Data
TX+
RX+
Positive Transmit to Positive Receive Data
Symbol Description
NOTICE!
Availability of the printer port is subject to confirmation by manufacturer and may vary by firmware version
Refer to the F4 section for instructions on how to configure communication ports of remote display
Refer to the F4 section for instructions on how to configure passive or active mode of 20mA port
Refer to the installation section for instructions on how to access the wiring terminals

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com | WIRING
11
3.4 MULTIPLE DISPLAY WIRING
Depending on the application and distances, one of the following methods can be used for multiple
remote displays in a multi-drop mode. Up to ten 808AH remote displays can be wired in multi scale
mode. Echo out ports functionality is disabled as default and can be activated in setup menu. The
table below shows the wiring and configuration of fours remote displays.
808AH Multi Display
Indicator
808AH #1
808AH #2
808AH #3
808AH #4
Protocol
RS-232
RS-232/RS422
RS-422
RS-422
RS-422
RS-232
TO
RS-422 / RS-485
TXD
RXD
-
-
-
RXD
-
-
-
-
-
TXA
RXA
RXA
RXA
-
TXB
RXB
RXB
RXB
GND
GND
GND
GND
GND
808AH Multi Display Indicator 808AH #1 808AH #2 808AH #3 808AH #4
Protocol RS-422 RS-422 RS-422 RS-422 RS-422
RS-422 / RS-485
TO
RS-422 / RS-485
TXA
RXA
RXA
RXA
RXA
TXB
RXB
RXB
RXB
RXB
GND
GND
GND
GND
GND
808AH Multi Display
Indicator
808AH #1
808AH #2
808AH #3
808AH #4
Protocol RS-232 RS-232 RS-232 RS-232 RS-232
RS-232
TO
RS-232
TXD
RXD
-
-
-
-
TXD
RXD
-
-
-
-
TXD
RXD
-
-
-
-
TXD
RXD
GND
GND
GND
GND
GND
Symbol Description
NOTICE!
Availability of the utility programs are subject to confirmation by manufacturer and may vary by firmware
Refer to the F2 section for instructions on how to configure multiple remote displays
Refer to the F4 section for instructions on how to configure echo out ports
Refer to the installation section for instructions on how to access the wiring terminals

Technical Manual | 808AH V1.2
12
WIRING | Anyload Weigh & Measure Inc. @ www.anyload.com
3.5 SWITCH AND RELAY WIRING
The input switches SW1 and SW2 can be used to control the output relay and also to control the
display to show prompt messages as set. The input switches are designed to accept both
momentary and toggle switches. The switches only accept dry contact as input configuration.
Terminal
Pin
Label
Function
SWITCH
1 SW1 Dry Contact Switch, Active Low Short to GND
2 GND Signal Ground
3 SW2 Dry Contact Switch, Active Low Short to GND
4 GND Signal Ground
Switch 2
Switch 1
Relay
Description
---
Open(H)
NC
GREEN External Traffic Light
---
---
COM
Common for External Voltage
---
Closed(GND)
NO
RED External Traffic Light
Switch 2
Switch 1
Display
Description
Open(H)
Open(H)
None
No Message On Display
Open(H)
Closed(GND)
Message 1
Message 1 Display is Activated by SW1
Closed(GND)
Open(H)
Message 2
Message 2 Display is Activated by SW2
Closed(GND)
Closed(GND)
None
No Message on Display
Symbol Description
WARNING!
The switches only accept dry contact as inputs
The relay contact is limited to 2A/60VDC
Make sure the site has proper grounding
CAUTION!
The switches only accept dry contact as inputs
Any unauthorized change or alteration in default wiring may void warranty
Any installation and wiring must be handled by authorized personnel
NOTICE!
The switch and relay functions are disabled as default
Refer to the configuration section for instructions to howto configure inputs and outputs
Refer to the installation section for instructions to how to access to the wiring terminals

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com | CONFIGURATION
13
4. CONFIGURATION
4.1 FUNCTION SETUP MENU
The function setup menu is consisted of different function blocks used to set different configuration
values of 808AH remote displays. There are five function blocks currently available for
configuration showed in the table below.
Block
Menu
Description
F1
DISPLAY Functions Related to DigitsDisplay
F2
UTILITIES Functions Related to Utilitiesand Special Programs
F3
FORMAT Functions Related to String Formats and Protocols
F4
SERIAL Functions Related to Data Communications and Serial Ports
F5
AUXILIARY Functions Related to Switch Inputs and Relay Outputs
F6
- N/A
F7
- N/A
F8
- N/A
F9
DIAGNOSTIC Advance Diagnostics
4.2 OPERATING MODES
Mode Description
AUTOMATIC
Attempts to learn communication speed (baud) andparse stringformat (protocol) at start up.
It is set as default and active only at start up.
Once it is successful,it can be switched to othermodes.
OnboardFUNCTIONLED will blink fast at four times a second.
PRESET
Sets the functionsbased on its internaldirectoryof known communicationrates andstring formats.
It is useful if auto learn mode has been successful.
Then it can be activatedto avoidunnecessary delayand changes startup.
Onboard FUNCTION LED will blink normal once a second.
MANUAL
Sets the functions based on its manually set values stored in its memory.
It is useful if auto learn mode has not been successful or display is not aligned correctly.
Then it can be used to set communication rate and string format manually.
Onboard FUNCTION LED will blink slowly once every two seconds.

Technical Manual | 808AH V1.2
14
CONFIGURATION | Anyload Weigh & Measure Inc. @ www.anyload.com
4.3 MEMBRANE KEYPAD
The setup menu is used to configure main operating functions of the 808AH remote display. A four
keys membrane keypad, located at bottom of the enclosure, is used to enter into, exit from, and
navigate through setup menu functions.
To enter into setup menu, press and hold & keys together for two seconds. To exit from setup
menu, use the same keys combination. To navigate through menus, press short or hold or
keys. To enter into or exit from a sub menu press key. To change a sub menu value, press or
keys. To exit from setup, without saving, press and hold TEST button.
Keypad
Key
Function
Description
Short press:
LEARN
Long press:
TEST
LEARN:
Attempts to learn communication baud and format of an incoming data.
TEST:
Advance testing and adjusting the display.
Short press:
FX.X - 0.1
Long press:
FX.X - 1.0
LEFT :
Short Press: Decrements subsection categories, FX.X.
Long Press: Decrements section categories, FX.
Short press:
SET
Long press:
ABORT
SET:
Short Press: Entering into section categories FX.X.
Short Press: Accepting the value of a subsections FX.X.
Long Press: Returning to section categories FX.
Short press:
FX.X + 0.1
Long press:
FX.X + 1.0
RIGHT :
Short Press: Increments subsection categories, FX.X.
Long Press: Increments section categories, FX.

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com | CONFIGURATION
15
•ENTERING INTO SETUP MENU
Press and hold & keys together simultaneously for two seconds to enter setup menu, the
SETUP message will appear. Then first function block F1.0 will be displayed.
Long
Press
& 
•NAVIGATING THROUGH MENU
To navigate through the menu, press or keys. A short press will cause FX.X to increase or
decrease by 0.1 (move within the submenu) and a long press will increase or decrease by 1 (exit the
submenu and go to the root menu).
Short
Press

Short
Press

Long
Press

Long
Press

•EDITING SUBMENU VALUES
Press key to enter the shown submenu and the current setting of that submenu will be
displayed. Press or keys to change the value of the submenu as required.
Short
Press

Short
Press

•SETTING SUBMENU VALUE
Press key to accept the selected value and return to the submenu. A FX.X message showing
corresponding function block will be displayed.
Short
Press

•EXITING FROM SETUP MENU
Press and hold & keys together simultaneously to save and exit the setup menu. A SAVED
message will be displayed and then it will reset. To exit without saving, press and hold TEST button.
Long
Press
& 

Technical Manual | 808AH V1.2
16
CONFIGURATION | Anyload Weigh & Measure Inc. @ www.anyload.com
4.4 F1 DISPLAY SETTING
Function
Value
Setting
Description
F1.0
Factory Reset
0
1
Abort
Factory
If set 1, remote display will reset its functions to default factory settings.
F1.1
Setup Lockout
0
1
Allowed
Prevented
If set 1, any changes to settings is prevented.
This is useful to disable setup menu to avoid unwanted changes.
F1.2
Energy Saving
0
1
2
3
Disabled
Level 1
Level 2
Level 3
Manages energy saving by adjusting the brightness.
If set 0, energy saving is disabled.
If set 1, display reduces brightness if no activity on display for 15 min.
If set 2,3, display reduces brightness if scale weight at 0 for 15 min.
F1.3
Day / Night
Brightness
Control
0
1
Disabled
Enabled
If set 0, brightness level is always set to day time level.
If set 1, light sensor is active and monitors day and night.
F1.4
Day Time
Brightness
Setting
100
80
50
20
100 %
80 %
50 %
20 %
Sets day time brightness level.
Brightness level is shown in percentage.
Daytime is monitored by onboard light sensor.
F1.5
Night Time
Brightness
Setting
100
80
50
20
100 %
80 %
50 %
20 %
Sets night time brightness level.
Brightness level is shown in percentage.
Nighttime is monitored by onboard light sensor.
F1.6
Startup Test
0
1
Disabled
Enabled
Runs display test at startup as default.
F1.7
Blank On Motion
0
1
Disabled
Enabled
If set 1, blanks display on motion condition.
F1.8
Mirror Display
0
1
2
Disabled
Enabled
Toggle
Used to reverse display to be visible in truck mirrors.
If set 1, it shows display in reverse.
If set 2, it toggles display in every 3 seconds.
If set 0, the function is disabled.
F1.9
Filter Display
0.25
0.50
0.75
1.00
0.25 sec
0.5 sec
0.75 sec
1 sec
Sets display update refresh time in seconds.
It can be used based on sensitivity of the indicator.
It can be used combined with blank on motion function.

Technical Manual | 808AH V1.2
Anyload Weigh & Measure Inc. @ www.anyload.com | CONFIGURATION
17
4.5 F2 UTILITY SETTING
Function
Value
Setting
Description
F2.0
Utility Programs
0
1
2
3
4
5
0
1
2
3
4
5
Utility programs used for custom applications.
Special programs used for multi display applications.
Availability of this function is based on firmware release.
The programs availability may vary based on the firmware.
F2.1
Multiple Remote
Address
0
1
2
3
4
5
6
7
8
9
Id 0
Id 1
Id 2
Id 3
Id 4
Id 5
Id 6
Id 7
Id 8
Id 9
It is used in multiple display applications.
Each remote display has an address in multi display applications.
Address 0 is considered broadcasting data to all displays.
Availability of this function is based on firmware release.
F2.2
Data Timeout
Default
10
20
30
40
50
60
10 sec
20 sec
30 sec
40 sec
50 sec
60 sec
It sets display timeout in seconds if communication is lost.
It is used for regular programs as default unless mentioned otherwise.
The display shows dashes or blank if received data is timed out.
F2.3
Data Timeout
Custom
0.00
0.25
0.50
1.00
1.50
0 min
0.25 min
0.5 min
1 min
1.5 min
It sets display timeout in minutes if communication is lost.
It is used for special programs and message modes.
If set 0, the display holds last showing.
If none 0, the display shows dashes or blank if is timed out.
F2.4
Data Timeout
Message
0.00
0.25
0.50
1.00
1.50
0 min
0.25 min
0.5 min
1 min
1.5 min
It sets display timeout in minutes if communication is lost.
It is used for special programs and message modes.
If set to 0.00, the display holds the last showing, otherwise, the display
shows dashes or blank if it is timed out.
F2.5
Data Lost
0
1
Dashes
Blank
If communication is lost, display shows dashes or simply goes blank.
F2.6
Suppressing Zero
0
1
Auto
Suppress
It suppresses leading zeros in strings containing leading zeros.
F2.7
Leading Zero
0
1
2
Auto
00
000
Adds two or three leading zeros in legal for trade applications.
F2.8
Decimal Character
0
1
Dot
Comma
Decimal points can be displayed as dot or comma.
2.9
Over Range
000000
to
999999
000000
to
999999
The weight range can set a display maximum value.
The display will show OVER if weight is out of the set range.
Use short and long press keys to change value and digit respectively.
If set to 000000, the Over Range function is off.

Technical Manual | 808AH V1.2
18
CONFIGURATION | Anyload Weigh & Measure Inc. @ www.anyload.com
4.6 F3 PROTOCOL SETTING
Function
Value
Setting
Description
F3.0
Operating Modes 0 1
2
Auto
Preset
Manual
Auto mode attempts to learn communication protocols at startup.
Preset mode uses its internal saved table to set best format.
Manual mode scans regularly to find best format.
F3.1
String Length
1-50
1-50
It determines total length of an incoming string.
F3.2
Weight Position
1-50
1-50
It determines start position of weight in a string.
F3.3
Weight Length
3-50
3-50
It determines number of weight numerical characters in a string.
F3.4
End Character
Main
01
02
03
04
10
13
SOH
STX
ETX
EOT
LF
CR
It sets end character of regular strings unless is mentioned otherwise.
Default is <CR>.
F3.5
End Character
Special
01
02
03
04
10
13
SOH
STX
ETX
EOT
LF
CR
It sets end character in special programs.
It used for special utility programs available in utility setting.
Default is <CR>.
F3.6
Decimal Point 0.0
0.00
Auto
0.0
0.00
None
If set to Auto, it detects decimal point from the incoming string as default.
If set to 0.0, it shows one decimal place.
If set to 0.00, it shows two decimal places.
If set to None, the decimal point is OFF.
F3.7
Status
Annunciators
Auto
GR
NT
None
If set to Auto, it detects status from an incoming string as default.
If set to GR, it locked to show gross weight.
If set to NT, it locked to show net weight.
If set to None, both Status Annunciators will be OFF.
F3.8
Units
Annunciators
Auto
lb
kg
None
If set to Auto, it detects unit from an incoming string as default.
If set to lb, It locked to LB to show pounds.
If set to kg, It locked to KG to show kilogram.
If set to None, both Status Annunciators will be OFF.
F3.9
Over Load OU
CC
EE
Auto
O
C
E
It determines over / under load conditions.
It searches O in string.
It searches C in string.
It searches E in string.
If set None, over cap is off.
