Apex Digital BASE-CAMP Instruction Manual

Warning:
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS GAZEBO FABRIC.
This Gazebo is made with fabric that meets CPAI-84 Specifications for
flame resistance. It is not fire proof. The fabric will burn if left in continuous
contact with any flame source. The application of any foreign substance to the
gazebo fabric may render the flame-resistant properties ineffective.
Made in China .Undercover®Littleton, CO
APEX BASE-CAMP TENT
User HandBook

Must Be Securely Anchored At All Times
CAUTION
WATER-POCKET
CAUTION
WATER-POCKET
RAIN WARNING
Do not leave unattended in continuous precipitation as water can pocket and
cause frame damage. Material is water resistant however we recommend
using an occasional waterproof spray to help prevent minor seam dripping.

Polyester Door
x 2
Polyester/Screen
Combination Door
x 2
Spare
Parts
Spikes Pouch
Big Spike
x 4
Wrenches &
Spare Parts
Small Spike
x 6
Top &
Handbook
x 1
Frame
x 1
Wheel Bag
x 1
Base Camp - 1 Set
Spikes Pouch
x 1
Small Poles
x 1
Big Poles
x 2 Dome Floor
x 1
Tent Bag
x 1
Pole Bag
x 1
Big Spike
x 4
Small Spike
x 6
Dome Room - 2 Sets
What’s Inside

All rights reserved Undercover
®
2016
Caution!
Please read this before proceeding. As a new Undercover®
User it's your responsibility to be fully aware of the following
warnings.
.The frame MUST-BE-STAKED or properly weighted down
at all times.
.Use extreme caution, even in light wind conditions!
Takedown in wind speed of 10 MPH or greater.
.Never leave your shelter unattended! Wind and rain can
cause frame damage and or possibly result in serious
injury to you or others.
.Your Undercover®is a temporary pop-up shelter, do not
leave setup for extended periods of time.
.Keep all flame and heat sources well away from the fabric
top. DO NOT build fires within the shelter.
Care and Maintenance:
To clean the polyester-skin use mild soap and water, rinse
thoroughly. Be sure the skin is completely dry before storing. If
you experience any leaking or dripping from the seams, use
seam-sealer, available at most hardware stores. Your
Undercover®Personal-Shelter®should give you years of
service with minimal maintenance and care.
Undercover®Product Warranty:
Undercover®warrants to the original retail purchaser of this
product to be free from defects in material and workmanship for
24 months from the date of purchase. This warranty is void if
the product is used under any other than normal and expected
uses, as determined by the manufacturer. It is void and DOES
NOT APPLY TO DAMAGE CAUSED BY WIND, RAIN or other
extreme forces of nature. Nor does it apply to damage directly
related to abuse, neglect whether accidental or deliberate. This
Undercover®warranty is provide in lieu of all other warranties.
GetUndercover.com
720-222-2523
CONGRATULATIONS!
You have taken a giant step into a new world of Personal-Shelter®.
The Best Choice in Popup-Shade®... wherever life-takes-you!
It is important that you read this carefully before attempting the Setup!
Warranty

All rights reserved Undercover
®
2016
- Water Pocket Warning -
Be cautious of the possibility of water
pocketing on the polyester top during certain
weather conditions. Continuous light rain can
eventually collect on corner top sections
causing eventual frame failure. This type of
damage is not covered under warranty.
CAUTION
WATER-POCKET
CAUTION
WATER-POCKET

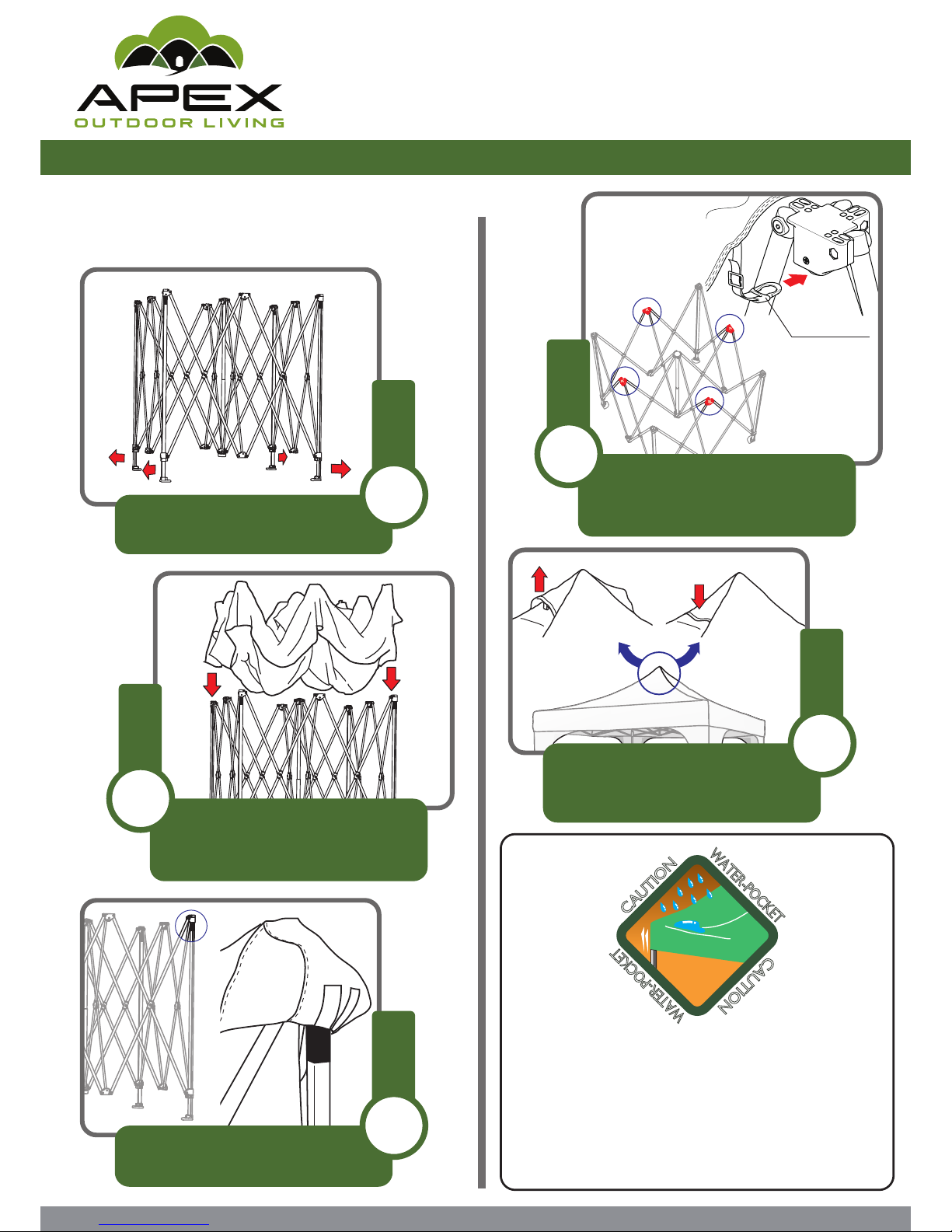

5
Set peak vent to desired
open or closed position
STEP
TOP
SRT Buckle
Snap in all (4) top buckles at
the SRT attachment.
4
STEP
3
Align the (4) Velcro corners
STEP
Unfold and position fabric top
over frame
2
STEP
1
Expand frame to arms length.
STEP
Note: When assembling be careful not to let
polyester-skin touch the ground to prevent dirt
and staining.
It is important that you read this carefully before attempting the Setup!
Polyester Top Attachment

All rights reserved Undercover
®
2016
Take-Down:
1) Remove spikes or weighted
anchors.
2) Lower all four telescopic legs.
3) Release all four red corner-sliders
4) From middle position lift frame
and walk inward until closed.
5) Store in wheel bag.
Place foot of the fabric under
the footplate of Frame. Extend
the four legs to the tallest lock
position.
5
STEP
4
Step on footplate, pull leg
upward until it locks in the first
extended position.
STEP
6
Securely anchor all four legs
at the footplate.
STEP
Lock each corner.
3
STEP
2
Lift frame and step backwards
until open fully.
STEP
Expand Frame to arms length.
1
STEP
Base Camp Set-Up:
Place the shelter in the center of the
area to be covered.
It is important that you read this carefully before attempting the Setup!
Operating Instructions

All rights reserved Undercover
®
2016
Note:
• Carefully fold out your poles, using caution to prevent
snapping the shock-cording. Make sure each pole segment
is "seated" into the next section before flexing the pole
during set-up.
• Do not drop tent bag or pole bag. Do not bounce tent bag
on its end to remove tent, as these actions may damage
the shock-cord and/or pole ends.
• Always store tent in the carry bag, do not drag or push
tent across rough surfaces as it will cause extra wear and
may puncture the floor, even when folded.
Disassembly Instructions:
Make sure all doors are zipped nearly closed, leaving space
to allow air to escape when repacking.
Store all poles and stakes in their corresponding bags to
prevent any possible tearing or damage to the fabric piece.
1. Pull out the stakes and place the stakes into stake bag.
Do not pull on the D-rings or fabric loops as this could cause
tearing.
2. Remove and fold alumnum pole of window hood.
3. Unhook the rainfly hooks and undo the Velcro warps
around the aluminum poles, remove the rainfly.
4. Remove dome room clips from aluminum poles.
5. Remove and carefully fold the big aluminum poles.
6. Fold the tent into a rectangular shape the same width as
tent bag, pole bag and stake bag at one end and roll tightly
together , slowly queezing air out.
At this point dome room should be free standing and
ready to attach to base camp.
4
Small aluminum pole is for back window of
dome room. Run small aluminum pole through
the sleeve in back window hood and tuck each
end into its pocket to create an arch.
STEP
3
STEP
Pull rain fly over dome and attach Velcro
wraps to the poles. Extend the fly to the corner
of dome and attach hook to each coner D-ring.
2
Connect top center clip so it is attached to
both poles. Then connect the rest clips to
corresponding poles.
STEP
1
STEP
Spread floor of dome out on the side of base
camp you will attach it to. Unfold two big aluminum
poles. The poles will attach to the base of dome by
inserting it into corner eyelet. Place and bend poles
in opposite corners so they cross in the middle.
Dome Room Set-Up:
These free stand Dome Rooms will attach to any side of
the Base Camp and zipper into place.
It is important that you read this carefully before attempting the Setup!
Operating Instructions

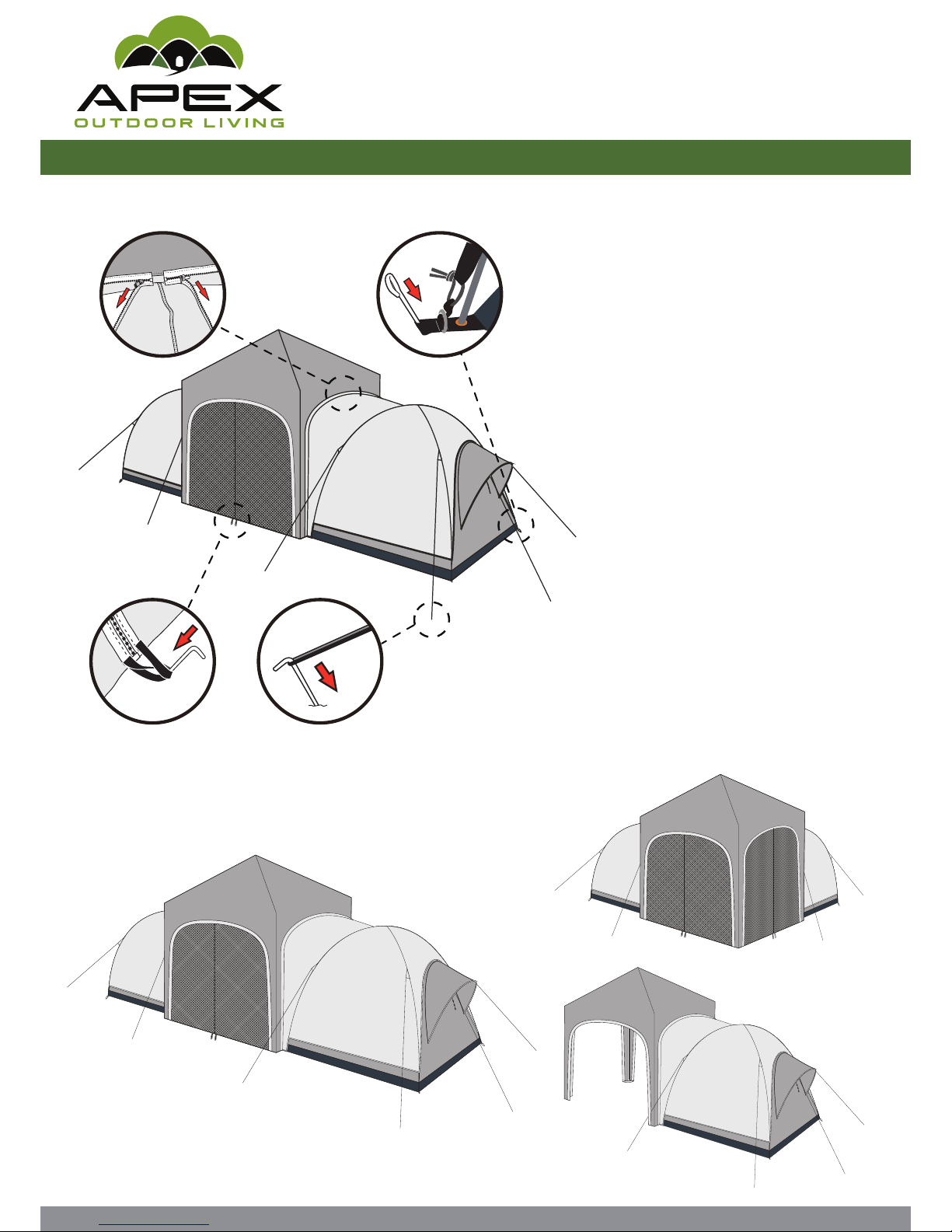

1. Move the Dome Room into
position so the Connecting
Zippers on the base and Dome
Room easily fit together. Close
the zippers from the top of the
arch all the way to both sides.
Connect the rest arch openning
with desire Doors comes with.
2. Check to see the Base is
square and the Door zippers work
freely. Stake the base plates of
each leg with a Large Stake. Pull
the Dome Room sung and
square. Stake through Webbing
Loops on each corner of the
Dome Room with a Large Stake.
Pull the Guy Ropes out and stake
them using the Small Stakes.
The Apex should be up and steady and ready for use.
All rights reserved Undercover
®
2016
It is important that you read this carefully before attempting the Setup!
Operating Instructions

All rights reserved Undercover
®
2016

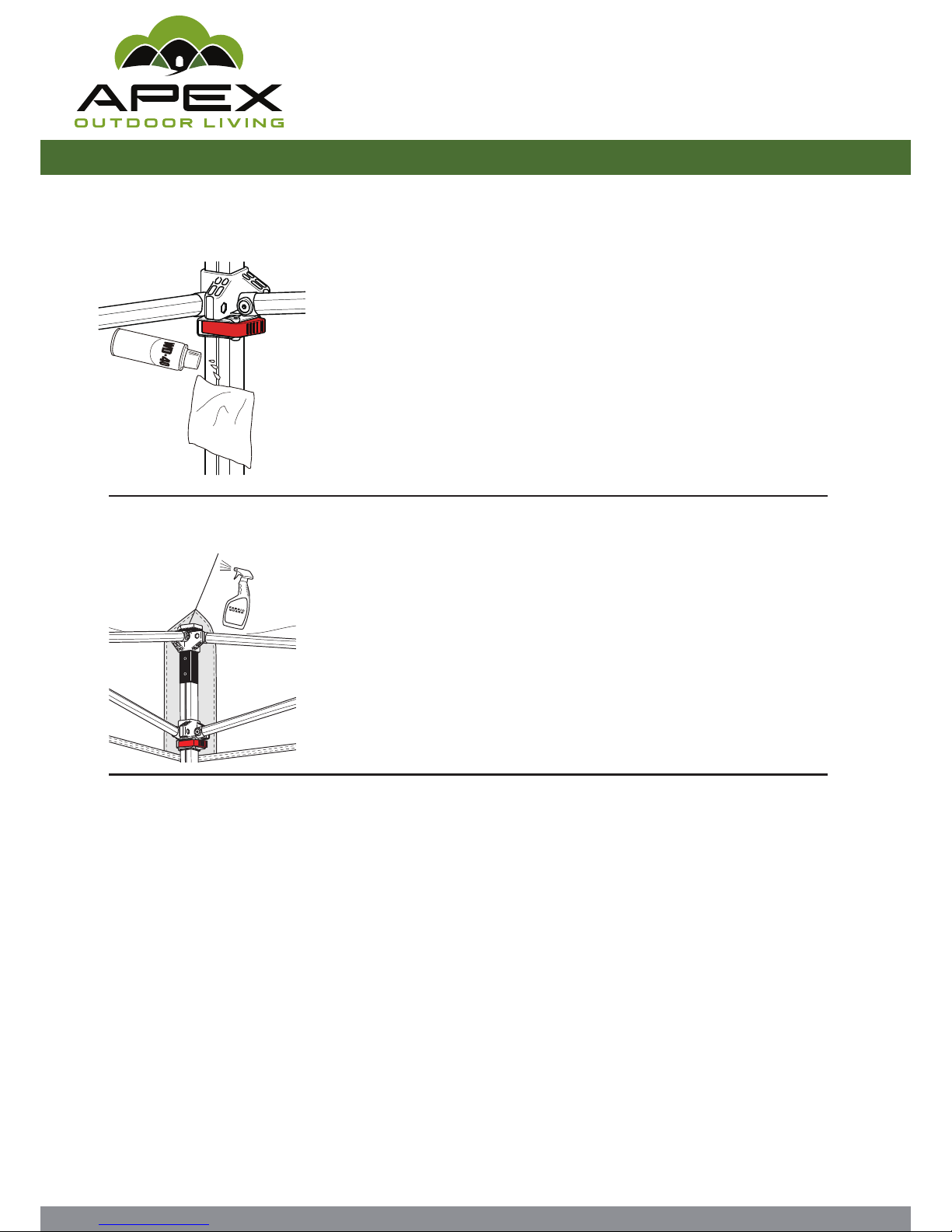

Frame Break-In
Your new frame may be stiff or tight upon first usage, a short
break-in period may be required. To help expedite the seating
process there are a few things you can do.
Lightly apply some WD-40 or other lubricant on a dry cloth, rub
down the outer legs and wipe away any remaining residue.
Practice opening and closing the frame and be sure to lock all four
corners.
Water Resistant Fabric
Apply seam sealer, when subjected to certain weather conditions
the seams may wick/saturate eventually leading to dripping.
To help minimize seam dripping Undercover highly recommends
applying 303 Fabric Guard waterproof spray application on all
seams from time-to-time. This can be found on Amazon.com
Quick Tips:
* Telescopic legs feature more than one height-adjustment.
* Lock corner sliders before extending telescopic legs.
* To prevent damage... frame should never be forcefully expanded, nor should corner sliders
be forcefully locked.
* ALWAYS be sure that frame is securely anchored. Even the slightest wind will lift the shelter
causing frame damage and or serious injury. The warranty does not cover damage due to
wind, rain or user neglect.
Note:
* Find anchor spikes and spare parts in the wheel bag zippered pocket.
* Polyester-Skin can be left on the frame.
* Be sure skin is clean and dry before storage.
* Never force frame action. A gentle lifting and shaking motion will aid in operation.
It is important that you read this carefully before attempting the Setup!
User Information

All rights reserved Undercover
®
2016
6
STEP
Place foot of the fabric under
the footplate of Frame. Extend
the four legs to the tallest lock
position. Securely anchor all
four legs at the footplate.
Extend telescopic legs one
at a time to the first lock
position, while walking
around the frame.
5
STEP
4
Lock all four upper corner-
sliders as shown.
STEP
Carefully position yourself inside
frame as illustrated.
Once under the frame, gently
push up from bottom of peak pole
(center pole) until fully expanded.
3
STEP
2
Carefully lift one side of
frame at center point shown.
STEP
Position frame assembly in
open area.
Expand frame by slightly
lifting and spread to arms
length.
1
STEP

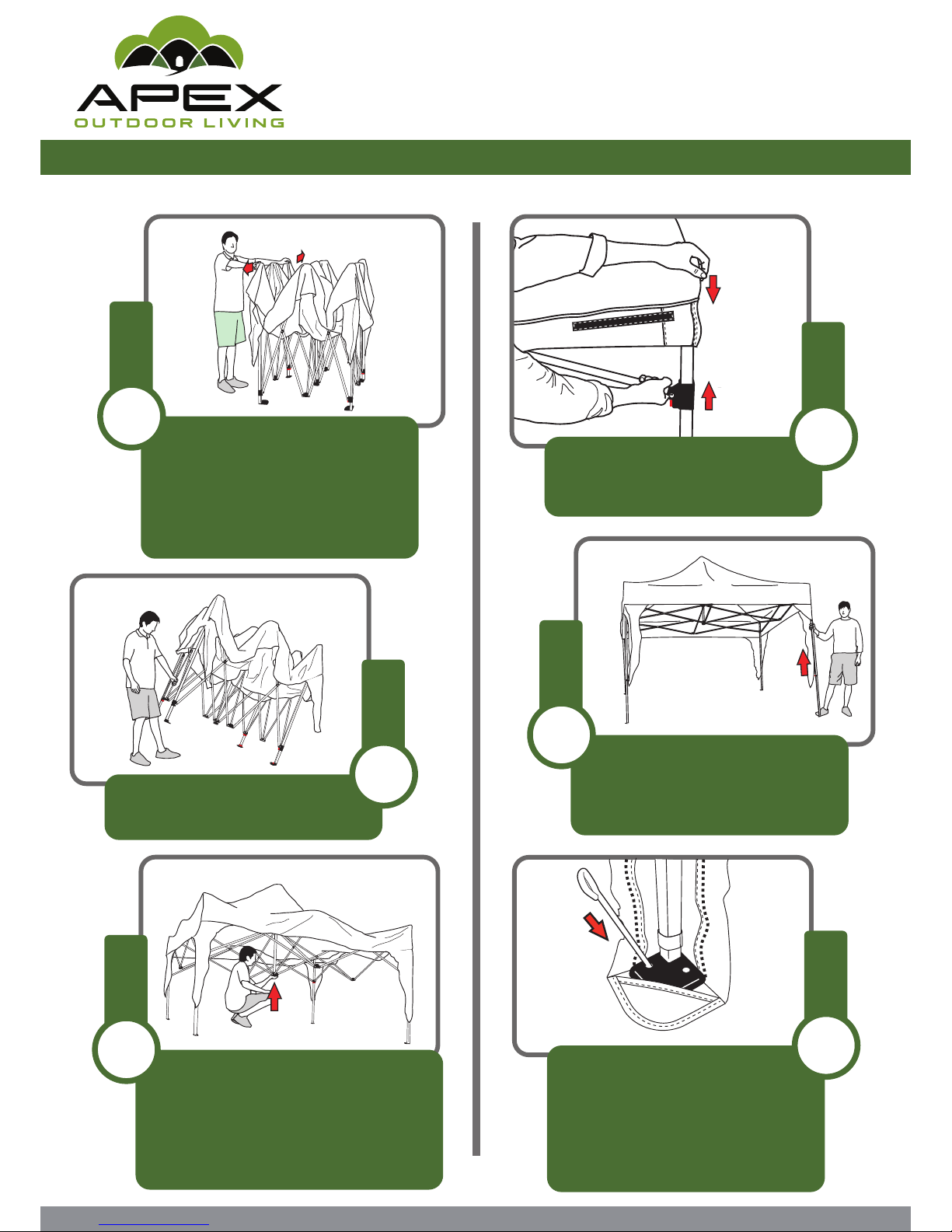

One-Person Setup
It is important that you read this carefully before attempting the Setup!

All rights reserved Undercover
®
2016
GetUndercover.com
Team Undercover is available to provide you with needed replacement parts and/or answer
any questions, regarding setup, operation or troubleshooting. [e-mail]
OUR CUSTOMER SERVICE
Peak Pole
CRS Wire Bolt Sleeve Corner Mold Corner-Slider Leg-Slider SRT Mold
Footplate
U-Bracket
Dome Cap
Truss Bar Corner Leg
Corner Leg Assembly
Truss Bar
Peak Pole
Dome Cap
Corner-Slider
Corner Mold
Leg-Slider
Footplate
U-Bracket
SRT Mold
Velcro Attachment
Spikes
Upper Leg & Lower Leg
Dial-A-Fit®
UC-3P8APEX Base Camp
IDENTIFYING PARTS
Replacement Parts

All rights reserved Undercover
®
2016
GetUndercover.com
CAUTION
WATER-POCKET
CAUTION
WATER-POCKET
.ALWAYS properly anchor.
.ALWAYS takedown in wind greater than 15 mph.
.ALWAYS takedown in an electrical storm.
.ALWAYS be alert to pocketing water in light-rain.
.ALWAYS refer to operating instructions, if in doubt.
.ALWAYS contact Undercover®for service questions or replacement parts.
.CAUTION any unattended shelter can cause serious injury and or damage.
.CAUTION always properly anchor your Undercover®.
.CAUTION electrical wires can cause serious injury when in contact with frame.
.CAUTION be careful not to pinch-fingers between scissor bars while operating.
.CAUTION light-rain or snow will eventually pocket and destroy the frame.
.CAUTION forceful operation can damage or destroy frame.
.CAUTION be sure the Polyester-Skin is completely dry before storing.
.NEVER setup your Undercover®without properly anchoring.
.NEVER leave your shelter unattended.
.NEVER BBQ or grill beneath your shelter.
.NEVER forcefully setup or takedown.
.NEVER assume there is no-wind.
.NEVER assume that light-rain will not pocket water.
.NEVER setup near overhanging or other electrical wires.
.NEVER setup in an electrical storm.
IMPORTANT INFORMATION READ BEFORE SETUP
Rules-of-the-Road

All rights reserved Undercover
®
2016
GetUndercover.com
Gravity-Tube®Anchor
Lifestyle-Accessory:
Hardpan-Anchor Solution - Includes (4) H/D
PVC tubes with quick-tie-straps. Fill with
sand, water or rock. Adds 160 LBS of
leveraged weight.
SRT Buckle Attachment
Intelligent Design: We’ve replaced
the old snap button with a new buckle
attachment system. The SRT buckles provide
for critical fixed points in attaching the frame
to the top.
U-Wedge
Corner-Seam Support: In pursuit of
the Perfect-Fit are critical polyester-skin
adjustments located at the top corner
position. The U-Wedge provides
corner-seam support necessary for improved
watershed and visual enhancement.
1. Locate wedge adjustment under the
skin at the top of each corner leg.
2. Loosen Allen-screw with included
wrench.
3. Lift and slide U-Wedge outward to
provide additional corner-seam support.
4. Tighten Allen-screw.
Note: This feature is not compatible with CRS
Curtain-Wall accessory.
X-Scape Vent
Heat Reflective: On a hot sunny day
heat rises and seeks release. A very cool
peak vent has been integrated into selected
Undercover shades to release updrafts and
promote cooler air circulation.
1. The X-Scape is located at the peak of the
polyester-skin, adjust with frame folded.
2. Engage Velcro-Tilt for maximum venting.
3. For moisture control Velcro-Shut.
Spin-Bag
Intelligent Design: It's not unusually
for users to frustratingly toss most cheap
wheel bags. The Undercover®Spin-Bag sets
a new standard of bag functionality and
ease-of-operation.
Sil-X Coating
Heat Reflective: Typically users find
high temps and linger heat uncomfortable.
Undercover®provides an underlying heat
reflective skin coating. The result can be a
chilling up to 20 Degree difference.
Additionally, Sil-X offers 99% UV-Block and
helps with colorfast.
CRS Curtain-Walls
Lifestyle-Accessory:
An integrated cable system built into the
frame enables a clip-n-slide wall attachment
providing game changing wall setup
possibilities.
Solid-Core Tube
Strength and Durability: We’ve
figured a patented way of increasing the tube
breaking strength by up to 200%. All legs and
truss bars now feature an internal nylon plug
that’s actually implanted inside all the hollow
tubes. This new Solid-Core technology raises
the bar on folding frame tube strength and
durability that’s unmatched in the industry.
Inner-Truss
Strength and Durability: Forces of
nature play havoc on all pop-up type
shelters. The Inner-Truss provides unilateral
side-and-peak support for lightweight
durability and strength.
Dial-A-Fit®
Peak-Extender: With time all
polyester-skins stretch and sag.
Undercover®introduces a peak-extender
with just a turn-of-the-dial. Benefits include
improved watershed and visual
enhancement.
1. The dial is located at the base of the
peak-pole.
2. Turn dial clockwise to extend peak.
3. Extend to create the Perfect-Fit.
The Dial-A-Fit®is found on select models and
does not affect normal operation. It is an
enhancement feature and usually not necessary
to adjustment when brand new.
U-Push Lever
Pinch Proof Release Lever: Users
often complain about the difficulty of setup
and take-down. The U-Push sets a new
standard of incredible ease-of-operation.
1. During setup red levers automatically
engage.
2. Simply push the release lever to
disengage.
It's sometimes helpful on the corner release lever
to lift-and-push.
Breakthrough Technology

GetUndercover.com
CAUTION
WATER-POCKET
CAUTION
WATER-POCKET
APEX User HandBook
