1 WELCOME
This is an integrated wireless IP Camera solution. It combines a high quality digital Video Camera with network
connectivity and a powerful web server to bring clear to your Desktop from anywhere on your local network or
over the Internet.
The basic function of it is transmitting remote video on IP network. The high quality video image can be
transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware compression technology.
It is based on TCP/IP standard, build-in WEB server which could support Internet Explore. Therefore the
management and maintenance of your device become more simply by using network to achieve the remote
configuration, start-up and upgrade firmware.
You can use this IP Camera to monitor some special places such as your home and your office. Also
controlling and managing images are simple by clicking the website through the network.
1.1 Features
☆Powerful high-speed video protocol processor
☆High-sensitivity 1/4’’ CMOS sensor
☆Picture total 300k pixels
☆Support PT control, Pan 320°, Tilt 120°
☆Optimized MJPEG video compression for transmission
☆Multi-level users’ management and passwords definition
☆Embedded Web Server for users to visit by IE
☆Support wireless network (WI-FI/802.11/b/g)
☆Supporting Dynamic IP (DDNS) and UPNP LAN and Internet (ADSL, Cable Modem)
☆Giving alarm in cause of motion detection
☆Supporting image snapshot
☆Support multiple protocols：HTTP/TCP/IP/UDP/SMTP/DDNS/SNTP/DHCP/FTP
☆Support WEP/WPA/WPA2 encryption
☆Support 3G phone, Smart phone control and surveillance
☆Support Firefox, Safari, Google chrome browser.
1.2 Packing List
Untie the pack and check the items contained against the following list:
●IPCamera X1
●Wi-Fi Antenna X1 (only available for wireless model)
●UserManual X1
●DC Power Supply X1
●CD X1
●Network Cable X1
NOTE: Please contact us immediately in case of any damaged or short of contents.
Shenzhen Apexis Electronic Co., Ltd Tel: [phone] Fax: [phone]
3

MoreSecurity,MoreConveniencewww.apexis.com.cn/www.apexis.cc
1.3 Product Views

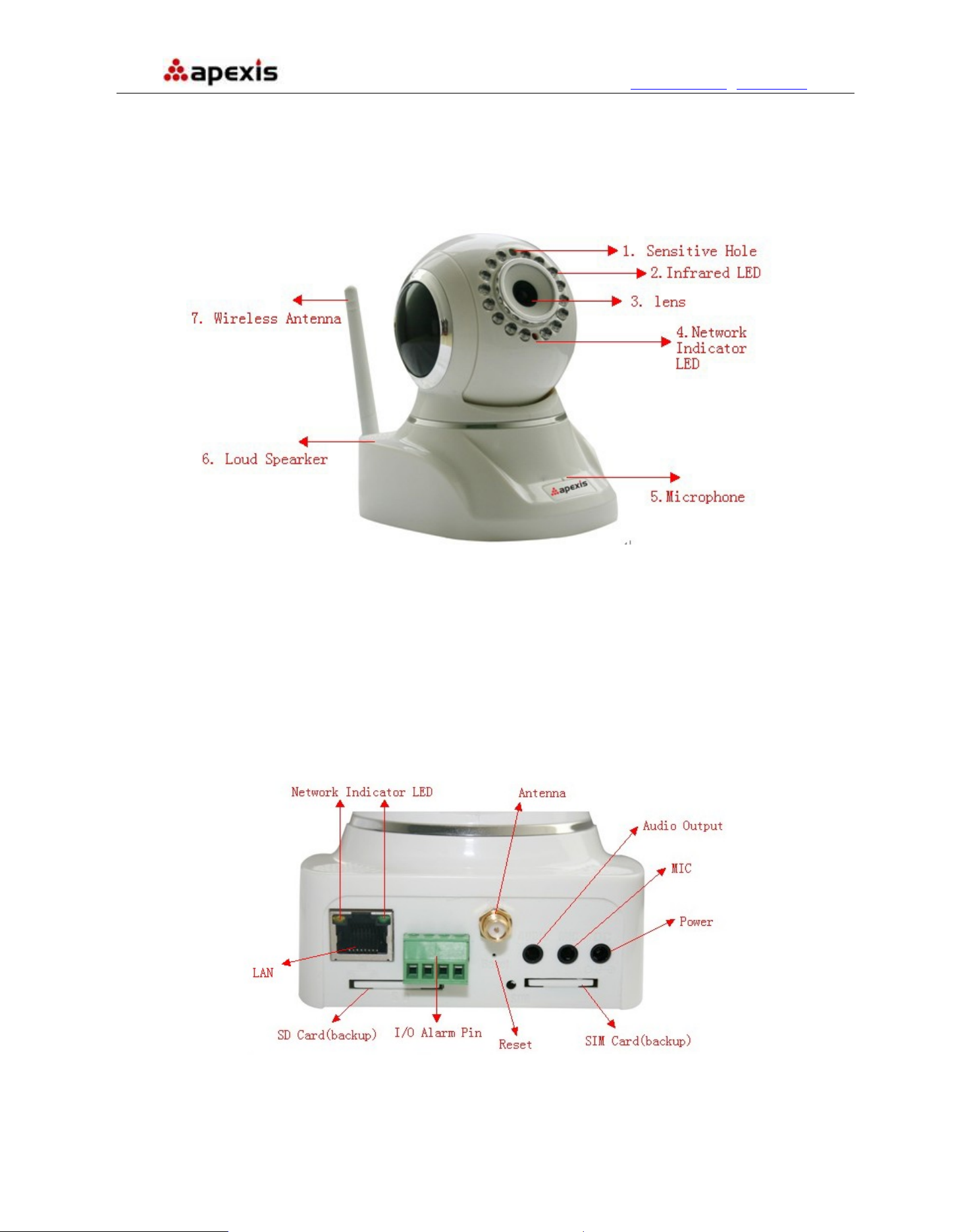

1.3.1 Front View
Figure 1.1
1 Sensitive Hole: For light sensitive
2 Infrared LED: 16 LEDs
3 LENS: CMOS sensor with fixed focus lens. (Default is 3.6mm, 6mm optional)
4 Network Indicator LED: If there is network activity, the LED will blink
5 Microphone: Build-in microphone
6 Speaker: Build-in speaker
7 Wireless Antenna: WI-FI Antenna
1.3.2 Rear Panel
Figure 1.2
LAN: RJ-45/10-100 base T
Power: DC 5V/2A power supply
Shenzhen Apexis Electronic Co., Ltd Tel: [phone] Fax: [phone]
4

MoreSecurity,MoreConveniencewww.apexis.com.cn/www.apexis.cc
Network Light: The green LED will on when connect to the network, the yellow LED will blink when data
transferred
Audio Output: The jack is used to plug external speaker
MIC: The jack is used to plug external microphone
I/O PINS: 1 Output A 2 Output B 3 Alarm input 4 Input (GND)
SD Card/SIM Card Slot: Backup position, not available for this MJPEG camera.
RESET BUTTON: Press and hold the RESET BUTTON for 15 Seconds, then the IPCAM will be reset back to
the factory default Parameter. (Please keep the power on when do RESET)
1.3.3 Bottom View
Figure 1.3
Original Apexis IPCAM have some stickers at the bottom, such as MAC address sticker, QC sticker etc.
If your camera does not have these stickers, it may be a clone one, clone Apexis IPCAM could not use the
original firmware and obtain our good after sale service.
1.4 PC System Requirements
System configuration requirements :( Example for viewing four IPCAM)
CPU: 2.06GHZ or above
Memory: 256M or above
Network Card: 10M or above
Display Card: 64M or above memory
Recommendable Operating system: Windows 2000/ XP/ Vista/ 7
1.5 Hardware Instruction
Follow the steps below to set up your camera hardware. Make sure to follow each step carefully to ensure that
the camera operates properly
Shenzhen Apexis Electronic Co., Ltd Tel: [phone] Fax: [phone]
5

MoreSecurity,MoreConveniencewww.apexis.com.cn/www.apexis.cc
1. Install the Wi-Fi antenna
2. Plug the power adaptor into camera
3. Plug the network cable into camera and router/switch
4. It takes approx 30 seconds to boot up the camera, then you will find the IP address from
“IP Camera Tool” (Figure: 2.1)
5. When the power on and network cable connected, the green led of the real panel will keep on,
The yellow led will keep flash, and the Indicator led at the front of the camera will flash. (The indicator LED
can be controlled by software)
Figure1.4
1.6 Software Installation
Attention:In order to make the installation correctly, we suggest that turn off your Firewall and Antivirus before
install the ActiveX, Don’t worry, it is safe.
Software installation is the key to the successful use of this product.
Install the follow software:
1. IP Camera Tool: Open the CD, dbclick “IPCamSetup.exe”, only click next, you will complete the software
installation.(figure1.6/ 1.7/ 1.8)
2. ActiveX: Double click “Appinstall.exe”—“Next”—“Install”—“Finish”.
Figure1.5
Shenzhen Apexis Electronic Co., Ltd Tel: [phone] Fax: [phone]
6

MoreSecurity,MoreConveniencewww.apexis.com.cn/www.apexis.cc
Figure1.6
Figure1.7
Figure1.8
After this done, the icon “IP Camera Tool” will be displayed on desktop automatically.
Shenzhen Apexis Electronic Co., Ltd Tel: [phone] Fax: [phone]
7

MoreSecurity,MoreConveniencewww.apexis.com.cn/www.apexis.cc
CAUTION: Before installing and using the product, please read the following precautions carefully and make
sure they are fully understood.
Use only the power adaptor attached with the product. Use unauthorized power adapter may cause damage to
your IP Camera.
IP Camera terminal shall be installed in an indoor environment where the rain or snow could not pour it.
Do not touch the lens of the IP Camera at will. The optimum focus range has been set before it is delivered out
of the factory. If you turn the lens, it may cause incorrect focus and vague images.
Do not turn the Pan/Tilt by force, it may cause damage to internal components of the Pan/Tilt.
For firmware upgrading or connection with an external, refer to detailed instructions contained in the CD.
Shenzhen Apexis Electronic Co., Ltd Tel: [phone] Fax: [phone]
8

MoreSecurity,MoreConveniencewww.apexis.com.cn/www.apexis.cc
2. SOFTWARE OPERATION
2.1 IP Camera Tool

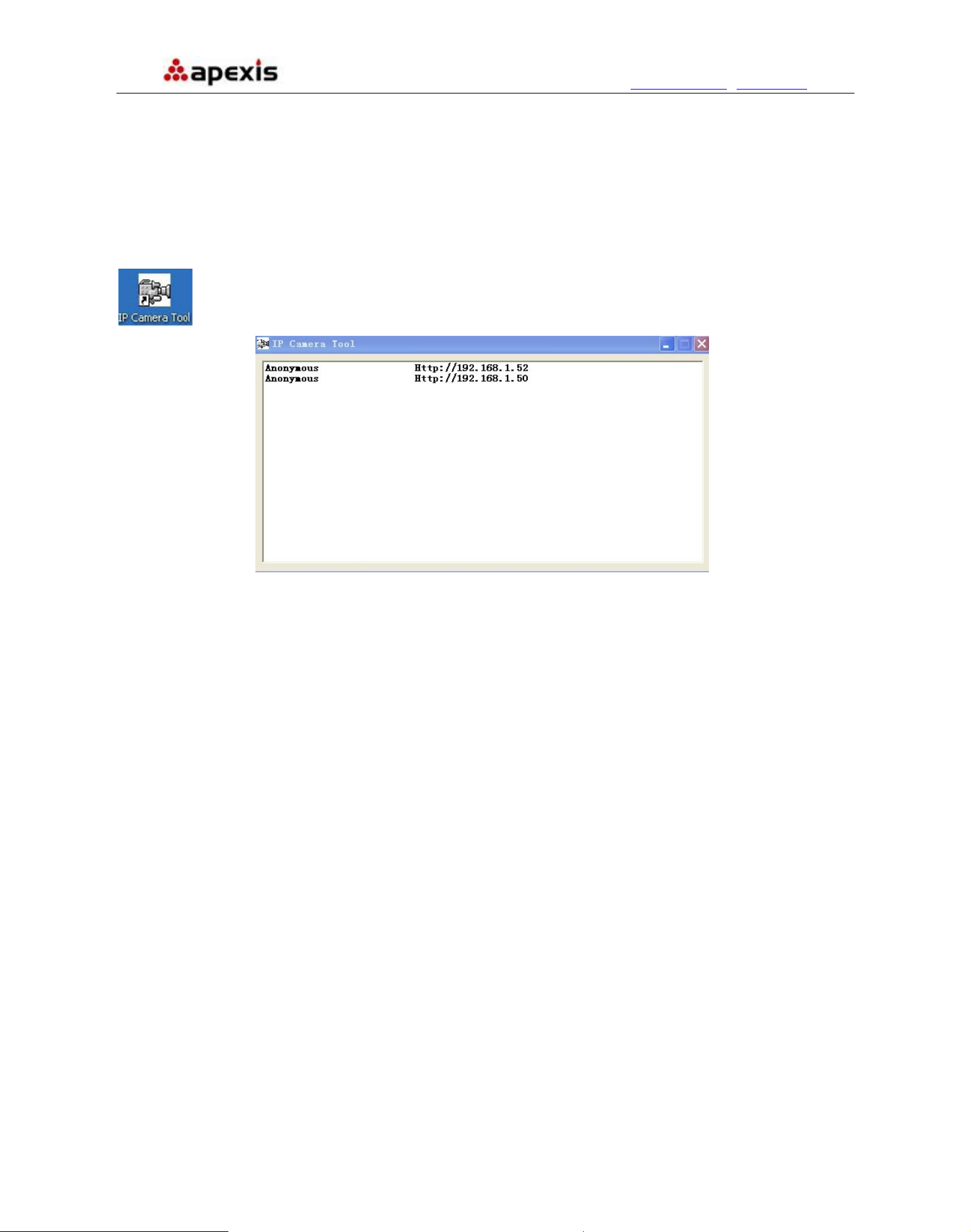

When the Device has been mounted properly, you can double click the Icon “IP Camera Tool”
and a dialog box as Figure 1.9 will pop up.
Figure1.9
Note: The software searches IP Servers automatically over LAN.
There are 3 cases:
1. No IP Cameras found within LAN. After about 1 minute search, the Result Field will show “not found IP
Server” and the program shut automatically.
2. IP Cameras have been installed within LAN. All the IP Cameras will be listed and the total number is
displayed in the result field as shown in Figure 1.9
3. The IP Cameras installed within LAN do not share the same subnet with the monitoring PC. A prompt as
shown in result field (prompt: Subnet doesn’t match, double click to change!). Click the left mouse button to
choose the prompt and click the right mouse, choose Network Configuration to set the static IP address of
the Camera to the same subnet as LAN. (Figure 2.3)
NOTE: If it shows” Subnet doesn’t match, double click to change!”, you can also choose ”Obtain IP from
DHCP Server” to get a dynamic IP. (Figure 2.2)
2.1.1 Six Options
Choose the IP Camera list and Click right mouse, there are six options: (Figure 2.0)
Basic Properties, Network Configuration, Upgrade Firmware,
Refresh Camera List, Flush Arp Buffer, About IP Camera Tool.
Shenzhen Apexis Electronic Co., Ltd Tel: [phone] Fax: [phone]
9

MoreSecurity,MoreConveniencewww.apexis.com.cn/www.apexis.cc
Figure2.0
2.1.1 .1 Basic Properties
There are some device information in the Basic Properties, such as Device ID, System Firmware Version,
Web UI Version.（Figure 2.1）
The Device ID just is the camera’s MAC ID, which should be the same as showed on the sticker at the bottom
of camera. Every camera has its unique MAC ID. So if there are many IP address showed in the list, check the
MAC ID, you can ensure which camera is it.
Sometimes, if there is no IP address showed on the IP Camera tool, maybe it’s blocked by firewall, then add
the MAC ID to the router, and give it a fixed IP or add the MAC ID as a trusted site. There are two MAC
Address, one is Device MAC ID, the other is WIFI MAC ID.
WIFI MAC ID, you can find it from the sticker at the bottom of the camera, if this sticker lost, you can login your
WIFI router, check the host status, which will show all the WIFI device connect to this router, you can also find
the IPCAM’s WIFI MAC ID there.
Figure2.1

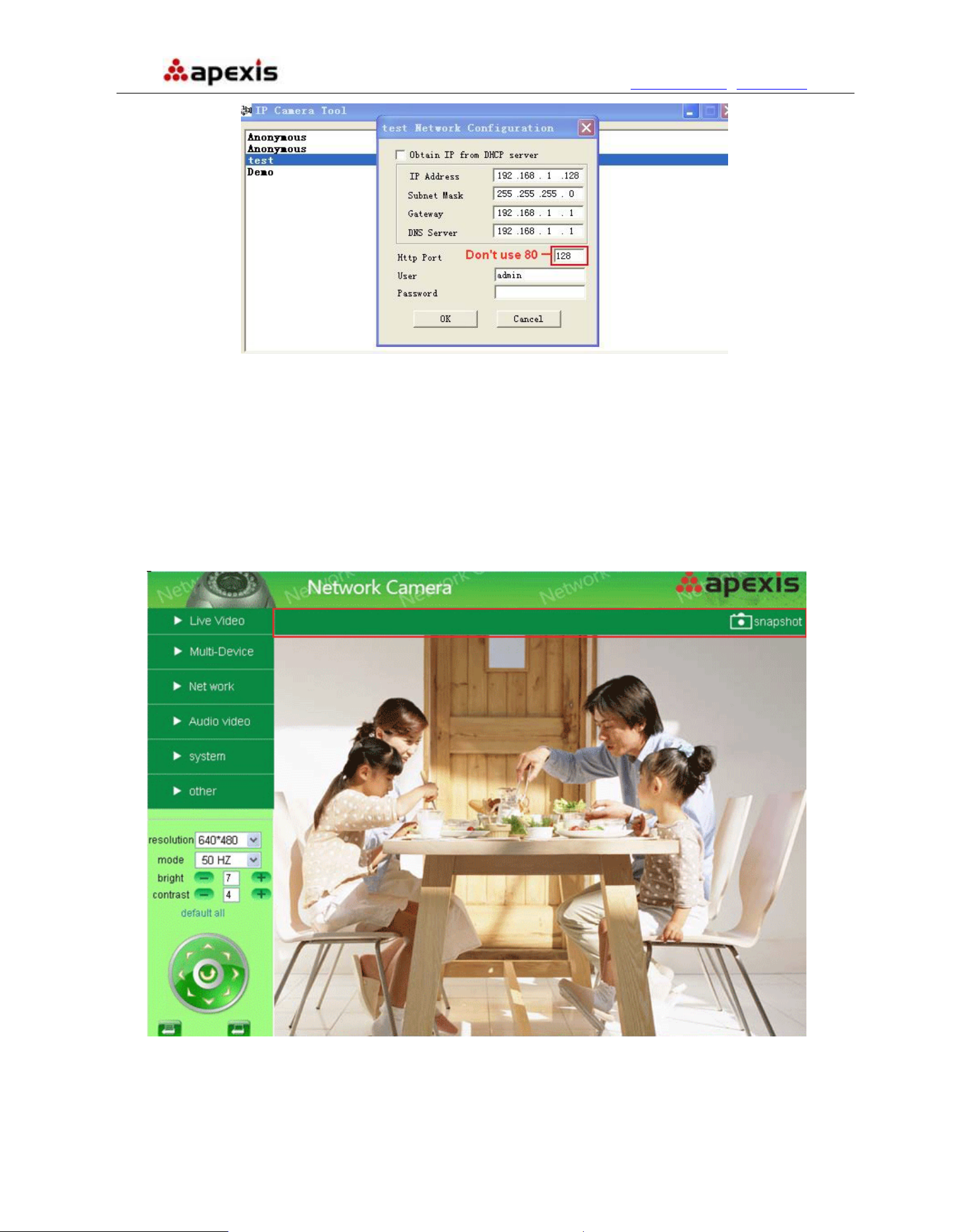

2.1.1.2 Network Configuration
In this page, you can configure the Network parameter.
