Appliance 365 UMW1701SS User manual

UMW1701SS with Trim Kit UTK1701SS

2
Important Safeguards
When using electrical appliances basic
safety precautions should be followed,
including the following:
For Your Safety
Read all instructions before using the appliance.
• Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This
type of oven is specically designed to heat,
cook or dry food. It is not designed for
industrial or laboratory use.
• Do not operate the oven when empty.
• This appliance is not intended for use by
young children or inrm persons unless they
are adequately supervised by a responsible
person to ensure that they can use the
appliance safely.
• Young children should be supervised to ensure
that they do not play with the appliance.
• Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or a similarly qualied person in order to avoid
a hazard.
• To reduce the risk of re in the oven cavity:
• When heating food in plastic or paper
container, check the oven frequently to
avoid the possibility of ignition.
• Remove wire twist-ties from paper or plastic
bags before placing them in the oven.
• If smoke is observed, switch off or unplug
the appliance and keep the door closed in
order to stie any ames.
• Do not use the cavity for storage purposes.
• Do not leave paper products, cooking
utensils or food in the cavity when not in
use.
• Microwave heating of beverages can result
in delayed eruptive boiling, therefore
care has to be taken when handling the
container.
• Do not fry food in the oven. Hot oil can
damage oven parts and utensils, and even
result in skin burns.
• Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode even after
microwave heating has ended.
• Pierce foods with heavy skins such as
potatoes, whole squashes, apples and
chestnuts before cooking.
• The contents of feeding bottles and baby
jars should be stirred or shaken and the
temperature should be checked before
serving in order to avoid burns.
• Cooking utensils may become hot because
of heat transferred from food.
Oven gloves may be needed to handle
utensils.
Utensils should be checked to ensure that they
are suitable for use in microwave oven. Utensil
Test:
Fill the utensil to be tested with one cup of water.
Microwave for 1.5 minutes at 100% power. If the
water becomes warm and the utensil stays cool, it
is safe to use. If the water stays cool and the
utensil becomes very hot, it should not be used in
the microwave.
This product is classied as Group 2 Class B
ISM equipment. The denition of Group 2 which
contains all ISM (Industrial, Scientic and Medical)
equipment in which radio-frequency energy is
intentionally generated and/or used in the form
of electromagnetic radiation for the treatment of
material, and spark erosion equipment. Class
B equipment is equipment suitable for use in
domestic establishments and in establishments
directly connected to a low voltage power supply
network which supplies buildings used for
domestic purpose.
Keep These Instructions
in a Safe Place for
Future Reference

3
Note: To reduce the risk of burns, electric
shock, fire, injury to persons or exposure
to excessive microwave energy please
read the following carefully:
Warning
Liquid or other food must not be heated in sealed
containers since they are liable to explode.
It is hazardous for anyone other than a trained
person to carry out any service or repair operation
which involves the removal of any cover which
gives protection against exposure to microwave
energy.
Compulsory Warning
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualied person in order to avoid a
hazard.
This product has not been designed for any uses
other than those specied in this booklet.

0844 800 7848

5
Precautions to Avoid
Possible Exposure to
Excessive Microwave
Energy
• Do not attempt to operate this oven with the
door open since this can result in harmful
exposure to microwave energy. It is important
not to defeat or tamper with the door safety
interlocks.
• Do not place any object between the oven
front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is
particularly important that the oven door closes
properly and that there is no damage to the:
• Door (bent),
• Hinges and latches (broken or loosened),
• Door seals and sealing surfaces.
• The oven should not be adjusted or repaired
by anyone except properly qualied service
personnel.
Before You Call for
Service
If the oven fails to operate:
• Check to ensure that the oven is plugged in
securely. If it is not, remove the plug from the
outlet, wait 10 seconds and plug it in again
securely.
• Check for a blown circuit fuse or a tripped main
circuit breaker. If these seem to be operating
properly, test the outlet with another appliance.
• Check to ensure that the control panel is
programmed correctly and the timer is set.
• Check to ensure that the door is securely
closed engaging the door safety lock system.
Otherwise, the microwave energy will not ow
into the oven.
If None of the Above
Rectify the Situation
Then contact a qualied technician. Do not try to
adjust or repair the oven yourself.
Installation
• Make sure that all the packing materials are
removed from the inside of the door. This
microwave oven must be placed on a at,
stable surface sufcient to hold its weight and
the heaviest food likely to be cooked in the
oven.
• Remove the protective plastic foil from the
stainless steel parts.
• Do not place the oven where heat, moisture,
or high humidity are generated, or near
combustible materials.
• For correct operation, the oven must have
sufcient airow. Do not cover or block any
openings on the appliance. Do not remove feet.
• Do not operate the oven without glass tray,
roller support, and shaft in their proper
positions.
• Make sure that the power supply cord is
undamaged and does not run under the oven
or over any hot or sharp surface.
• The socket must be readily accessible so that it
can be easily unplugged in an emergency.
• Do not use the oven outdoors.
WARNING: Check the oven for any damage,
such as a misaligned or bent door, damaged door
seals and sealing surface, broken or loose door
hinges and latches, and dents inside the cavity
or on the door. If there is any damage, do not
operate the oven and contact qualied service
personnel.
Note: It is important not to remove or
unscrew the metal panel that appears on
the upper right wall inside the microwave
oven.

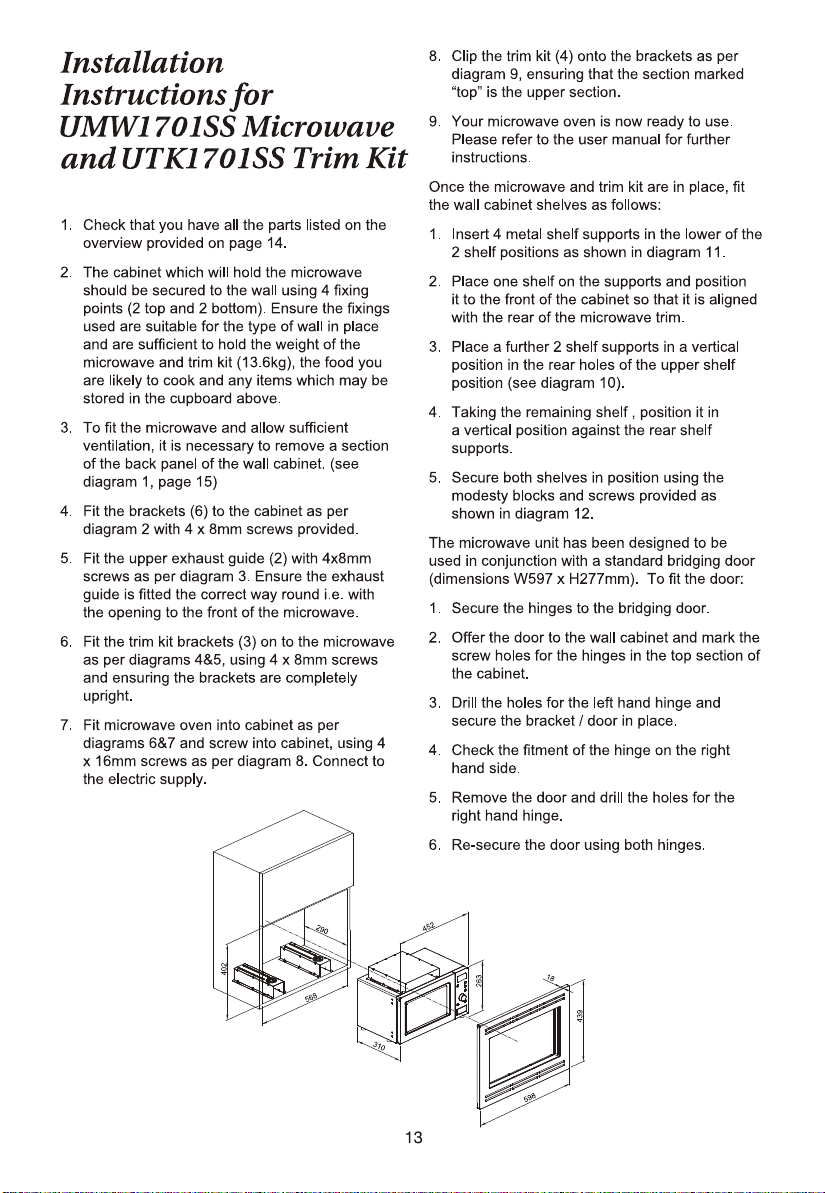

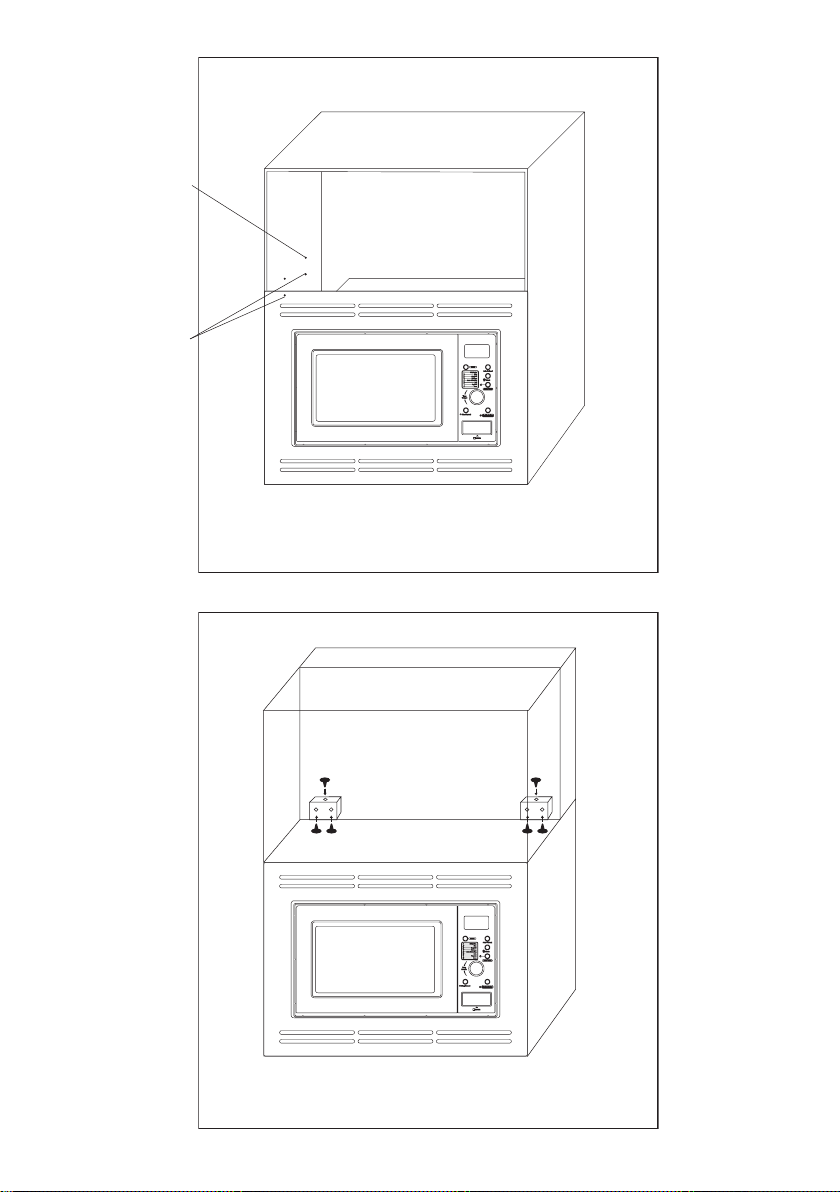

For step by step illustrations please refer to
installation of the oven into a cabinet, p.13-17 of
this manual.

6
%ARTH
'REEN9ELLOW
Connection to the
Mains Supply
Check that the voltage marked on the product
corresponds with your supply voltage.
This product is tted with a 13A plug complying
with BS1363. If this plug is unsuitable or needs to
be replaced, please note the following:
WARNING:
THIS APPLIANCE MUST BE EARTHED
Important: The wires in the mains lead are
coloured in accordance with the following code:
GREEN/YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
This appliance is tted with a plug which has a
13 amp fuse. Should the fuse fail, then it must
be replaced with an ASTA approved fuse
(conforming to BS1362) of the same rating. If
you need to replace the plug or if the plug is of
the incorrect type for your socket, remove it and
replace it with an appropriate type. Dispose of the
old plug safely.
As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals in your
plug, proceed as follows: The GREEN/YELLOW
wire is the EARTH and must be connected to
the terminal which is marked with the letter ‘E’ or
by the earth symbol or coloured GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be
connected to the terminal which is marked with
the letter ‘N’ or coloured BLACK.
The BROWN wire is the LIVE wire and must be
connected to the terminal which is marked with
the Letter ‘L’ or coloured RED.
Always ensure that the plug cord grip is fastened
correctly.
If in doubt consult a qualied electrician who
will be pleased to do this for you. This product
conforms to EC Directive 92/31 /EEC with respect
to Electromagnetic Compatibility.
NON-REWIREABLE MAINS PLUG
If your appliance is supplied with a nonrewireable
plug tted to the mains lead, you will nd that
it incorporates a fuse, the value of which is
indicated either on the base of the plug or on the
fuse carrier. Should the fuse need replacing, you
must use an ASTA approved one (conforming to
BS1362) of the same rating.
If the fuse cover is lost, the plug must not be used
until a replacement is obtained from an electrical
supplier.
If you need to remove the plug, cut it from the
mains lead and immediately dispose of it. Never
attempt to re-use this plug or insert it into a socket
outlet as there is a very great risk of an electric
shock.

7
Features of Your Microwave Oven
1. Door Safety Lock System
2. Oven Window
3. Oven Air Vent
4. Turntable Roller
5. Glass Tray

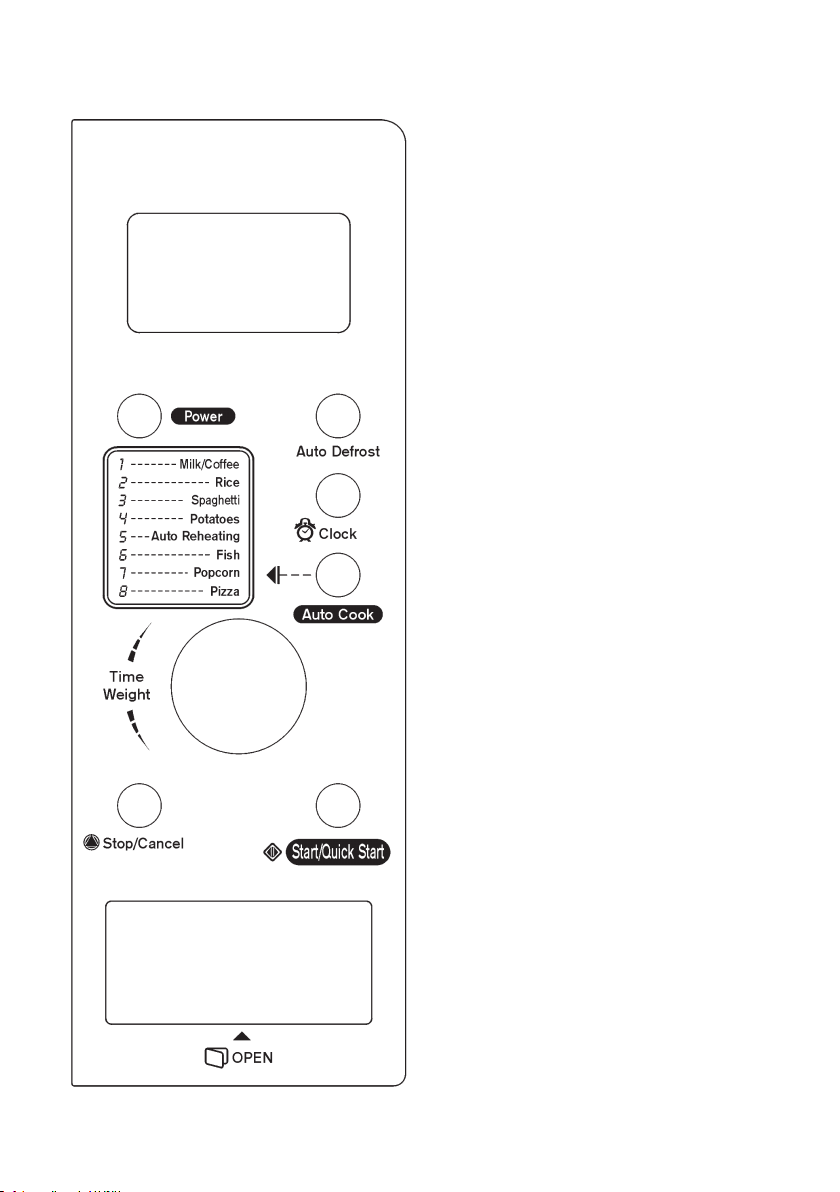

6. Control Panel
7. Door Release Button
Radio Interference
1. Operation of the microwave oven can cause
interference to your radio, TV, or similar
equipment.
2. When there is interference, it may be
reduced or eliminated by taking the following
measures:
• Clean door and sealing surface of the oven.
• Reorient the receiving antenna of radio or
television.
• Relocate the microwave oven with respect
to the receiver.
• Move the microwave oven away from the
receiver.
• Plug the microwave oven into a different
outlet so that microwave oven and receiver
are on different branch circuits.

8
Microwave Cooking
Principles
• Arrange food carefully. Place thickest areas
towards outside of dish.
• Watch cooking time. Cook for the shortest
amount of time indicated and add more as
needed. Food severely overcooked can smoke
or ignite.
• Cover foods while cooking. Covers prevent
splattering and help food to cook evenly.
• Turn foods over once during microwaving to
speed cooking of such foods as chicken and
hamburgers. Large items like roasts must be
turned over at least once.
• Rearrange foods such as meatballs halfway
through cooking both from top to bottom and
from the center of the dish to the outside.
Cookware Microwave
Heat–Resistant Glass Yes
Non Heat–Resistant Glass No
Heat–Resistant Ceramics Yes
Microwave–Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminum Foil & Foil Containers No
Utensils Guide
• A transparent utensil is best for microwave
cooking as it allows energy to pass through the
container and heat the food.
• Only use a temperature probe recommended
for microwave ovens.
• Microwaves cannot penetrate metal, so metal
utensils or dishes with metallic trim should not
be used.
• Do not use recycled paper products when
microwave cooking, as they may contain small
metal fragments which may cause sparks and/
or res.
• Round/oval dishes rather than square/oblong
ones are recommend, as food in corners tends
to overcook.
The list below is a general guide to help you
select the correct utensils.

9
Microwave Control Panel
MENU ACTION SCREEN
Cooking time, power, action indicators, and clock
time are displayed.
POWER
Press this button a number of times to select the
required microwave cooking power level.
TIME/WEIGHT
Turn the dial to set the oven clock time, input
cooking time or specify weight.
AUTO DEFROST
Touch to defrost food by weight.
AUTO COOK
Press a number of times in line with the auto cook
menu for quick settings to cook popular foods.
You need to specify weight.
CLOCK
Use to set the digital clock.
START/QUICK START
Touch to start a cooking program.
Simply touch it a number of times to set cooking
time and the oven will cook immediately at full
power level.
STOP/CANCEL
Press to cancel setting or reset the oven before
setting a cooking program.
Press once to temporarily stop cooking, or twice
to cancel cooking altogether.
It is also used for setting the child lock.

10
Using the Oven Controls
BEEP DURING OVEN SETTINGS
Each time a button is touched, a beep will sound
to acknowledge the touch.
SETTING THE DIGITAL CLOCK
With the oven ready for input, touch the CLOCK
button once or twice to set the digital clock using a
12 or 24 hour clock.
FOR EXAMPLE: Suppose you want to set the
oven clock time to 8:30.
1. Press CLOCK button once.
2. Turn TIME/WEIGHT to indicate the hour digit
8.
3. Press CLOCK button.
4. Turn TIME/WEIGHT dial to indicate the
minute digits until the screen shows 8: 30.
5. Press CLOCK to conrm the setting.
To check clock time during cooking, press the
CLOCK button once, the time will be displayed for
5 seconds.
MICROWAVE COOKING
Press the POWER button a number of times to
select a cooking power level, and then use the
TIME/WEIGHT dial to set a desired cooking time.
The longest cooking time is 60 minutes.
Select power level as follows:
PRESS POWER
BUTTON
COOKING POWER
once 100%
twice 80%
3 times 60%
4 times 40%
5 times 20%
For example, suppose you want to cook for 1
minute at 60% of microwave power.
1. Press POWER button 3 times.
2. Turn TIME/WEIGHT to 1:00.
3. Press START/QUICK START button.
AUTO COOK FUNCTION
For certain food, it is not necessary to programme
the duration and the cooking power. It is sufcient
to indicate the type of food that you wish to cook
as well as the weight of this food. In order to do
this, press the Auto Cook button a number of
times to select the required cooking mode from
the auto cook menu. Then turn the TIME/WEIGHT
dial to indicate weight of food to be cooked. The
oven begins cooking once the START/QUICK
START button is engaged. You may need to turn
food over half way through the cooking time to
obtain a uniform result.
For example, to cook 400g of sh.
1. Press the AUTO COOK button 6 times.
2. Turn TIME/WEIGHT dial to indicate a weight
of 400g.
3. Press START/QUICK START button.

11
Code Food/cooking mode 1. Turn TIME/WEIGHT dial to indicate weight of food.
2. The result of auto cooking depends on factors such as
the shape and size of food, your personal preference
as to how well cooked you want the foods and even
how well you happen to place food in the oven. If you
nd the result not quite satisfactory, please adjust the
cooking time accordingly.
3. For spaghetti, add boiling water before cooking.
4. For rice, add cold water before cooking.
1Milk/Coffee (unit)
2 Rice (g)
3Spaghetti (g)
4Potatoes (g)
5Auto Reheat (g)
6Fish (g)
7Popcorn (g)
8Pizza (g)
AUTO DEFROST
The oven allows the defrosting of meat, poultry,
and seafood. The time and the defrosting power
are adjusted automatically once the weight is
programmed. The range weight of frozen foods
varies between 100g and 1800g.
FOR EXAMPLE: Suppose you want to defrost
600g of shrimp.
1. Place the shrimps to be defrosted into the
oven.
2. Press AUTO DEFROST button once.
3. Turn TIME/WEIGHT dial to choose a weight
600g.
4. 4. Press START/QUICK START button.
Note: : Half way through defrosting,
the microwave will pause and sound to
remind you to turn the food over. The
microwave will not resume until you
press the button START/QUICK START.
QUICK START
This feature allows you to start the oven quickly.
Press the START/QUICK START button a
number of times to set the cooking time, the oven
starts work at full power level immediately.
PRESS START/
QUICK START
BUTTON
TIME
once 0:30
twice 1:00
thrice 1:30
etc etc
For example, to set the oven to cook for 2 minutes
using this feature:
Press START/QUICK START button 4 times, the
oven starts working immediately at full microwave
power.
CHILD LOCK
Use to prevent unsupervised operation of the
oven by little children. The CHILD LOCK indicator
will show up on the display screen. The oven can
not be operated whilst the CHILD LOCK is set.
To set the CHILD LOCK: Press and hold
the STOP/CANCEL button for 3 seconds, a
beep sounds and the CHILD LOCK indicator
illuminates.
To cancel the CHILD LOCK: Press and hold the
STOP/CANCEL button for 3 seconds until the
child lock indicator display goes off.
Special Feature
AUTO REMINDER
After a cooking or defrosting programme has been
completed, the oven will automatically continue
to beep every two minutes until the oven door is
opened or the STOP/CANCEL button is pressed.
AUTO COOK MENU

12
Care and Cleaning
• Turn off the oven and remove the power plug
from the wall socket before cleaning.
• Keep the inside of the oven clean. When food
splatters or spilled liquids adhere to oven
walls, wipe with a damp cloth. Mild detergent
may be used if the oven gets very dirty. Avoid
the use of spray and other harsh cleaners as
they may stain, streak or dull the door surface.
• The outside surfaces should be cleaned with
a damp cloth. To prevent damage to the
operating parts inside the oven, water should
not be allowed to seep into the ventilation
openings.
• Wipe the door and window on both sides, the
door seals and adjacent parts frequently with
a damp cloth to remove any spills or splatters.
Do not use an abrasive cleaner.
• Do not allow the control panel to become wet.
Clean with a soft, damp cloth. When cleaning
the control panel, leave the oven door open to
prevent the oven from accidentally turning on.
• If steam accumulates inside or around the
outside of the oven door, wipe with a soft cloth.
This may occur when the microwave oven is
operated under high humidity conditions and is
quite normal.
• It is occasionally necessary to remove the
glass tray for cleaning. Wash the tray in warm
sudsy water or in a dishwasher.
• The roller ring and oven oor should be
cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the oven
with mild detergent. The roller ring may be
washed in mild sudsy water or a dishwasher.
When removing the roller ring from the cavity
oor for cleaning, be sure to replace it in the
proper position.
• Remove odours from your oven by combining
a cup of water with the juice and skin of
one lemon in a deep microwaveable bowl,
microwave for 5 minutes. Wipe thoroughly and
dry with a soft cloth.

14
Sequence Name Quantity
1 Cabinet 1
2 Upper Exhaust Guide 1
3Trim Kit Brackets 4
4 Trim Kit 1
5 Microwave Oven 1
6Bracket 2
1
5
3
4
6
B4x12mm
A 4 x 8 m m
C 4 x 1 6 m m
2

15
A4-4x8mm
442mm
290mm
284284
53 170
53 170
8 61 0 2 . 51 2 1 . 58 6 (95.5)(76.5)
Centerline
of the cabinet
Align
• •
8-4x12mm
568mm
402mm
16mm
20mm
16mm
20mm
70mm 70mm
70mm
350mm
Cut out in back
panel
Make a cabinet to the dimension.

16
A
A4-4x8mm
4-4x8mm
5 85 8
4 5
67
Place the oven in the middle of the cabinet.
Place the oven into the cabinet.
Fasten 2 trim kit brackets to the left side
of oven with screws.
Fasten 2 trim kit brackets to the right
side of oven with screws.

17
C4-4x16mm
8
9 10
Fasten the trim kit onto the oven
Note the position of identier.
Fasten the oven into the cabinet with 4 screws.
Completion

18
Fitting the shelves.
Securing the shelves.
11
12
Rear upper
shelf position
Lower shelf
positions

19
Technical Specification
Operation Frequency: 2450MHz
Power Consumption: 230~240V ~50Hz, 1200W(Microwave)
Rated Microwave Power Output: 700W
Product Dimensions: 263mm(H) × 452mm(W) × 310mm(D)
Oven Cavity Dimensions: 193mm(H) × 315mm(W) × 279mm(D)
Oven Capacity: 17 Litres
Cooking Uniformity: Turntable System { 245mm}
Net Weight (Microwave and Trim Kit): Approx.13.6kg

Appliance 365 Ltd.
September 2009
www.appliance365.co.uk
