Applico GPP52L User manual

User Manual for
520mm/750mm Stainless Steel Powerpack Rangehood
GPP52L & GPP75L

NOTE: This User Instruction Manual contains important information, including safety &
installation points, which will enable you to get the most out of your appliance. Please
keep it in a safe place so that it is easily available for future reference for you or any
person not familiar with the operation of the appliance.

Content
Environmental note ............................................................................................... 1
Important safety information ................................................................................ 2
Specifications of your rangehood (mm): ................................................................ 5
Using your rangehood............................................................................................ 7
Cleaning your rangehood....................................................................................... 8
Maintenance.......................................................................................................... 9
Installation........................................................................................................... 12
Installing your rangehood .................................................................................... 14
Extraction mode or recirculation mode ............................................................... 17
Box Contents: ...................................................................................................... 18
Troubleshooting:.................................................................................................. 19

1
Environmental note
Note:
Before discarding an old appliance, switch off and disconnect it from the power
supply. Cut off and render any plug useless. Cut the cable off directly behind the
appliance to prevent misuse. This should be undertaken by a competent person.
This appliance is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product or on the documents accompanying the product
indicates that this appliance may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for
waste disposal. For more detailed information about treatment, recovery and
recycling of this product, please contact your local city office or local waste
management office.
The packaging materials that we use are environmentally friendly and can be
recycled.
Please discard all packaging material with due regard for the environment.

2
Important safety information
Your safety is of the utmost importance to us. Please make
sure that you read this instruction booklet before attempting
to install or use the appliance. If you are unsure of any of the
information contained in this booklet, please contact the
Retailer where you purchased your unit from.
IMPORTANT: Any installation work must be carried out by a qualified
electrician or competent person.
The rangehood must be installed in accordance with the installation
instructions and all measurements followed.
If the rangehood is installed for use above a gas appliance then the provision
for ventilation must be in accordance with the Gas Installations standard
AS/NZS 5601.1 & 2:2013, the Gas Safety and Measurement Regulations 2010,
and the Building (Specified Systems, Change the Use, and Earthquake-prone
Buildings) Regulations 2005 issued under the Building Act 2004.
It is dangerous to alter the specifications or to modify this product. Do not
tamper with it or attempt to modify the appliance in any way.
When installing the rangehood, ensure that the following recommended
distances are observed between the highest point on the hob top (including
the burners) and the bottom of the rangehood:
1. Electric cookers: 700 mm
2. Gas cookers: 700 mm
3. Coal/ oil cookers: 800 mm
IMPORTANT:DO NOT SET YOUR RANGEHOOD LESS THAN 700mm ABOVE YOUR
COOKER.
When installed between adjoining wall cabinets, the cabinets must not
overhang the cooktop.

3
The edges of the rangehood are sharp –be mindful of this as you handle your
appliance, especially during installation and cleaning. DO NOT CLEAN IN
BEHIND THE GREASE FILTERS.
If the room where the rangehood is to be used contains a fuel burning
appliance such as a central heating boiler then its flue must be of the sealed
or balanced flue type.
If other types of flue or appliances are fitted, ensure that there is an
adequate supply of air in the room.
When the rangehood is being used in its extractor function, ensure that the
ducting is fire retardant and that there are no bends sharper than 90 degrees
as this will reduce the efficiency of the rangehood.
Ensure the ducting for the extractor function has the same diameter as the
outlet hole all the way through.
Keep young children from using, playing with or tampering with the
rangehood. We suggest older children and person with certain disabilities
should be supervised if they are using the rangehood.
Your rangehood is for domestic use only.
Please dispose of the packing material carefully –children are especially
vulnerable to it.
Clean the rangehood regularly. Dirty oil and oil build up is an even greater
fire risk.
It is recommended to put lids on pots and pans when cooking on a gas
cooker.
The manufacturer& supplier refuses to accept any responsibility for damages
arising to the rangehood, including it catching on fire, due to a failure to
observe the fire safety advice contained in this instruction booklet.

4
Remember that when in extraction mode, your rangehood is removing air
from your room. Ensure that proper ventilation measures are being observed.
Warning: Always ensure that the rangehood has been switched off before carrying
out any work, including replacing light bulbs.
Do not connect the ducting system of this appliance to any existing ventilation
system which is being used for any other purpose.
Do not install above a cooker with a high level grill.
Never leave frying pans unattended during use as overheated fats and oils
might catch fire.
The rangehood should not be exposed to a direct heat source from the cooking
device underneath it, i.e. a naked flame from a gas burner or heat from electric
hob zones without a pan on them.
Do not attempt to use the rangehood if it is damaged in any way. Never
attempt to use it without the grease filters fitted or if the filters are excessively
greasy.
Never flambé cook under this rangehood.
The lights on this appliance should only be used during operation of the
rangehood. They should not be left on permanently and used as a lighting
source.
THE MANUFACTURER & SUPPLIER DECLINES ALL RESPONSIBILITY IN THE
EVENT OF FAILURE TO OBSERVE THE INSTRUCTIONS GIVENHERE FOR
INSTALLATION, MAINTENANCE AND SUITABLE USE OF THE RANGEHOOD.

5

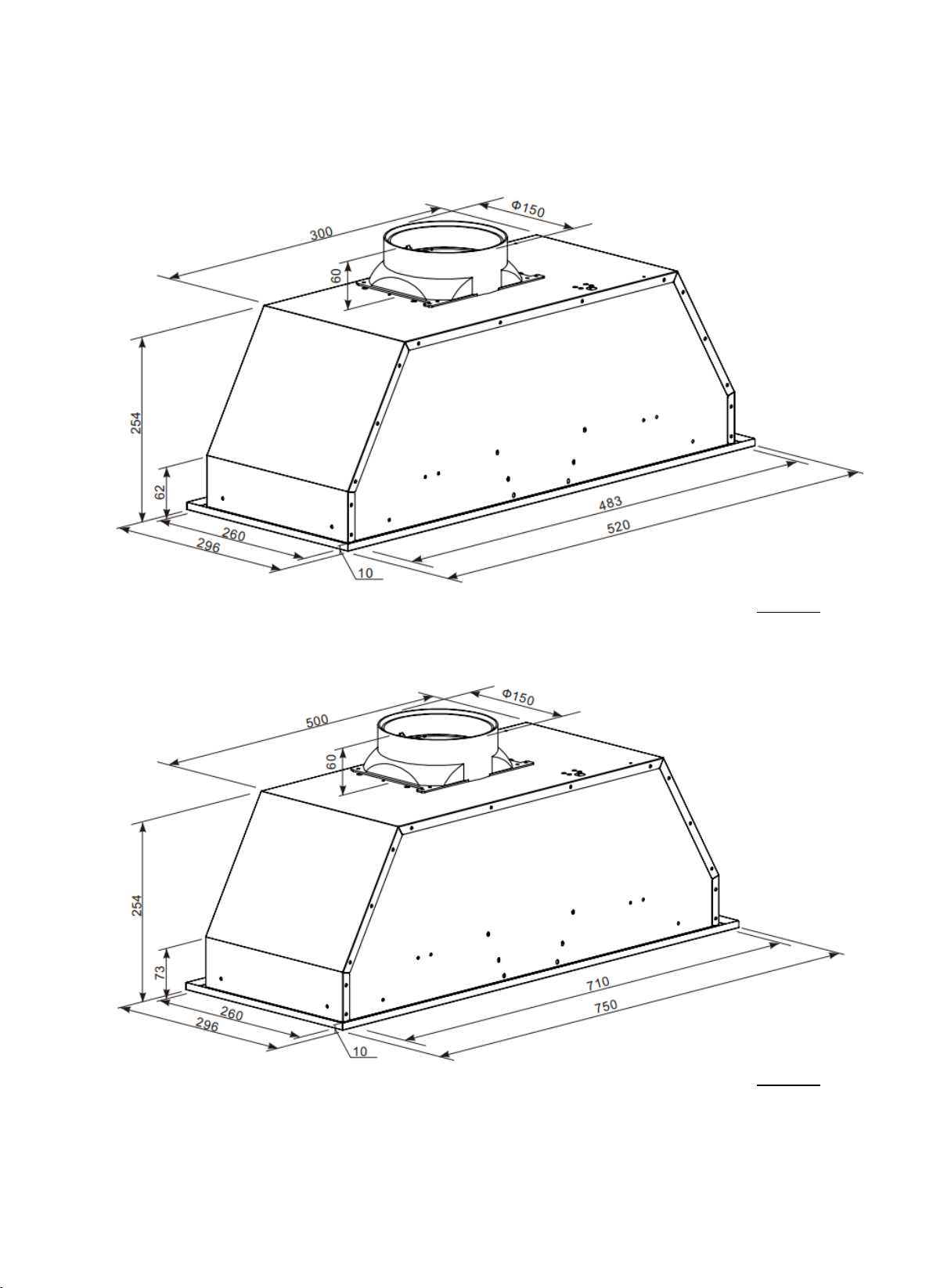

Specifications of your rangehood (mm):
GPP52L
GPP75L

6
Product External Dimensions
GPP52L
Height: 254mm
Width: 520mm
Depth: 296mm
GPP75L
Height: 254mm
Width: 750mm
Depth: 296mm
Product Specification
Modern LED lighting (2 lamps)
Push buttons
3 speed fan
Brushed stainless steel finish
150mm diameter ducting outlet
Stainless steel coated grease filter
Grease Filter part no. SYRSF68521 for GPP52L
Grease Filter part no. SYRSF68751 for GPP75L
Extraction capacity: 700m³/hr
Noise level min/max: 60dB~ 70 dB
Optional extras: Recirculation possible with optional charcoal filter (ST1)
Where to find your model number and serial number:
Your appliance has a data plate that provides identifying information that is
important to know when registering your purchase online and for service. You can
find the data plate behind the motor after removing the grease filter. For information
on how to remove the grease filter, see page 9.

7
Using your rangehood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE RANGEHOOD IS
USED FOR THE FIRST TIME.
Cleaning
You should use a mild liquid detergent and a damp cloth on all the external
areas of your rangehood before it is used for the first time. This will help to
remove any residues from the manufacturing process.
To use your rangehood
Make sure that it has been installed by a suitably qualified person, as per the
information contained in these installation instructions.
Find the control panel, which is located in the middle of the rangehood.
The control panel contains switches, as shown in the picture below. These
perform separate functions.
Your rangehood’s control panel
Push Stop button, the motor will stop.
Push the Low button, the motor will run at low speed.
Push the Mid button, the motor will run at mid speed.
Push the High button, the motor will run at high speed.
Push the Light button and the two lights will come on. Push it again and the
light will turn off.
IMPORTANT: TO MAXIMISE ODOUR AND STEAM EXTRACTION IDEALLY YOU SHOULD
SWITCH ON YOUR RANGEHOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT
THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR
RANGEHOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING.

8
Cleaning your rangehood
IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED
YOUR RANGEHOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM
THE CABLE.
Clean the external parts of your rangehood with mild liquid detergent and a
new damp cloth.
Never use abrasive powder, corrosive solvents or brushes.
Never insert pointed objects into the motor’s protective grid
Only clean the control panel and grease filter grill with mild liquid detergents
and a new damp cloth.
If you are using the appliance in recirculation mode, then be sure to replace
the charcoal filters at the recommended interval (see section on “Fitting the
charcoal filter” on page 10). A build up of grease could cause a fire hazard.
Never attempt to clean the area above the grease filter.
The Grease filter
Your rangehood includes a grease filter which helps to absorb grease particles
to protect your kitchen and furniture from greasy residues.
These metallic filters may become flammable if it becomes saturated with
greasy residue.
To prevent this fire hazard, the grease filter should be cleaned regularly.
Depending on use, this should be done every 10 –15 days or at least once a
month, using hot water and normal washing-up detergent.
IMPORTANT: DO NOT WASH THE GREASE FILTERS IN A DISHWASHERBECAUSE
WHILE THEY ARE DISHAWASHER SAFE, CHEMICALS FROM DISHWASHING
DETERGENT CAN CAUSE DAMAGE.

9
Maintenance
Removing and cleaning the grease filter
Grease Filter part no. SYRSF68521 for GPP52L
Grease Filter part no. SYRSF68751 for GPP75L
Remove the grease filter by sliding the securing nibs at the sides of the grille on
the underside of the rangehood.
Soak the grease filter in hot water mixed with mild liquid dish detergent for
about an hour.
Rinse it off thoroughly with hot water.
Repeat the process if required.
Refit the grease filters once they have dried.
IMPORTANT:
Let the grease filter dry thoroughly before refitting it in the rangehood.
Never attempt to use your rangehood without the grease filter in place.
Light replacement (Part number: 14000600420 –LED LIGHT)
IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE
THAT YOU HAVE DISCONNECTED THE RANGEHOOD FROM YOUR MAINS SUPPLY.

10

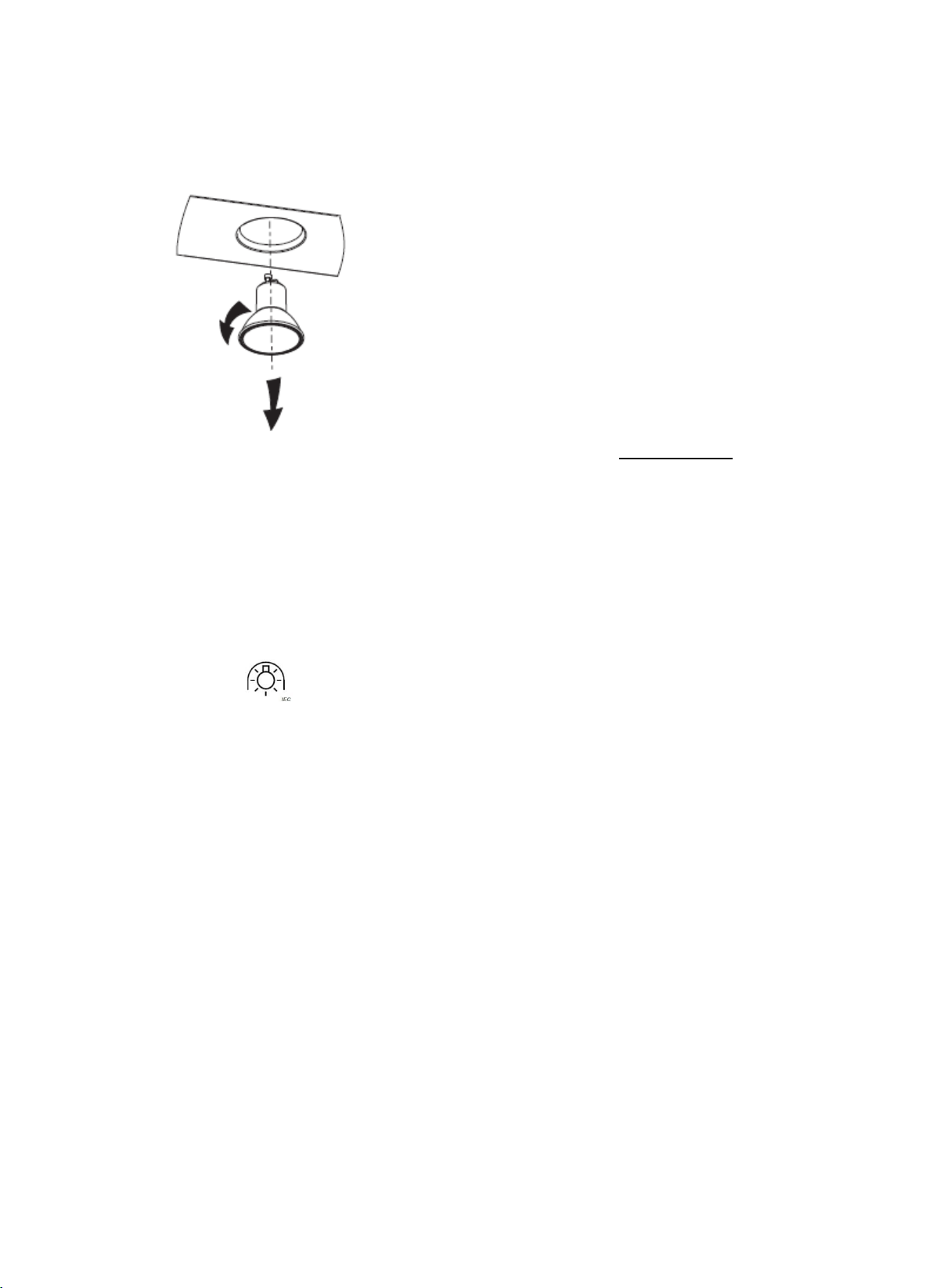

Prior to removing the light bulb, ensure that it has cooled down.
Press gently on the underside of the bulb that needs to be replaced and twist
anticlockwise to release.
Replace in reverse order using only genuine spare part 14000600420.
Note:
Defective bulbs should be replaced immediately.
If the light still does not work, make sure that the internal plug is fitted
properly before you call for technical assistance.
Symbol means, “Use only with self-shielded tungsten halogen lamps
or self-shielded metal halide lamps"

11
Fitting the charcoal filter (Part number ST1)
If the appliance is going to be used in recirculation mode then it is necessary to fit
charcoal filter (ST1). This will help to absorb unpleasant odors caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CHARCOAL FILTERS, YOU
MUST ENSURE THAT YOU HAVE DISCONNECTED THE RANGEHOOD FROM YOUR
MAINS SUPPLY.
1. Remove the grease filter as shown on below.

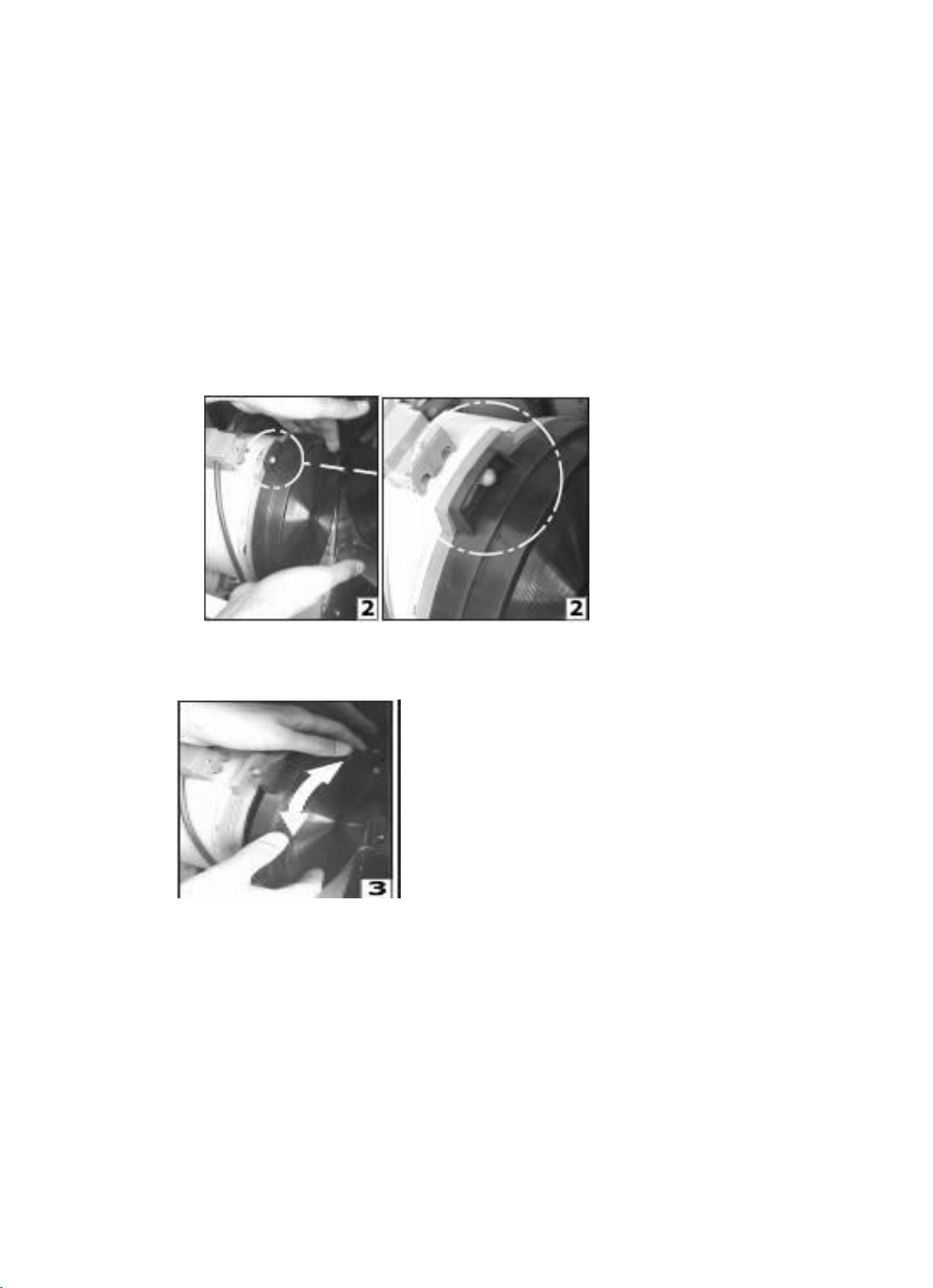

2. Hook the charcoal filter over the pins that are located at the end of the motor.
3. Turn the charcoal filter anticlockwise, until you feel it click into place.
4. Repeat this process for the second charcoal filter. You need to place a
charcoal filter at either end of the motor.
5. Refit the grease filters.
6. The charcoal filters should be replaced every three months or if they show
signs of damage.
7. If replacing existing charcoal filters, remove them by twisting in anticlockwise
direction until they unlatch from the sides of the motor.

12
Installation
IMPORTANT: Before installation read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same
as the voltage and frequency in your home. The rating plate can be found behind the
grease filters.
The manufacturer & supplier declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force, which are
necessary for normal use and the regular operation of the electric system.
Electrical connection
Your rangehood is intended for fitting with power cord & plug for connection
to 10A power outlet.
The power cable must be connected to the terminals marked L (live) and N
(neutral) in the rangehood and fixed with a cable clamp.
The rangehood’s power cable must be fitted upstream from the electrical
connection using an omni-polar switch with a contact distance of at least 3mm.
WARNING:THIS APPLIANCE MUST BE EARTHED!
We recommend that the appliance is connected by a qualified electrician, who is
registered with the Electrical Workers Registration Board (EWRB) and who will
comply with ALL regulations. The wires in the mains lead are coloured in accordance
with the following NZ code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only can find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal.
As the colours of the wires in the appliance’s mains lead may not correspond with
the coloured markings identifying the terminals in your spur box, please proceed as
follows:
The blue wire must be connected to the terminal marked “N” (neutral), or
coloured black.

13
The brown wire must be connected to the terminal marked “L”
(live), or coloured red.
The green/yellow wire must be connected to the terminal
marked “E”or“ ”.
Before beginning installation
Check that the product purchased is of a suitable size for the chosen
installation area. In addition, check whether there is an electrical socket
available that will be accessible once the rangehood is mounted. If the product
is going to be used in extraction mode, then there should also be space to
connect a ducting hose to the outside.
Carry out all necessary masonry work prior to the fitting of the rangehood.
Ensure that all electrical connections are carried out by a suitably qualified
person.
Before commencing installation of the rangehood the grease filters should be
removed.
Check inside the product and ensure that there is no transit packaging or any
other materials, such as packets of screws, guarantees etc. These should be
removed and kept for future use.
If possible, disconnect and move freestanding or slot-in cookers from their
position, to provide easier access to the rear wall and ceiling. If this is not
possible then a thick, protective covering should be placed over the worktop,
cooktop or cooker. This will help to protect these surfaces from damage and
debris.
Select a flat surface for assembling the rangehood. Cover that surface with a
protective covering and place all rangehood parts and fittings on it.
Do not tile, grout or silicone this appliance to the wall or cabinetry. This
appliance is designed to be surface mounted only.

14
Installing your rangehood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR RANGEHOOD
WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. PLEASE
REFER TO PAGE 17 TO UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO
MODES.
We recommend that at least two people install this rangehood.
If you are using the appliance in recirculation mode, then PLEASE NOTE that all
of the vent in the upper chimney section must be exposed. You will have to
take this into account when calculating the minimum height of the extractor
when installed.
If the recirculation vents are obstructed then the efficiency of the extraction
will be affected and could damage the motor.
IMPORTANT: YOUR RANGEHOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY
AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED.
1. The rangehood should be placed at a distance of 65-75cm (26-30inch) from the
cooking surface for the best results.
2. Drill a hole in the cupboard, 715mm*265mm for 750mm model (GPP75L), and
490mm*265mm for 520mm model (GPP52L). Make sure the distance between
the edge of the hole and the edge of the cupboard edge is at least 35mm.
3. Take down the filter and remove the four screws on the panel.
4. Use eight ST4 x 18mm screws to fix the hood into cabinet.
5. Fix the panel back to the body and install the filter.
6. Connect the ducting pipe to the outlet.

15
750mm model 520mm model
Connecting to external ducting (top)
Connect the coupling to the top of the rangehood, using two of the smaller
screws provided. (If side ducting, this is either through the wall or the soffit)
Connect a 150 mm ducting hose to a discharge outlet that is suitable for
cooking vapours. Please note that the ducting hose is not supplied with the

16
appliance but one can be obtained from the Retail outlet where you purchased
your appliance.
It is recommended to use semi- rigid aluminum ducting.
The maximum distance between the coupling and your discharge outlet should
be 3 meters, with one 90 degree bend. For each additional 90 degree bend,
the maximum distance is reduced by a further meter.
Before fixing the rangehood into the kitchen unit, you should connect the
other end of the ducting hose to the coupling in the top of the rangehood.
Completing the installation
If you are setting the appliance to recirculation mode, then you should now fit
the two charcoal filters. See the section “Fitting the charcoal filter”on page 11.
The electrical connection must correspond to the electrical requirement noted
on the rating plate, which is placed inside the rangehood. The appliance
should now be connected to the electrical supply. See page12 for detailed
information on the electrical connection.
Refit the grease filter and then switch on the mains supply to the appliance. Check
that the appliance is operating correctly by selecting each speed and switching the
lights on and off.

17
Extraction mode or recirculation mode
IMPORTANT: You will have to decide prior to installing your rangehood whether to
use it in extraction mode or recirculation mode.
•What is the difference between extraction and recirculation modes?
In extraction mode, the stale air will be taken via the grease filter and out of the
room via external ducting.
In recirculation mode stale air is taken via the grease filter, and passed through a
charcoal filter for purification. The air then re-enters the kitchen via an opening in
the rangehood.
For optimum performance, we recommend that the rangehood is used in extraction
mode and connected to external ducting.
Unfortunately if you live in a flat, or if the rangehood is too far from an outside wall,
this may not be possible. The only alternative is to recirculate the air.
•What is a charcoal filter and do I need one?
All rangehoods have a grease filter but if you are using your rangehood in
recirculation mode, then a charcoal filter must be fitted in addition to the grease
filter.
