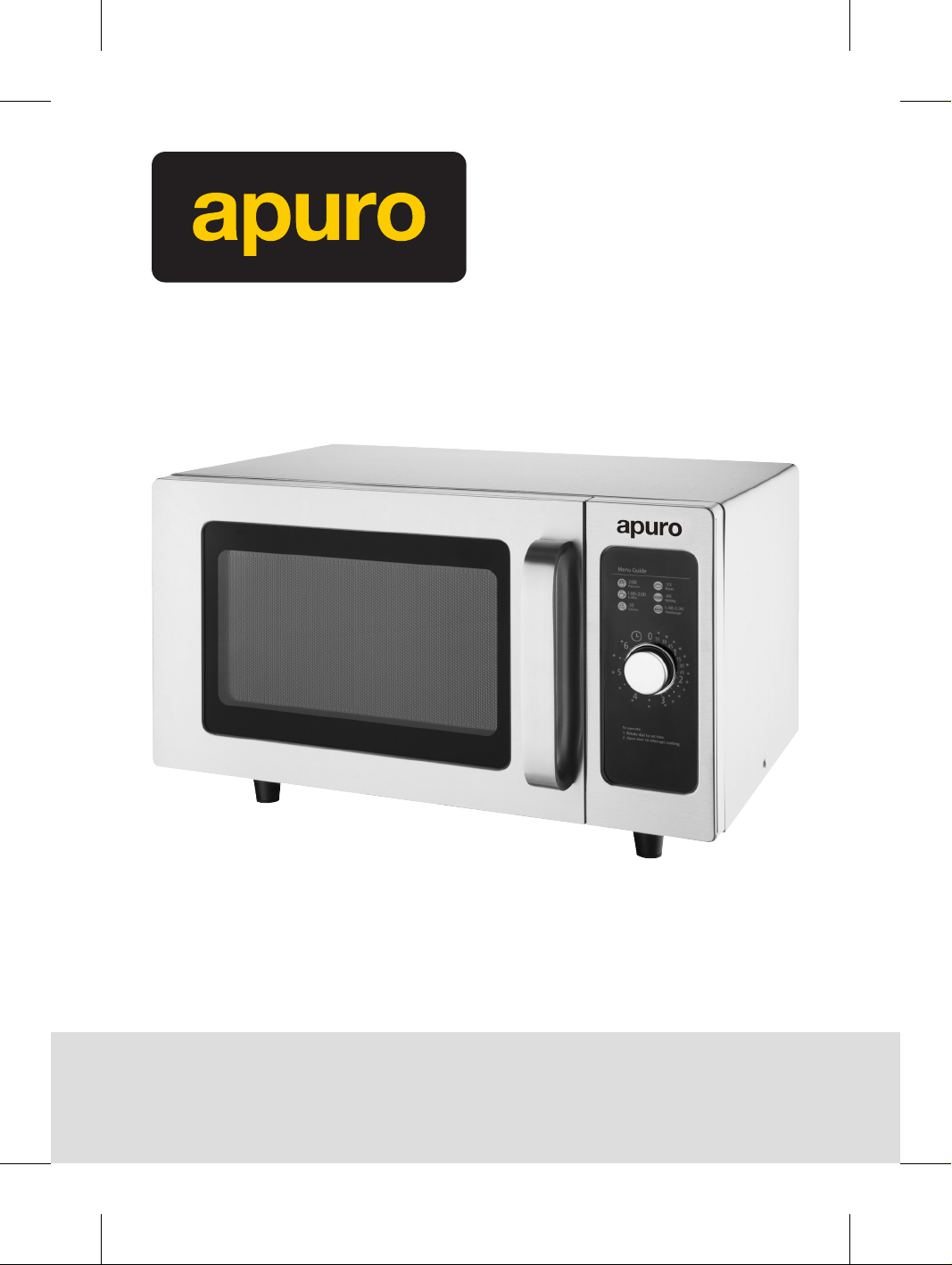

APURO FB861-A User manual

Model:
FB861-A
Microwave Oven
Instruction manual
FB861-A_A5_v1_20201019.indb 1FB861-A_A5_v1_20201019.indb 1 2020/10/19 14:102020/10/19 14:10

2
AU Telephone Helpline: 1300225960
Safety Tips
To reduce the risk of fire, electric shock, injury to persons or
exposure to excessive microwave oven energy when using your
appliance, follow basic precautions, including the following:
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO MICROWAVE ENERGY
Do not attempt to operate this oven with the door open, since
this can result in harmful exposure to microwave energy. It is
important not to break or tamper with the safety interlocks.
Do not place any object between the oven front face and the
door or allow soil or cleaner residue to accumulate on sealing
surfaces.
Warning: If the door or door seals area damaged, the oven
must not be operated until it has been repaired by a competent
person.
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- Wiring Regulations
- Building Regulations
• Warning: Liquids and other foods must not be heated in
sealed containers since they are liable to explode.
FB861-A_A5_v1_20201019.indb 2FB861-A_A5_v1_20201019.indb 2 2020/10/19 14:102020/10/19 14:10

3
AU
Telephone Helpline: 1300225960
• Warning: It is hazardous for anyone other than a competent
person to carry out any service or repair operation that
involves the removal of a cover which gives protection against
exposure to microwave energy.
• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food deposits
should be removed.
• When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store
items, such as bread, cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or
plastic containers/bags before placing them in the oven.
• Install or locate this oven only in accordance with the
installation instructions provided.
• Eggs in the shell and whole hard-boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
• Use this appliance only for its intended uses as described in
manual. Do not use corrosive chemicals or vapours in this
appliance. This oven is especially designed to heat. It is not
designed for industrial or laboratory use.
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a wet basement or near a
swimming pool.
• The temperature of accessible surfaces may be high when
the appliance is operating. The surfaces are liable to get hot
during use. Keep cord away from heated surface, and do not
cover any vents on the oven.
FB861-A_A5_v1_20201019.indb 3FB861-A_A5_v1_20201019.indb 3 2020/10/19 14:102020/10/19 14:10

4
AU Telephone Helpline: 1300225960
• Do not let cord hang over edge of table or counter.
• Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
• Warning: The contents of feeding bottles baby food jars
shall be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
• Warning: Microwave heating of beverages result in delayed
eruptive boiling, therefore care must be taken when handling
the container.
• Liquids such as water, coffee and tea can overheat beyond
boiling point without appearing to be boiling.
• Always switch off and disconnect the power supply to the unit
before cleaning or carrying out maintenance.
• Keep all packaging away from children. Dispose of the
packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a Apuro
agent or a recommended qualified technician in order to avoid
a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• Do not operate the oven when empty.
• The microwave oven shall not be placed in a cabinet unless it
has been tested in a cabinet.
• The appliance is not intended to be operated by means of an
external timer or separate remote-control system.
FB861-A_A5_v1_20201019.indb 4FB861-A_A5_v1_20201019.indb 4 2020/10/19 14:102020/10/19 14:10

5
AU
Telephone Helpline: 1300225960
• Do not use jet/pressure washers to clean the appliance.
• Apuro recommends that this appliance should be periodically
tested (at least annually) by a Competent Person. Testing
should include, but not be limited to: Visual Inspection,
Polarity Test, Earth Continuity, Insulation Continuity and
Functional Testing.
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your Apuro product.
Pack Contents
The following is included:
• Microwave Oven • Instruction manual
Apuro prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your Apuro dealer immediately.
Installation
1. Remove all packaging materials. Make sure that all protective plastic film and coatings are thoroughly
removed from all surfaces.
Warning: Check for any of the following damage that may have occurred:
• Misaligned or bent door, damaged door seals/sealing surface, broken/loose
door hinges, dents in the oven interior.
• DO NOT operate the oven if any damage is found. Call an Apuro agent or
qualified Technician.
2. Position the oven on a flat, stable and heat-
resistant surface. For sufficient ventilation,
allow a minimum of 30cm of space above the
oven, 10cm at the back and sides.
Note: Do not cover or block any
openings on the appliance, or
remove the feet.
3. Place the oven as far away from radios and
TV as possible as operation of the appliance
may cause interference to your radio or TV
reception.
30cm
10cm
10cm
FB861-A_A5_v1_20201019.indb 5FB861-A_A5_v1_20201019.indb 5 2020/10/19 14:102020/10/19 14:10

6
AU Telephone Helpline: 1300225960
Utensils
See the instructions in this chapter for utensils to use/avoid with microwaving. If in doubt, please check
the manufacturer’s instructions if your utensil is microwave safe or not.
Materials you can use in microwave oven
Utensils
(Not included)
Remarks
Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be
placed smoothly on the ceramic board. Incorrect usage may the ceramic board
to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or
chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are
not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not
use cracked or chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to
allow steam to escape.
Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while
cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a
short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled
“Microwave Safe”. Some plastic containers soften, as the food inside gets hot.
“Boiling bags” and tightly closed plastic bags should be slit, pierced or vented
as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do
not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers)
Wax Paper Use a cover to prevent splattering and to help retain moisture
FB861-A_A5_v1_20201019.indb 6FB861-A_A5_v1_20201019.indb 6 2020/10/19 14:102020/10/19 14:10

7
AU
Telephone Helpline: 1300225960
Materials to be avoided in microwave oven
Utensils
(Not included)
Remarks
Aluminium tray May cause arcing. Transfer food into microwave-safe dish
Food carton with metal
handle
May cause arcing. Transfer food into microwave-safe dish
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may cause arcing
Metal twist ties May cause arcing and could cause a fire in the oven
Paper bags May cause a fire in the oven
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high
temperature
Wood Wood will dry out when used in the microwave oven and may split or crack
Knowing your appliance
DB
C
E A
A) Control panel
B) Observation window
C) Door assembly
D) Safety interlock system
E) Ceramic board
A) Control panel:
Time knob
Note:
1. DO NOT press the ceramic board forcibly.
2. Take and put the utensils gently to avoid damage to the
ceramic board.
3. After use, DO NOT touch the ceramic board with hand to
avoid high temperature scalding.
FB861-A_A5_v1_20201019.indb 7FB861-A_A5_v1_20201019.indb 7 2020/10/19 14:102020/10/19 14:10

8
AU Telephone Helpline: 1300225960
Operation
Note: Before first time use, wipe clean the interior surfaces and let dry well.
Start Cooking
1. Connect the appliance to the mains power supply.
2. Place food in the oven and close the door.
3. Set cooking time using the time knob. The corresponding time indicator(s) will light up and the
appliance will start automatically.
4. When cooking time elapses, the appliance will beep 5 seconds then enter Standby mode.
5. The fan will continue to run for 1 minute to cool the appliance, then switch off automatically.
Note: If the door is opened during cooking, the oven will stop and switch to
Standby mode at once. The cooking time needs to be reset when the door is
closed.
Power Saving Mode
• When powered up for the first time, the oven will enter power saving mode.
• When cooking finishes, the internal fan and light will last for 1 minute. Afterwards, the oven will enter
power saving mode.
Cleaning, Care & Maintenance
• Switch off and disconnect from the power supply before cleaning.
• Always keep the oven clean!
• Clean the door frame, seal and neighbouring parts carefully with a damp
cloth when dirty.
Cleaning the door and oven front face
• For best performance and to maintain the high degree of safety, the inner door panel and oven front
face should be free of food or grease build-up.
• Wipe these parts with a mild detergent, rinse and wipe dry. Never use abrasive powders or pads.
Cleaning the control panel and plastic parts
• Do not apply a detergent or an alkaline liquid spray to the control panel and plastic parts, as this may
cause damage to these parts.
• Use a dry cloth (not a soaked cloth) to clean these parts.
• Do not allow the control panel to become wet.
FB861-A_A5_v1_20201019.indb 8FB861-A_A5_v1_20201019.indb 8 2020/10/19 14:102020/10/19 14:10

9
AU
Telephone Helpline: 1300225960
Cleaning the oven interior
• After use be sure to remove spilled liquids, spattered oil and food debris as quickly as possible.
• If the oven is used when dirty, efficiency drops and the dirt gets stuck on the oven surface. This may
cause bad odours. Clean the interior with a cloth soaked in luke-warm water with a mild detergent
dissolved in it, then rinse the soap off with a damp cloth.
Remove any odours in the oven interior by microwaving a cup of water with the
juice of 1 lemon for 5 minutes. Wipe the oven clean with a soft dry cloth.
Troubleshooting
If your Apuro appliance develops a fault, please check the following table before making a call to the
Helpline or your Apuro dealer.
Fault Probable Cause Solution
The unit is not
working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug and lead are damaged Call Apuro agent or qualified technician
Power supply Check power supply
Internal wiring fault Call Apuro agent or qualified technician
Door is not closed properly Close door securely
Arcing/Sparking Metallic or other inappropriate
materials are being used in food
preparation
Remove metal objects. Use microwave-safe
utensils only
Spilled food remains inside the oven Clean the interior of the oven
The oven is operated when empty Do not operate the oven when empty. It is
very dangerous
Microwave oven
interfering with
TV reception
Radio and TV reception is interfered
when then appliance is operating
It is normal
Steam
accumulating on
door and hot air
out of vents
In cooking, steam may come out of
food. Most will get out of vents but
some may accumulate on cool places
like the oven door
It is normal
Dim oven light In low power microwave cooking, oven
light may become dim
It is normal
FB861-A_A5_v1_20201019.indb 9FB861-A_A5_v1_20201019.indb 9 2020/10/19 14:102020/10/19 14:10

10
AU Telephone Helpline: 1300225960
Technical Specifications
Model Voltage Power Microwave
Output
Oven
Capacity
Operation
Frequency
Dimensions
h x w x d
(mm)
Weight
(kg)
FB861-A 230-240V~
50Hz 1550W 1000W 25L 2450MHz 311 x 511 x 432 14.7
Electrical Wiring
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and environmentally safe
recycling process. For further information on how to dispose of this product correctly, contact the product
supplier, or the local authority responsible for waste disposal in your area.
Apuro parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
Apuro products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of Apuro.
Every effort is made to ensure all details are correct at the time of going to press, however, Apuro reserves the right to
change specifications without notice.
FB861-A_A5_v1_20201019.indb 10FB861-A_A5_v1_20201019.indb 10 2020/10/19 14:102020/10/19 14:10

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad • Declaração de conformidade
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp
• Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento
Model • Modèle • Modell • Modello
• Modelo • Malli
25L 1000w Manual Commercial Microwave Oven
25L 1000w Programmable Commercial Microwave Oven
34L 1800w Programmable Commercial Microwave Oven
17ltr 1800w Programmable Commercial Microwave Oven
FB861-A
FB862-A
FB864-A
FB865-A
Application of Territory Legislation &
Council Directives(s)
Toepassing van Europese Richtlijn(en)
• Application de la/des directive(s) du
Conseil • Anwendbare EU-Richtlinie(n)
• Applicazione delle Direttive
• Aplicación de la(s) directiva(s) del
consejo • Aplicação de directiva(s) do
Conselho
Electrical Safety
FB861-A
FB862-A
FB864-A
FB865-A
EN 60335-1:2012 +A11:2014



IEC 60335-1:2010 +A1:2013

EN 60335-2-90:2006+A1:2010



IEC 60335-2-90:2006 +A1:2010

EN 62233:2008




Electro-Magnetic Compatibility (EMC)
EN 55014-2:2015



EN 55011:2016 +A1:2017




EN 61000-3-2:2014



EN 61000-3-3:2013



EN IEC 61000-6-1:2019

EN IEC 61000-6-3:2019

EN 61000-3-11:2000

EN 55032:2015

EN 55035:2017

Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers
• Nome del produttore • Nombre del fabricante • Nome do fabricante
Apuro
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s)
and Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande
Richtlijn(en) en Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und
Norm(en) entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y
estándar(es) arriba mencionadas.
Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado está em conformidade com a(s) anterior(es)
Directiva(s) e Norma(s)
Date • Data • Date • Datum • Data •
Fecha • Data
15th October 2020
Signature • Handtekening • Signature
• Unterschrift Firma • Firma •
Assinatura
Full Name • Volledige naam • Nom et
prénom • Vollständiger Name • Nome
completo • Nombre completo • Nome
por extenso
Ashley Hooper
Josie Holt
Position • Functie • Fonction • Position
• Qualifica • Posición • Função
Technical & Quality Manager
Commercial Manager/ Responsible
Supplier
Producer Address • Adres fabrikant •
Adresse du producteur • Anschrift des
Herstellers • Indirizzo del produttore •
Dirección del fabricante • Morada do
fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
15 Bagdally Road,
Campbelltown
NSW 2560
DocuSign Envelope ID: 26C22E92-D238-4D36-ABEE-48F8AF4D346E
FB861-A_A5_v1_20201019.indb 11FB861-A_A5_v1_20201019.indb 11 2020/10/19 14:102020/10/19 14:10

FB861-A_A5_v1_20201019
FB861-A_A5_v1_20201019.indb 12FB861-A_A5_v1_20201019.indb 12 2020/10/19 14:102020/10/19 14:10
