AQS Inverboost Premium 18kW Troubleshooting guide

Swimming Pool Heat Pump
User and Service Manual

1
ATTENTION: This manual includes all the necessary information with the use and the installation of your heat pump.
The installer must read the manual and follow the instructions in implementation and maintenance. The installer is
responsible for the installation of the product and should follow all the instructions of the manufacturer and the
regulations in application. Incorrect installation against the manual implies the exclusion of the entire guarantee.
The manufacturer declines any responsibility for the damage caused by an incorrect installation that do not follow
the manual guidelines.
Swimming Pool Heat Pump
User and Service Manual
INDEX
1. Specifications
2. Dimensions
3. Installation and connection
4. Accessories
5. Electrical wiring
6. Display controller operation
7. Troubleshooting
8. Exploded diagram
9. Maintenance
10. Wifi instruction
Thank you for using INVERBOOST UX swimming pool heat pump for your pool heating, it will heat your pool water
and keep the constant temperature when the air ambient temperature is at -20 to 43℃
WARNING:
1. Please always empty the water in heat pump during winter time or when the ambient temperature drops below
0℃, or else the Titanium Exchanger will be damaged because of being frozen, in such case, your warranty will be
lost.
2. Please always cut the power supply if you want to open the cabinet to reach inside the heat pump, because
there is high voltage electricity inside.
3. Please well keep the display controller in a dry area, or well close the insulation cover to protect the display
controller from being damaged by humidity.
4. Please always keep the heat pump in the ventilation place and away from anything which could cause fire.
5. Don’t weld the pipe if there is refrigerant inside machine. Please keep the machine out of the space confined
when make gas filling.
6. Action of filling gas must be conducted by professional with R32 operating license.

2
Regulation (EU) n° 517/2014 of 16/04/14 on fluorinated greenhouse gases and repealing
Regulation (EC) n° 842/2006
Leak checks
1. Operators of equipment that contains fluorinated greenhouses gases in quantities of 5 tons of CO2, equivalent or more
and not contained in foams shall ensure that the equipment is checked forleaks.
2. For equipment that contains fluorinated greenhouse gases in quantities of 5 tons of CO2equivalent or more, but of less
than 50 tons of CO2equivalent: at least every 12 months.
Picture of the equivalence CO2
1. Load in kg and Tons amounting CO2.
Load and Tons amounting CO2
Frequency of test
From 7.4 at 74 kg load = from 5 at 50 Tons
Each year
Concerning the Gaz R32, 7.4kg amounting at 5 tons of CO2, commitment to check each year.
Training and certification
1. The operator of the relevant application shall ensure that the relevant personnel have obtained the necessary
certification, which implies appropriate knowledge of the applicable regulations and standards as well as
the necessary competence in emission prevention and recovery of fluorinated greenhouse gases and handling safety
the relevant type and size of equipment.
Record keeping
1. Operators of equipment which is required to be checked for leaks, shall establish and maintain records for each
piece of such equipment specifying the following information:
a) The quantity and type of fluorinated greenhouse gases installed;
b) The quantities of fluorinated greenhouse gases added during installation, maintenance or servicing or due to leakage;
c) Whether the quantities of installed fluorinated greenhouse gases have been recycled or reclaimed, including the name
and address of the recycling or reclamation facility and, where applicable, the certificatenumber;
d) The quantity of fluorinated greenhouse gases recovered
e) The identity of the undertaking which installed, serviced, maintained and where applicable repaired or decommissioned
the equipment, including, where applicable, the number of its certificate;
f) The dates and results of the checks carried out;
g) If the equipment was decommissioned, the measures taken to recover and dispose of the fluorinated greenhouse gases.
2. The operator shall keep the records for at least five years, undertakings carrying out the activities for operators shall
keep copies of the records for at least five years.

3
1. Specifications
1.1 Technical data
Model
UX11Csi32
UX14Csi32
UX17Csi32
* Performance at Air 28℃, Water 28℃, Humidity 80%
Turbo Heating Capacity
KW
11.0
14.0
17.0
Smart Heating Capacity
KW
10.0
11.0
14.0
Power consumption
kW
1.55-0.17
1.97-0.22
2.39-0.27
C.O.P.
16-7.4
16-7.1
16-7.2
C.O.P. in Turbo Mode
7.4
7.1
7.2
C.O.P. at 50% capacity
11.8
11.0
11.8
* Performance at Air 15℃, Water 26℃, Humidity 70%
Turbo Heating Capacity
kW
8.5
9.5
12.0
Smart Heating Capacity
KW
7.0
8.0
10.5
Power consumption
kW
1.67-0.26
1.90-0.29
2.31-0.37
C.O.P.
8.2-5.1
8.21-5
8.5-5.2
C.O.P. in Turbo Mode
5.1
5.0
5.2
C.O.P. at 50% capacity
7.1
7.0
7.8
*General Date
Compressor type
Inverter compressor
Voltage
220-240V/50Hz/1PH
Rated current
A
6.9
8.7
10.6
Max current
A
10.5
13.5
15.5
Minimum fuse
A
12.0
15.0
16.0
Advised pool volume
(with pool cover)
m³
16-60
18-66
25-85
Advised water flux
m³/h
3.7
4.0
5.0
Water pressure drop
Kpa
12.0
14.0
15.0
Heat exchanger
Twist Titanium exchanger
Water connection
mm
50
Fan quantity
1
Ventilation type
Horizontal
Noise level(10m)
dB(A)
17.8-26.2
21.7-26.7
22.6-28.1
Noise level(1m)
dB(A)
36-46.2
38-47.6
39.5-49.8
Net weight
kg
73
78
98
Gross weight
kg
78
83
113
Net dimension
mm
1028*441*685
1028*441*685
1073*492*886
Packing dimension
mm
1095*525*830
1095*525*830
1140*555*1030

4
Model
UX21Csi32
UX30Csi32T
UX35Csi32T
* Performance at Air 28℃, Water 28℃, Humidity 80%
Turbo Heating Capacity
KW
21.0
30.0
35.0
Smart Heating Capacity
KW
18.0
25.0
30.0
Power consumption
kW
2.96-0.33
4.17-0.47
4.93-0.55
C.O.P.
16-7.1
16-7.1
16-7.1
C.O.P. in Turbo Mode
7.1
7.1
7.1
C.O.P. at 50% capacity
11.2
11.2
11.2
* Performance at Air 15℃, Water 26℃, Humidity 70%
Turbo Heating Capacity
kW
15.5
20.0
24.0
Smart Heating Capacity
KW
13.5
18.0
22.0
Power consumption
kW
3.04-0.47
3.85-0.61
4.62-0.73
C.O.P.
8.3-5.1
8.2-5.2
8.2-5.2
C.O.P. in Turbo Mode
5.1
5.2
5.2
C.O.P. at 50% capacity
7.4
7.2
7.2
*General Date
Compressor type
Inverter compressor
Voltage
220-240V/50Hz or 60Hz/1PH
380V/50Hz/3PH
Rated current
A
13.1
7.5
8.8
Max current
A
19.5
12.0
14.0
Minimum fuse
A
22
15
17
Advised pool volume
(with pool cover)
m³
58-120
78-150
85-160
Advised water flux
m³/h
6.0
10.0
15.0
Water pressure drop
Kpa
15
20
25
Heat exchanger
Twist Titanium exchanger
Water connection
mm
50
Fan quantity
1
2
2
Ventilation type
Horizontal
Noise level(10m)
dB(A
22.9-30.6
23.2-32.4
23.4-32.8
Noise level(1m)
dB(A)
40-51
42-51.8
42.8-52
Net weight
kg
117
130
135
Gross weight
kg
135
148
150
Net dimension
mm
1073*492*886
1130*500*1410
1130*500*1410
Packing dimension
mm
1140*555*1030
1185*565*1555
1185*565*1555
* Above data are subjects to modification without notice.

5
2. Dimension (mm)

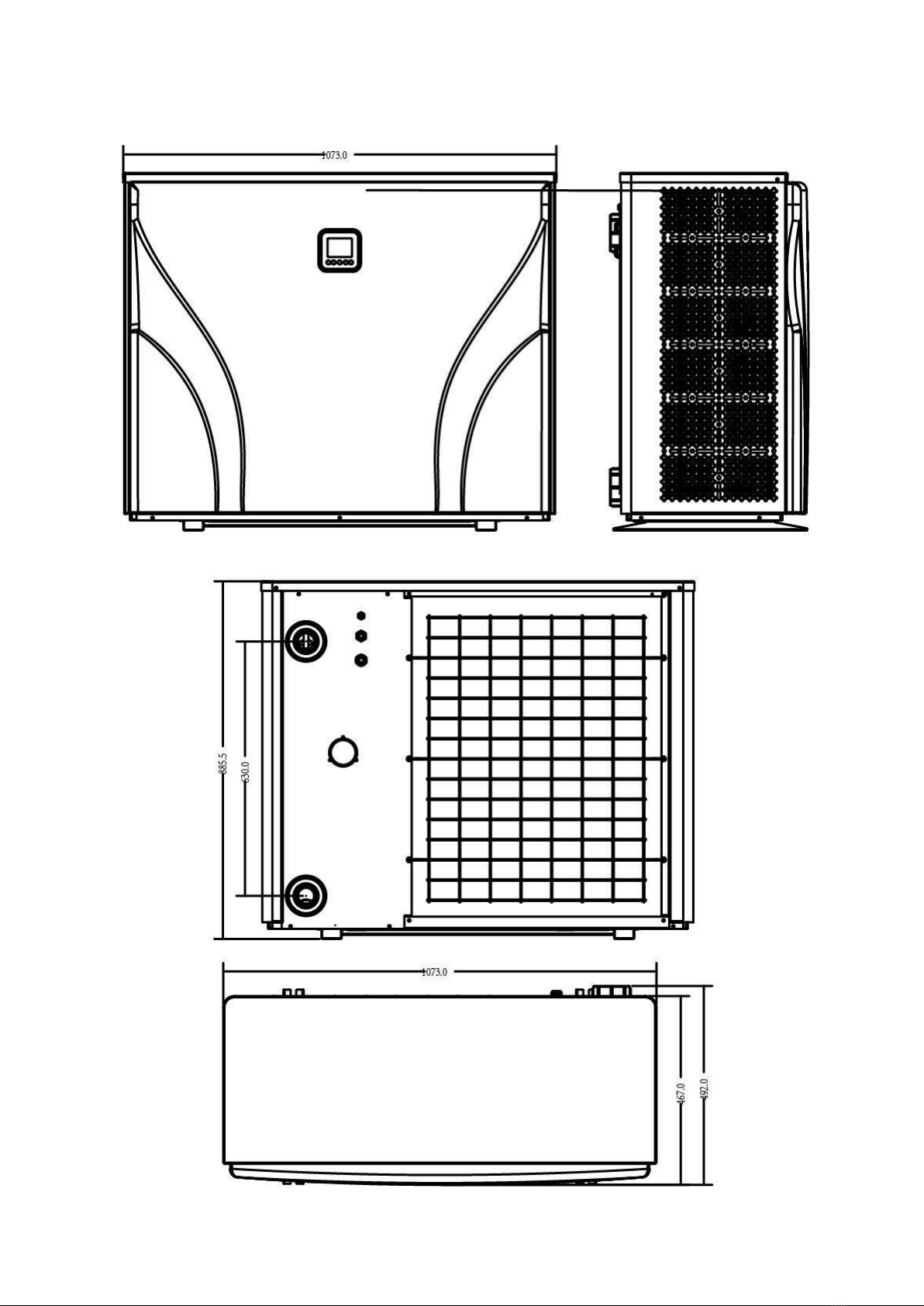

Model :UX11Csi32/UX14Csi32

6
Model :UX17Csi32/UX21Csi32

7

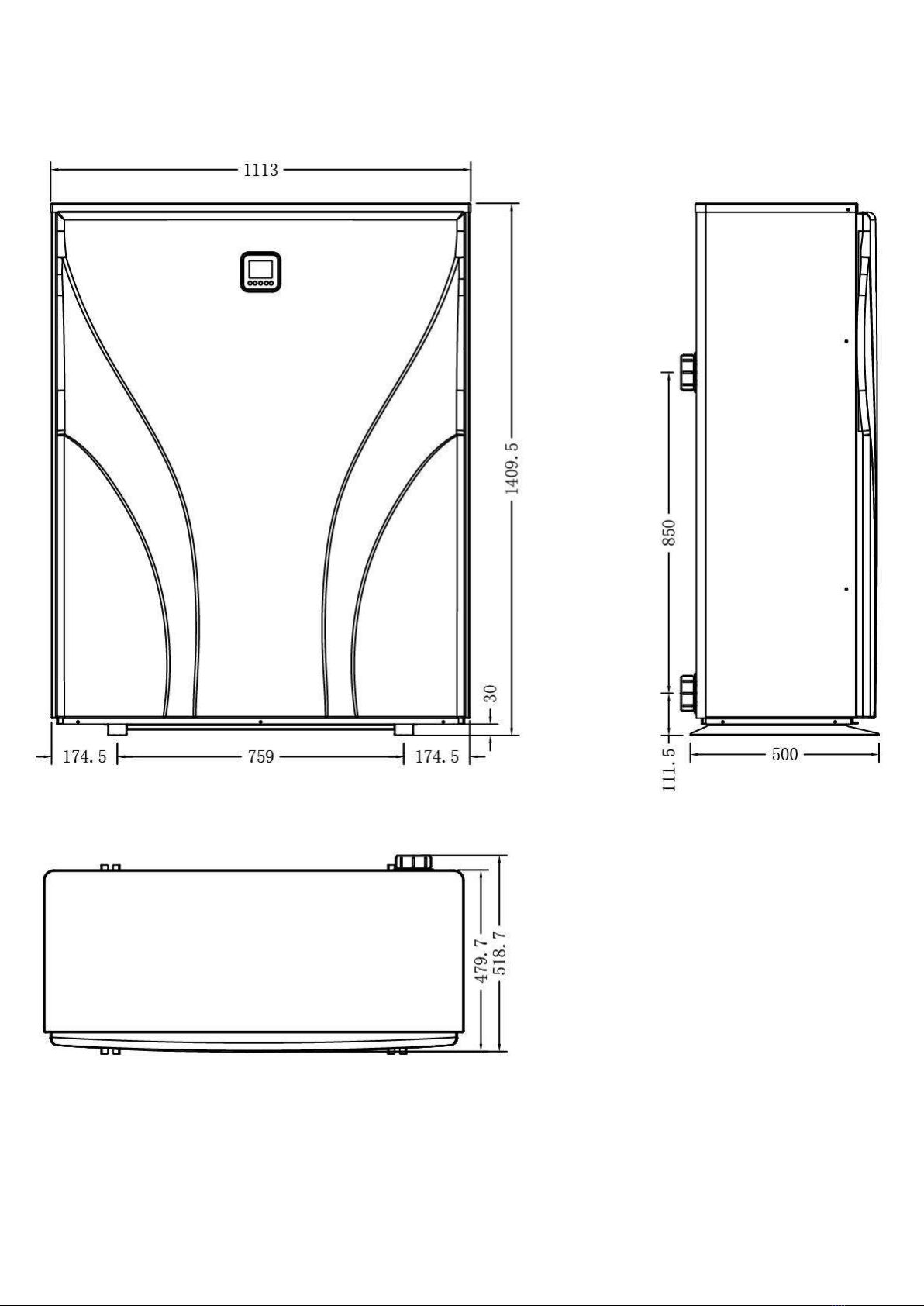

Model :UX30Csi32T/UX35Csi32T

8
3. Installation and connection
3.1 Notes
Factory supplies only the heat pump itself. All other components, including a bypass if necessary, must be provided
by the user or the installer.
Attention:
Please observe the following rules when installing the heat pump:
1. Any dosing of chemicals must take place in the piping located downstream from the heat pump.
2. Install a bypass in all installations.
3. Always place the heat pump on a solid foundation and use the included rubber mounts to avoidvibration
and noise.
4. Always keep the heat pump upright. If the unit has been held at an angle, wait at least 24 hours before
starting the heat pump.
3.2 Heat pump location
The unit will work properly in any desired location as long as the following three items are present:
1. Fresh air – 2. Electricity – 3. Swimming pool filters
The unit may be installed in virtually any outdoor location as long as the specified minimum distances to other

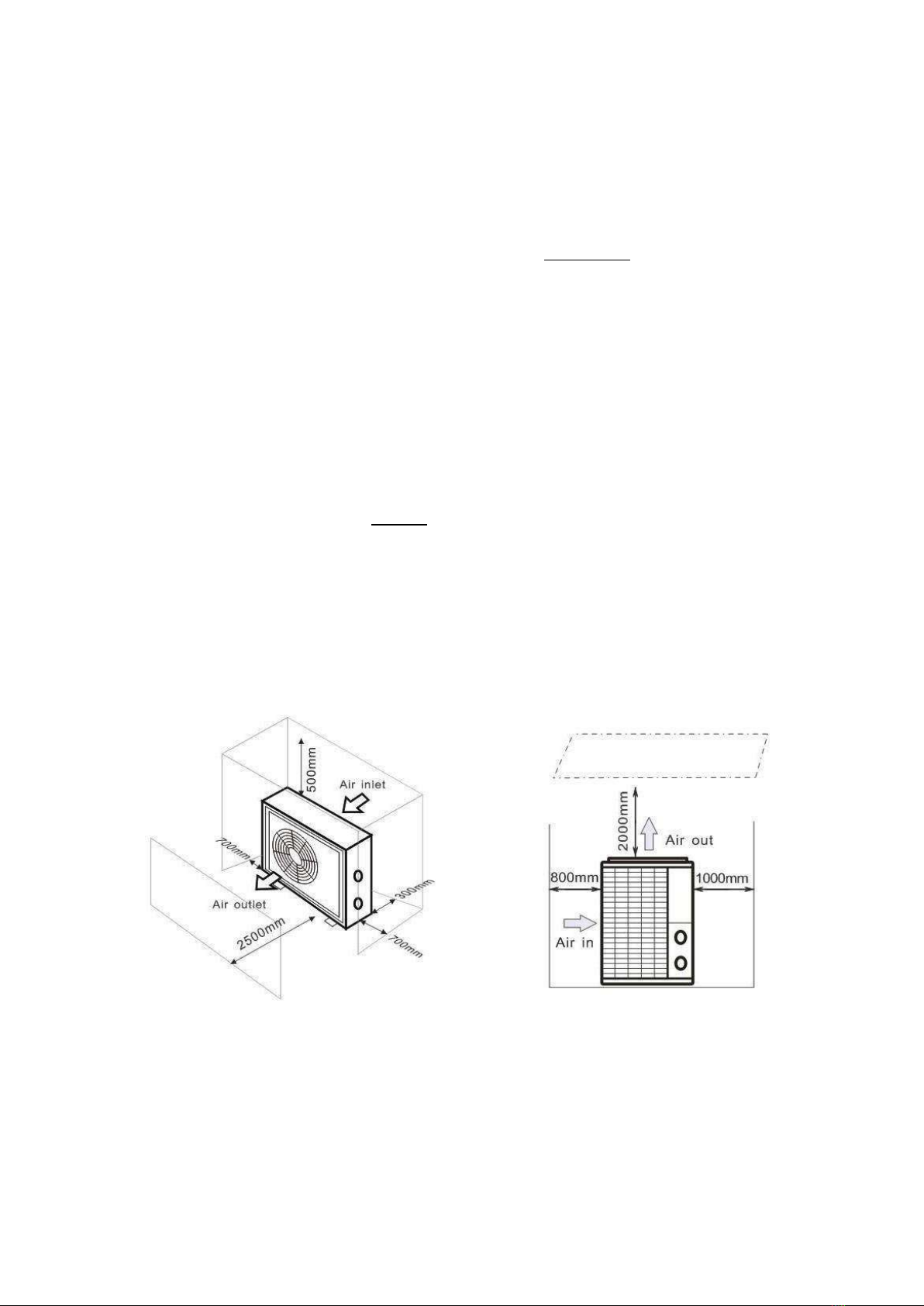

objects are maintained (see drawing below). Please consult your installer for installation with an indoor pool.
Installation in a windy location does not present any problem at all, unlike the situation with a gas heater (including
pilot flame problems).
ATTENTION: Never install the unit in a closed room with a limited air volume in which the air expelled from the unit
will be reused, or close to shrubbery that could block the air inlet. Such locations impair the continuous supply of
fresh air, resulting in reduced efficiency and possibly preventing sufficient heat output. See the drawing below for
minimum dimensions.
3.3 Distance from your swimming pool
The heat pump is normally installed within a perimeter area extending 7.5 m from the swimming pool. The greater
the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly underground, the heat
loss is low for distances up to 30 m (15 m from and to the pump; 30 m in total) unless the ground is wet or the
groundwater level is high. A rough estimate of the heat loss per 30 m is 0.6 kWh (2,000 BTU) for every 5 ºC

9
difference between the water temperature in the pool and the temperature of the soil surrounding the pipe. This
increases the operating time by 3% to 5%.
3.4 Check-valve installation
Note: If automatic dosing equipment for chlorine and acidity (pH) is used, it is essential to protect the heat pump
against excessively high chemical concentrations which may corrode the heat exchanger. For this reason,
equipment of this sort must always be fitted in the piping on the downstream side of the heat pump, and it is
recommended to install a check-valve to prevent reverse flow in the absence of water circulation.
Damage to the heat pump caused by failure to observe this instruction is not covered by the warranty.
3.5 Typical arrangement
Note: This arrangement is only an illustrative example.

10
Heat Pump
In
Out
From pool
To pool
Use the following procedure to adjust the
bypass:
1. Open Valve 1 & 2 half way.
2. Close valve 2 until controlshows
NO Or EE3 screen.
3.
Slowly open Valve 2 until pool
Temp shows on screen.
4.
If it shows ‘ON’ or ‘EE3’ on display,
it means the water flow into heat
pump is not enough, then you
need adjust the valves to increase
the water flow through the heat
pump.
Must not have Valves open Full.
3.6 Adjusting the bypass
How to get the optimum water flow:
Please turn on the heat pump under heating function, firstly close the by-pass then open it slowly to start the heat
pump (the heat pump can't start running when the water flow is insufficient).
Continue to adjust the by-pass, at the meantime to check the Inlet water temp. & Outlet water temp, it will be
optimum when the difference is around 2 degrees.
3.7 Electrical connection
Note: Although the heat pump is electrically isolated from the rest of the swimming pool system, this only
prevents the flow of electrical current to, or from the water in the pool. Earthing is still required for protection
against short-circuits inside the unit. Always provide a good earth connection.
Before connecting the unit, verify that the supply voltage matches the operating voltage of the heat pump. It is
recommended to connect the heat pump to a circuit with its own fuse or circuit breaker and to use the appropriate
wiring.

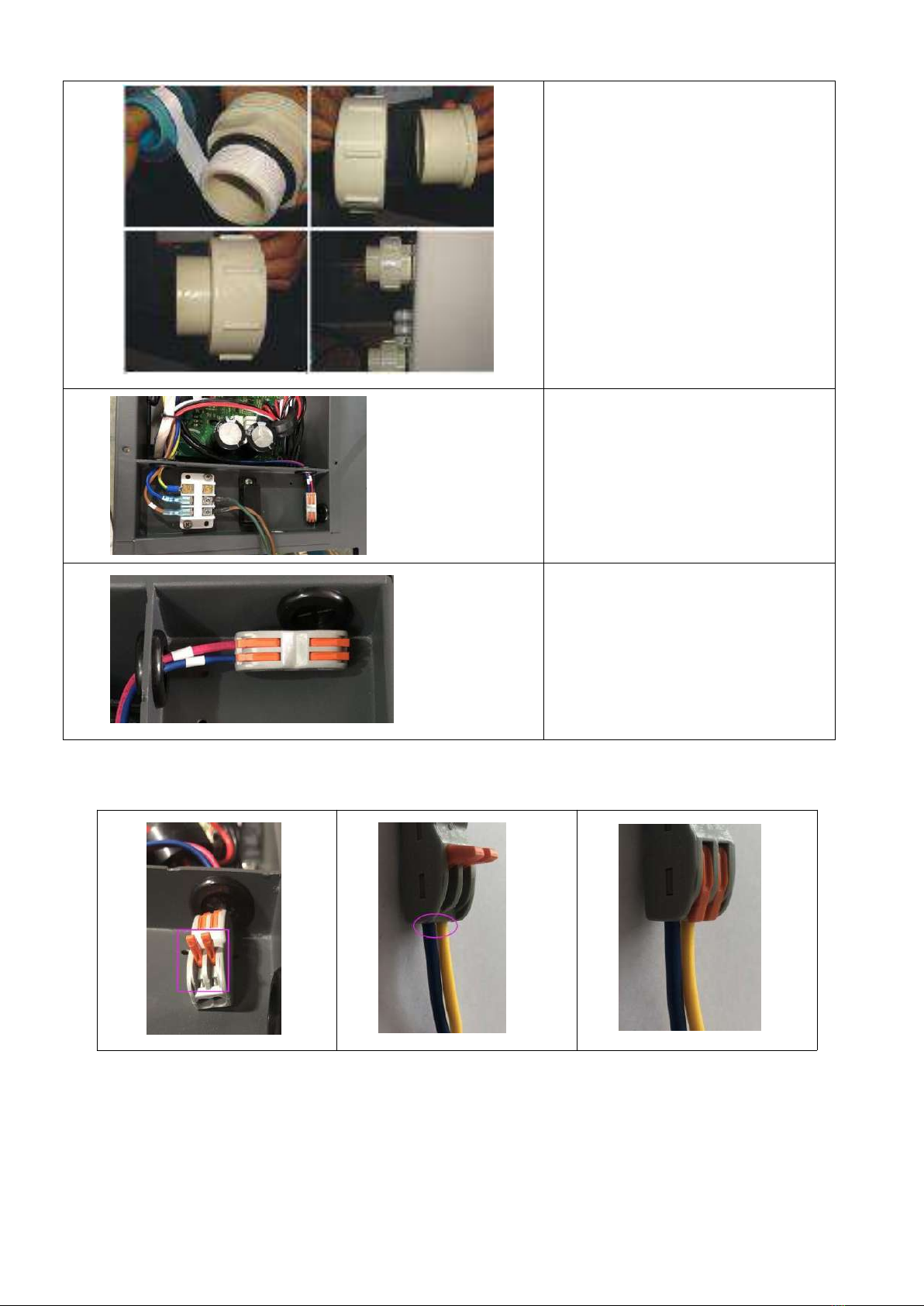

Connect the electrical wires to the terminal block marked ‘ POWER SUPPLY ’.

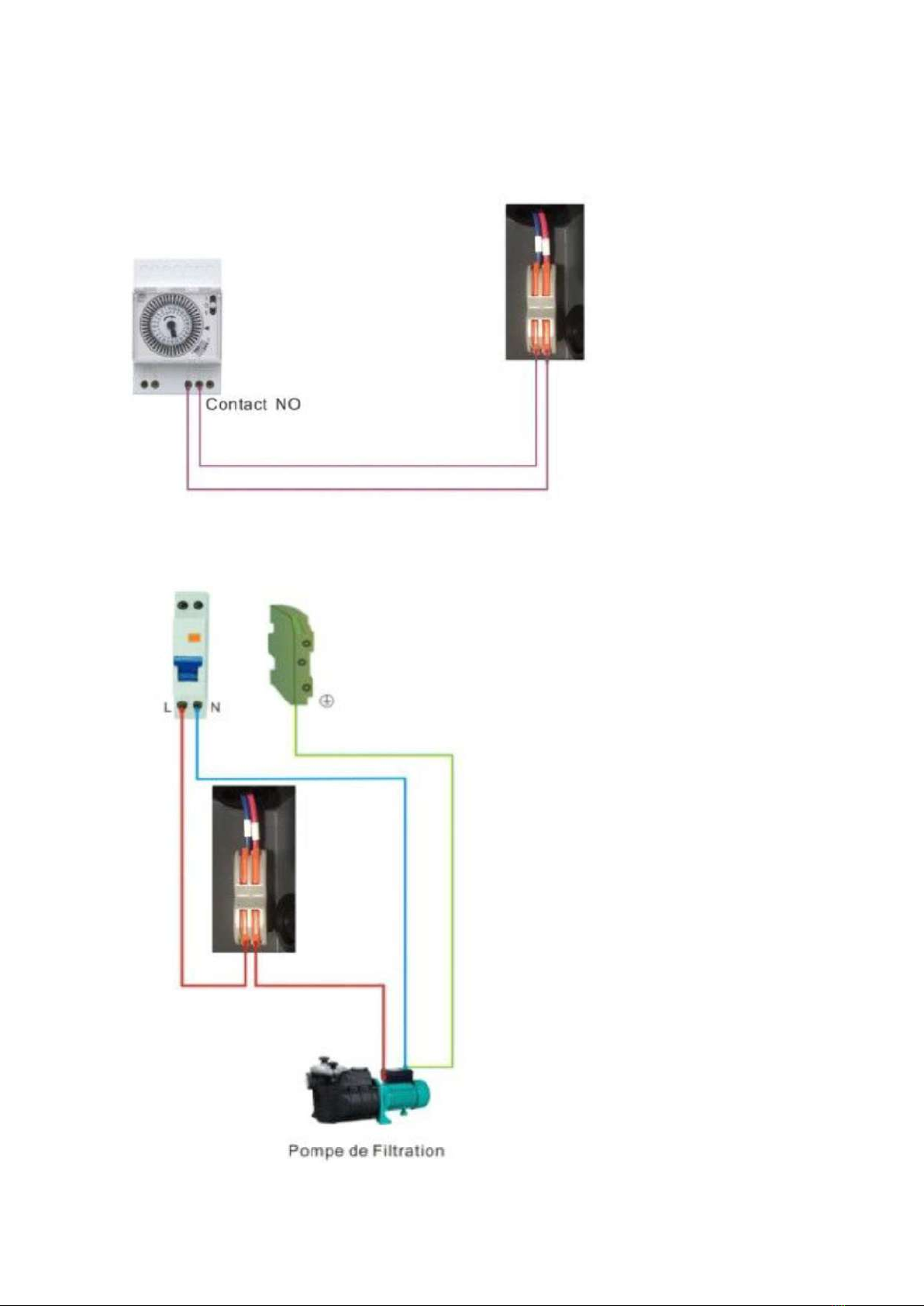

A second terminal block marked ‘WATER PUMP ’ is located next to the first one. The filter pump (max. 5 A / 240 V)
can be connected to the second terminal block here. This allows the filter pump operation to be controlled by the
heat pump.
3.8 Initial operation
Note: In order to heat the water in the pool (or hot tub), the filter pump must be running to cause the water to
circulate through the heat pump. The heat pump will not start up if the water is not circulating.
After all connections have been made and checked, carry out the following procedure:
1. Switch on the filter pump. Check for leaks and verify that water is flowing from and to the swimming pool.
2. Connect power to the heat pump and press the On/Off button on the electronic control panel. The unit will
start up after the time delay.
3. After a few minutes, check whether the air blowing out of the unit is cooler.

11
4. When the filter pump is turned off, the unit should also turn off automatically, if not, then adjust the flow switch.
Depending on the initial temperature of the water in the swimming pool and the air temperature, it may take
several days to heat the water to the desired temperature. A good swimming pool cover can dramatically reduce
the required length of time.
Water Flow Switch:
It is equipped with a flow switch for protecting the HP unit running with adequate water flow rate. It will turn on
when the pool pump runs and shut it off when the pump shuts off. If the pool water level is higher than 1 m above
or below the heat pump’s automatic adjustment knob, your dealer may need to adjust its initial start-up.
Time delay - The heat pump has a built-in 3-minute start-up delay to protect the circuitry and avoid excessive
contact wear. The unit will restart automatically after this time delay expires. Even a brief power interruption will
trigger this time delay and prevent the unit from restarting immediately. Additional power interruptions during this
delay period do not affect the 3-minute duration of the delay.
3.9 Condensation
The air drawn into the heat pump is cooled by the operation of the heat pump to heat the pool water, which may
cause condensation on the fins of the evaporator. The amount of condensation may be as much as several litres per
hour at high relative humidity. This is sometimes mistakenly regarded as a water leak.
3.10 Operating modes for optimal use
POWER: Used primarily at the beginning of the season because this mode allows for very rapid temperature rise.
SMART: The heat pump has completed its primary task, in this mode; the heat pump is in a position to maintain the
pool water in an energy efficient manner. By automatically adjusting speed of compressor and fan the heat pump
delivers a higher efficiency.
SILENT: In the summer months when the heat output is minimal required, the heat pump in this mode is even more
economic. Added benefit; when the heat pump heats. It does so with minimal noise.

10
4. Accessories

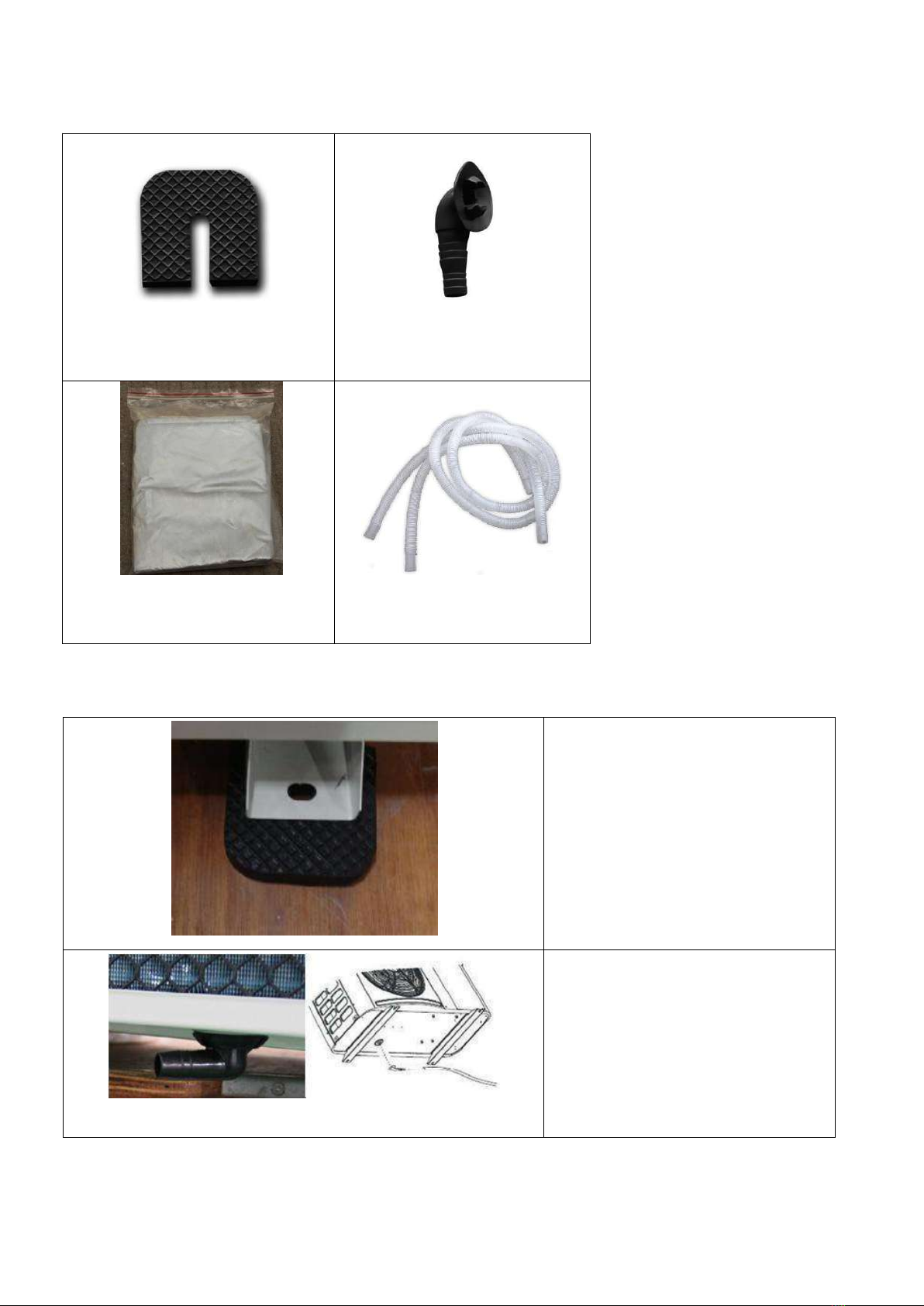

4.1 Accessories list
Anti-vibration base, 4 pcs
Draining jet, 2 pcs
Winter Cover, 1 pc
Water drainage pipes, 2 pcs
4.2 Accessories Installation
Anti-vibration bases
1. Take out 4 Anti-vibration bases
2. Put them one by one on the bottom of
machine like the picture.
Draining jet
1. Install the draining jet under the
bottom panel
2. Connect with a water pipe to drain out
the water.
Note: Lift the heat pump to install the jet.
Never overturn the heat pump, it could
damage the compressor.

11
Water Inlet & outlet junction
1. Use the pipe tape to connect thewater
Inlet & outlet junction onto the heat
pump
2. Install the two joints like thepicture
shows
3. Screw them onto the water Inlet &
outlet junction
Mains Cable wiring
1. Open the cover of the electric box
inside the machine
2. Connect the cables in the correct
terminal according to electric
diagram.
Filtration pump wiring (Dry
contact)
1. Open the cover of the electric box
inside the machine
2. Connect the cables in the correct
terminal according to electric
diagram.
Connection to pilot the water pump

12
Dry contact timer connection
Timer
Dry contact pump connection

13
5. Electrical Wiring
5.1 SWIMMING POOL HEAT PUMP WIRING DIADRAM
UX11Csi32/UX14Csi32/UX17Csi32/UX21Csi32

14
UX30Csi32T/UX35Csi32T
NOTE:
(1) Above electrical wiring diagram for your reference.
(2) The swimming pool heat pump must be connected earthed, although the unit heat exchanger is electrically
isolated from the rest of the unit. Grounding the unit is still required to protect against short circuits inside the unit.
Bonding is also required.
(3) It is recommended that your pool filtration pump and your heat pump are wired independently.
Disconnect: A disconnect means (circuit breaker, fused or un-fused switch) should be located within sight of and
readily accessible from the unit. This is common practice on commercial and residential heat pumps. It prevents
remotely-energizing unattended equipment and permits turning off power at the unit, while the unit is being
serviced.

15
5.2 Installation of the display
Photo(1) Photo(2) Photo(3) Photo(4)
- The side with plug connects with the control panel (photo 1)
- The other side of the signal wire. (photo 2)
- Open the wiring panel and put the side without plug through the electrical box. (photo 3)
- Insert the wiring into the designated position (code:COM 1 or COM-L) on the PC board. (photo 4)

16
6.Display Controller Operation
6.1 Guide for operation
When the heat pump connects to the power, the display shows a code for 3 seconds which indicates the
heat pump model.
6.2 The keys and their operations
6.2.1 button
Press to start the heat pump unit, the display shows the desired water temperature for 5 seconds,
then shows the inlet water temperature and the operation mode.
Press to stop the heat pump unit and show “OFF”
Notice : During the parameter checking and setting, press the to quick-exit and save the current setting .
Press again to turn on/off the machine.
6.2.2 and button
Lock/unlock the display:
Hold and for 5 seconds to lock/Unlock the display.
The display will lock automatically after 30s of standby. (when the display is locked,the "locker " icon is
lighted ON)
Water temperature setting:
Press or to set the water temperature directly.
Heating mode and Auto mode setting range: 6-41℃
Cooling mode setting range: 6-35℃
