Aqua W520 Surf User manual

INTRODUCTION
Congratulations on the purchase of your Camera! This
manual contains important safety and operating information.
Please read all the information carefully before you use the
device to avoid accidents and keep it for future reference.
Follow these important safety and operation instructions.
IMPORTANT NOTICE

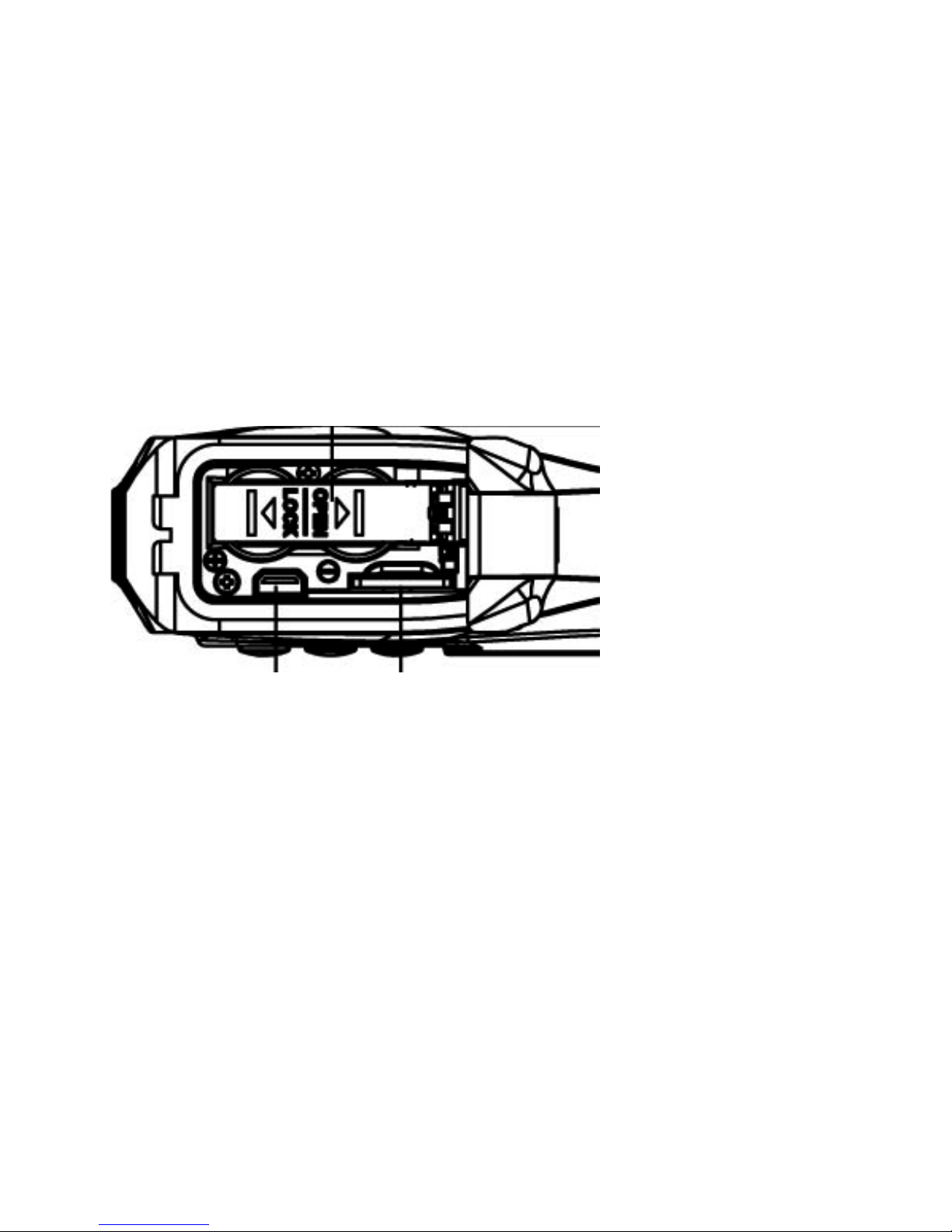

To ensure the batteries are locked into place and the
camera will function properly, make sure the inner battery
door is locked into position. (Shown below)

2
To lock the inner door into position you will need to insert the
batteries. Once Inserted ensure the inner door is in its
original position, then press hard on the inner door and slide
the inner door towards the LOCK side marked below, it will
click once in place.
Additional Troubleshooting:
If camera freezes please open battery compartment and
inner battery door to reset. Then follow above to close the
door.

3
SAFETY INSTRUCTIONS
•Keep the camera clean. Never store it next to a heat
source or in dirty, humid places.
•Press the buttons gently. Pressing them or the screen
too hard can damage the product.
•Do not use the camera in an extremely dry
environment.
•Do not put the camera in high temperature places (over
40ºC), especially not in a car with the windows closed
in summer.
•Do not subject the camera to harsh impacts. Do not
drop the unit to avoid damage.
•Do not attempt to dismantle or repair this camera
yourself. Qualified personnel should perform repairs.
•Disconnect the camera from the power source before
cleaning.
•Use a dry soft cloth to clean this camera.

4
•This product is not intended for commercial use.
Household Use Only.
•Do not disassemble this unit. To prevent the risk of
electric shock, do not remove the cover. No
user-serviceable parts inside. Refer servicing to
qualified personnel.
•The USB cord for the device should be unplugged from
the computer when the unit is left unused for a long
period of time.
IMPORTANT SAFETY PRECAUTIONS
In order to prevent program failure, never disconnect the
product suddenly from a PC while file transferring is in
progress.
Disconnect the appliance from PC when cleaning. Use a dry
soft cloth to clean this appliance. Do not dismantle the

5
product or use alcohol, thinners or benzene to clean the
surface of the product.
The supplier or retailer accepts no liability for lost, corrupted
or damaged data. It remains the responsibility of the user to
ensure that they perform consistent data backups during the
use of this product. Please ensure that you retain the
original files you have downloaded to your device.
This product is not intended for commercial use. It is for
household use only.
Attention:
We have done our best to produce a complete and accurate
manual. However, we cannot ensure that there are no errors
or omissions during the printing process.
Please note: This device uses batteries. Please observe the
local regulations regarding the disposal of old equipment
and battery.

6
PRODUCT SPECIFICATION
•Still Image Resolution: [12M] 4000x3000/
[8M] 32642x2448/ [5M] 2592x1944/[2M] 1600x1200
•Video Clip Resolution: [HD] 1280 x 720 /
[640] 640 x 480
•File Formats: JPEG/AVI
•Supports micro SD Memory Slot up to 32GB
•4 x Digital Zoom
•USB 2.0 User Interface
•Waterproof up to 3m
•Power Source: 2 x AAA Batteries
•Works with Microsoft Windows XP, Vista, Windows 7
•Works with Mac OSX10.3 and above
•Storage/Operation Temperature: 5°C to 40°C
•

7
GETTING TO KNOW YOUR CAMERA
DEVICE OVERVIEW
1
ON/OFF button
5
Flash Light
2
Shutter Button
6
Self-timer LED
3
Hand Strap Hole
7
MENU Button
4
Lens
8
MODE Button

8
9
UP/Zoom In Button
16
Busy indicator
10
Right/Flash Button
17
Display Screen
11
OK Button
18
Battery inner door/
Battery compartment
12
Delete Button
19
USB Slot
13
Left/self-timer button
20
Micro SD Card Slot
14
Down/Zoom out button
21
Tripod Connector
15
Battery door

9
INSTALLING THE BATTERY
1. Open the camera battery door by pushing the switch
and release the cover at the same time.
2. Insert 2 x AAA batteries as shown, ensuring the +/-
symbols on the batteries are matching +/- symbols on
the camera.
3. Close the battery cover. Make sure the battery door is
closed properly to avoid any contact with water.

10
INSTALLING THE MICRO SD CARD
The camera has no internal memory, to be able to take
images and video clips you will need to insert a memory
card. The camera accepts micro SD memory cards up to
32GB. Turn off the camera before inserting or removing the
card. Be sure to insert the card the correct way. Never try to
force the card into the slot.
To insert the memory card:
