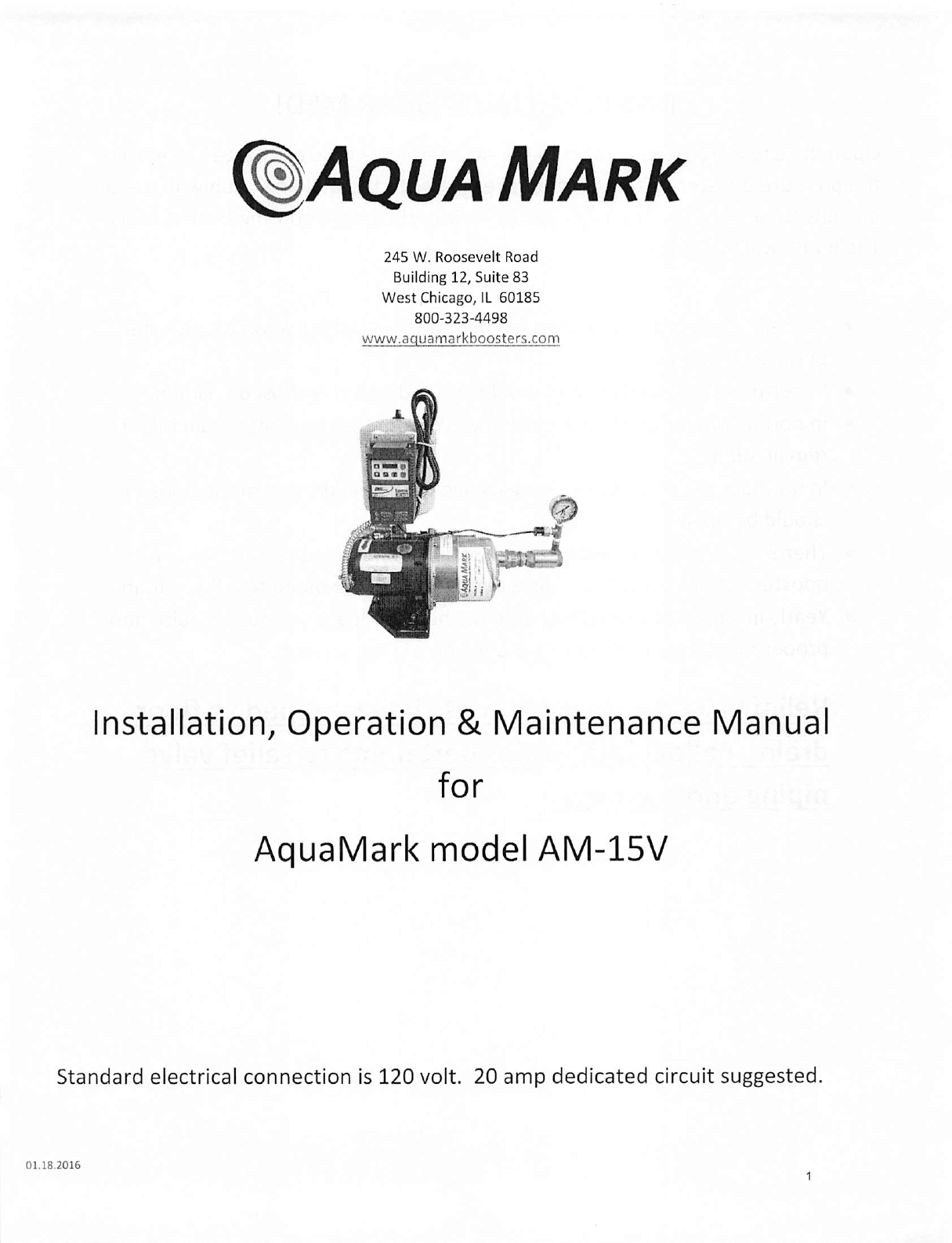

AquaMark AM-15V Instruction manual

245 W, Roosevelt Road
Building 12, Suite S3
West ChicagoJL 60185
800-323-4498
\A/ww. aauamarkboosters.com
nstallation, Operation & Maintenance Manua
for
AquaMark model AM-15V
Standard electrical connection is 120 volt. 20 amp dedicated circuit suggested.
01.18.2016
1

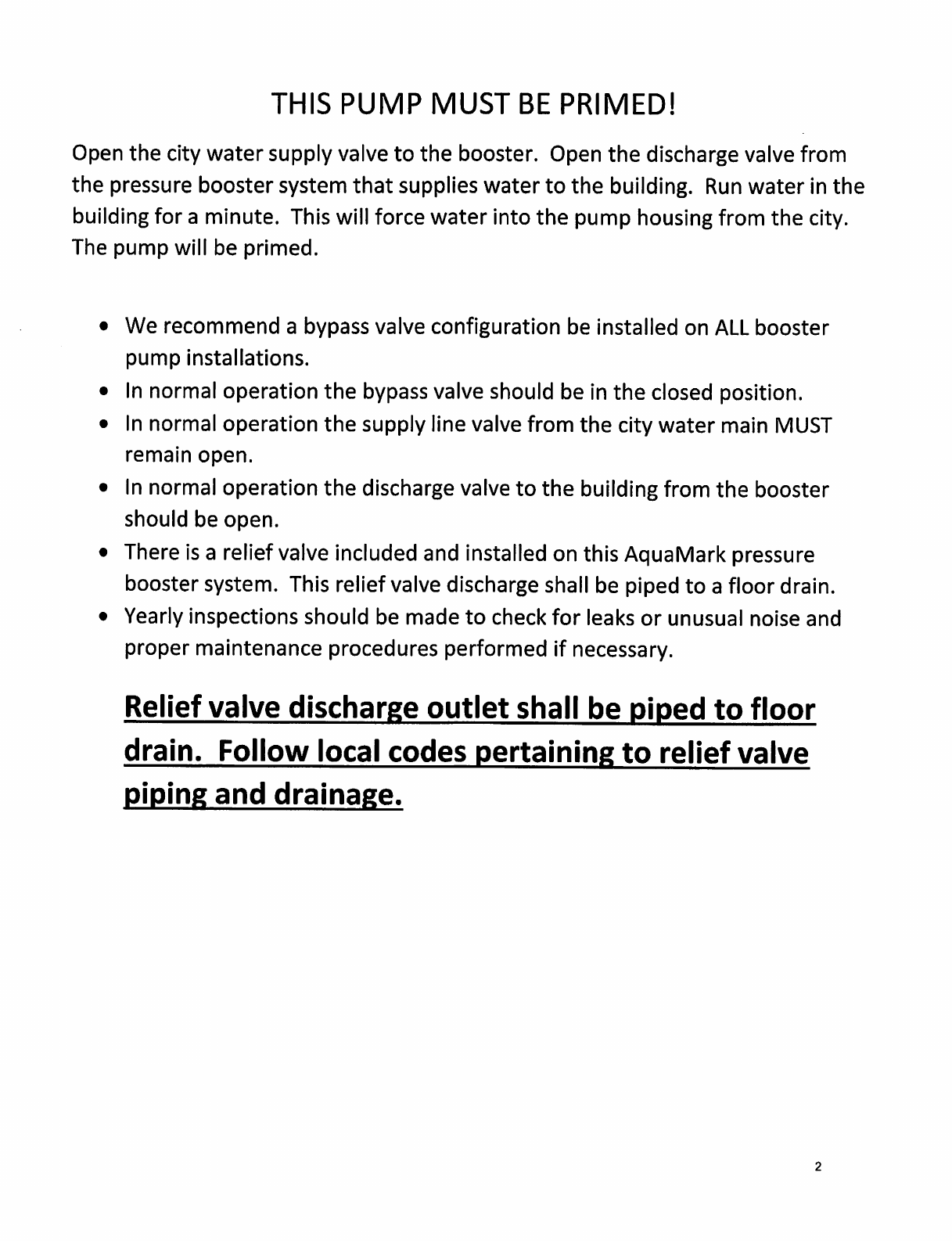

THIS PUMP MUST BE PRIMED!
Open the city water supply valve to the booster. Open
the discharge valve from
the pressure booster system that supplies water to
the building. Run water in the
building for a minute. This will force water into the
pump housing from the city.
The pump will be primed.
We recommend a bypass valve configuration be installed on ALL booster
pump installations.
In normal operation the bypass valve should be in the
closed position.
In normal operation the supply line valve from the
city water main MUST
remain open.
In normal operation the discharge valve to the building from the booster
should be open.
There is a relief valve included and installed on this
AquaMark pressure
booster system. This relief valve discharge shall be piped to a floor drain.
Yearly inspections should be made to check for leaks or unusual noise and
proper maintenance procedures performed If necessary.
Relief valve discharge outlet shall be piped to floor
drain. Follow local codes pertaining to relief valve
piping and drainage.

Installation
● Leave 12" of clear space around the pressure booster to allo\A/ for service
work to be performed as necessary in the future.
● Plumb pressure booster as shown in the diagram included in this manual.
● Supply pressure booster with correct incoming minimum supply line size (or
greater) as noted on the first page of this manual.
● Plumb a three valve bypass system during instal lation of this pressure
booster. When service needs to be performed this will al low normal city
water pressure to be supplied to the building while servicing/repairing the
pressure booster system.
● Unions are recommended when instal ling this pressure booster system.
● Optional accessories include anti-vibration mat, vibration isolator and
diaphragm type tank to be installed afterthe booster system (the tank wil l
al low for extended shut down periods during low flow demands).
● Have your electrician supply this pressure booster with a dedicated circuit.

Operation
● Make sure valve from city water supply to the pressure booster is in the ful l
open position.
● Make sure valve on the discharge side of the pressure booster is in the ful l
open position.
● Make sure that the bypass valve line is in the ful l closed position (if the
bypass valve is in the open position the pressure booster will not shut off.
● Supply electrical power to the pressure booster by switching the wal l
mounted cut-off switch to the on position.
● Pressure booster will turn on and boost pressure
to the desired set-point.
Pressure booster will continue to run until the demand has been met.
Pressure booster will enter sleep mode after demand has been met and a
pre-determined amount of time has passed.
Maintenance
● This pressure booster has been designed to be maintenance
free for many
years.
● Do not rest items against switches; gauges, tank
drain valves, or pressure
rel ief valve.
● Do not rest items against pump. The pump requires
free air space
surrounding it to dissipate heat and take in fresh
air for cooling purposes.
Leave 12" of free air space al l around the system.

in Bmryim Positron
iypass Position
Open
Clotty
;m^'
■*■
f i
t.
--- A
Jk-
>
.. ..ft
; i,._
*«c.
I
1
r*-|
r
i:
V.
s
I
ci
2
t
i
'j
j
i
2.
i
Closed
Op®fi
0»
j S
i «jr?5
1^
fc i
t
j
s
I
5 ;
i
i
i i
I
!'
n
4
I
?
1
»

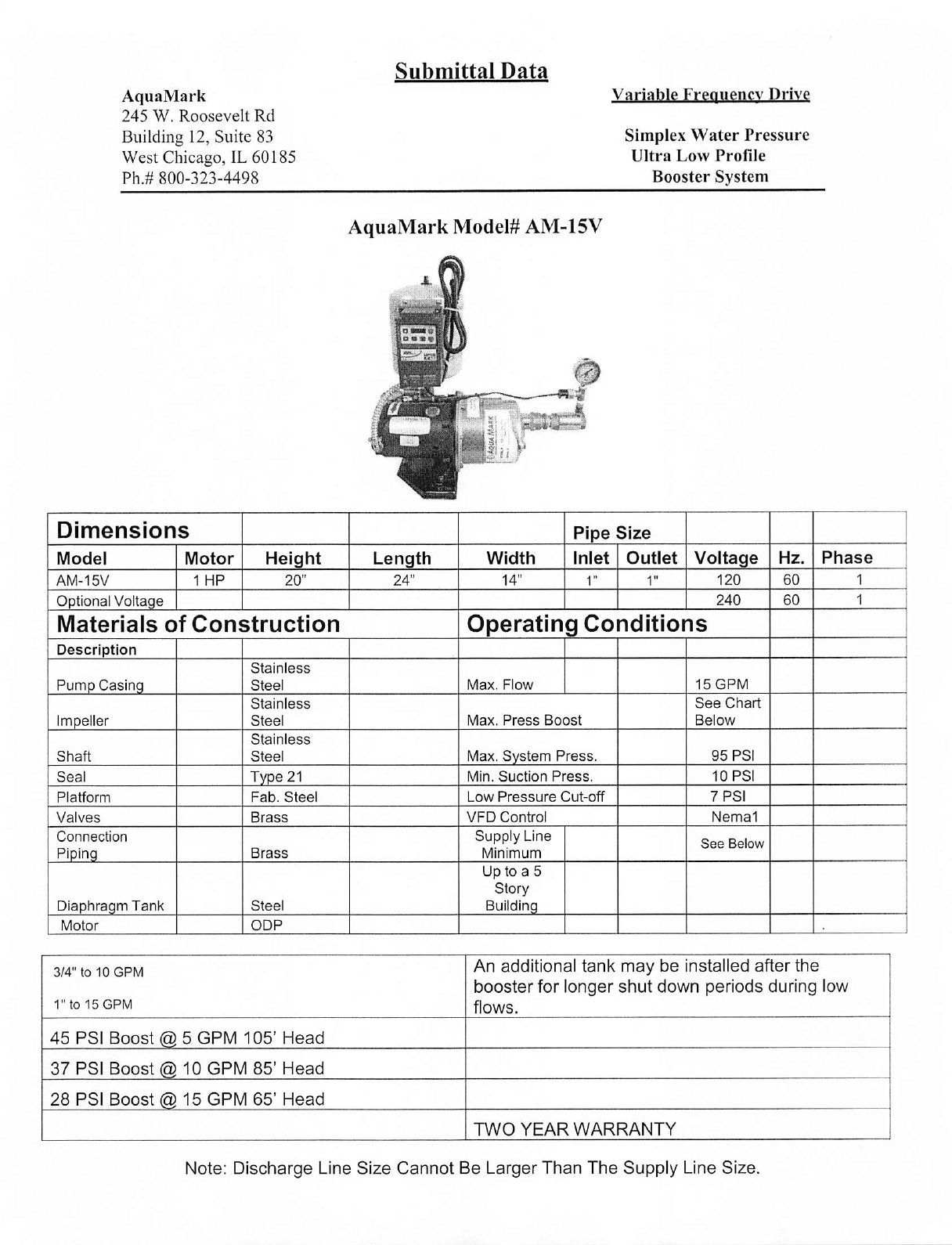

Submittal Data
Variable Frequency Drive
AquaMark
245 W. Roosevelt Rd
Building 12, Suite 83
West Chicago, IL 60185
Ph.# 800-323-4498
Simplex Water Pressure
Ultra Low Profile
Booster System
AquaMark Model# AM-15V
Dimensions
Pipe Size
Phase
Length
Width Inlet Outlet
Voltage
Hz.
Model Motor
Height
60
1
20’ 24" 14'
120
AM-15V
1 HP 1 1
240 60
1
Optional Voltage
Operating Conditions
Materiais of Construction
Description
Stainless
Steel
Max. Flow 15GPM
Pump Casing
See Chart
Below
Stainless
Steel
Max. Press Boost
Impeller
Stainless
Steel
95 PSI
Max. System Press.
Shaft
10 PSI
Min. Suction Press.
Seal
Type 21
Fab. Steel
7 PSI Low Pressure Cut-off
Platform
VFD Control Nemal
Valves Brass
Supply Line
Minimum
Connection
Piping
See Below
Brass
Up to a 5
Story
Building
Steel
DiaphragmTank
Motor OOP
An additional tank may be installed after the
booster for longer shut 6own periods during low
flows.
3/4" to 10 GPM
1" to 15 GPM
45 PSI Boost @ 5 GPM 105’ Head
37 PSI Boost @ 10 GPM 85’ Head
28 PSI Boost @ 15 GPM 65’ Head
TWO YEAR WARRANTY
Note: Discharge Line Size Cannot Be Larger Than The Supply Line Size.

%Aqua Mark
AM-15V
Model JEU
EBARA Stainless Steel Self Priming Jet Pumps
Performance Curves
JEU8O6-V4HP Size: 1 x IV4 x 4V2
Synchronous Speed: 3450 RPM
CURVE NO.: JE-C6Q1-9601
1" NPf Dl'SCH.xl V NPT SUC.
IMP.DIA.4V2° (115mm)
1.00 SPEC. GRAVITY
I
i
140
40n
120
30- 100 50
Sue. Lift
40-* 80
tr
cc
20-
LU
LU
30-
60
P
] ::
o
a Q
> Q.
Q.
^20-2
S40
^ t
t
X
-0.5x
<
-J E
0.5 w
< <
CO
LL
O o
CL
LL
X
LU
20
CAPACITY 0
USGPM
5 10 15
r"
T
T
CAPACITY 0
mVmin
0.01 0.02
0.03 0.04 0.05 0.06 0.07

I
◄
y!
.1
Self-priming jet
II
. A
*
tf^r
r
I
i
rs
i
l!'iJ
I
M
f
'"H
,
fr y. .-,
L-^
●K.iVi'
◄
\
t
i':f.
'i
«
'k
i
1^.
- i
\
J!.'
Ji
V ‘
[I
(
it;
●li ^ '
L'lv
*. V
M
f
b/.
-v
*
V
r#'
a.'--.
V :i;'v,
" -k
i-i
srii' V:
p- '■
t>’ f
w
V
'. Til
j.
f ;.
*A*sy
t'
^
,1
{■*
J:
i
●" 1
■;
U^'*'
>1
llV'
, i
i. II
‘M t
'J>,-
▲ A
i i
1
SiiiiT>
WHUWUUUMtftUiUl M

Applications
Close coupled design
- saves space; simplifies maintenance and installation
Stainless steel liquid end components
- high quality; corrosion resistance
Versatile mounting
- can be installed horizontally or vertically
Back pullout construction
- assembly and overhaul of the impeller and seal without disturbing
suction and discharge connections
Top centerline discharge and foot support under casing
- ensures self-venting and reduces misalignment from pipe loads
High operating efficiency |
- lowers operating costs
High quality mechanical shaft seals and o-rlngs i
- available for standard pumping requirements or optional high temperature i
and chemical duty operation '
Plant services
Water supply systems
Aqueous cleaning
Bottle washing
Cooling systems
Car wash
Ultrapure water systems
Jockey pump services
Sprinkler/flow irrigation
OEM equipment application
Pressure boosting
Liquid transfer
Spray systems
Water reclamation and treatment
General pump applications
NSF
J L
*Note: NSF/ANSI61
Annex G listed
JEU selection chart
60 Hz (synchronous speed; 3600 RPM)
l/MIN
JfilUl,
10 20 30 40 50 60 70
Ft.
200
60M
180
50
160
140
Q
<
40
Lli
I
< 120
t -
O
I -
100
30
80
20
60
40
0 12
14
16 18 20 2 4 6 8 10
CAPACrTY IN GPM
Note: Figures in seicclion chart indicale suction Irtl (Ft.)
EBARA Fluid Handling
1651 Cedar Line Drive ● Rock Hill, SC 29730 ● (t) 803 327-5005 ● (f) 803 327-5097
©2005 EBARA International Corporation
EICJEU0806 ( r

JEU
Model JEU
EBARA Stainless Steel Self Priming Jet Pumps
Contents
Model No.
Specifications
Seiection
Chart
Performance
Curve
Pump
Dimensions

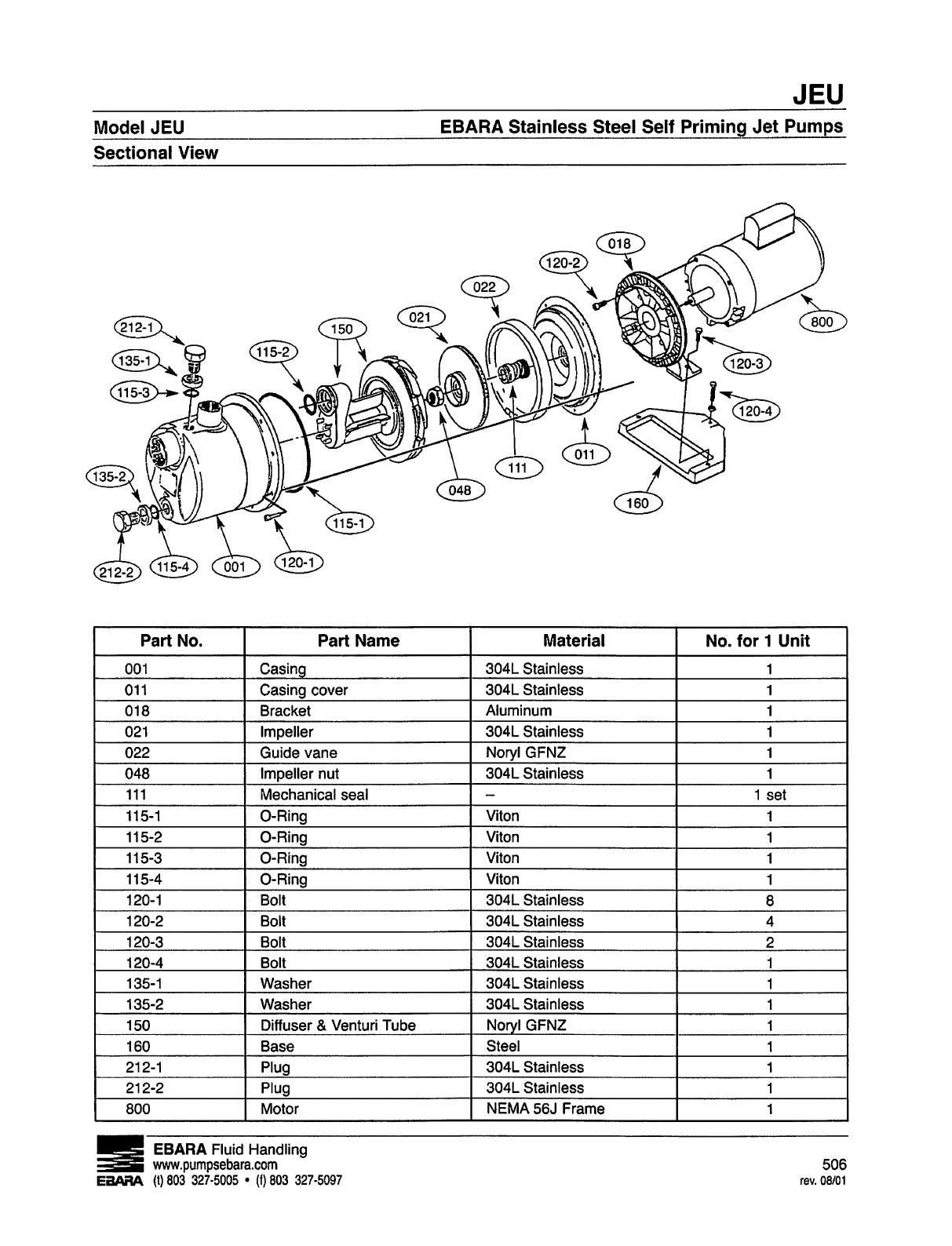

Sectional View
JEU806-V.HP
JEUisoe-r/aHP
502 503 504
505 506
Note: NSF/ANSI61 Annex G listed
EBARA Fluid Handling
www.pumpsebara.com
EBARA (t) 803 327-5005 ● (f) 803 327-5097
500
rev. 03/12

JEU
EBARA Stainless Steel Self Priming Jet Pumps
Model JEU
Model Designation
G
JE U 806
D
MODEL TYPE
JE - Jet Pump
GEOGRAPHIC DESIGNATION
U - U.S.A. market
HOUSING AND IMPELLER NUMBER
806
1506
RATED KW —
7 - V4 HP
10-1HP
15-1V2HP
20-2HP
MOTOR TYPE
D = ODP motor
T = TEFC motor
PHASE
1 - single phase
3 - three phase
MECHANICAL SEAL
G - General service mechanical seal
EBARA Fluid Handling
www.pumpsebara.com
E3ARA (t) 803 327-5005 ● (f) 803 327-5097
501
rev. 08/01

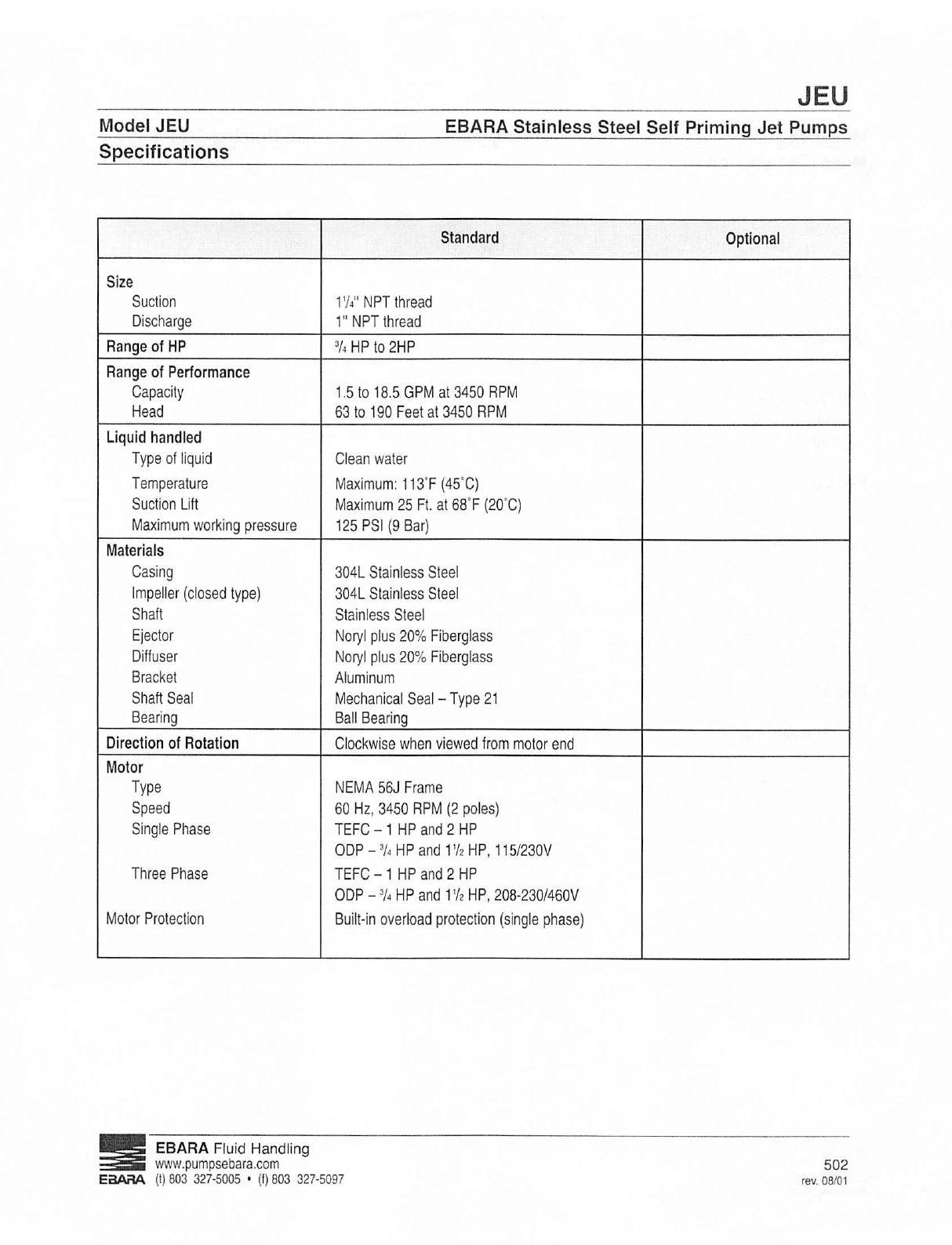

JEU
Model JEU
EBARA Stainless Steel Self Priming Jet Pumps
Specifications
Standard
Optional
Size
Suction
Discharge
1V4"NPT thread
1"NPT thread
Range of HP
Va HP to 2HP
Range of Performance
Capacity
Head
1,5 to 18.5 GPM at 3450 RPM
63 to 190 Feet at 3450 RPM
Liquid handled
Type of liquid
Temperature
Suction Lift
Maximum working pressure
Clean water
Maximum: 113T (45‘C)
Maximum 25 Ft, at 68T (20°C)
125 PSI (9 Bar)
Materials
Casing
Impeller (closed type)
304L Stainless Steel
304L Stainless Steel
Stainless Steel
Noryl plus 20% Fiberglass
Noryl plus 20% Fiberglass
Aluminum
Mechanical Seal - Type 21
Bali Bearing
Shaft
Ejector
Diffuser
Bracket
Shaft Seal
Bearing
Direction of Rotation
Clockwise when viewed from motor end
Motor
Type
NEMA 56J Frame
60 Hz, 3450 RPM (2 poles)
TEFC-1 HPand2HP
ODP-V4HPand1V2HP, 115/230V
TEFC-1 HP and 2 HP
ODP - 74 HP and 1V2 HP, 208-230/460V
Built-in overload protection (single phase)
Speed
Single Phase
Three Phase
Motor Protection
EBARA Fluid Handling
www.pumpsebara.com
E3ARA (t) 803 327-5005 ● (f) 803 327-5097
502
rev. 08/01

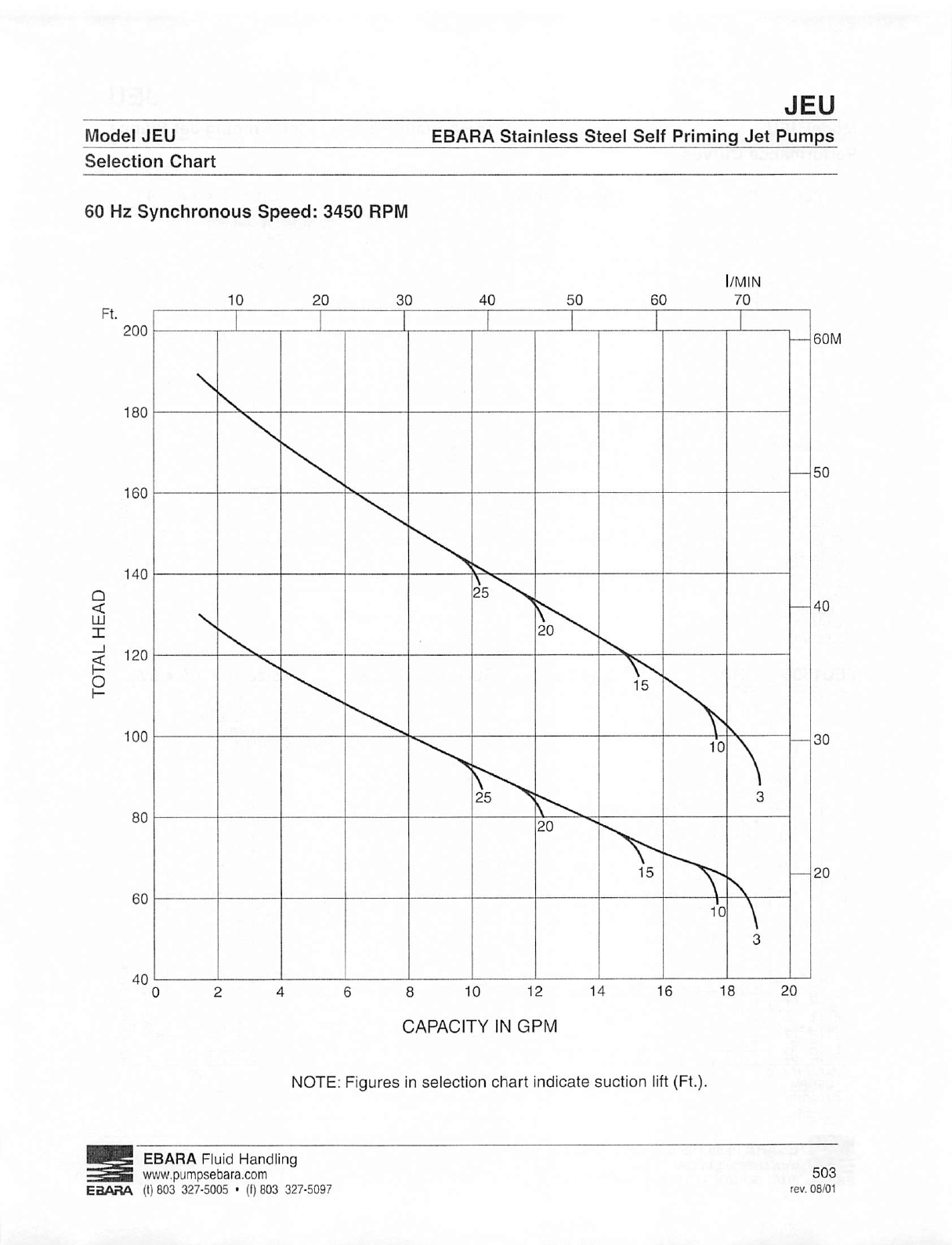

JEU
Model JEU
EBARA Stainless Steel Self Priming Jet Pumps
Selection Chart
60 Hz Synchronous Speed: 3450 RPM
l/MIN
70 10 20
30
40 50 60
Ft.
200
60M
180
50
160
140
Q
40
<
LU
X
< 120
O
100
30
80
20
60
40
16
18 20
10
12
14
2
4
6 8 0
CAPACITY IN GPM
NOTE: Figures in selection chart indicate suction lift (Ft.).
EBARA Fluid Handling
www.pumpsebara.com
E3ARA (1) 803 327-5005 ● (I) 803 327-5097
503
rev. 08/01

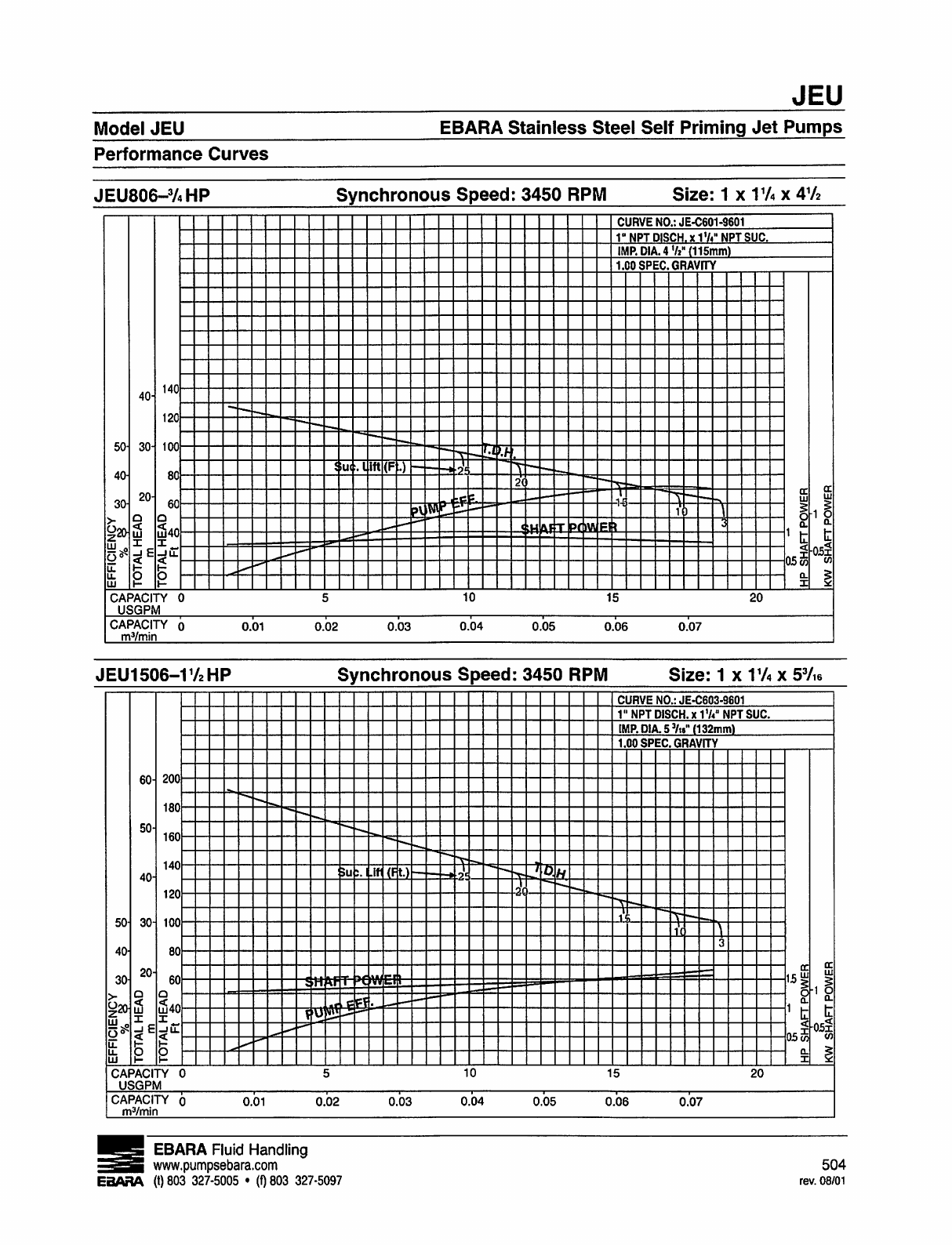

JEU
EBARA Stainless Steel Self Priming Jet Pumps
Model JEU
Performance Curves
Size: 1 x I’A x 4V2
Synchronous Speed: 3450 RPM
JEU8O6-V4HP
I
CURVE NO.; JE-C601-9601
I
r NPT DISCH-X17<"NPT SUC
IMP.DIA.4V2" {115mm)
I.OOSPEC.GRAVrTY
140
40
120
50 30- 100
KlfJ]
Sud. Lift
(Ft-)
.23.
40- 80
2U
a.
cr
20-
UJ
LU
30- 60
5
S
10
1 o
o
o
Q.
Q.
ef lift £11
uj40
’ tz
t
X
05x
<
.0
-! E
<
05 w
0°'
<
H
O
ll
§ O
Q.
U.
I
(- UJ
10
CAPACITY 0
USGPM
15 20 5
CAPACITY 0
mVmin
0.04
0.05 0.01 0.02 0.03 0.06 0.07
Synchronous Speed: 3450 RPM
Size: 1 x I’A x 5V
1
JEU1506-1V2 HP
6
CURVE NO.:JE-C603-9601
1" NPT DISCH.x IV NPT SUC.
IMP.DIA.5Vit'' (132mm)
1.00 SPEC. GRAVITY
60- 200
180
50
160
140
H
40-
.25.
-2-0.
120
J.r>_
100 50 30
I
-U.
3
40- 80
cc
cn
20-
LU
liJ
’^5
30 60
5
●1 o
o
Q Q
>
Q.
o.
<
540
^20
^ tt
LU
I
X
$-05i
lU a
-I E -JU.
05 w
0°
V)
< <
H
O
U.
g
P
h
Q.
LL
-
I
LU
10
20
CAPACITY 0
USGPM
5 15
CAPACITY 0
mVmin
0.04 0.05 0.01
0.02 0.03 0.06 0.07
EBARA Fluid Handling
www.pumpsebara.com
E3ARA (t) 803 327-5005 ● (f) 803 327-5097
504
rev. 08/01

JEU
Model JEU
EBARA Stainless Steel Self Priming Jet Pumps
Dimensions
A
Priming Plug
PF v;
Discharae
8V,e'
c
<M
O
o
D
U)
CO
/ J> \
O.
<D
I /
X
X
X
8V,«'
Drain Plug
PF Vd"
3'V.f,' 5’A'
2-Anchor Hole
Pump Size-NPT
(inch)
Dimension
(inch)
Unit Weight (lbs.)
Single Phase
Three Phase
Model Size
Suction
Discharge
A
TEFC
ODP TEFC ODP
43
JEU806-V.HP 1x174x472
174
15Vs Max.
41 39 1
37
48
JEU1506-17?HP 1x174x57id 174
1 197e Max. 42 46 44
EBARA Fluid Handling
www.pumpsebara.com
EBARA (t) 803 327-5005 ● (f) 803 327-5097
505
rev. 03/12

JEU
EBARA Stainless Steel Self Priming Jet Pumps
Model JEU
Sectional View
Part No. Part Name Material No. for 1 Unit
304L Stainless
Casing
001 1
Casing cover
304L Stainless Oil 1
Aluminum 018 Bracket 1
304L Stainless 021
Impeller
1
Guide vane
Noryl GFNZ
022 1
Impeller nut
304L Stainless
048
1
111
Mechanical seal 1 set
0-Ring
Viton 115-1 1
Viton 115-2
0-Ring
1
Viton
115-3
0-Ring
1
0-Ring
Viton 115-4 1
304L Stainless 120-1 Bolt
8
304L Stainless 120-2
Bolt 4
304L Stainless 120-3 Bolt 2
304L Stainless 120-4 Bolt 1
304L Stainless 135-1 Washer 1
304L Stainless
135-2
Washer
1
Noryl GFNZ
Diffuser & Venturi Tube 150 1
Steel
Base 160 1
Plug
304L Stainless
212-1 1
304L Stainless
Plug
212-2 1
NEMA 56J Frame
800 Motor 1
EBARA Fluid Handling
www.pumpsebara.com
EBARA (t) 803 327-5005 ● (t) 803 327-5097
506
rev, 08/01

r
1!
[o5? 9
W«
●mCL,
SMV
Operating instructions EN
Frequency Inverter
o
o
lA
■0
sf
fO
Lenze

Copyright © 2013 - 2006 Lenze AC Tech Corporation
All rights reserved. No part of this manual may be
reproduced or transmitted in any form without written permis
sion from Lenze AC Tech Corporation. The information
and technical data in this manual are subject to change
without notice. Lenze AC Tech Corporation makes no
warranty of any kind with respect to this material, includ
ing, but not limited to, the implied warranties of
it’s merchantability and fitness for a given purpose. Lenze AC
Tech Corporation assumes no responsibility for any
errors that may appear in this manual.
All information given in this documentation has been
carefully selected and tested for compliance with the hard
ware and software described. Nevertheless, discrepancies
cannot be ruled out. We do not accept any responsi
bility nor liability for damages that may occur. Any
necessary corrections will be implemented in subsequent
editions.
This document printed in the United States

Contents
About theselnstructions
2
1
Safety Information
Technical Data
Standards and Application Conditions
SMV Type Number Designation
2.1
2.2
Ratings
2.3
3
2
7
7
8
9
3 Installation
12
3.1
Dimensions and Mounting
3.1.1
3.1.2
3.1.3
3.1.4
Electrical Installation
3,2.1
NEMA 1 (IP31) M
Power Connectio
12
odels < 30HP (22kW)
NEMA 1 (IP31) Models > 30HP (22kW)
NEMA4X (IP65) Models
NEMA4X (IP65) Models with Disconnect Switch
12
13
14
15
3.2 16
ns,
3.2.1.1
3.2.1.2
3.2.1.3
3.2.1.4
3.2.1.5 Installation Recommendations for EMC Compliance
3.2.1.6 NEMA4X (IP65) Input Terminal Block
Mains Connection to 120VAC Single-Phase Supply
Mains Connection to 240VAC Single-Phase Supply
Mains Connection to Three-Phase Supply
Motor Connection
3.2.1.7 Dynamic Brake Connections
Fuses/Cable Cross-Sections
Control Terminals
16
16
17
17
17
18
18
19
3.2.2 20
3.2.3
21
4
Commissioning
Local Keypad & Display
4.1
Drive Display and Modes of Operation ..
Parameter Setting
4.2
4.3
Electronic Programming Module (EPM),
Parameter Menu
4.4
4.5
4.5.1
4.5.2
4.5.3
4.5.4
4.5.5
4.5.6
4.5,7
Basic Setup Parameters
I/O Setup Parameters
Advanced Setup Parameters
PID Parameters
Vector Parameters
Network Parameters
Diagnostic Parameters
23
23
25
26
26
27
4.5.7.1 Terminal & Protection Status Display
4.5.7.2 Keypad Status Display
Onboard Communications Parameters 15-60HP (11-45kW)
Sequencer Parameters
4.5.9.1 Sequencer Flow Diagram Left
4,5.9.2 Sequencer Flow Diagram Right
4.5.9.3 Sequencer Status
27
31
35
39
41
43
44
45
45
46
4.5.8
4.5.9
47
55
56
57
58
Troubleshooting and Diagnostics
Status/Warning Messages
5.1
Drive Configuration Messages
5.2
Fault Messages
5.3
5
58
59
59
62
Appendix A
62
A.1 Permissable Cable Lengths
Lenze SMVector 13465100 EDBSVOl EN vl8
1

1

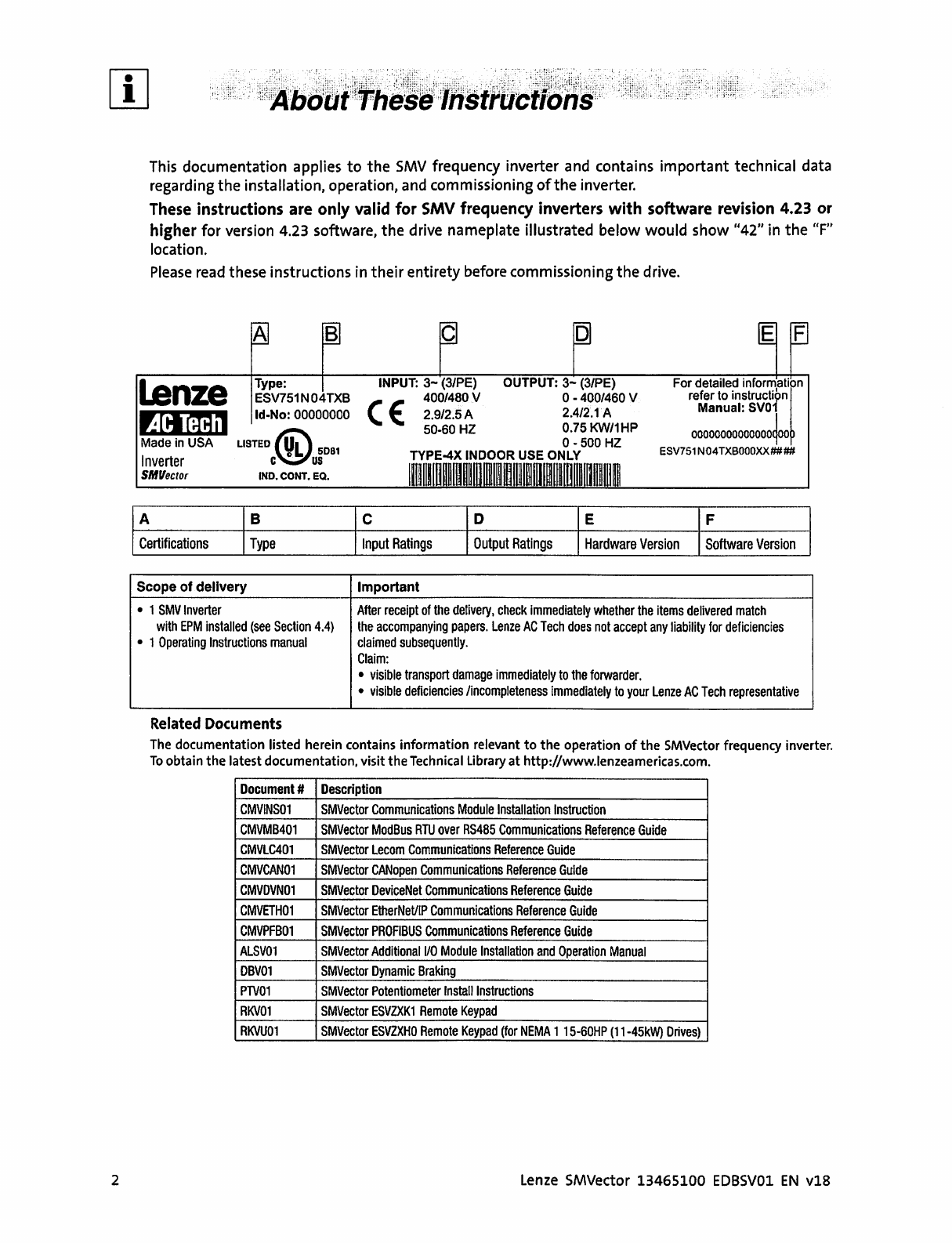

About These Instructions
This documentation applies to the SMV frequency inverter and contains important technical data
regarding the instal lation, operation, and commissioning of the inverter.
These instructions are only valid for SMV frequency inverters with software revision 4.23 or
higher for version 4.23 software, the drive nameplate illustrated below would show “42'' in the "F"
location.
Please read these instructions in their entirety before commissioning the drive.
\E E
D
B!
C A
INPUT: 3- (3/PE)
400/480 V
2.9/2.5A
50-60 HZ
C€
OUTPUT: 3- (3/PE)
0 ■ 400/460 V
2.4/2.1 A
0.75 KW/1HP
For detailed information
refer to instruction
Manual: SVOI
Type:
ESV751N04TXB
id-No: 00000000
Lenze
4C Tech
OOOOOOOOOOOOOOC 00)
ESV751N04TXB000XX##)^
Made in USA
Inverter
SMVector
0 - 500 HZ
LISTED
5D81
TYPE-4X INDOOR USE ONLY
C US
t!
IND.CONT, EQ.
!
A B
C
D
E
F
Certifications
Output Ratings
Type
Input Ratings
Hardware Version Software Version
Scope of delivery
Important
● 1 SMV Inverter
with EPM installed (see Section 4.4)
● 1 Operating Instructions manual
After receipt of the delivery, check immediately whether the items delivered match
the accompanying papers, Lenze AC Tech does not accept
any liability for deficiencies
claimed subsequently.
Claim:
● visible transport damage immediately to the forwarder.
● visible deficiencies /incompleteness immediately
to your Lenze AC Tech representative
Related Documents
The documentation listed herein contains information
relevant to the operation of the SMVector frequency inverter.
To obtain the latest documentation, visit the Technical
Library at http://www.lenzeamericas.com.
Document#
Description
CMVINSOf
SMVector Communications Module Installation Instruction
CMVMB401
SMVector ModBus RTU over RS485 Communications Reference Guide
CMVLC401
SMVector Lecom Communications Reference Guide
CMVCAN01
SMVector CANopen Communications Reference Guide
CMVDVN01
SMVector DeviceNet Communications Reference Guide
CMVETH01
SMVector EtherNet/IP Communications Reference Guide
CMVPFB01
SMVector PROFIBUS Communications Reference Guide
ALSV01
SMVector Additional I/O Module Installation and Operation Manual
DBV01
SMVector Dynamic Braking
PTV01 SMVector Potentiometer install Instructions
RKVOl
SMVector ESVZXK1 Remote Keypad
RKVU01
SMVector ESVZXHO Remote Keypad (for NEMA 1 15-60HP
(11 -45kW) Drives)
Lenze S/\AVector 13465100 EDBSVOl EN vl8
2
