AQUAPHOR CRYSTAL EKO-80-2 User manual

DRINKING WATER FOUNTAIN
CRYSTAL MODEL EKO-80-2
CRYSTAL MODEL H-80-2
USER MANUAL

INTRODUCTION1
The Aquaphor drinking water fountain (further referred to as the water fountain), is
manufactured by AQUABOSS Ltd. (Russia, Saint Petersburg) for AQUAPHOR Ltd (Russia,
Saint Petersburg).
The water fountain provides access to pure and fresh water. It can be utilized in various
types of industrial facilities, residential and administrative buildings, schools, educational
institutions, as well as in public areas where there is a need for the highest quality drinking
water.
The device is made of safe, environmentally friendly materials which do not contain
substances hazardous to health and the environment. The distributor is certified by the
Polish National Institute of Hygiene (PZH).
TECHNICAL PARAMETERS2
Water fountain model
Technical parameters
CRYSTAL
Н-80-2
CRYSTAL
EKO-80-2
Replaceable filter
cartridges K3, KН, K7 K3, K7F, K7
Delivers 6000 8000
Dimensions (mm) 330 × 300 × 840
Weight without water,
not more than (kg) 12,5
Working water pressure
MPa (atmosphere) 0,65 (6,3)
Water temperature (°C) 5 - 38
Recommended filtration
rate (l/min) 2,0 2,5

LIST OF ELEMENTS INCLUDED IN THE UNIT3
The installation diagram of the water fountain is presented in Fig. 1.
From the outside, in the upper part of the distributor cabinet (1), there is a metal sink (24)
with a drain strainer (25) and a water dispenser spout (5). There is a lock on the cabinet
door. Inside the stainless steel cabinet, there is an Aquaphor three-stage water purification
system (on the back wall), consisting of a filter head (14) and three replaceable filter
cartridges (15, 16, 17). The cabinet is equipped with a valve to protect against flooding, and
an electronic Aquaphor cartridge wear counter. The water flowing in from the water mains
is filtered, and then, on pressing a button, is available to the user in the spout (5) .
Excess water is drained from the sink (24) through the openings in the drain strainer (25) to
the sewage system through a siphon (19) and a corrugated PVC pipe (20).
Complete fountain distributor cabinet
(with connection hoses)
Water connection (tee with a ball valve) (2)
Clean water faucet (5) with a set of washers (6-11) 1 pc.
Plug (installed in the filter block/filter head)
(Aquaphor Crystall H-80-2 water fountain only)
KH cartridge regeneration adapter
(Aquaphor Crystall H-80-2 water fountain only)
Door key
Plug
Corrugated PVC pipe (20)
Screw
Pin
User manual
Packaging
1 szt.
1 szt.
1 szt.
1 szt.
1 szt.
1 szt.
1 szt.
1 szt.
2 szt.
2 szt.
1 szt.
1 szt.

INSTALLATION DIAGRAM
WATER FOUNTAIN INSTALLATION AND CONNECTIONS4
Choosing a suitable location to install the water fountain
Before installing the water fountain, you need to measure the pressure in
the water supply system. If the pressure exceeds 6.3 atmospheres, an
additional pressure regulator should be installed. (not included in the unit).
Please note:
The water fountain should be placed on an even, horizontal surface. If the surface is
uneven, the water fountain should be levelled – use the adjustable feet. If necessary, the
water fountain can be attached to the wall with screws. There are fixing holes (Ø6.5 mm)
in the rear (2 holes) panel of the cabinet.
-

Position the dispenser in such a way that it is protected from direct sunlight. Make sure
there are no heating devices around. The distance between the water fountain and any
household appliance should not be less than 20 cm. The water fountain must be protected
against freezing.
-
Choose a suitable location for the water connection (2) to the water mains (see Fig. 1 -
Installation diagram). Make sure that the connection hoses pass freely, and are not bent.
Loose hoses must be secured so that they cannot be pulled out.
-
Please note: When connecting water, be careful
not to damage the fittings (2). In the event of any
mechanical damage to the fittings (2) due to
improper installation and use, no claims can be
considered.
- shut off the cold water supply and reduce
pressure in the system;
- check whether the seals on the nut (4) is there;
- connect the cabinet to the water mains. If it is
necessary to seal the thread on the connection,
use Teflon tape;
- close the connection (the handle should be in the "tap turned" position) then make sure
that all connections are tight (no leaks);
- remove the clip (4) from the plastic sleeve of the ball valve (2);
- insert the water-soaked hose (26) into the ball valve sleeve (2), pressing it all the way
down about 15 mm;
- replace the clip (4) under the plastic sleeve of the ball valve on the connection (2);
Water connection fittings and installation
Faucet/spout installation (Fig. 3)
Please Note: it is recommended to use the clean water faucet/spout
(5) included in the set. The manufacturer is not responsible for the
consequences of using other faucets or taps.
- unscrew the cap nut (12) from the threaded stub of the tap (5);
- place the decorative support (6) on the threaded faucet stub (5), a
large rubber gasket (7), then insert the spout (5) in the opening of the
upper cabinet panel (1);
- place rubber (8), plastic (9), and metal (10) washers on the threaded
tap, located under the panel, and then screw on the nut (11);
- place the plastic disc on the end of the hose, and then the plastic
sleeve. Tighten the nut (12) on the tap connector (5) as far as it will
go;
- check the tightness of the hose fitting (22). Using a tension force of
8-9 kg, (22) you should not be able to pull the hose out.
- After connecting the water fountain, adjust the pout using the screw
located at its base, then adjust the height of the water jet.
Fig. 2
A - tap in open position
B - water supply
Fig. 3

Please Note: following the applicable sanitary requirements, when using the water fountain
in various types of educational institutions, the height of the vertical jet should not be less
than 10 cm.
Preparation of the AQUAPHOR electronic cartridge wear meter for use (13) (Fig. 4)
The electronic cartridge wear counter allows you to control the wear of cartridges in the
water fountain and prompts timely replacement. The counter is fitted on the dispenser and
shows the rate of water filtration and the remaining time of the cartridge use (in litres and
days).
Before using the meter, insert the batteries (2АА batteries are not included and must be
bought separately). To insert the batteries, remove the cover and pit in the batteries
observing the polarity. The display should show "0l/m". If not, adjust the position of the
batteries. Then put the lid back on.
Setting the cartridge wear indicators in litres and days.
Holding the "SET" button down, press the "RESET" button, and then release both buttons.
The «OFF» signal will flash on the display.
Setting the cartridge wear indicators in litres
Pressing the "SET" button, select the appropriate value (500 l, 1000 l, 1500 l ... 99000 l,
99500 l, OFF l, 500 l, 1000 l ...) shown on the meter display ( See the Manufacturer's
Warranties for performance information). Then, press the "RESET" button, saving the
selected value. The litre consumption indicator can be turned off by selecting "OFF".
Setting the cartridge wear indicators in days
Pressing the "SET" button, select the appropriate value (30 day, 60 day, 90 day ... 690 day,
720 day, OFF day, 30 day, 60 day ...) shown on the meter display ( See the Manufacturer's
Warranties for performance information). Then, press the "RESET" button, saving the
selected value.
The litre consumption indicator can be turned off by selecting "OFF".
Connection to the water/sewage network
- Insert the corrugated PCV hose (20) into the siphon located under the sink (19);
- Connect the loose end of the hose to the sewage system. The diameter of the sewage
outlet should be 30 mm (in the case of other dimensions, use an adapter (2));
- Check the tightness of connections;

FOLLOWING THE WATER FOUNTAIN INSTALLATION AND CONNECTION 5
In the case of the Crystal EKО-80-2 water fountain:
- open the cold water supply, check the tightness of the device;
- open the clean water tap (5);
- using the water connection (2) (set the handle to the "open tap" position), adjust the
water flow in accordance with the recommended filtration rate of the device;
- let the water run for 10 minutes;
- turn off to clean water tap (5) and wait 10 minutes;
- then run the water again for 50 minutes;
- turn off the tap to clean water (5);
- check the tightness of the connections;
- the fountain is ready for use;
In the case of the Crystal H-80-2 water fountain:
- instead of the KH insert, install a plug (included in the set or may be purchased
separately);
- open the cold water supply, check the tightness of the device;
- open the clean water tap (5);
- using the water connection (2) (set the handle to the "open tap" position), adjust the
water flow in accordance with the recommended filtration rate of the device;
- let the water run for 10 minutes;
- turn off the tap to clean water (5), wait 10 minutes;
- then run the water again for 40 minutes;
Please Note: When draining the water with the cap fitted, check for accidental
leaks.
- put the KH cartridge in the right place and let the water run for another 10 minutes;
- turn the clean water off (5);
- check the tightness of the connections;
- the water fountain is ready for use;

THE WATER FOUNTAIN OPERATION6
Filter cartridges replacement:
The replaceable filter cartridges originally installed in the dispenser are right for the model.
It is recommended to replace the filter cartridges in a timely manner.
REMEMBER that a dispenser with used cartridges is unusable.
- turn off the water at the connection and open the tap (5) for fresh water in order to
relieve the pressure.

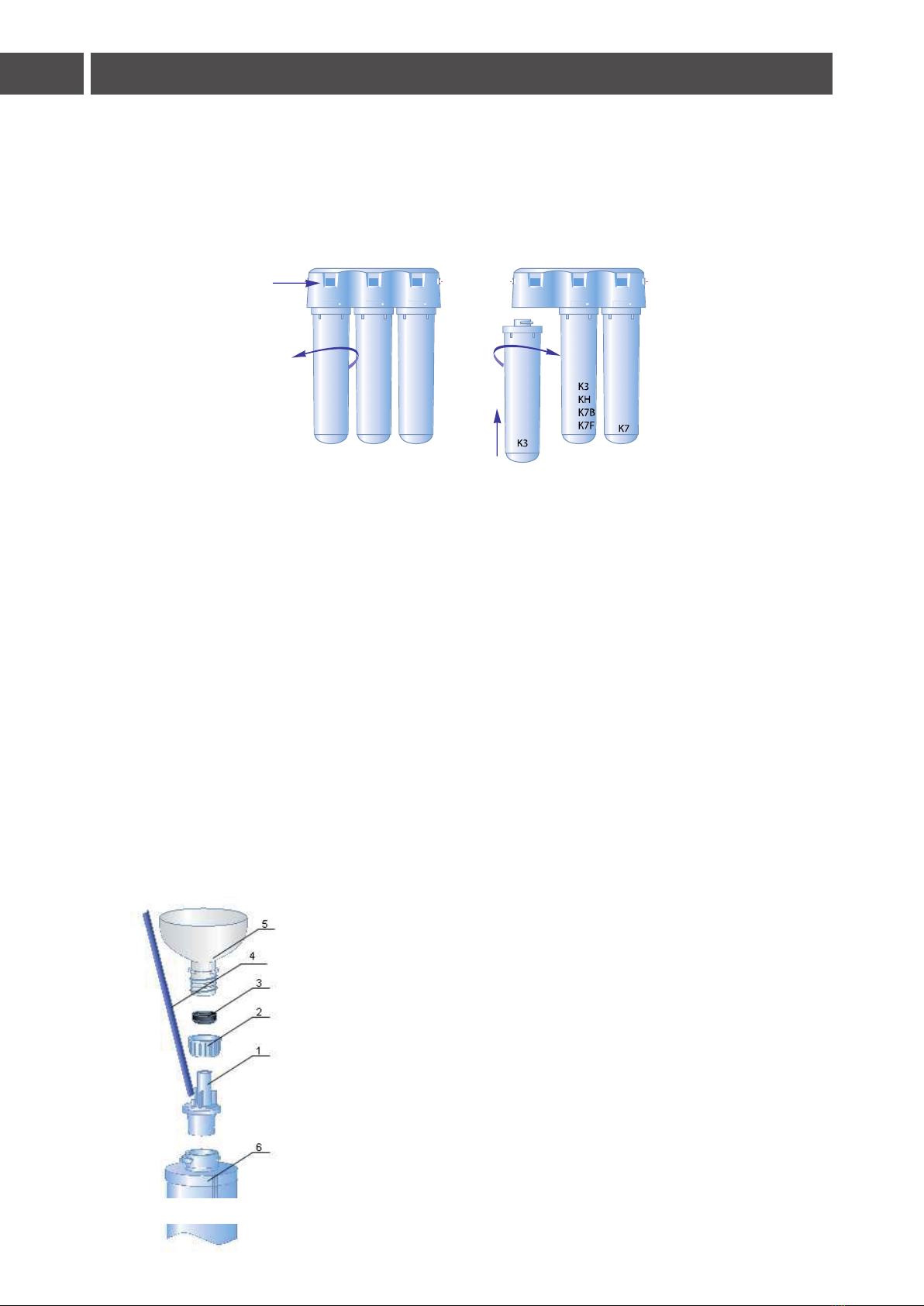

- pressing it hard and holding the safety button (14), turn the used filter cartridge counter
clockwise (fig. 5);
- remove the protective foil from the new cartridge;
- insert the new cartridge into the cabinet (14), pressing it carefully, and gently turn it
clockwise (fig. 6).
Follow the correct sequence when replacing cartridges as shown in Fig. 6.
- then follow the steps in the chapter " Following the water fountain installation and
connection".
KH cartridge regeneration
- perform the first two steps in the "Filter cartridges
replacement" section;
- then assemble the regeneration adapter (1) and connect it
to the KH insert (included in the set or purchased
separately) (fig. 6):
- place the washer (3) on the nut (2);
- put the nut (2) with the washer (3) on the adapter (1),
pressing it as far as it will go;
- put the plastic hose (4) on the stump on the adapter (1);
- firmly insert the adapter (1) in the insert (6);
- screw an ordinary clean plastic bottle (5) with a cut-off
bottom (funnel-shaped) onto the nut (2);
Fig. 5
1
2
1
2
Fig. 6
1 - push
2 - turn
1 - insert
2 - turn
Fig. 7

- using boiled water, prepare 2 - 2.5 litres of solution (e.g. 300 g/l) with table salt (do not
use iodized salt);
- place the cartridge with the attached plastic bottle in an upright position (e.g. into a jar).
Direct the plastic tube towards the sink;
- pour the salt solution through the filter, taking care not to let the sediment that remained
during the dissolving of the salt enter the cartridge;
- after the salt solution, pour 2.5 litres of boiled water through the cartridge;
- The cartridge is now ready for use.
Replacing the shut-off valve (18)
If the shut-off valve has signalled a leak and closed the water supply, it should be replaced
in accordance with the following procedure (failure to do so prevents further use of the
water fountain):
- Open the water fountain cabinet door.
- Remove the used shut-off valve.
- Place the valve inside the fountain cabinet in such a way that the safety spring
with litmus paper touches the special gasket at the bottom of the fountain
cabinet (Fig. 8).
- Connect the hose (1) at the valve inlet (marked blue).
- Connect the hose (2) to the valve outlet (marked white).
The inlet/outlet is marked with an arrow on the plastic part of the valve screen (It is
important that the valve handle is in a horizontal position).
AQUAPHOR cartridge wear electronic counter
The timer turns on automatically when water starts flowing through it and turns off 10
seconds after the water stops flowing. By pressing the "SET" button, you can check the
status of the three modes of the counter: the amount remaining until the end of the cartridge
use in litres (litre), water filtration rate (l/m) and the number of days until the end of the
cartridge use in days (day) (Fig. 9 ).
Fig. 9.

Signals
The end of filter service life signal
When 30 litres or 7 days of filter service life is left, A SINGLE beep will sound, and the
display will flash the values to indicate the need to replace the filter cartridge soon. The
sound signal will stop when the meter is turned on using the "SET" button or when water
begins to flow through the meter.
The end of service life signal
When the filter is used up completely (0 litres or 0 days), TWO beeps will sound to inform
you that the cartridge needs to be replaced. The sound signal will stop when the meter is
turned on using the "SET" button or when water begins to flow through the meter.
The flat battery signal
When the battery voltage drops below the normal level (the battery is flat), TWO beeps will
sound to inform you that the battery needs to be replaced. The sound signal will stop when
the meter is turned on using the "SET" button or when water begins to flow through the
meter.
PLEASE NOTE:
If the water fountain is not used for a day or more (e.g. if you are away or during a holiday
break), access to cold water should be blocked (the inlet tap should be turned off).
If the water fountain has not been used for more than a week, first let the water run for 5
minutes.
During transport, storage, and use of the water filter, the water fountain should be protected
against impacts or falls. Also, protect the device against freezing of the water inside. If the
water has a higher degree of hardness at 500 mg CaCO3/l, after softening it may have a
slightly salty taste. This is due to the exchange of calcium ions with sodium ions. However,
this is not a malfunction and is completely safe for your health.
If the ambient temperature during the water fountain operation reaches 38°С or more (more
than its maximum operating temperature), the device should be disconnected from the cold
water supply until the temperature drops.

MANUFACTURER'S WARRANTY7
Warranty period* of operation of the water fountain (excluding the replaceable filter
cartridges and the cut-off valve) is 2 years from the date of sale.
Service life** of the fountain (excluding replaceable filter cartridges and cut-off valve) is 5
years from the date of sale. At the end of its service life, the fountain should be replaced with
a new one. Using the water fountain past its service life may lead to the loss of airtightness.
Expiry date (service life) of the replaceable filter cartridges in combination with:
K3, K7F, K7 - 8,000 litres, but not more than 12 months***
K3, KH, K7 - 6,000 litres, but not more than 6 months***
The service life of variable filter cartridges is calculated from the date the fountain is sold to
the user at the point of sale. The date of sale of the fountain (with replaceable filter
cartridges) is listed by the seller in the water fountain's manual. If the date of sale is missing
from the instruction manual or the instruction manual has been lost by the user, the expiry
date is calculated from the production date of the replaceable filter cartridges (the
production date on the body of the replaceable filter cartridge).
*** The position of the Aquaphor company - consumer safety.
The water fountain should solve two of the most important tasks for the user:
1) remove small amounts of harmful substances from the water throughout the entire
period of use.
2) in exceptional circumstances, protect the health of the user by reducing the amount of
harmful substances significantly exceeding the permissible levels, bringing them down
to a level acceptable by with the applicable sanitary requirements.
The electronic counter of the consumption of cartridges which calculates both the time and
the water volume influences user safety.
The cartridge wear indicator in litres is intended for a group of users who use water
fountains all the time (bars and restaurants, schools, health care facilities, etc.).
Efficiency (service life) counted over time is designed to ensure the safety of individual
users (families), and is directly related to the capability to perform task no. 2.
The water fountain is a device ensuring constant access to freshly filtered water in virtually
unlimited amounts. The water from the fountain is intended for direct consumption. It does
not require the use of disposable cups. It is perfect for quenching thirst after a class or at
work.
The AQUAPHOR water pre-filter (at the water connection to the building) helps the filter to
operate more efficiently, especially if the water contains large amounts of undissolved
pollutants.

TROUBLESHOOTING8
Cause Remedy
No water
Very little water
Loud noise is to
be heard
1. The ball valve is closed
(water connection)?
2. Bent hoses?
3. Has the shut-off valve cut
off the water supply?
4. Cartridges are blocked
(cartridge life span is
expired)?
1. Open the water connection.
4. Replace the filter cartridges.
2. Straighten the hoses.
3. Replace the shut-off valve.
1. Cartridges are blocked
(cartridge life span is
expired)?
2. Low pressure in the water
supply system?
3. The pout is not properly
adjusted?
4. Bent hoses?
5. The ball valve tap is not
properly adjusted (water
connection)?
1. Replace filter cartridges.
2. Contact the service centre
for assistance.
3. Adjust the pout jet (page 7).
4. Straighten the hose.
5. Adjust the ball valve tap
(water connection).
1. The water fountain is
positioned on an uneven or
unstable surface?
1. Provide a hard, stable base
for the fountain, level the
fountain using adjustable
feet.
2. Move the dispenser 10 cm
away from the wall.
3. Remove the items behind
the fountain.
2. The fountain is against the
wall?
3. Are there any items behind
the fountain?
