Aquatec Equipment Elluminate 20EL062 User manual

VERSION
2017 V.1.0
1300 278 283
123

www.elluminatelighting.com.au FOR SALES & TECHNICAL ASSISTANCE CALL 1300 278 283
NO TOOLS REQUIRED | PLUG N PLAY SYSTEM
TECHNICAL SPECIFICATIONS
LIGHTING RANGE
TRANSFORMER EXTENSION CABLES
T-PIECE CONNECTOR
elluminate
SMALL
SPOTLIGHT
elluminate
LARGE
SPOTLIGHT
elluminate
S/STEEL
BOLLARD
elluminate
BLACK
BOLLARD
elluminate
DECK LIGHT
-PACK OF 4
elluminate
LARGE
DECK LIGHT
elluminate
4 PIECE DECK
LIGHT KIT
elluminate
4 PIECE SPOT
LIGHT KIT
CODE
20EL062 20EL063 20EL081 20EL082 20EL091 20EL092 20EL200 20EL201
VOLTAGE (V)
12V 12V 12V 12V 12V 12V 12V 12V
POWER (W)
2W 3W 3W 3W 4 x 1W 2W 4 x 1W 4 x 2W
CABLE
LENGTH (M)
0.5M 0.5M 0.5M 0.5M 0.2M 0.2M 0.2M 0.5M
GLOBE TYPE
LED MR11 LED MR16 LED MR16 LED MR16 LED Non
replaceable LED MR11 LED Non
replaceable LED MR11
IP RATING
IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
LUMENS
750 810 40 40 420 840 420 750
elluminate
72W
TRANSFORMER
CODE
22ET072
INPUT VOLTAGE
240V
OUTPUT VOLTAGE
12V
POWER
72VA
CURRENT
6000MA
IP RATING
IP65
elluminate
1M
EXT. CABLE
elluminate
2M
EXT. CABLE
elluminate
5M
EXT. CABLE
elluminate
10M
EXT. CABLE
CODE
21EC001 21EC002 21EC005 21EC010
CABLE LENGTH (M)
1M 2m 5M 10M
elluminate
T-PIECE
CONNECTOR
CODE
21EC003
BEFORE USING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS OF USE
CAREFULLY AND MAKE YOURSELF FULLY FAMILIAR WITH THE SYSTEM.
PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.
COMPLETE YOUR GARDEN LIGHTING IN 3 EASY STEPS
STEP 1
Select your lights any style or size.
(max. 12 per conguration)
STEP 2
Choose your connectors & cables.
Various lengths available (max. 50m)
STEP 3
Grab your outdoor transformer.
Plug in and enjoy.
FEATURES
Your elluminate light has been manufactured with advanced technology and quality materials
to integrate into any garden scene, thanks to their compact design.
• The elluminate light has a glass lens and is suitable for outdoor garden use.
• The high-power, energy efcient LEDs emits a natural warm light providing years of maintenance
free satisfaction.
• The 240V transformer converts the power supply to a safe 12V for peace of mind in your garden.
THIS SIMPLE AND EASY-TO-CONNECT SYSTEM IS BASED ON A MAXIMUM OF 12
LIGHTS AND NO MORE THAN 50M OF CABLING PER TRANSFORMER.

www.elluminatelighting.com.au FOR SALES & TECHNICAL ASSISTANCE CALL 1300 278 283
NO TOOLS REQUIRED | PLUG N PLAY SYSTEM
MAINTENANCE
The LED MR16 globe has been uniquely designed for the elluminate system and cannot be
replaced with any other MR16 globe.
• There is minimal maintenance required on the elluminate LED outdoor lights. Inspect regularly
to ensure the light or cable is not damaged in any way. Clean the light lens regularly for
maximum efciency.
INSTALLATION
• If required, have a qualied electrician install a weather-proof power point near to the garden,
within reach of the transformer.
• Mount the transformer in a protected location making sure that it can’t be submerged or overheat.
• For garden installation, slide the garden spike into the circular recess on the underside of the light
body. Holding the light body rmly, push the light with attached spike into the desired location
taking care not to penetrate any hidden services. Alternatively, you can use the supplied standard
base, which attaches in the same way.
• Adjust the light until facing in the general direction of the feature you wish to illuminate.
• Once in the correct position lock the light by tightening the thumb screws, taking care not to over
tighten.
• We recommend nal adjustments be carried out at night.
• For single light installations plug the end of the extension cable into the transformer and plug the
light into the other end of the cable. Tighten all the locking collars rmly. The transformer can now
be turned on.
• Multiple lights can be connected together using the 2 Pin extension cables and multiple T-Pieces.
• In the case of the small deck lights, use a 28mm diameter hole saw. For the larger model use a
44mm diameter hole saw.

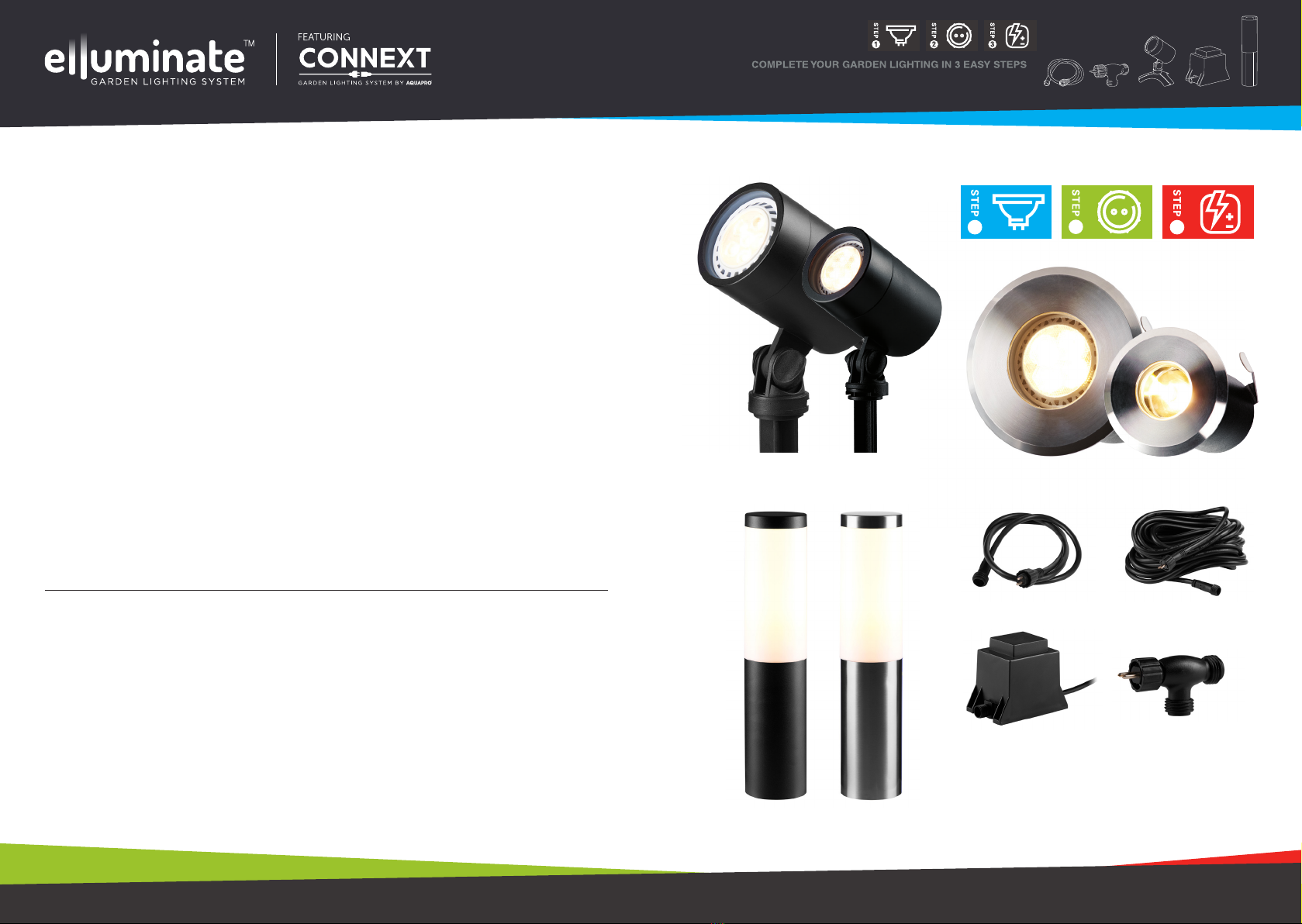

THE RANGE
SPOTLIGHT - LARGE / SMALL
BOLLARD - BLACK / STAINLESS STEEL
DECK LIGHT - LARGE / SMALL
CABLES - 1M / 2M CABLES - 5M / 10M
T-PIECE CONNECTOR72W TRANSFORMER
COMPLETE YOUR GARDEN LIGHTING IN 3 EASY STEPS
123

www.elluminatelighting.com.au FOR SALES & TECHNICAL ASSISTANCE CALL 1300 278 283
NO TOOLS REQUIRED | PLUG N PLAY SYSTEM
NOTE
Total length of cables does not exceed 50m

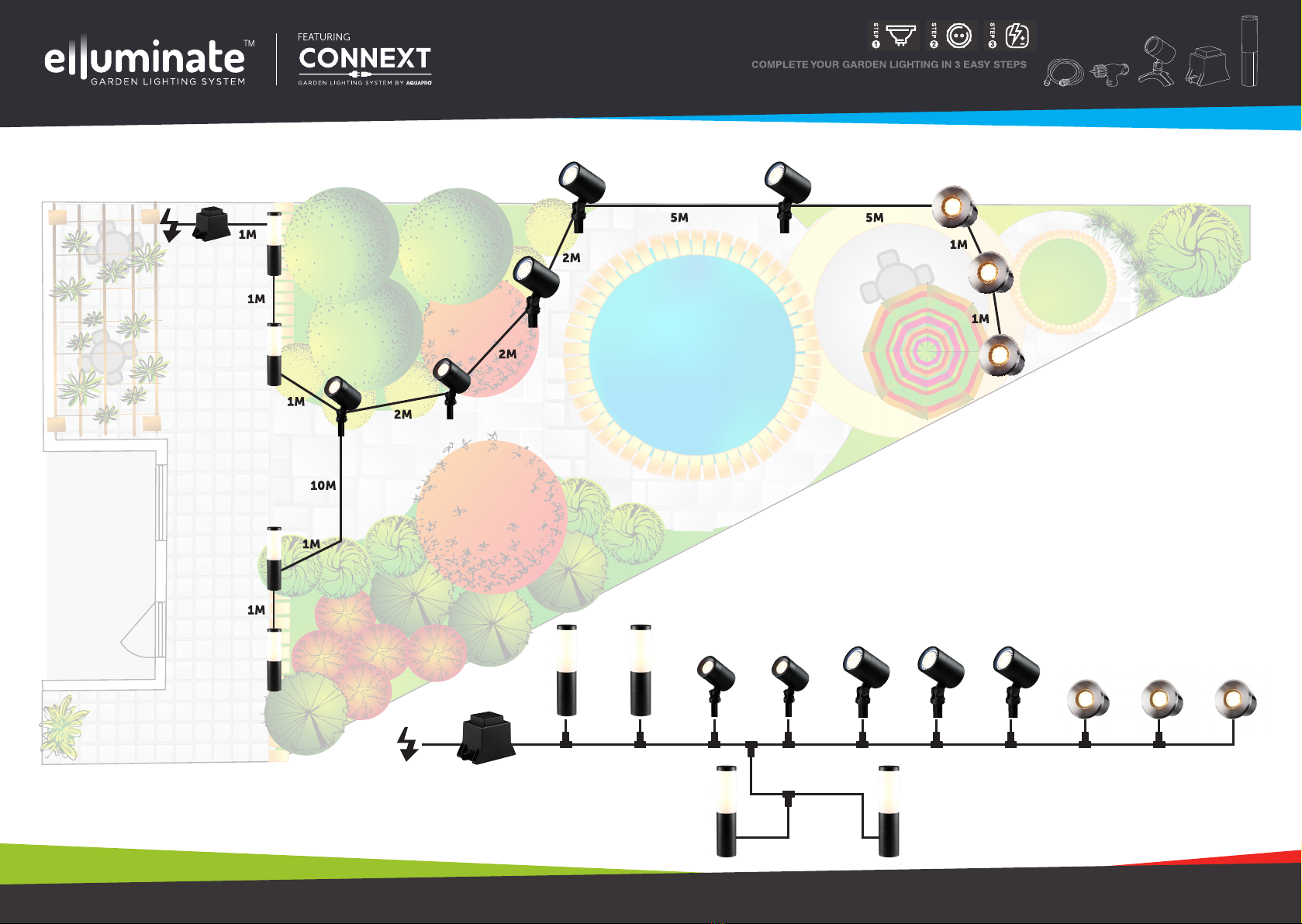

EXAMPLE INSTALLATION
T-PIECE
CONNECTORS
POWER
SOURCE
YOU WILL NEED:
Sml Spotlight (x2)
Lrg Spotlight (x3)
Bollard Light (x4)
Deck Light (x3)
1m Extension Cable (x7)
2m Extension Cable (x3)
5m Extension Cable (x2)
10m Extension Cable (x1)
Universal T-Piece (x11)
72W Transformer (x1)

www.elluminatelighting.com.au FOR SALES & TECHNICAL ASSISTANCE CALL 1300 278 283
NO TOOLS REQUIRED | PLUG N PLAY SYSTEM
PLAN YOUR PROJECT
