ARB Intensity AR32 User manual

USER GUIDE
Intensity LED.indd 1 23/10/12 4:44 PM
AR32

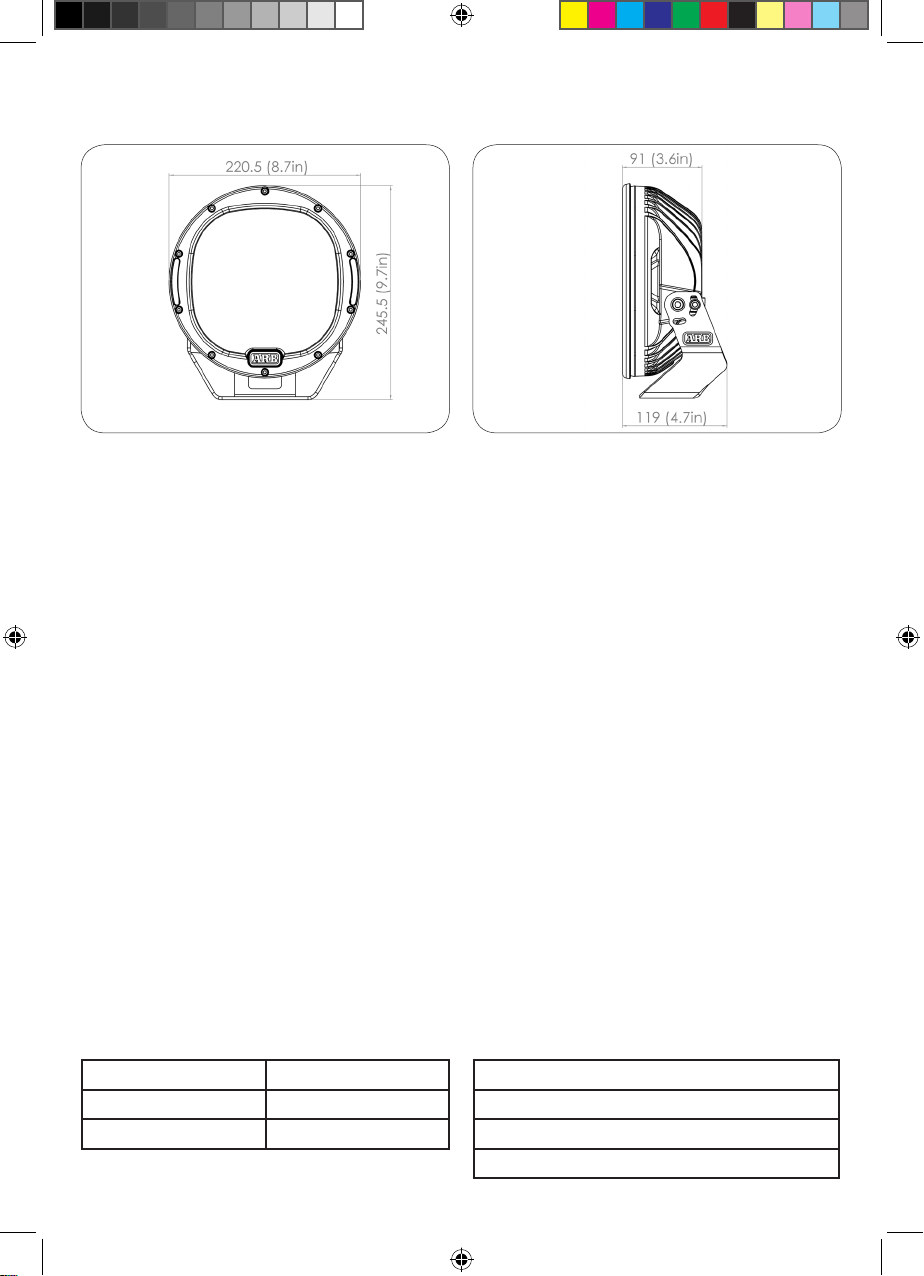

SPECIFICATIONS
• High pressure cast A360 aluminium body.
• Unbreakable polycarbonate lens.
• UV stable moulded polycarbonate lens
cover.
• Multiple position stainless steel mount.
• Durable UV Stable polyester powder coat
• Goretex® breather.
• IP68 Certied.
•Deutsch DTP-06 waterproof connectors.
• MIL810-STDG vibration certied
• RoHS compliant.
• 10-36V DC input.
•Power draw- 165 W
•Amp @ 14.4V- 11.5A
• 32 LED’s.
•Raw Lumens- 20000
•Colour temperature: 5700 Kelvin
•Lux @ 10m (33Ft) – 6319 (spot) 4579 (flood).
•7.5° full width flood.
•6° full width spot.
• Over/under voltage protection.
• 50,000+ Hour LED life span
• Zero UV emissions
• Operating temp: -40°C to +63°C
-40°F to +145°F
• Protected against RFI/EMC interferance
• Integrated thermal management.
• Weight 3.1Kg / 6.8Lb complete.
CARE AND MAINTENANCE
• There are no user serviceable components within this light - DO NOT disassemble.
• Clean with warm soapy water and a sponge or soft brush. DO NOT use solvents, scourers or
hard bristle brushes.
• Remove the clear cover periodically to clean the light lens.
• Ensure all electrical connectors and wiring loom are secured away from sharp edges.
• Regularly check all mounting and adjusting bolts to ensure they are secure & torqued.
• If your light requires further service or repair, return it to your local ARB distributor.
TORQUE SETTINGS
6mm Torx® bolt 9 Nm / 80 Lb-In
8mm cap screw 22 Nm / 195 Lb-In
12mm mounting bolt 77 Nm / 57 Lb-Ft
SUPPLIED PARTS
1 X Light Body (Spot or Spread)
1 x Clear Cover
1 x Mounting Bracket
1 x mounting hardware kit
Intensity LED.indd 2 23/10/12 4:44 PM

INSTALLATION
UPRIGHT

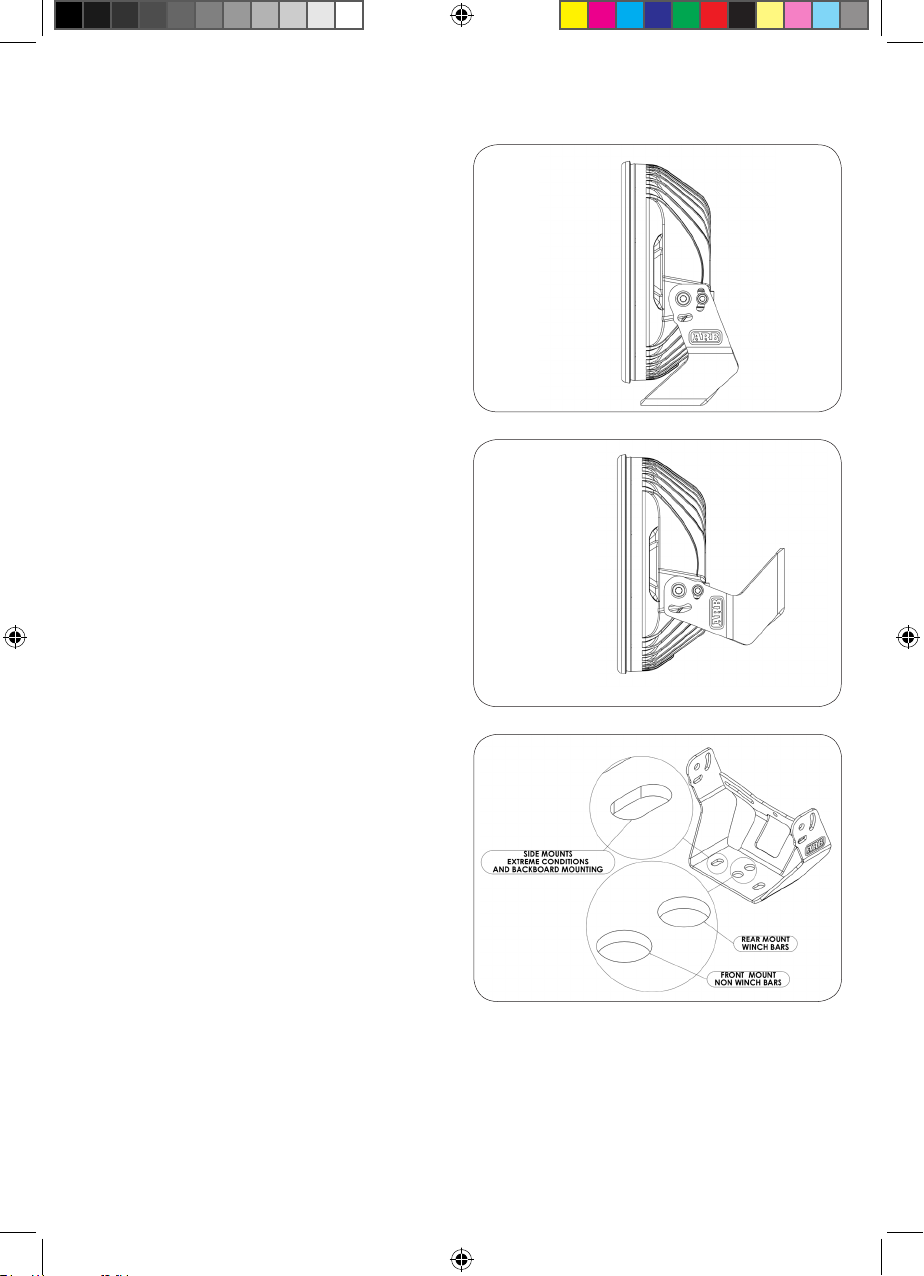

Orientate the mounting bracket as per the
image at right and attach to the light body
using M8 cap screw & M6 tamper proof Torx®
bolts.
Attach the light to the bull bar using the
M12x1.75 mounting hardware.
NOTE: Leave bolts loose until placed on
vehicle.
HORIZONTAL
Orientate the mounting bracket as per the
image at right and attach to the light body
using M8 cap screw & M6 tamper proof Torx®
bolts.
Attach the light to the mounting surface using
the M12x1.75 mounting hardware.
NOTE: Ensure mounting surface has
sufcient strength or use a suitable
backing plate. Leave bolts loose until placed
on vehicle.
ADJUSTMENT
Horizontal adjustment is gained by rotating
the light body to the desired position and
tightening the main M12 mounting bolt. Two
side slots allow pinning of the light for use
in constant rough conditions (see picture at
right. Requires drilling of the mounting surface
and tment of suitable bolts)
Note: Horizontal adjustment not applicable
when mounted on vertical surface.
Vertical adjustment is gained by tilting the light
body up or down and tightening the security
Torx® bolt with the key wrench supplied. The
WIRING
ARB recommends the use of the ARB Driving Light Loom P/No 3500480. Designed
specifically for the ARB Intensity LED driving lights this loom features high powered
connectors and is preassembled for ease of fitment.
Intensity LED.indd 3 23/10/12 4:44 PM
