ARC AOF6S User manual

INSTRUCTION MANUAL
AOF6S

1
DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely efficient.After reading the instruction
manual,operating the oven will be easy.
Before being packaged and leaving the manufacturer,the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance,please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for housedhold use only.
The manufacturer reserves the right to introduce changes which do not affect
the operation of the appliance.
1.WARNING: The appliance and its accessible parts become hot during use. Care should be taken
to avoid touching heating elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
2.This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
3.During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
4.WARNING: Accessible parts may become hot during use. Young children should be kept away.
5.Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.

2
TABLE OF CONTENTS
Safety instructions 3
Description of the appliance...... ...........7
Installation.........................................9
Operation..........................................11
Cleaning and maintenance..............................18
Baking in the oven-practical hints........................19
Techincal data......................................24
....................................
............

3
SAFETY INSTRUCTIONS
NOTE;
Ensure there is a grounded socket nearby(behind the unit)
A dedicated power circuit is recommended for the unit but not required.Additional electrical
appliances on the same circuit may exceed the current(amperage)rating for that circuit.If after
the installation of your unit.the circuit breaker trips or the fuse fails on a repeated basis,then
a dedicated circuit will likely be required.
!The appliance must be installed only by a qualified person in compliance with the
instructions provided.Incorrect installation may cause harm to persons,animals or may
damage property.
The manufacturer declines all responsibility for improper
installation which may harm persons and animals and damage property.
Important:The power supply to the appliance must be cut off before any adjustments or
maintenance work is done on it.
WARNING:
When using this product,basic precautions should always be taken,including the following:
Your built-in oven is a classified electrical appliance.As with any electrical appliance and
particularly with electric heaters,basic precautions must be followed in order to reduce the risk
of fire,burns,electrical shocks and/or other serious injuries or death.
! The appliance becomes hot during operation.Take care not to touch the hot parts inside
the oven.
! This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
While in operation direct contact with the cooker may cause burns!
! Ensure that small items of household equipment,including connection leads,do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
! Do not leave the cooker unattended when frying.Oils and fats may catch fire due to
overheating or boiling over.
Do not put pans weighing over 15 Kg on the opened door of the oven and pans over 25
kg on the hob.
! Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface,which could then result in the glass cracking.
! Do not use the cooker in the event of a technical fault.Any faults must be fixed by an
appropriately qualified and authorised person.
! In the event of any incident caused by a technical fault,disconnect the power and report
the fault to the service centre to be repaired.
! The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
! The cooker should not be cleaned using steam cleaning equipment.

4
SAFETY INSTRUCTIONS
!
!
!
!
!
!
!
!
!
!
!
!
!
The panels adjacent to the oven must be made of heat-resistant material.
!Cabinets with a veneer exterior must be assembled with glues which can withstand temp-
erature of up to 100℃.
Keep combustible materials,such as:curtans,drapes,furniture,pillows,clothing,linens,bedding,
paper,etc.,at least 3 feet(0.9 meters)from the front sides and rear of the heater.Do not use
this unit in areas where gasoline,paint or other flammable liquids or their associated vapors
may be present.
To reduce the risk of fire,do not place or install this unit in areas where the ventilation or
circulation ducts may become blocked.
The unit's power cord must be connected to a properly grounded and protected,220-240V
electrical outlet.Always use ground fault protection where required by the electrical code.To
redece the risk of fire,avoid running the power cord under rugs,carpets,etc.Keep the power
cord away from high traffic areas where it may pose a tripping hazard.
Avoid the use of an extension cord,which may overheat and cause a fire.
When transporting or storing the unit,keep it in a dry location,free from dust,excessive
vibration or other factors,which may damage the unit.
Do not operate any oven with a damaged cord or plug or after the heater malfunctions,has
been dropped or danaged in any manner.Return oven to authorized service facility for
examination,electrical or mechanical adjustment,or repaired.
Use this oven only as described in this manual.Any other use not recommended by the
manufacturer may cause fire,electric shock,or injury to persons.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Never add cold water to food on a hot universal tray or baking tray or directly onto food in a hot
oven.The steam created could cause serious burns or scalding and the sudden change in
temperature can damage the enamel.
Do not lift the oven by the handle.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from
the manufacturer or its service agent.
! Care should be taken to avoid touching heating elements inside the oven.
! Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.
! This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
! Children should be supervised to ensure that they do not play with the appliance.
! The appliance is for indoor use only.
! Unplug the appliance from the outlet when not in use and before cleaning.
! Warning - Ensure that the appliance is switched off before replacing the lamp to avoid the
possibility of electric shock.
! After installed, must possible to unplug the appliance.

!Do not open the oven door unnecessarily
often.
5
HOW TO SAVE ENERGY
Using energy in a respon-
sible way not only saves
money but also helps the
environment.So let's save
energy!And this is how you
can do it:
! Switch off the oven in good time and
make use of residual heat.
For long cooking times,switch off oven
This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
! Make use of residual heat from the
oven.
If the cooking time is greater than 40
minutes switch off the oven 10 minutes
before the end time.
Important!When using the timer,set
appropriately shorter cooking times
according to the dish being
prepared.
! Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals.Clean up any spillages immediately.
! Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
cooking,
5 to 10 minutes before finishing

6
UNPACKING DISPOSAL OF THE APPLIANCE
During transportation,protec-
tive packaging was used to
protect the appliance against
any damage.After unpack-
ing,please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly;they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking,the packag-
ing materials(polythene bags,polystyrene
pieces,etc.)should be kept out of reach of
children.
Old appliances should not sim-
ply be disposed of with normal
household waste,but should
be delivered to a collection and
recycling centre for electric and
electronic equipment.A symbol
shown on the product,the
instruction manual or the packaging shows
that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this.By recycling materials or
other parts from used devices you are making
a significant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.
▲
▲

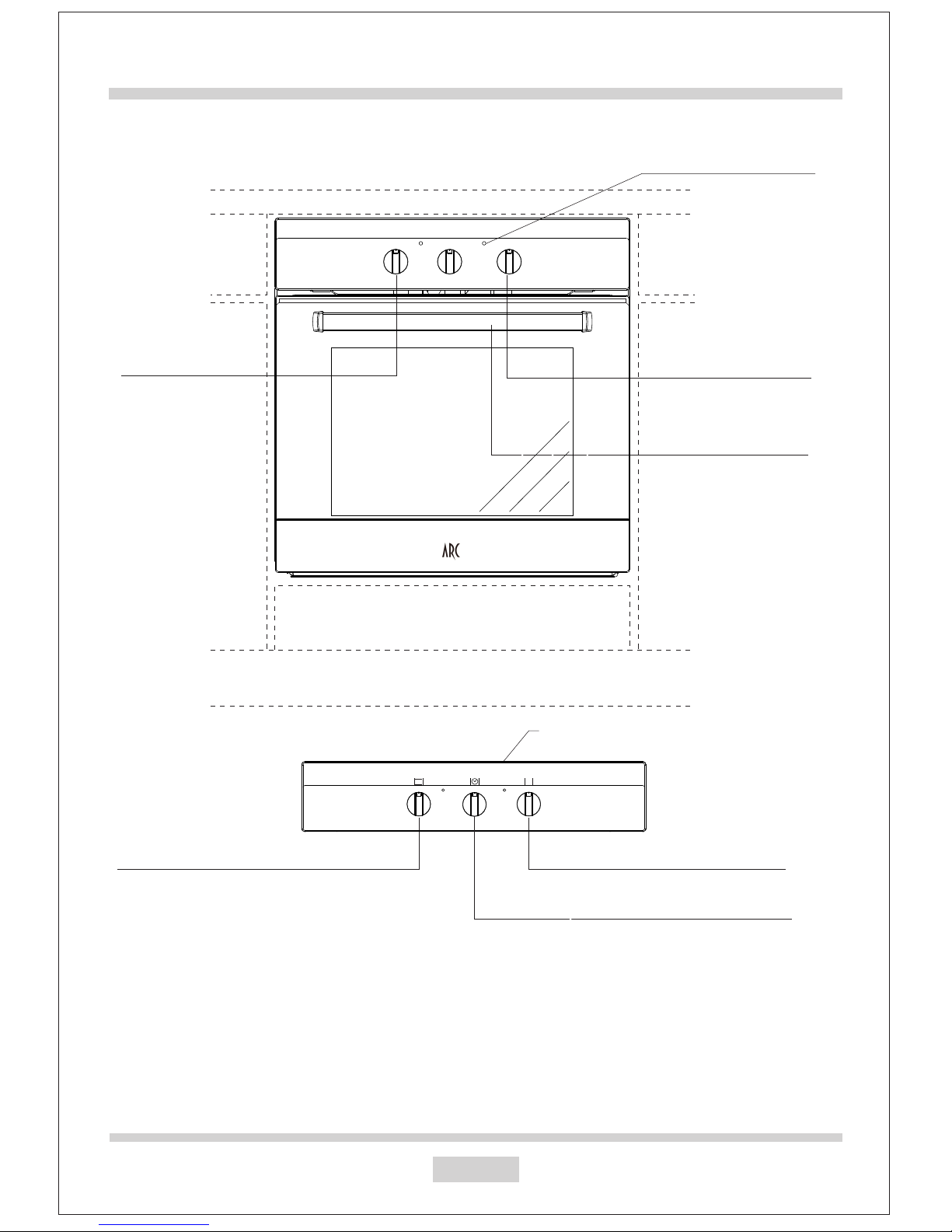

1 Oven function selection knob
7
DESCRIPTION OF THE APPLIANCE
1
3
2
4
2 Temperature control knob
3 Indicator lamp
4 Handle
5
Timer
12
COOKINGTIMECONTROLPANEL
oc
5

8
SPECIFICATIONS OF THE APPLIANCE
*optional
Baking tray
G rill rack
2

9
INSTALLATION
!The kitchen area should be dry and aired
and equipped with efficient ventillation.
When installing the oven,easy access to
all control elements should be ensured.
!This is a built-in oven, and its back wall
and one side wall can be placed next to a
high piece of furniture or a wall.Coating
or veneer used on fitted furniture must be
applied with a heat-resistant adhesive
(100℃).This prevents surface deforma-
tion or detachment of the coating.
! Make an opening with the dimensions
given in the diagram for the oven to be
fitted.
!Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
!Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
590-595
600
560
560
40
Product Dimensions Aperture Dimensions
Height: 595 mm 590 mm – 595 mm
Width: 595 mm 560 mm
Depth: 575 mm 560 mm (min)

10
1
2
INSTALLATION
Electrical connection
Warning!
All electrical work should be carried out by a
suitably qualified and authorised electrician.
No alterations or wilful changes in the electric-
ity supply should be carried out.
Fitting guidelines
The oven is manufactured to work with
three-phase alternating current (220V-
240V/50Hz).The connection diagram is also
found on the cover of the connection box.
Remem-ber that the connection wire should
match the connection type and the power
rating of the oven.
The connection cable must be secured in a
strain-relief clamp.
Warning!
Remember to connect the safety circuit to the
connection box terminal marked with .The
electricity supply for the oven must have a
safety switch which enables the power to be
cut off in case of emergency.The distance
between the working contacts of the safety
switch must be at least 3 mm.
Before connecting the oven to the power
supply it is important to read the informa-
tion on the data plate and the connection
diagram.
CONNECTION DIAGRAM
Caution!Voltage of heating elements 220V～240V
PE terminal
For 220V-240V earthed one-phase
connection ,L (Brown wire)connect
to 3 and N(blue wire) to 5,
safety wire (Yellow-green)to
L

Important!
The inside of the oven should only be washed
with warm water and a small amount of wash-
ing-up liquid.
!Heat the oven (to a temperature of 250℃,
for approx,30 min.),remove any stains and
wash carefully
!Take out and wash the oven fittings with
warm water and a little washing-up liquid.
!Remove packaging,clean the interior of the
oven
on the ventilation
Switch in the room or
open a window.
!
11
OPERATION
Before first use

12
OPERATION
Oven functions and operation.
Natural convection oven
(conventional)
The oven can be heated up using the bot-
tom and top heaters.The oven is controlled
by one knob handling,serving as a work
type switch integrated with a temperature
regulator.
Note
On and off
In order to switch on the oven you need to:
!Set required working conditions of the
oven,its temperature and a mode of
heating.
!Set the knob to the required position,turn-
ing it right.
▲
0
20
40
60
80
100
120
Using the minute minder
The minute minder can be used independently
of an oven cooking function for a time period
of up to 120 minutes.
To set the timer, turn the knob fully clockwise
until it stops and then turn it back
anticlockwise to the required time.
The time period that has been set will expire
when the control knob reaches zero, a brief
audible signal will sound.

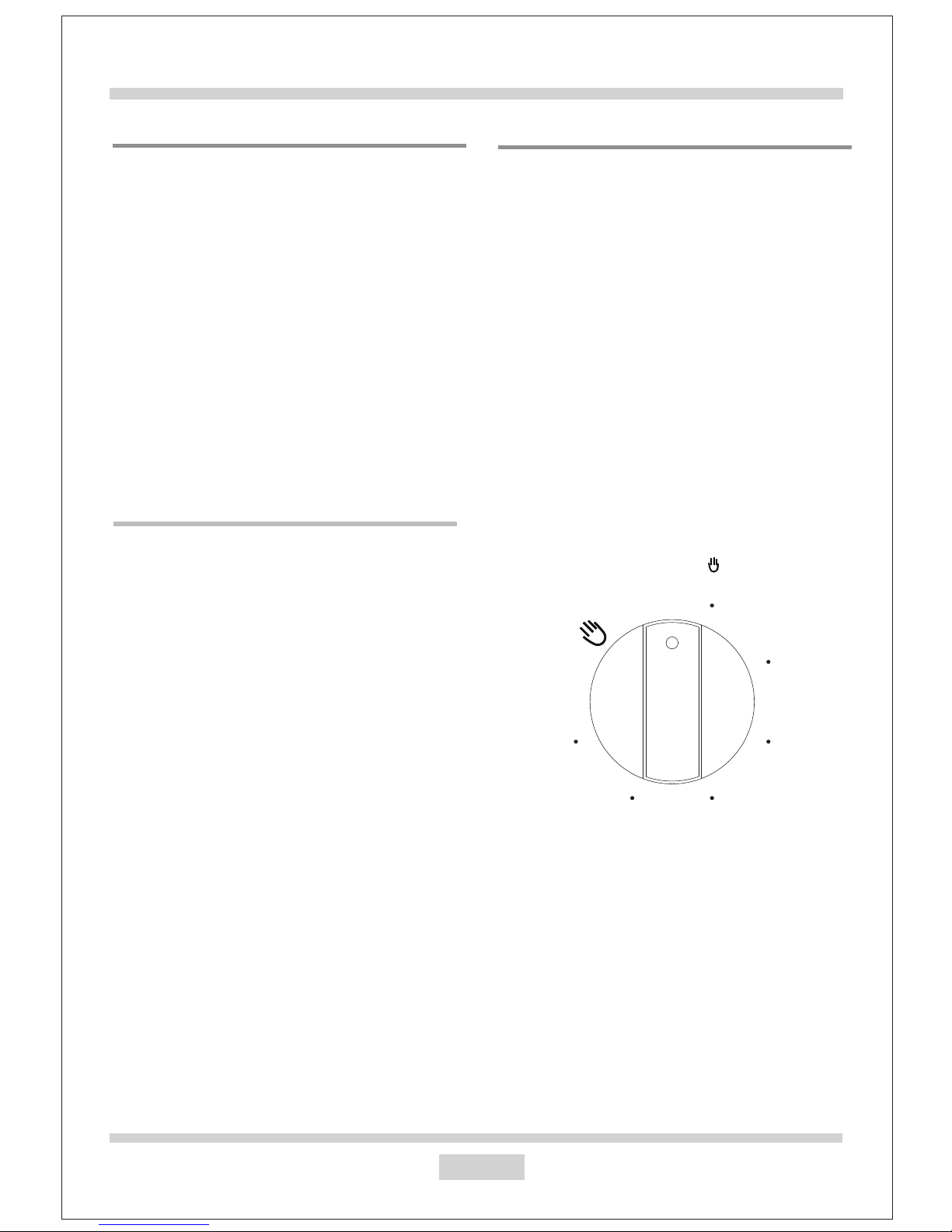

Selecting manual operation mode
Before you can select a cooking function
or set a temperature, you must set the
appliance into manual operation mode.
Turn the manual operation control knob
anti-clockwise, so that it points at the
manual operation symbol.
This manual is a generic manual that covers
other models sold in different countries, some
of the references throughout the manual may
not relate to your oven.

13
OPERATION
Oven with automatic air circulation
(including fan)
The oven can be warmed up using the fan
forced, fan grilling or the grill only functions
of the oven is controlled by the oven function
knob-to set a required function you should
turn the knob to the selected position.
as well as the temperature regulator knob
-to set a required function you should turn
the knob to the selected position.
The oven can be switched off by setting both
of these knobs to the position “●”/”○”.
Caution！
When selecting any heating func-
tion (switching a heater on etc.) the
over will only be switched on after
the temperature has been set by the
temperature regulator knob.
Possible settings of the oven function
knob
Separate oven lighting
By setting the knob to this posi-
tion the lighting inside the oven is
switched on, e.g. use when washing
the oven chamber.
Caution!
At this oven function knob position,
when setting the temperature regula-
tor to a position other than zero,the
red light may go on,although the oven
is not being warmed up.
0
0
50
0
10
150
2 00
250
Grill with fan On
Excellent combination for cooki-
ng spitroasted chicken,game and
a variety of roasts.
Grill heater on
Setting the knob to this position
allows dishes to be grilled on
the grate.
Switching on the oven is indicated by two
signal lights,yellow and red,turning on.The
yellow light tutned on means the oven is work-
ing.If the red light goes out,it means the oven
has reached the set temperature.If a recipe
recommends placing dishes in a warmed-up
oven,this should be not done before the red
light goes out for the first time.When baking,
the red light will temporarily come on and go
out(to maintain the temperature inside the
oven).The yellow signal light may also turn
on at the knob postion of "oven chamber
lighting".
Central element with fan On
This cooking mode allows homogen-
ous distribution of the heat inside the
oven,making it possible to cook sev-
eral items of food at the same time.

14
OPERATION
Fast oven heat-up
In ovens with automatic air circulation,
equipped with a fan and an ultra-fan heater,
the fast heat-up function may be used-the
oven will reach a temperature of 150℃within
approximately 4 minutes.
The grilling process operates through infrared
rays emitted onto the dish by the incandes-
cent grill heater.
Mode of operation:
!set the oven function to the position of
ultra-fan and bottom heater,
!set the temperature regulator knob to the
position of 150℃,
!the oven warms up to the temperature of
150℃(or lower if set);the oven reaching
the temperature is signalled by the red
light of the temperature regulator going
off,
!now put the tray with dough into the
oven,
!set the oven function knob to the selected
heating mode,(see the chapter Baking in
the oven-practical hints).
Important!
When the fast oven heat-up func-
tion has been selected, the chamber
should not contain a baking tray with
dough or other elements that do not
constitute the oven fittings.
The fast heat-up function is not recom-
mended for use with the programmer
set.
Use of the grill
In order to switch on the grill you need to:
!set the oven knob to the position marked
with
!heat the oven for approximately 5 minutes
(with the oven door shut).
!insert a tray with a dish onto the appropri-
ate cooking level ,and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
!the oven door shut.
For grilling and combined grill the
temperature must be set to 250℃,
but for the grill function with fan
it must be set to a maximum of 200℃.
Caution!
The grill should be used with the oven
door shut.
When the grill is in use ,accessible
parts can become hot.
It is recommended to keep children
away from the oven.

15
CLEANING AND MAINTENANCE
*optional
Replacement of the oven light bulb
In order to avoid the possibility of an
electric shock ensure that the appliance is
switched off before replacing the bulb.
!Set all control knobs to the position”●”/”0”
and disconnect the mains plug,
!unscrew and wash the lamp cover and
then wipe it dry.
!unscrew the light bulb from the socket,
replace the bulb with a new one-a high
temperature bulb (300℃)with the follow-
ing parameters:
-voltage230 V
-power 25 W
-thread E14.
!Screw the bulb in , making sure it is prop-
erly inserted into the ceramic socket.
!Screw in the lamp cover.

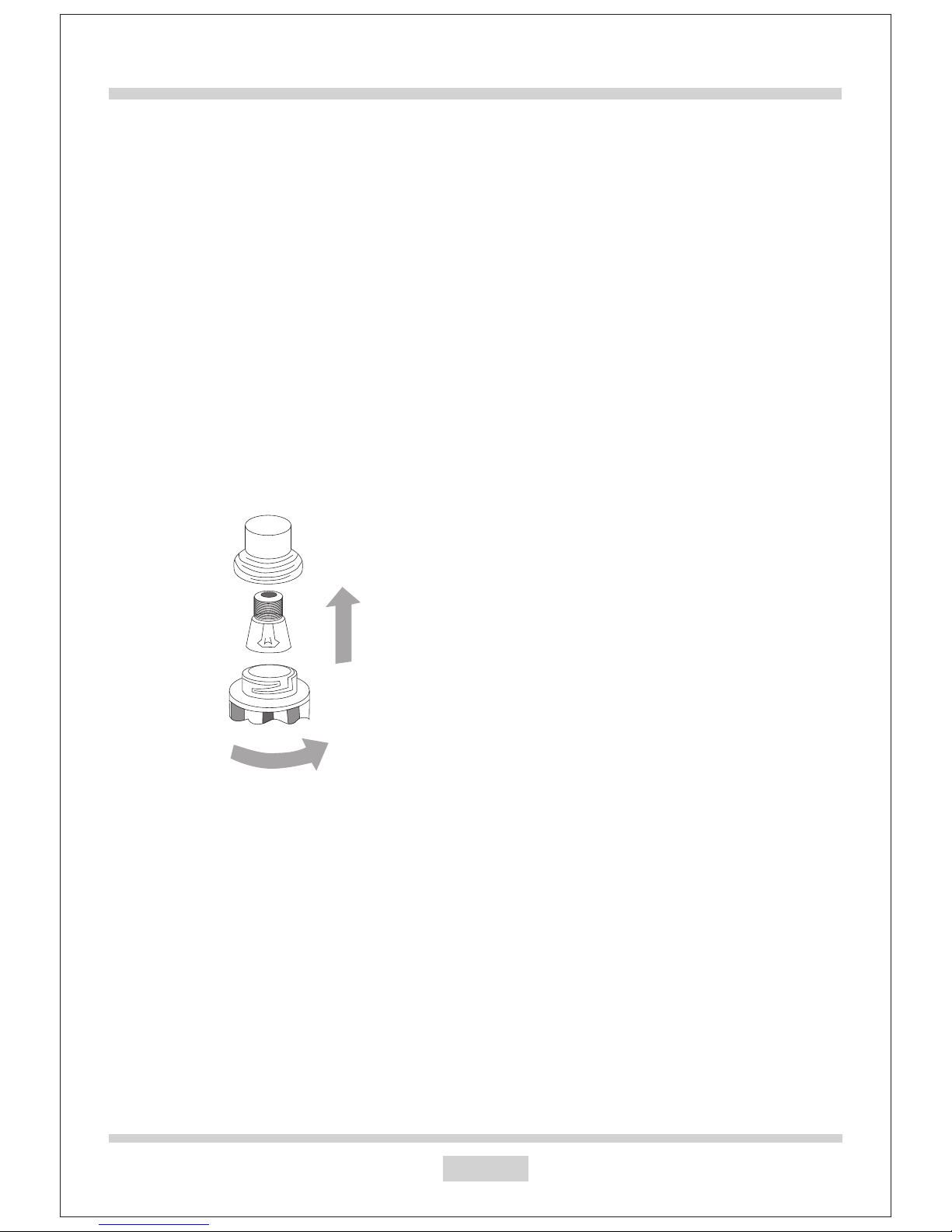

Oven light bulb

Before you start cleaning ,the cooker must
be switched off and you should ensure
that all knobs are set to the “●”/”0”posi-
tion. Do not start cleaning until the cooker
has completely cooled.
By ensuring proper cleaning and mainte-
nance of your cooker you can have a sig-
nificant influence on the continuing fault-free
operation of your appliance.
Oven
!The oven should be cleaned after every
use. When cleaning the oven the lighting
should be switched on to enable you to
see the surfaces better.
!The oven chamber should only be washed
With warm water and small amount of
washing-up liquid.
!After cleaning the oven chamber wipe it
dry.
*optional
16
CLEANING AND MAINTENANCE
Caution!
Do not use cleaning products contain-
ing abrasive materials for the cleaning
and maintenance of the glass front
panel.
!steam cleaning﹡:
-pour 250ml of water(1 glass)into a bowl
placed in the oven on the first level from
the bottom,
-close the oven door,
-set the temperature knob to 50℃,and
the function knob to the bottom heater
position,
-heat the oven chamber for approximately
30 minutes,
-open the oven door, wipe the chamber
inside with a cloth or sponge and wash us-
ing warm water with washing-up liquid.
Caution! Possible moisture or water
residues under the cooker can result from
steam cleaning.
!After cleaning the oven chamber wipe it
dry.

17
OPERATION IN CASE OF EMERGENCY
In the event of an emergency, you should:
!switch off all working units of the cooker
!disconnect the mains plug
!call the service centre
!Some minor faults can be fixed by referring to the instructions given in the table
below. Before calling the customer support centre or the service centre check the
following points that are presented in the table.
PROBLEM REASON ACTION
The appliance does not
work. break in power supply check the household fuse
box,if there is a blown fuse
replace it with a new one
The oven lighting does not
work the bulb is loose or dama-
ged
tighten up or replace the
blown bulb (see chapter
Cleaning and Maintenance)

18
CLEANING AND MAINTENANCE
▲
▲

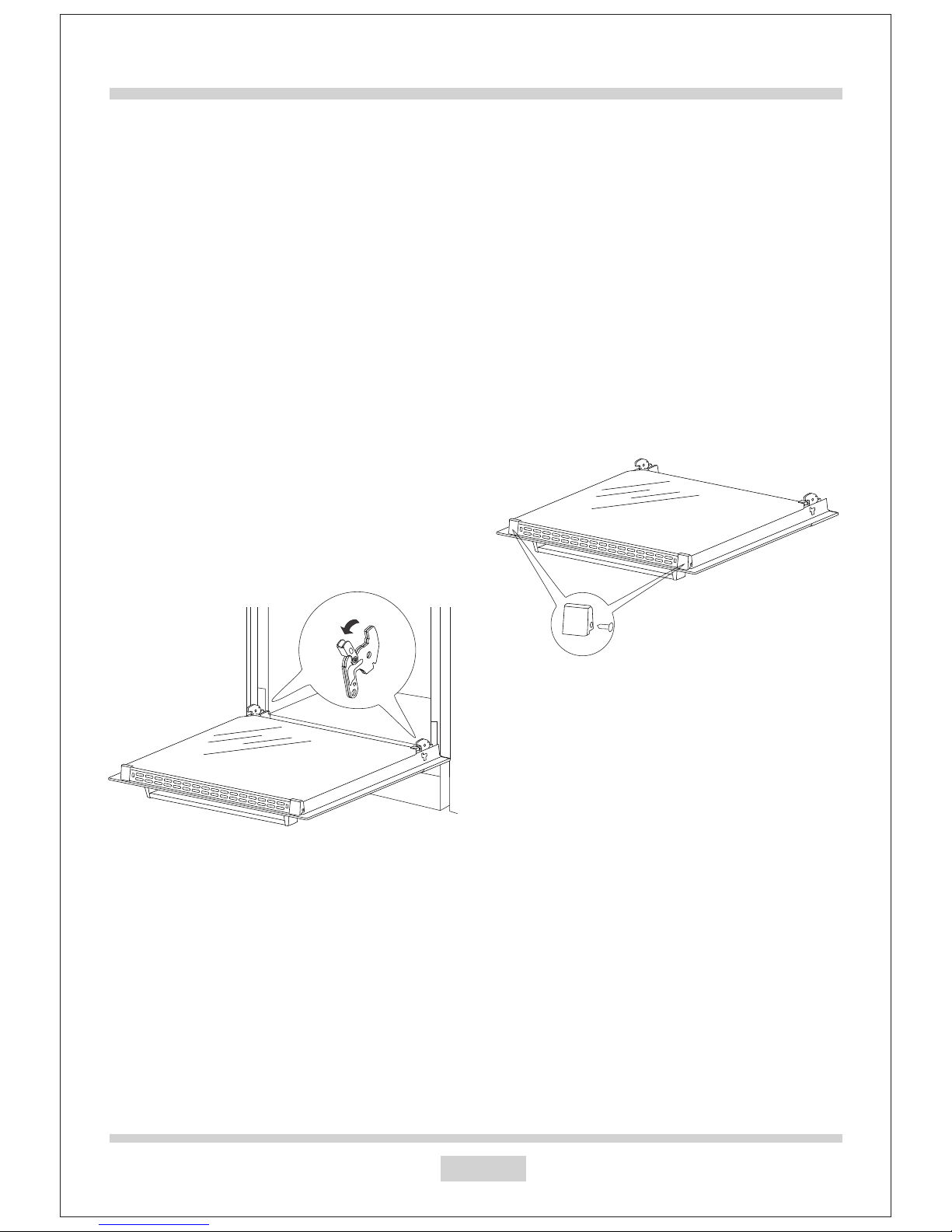

Door removal
In order to obtain easier access to the oven
chamber for cleaning , it is possible to remove
the door, To do this ,tilt the safety catch part of
the hinge upwards. Close the door lightly, lift
and pull it out towards you. In order to fit the
door back on to the cooker, do the inverse.
When fitting ,ensure that the notch of the
hinge is correctly placed on the protrusion
of the hinge holder. After the door is fitted to
the oven ,the safety catch should be carefully
lowered down again. If the safety catch is not
set it may cause damage to the hinge when
closing the door.
Door removal
Removal of the internal glass
panel
Unscrew and unfasten the plastic latch that
is in the corner at the top of the door .Next
take out the glass from the second blocking
mechanism and remove. After cleaning, insert
and block the glass panel, and screw in the
blocking mechanism.
Removal of the intemal glass panel

19
BAKING IN THE OVEN-PRACTICAL HINTS
TABLE 1: Cakes
Oven functions: cake (bottom and top heaters + fan)
BAKING TYPE TEMPERATURE
[℃]
BAKING TIME
[min]
Baking in cake tins
Meringues
Victoria sponge
Teacake
Layer cake
80
150
150
150
60-70
65-70
60-70
25-35
Baking on the trays provided with the cooker
Yeast cake
Crumble cake
Fruit cake
Sponge cake
150
150
150
150
40-45
30-45
40-55
30-40
Caution!
When using the cake function of the oven it is necessary to initially heat up
the oven chamber, Using the third level from the bottom is recommended
for baking.
Roasting meat
! cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the gas burners.
! use heatproof ovenware for roasting with handles that are also resistant to high
temperatures;
! when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
! It is advisable to turn the meat over at least once during the roasting time and during
roasting you should also baste the meat with its juices or with hot salty water-do
not pour cold water over the meat.
▲
