Argonaut Ranger 1560 User manual

U
Us se er r’ ’s s M Ma an nu ua al l

Table of Contents
ii
Table of Contents
CHAPTER 1 ...........................................................................................................1
INTRODUCTION ................................................................................. 1
Getting Started ...........................................................................................2
Inventory.....................................................................................................3
Safety and Maintenance .............................................................................4
Checklists ...................................................................................................5
Features......................................................................................................6
Where to Look For Information .................................................................6
Quick Start..................................................................................................7
Loading Windows.......................................................................................8
Adjusting the Volume..................................................................................9
Adjusting the Brightness.............................................................................9

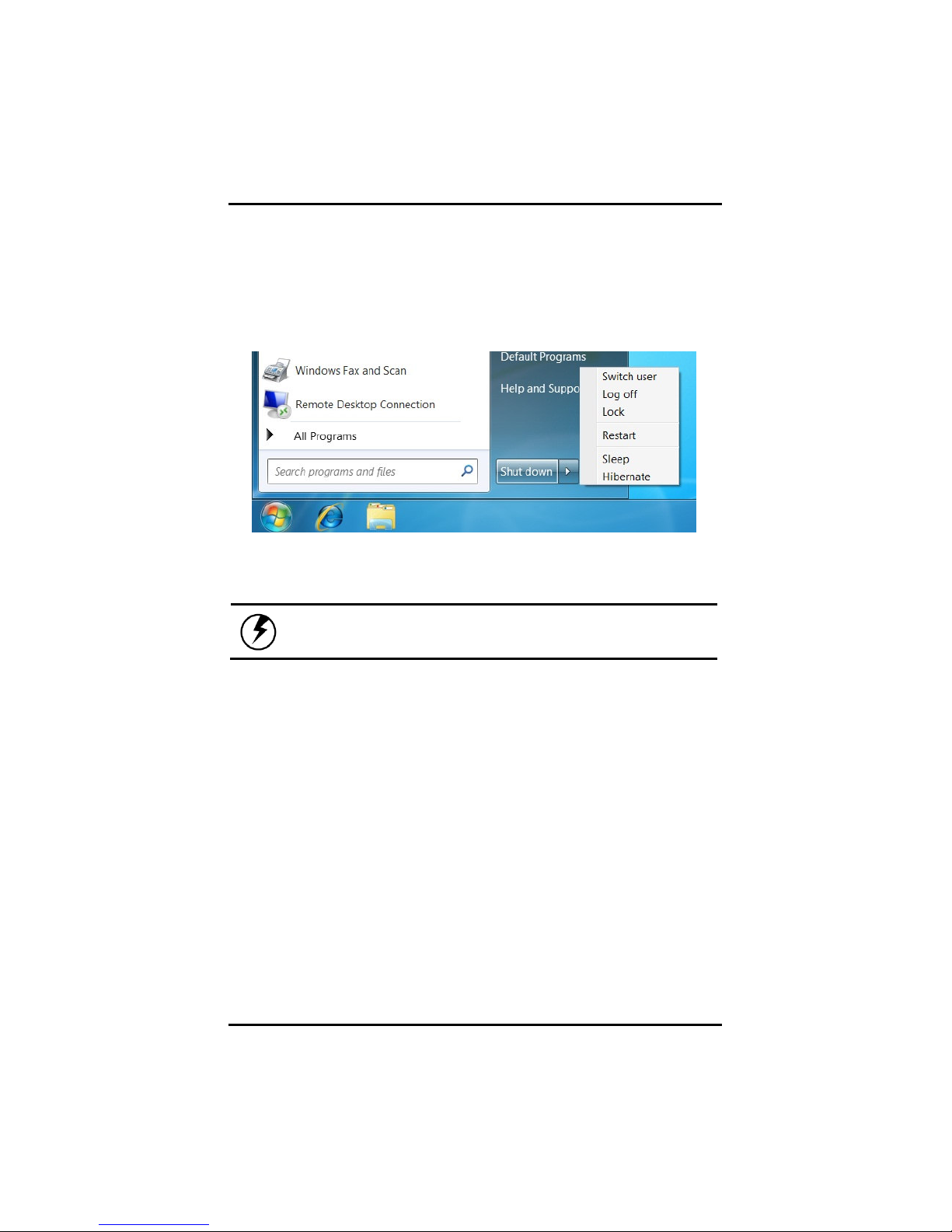

Turning off Your Computer ...................................................................... 10
Making a Startup Disk..............................................................................10
Tips for New Owners................................................................................11
CHAPTER 2 ......................................................................................................... 13
GETTING STARTED .......................................................................... 13
Hardware and Software ........................................................................... 14

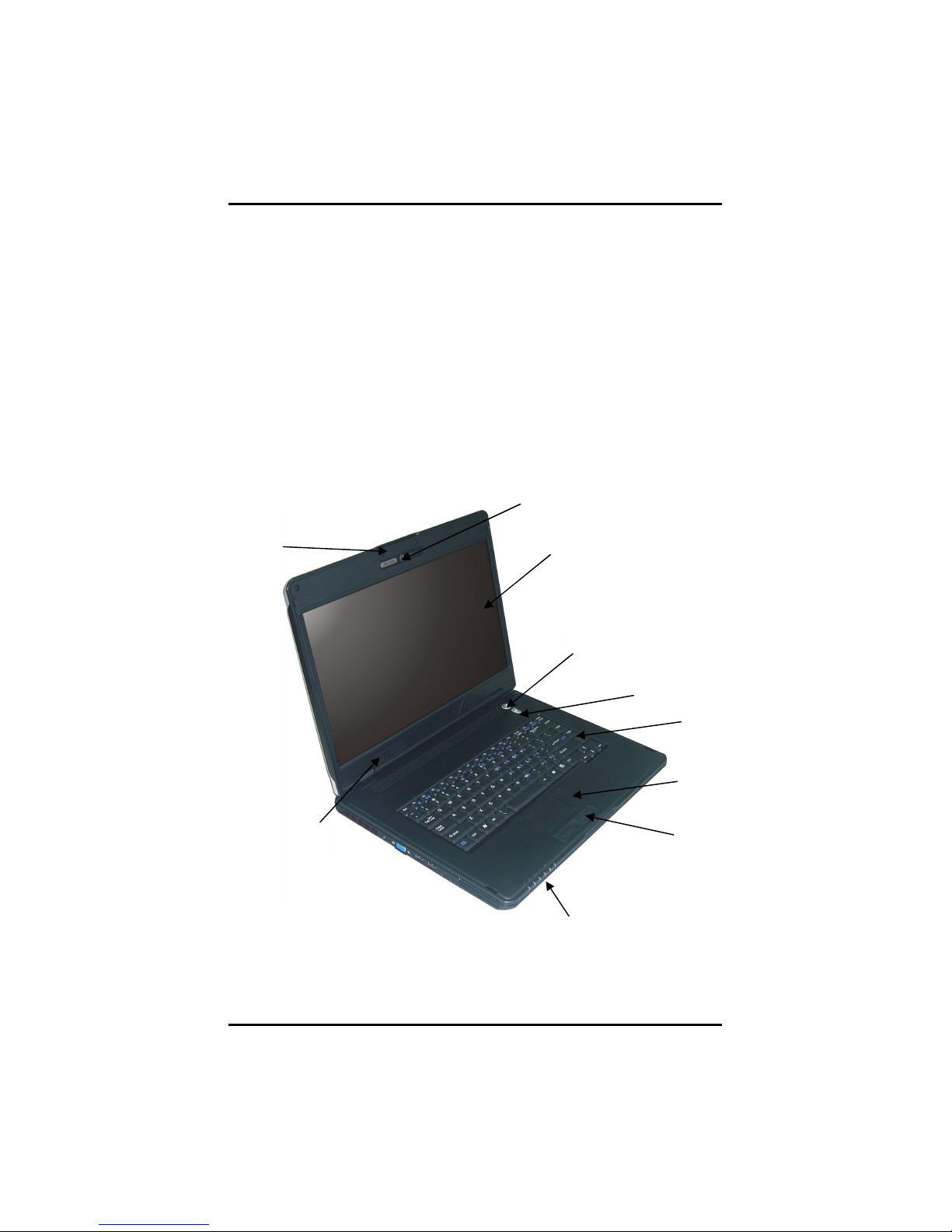

Front View................................................................................................15
Front View................................................................................................16
Right View ................................................................................................ 16
Left View...................................................................................................17
Bottom View .............................................................................................18
LED Status Indicators ..............................................................................19
Power Indicators ......................................................................................20
Function Keys...........................................................................................20
Touchpad..................................................................................................21
The Optical Drive.....................................................................................23
Connecting the Printer .............................................................................25
The Express Card Slot .............................................................................. 25
The Graphics System ................................................................................26
Communication Components....................................................................29
Information about the Wireless LAN button.............................................31
CHAPTER 3 ......................................................................................................... 34
MAKING CONNECTIONS ................................................................... 34
Making Connections................................................................................. 35
Front Side Connectors..............................................................................35
Left Side Connectors ................................................................................36

Table of Contents
ii
Right Side Connectors ..............................................................................37
CHAPTER 4 ......................................................................................................... 39
POWER MANAGEMENT .................................................................... 39
Power Management..................................................................................40
Monitoring Battery Power........................................................................ 41
Power Saving Modes ................................................................................ 42
Power Saving Tips....................................................................................43
When to Replace the Battery ....................................................................44
Heat Considerations................................................................................. 45
CHAPTER 5 ......................................................................................................... 46
USING THE BIOS SETUP UTILITY ............................................. 46
Using the BIOS Setup Utility ....................................................................47
APPENDIX A........................................................................................................ 55
INSTANT RECOVERY SOFTWARE ...................................................... 55
APPENDIX B........................................................................................................ 60
FAQ &STATEMENT ........................................................................ 60
Frequently Asked Questions ..................................................................... 61
Statements................................................................................................. 64
European Notice.......................................................................................66
SAFETY CAUTION ..................................................................................67
Canadian Department of Communications .............................................. 68
Battery Disposal....................................................................................... 69
CAUTION FOR ADAPTER...................................................................... 69
BATTERY CAUTION ...............................................................................69
CLASS 1 LASER PRODUCT....................................................................69

C
Ch ha ap pt te er r 1 1
I
In nt tr ro od du uc ct ti io on n

Chapter 1
2
Getting Started
Congratulations on your purchase of the Notebook computer! Your
new notebook features the most innovative advances in portable
computing technology. It combines state-of-the-art ergonomics with
sophisticated architecture to provide you with a personal computer that
is compact, powerful, and easy to use. Designed for a wide range of
general, business, and personal productivity applications, the
notebook is an ideal choice for use in the office, at home, and on the
road.
For maximum expandability without compromising portability, the
notebook accommodates a number of modules, including Optical
Drive, three USB ports, one Express card and one 4 in 1 card slot. The
high capacity hard disk drive provides you with plenty of storage space
for multimedia files and applications.
This Manual contains all the information you need to set up and use
your new notebook. It describes all the features of the notebook in an
easy-to-read yet thorough manner.

Chapter 1
3
Inventory
This computer system is designed for years of productive and
pleasurable computing. Use this section to keep details of your
purchase. This information will be required should you need to make
repairs to your notebook during the warranty period. Update this
section when you add new options.
DATE OF PURCHASE:
PLACE OF PURCHASE:
DEALER'S NAME:
DEALER'S ADDRESS:
TELEPHONE:
E-MAIL ADDRESS/WWW:
CONTACT PERSON:
MODEL NUMBER:
SERIAL NUMBER:
BIOS VERSION:
The serial number is on the label (with a bar code) on the bottom side
of the computer. The BIOS revision number will appear briefly on the
screen after turning on the computer, before the graphic BIOS screen
appears. Press the Del key to enter BIOS setup screen.

Chapter 1
4
Safety and Maintenance
You can use your computer under a wide range of environmental
conditions. However, to ensure long use and continued high
performance, consider the following factors when setting up your
computer:
•Follow all warnings and instructions noted in this documentation
and in the Windows Help program.
•The first time you use your computer, we recommend that you
carefully read the Making Connections section of this manual
and initialize the battery to ensure optimum battery performance.
•Unplug the computer from the power outlet before cleaning. Use
a damp cloth for cleaning. Do not use aerosols, solvents, or
strong detergents.
•Do not use the computer near open water or other liquids. Never
spill liquid onto the computer.
•Do not place the computer in an unstable location where it might
slip or be knocked over. Serious damage could result from a fall.
•Slots and openings in the system cabinet are for ventilation
purposes. Do not block or cover these openings or the system
could overheat. Do not use or store the computer near a source
of heat or dust.
•On the base or rear panel of this notebook, there is a label with
information on the power requirements of this system. These
requirements must be followed. If you are unsure of your local
power supply, consult your dealer or local Power Company.
•Do not step on or place anything on the power cord.
•If you use the computer with an extension cord, ensure that the
total ampere ratings of all the devices sharing the extension do
not exceed the rating of the extension cord or the rating of the
wall outlet.
•Never push foreign objects into the computer through any of the
slots or openings. Dangerous voltages are present, which could
cause electric shock or fire, or damage sensitive components.
•For best results, use a power strip with a built-in surge protector.
Do not use inferior extension cords as this may result in damage
to your computer.

Chapter 1
5
•Set the computer on a flat, stable surface. To prevent damage to
the computer’s hard disk drive, avoid using the computer where
it will be exposed to strong vibration.
Checklists
After opening the package, carefully inspect the contents. If any of the
items is missing or appear damaged, contact your dealer. The
shipping carton should contain the following:
STANDARD
A notebook computer with a hard disk drive
An internal battery
An Optical drive
An AC adapter with power cord
OPTIONS
The following items are normally optional, but some vendors may
include them in the standard package. Some items may not be
available in some countries, or some vendors may choose not to carry
all the items.
2GB or 4GB DDRIII SODIMM memory cards
CAUTION:
When purchasing any of the accessories listed above, purchase
only those accessories that are approved for use with your
computer. The above accessories are proprietary items. Your
system vendor can obtain these approved accessories. If you
use items that are not approved for use with this computer, you
may cause your computer to malfunction, or to emit or receive
electro-magnetic radiation in excess of local regulations. For
non-proprietary accessories such as PC cards or printers,
ensure that the accessory functions properly in your computer
before making the purchase. Your system vendor may be able to
recommend reliable brands and models.

Chapter 1
6
Features
High Capacity Hard Disk Drive
The computer has a high capacity hard disk drive, to store your favorite
programs and large multimedia files.
Built-in Modem/LAN Capability
A built-in 56k modem and 10/100/1000 Mbps Ethernet port allows you to
access the Internet or a local area network (LAN).
LCD
Your computer has an easy-to-view LCD panel.
Built-in Stereo Speakers and Microphone
The stereo speakers and internal microphone enable you to run a variety of
multimedia applications.
Convenient Audio Control
The conveniently located audio control knob enables you to easily adjust
the volume to the stereo speakers.
Where to Look For Information
About Your Computer
This User’s Manual describes the key elements of your computer. New
users can find a simple step-by-step orientation in the Quick Start section
of this chapter.
About Windows
Windows Online Help, found on the Start menu, offers extensive Windows
assistance. Tour Windows offers an online orientation for new Windows
users. Find it in:
Start/Programs/Accessories/System Tools.

Chapter 1
7
Quick Start
Turning on the Computer for the First Time

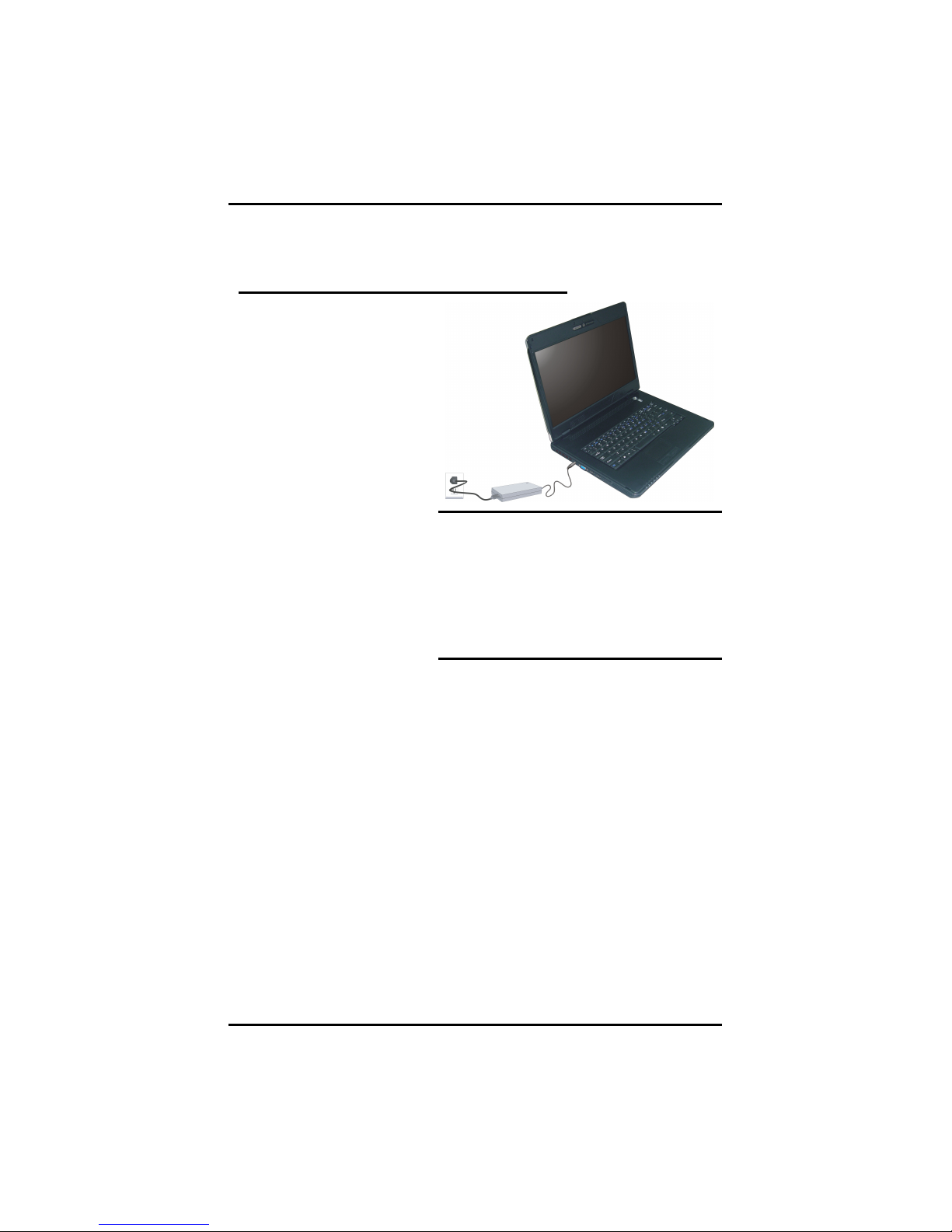

1. Connect the AC adapter
power cord to the AC
adapter.
2. Connect the AC adapter
to the DC power port on
the left side of your
computer.
3. Connect the AC adapter
power cord to an AC
outlet.
4. Slide the cover latch in
the direction of the
arrows to open the LCD.
5. Open the LCD panel to a
comfortable viewing
angle.
6. Press the power button
to turn on the power.
Note: The battery is not fully charged. Allow
your battery to fully charge before using it
(i.e., before disconnecting AC power).
Calibrating the battery before use is also
highly recommended. Refer to Chapter 5,
Power Management, for further information.
Use the touchpad to move the cursor on the screen. Move your finger
across the pad to control the cursor, and press the right and left
buttons beneath with your thumb. These buttons have the same
functions as the right and left buttons of a standard mouse. You can
also click or double-click by tapping on the touchpad.
