USER'S MANUAL
Please read the following instructions carefully before connecting, operating or adjusting this product.
Please keep this manual in a convenient place for future reference.

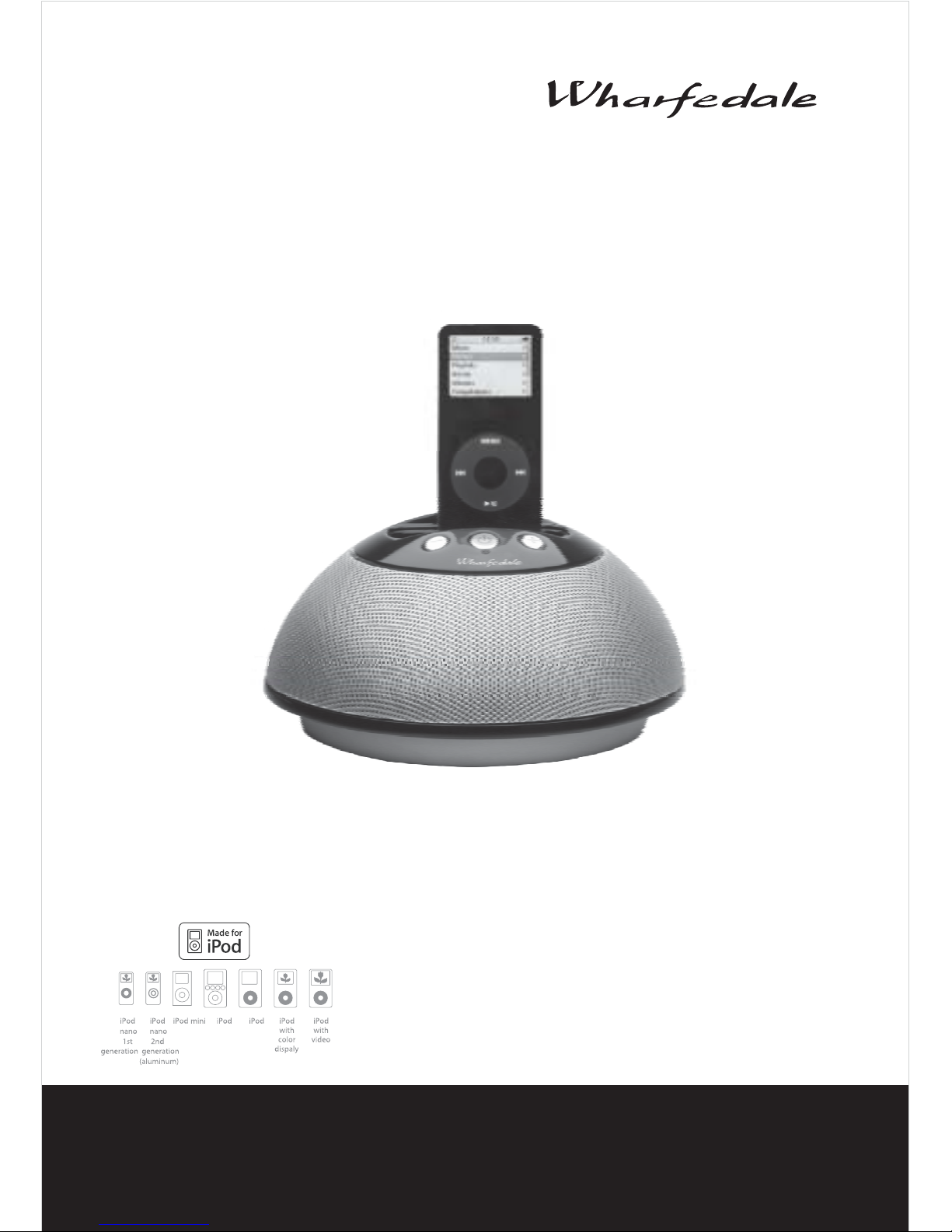

Disc Speaker for iPod

1
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
Contents 1
Important safety instructions 1
What's Included 2
Placing a correct dock insert 3
Connection to power via Power Adapter 3
Connection to power via battery 3
Connection of other audio devices by audio cable 4
Connection to TV to enjoy iPod video output 4
Using the system 4
Troubleshooting 5-6
WARNING:
WARNING:
To reduce the risk of fire or electrical shock, do not expose the product to rain or
moisture.
The apparatus should not be exposed to dripping or splashing, and objects filled
with liquids. Liquids can cause a failure and/or a fire hazard.
The lightning flash with arrowhead symbol, within an equilateral triangle, alerts the user
to the presence of un-insulated dangerous voltage within the system enclosure that may
be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle alerts the user to the presence of
important operating and maintenance instructions in this owner's guide.
WARNING: No naked flame sources, such as lighted candles, should be placed on the
apparatus.
Note: This product is intended to be used only with the power supply provided.
Where the mains plug is used as the disconnect device, such disconnect deviceNote:
shall remain readily operable.
This product must be used in doors, It is neither designed or tested for use outdoors,Note:
in recreation vehicles, or on boats.
WARNING: Keep the battery away from children since batteries are a choke hazard. It
maycauseafireorchemicalburnifmishandled.Donotrecharge,
disassemble, heat above 100 C, or incinerate. Danger of explosion if
battery is incorrectly replaced.
0
GETTING STARTED
USING THE SYSTEM
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority for recycling
advice.

2
1. Read these instructions - for all components before using this product.
2. Keep these instructions - for future reference.
3. Heed all warnings - on the product and in the owner's guide.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture - Do not use this product near a
bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming
pool, or anywhere else that water or moisture are present.
6. Clean only with a dry cloth - Unplug this product from the Electrical socket before
cleaning.
7. Do not block any ventilation openings. Install in accordance with the manufacture's
instructions-To ensure reliable operation of the product and to protect it from
overheating, put the product in a position and location that will not interfere with its
proper ventilation. For example, do not place the product on a bed, sofa, or similar
surface that may block the ventilation openings, Do not put it in a built-in system ,
such as a bookcase or a cabinet that may keep air from flowing through its ventilation
openings.
8. Do not install near any heat sources, such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched, particularly at plugs, and
the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Refer all servicing to qualified service personnel - Do not attempt to service this
product yourself. Opening or removing covers may expose you to dangerous voltages
or other hazards.
12.Donotletobjectsorliquidsentertheproduct-astheymaytouchdangerousvoltage
pointsorshort-outpartsthatcouldresultinafireorelectricshock.
13. See product enclosure for safety related markings.
14. Use proper power sources - Plug the product into a proper power source, as described
in the operating instructions or as marked on the product.
WHAT S INCLUDED'
Thanks for choosing the Music Station. This
is designed specially to work
Wharfedale iPod speaker Wharfedale iPod
speaker with your iPod, providing a high quality audio
performance for your enjoyment. Just listen to it now!
Check the carton for the parts shown in Figure 1.
Universal Dock
Adapters
Video cable and
3.5mm audio cable
Wharfedale iPod speaker
digital music system
User's manual Power Adapter
Figure 1: What's included in the carton
IMPORTANT SAFETY INSTRUCTIONS
USER'S MANUAL
Pleaseread the following instructions carefully before connecting, operating or adjusting this product.
Pleasekeep this manual in a convenient place for future reference.
Disc Speaker for iPod

3
Before enjoying music, please follow the connections step below to set up your system.
Choose a proper insert from No.8,9 or 10(details below) for your iPod model and put the
insert into the dock (Figure 2).Then gently place your iPod into the dock.
Figure2 Placing the correct dock insert into the Wharfedale iPod speaker Universal Well
GETTING STARTED
1. Placing a correct dock insert
Note:
Note:
For older generation iPod, please refer to Apple store for insert purchase.
This docking station only supports iPod model with a dock connector.
NO.
iPod Model
8910
iPod nano (1st and
2nd Generation)
iPod with Video
(30GB)
iPod with Video
(60GB & 80GB)
Universal Dock
Adapters
2.ConnectiontopowerviaPowerAdapter
Connect the AC Adapter into the DC in jack and plug the AC Adapter into the wall outlet.
(Figure 3)
3. Connection to power via battery (battery not included)
Please open the battery compartment cover at the bottom of the unit, and install 4 pcs AA
batteries (not included). Check the polarity of the batteries to match the "+" "-" markings
inside the battery compartment. (Figure 4)
Power supply
Power pack
Figure 3
Figure 4
Wharfedale iPod speaker
digital music system

4
4. Connection of other audio devices by audio cable
You can connect other audio device, like MP3 or any iPod without a dock connector by using
the included 3.5mm audio cable to the audio in jack.
Note:
Note:
When iPod is docked and audio in is connected with other device; other device will be the priority
sound source.
During music playback by using audio in, it's suggested to adjust your audio device loud enough
to ensure the best sound quality. Then adjust the Wharfedale iPod speaker volume buttons on top
to control the volume level.
5.ConnectiontoTVtoenjoyiPodvideooutput
Use the provided 3.5mm to RCA video cable to connect the 3.5mm end into the
Wharfedale iPod speaker video out jack, and the RCA end to the TV. You can enjoy
Video and Photo Slideshow through your TV.
Note:
Note:
Remember to set your iPod TV out setting as TV on before enjoying photo or movie.If you have any
questions in setting up your TV for iPod,please visit : .
It only supports photo slideshow viewing and not for showing the status of the thumbnail
preview of photos.
www.apple.com/support/ipod
Figure 6
Wharfedale iPod speaker
digital music system
TV
Wharfedale iPod speaker
digital music system
MENU
iPod
Figure 5
With all the connections are done,Wharfedale iPod speaker is ready to use now.
Once power adapter is connected,Wharfedale iPod speaker is power on automatically
with the Power LED on top lighted up. Place your iPod into the
dock, you should hear the music immediately. If you don't,
please refer to "Troubleshooting".Once your iPod is docked,
power is recharged automatically until it's fully charged.
You can increase or decrease the volume by pressing " "
and " " button respectively.To power off the system,
please press " " button on the top.
USING THE SYSTEM
Figure 7
GETTING STARTED

5
TROUBLESHOOTING
In case of malfunction, please power off the system immediately and check the unit according
to following table. If the problem still exists, please contact the dealer or the manufacturer.
- Please ensure proper bracket is placed for
your iPod.(Refer to "Placing a correct dock
insert"onpage3.)
- Unplug the iPod from the docking station to
see any obstructions in the connector or in
your iPod.
Solution
Symptom Problem
iPod / Audio source
is not responding
iPod does not dock
properly
3.5mm headphone cable
isn't connected properly
- Connect 3.5mm headphone cable to the
audio source. Make sure the signal cable is
inserted firmly into the correct jack & is fully
connected in the "line-out", "audio-out", or
theheadphonejackonyoursoundcardor
other audio source.
- Press the "Power" button, if there is no
the indicator of the iPod, please
button again.
change on
press the "Power"
Power cable is not
connected
- Make sure the Wharfedale iPod speaker is
plugged in and the LED is illuminated.
- Make sure the Wharfedale iPod speaker is
with battery and the battery is working if
Wharfedale iPod speaker is not plugged in.
Power isn't turned on
No Sound
Volume Level too low -Thevolumelevelmightbetoolow,press
"Volume" button on the panel to adjust.
-MakesureyouriPodison,andatrackis
selected for playback.
No playable file on iPod
Your iPod is not charging
-Makesurethepowercableissecurely
plugged in to a functioning wall socket.
The symbol on the small connector is
matched with that on rear panel of the
Wharfedale iPod speaker.
(RefertoFigure4onpage4.)
- Make sure your iPod is firmly seated in
the dock.
After quickly undocking
or docking your iPod
- Remove your iPod from the dock, wait for 5
seconds, and return it to the dock.
-Unplugthepowercablefor1minute,then
plug it back to reset the system.
iPod does not dock
properly
- Remove your iPod from the dock, wait
briefly, then reset it. You may need to do
this for few times.

TROUBLESHOOTING
Solution
Symptom Problem
- Slide the volume button on the panel to
volume.
reduce
Sound distortion
Volume level too high
- Distortion and noise are easily noticed with
high-powered speakers when playing poor
quality audio source, esp. WAV and MID
files.Tryadifferentaudiosourcesuchasa
musicCDorchangebetterqualityaudio
player.
Sound source
is distorted
System is not
Responding Mal-operation
-Unplugthepowercable.After1min,plug
it again to reset the system.
- Please contact customer service about this
problem.
Note:
Wharfedale iPod speaker
Plug the iPod into the docking station ,the docking station will recharge its battery
until the battery is full. To turn off the system of
completely, please remove the iPod from the docking station and disconnect
the power supply of the system.
6
Specification
Output Power: 3 W x 2
Driver: 2'' x 2
Rated Load Impedance: 6 Ohms
DC Adaptor Output: 6V/2A
Frequency Response: 100Hz~20kHz

Standard complied with: S/T 11217-2000
