ARISIT ACS60AX-L User manual

IMPORTANT // PLEASE ENSURE THAT YOU READ THROUGH THIS SERVICE MANUAL PRIOR TO INSTALLATION
AND USE. THIS MANUAL CONTAINS IMPORTNANT INFORMATION TO ENSURE OPTIMAL PERFORMANCE AND
KEEP YOU SAFE. PLEASE RETAIN YOUR PROOF OF PURCHASE, AS THIS WILL BE REQUIRED IN THE EVEN
THAT YOU REQUIRE WARRANTY SERVICE. REMEMBER TO RETAIN THIS MANUAL FOR FUTURE REFERENCE.
SERVICE MANUAL
600-900 // SLIM CANOPY
RANGE HOODS
ACS60AX-L, ACS90AX-L
Version 1.4
, ACS60AB-L, ACS90AB-L

Exploded View
pg 1/3
SLIM CANOPY RANGE HOODS

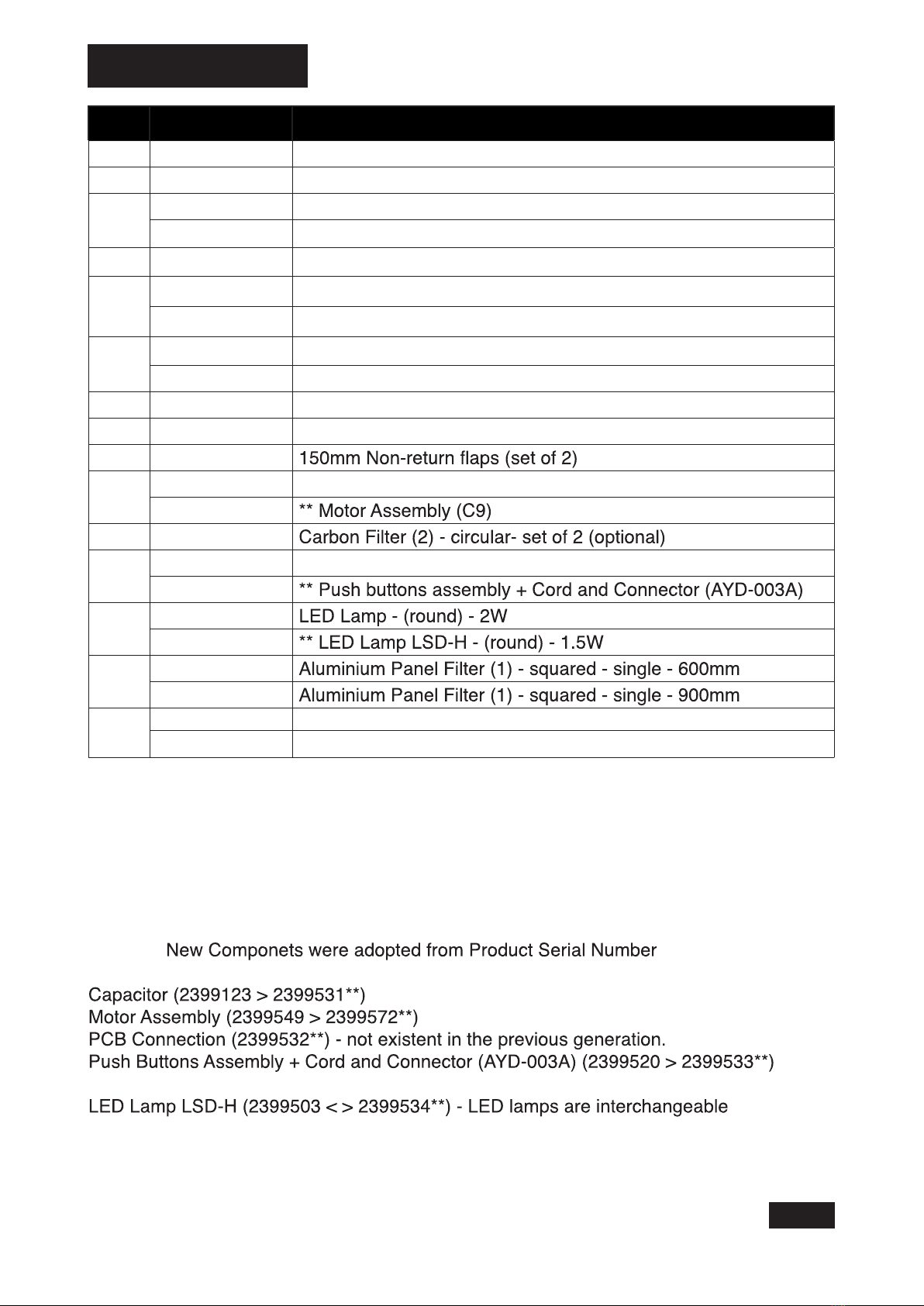

Parts List
pg 2/3
ID PART NUMBER DESCRIPTION
1 2199109 Plug and cable
3 2399122 Top Chimney Bracket
42399118 Top Chimney Cover SS
5 2399121 Bottom Chimney Bracket
62399117 Bottom Chimney Cover SS
82199123 Capacitor
2399531** ** Capacitor
9 2399532** ** PCB Connection
11 2199130 Wall mount bracket
14 2306011.401
15-18 2399549 Motor Assembly
2399572**
19 * 2306011.005
22 2399520 Push buttons assembly
2399533**
24 2399503
2399534**
25 2199101
2199103
*2399107
*Optional
**NOTE: AT-09621-00XXX.
SLIM CANOPY RANGE HOODS
2399125 Top Chimney Cover BK
Bottom Chimney Cover BK2399124
2399126 Bottom Chimney Extension BK (1000mm high) - 312x272mm
Bottom Chimney Extension SS (1000mm high) - 312x272mm

Wiring Diagram
pg 3/3
SLIM CANOPY RANGE HOODS
