Introduction
Introduction
Arista NetVisor UNUM
™
Unified Management, Automation, and Analytics Platform Software is an
application portal originally developed by Pluribus Networks.
Arista NetVisor UNUM is an agile, multi-functional web management portal that enhances the intrinsic
automation of the Unified Cloud Fabric architecture. It combines an elastic big data database and intelligent
analytics engine with an intuitive and consistent user interface that allows seamless navigation across fully
integrated management and analysis modules.
Arista NetVisor UNUM liberates network operators from the complexity of provisioning and operating a
complex network, or groups of networks, by automating the complete network life cycle from
implementation to operation and optimization, enabling intent-based network operations with vastly
reduced deployment times.
Arista UNUM Management Platform

5 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Introduction (cont'd)
Arista NetVisor UNUM enables the network administrator to extract analytical value from the telemetry
data reported by the network switches powered by the NetVisor OS network operating system.
Once data is collected, Arista NetVisor UNUM relies upon a modern search engine database infrastructure
to store, aggregate, filter, correlate and visualize vast amounts of data in real-time as well as with a powerful
time machine functionality.
The Arista NetVisor UNUM portal provides a collection of feature-rich applications that manages and
orchestrates the gathering and presentation of network analytics using various types of collectors and
reporting software.
The UNUM applications rely primarily on features of the NetVisor OS, such as vFLOWs, mirrors, and
connections statistics, and can also provide analytics in a non-Arista environment.
At a high-level, Arista NetVisor UNUM supports the following deployment scenarios:
· NetVisor OS as a mirror switch; an out-of-band switch is configured as a mirror in either an existing
Arista-switched network or a non-Arista-switched network.
· NetVisor OS as an inband switch; stats are pulled directly from configured switches such as
connections, vports, ports, tunnels and, vflow-stats.
· Collectors gather network analytics and feed data into the Arista NetVisor UNUM analytics store(s):
§The Collector uses the vREST API to gather the analytics data from NetVisor OS.
Arista NetVisor UNUM manages the following applications:
· Common Infrastructure – a centralized portal launches other applications, provides authentication to
the corporate directory (using LDAP), and provides configuration of standard settings.
· Insight Analytics – this application provides reporting and Search capabilities on data collected from
Arista NetVisor UNUM collectors.
· Switch Analytics – Switch Analytics contains a feature-rich set of management tools providing Traffic
Monitoring and Notification services with exceptional drill-down capabilities.
· Fabric Manager – Fabric Manager contains a feature-rich set of management tools providing
configuration tools for Layer 1, Layer 2, and Layer 3 services as well as Security, Monitoring, Analytical,
and Service features.

6 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Glossary
Glossary of Arista NetVisor UNUM and Arista NetVisor OS Terms
To review the Glossary of Arista NetVisor UNUM and Arista NetVisor OS Terms, please refer to to the HTML
document.

7 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Specifications
Specifications Arista NetVisor UNUM High Capacity Appliance
UNUM High Capacity Appliance Specifications
Software Requirements & Specifications
UNUM Virtual Machines - Software Requirement & Specifications

8 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Specifications (cont'd)
Arista NetVisor UNUM Fabric Manager Scalability Matrix
UNUM Fabric Manager Scalability
Arista NetVisor UNUM Insight Analytics Scalability Matrix
UNUM Insight Analytics Scalability

9 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Specifications (cont'd)
Arista NetVisor UNUM 6.3.2 Licensing
UNUM Licensing Information
For more information about the Hardware and Specifications and Scalability please refer to the Arista
NetVisor UNUM Platform Data Sheet.

10 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Physical Installation
Physical Installation
Please refer to “ Server Installation ” section in the Users Manual (MNL-1662). Follow the “Manuals” link at
the following location:
https://www.supermicro.com/products/system/2U/2028/SYS-2028TP-HTTR.cfm
Please review and follow all Warnings! outlined in the above documentation.

11 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Hardware Overview
High Capacity Appliance Hardware Overview
The 2RU Arista NetVisor UNUM High Capacity Appliance is a unique server system. With four system
boards incorporated into a single chassis acting as four separate server nodes.
Server Nodes
Each of the four server boards act as a separate server node in the system.
As independent server nodes, each may be powered off and on without affecting the others.
In addition, each server node is a hot-swappable unit that may be removed from the rear of the chassis.
The server nodes are connected to the server back-plane by means of an adapter card.
Note: A guide pin is located between the upper and lower server nodes on the inner chassis wall. This
guide pin also acts as a “stop” when a server node is fully installed. If too much force is used when
inserting a server node this pin may break off. Take care to slowly slide a server node in until you hear the
“click” of the locking tab seating itself.
Each Server node consists of:
Processors
Dual Intel® Xeon® E5-26x series processors.
Memory
Sixteen DIMM slots supporting 256 GB of ECC RDIMM (Registered DIMM) memory.
Serial ATA
A Serial ATA controller is integrated to provide dual 1.2 TB SSD Drives.
Warning: The SATA drives are physically hot-swappable units, however doing so during regular operation
results in loss of data in the Arista NetVisor UNUM High Capacity Appliance.
Recommended Procedure: Under normal operation, power down the server node and data redistribute
across the nodes, and then the SATA drives can be safely removed without data loss.

12 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Hardware Overview (cont'd)
Onboard Controllers/Ports
An Intel Gigabit (100/1000/10000 Mb/s) Ethernet dual-channel controller is included. Using an AOC Card
not a supported configuration.
I/O ports include a VGA (monitor) port, two USB 3.0 ports, an IPMI dedicated LAN port and two Ethernet
ports, Eth0 and Eth1. Eth0 is used for Management, Eth1 is used for internal server node to server node
communications.
Eth1 must be isolated from the public network.
Other Features
Other onboard features that promote system health include onboard voltage monitors, auto-switching
voltage regulators, chassis and CPU overheat sensors, server node manager software and BIOS rescue.
Server Nodes

13 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Hardware Overview (cont'd)
Server Chassis Features

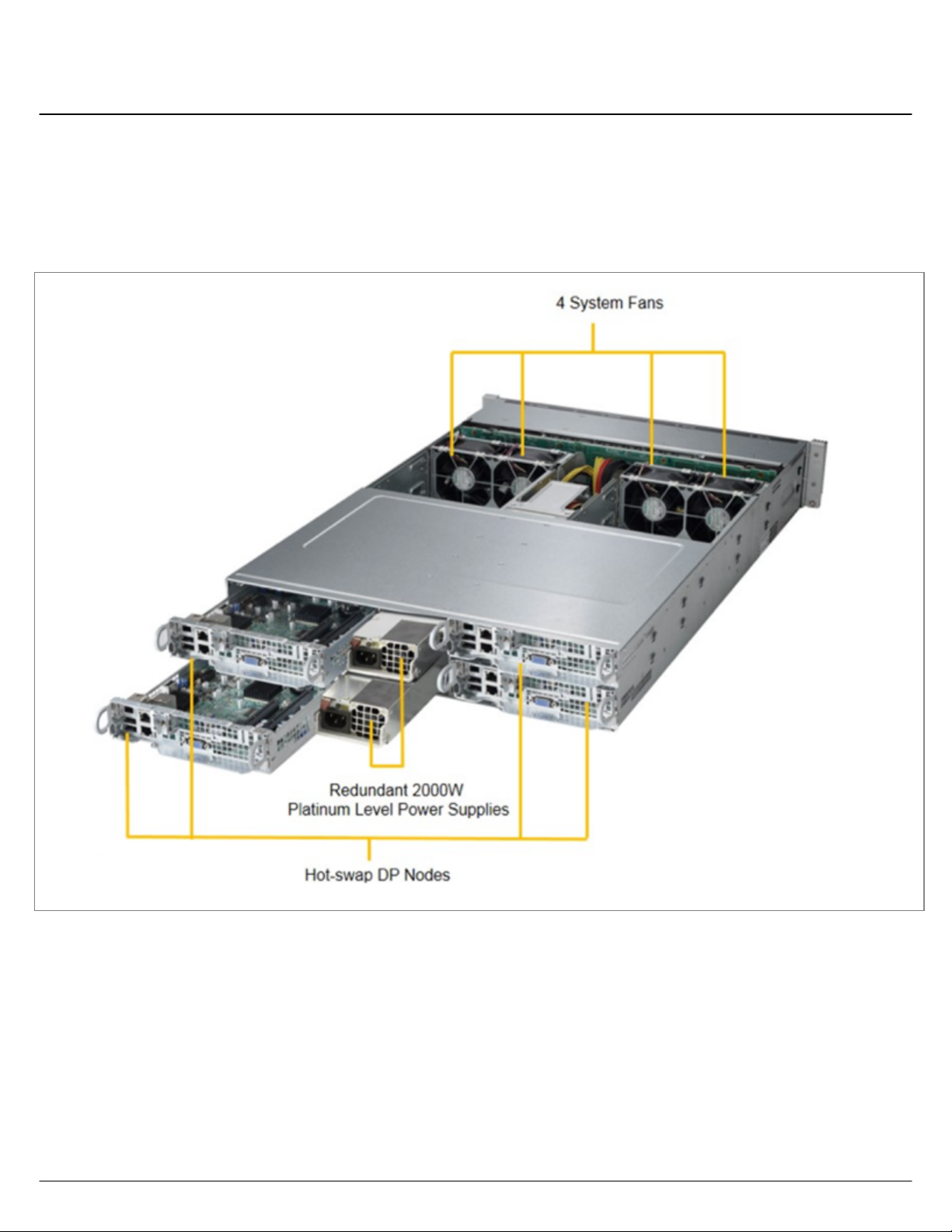

The following is a general outline of the main features of the appliance chassis.
System Power
Each chassis model includes redundant, hot-plug high-efficiency 80-plus Platinum certified power supplies,
rated at 2000 Watts. In the unlikely event your power supply fails, replacement is simple and can be
accomplished without tools. An amber light will be illuminated on the power supply when the power is off.
An illuminated green light indicates that the power supply is operating.
Cooling System
The chassis contains four system fans, which are powered from the back-plane.

14 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Hardware Overview (cont'd)
Mounting Rails
The Arista NetVisor UNUM High Capacity Appliance includes a set of quick-release rails, and can be placed
in a rack for secure storage and use. To setup your rack, follow the step-by-step instructions included in the
SMCI manual.
Server Chassis Features

15 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
System Interface
High Capacity Appliance Interface
There are several LEDs on the control panel and on the drive carriers to keep you constantly informed of
the overall status of the system.
This chapter explains the meanings of all LED indicators and the appropriate response you may need to
take.
LED Indicators
Control Panel Button
Power
The main power button on each of the four control panels is used to apply or remove power from the power
supply to each of the four server nodes in the chassis.
The power button has a built-in LED which will turn green when the power is on.
Each of the four server nodes are powered on and off individually.
Powering off one server node does not affect the power of the other server nodes.
Turning power off with this button does not remove power from the chassis, hence caution must be used
when servicing.
UID
The UID button is used to turn on or off the blue light function of the LED.
Once the blue light is activated, the unit can be easily located in very large racks and server banks.

16 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
System Interface (cont'd)
Control Panel LEDs
The four control panels are located on the front handle of the chassis.
Each control panel has two additional LEDs.
These LEDs provide you with critical information related to different parts of the system.
This section explains what each LED indicates when illuminated and any corrective action you may need to
take.
Alert
This LED is illuminated when an alert condition occurs:
· A solid red light indicates an overheat condition in the system
· A flashing red light which flashes in one second intervals indicates a fan failure
· A flashing red light which flashes in four second intervals indicates a power failure
When notified of an alert, check the routing of the cables and make sure all fans are present and operating
normally.
You should also check to make sure that the chassis covers, and air shrouds are installed.
This LED will remain flashing or on as long as the temperature is too high, or a fan does not function
properly.
NIC
Indicates network activity on either LAN1 or LAN2 when flashing.
Drive Carrier LEDs
SATA Drives
Each drive carrier has two LEDs.
· Blue: When illuminated, this blue LED (on the front of the drive carrier) indicates
drive activity. A connection to the back-plane enables this LED to blink on and off
when that drive is being accessed
· Red: The red LED to indicate a hard drive failure.

17 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Network Connections
High Capacity Appliance Network Interface
After installation of the Arista NetVisor UNUM High Capacity Appliance, network activity must be setup as
follows (please refer to the figure below for proper connections):
1. For proper operation the Arista NetVisor UNUM High Capacity Appliance requires a separate 1G or 10G
switch for connectivity between eth1 on all Server nodes.
2. Connect your Management Network to Eth0 (1G or 10G) on Server node A. By default, Server node A
(Host) is configured for DHCP. To set a static IP, see Appendix A.
3. It is required to connect Eth1 into an isolated 1G or 10G switch. Server nodes will communicate via Eth1,
with the following IP Addresses:
a. 172.16.250.150 - 172.16.250.162
4. Plug in redundant power connections with the provided cables ONLY and power up.

18 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Network Connections (cont'd)
High Capacity Appliance Network Interface (cont'd)
Network Connections

19 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Network Connections (cont'd)
High Capacity Appliance Network Interface (cont'd)
NOTE: Eth1 connections are not configured on a VLAN, please contact Arista Technical support if one of
the following must occur:
· More than one Arista NetVisor UNUM High Capacity Appliance plugged into the same switch (by
default, all appliances come with the same pre-configured Eth1 IP addresses), and each Appliance
isolated in a separate and dedicated VLAN.
· You want to change the default Eth1 IP Addresses of: 172.16.250.150 - 172.16.250.162.
5. Connect VGA console and IPMI as desired. IPMI default configuration is DHCP.
6. USB connections are not advised.
7. The Arista NetVisor UNUM High Capacity Appliance, comes with the Arista NetVisor UNUM software
pre-installed.
8. Upon boot up, by default Arista NetVisor UNUM will use DHCP to obtain a Management / eth0 IP
address. If a Static IP is desired, see Appendix B.
9. It is highly recommended that the default root password of your Server nodes be changed from test123.
NOTE: It is required that all Server nodes have the same root password.
To change the root password of your Server nodes, you can do the following:

20 NetVisor UNUM High Capacity User Guide: 2022.6.3.2
Network Connections (cont'd)
Log onto each Server node as root using the ESXi web client (or vSphere client if you have access):
VMware Welcome Screen
