Arkon SP4590 User manual

SP4590
Wireless Stereo 900MHz
Speaker System
User’s Manual
Please read before using the equipment

INTRODUCTION
This 900 MHz stereo wireless speaker system uses latest wireless technology that
enables you to enjoy music and TV sound anywhere inside or outside your home.
You can simply connect the system to any audio source such as Radio, TV, VCR,
Hi-Fi and iPod/CD/MP3/VCD/DVD player. Without complicated wiring and
installation with your Audio/Video equipments and rear channel amplifier, the
system enables you to enjoy thrilling, lifelike sound stereo in minutes.
FEATURES
zAutomatic Phases Lock Loop (PLL) scanning system on speaker receivers
zPhase Lock Loop (PLL) transmission system on transmitter
z863 MHz RF technology panel-like speaker systems.
zRF technology lets you roam freely throughout your house.
zOperating distance up to 150 feet
zNo line of sight limitation.
zVirtually interference free stereo quality.
zALC and auto ON/OFF control.
zAuto tuning function.
zStereo (L and R) and Mono Selection
zRemote Control
PACKAGE INCLUDES
1 x Transmitter
1 x AC/DC 8V 200mAPower Adaptor for Transmitter
2 x Speakers
2 x AC/DC 9V 1.2APowerAdaptor for Speakers
1 x 1.5M Long Audio Cable
1 x Short "Y-Cord" RCAAdapter Cable.

COMPONENT IDENTIFICATION
TRANSMITTER
SPEAKER RECEIVERS
REMOTECONTROL
1. Power LED Indicator
2. Signal LED Indicator
3. Audio In
4. Channel Selector
5. DC In For Transmitter
6. InfraRed Receiver
7. Volume Up
8. Volume Down
9. Tune
10. Power On/Off
11. Power/Signal LED Indicator
12. Battery Compartment
13. Left / Mono / Right
14. DC In For Speaker
15. Power On/Off
16. Volume Up
17. Tune
18. Volume Down
19. Mute
20. Lanyard Ring

INSTALLATION
TRANSMITTER

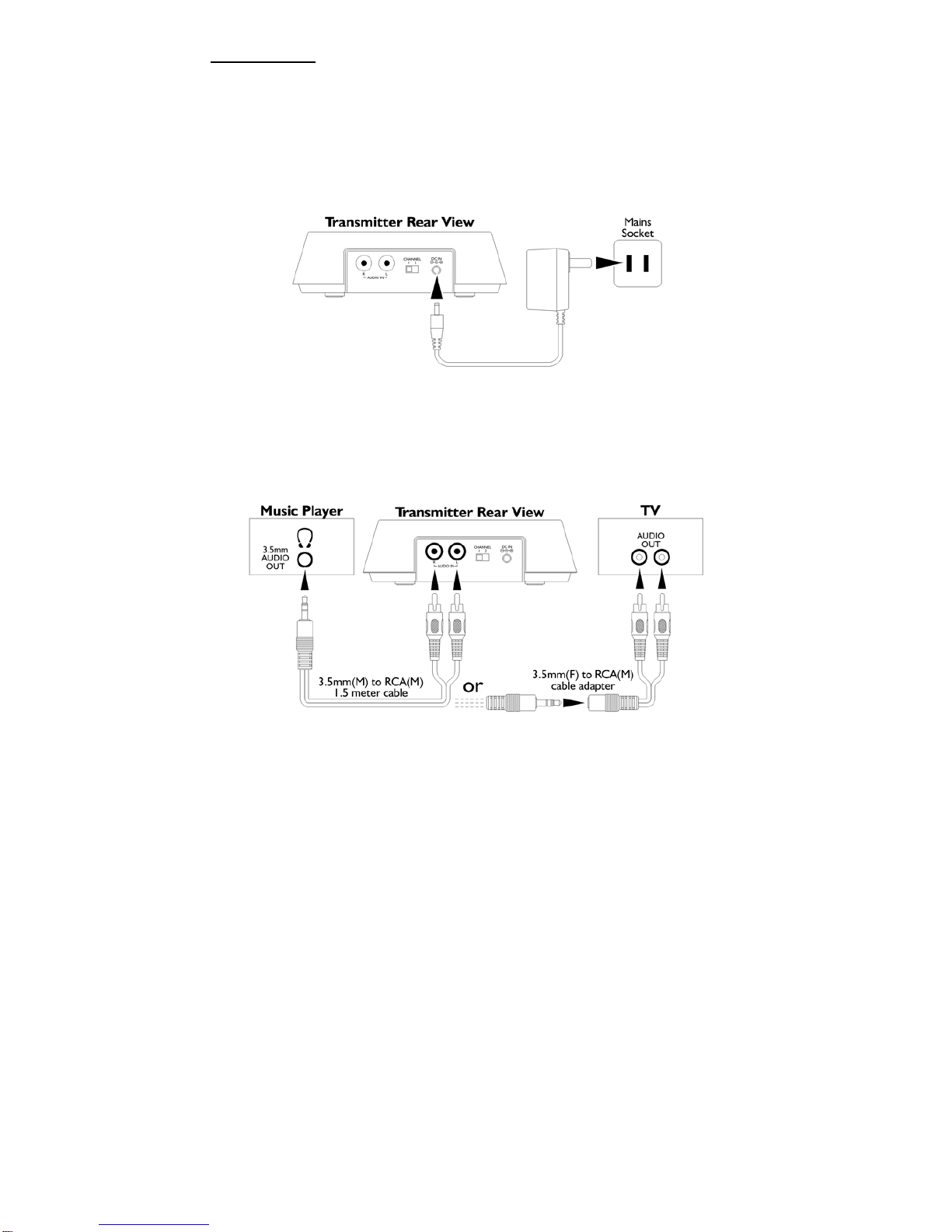

1. Plug the supplied 8V AC/DC power adaptor in the DC jack located on the rear of the transmitter.
2. Connect the supplied 8V AC/DC power adaptor to an electrical wall outlet. The Power LED
then glows.
3. The transmitter can be connected to audio output jack of TV, Monitor, VCR, Radio, CD,
MP3/iPod, VCD or DVD players with the cables provided.
Having finished the above simple wiring, Signal LED glows when the transmitter detects audio input
signal played from the source.

SPEAKER RECEIVERS

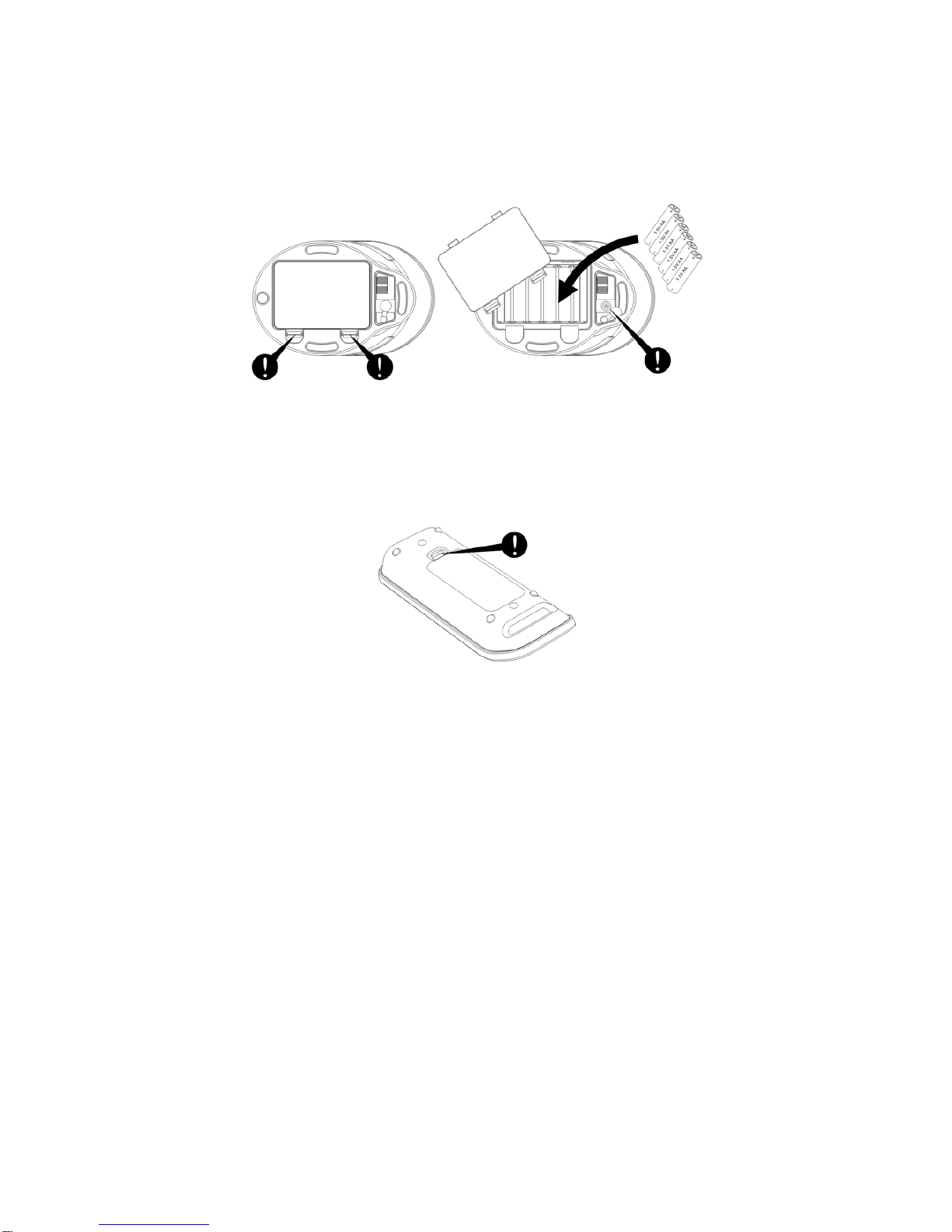

1. Remove the door of the battery compartment.
2. Insert 6 pieces of ‘AA’ size ALKALINE batteries into the battery compartment with correct polarity
under the speakers, then replace the door of battery compartment, or connect the provided
AC/DC 9V Adaptor to the DC input jack under the speakers, then plug it to the wall AC outlet.
REMOTE CONTROL
1. Remove the door of the battery compartment.
2. Insert 2 x AAA 1.5V batteries(not included) into the compartment.

OPERATION
1. Turn on the audio source to which the transmitter is connected with. The Signal LED on
transmitter will light up.
2. Select a channel of the transmitter for best performance in your location.
3. Select the L/M/R (Left/Mono/Right) selector under the speakers, one to L (Left) and the other to
R (Right) for the best stereo reception. In case the audio device only provides Mono audio signal,
select to M (Mono) for the best mono reception.
4. Press the “POWER” button on the speaker to turn on the speaker. Press the “TUNE” button to
get the best tuning reception in the speakers. When the button is pressed, frequency tuning
starts automatically and it stops when a signal is detected.
5. Volume can be adjusted up from the speaker by pressing “ ” button or down by pressing the
button “ “, or by pressing “ + “ or “ – “ on the remote control, to the desired listening level.
6. Tuning

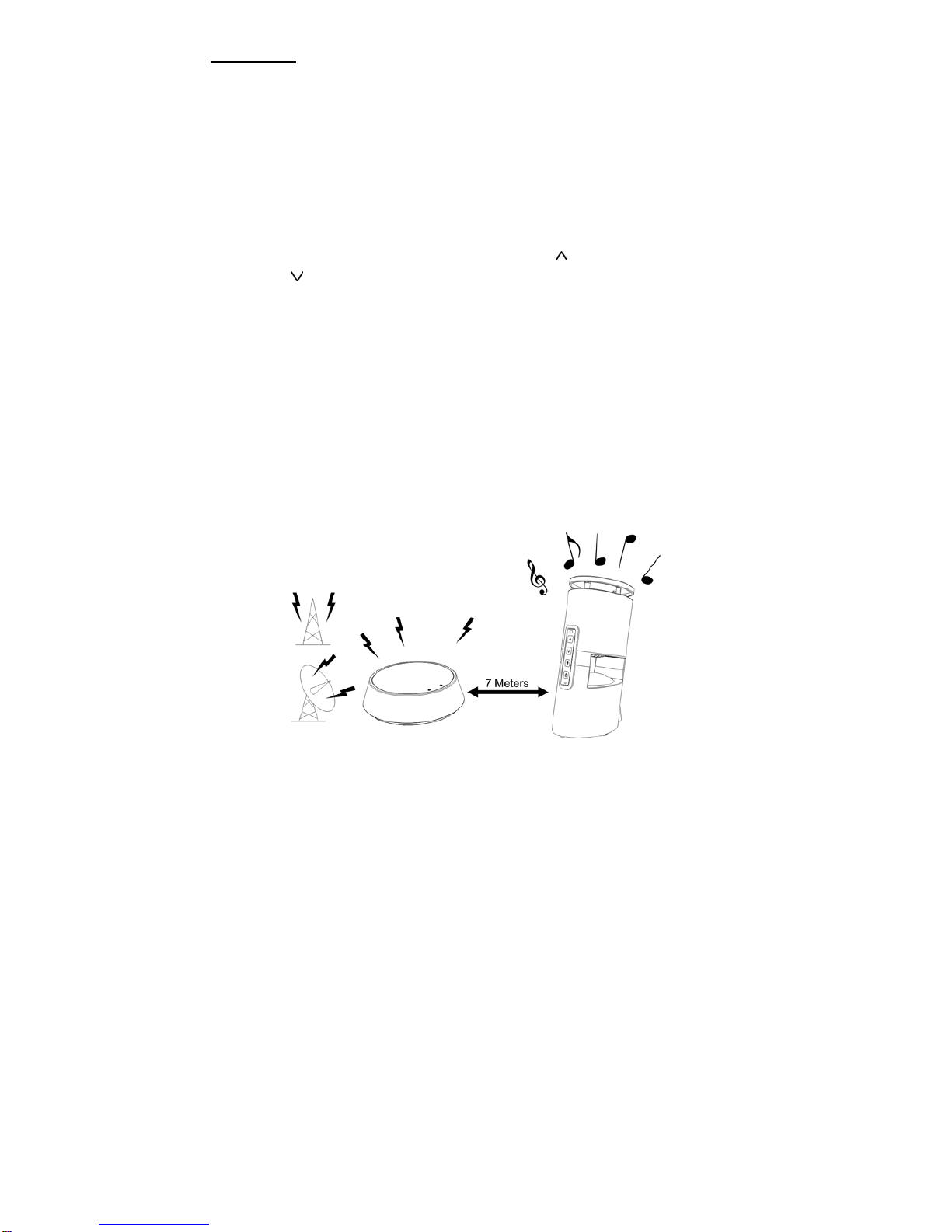

a) Keep a distance of 7 meters between speaker and transmitter, and then press the button
“ TUNE “ button for best tuning reception.
b). Once the frequency is jammed, select another channel on the transmitter, then press
“ TUNE “ button again.
7. Switching Off
a) For protection of the transmitter and power saving, the transmitter will cut off
automatically if there is no/weak operation input signal from audio source for 4 minutes. In
other words, if the signal comes back, the transmitter will work again automatically.
b) Press the “POWER” button to turn off the speaker and the LED light goes off.

NOTE :
You should now be able to place the speakers freely from room to room without disruption. If
disruption should occur (signal breaks up), press the “TUNE” button under the speakers to maximize
best reception.
If you hear interference from other components, switch the channel control of transmitter, and then
move the speakers to other free location. You can re-adjust the tuning control by moving it among
channels of the transmitter, then pressing “TUNE” button of the speakers for best reception.
When transmitting / receiving over long distances, the signal from the system will become weaker.
TROUBLE SHOOTING
NO SOUND
zEnsure the AC adaptor is fully inserted into the AC outlet and the power connection input on the
transmitter.
zEnsure the speaker is switch ON.
zSpeaker’s battery capacity is too low, replace with new batteries or connect the AC adaptors to
the speakers.
zEnsure the TV or audio component is ON.
zThe connected audio / video equipment is not playing. Start playing the equipment.
zThe volume of speaker is too low, adjust the volume to an appropriate level.
DISTORTED
zPress the “TUNE” button under the speakers until the frequency between the transmitter and
speakers are matched.
zChange the position of the channel selector on the transmitter. You must then press the
“TUNE” button on the speakers.
zBattery capacity is too low. Replace with the new battery.
zEnsure the volume level of speakers is adjusted properly.
zThe speaker is too far away from transmitter, move them closer.
zThe input level of the audio signal is too low. Turn up the volume of the audio source
equipment.

TECHNICAL SPECIFICATIONS
Transmission Mode : UHF stereo
Carrier Frequency : 900 MHz
Operation Voltage : Transmitter, AC/DC 8V 200mA Power Adaptor
Speaker, AC/DC 9V 1.2A Power Adaptor, or
6 X ‘AA’ size Alkaline Batteries (not included)
Remote Control, 2 x AAA battery (not included)
Frequency Response : 40Hz – 12KHz
Distortion : 1.5%
S/N Ratio : 65dB
Channel Separation : 30dB
Operation Distance : Up to 150 feet (open area)
Output Power : 2 x 4W (RMS)
WARNING : Batteries (battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like.
FCC STATEMENT:
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IC STATEMENT:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment。

This device complies with RSS 210 of Industry Canada.
"Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device."
This Class B digital apparatus complies with Canadian ICES-003."
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
